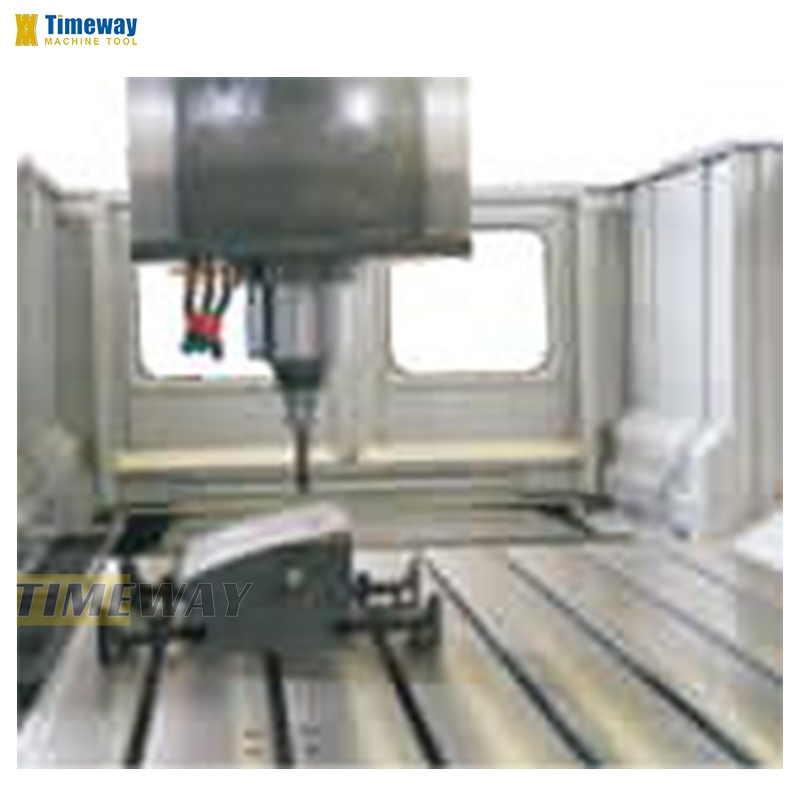

The machine is widely suitable for general machinery, automobile, aerospace, printing and packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing. In a single setup, it can complete the machining requirements of the remaining five sides other than the mounting surface, handling roughing, semi-finishing, and finishing operations. It is fully capable of milling, drilling, tapping, boring, reaming, and other complex processes.

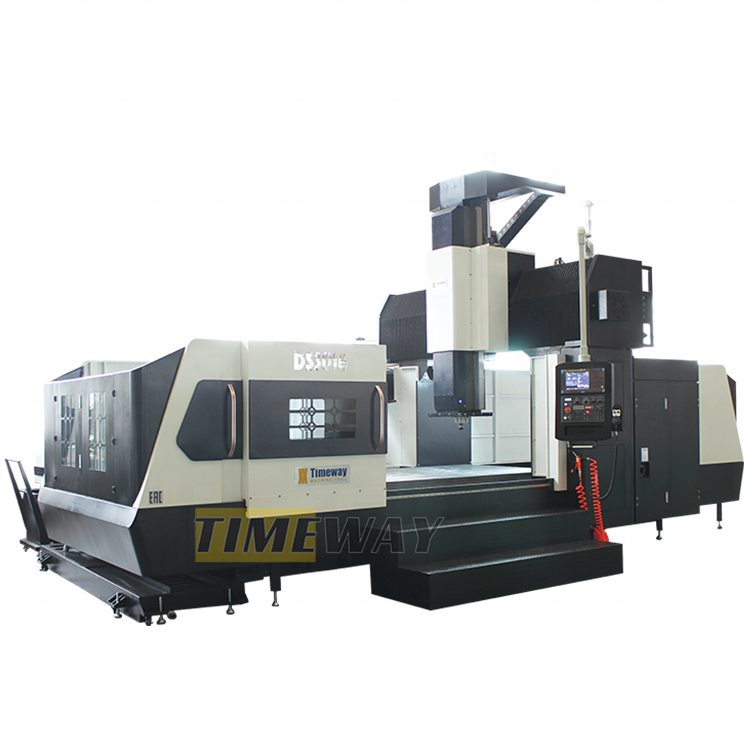

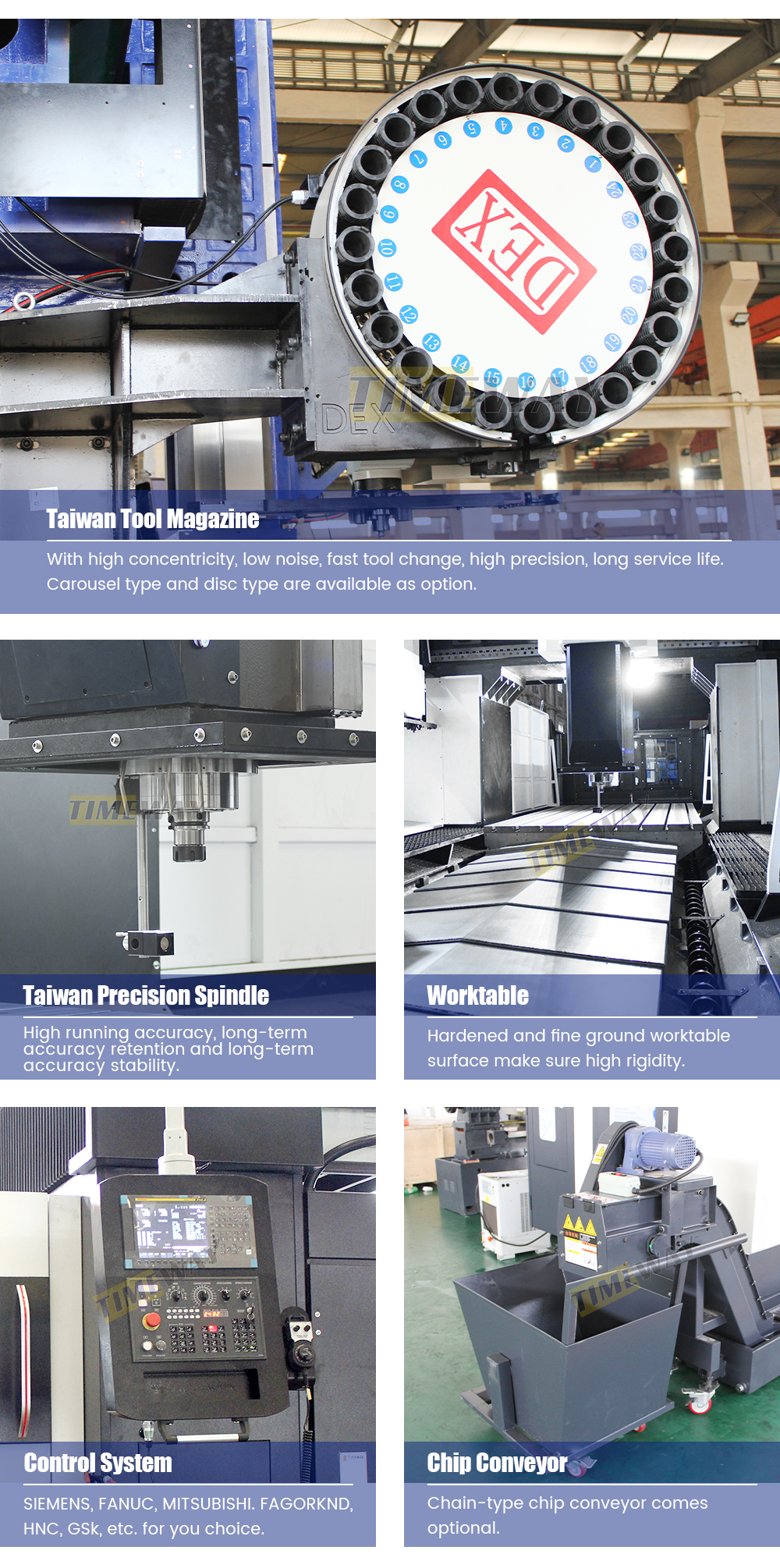

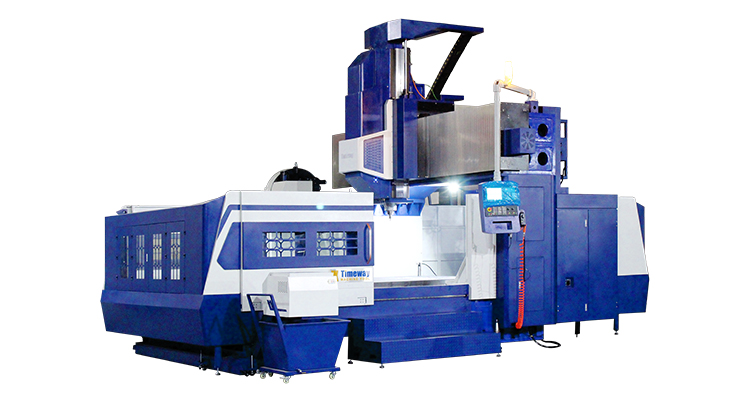

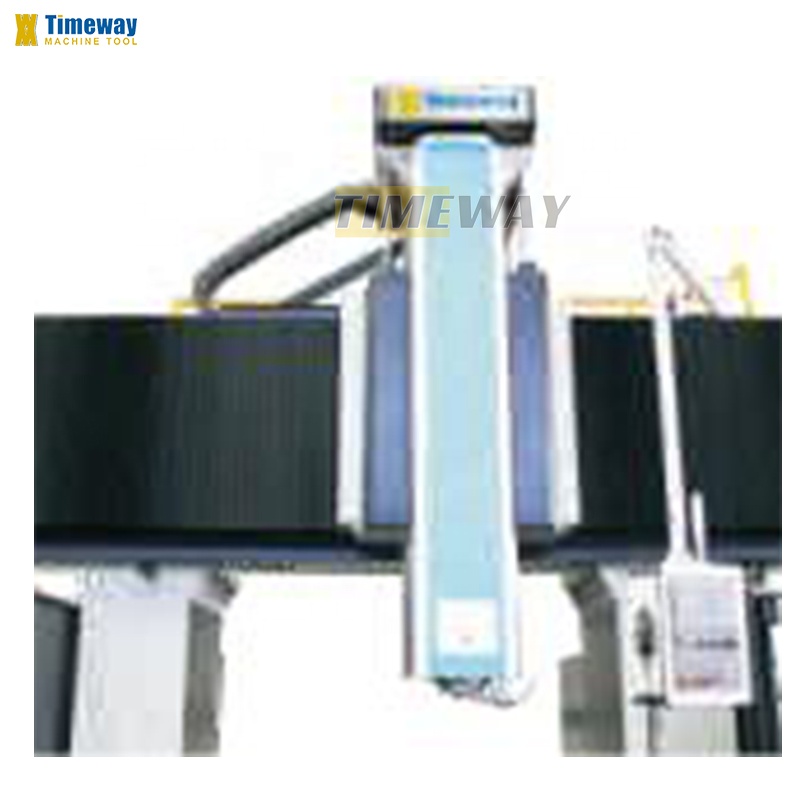

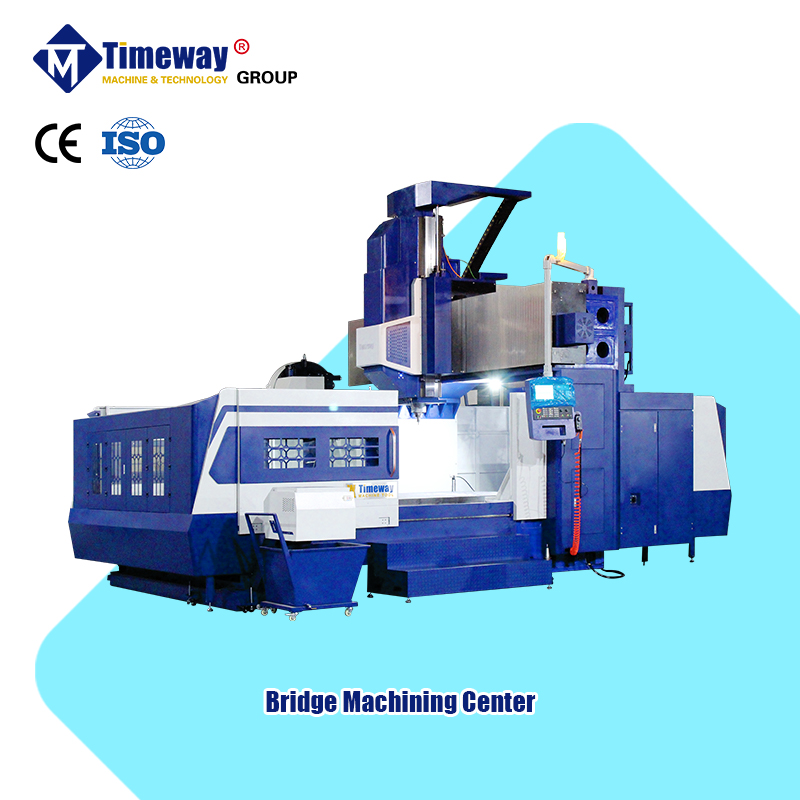

Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision, high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
| Specification | Unit | GMC1000 |
|---|---|---|
| X-axis travel | mm | 1000 |
| Y/Z-axis travel | mm | 1250/600 |
| Loading capacity | kg | 800 |
| Gantry width | mm | 1050 |
| Table width | mm | 820 |
| Table length | mm | 1300 |
| Main motor power | kw | 11/15 |
| ATC capacity (style) | tools | 24 (Disc) |
| Machine weight | tons | 10 |
