Heavy Duty BT50 Single GMC1530 Gantry Machining Center 1900mm Gantry Width High Efficiency CNC Milling Machine Cast Iron Steel

Product Description

Double Column Gantry Machining Center Intro

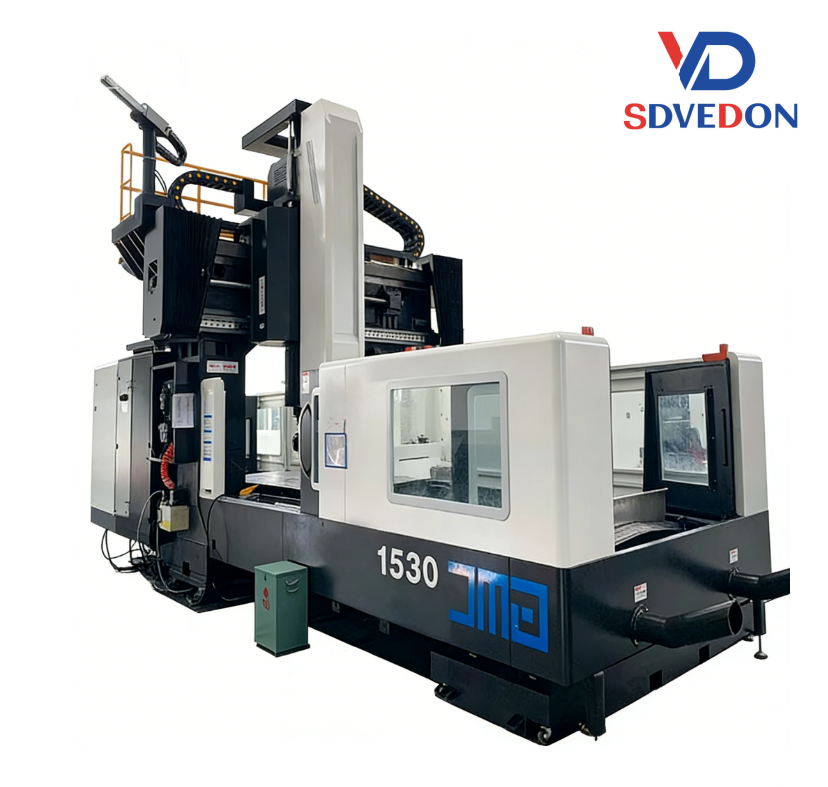

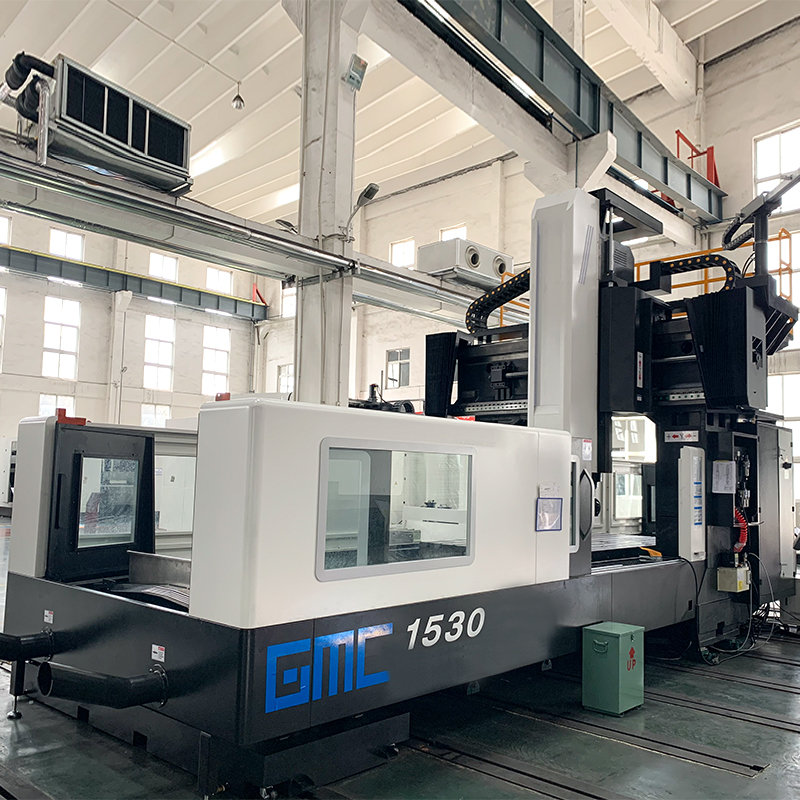

Gantry Machining Center Front View

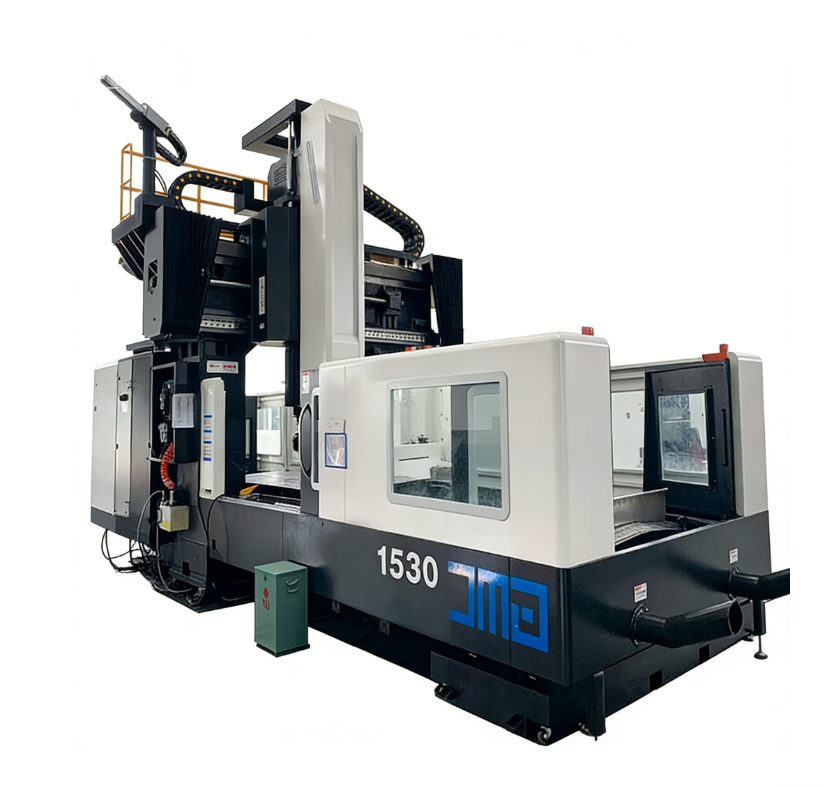

Gantry Machining Center Side View
A reliable partner for global industrial manufacturing.
Heavy Duty Machining Center Structure
CNC Machining Center Worktable

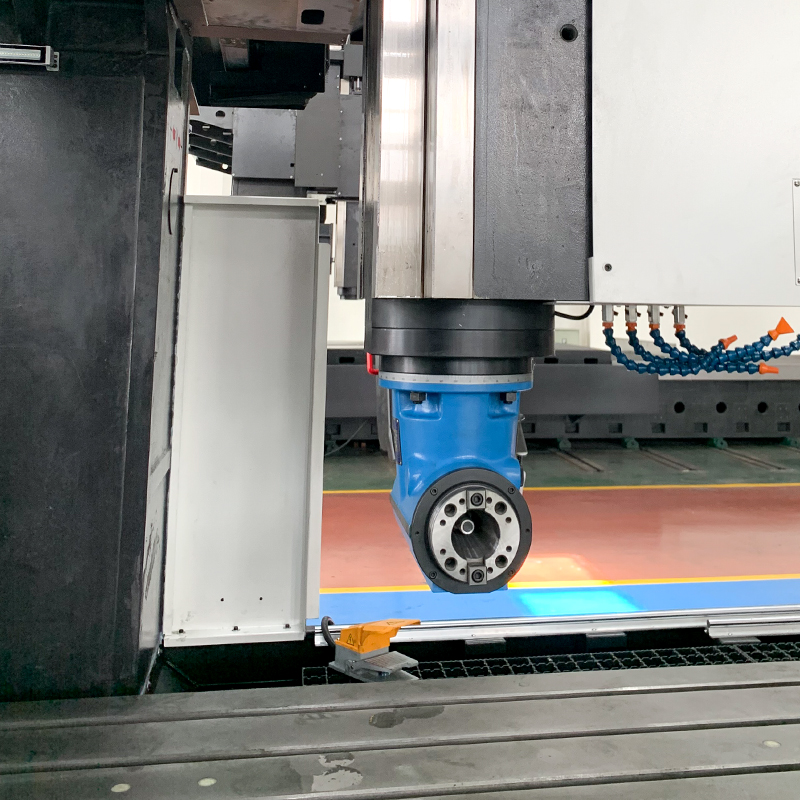

Precision CNC Milling Component
The GMC1530 is a heavy-duty double-column gantry machining center featuring high rigidity and precision. It is ideal for processing large, heavy workpieces across multiple fields such as mold manufacturing, auto parts production, and engineering machinery.

Its overall structure is stable, with an integral bed cast from high-strength Meehanite cast iron and a honeycomb cavity design inside. The bed undergoes vibration aging treatment and double tempering processes, which can effectively eliminate internal stress and ensure precision stability during long-term heavy-load machining.

The machine adopts a double-column fixed-beam gantry frame with a gantry width of up to 1900mm, providing ample space for machining operations. The worktable measures 1500×3000mm, with a maximum load capacity of 8000kg. Equipped with 9 T-slots of 28mm width, it enables secure clamping of workpieces.
CNC Gantry Milling Machine Assembly
Column Structure Design
Column Structure

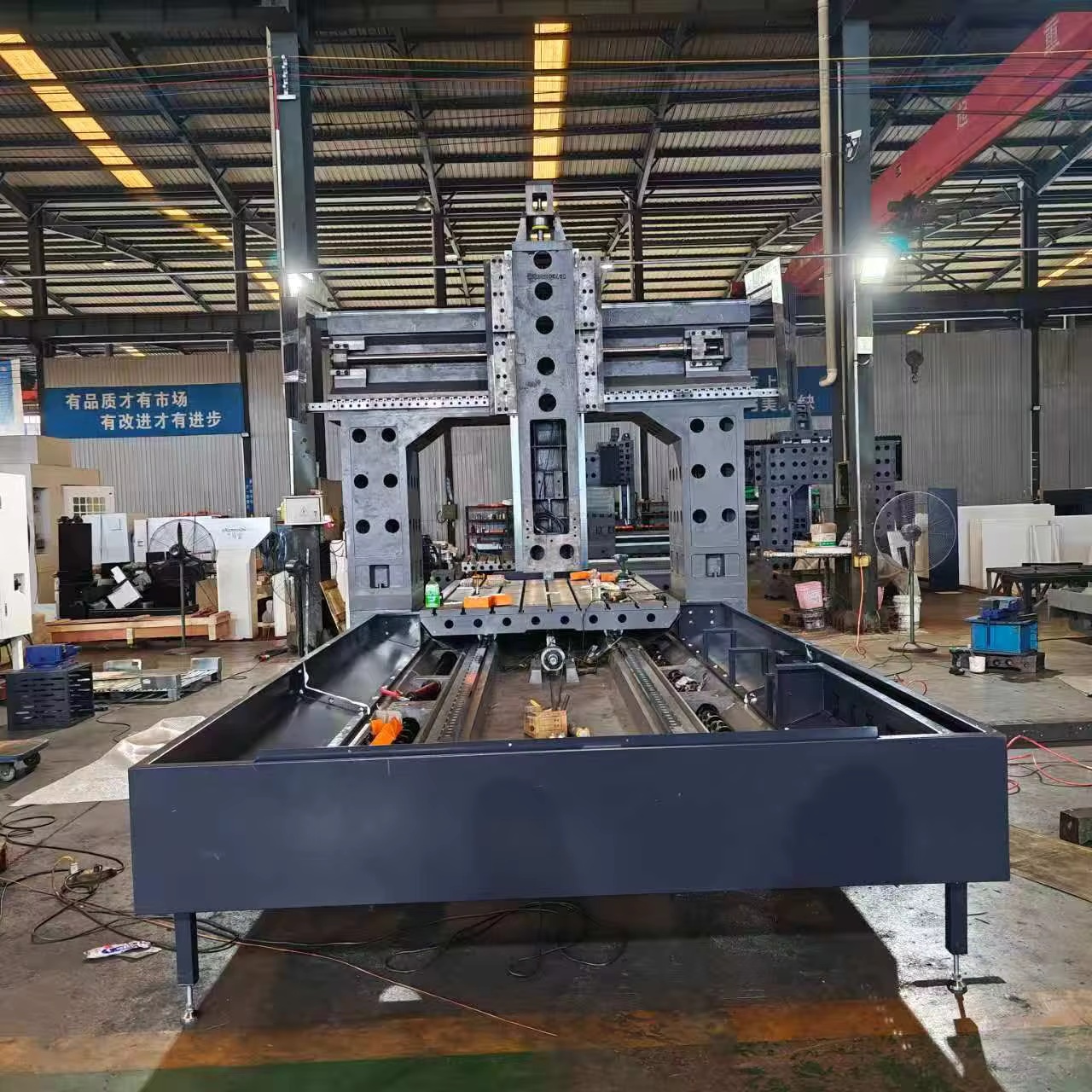

Adopting a double-column fixed-beam structure with a gantry width of 1900mm, it provides ample machining space and stable support. The columns are integrally cast from Meehanite cast iron, with an internal "honeycomb bionic design" to enhance rigidity. Vibration aging treatment is applied to eliminate internal stress, ensuring no deformation during long-term heavy-load operations. Equipped with heavy-duty linear guides for the Y-axis and an 8-sided box-rail square ram for the Z-axis, it further improves operational stability and rigidity.
CNC Controller System
CNC System

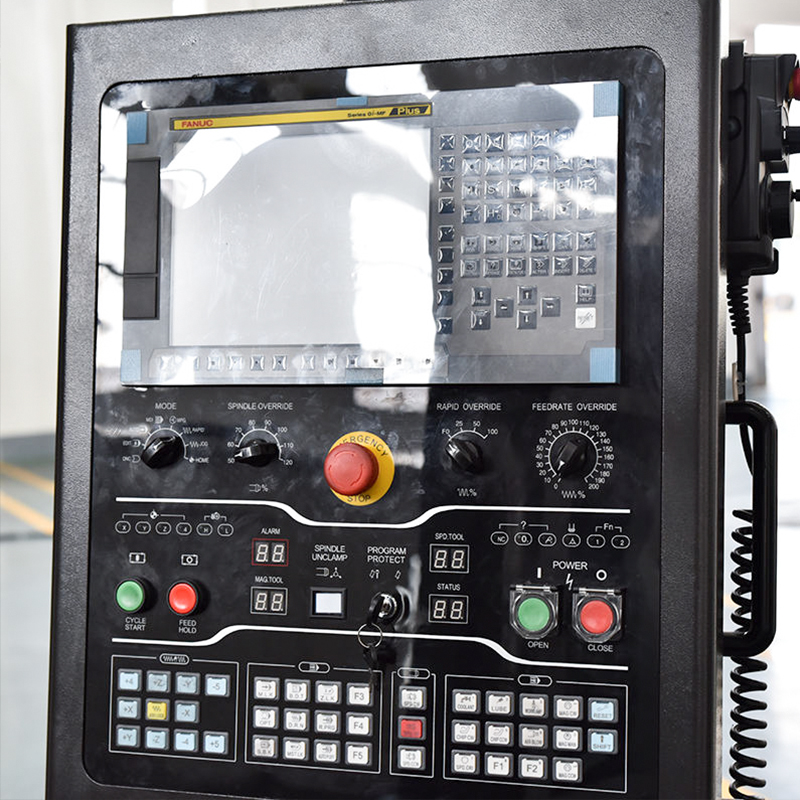

The standard configuration is the FANUC 0i-MF Plus CNC system, featuring stable performance, support for multi-axis control and arbitrary 3-axis linkage, as well as easy operation. Other brand systems such as Siemens 828D and GSK 25i can be optionally configured to meet the operational habits of different users and complex machining requirements.
Precision Ball Screw Axis
Ball Screw Structure

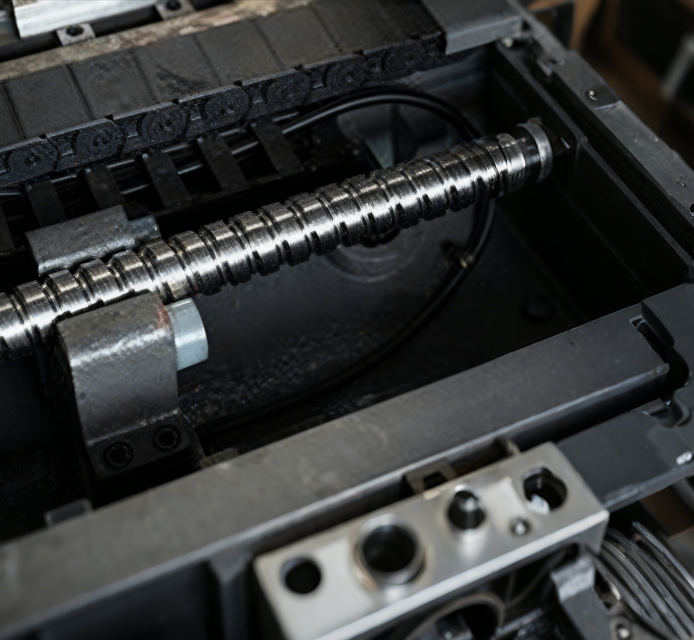

All X/Y/Z axes adopt precision ball screw drive, paired with AC servo motor drive. Some axes are driven by planetary gear reducers to achieve accurate positioning. The ball screws are installed with pre-tensioning to compensate for thermal elongation, ensuring precision stability during high-speed operation. Meanwhile, an automatic centralized lubrication system is equipped to extend service life.
CNC Tool Changer Magazine
Tool Magazine System

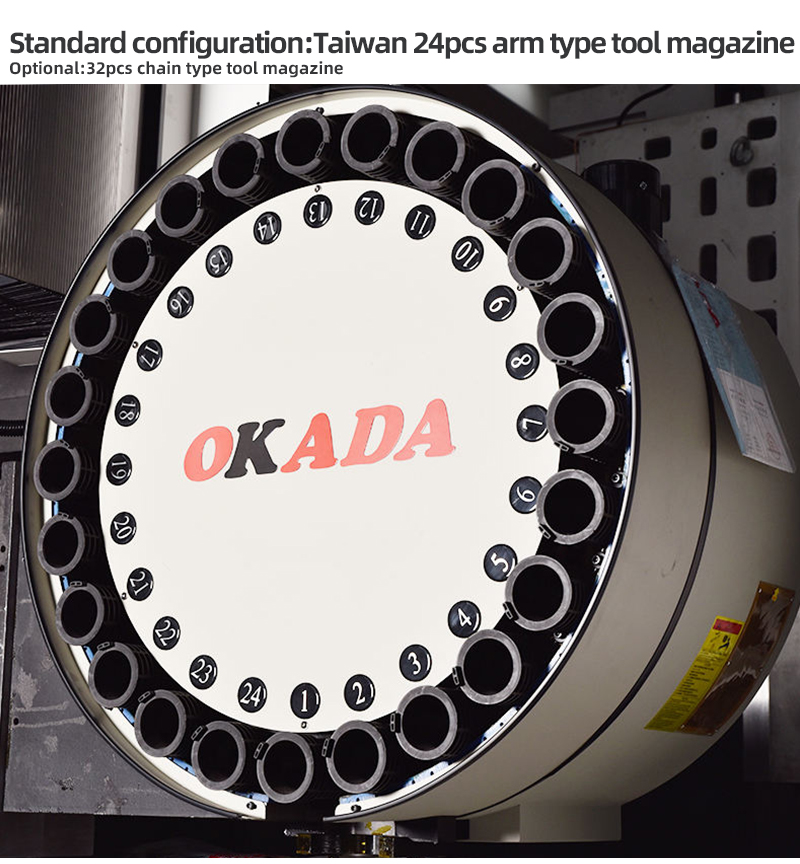

The standard configuration is a 24-tool arm-type tool magazine, which enables fast tool changing and precise positioning, satisfying the needs of continuous multi-process machining. A 32-tool chain-type tool magazine is available as an option to increase tool storage capacity, reduce tool change time, and further improve production efficiency.
Detailed CNC Machine Construction
Parameter Category Parameter Name Unit Standard Specification
Basic Specifications Worktable Size (L×W) mm 1500×3000
Max. Worktable Load kg 8000
T-slots (Quantity×Width×Spacing) mm 9×28×160
Gantry Width mm 1900
Travel Parameters X-axis Travel mm 3200
Y-axis Travel mm 2000
Z-axis Travel mm 1000
Spindle Nose to Worktable Distance mm 150 - 1150
Spindle Configuration Spindle Taper - BT50
Spindle Speed Range rpm 10 - 3000
Spindle Motor Power kW 15
Spindle Torque (Continuous Rating) N·m 477
Tool Magazine & CNC System Tool Magazine Capacity T 24
Tool Change Time (Tool-to-Tool) sec 3-4
CNC System - FANUC SIEMENS Mitsubishi GSK KND SYNTEC
Precision Indicators Positioning Accuracy (JIS Standard) mm ±0.020/300
Repeat Positioning Accuracy (JIS Standard) mm ±0.016/300
Structure & Drive Machine Base Material - Meehanite Cast Iron
Guide Rail Type - X/Y: Linear Roller Guides; Z: Box-type Hard Rails
Drive System - Precision Ball Screws + Servo Motors
Machine Dimensions Overall Dimensions (L×W×H) mm 7800×5000×4200
Machine Weight kg 28000
Power & Auxiliary Systems Power Supply Voltage - 380V/3Ph/50Hz
Cooling System - High-pressure Multi-nozzle Cooling
Chip Removal System - Dual Spiral Chip Conveyors
Lubrication System - Automatic Centralized Lubrication
Machining Center Inside Structure
Machining Center Processing Display
We are a modern, high-tech manufacturer integrating R&D, manufacturing, sales, and service. We specialize in providing high-quality gantry machining centers, vertical machining centers, horizontal machining centers, CNC machine tools, and small cutting and drilling tools. Since our founding, we have consistently adhered to the core principles of "innovation, quality, and reliability," striving to create outstanding industrial value for our global customers. Adhering to the philosophy of "Technology Creates Excellence," we serve the manufacturing industry with reliable quality, providing core equipment support for production upgrades in the machinery, aviation, automotive, and other fields.

We are committed to becoming a global leader in intelligent manufacturing. We will continue to deepen technological innovation and provide more advanced and reliable intelligent equipment to help industrial customers around the world achieve leapfrog growth in production efficiency. We are not just an equipment supplier, but a strategic partner for your industrial upgrade.

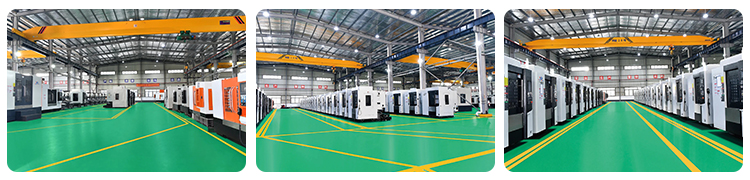

Factory Workshop 1
