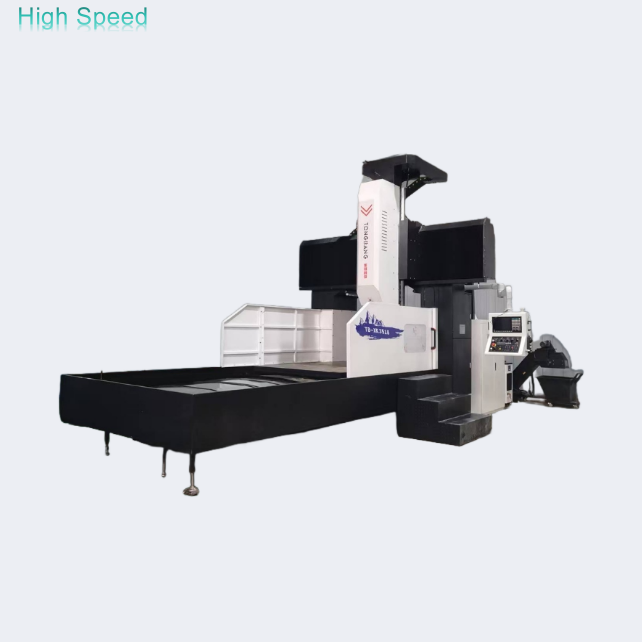

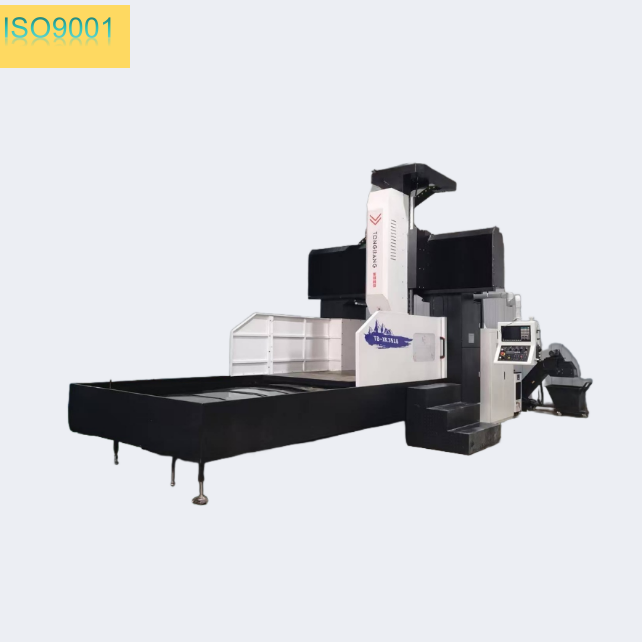

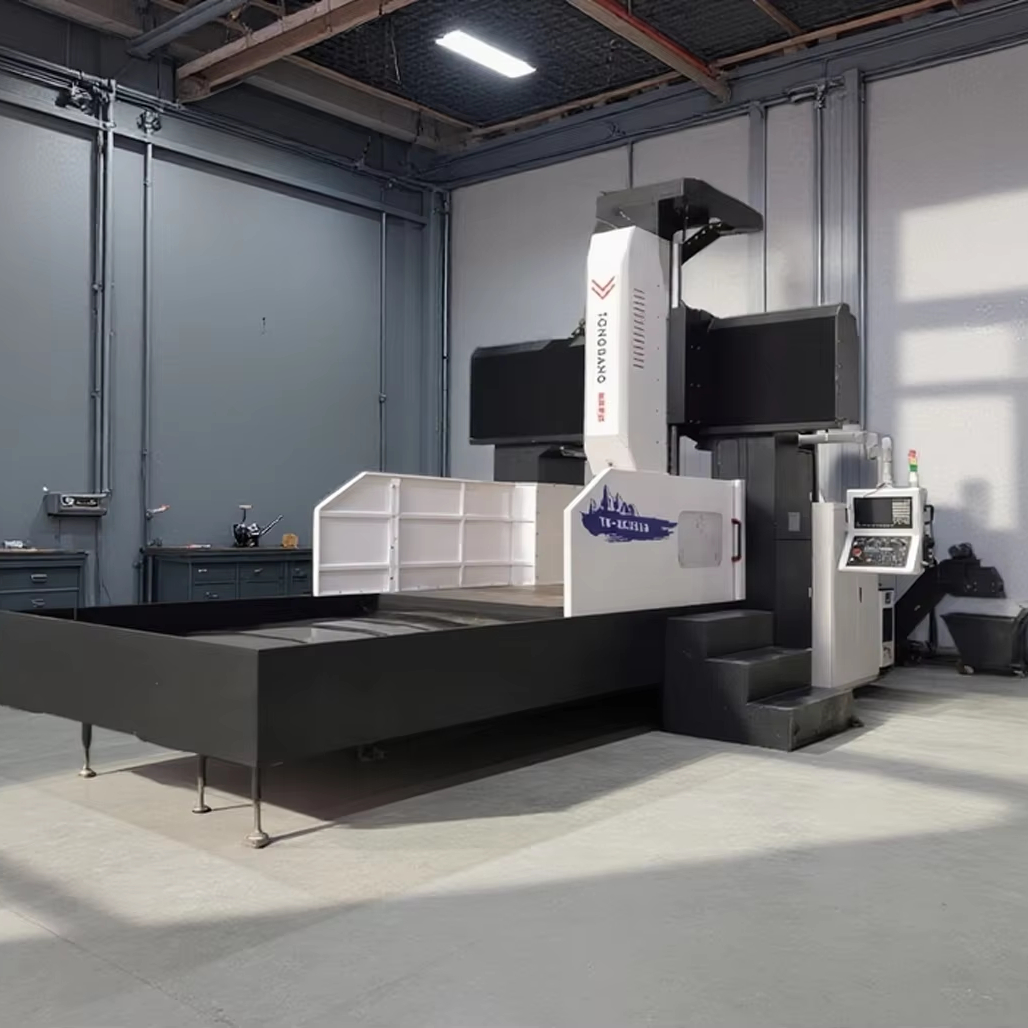

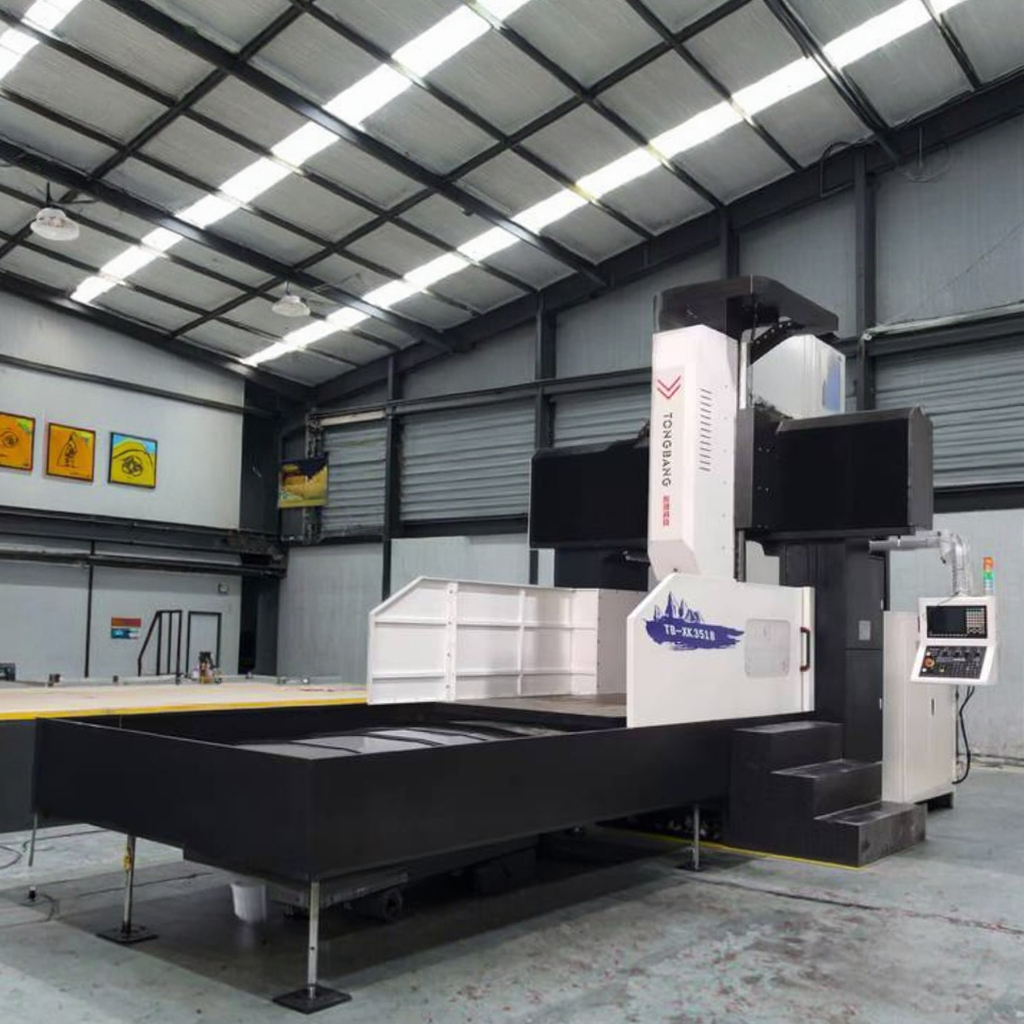

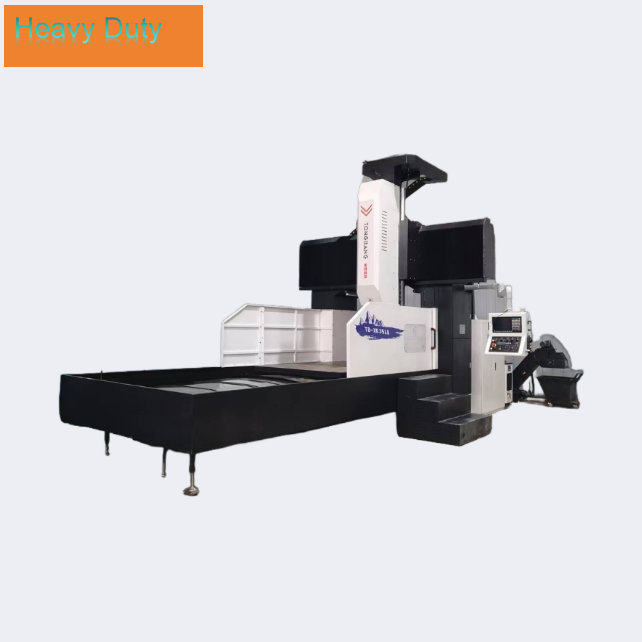

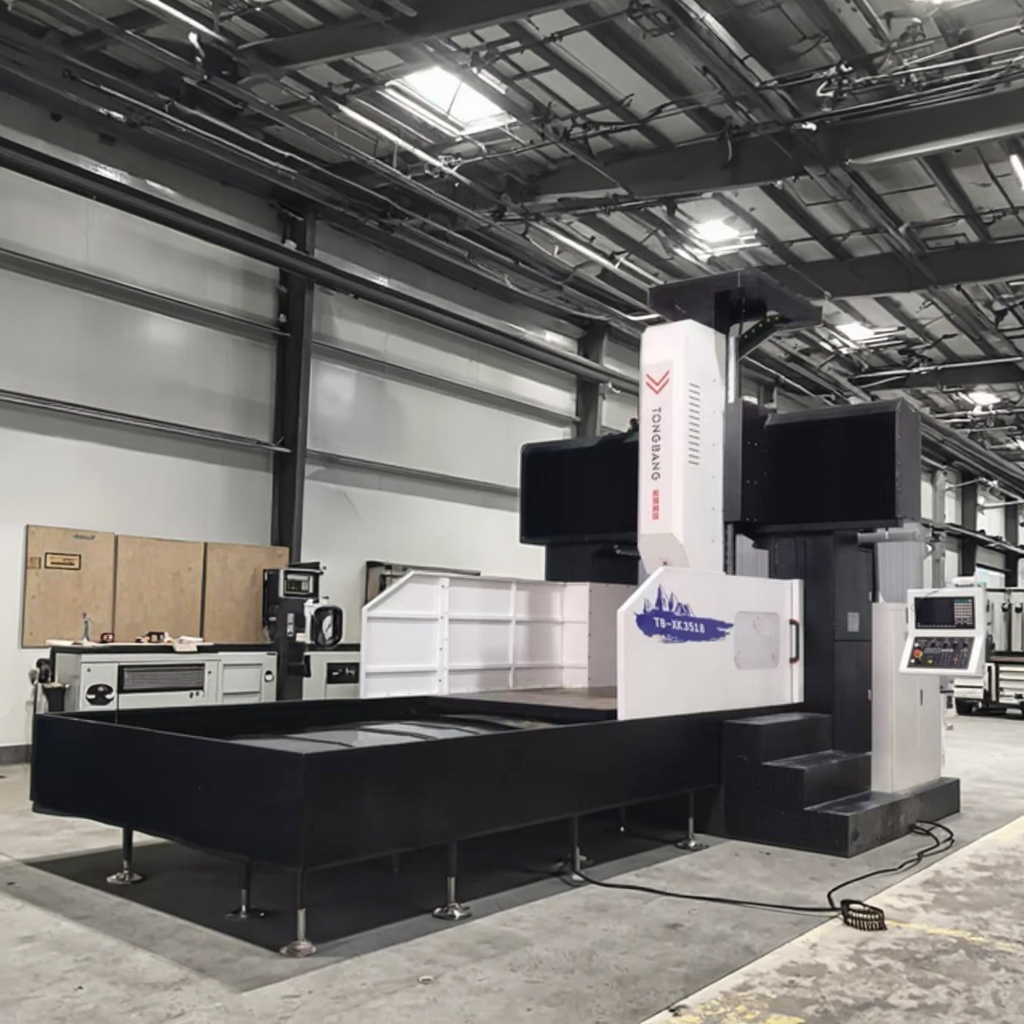

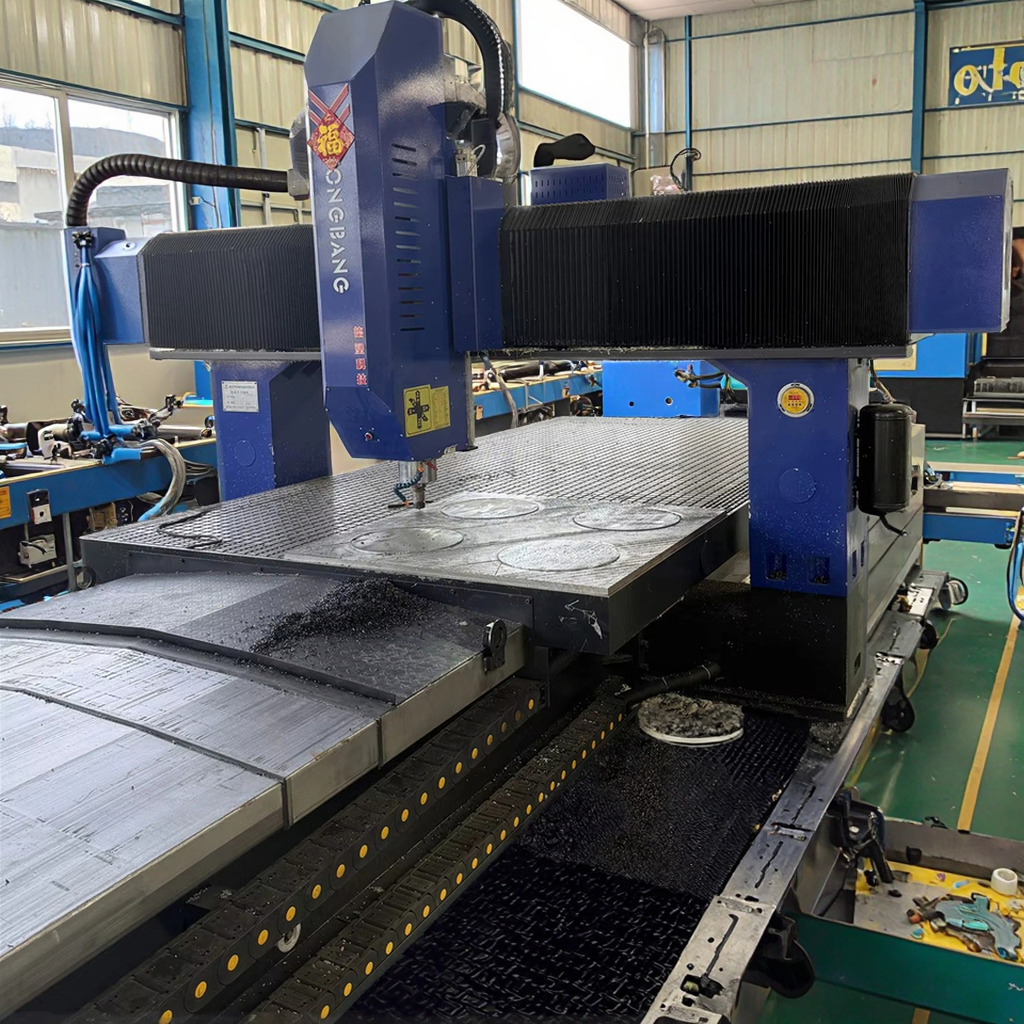

The CNC Gantry Milling Machine is a precision metal-cutting machine designed for high-accuracy milling of large-size workpieces. It features a gantry-type structure consisting of a worktable, crossbeam, columns, spindle head, feed system, and CNC control unit. Driven by servo motors on the X, Y, and Z axes, the machine enables precise multi-axis interpolation for machining planes, slots, holes, and complex contours.
This machine is widely used in industries such as mold manufacturing, general machining, automotive, aerospace, and energy equipment. It is suitable for machining various materials including steel, aluminum, and cast iron. Equipped with a high-performance CNC system (FANUC, Siemens, or GSK), the machine provides automatic lubrication, cooling, and comprehensive safety protection functions to ensure stability and operator safety during operation.
The structure is characterized by high rigidity, excellent accuracy retention, and reliable performance. The design complies with the requirements of the EU Machinery Directive 2006/42/EC and relevant EN safety standards. Optional configurations include different spindle powers, tool changers, and travel ranges according to customer needs.
| Specification | Units | XK1820 | XK5028 | XK6032 | XK8038 | XK30120 |
|---|---|---|---|---|---|---|
| Table size(W*L) | mm | 1600x2000 | 2200×5000 | 2500×6000 | 3000×8000 | 3000×12000 |
| X axis travel | mm | 2200 | 5200 | 6200 | 8200 | 12500 |
| Y axis travel | mm | 2000 | 2800 | 3200 | 3800 | 4000 |
| Z axis travel | mm | 800 | 1200 | 1200 | 1200 | 1200 |
| Gantry width | mm | 2000 | 2800 | 3200 | 3800 | 4000 |
| Table load | t | 6 | 15 | 23 | 37 | 120 |
| Distance between spindle nose and table surface | mm | 100-900 | 200-1400 | 200-1400 | 300-1500 | 300-1500 |
| T slot (width*pitch) | mm | 28-200 | ||||
| Spindle taper | - | BT50 | ||||
| Spindle speed | r/min | 6000 | ||||
| Rapid traverse speed | m/min | 12 | 12 | 12 | 12 | 12 |
| Cutting feed speed | m/min | 8 | 10 | 10 | 10 | 10 |
| Main motor power | kw | 22 | ||||
| Tool magazine | - | ARM24 | ARM24 | ARM24 | ARM24 | ARM24 |
| Positioning accuracy | mm | 0.005 | ||||
| Repeat positioning accuracy | mm | 0.003 | ||||
| Overall dimension (L*W*H) | mm | 7000×4500×4600 | 11000×5500×4600 | 13000×6000×4600 | 19500×7000×5900 | 20000×8000×6000 |
| Machine weight (about) | t | 14 | 37 | 49 | 77 | 57 |

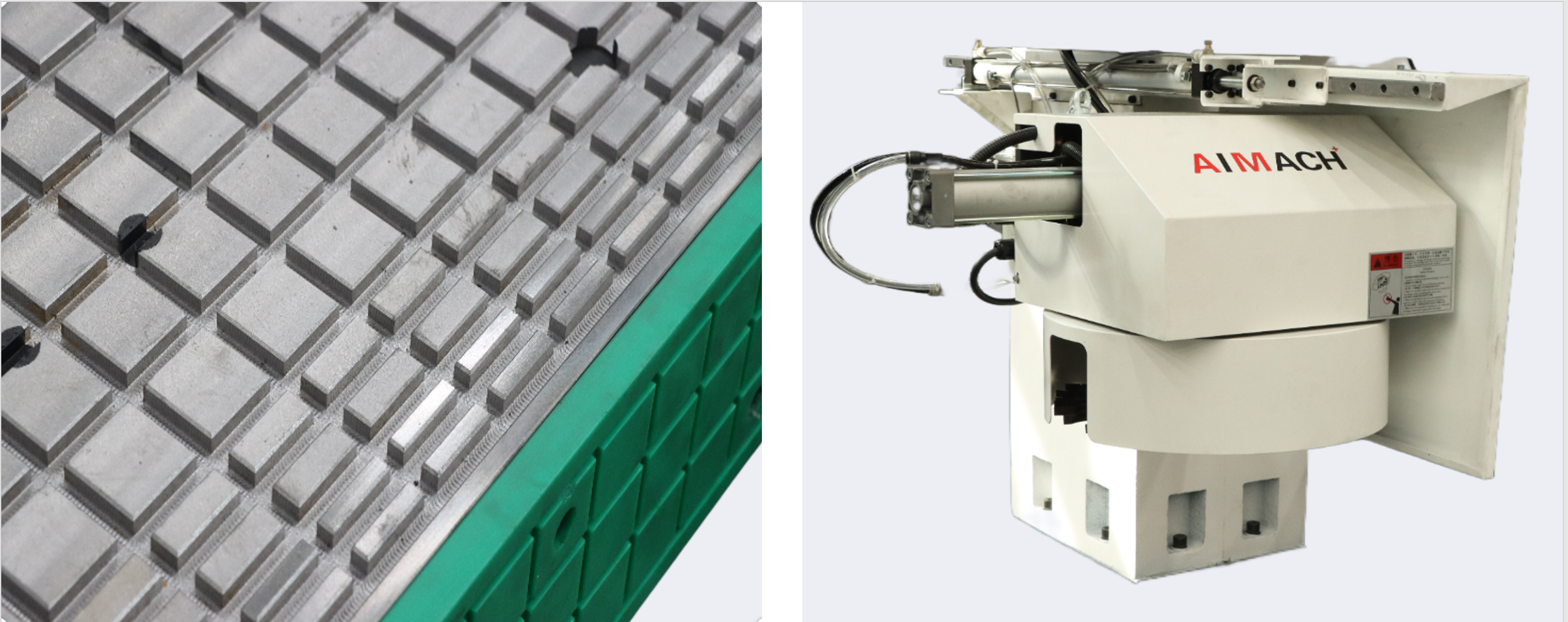

High strength high quality HT250/300

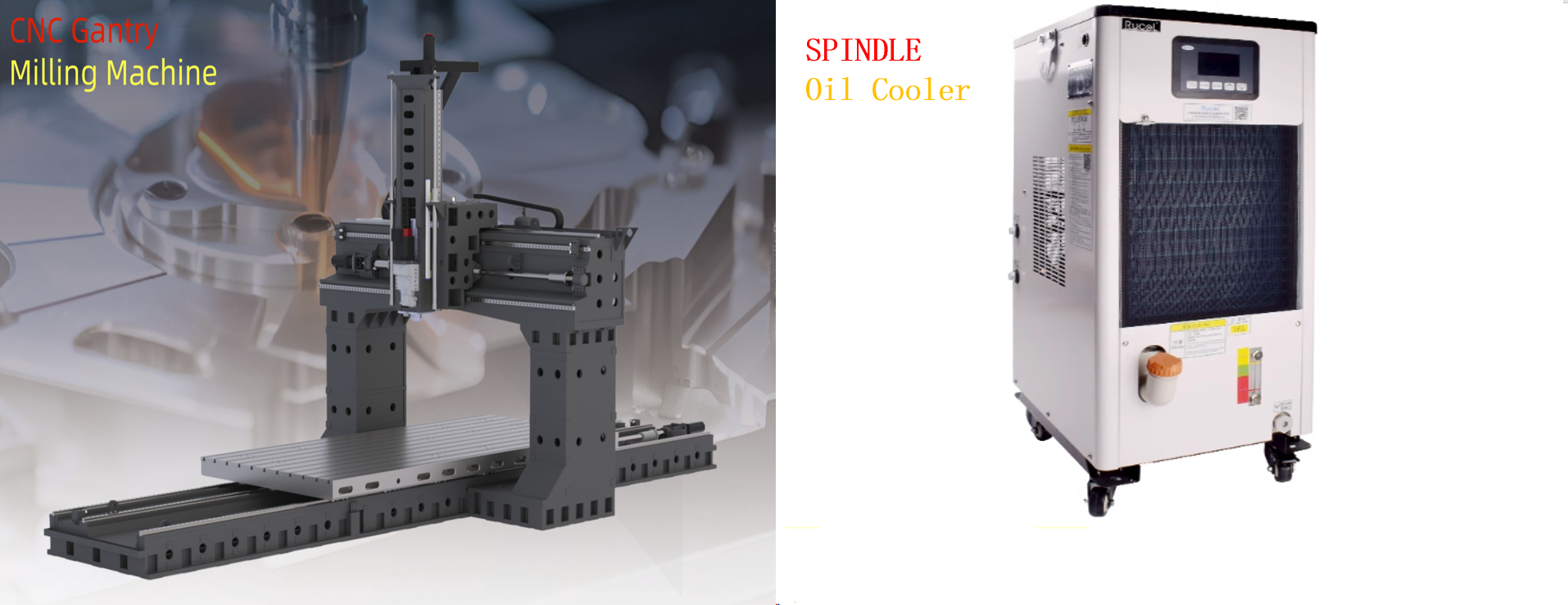

Suitable for cooling the spindle

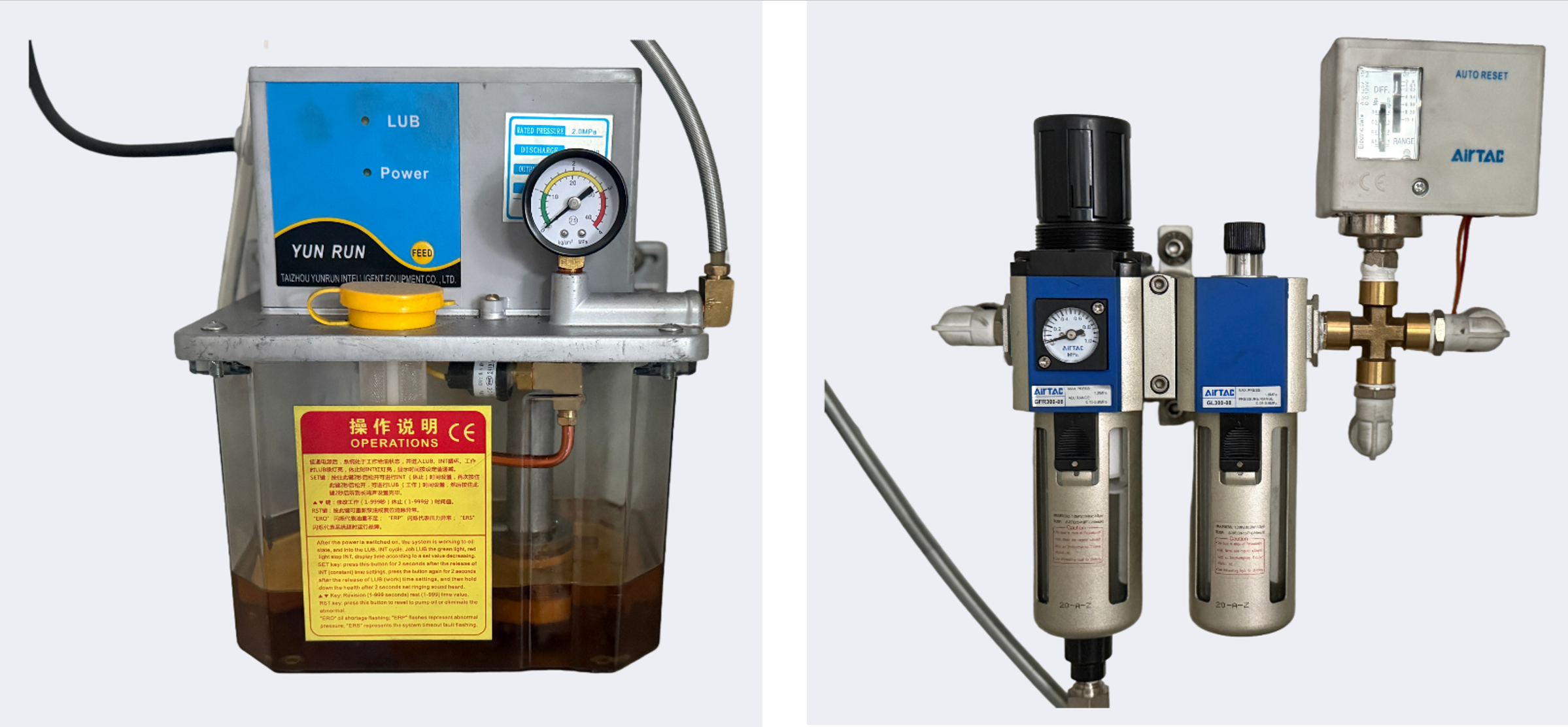

HERG Automatic centralized lubrication device
Standard with AirTAC Pneumatic Components

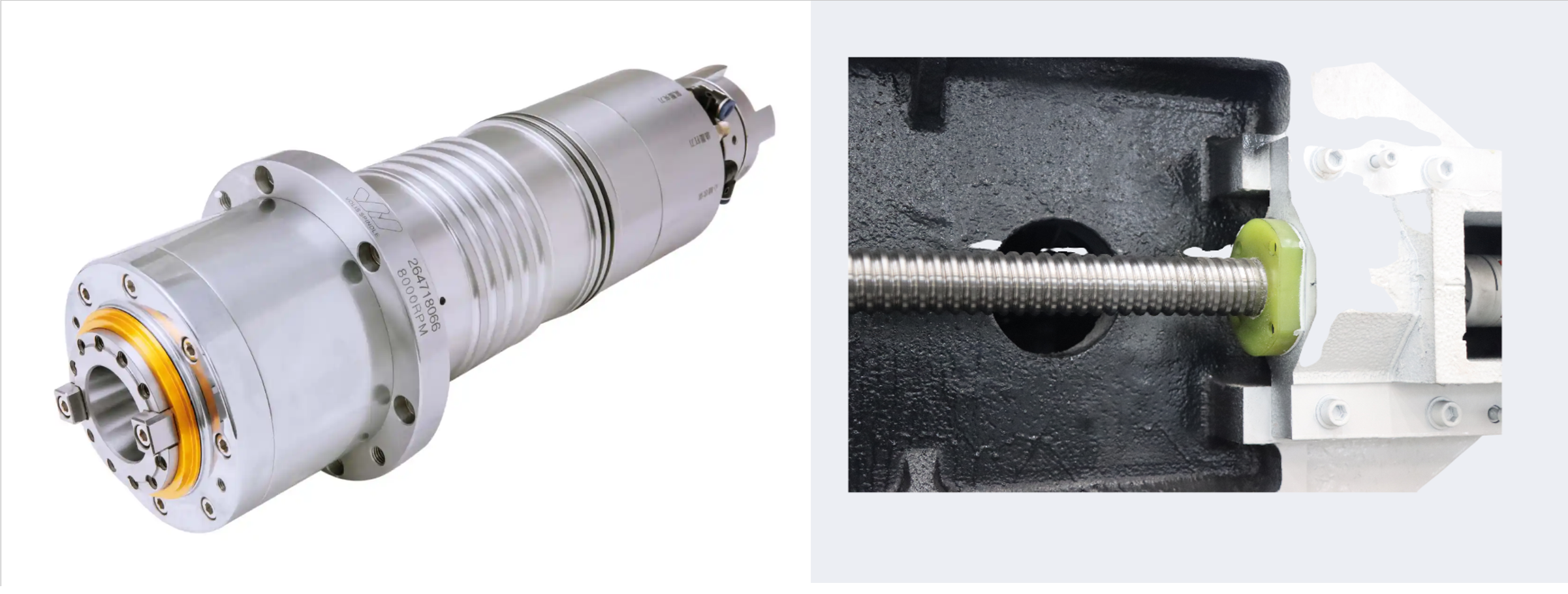

TAIWAN precision BT40/BT50 spindle.
TAIWAN precision lead screw.

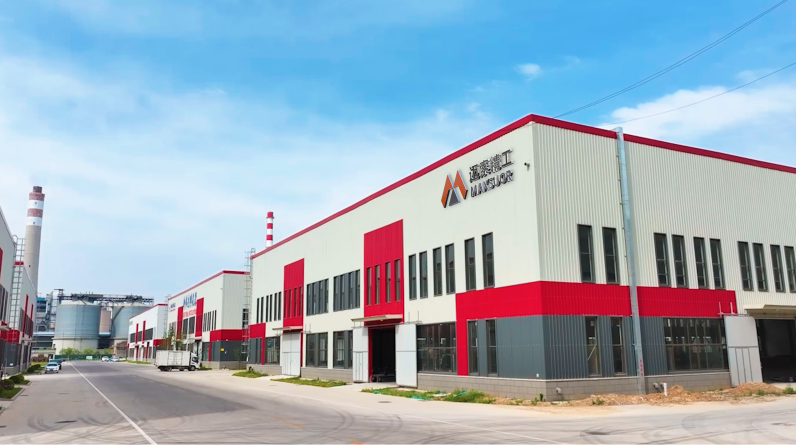

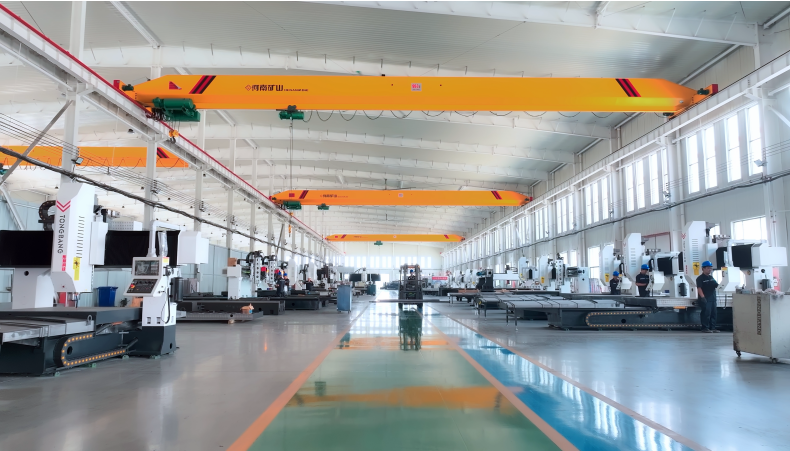

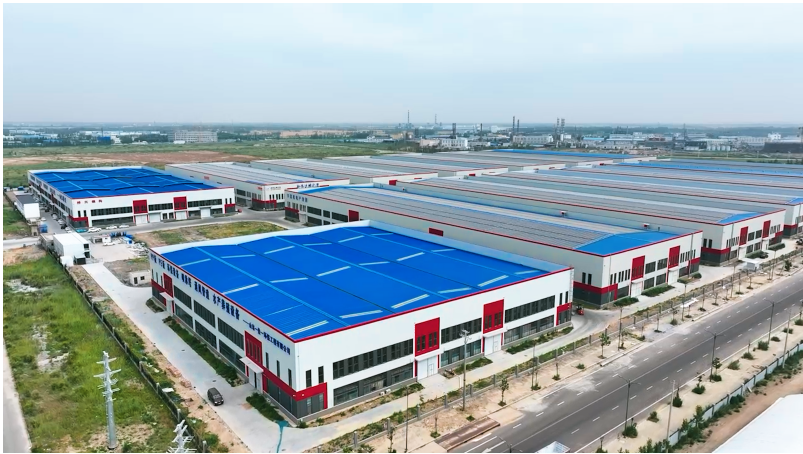

We are a trusted and professional manufacturer specializing in the design, production, sales, and service of CNC machine tools—mainly CNC Machining Centers and CNC Gantry Milling Machines. With over 20 years of industry experience, we are committed to delivering high-precision, high-efficiency milling solutions and have earned a solid reputation for innovation and reliability in precision engineering.
We offer OEM & ODM customization services to meet the specific needs of our global clients. Whether it's workpiece size, machining accuracy, or industry applications such as mold making, automotive parts, or heavy machinery, we can tailor the machine structure, configuration, and features accordingly.
Our products offer a competitive price advantage without compromising on quality. Backed by a comprehensive after-sales service system, we provide remote technical support, on-site installation guidance, and fast-response spare parts service—ensuring your production runs smoothly and efficiently.
Q1What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is 12 months.
Q2What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC, SYNETC, GSK, etc. It depends on your choice.
Q3When is the delivery time?
A: Conventional Machines, We will delivery then within 30-45 working days after received your deposit, if some special machines will be some longer. We will give you the answer accordingly.

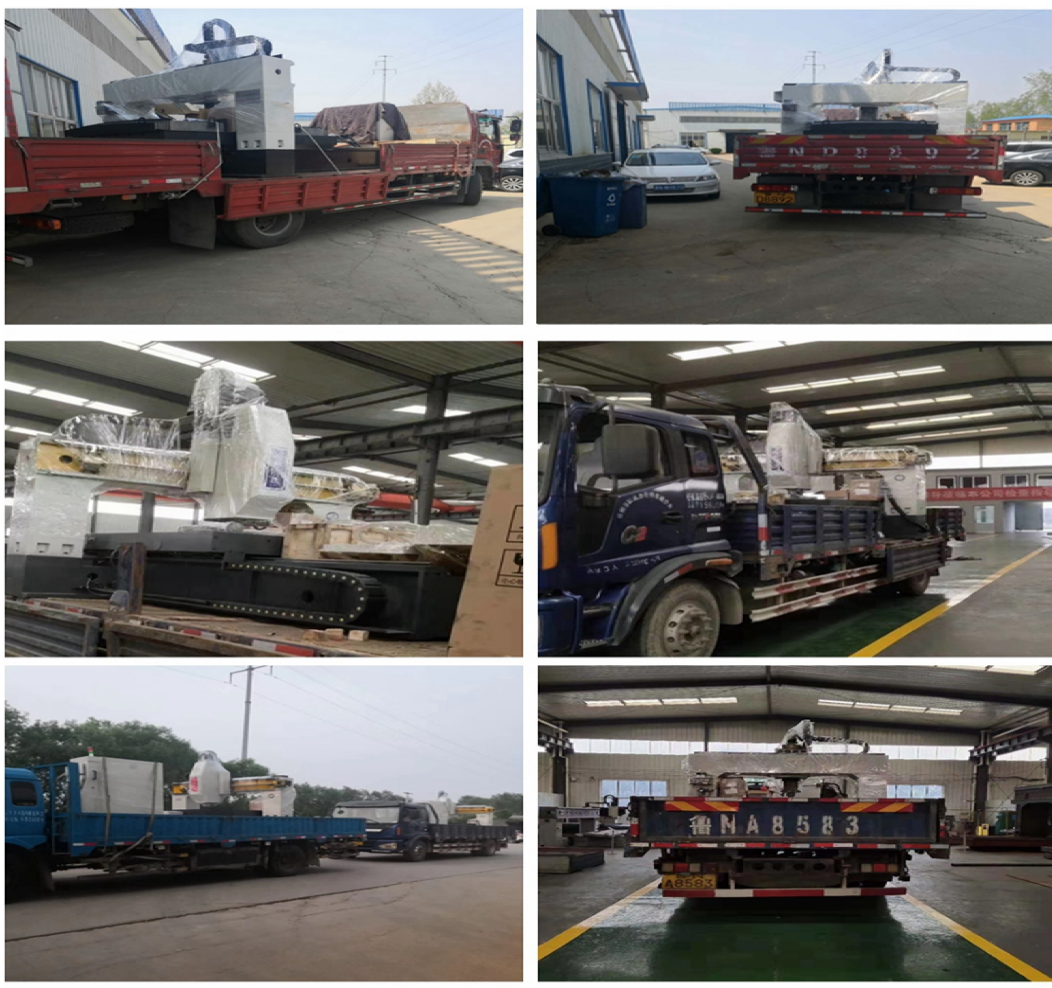

Q4What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
Q5How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q6What is your trade terms?
A: FOB, CFR, CIF or others terms are all acceptable.
