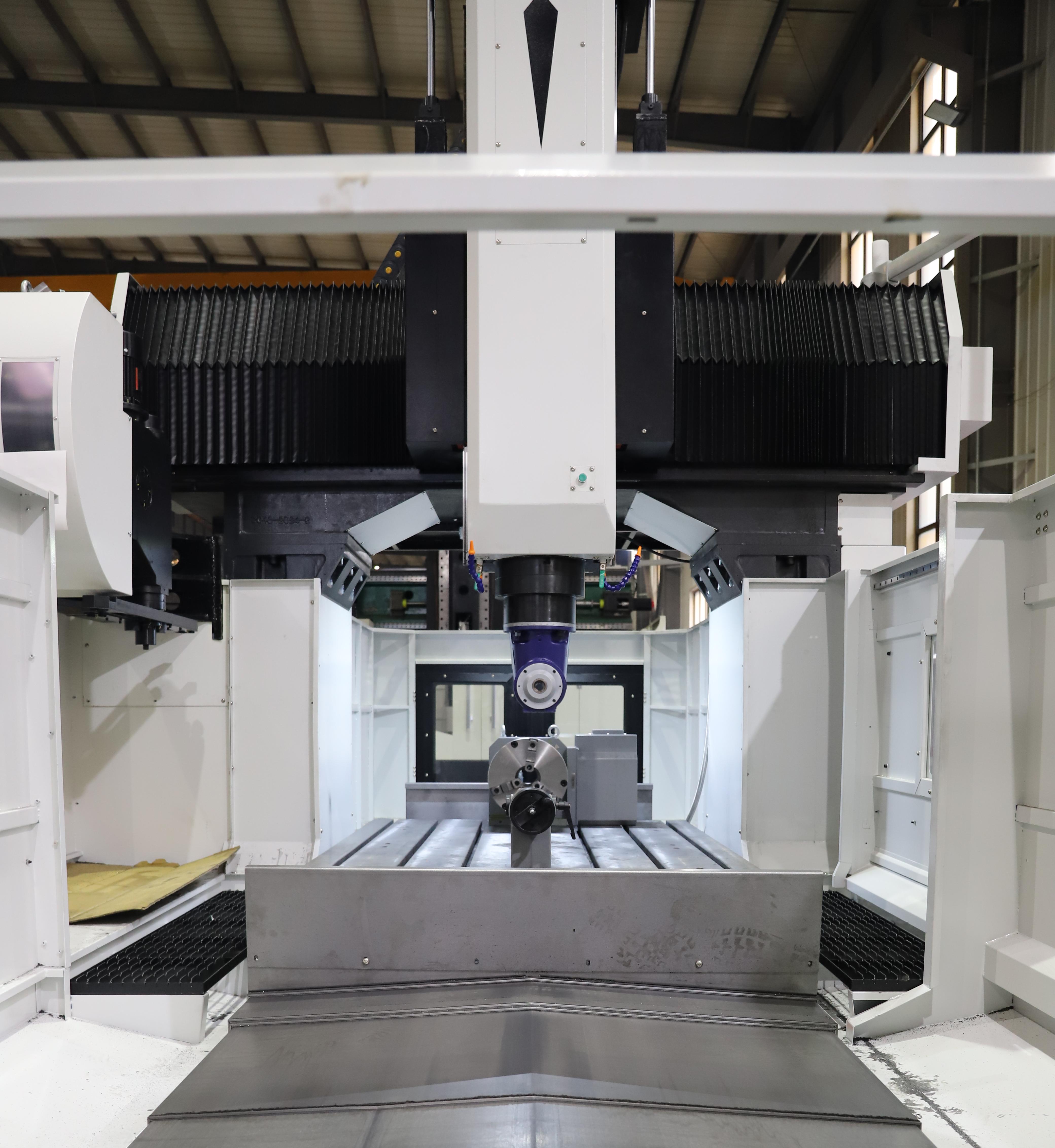

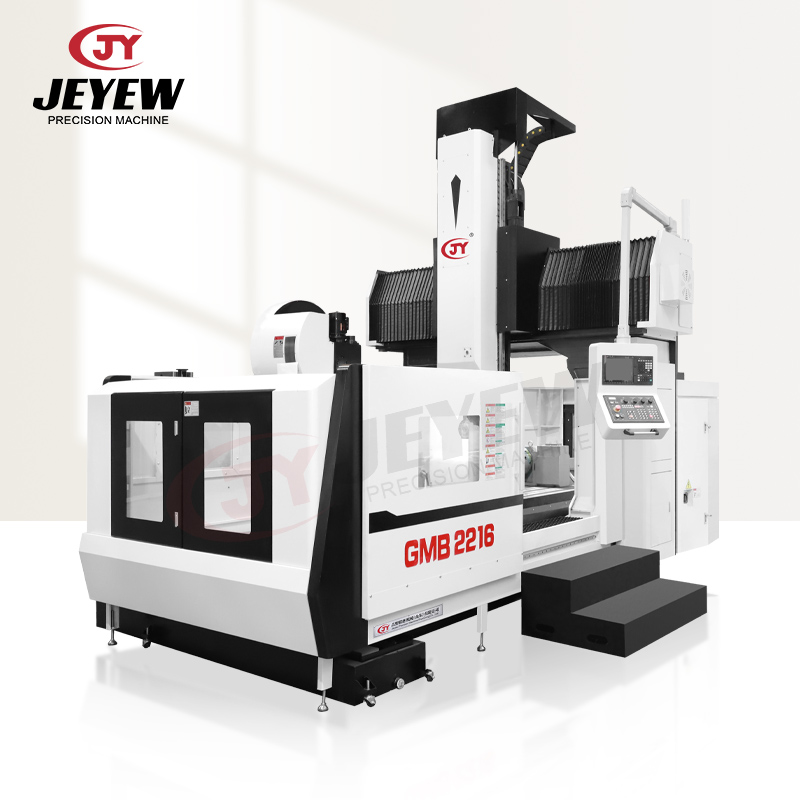

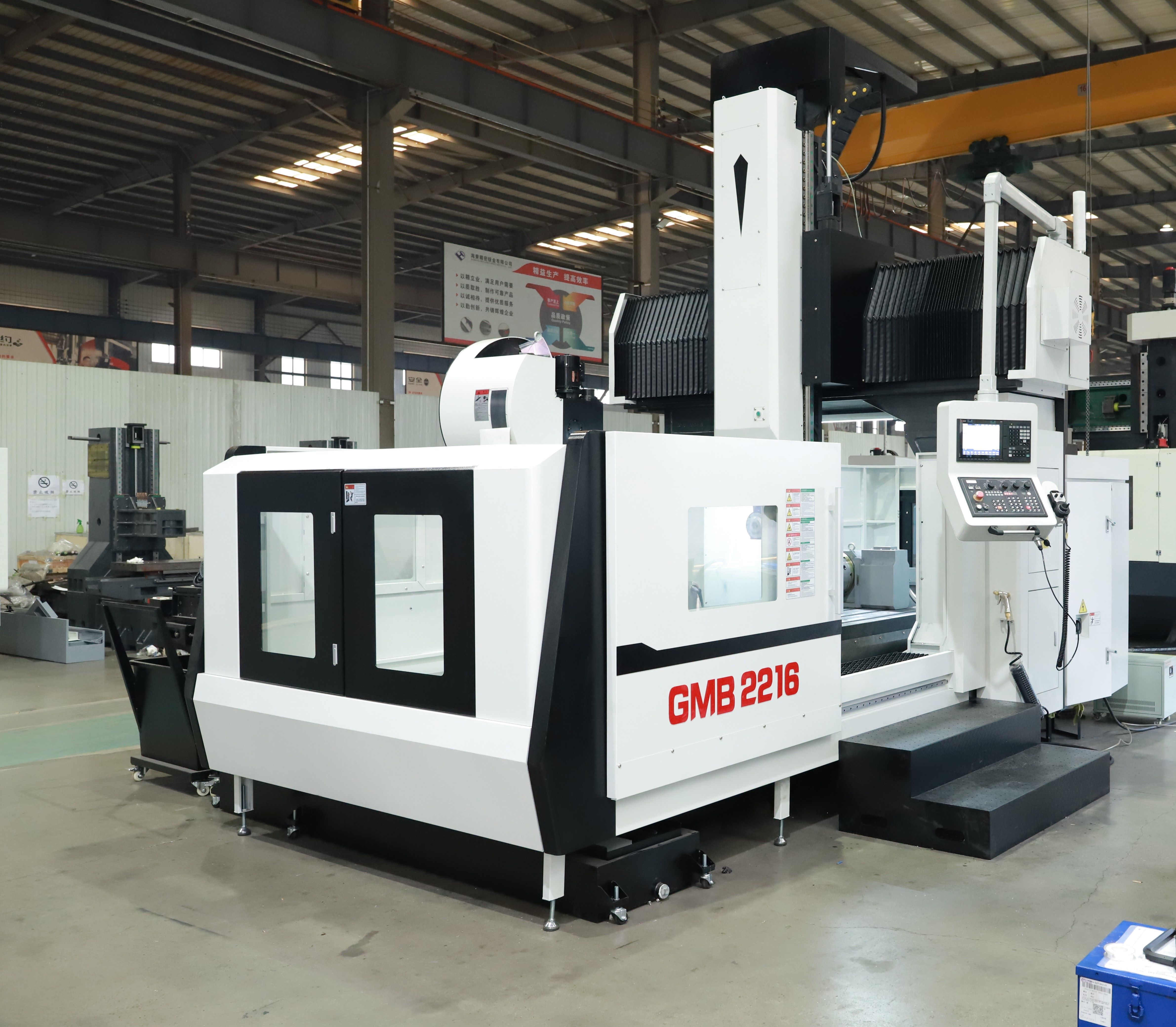

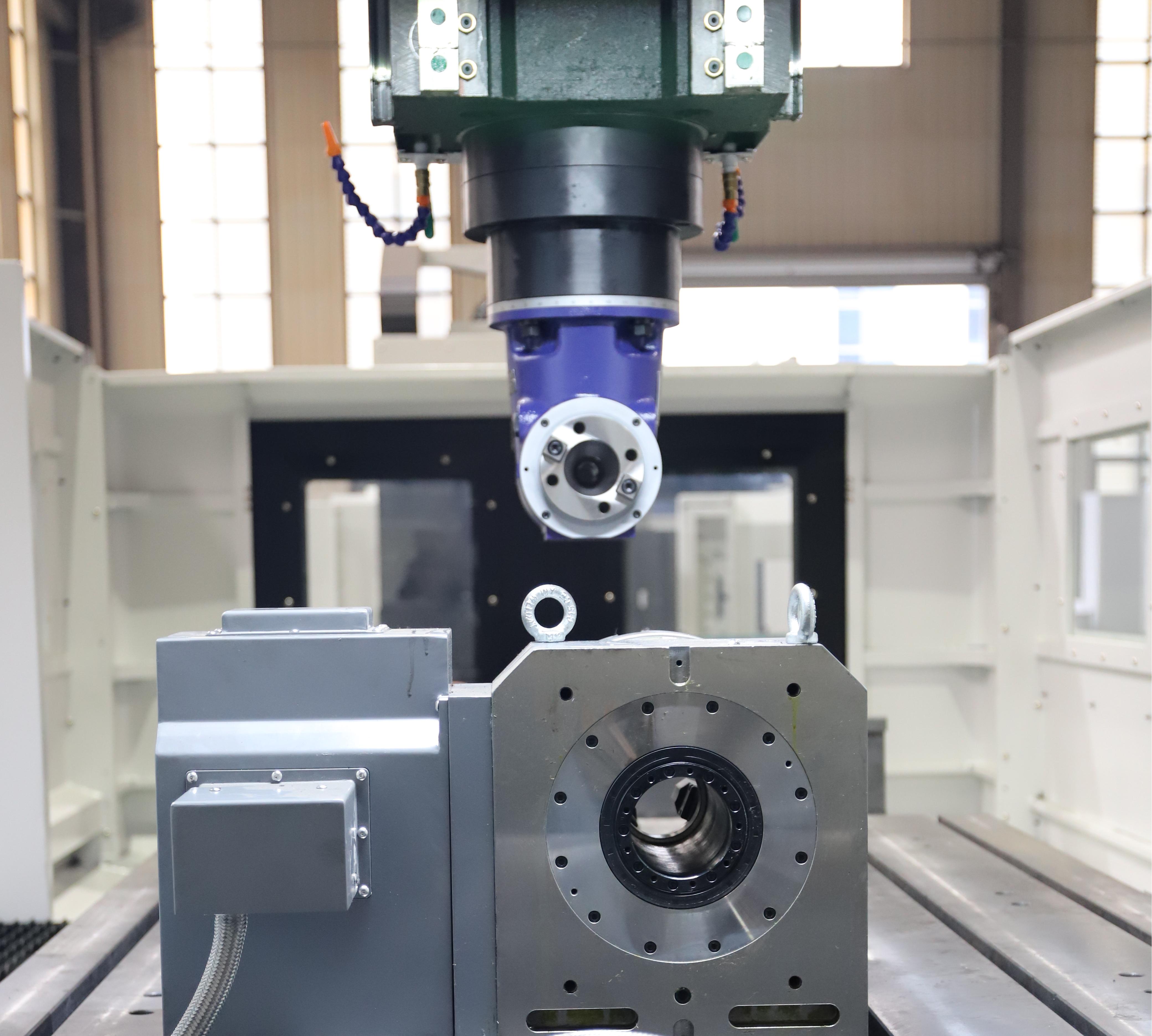

This machine is used in CNC milling, boring, drilling, tapping, processing of steel, cast steel, cast iron etc.. Machine tool accessory head to realize the of all kinds of plate, plate, shell and mould for complex parts in a fixture in complete drilling,milling, boring, reaming, reaming, tapping a variety of processes. It can be used for small batch spare parts, processing and manufacturing, of complex, high precision parts processing more show its superiority, also can compose the automatic production line for mass production, to ensure the parts of product quality and efficient production.

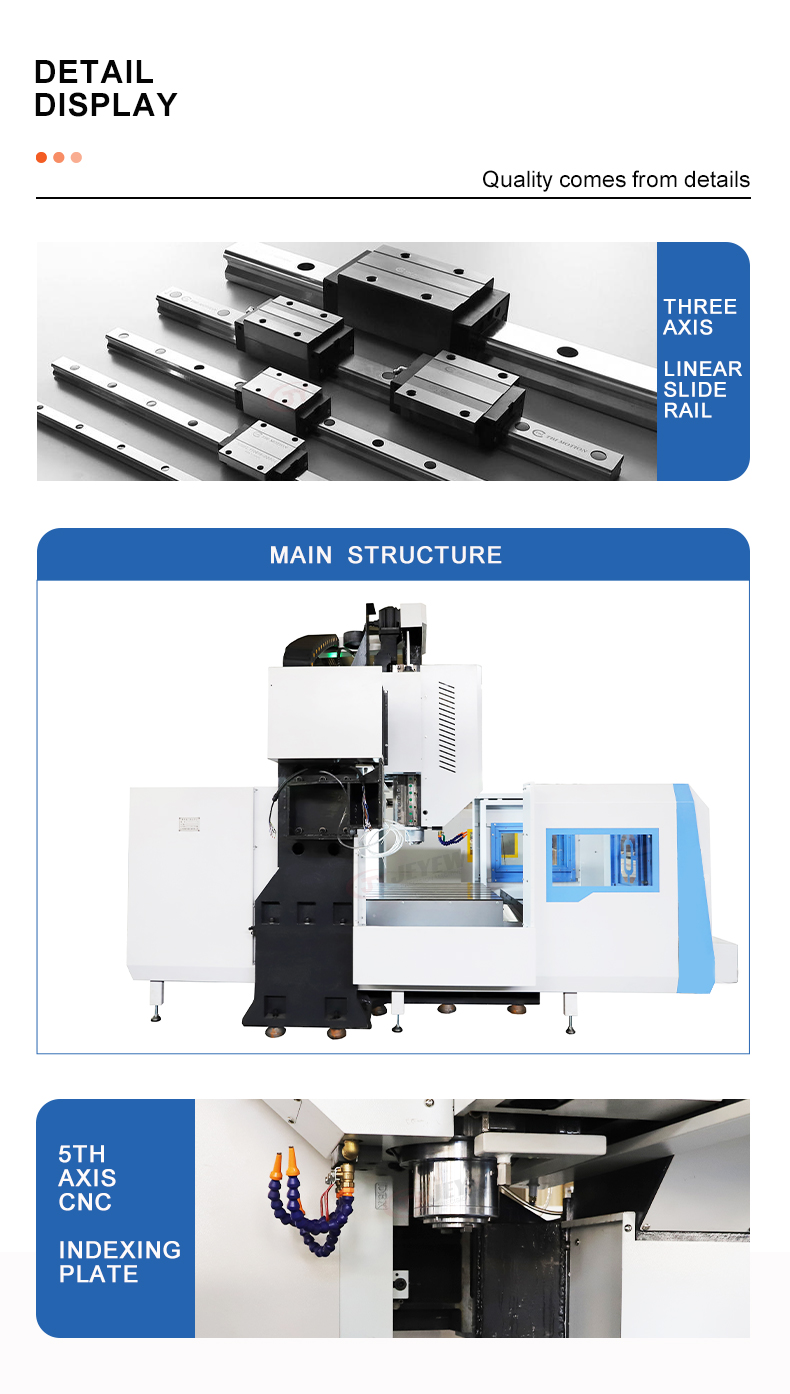

| Item | Unit | Main Parameter |
|---|---|---|

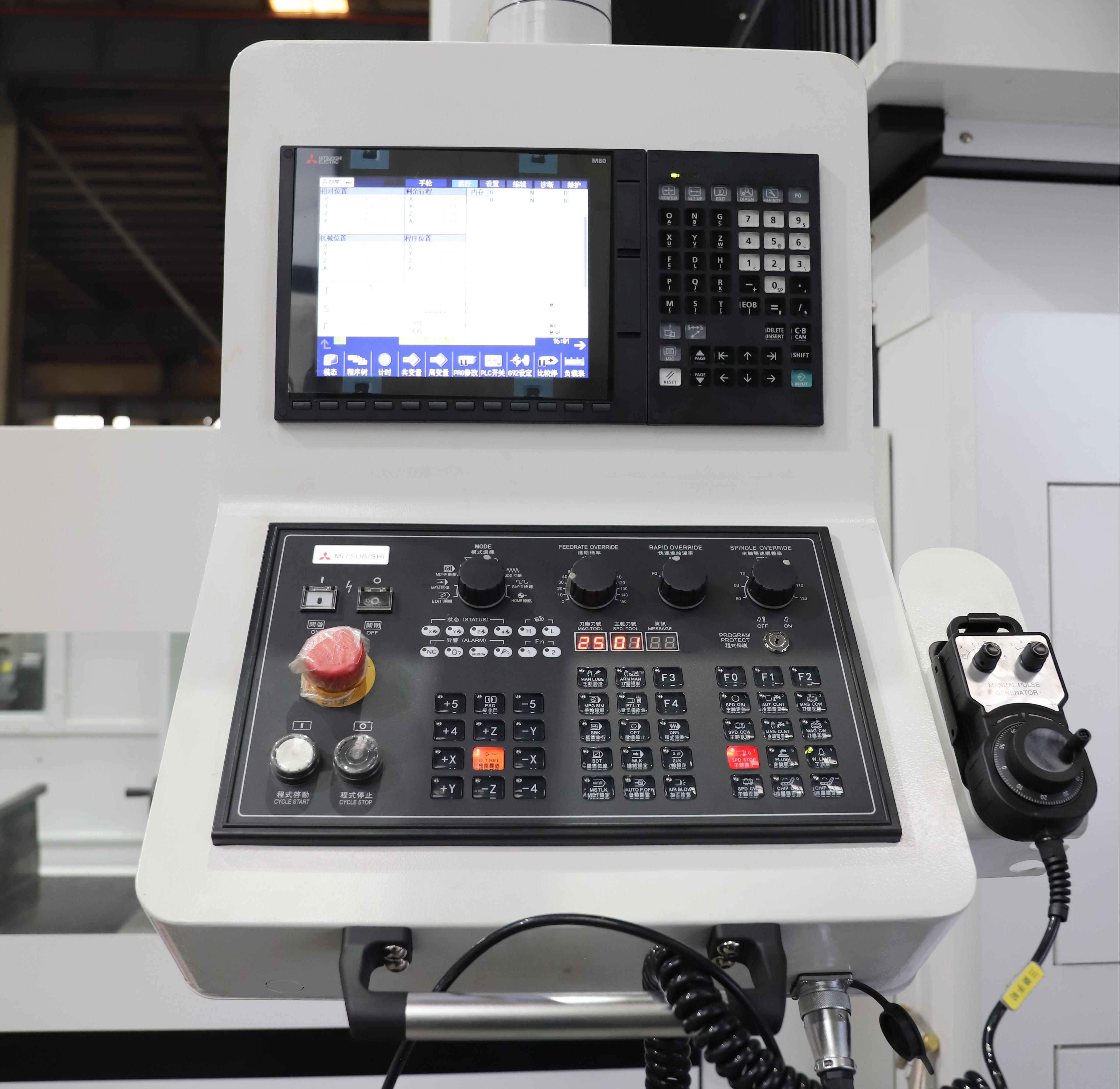

| CNC operating system | / | GSK/FANUC/SIEMENS |
| Working table size | mm | 3000×1500 |
| Left and right stroke(X) | mm | 3000 |
| Back and forth stroke(Y) | mm | 1800 |
| Up and down stroke (Z) | mm | 1000 |
| Distance from spindle center to column guide | mm | 260 |
| Distance from spindle end to worktable surface | mm | 170-1070 |
| T-slot of worktable (Number/size/spacing) |
mm | 6-26×150 |
| Spindle taper(model/sleeve diameter) | / | BT50/Φ155 |
| Use pull stud modle | / | P50T-1 |
| Spindle Speed(rpm) | rpm | 6000 |
| X axis ball screw specifications | mm | 63×16 |
| Y axis ball screw specifications | mm | 50×12 |
| Z axis ball screw specifications | mm | 50×10 |
| Machine tool positioning accuracy (GB/T 20957.4-2007 standard) | mm | 0.01 |
| Repeated positioning accuracy of machine tools (GB/T 20957.4-2007 standard) | mm | 0.01 |
| X/Y/Z axis rapid shift | m/min | 10/12/10 |
| Cutting speed | m/min | 8 |
| Spindle transmission mode | / | Synchronous toothed belt drive |
| XYZ axis servo motor transmission mode and transmission ratio | / | X-axis reducer directly connected 4:1; YZ directly connected transmission Y-axis 1:1, Z-axis 1:1 |
| X,Y axis guide specifications | / | X-axis four 55-gauge heavy-duty roller linear guides; Y-axis three 55-gauge heavy-duty roller linear guides |
| Z axis guide specifications | / | Rectangle hard rail |
| Square Ram Size | mm | 420×420 |
| Spindle power | KW | 22 |
| Recommended selection of servo motor parameters | N·M | 35/35/40 |
| Air source flow | / | >0.5 |
| Power supply requirements | / | 380V |
| Bed cushion height | mm | 30 |
| Workbench load bearing | kg | 8T |
| Machine dimensions | mm | 8000×3000×3000 |
| Light machine net weight | kg | 30t |
