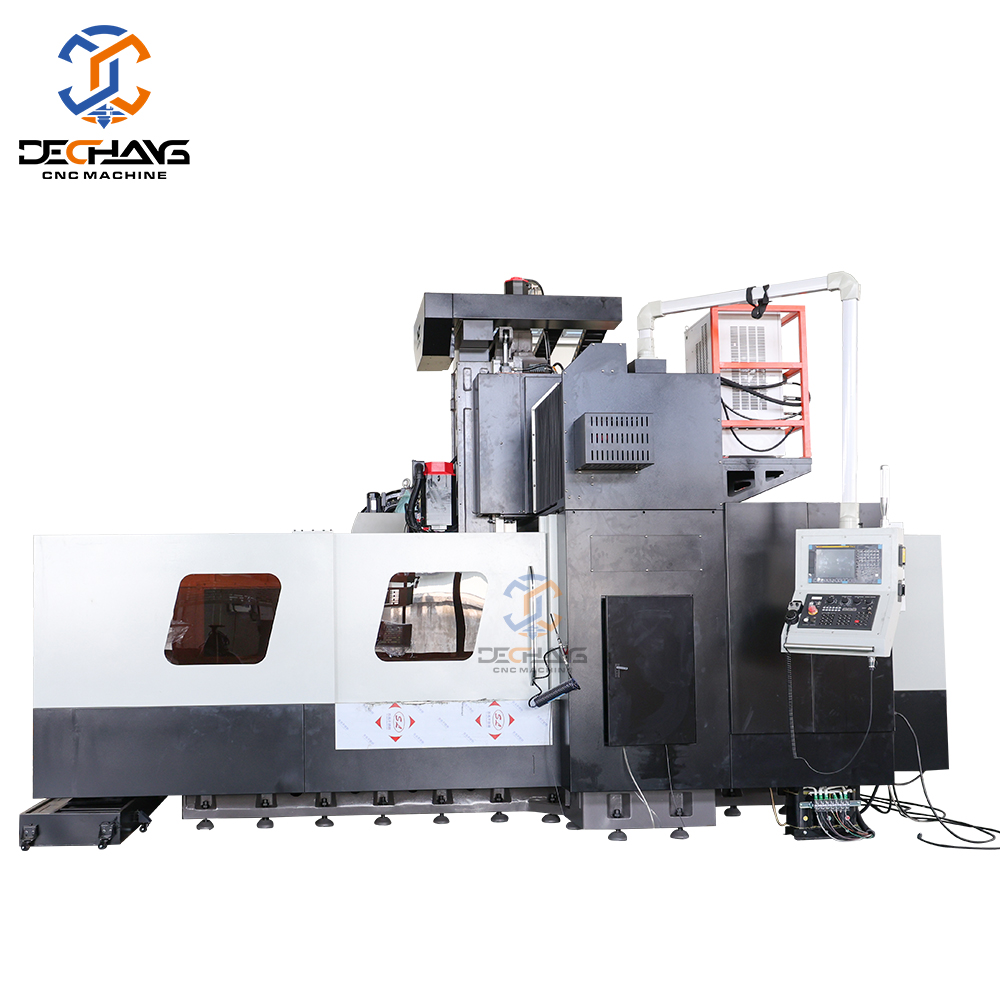

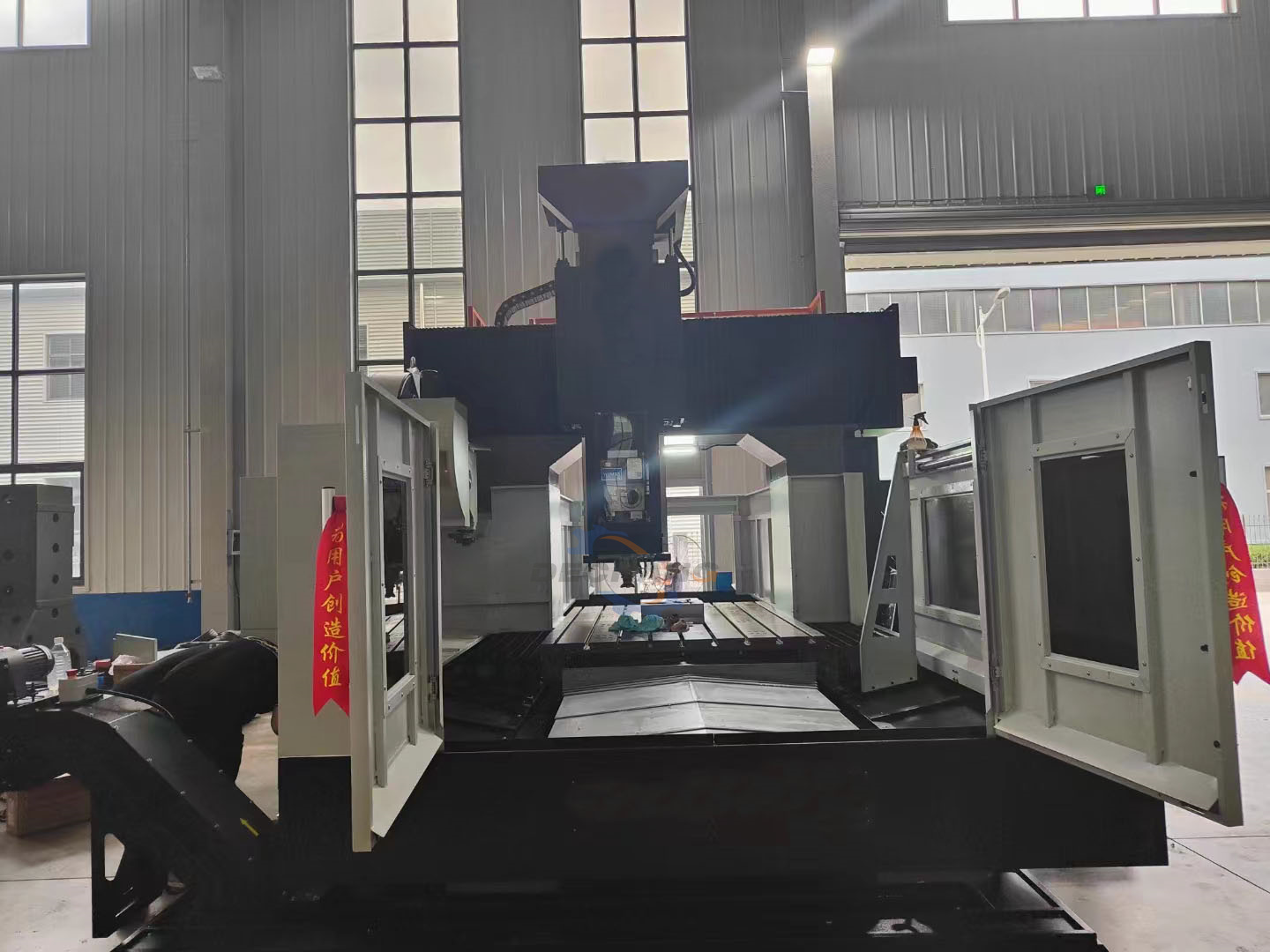

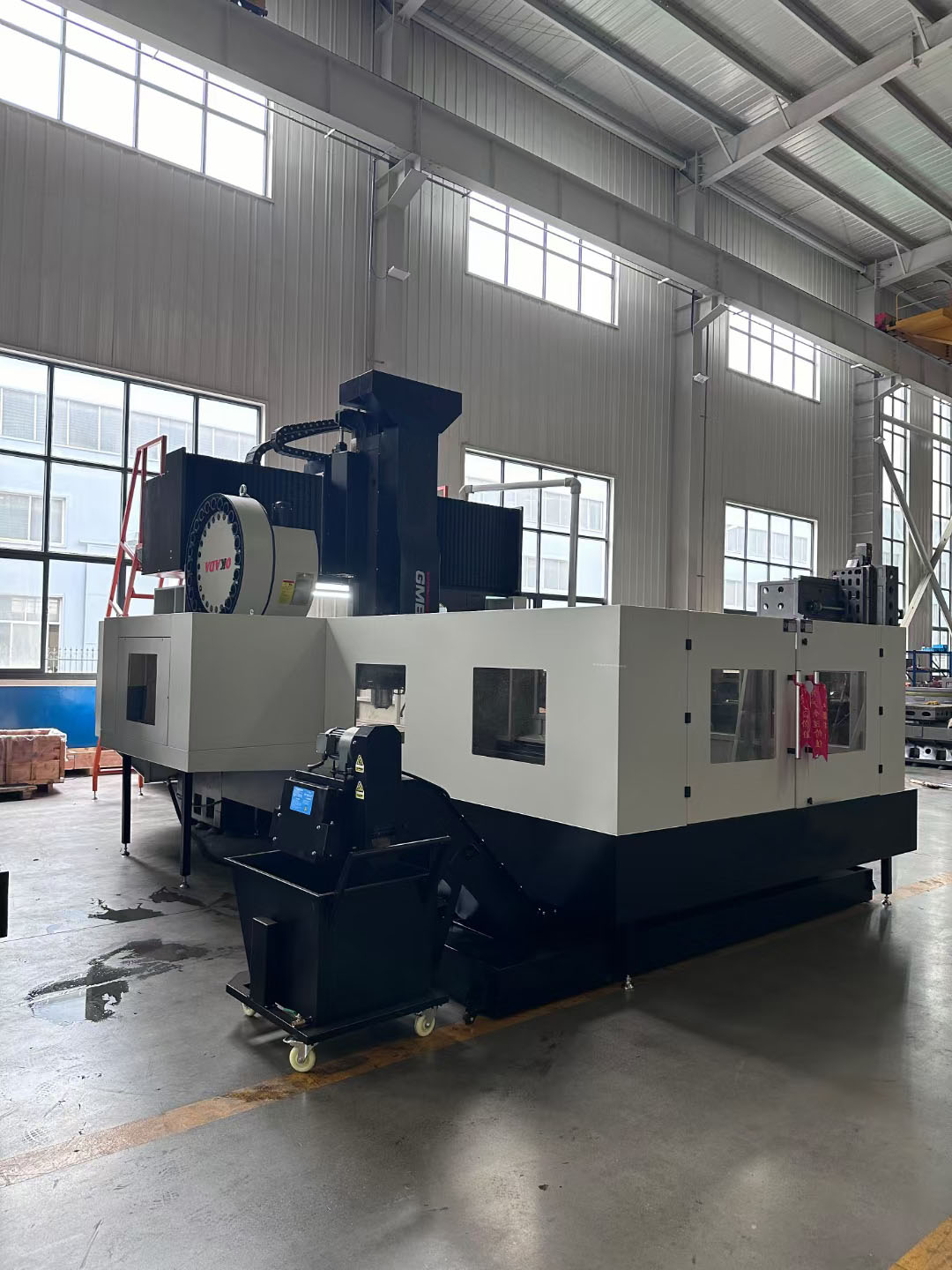

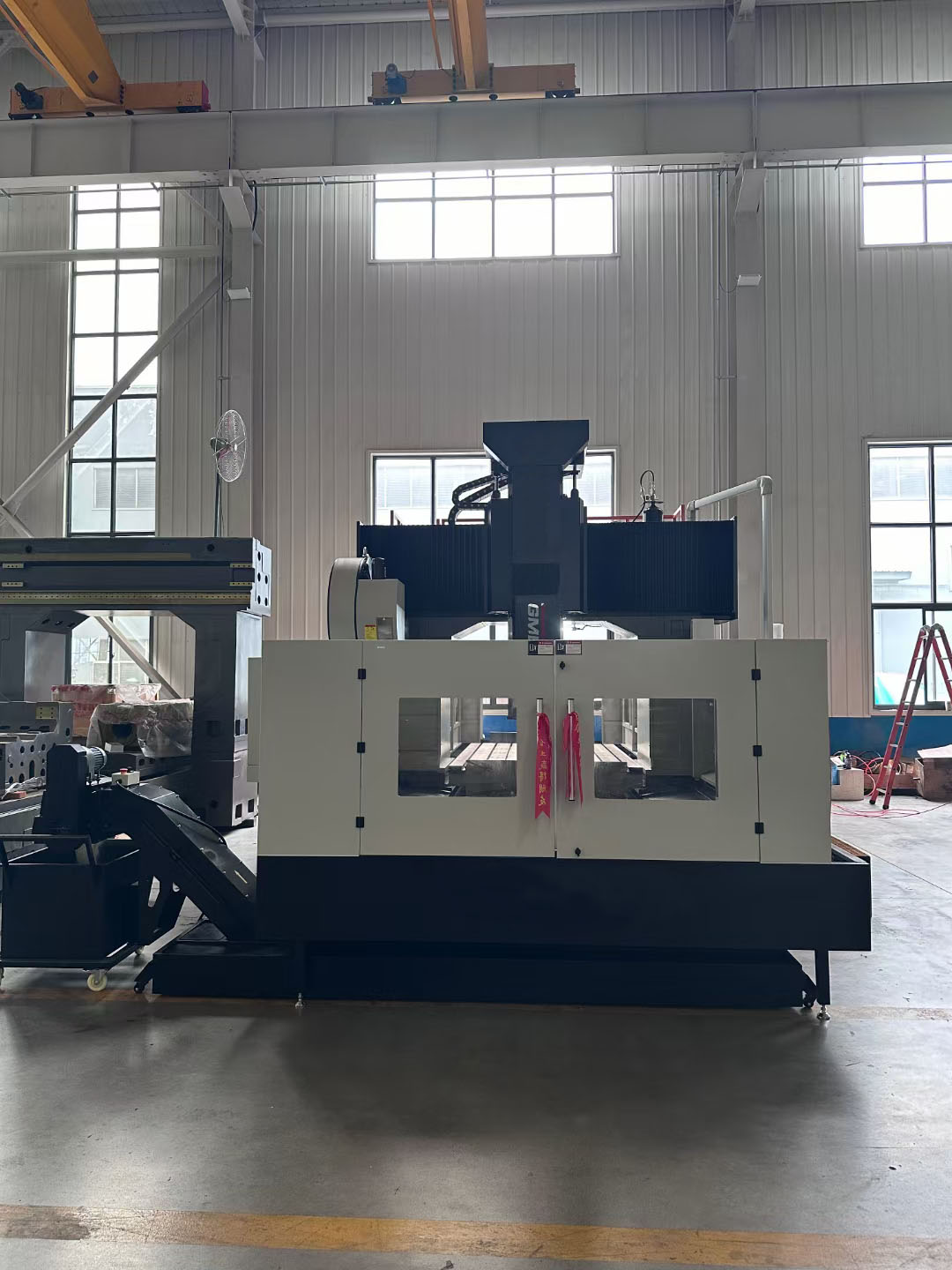

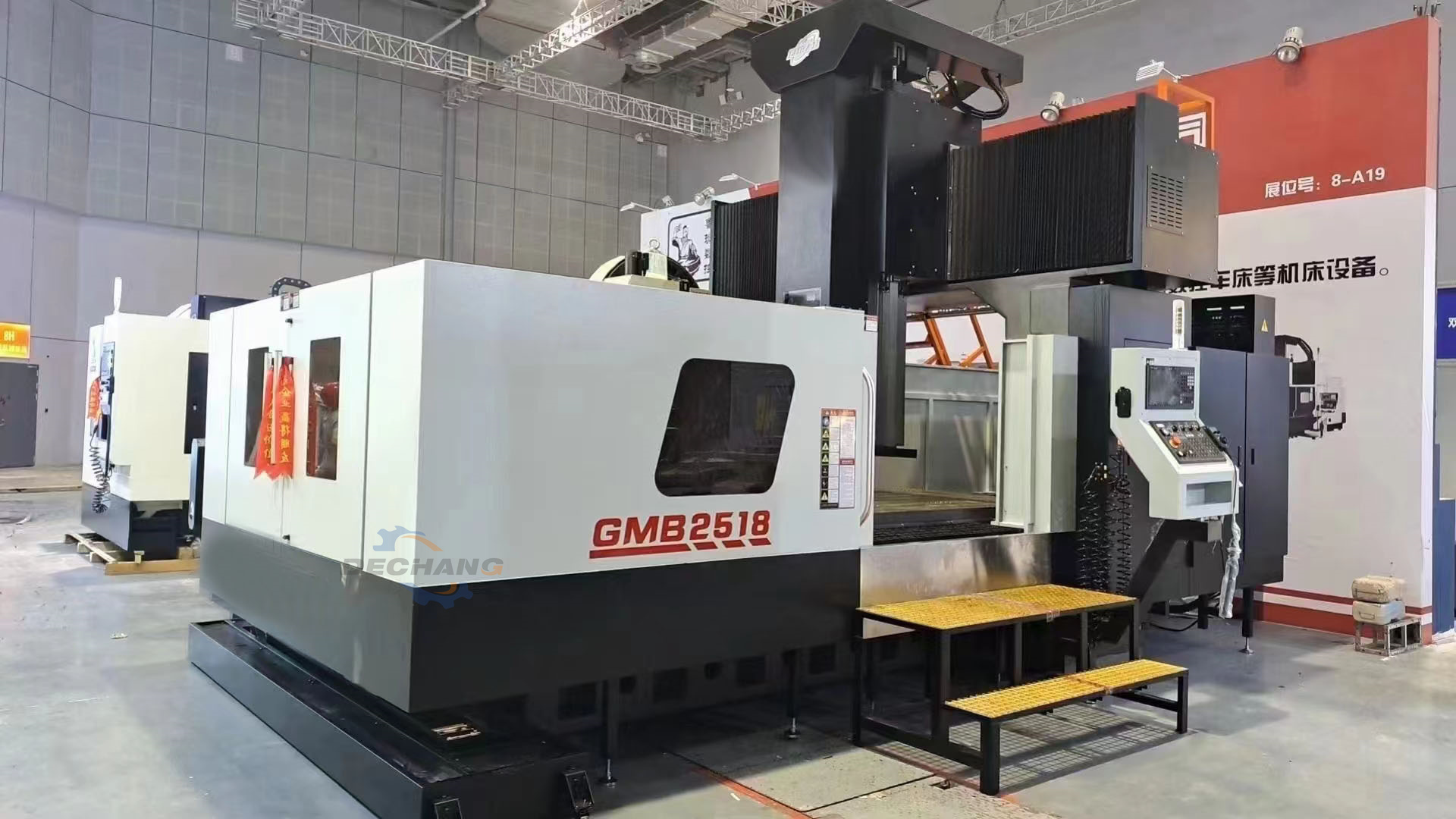

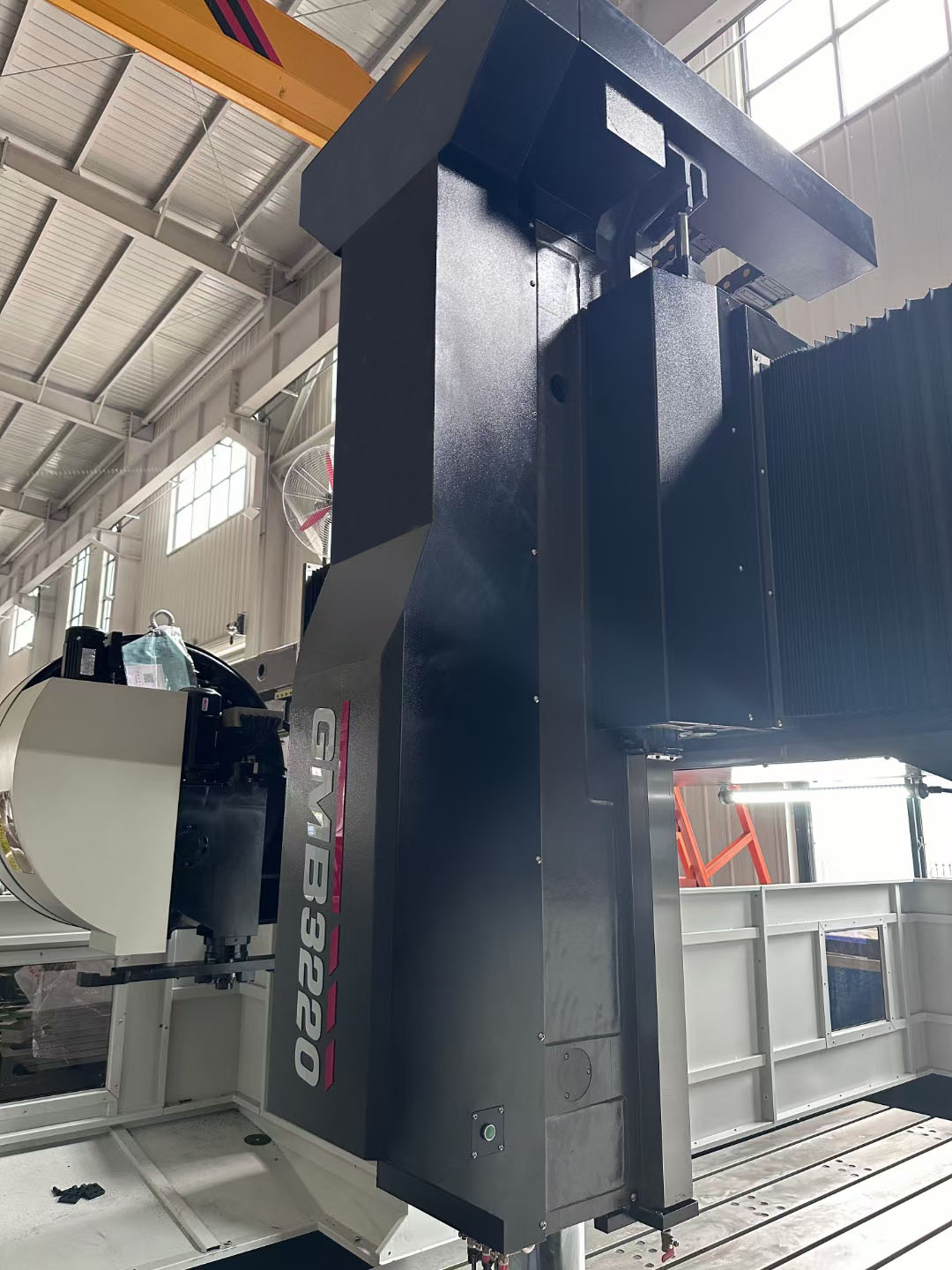

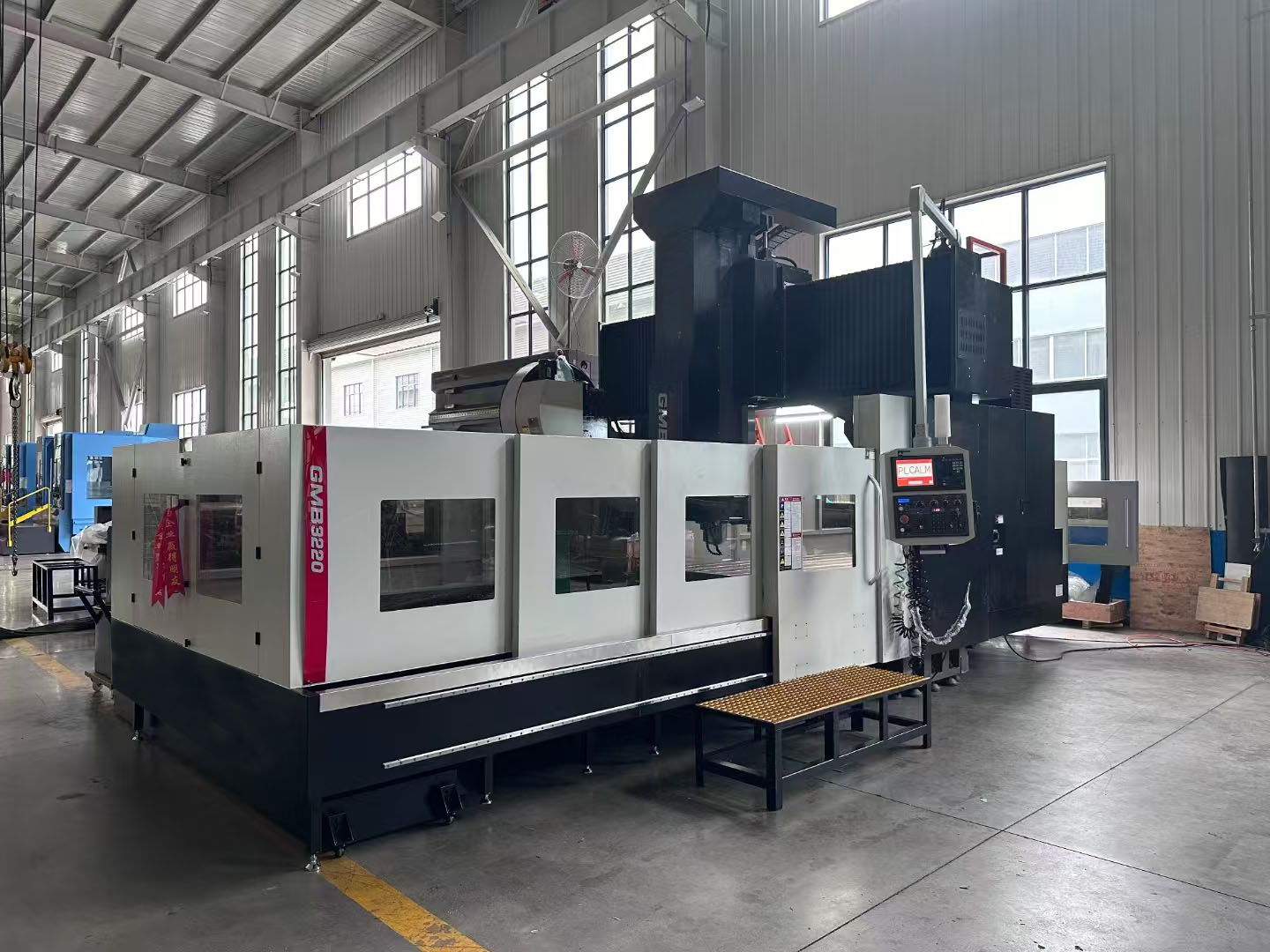

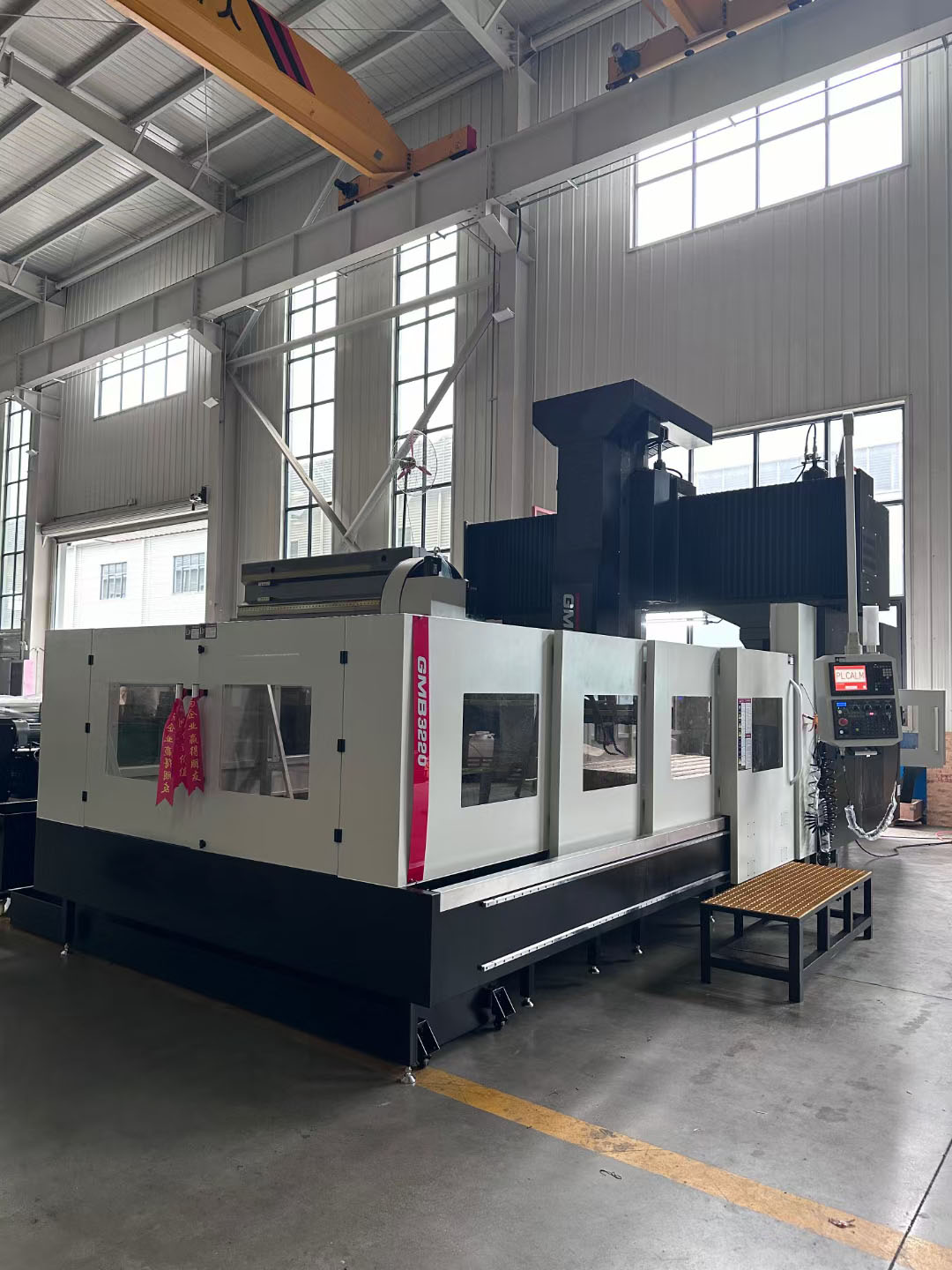

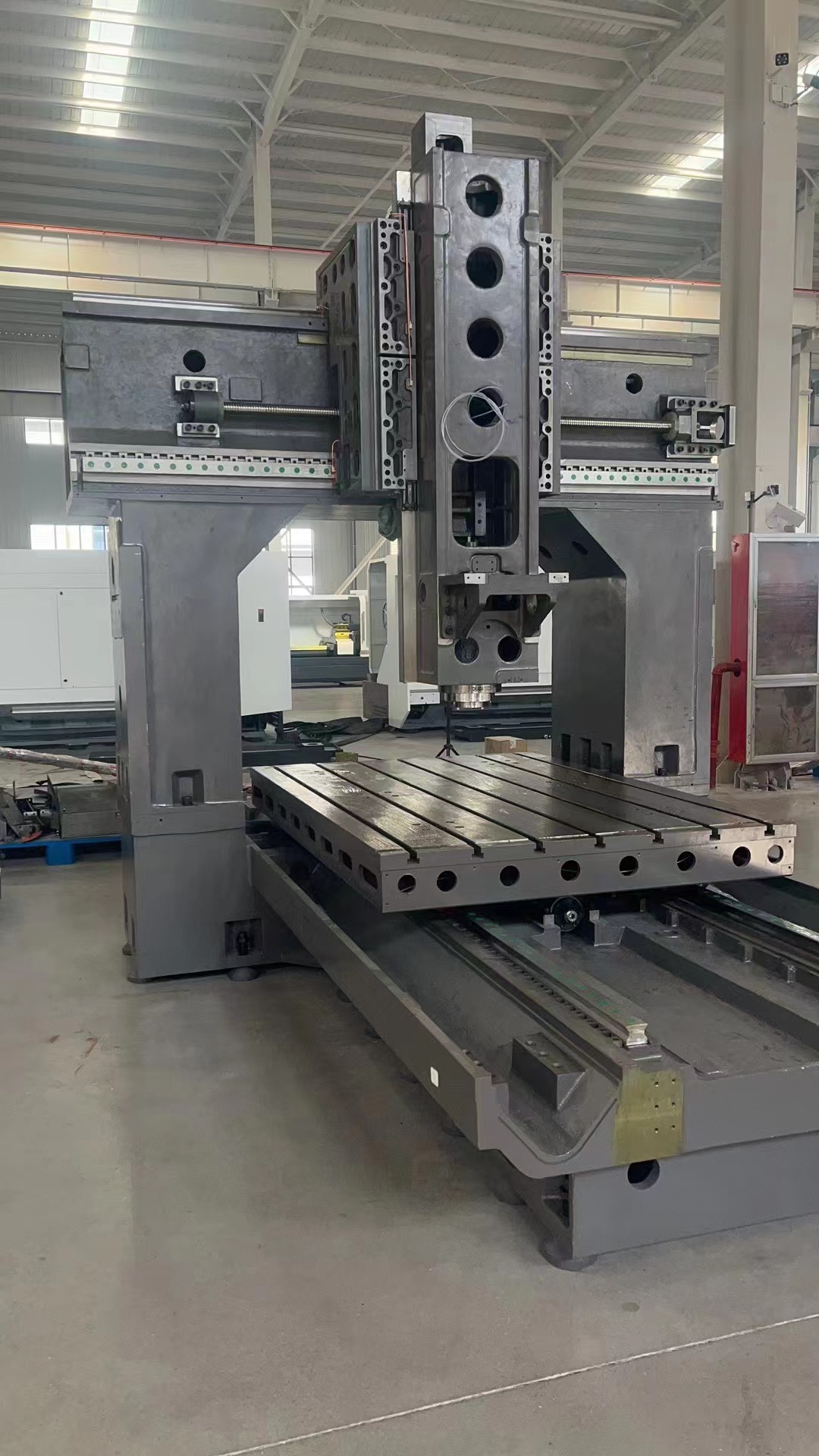

The CNC gantry machining centers inherits the advantages of strong rigidity, symmetrical structure, and stability of the traditional gantry machine tool foundation frame. By strengthening the reinforcement structure and reasonable layout, the entire machine has strong rigidity. The gantry machining center has various processing functions such as milling chips, boring, drilling (expanding, reaming), and tapping threads, which are commonly used in various mechanical processing fields such as automobiles, molds, aerospace, packaging, and hardware.
| Specifications | Units | GMC2518 |
|---|---|---|
| Table size | mm | 2700*1600 |
| X axis travel | mm | 2500 |
| Y axis travel | mm | 1900 |
| Z axis travel | mm | 800 |
| Max. worktable load | kg | 5500 |
| T slot (number-width-pitch) | - | 9-22-180 |
| Gantry width | mm | 1900 |
| Distance between spindle nose and worktable surface | mm | 200-1000 |
| Spindle taper | - | BT50 |
| Max. spindle speed | rpm | 6000 |
| Main motor power | KW | 22 |
| Cutting feed speed | m/min | 1-7 |
| X/Y/Z rapid traverse speed | m/min | 15/15/10 |
| Guideway type | - | X/Y Linear guideway, Z axis hard guideway |
| Positioning accuracy | mm | X/Y ±0.0075, Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | - | Arm 24 |
| Machine Weight | kg | 23000 |
| Overall dimension | mm | 7000*4300*3700 |
We are a professional supplier and exporter of CNC machines and manual machines in China. We have specialized in manufacturing & selling various machine tools to global customers for more than 10 years. Our mission is to provide the best machine tools and solutions, create the greatest value for our customers, realize mutual benefits, and build long-term and stable cooperative relationships.
Our main products are:
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines, Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
QUALITY COMMITMENT
We are committed to bringing efficiency, high precision, and stability to all users by insisting on providing our customers with high-quality machines. Our machines have passed ISO and CE Certificates.
1. MANUFACTURER CAPABILITY
We have purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, continuously improving our machining and production technology level, leading to a continuous increase in production capacity. We provide first-class machines to meet the needs of domestic and foreign customers.
2. R&D CENTER
We have gathered first-rate professionals in the machine tool trade and established long-term technical cooperative relations with other famous machine manufacturers. Meanwhile, we pay close attention to introducing advanced technology and make great efforts to achieve technical renovation and develop market-oriented, highly sophisticated products.
From the moment you partner with us, we are fully dedicated to guiding you, answering your questions, and supporting your business. You can rest assured that you always have a trusted partner to guide you every step of the way. See how our Technical Support services can help solve your most pressing issues.
1. Warranty
The warranty period is generally 13 months after the B/L date. During the warranty period, if parts are damaged due to quality problems (excluding human factors and improper operation), we will provide free replacement parts. Meanwhile, the machine must be operated normally according to the Operation Manual.
2. Quick Response
Our expert technical support specialists are available seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3. Online Technical Support
Via instant messaging, our technicians and sales team will deliver solutions through video and text instructions.
4. Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact our sales representative to obtain details.
We use standard export packaging: plywood case with pallet. This packaging protects the machine and avoids damage during shipping.
We provide comprehensive CNC machines and manual machines to global customers. Whether you are an end-user, a dealer, or a machining factory, you can send your technical requirements, specifications, and drawings, and we will provide the most suitable machine or a comprehensive processing line solution.
Our manufacturing base is located in Shandong Province, China.
The warranty period is generally 13 months after the B/L date. During this time, if any parts are damaged due to manufacturing defects (excluding human factors and improper operation), we will provide replacement parts free of charge. We also provide online technical support, voice assistance, and video guidance.
We provide online technical support via instant communication tools. Customers can describe the issue and send videos or photos, and our technical experts will guide you to resolve the problem promptly.
We use export-standard plywood cases mounted on sturdy pallets to protect the machinery during transport.
Our standard payment terms require a 30% initial deposit upon order confirmation, with the remaining 70% balance paid before shipment. The Minimum Order Quantity (MOQ) is 1 set.
