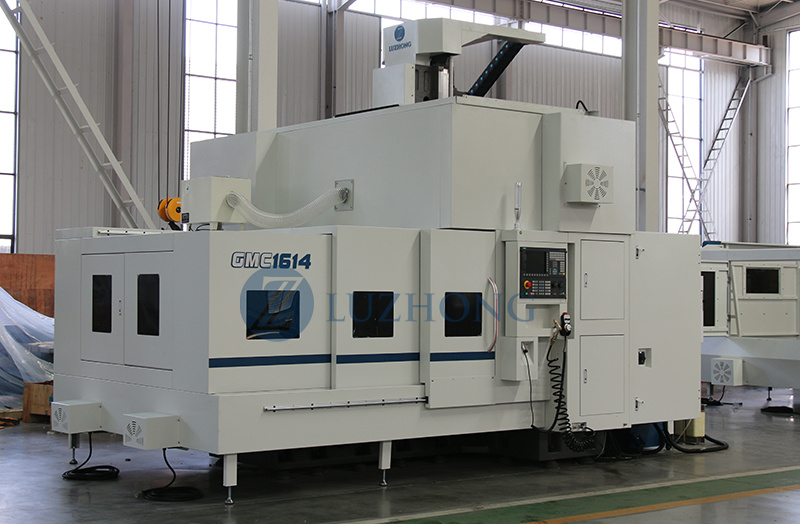

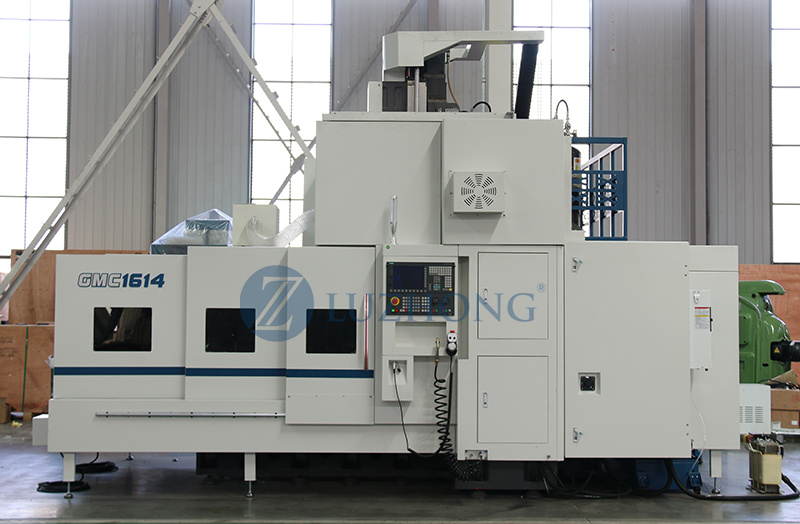

Horizontal machining centers can be applied in many fields such as mechanical processing and mold manufacturing, and can adapt to the requirements from rough machining to precision machining. They have the characteristics of high precision and high efficiency, and are widely used in industries such as aerospace, molds, automobiles, internal combustion engines, textile machinery, chemical machinery processing, petroleum, electronics, etc.

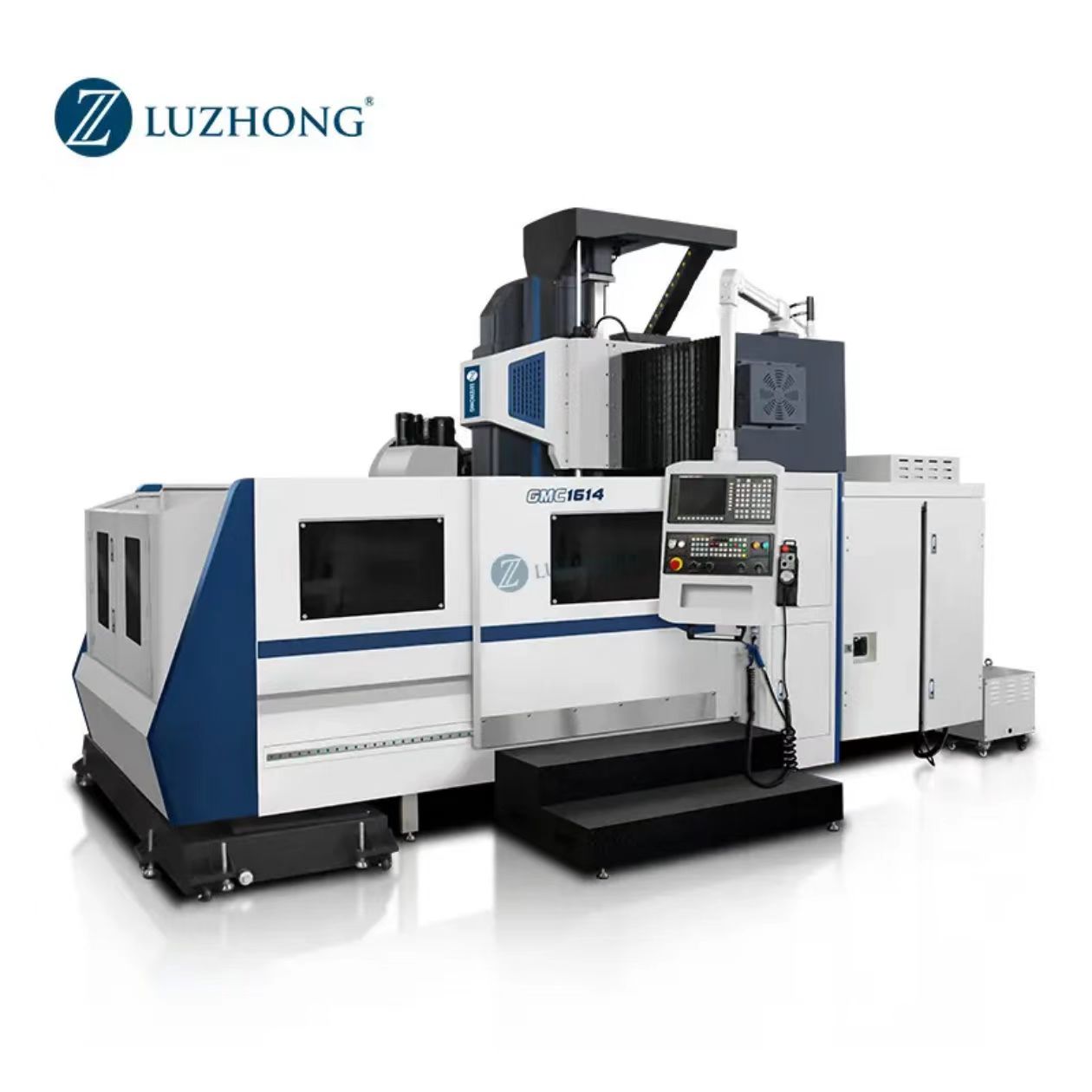

| SPECIFICATIONS | Units | GMC1614 |
|---|---|---|
| Table size（W*L） | mm | 1200*1700 |
| X axis travel | mm | 1600 |
| Y axis travel | mm | 1500 |
| Z axis travel | mm | 800 |
| Gantry width/passing height | mm | W: 1500/H: 1030 |
| Table load | t | 2.5 |
| Distance between spindle nose and table surface | mm | 150~950 |
| T slot (number-width*pitch) | - | 7-22*170 |
| Spindle taper | - | BT50 /190 |
| Spindle speed | r/min | 6000 |
| Rapid traverse speed | m/min | 15 |
| Cutting feed speed | m/min | 10 |
| Main motor power | kw | 15/18.5 |
| Tool magazine | - | Arm24 |
| Positioning accuracy | mm | X/Y 0.0075 / Z 0.015 |
| Repeat positioning accuracy | mm | 0.005 |
| Overall dimension (L*W*H) | mm | 5900*4200*4200 |
| Machine weight (about) | t | 15.5 |

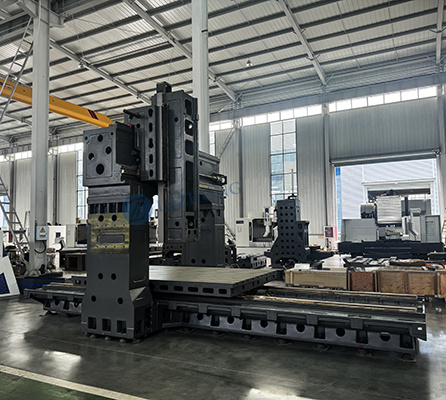

High strength high quality HT300 cast iron

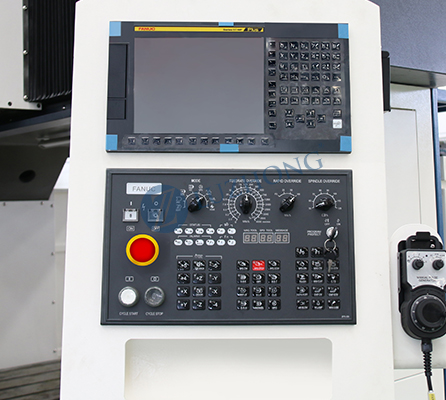

Standard equipped with FANUC controller

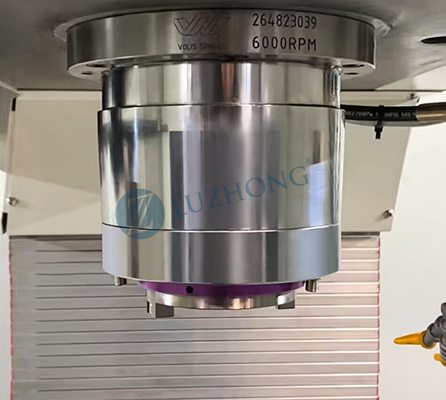

Taiwan BT50 precision spindle 6000rpm

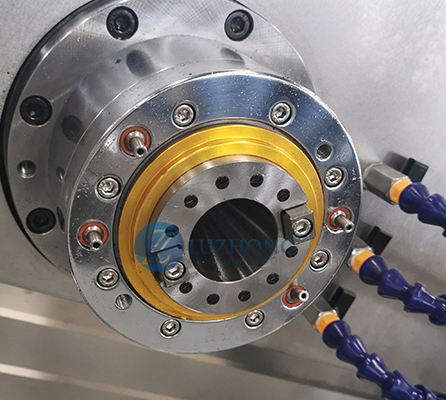

Standard with Spindle ring cooling function

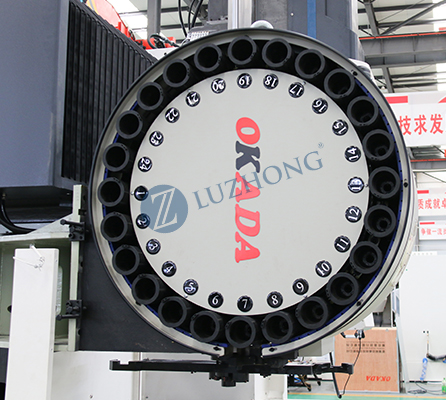

Taiwan arm type 24 tool magazine, 3s tool change time

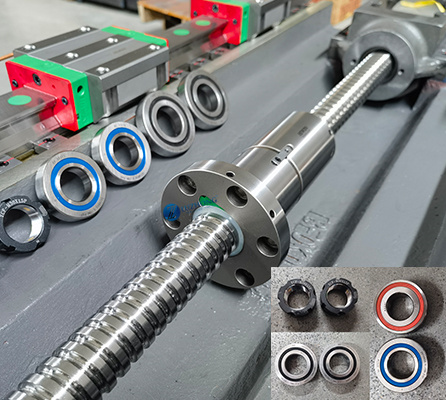

Taiwan precision lead screw & imported bearings

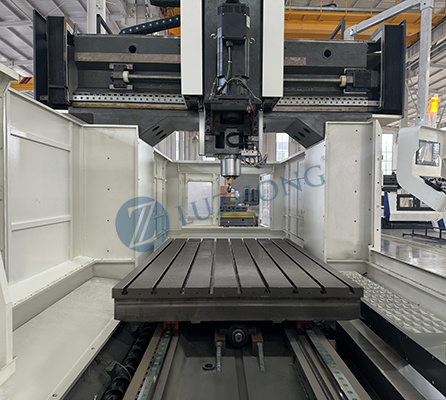

2 axis linear rail and 1 axis hard rail
Ensuring the stability of spindle tool change

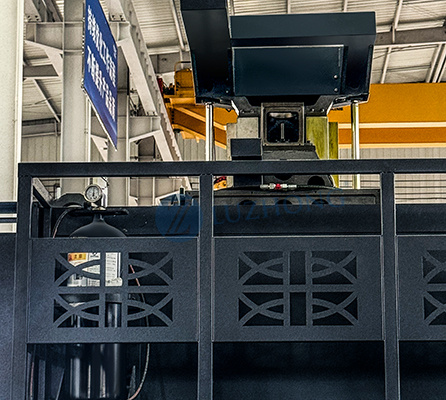

Standard cylinder setup for machine counterweight

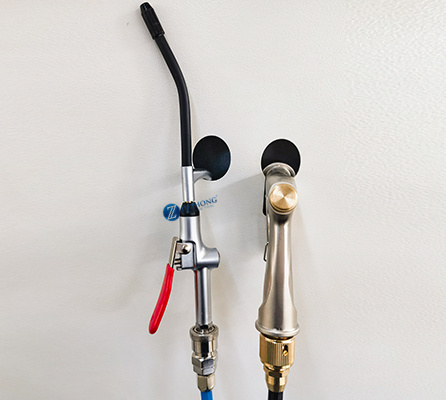

Equipped with high-pressure air and water guns

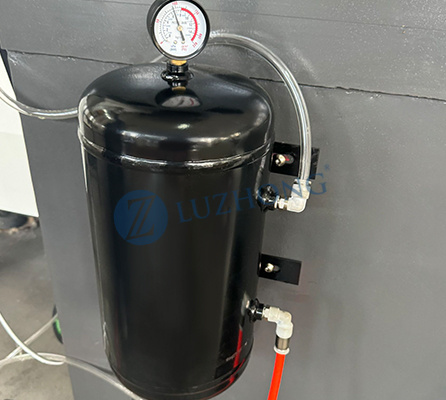

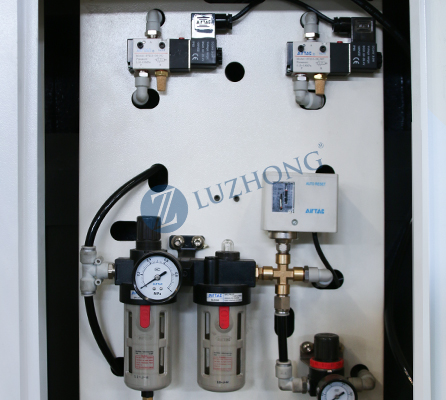

Standard with high-quality Pneumatic Components

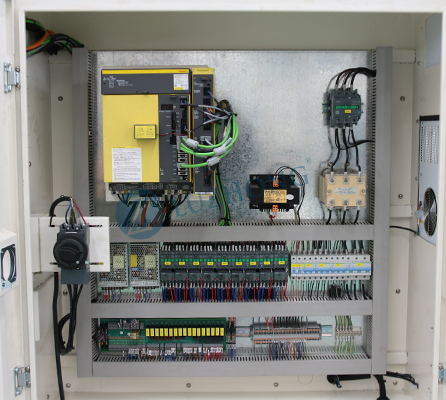

Equipped with safety electrical components & quick plug

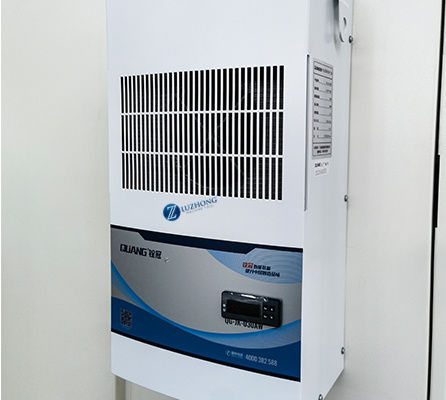

Industrial cabinet AC for optimal electric box cooling

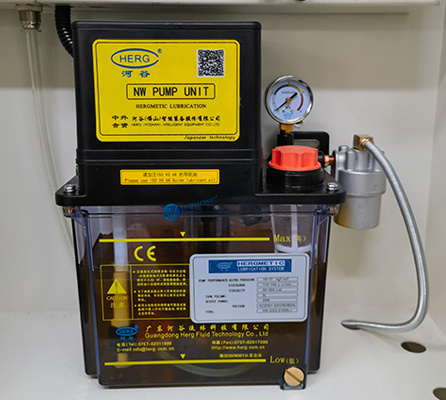

Automatic centralized lubrication device

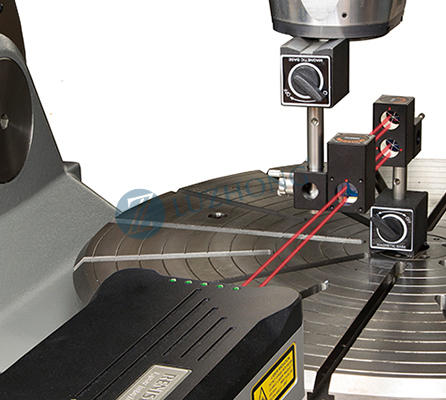

Precision alignment verified via laser testing

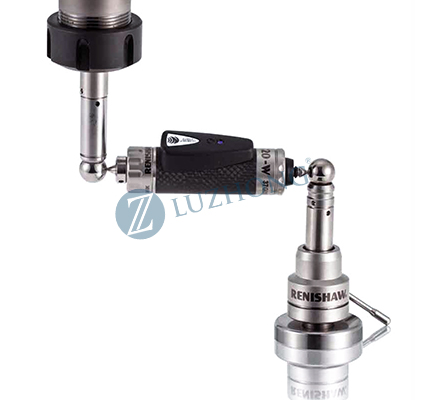

Proven dynamic positioning accuracy check

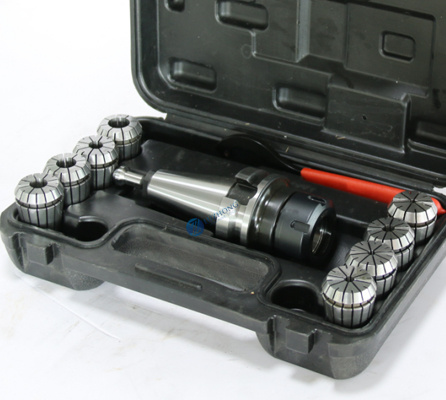

Standard setup with BT50 milling chuck

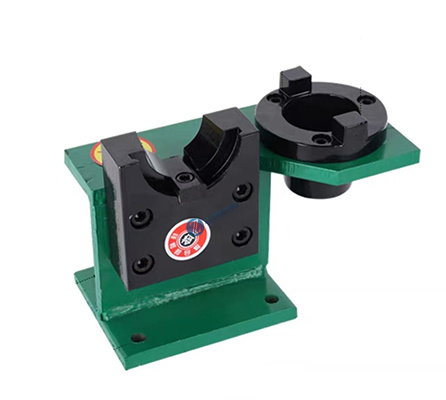

Standard setup with safety lock knife block

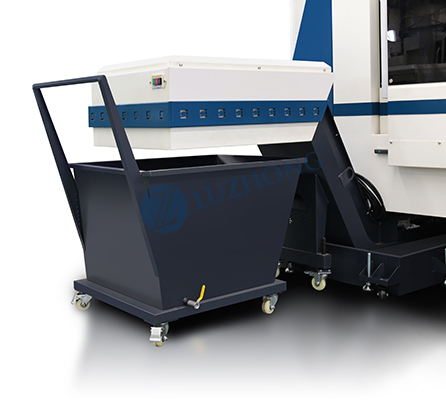

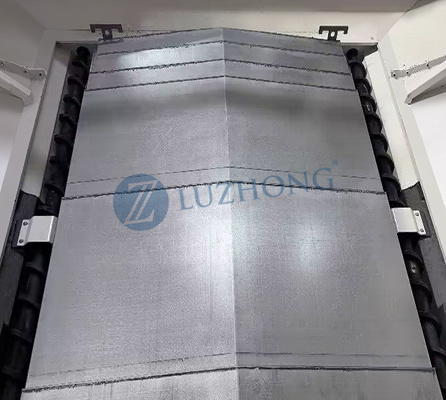

2 Spiral type conveyors and 1 Chain type conveyor
Ensuring continuous and clean operation

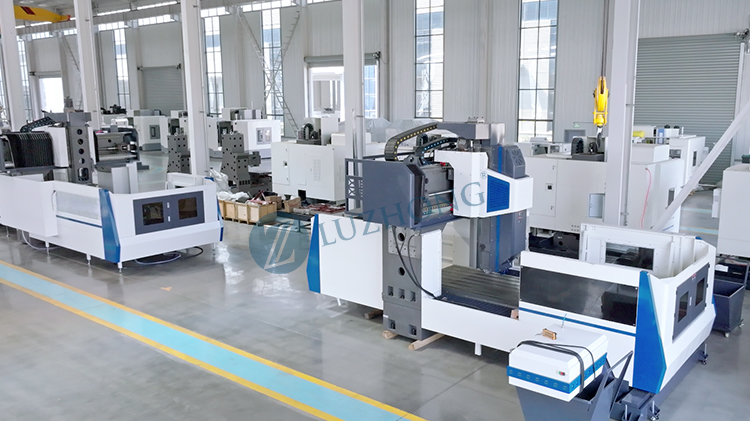

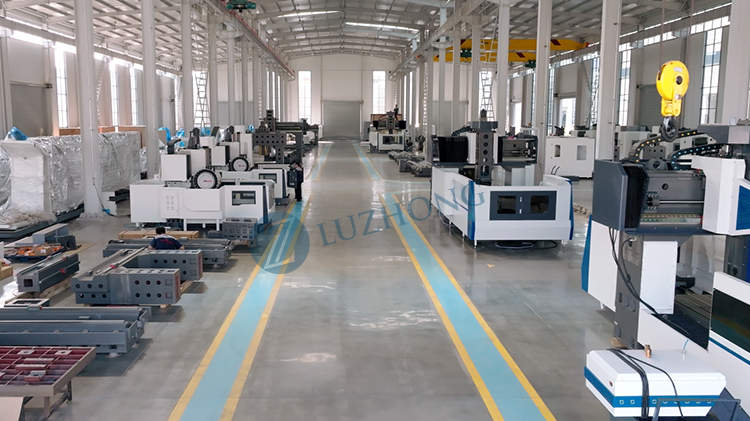

Our plant has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine" purposes, we provide better quality machines and more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
