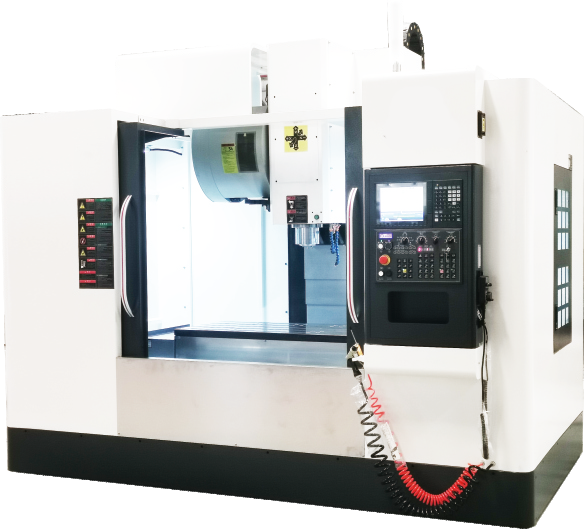

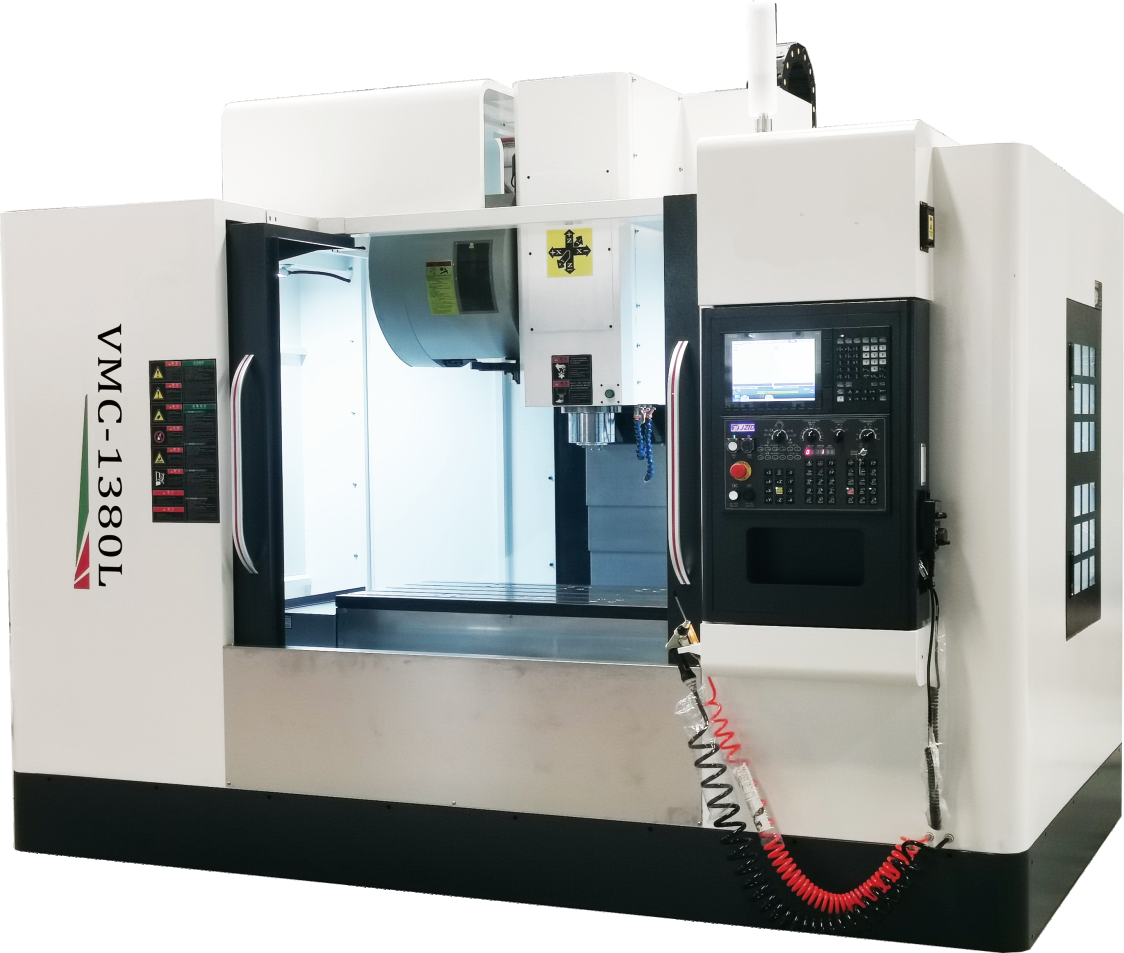

Product structure: X, Y axis adopts high-precision linear rolling guide, which has fast response, accurate coordinate positioning, and improves fast moving speed and processing accuracy. Z-axis adopts sliding guide structure, adopts high-frequency quenching grinding, and cooperates with low friction coefficient imported wear-resistant guide rail for plastic pasting, realizing high rigidity, low damping, perfect low static / dynamic precision.
Main features: The whole system adopts Taiwan spindle, Taiwan screw rod, Japan NSK bearing, FANUC control system and Mitsubishi precision system.
Item
Unit
VMC-855A
VMC-966A
VMC-1170A
VMC-1270A
VMC-1380A
VMC-1580A
VMC-1890A
Bed Dimension
mm
550*1000
600*1000
600*1200
700*1360
800*1400
800*1700
810*1700
Trip X
mm
800
900
1100
1200
1300
1500
1600
Trip Y
mm
550
600
600
700
800
800
800
Trip Z
mm
550
600
700
650
700
700
800
T-slot (number of slots - size x pitch)
mm
5-18*100
5-18*100
5-18*120
5-18*140
5-18*145
5-18*147.5
5-22*165
Distance from spindle center to column guide rail slider surface
mm
590
640
686
810
850
850
865
Distance from spindle face to worktable surface
mm
120-670
120-720
95-795
130-780
100-800
160-840
85-885
Spindle taper hole
-
BT40/150
BT40/150
BT40/150
BT50/155
BT50/155
BT50/155
BT50/155
Spindle speed
r/min
8000
8000
8000
8000
8000
8000
8000
Spindle connection way
-
belt
belt
belt
belt
belt
belt
belt
Spindle power
kw
7.5-11
7.5-11
11-15
15-18.5
15-18.5
15-18.5
15-18.5
X/Y/Z guide rail specs
-
45/45/45
45/45/45
45/45/45
45/45/45
45/45*4/45
45/45*4/45
45/45*4/45
X/Y/Z ball screw specs
-
4012
4012
4012
5010
5010
6310
5512/5010/5010
Worktable load capacity
kg
500
600
800
1000
1200
1500
1500
Three-axis rapid traverse speed (X/Y/Z)
m
36/36/36
36/36/36
30/30/24
24/24/20
20/20/18
20/20/18
20/20/18
Positioning accuracy
mm
0.006
0.006
0.007
0.01
0.01
0.015
0.015
Repeated positioning accuracy
mm
0.004
0.004
0.005
0.007
0.007
0.008
0.008
Tool magazine capacity
T
24
24
24
24
24
24
24
Maximum allowable length of tool magazine
mm
200
200
200
300
300
300
300
Tool change time (tool to tool)
s
1.3
1.3
1.3
4
4
4
4
Over dimensions
m
2.6*2.4*2.65
2.8*2.5*2.7
3.2*2.6*2.7
3.3*2.9*3.2
4.2*3.1*3.2
4.5*4*3.2
4.5*4*3.2
Weight (approx.)
t
4.5
5
7
11
13
15
16

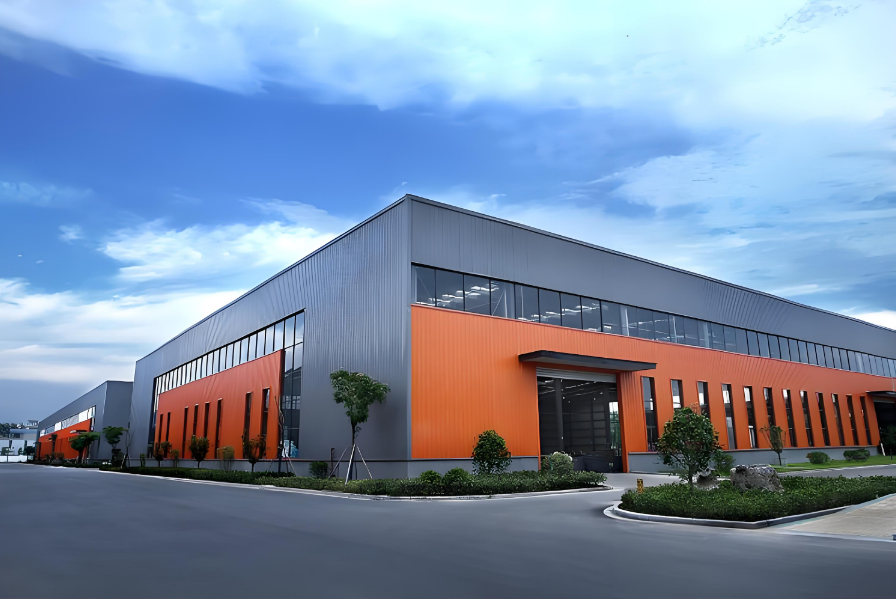

About Us
Main products include: vertical machining center, horizontal machining center, gantry machining center, inclined rail CNC lathe, vertical CNC lathe and flexible production line.
These products are widely used in aviation, mold, automobile, shipbuilding industry, high-speed rail, wind power, hardware tools, plastic precision parts processing and other industries.
The management and technical teams possess extensive, long-term experience in the CNC machine tool design and manufacturing industry, delivering advanced design, assembly, service, and modern enterprise management philosophy.
Adhering to a philosophy of: seeking innovation, strict quality, and excellent service as the core development direction, we aim to offer precision, high-quality machine tools and dedicated services to meet market requirements, providing users with high-efficiency, high-precision products.

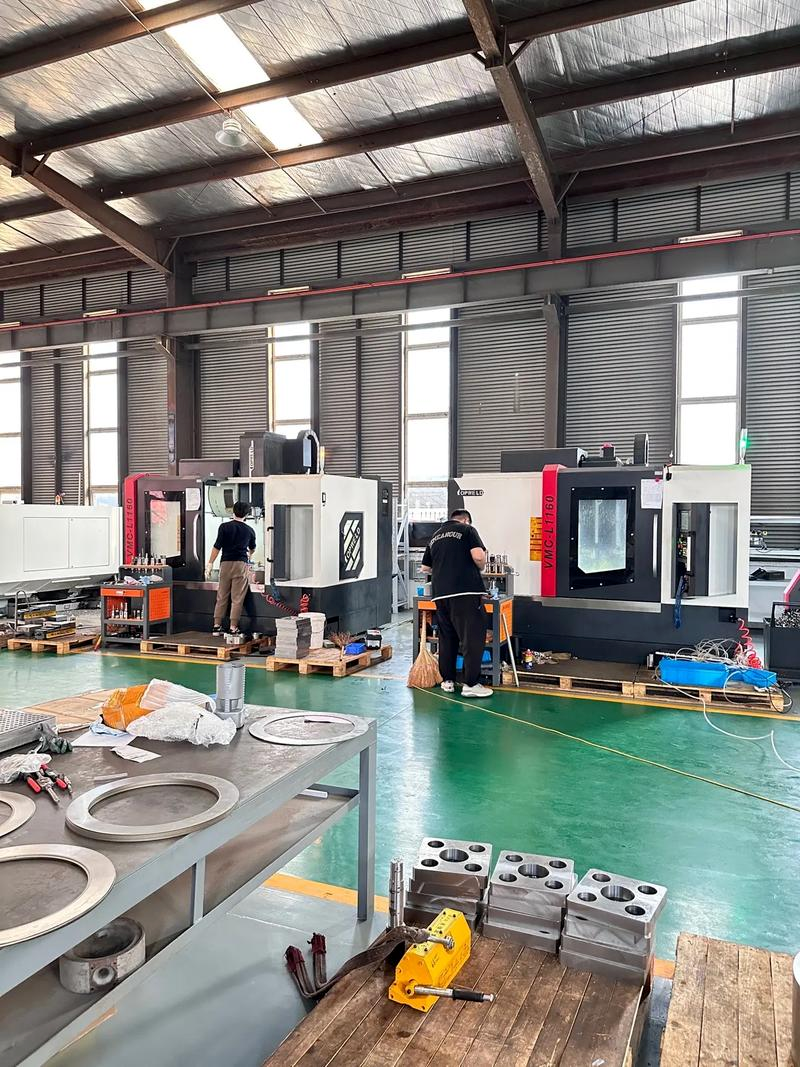

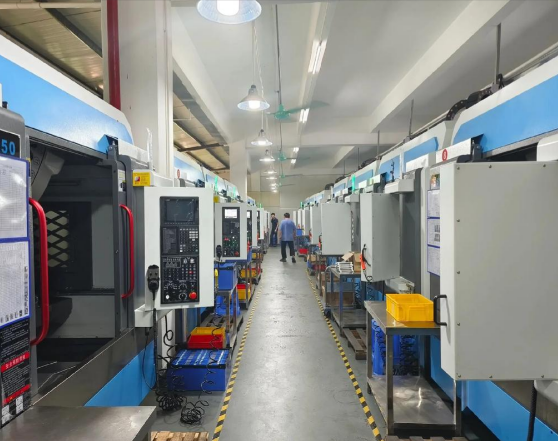

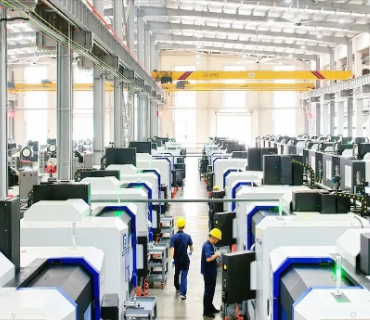

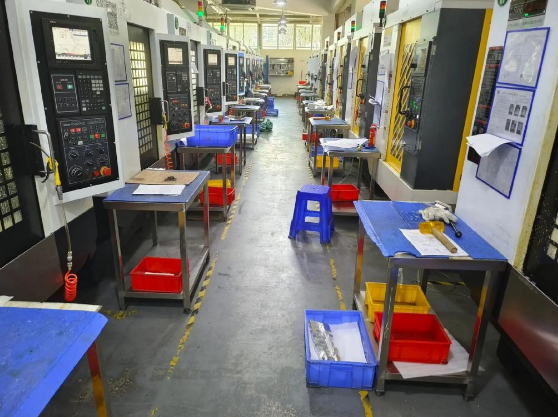

Exhibition
Partners
Packing & Delivery
Frequently Asked Questions
What industries are these vertical machining centers (VMC) suitable for?
Our VMC models are widely utilized in high-precision and heavy-duty manufacturing fields including aviation, mold production, automotive industries, shipbuilding, high-speed rail development, wind power equipment, hardware tools, and plastic precision parts processing.
What are the design details of the X, Y, and Z axes?
The X and Y axes utilize high-precision linear rolling guides to ensure rapid response and accurate coordinate positioning, improving both velocity and processing precision. The Z-axis uses a sliding guide structure integrated with high-frequency quenching grinding and wear-resistant guide rails for plastic pasting, which maximizes rigidity and ensures low damping.
Which components are standard in your machining centers?
The core configuration includes spindles and screw rods from Taiwan, high-precision NSK bearings from Japan, and advanced control systems such as FANUC or Mitsubishi precision systems to maintain high system reliability.
What is the tool change capability and speed?
All standard VMC models listed feature a tool magazine capacity of 24T. The tool-to-tool change time ranges from a fast 1.3 seconds for models up to VMC-1170A, and 4.0 seconds for larger heavy-duty models like VMC-1270A to VMC-1890A.
What is the maximum table load capacity of these machines?
Depending on the machine specification, the worktable load capacity scales from 500 kg on the compact VMC-855A up to 1500 kg on the heavy-duty VMC-1580A and VMC-1890A models.
