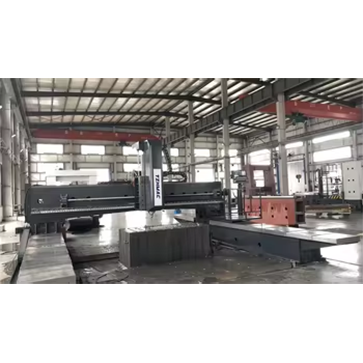

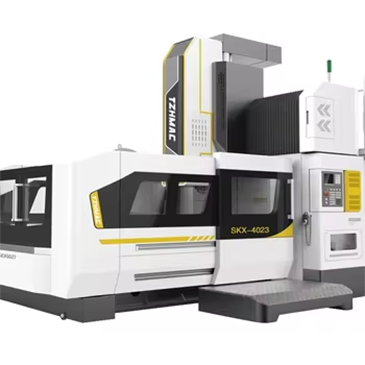

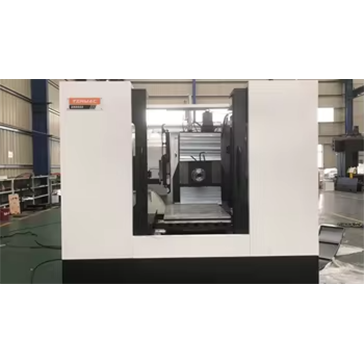

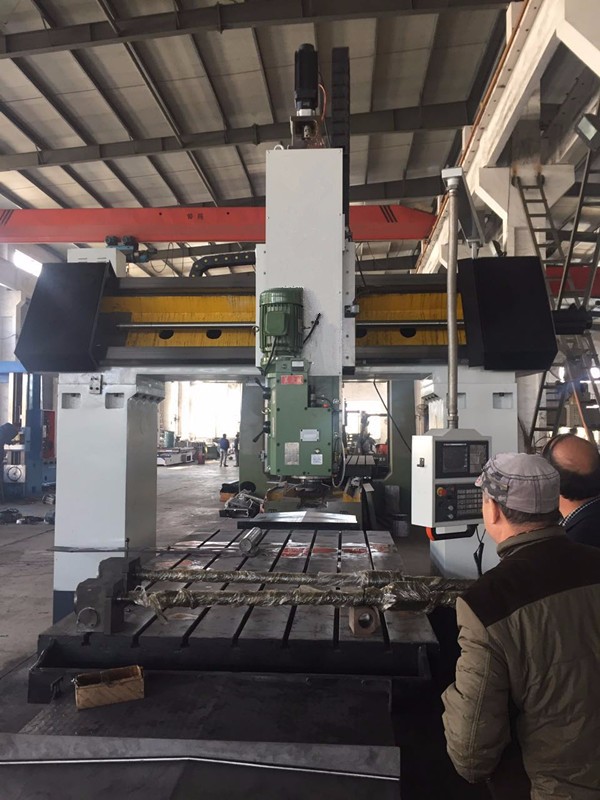

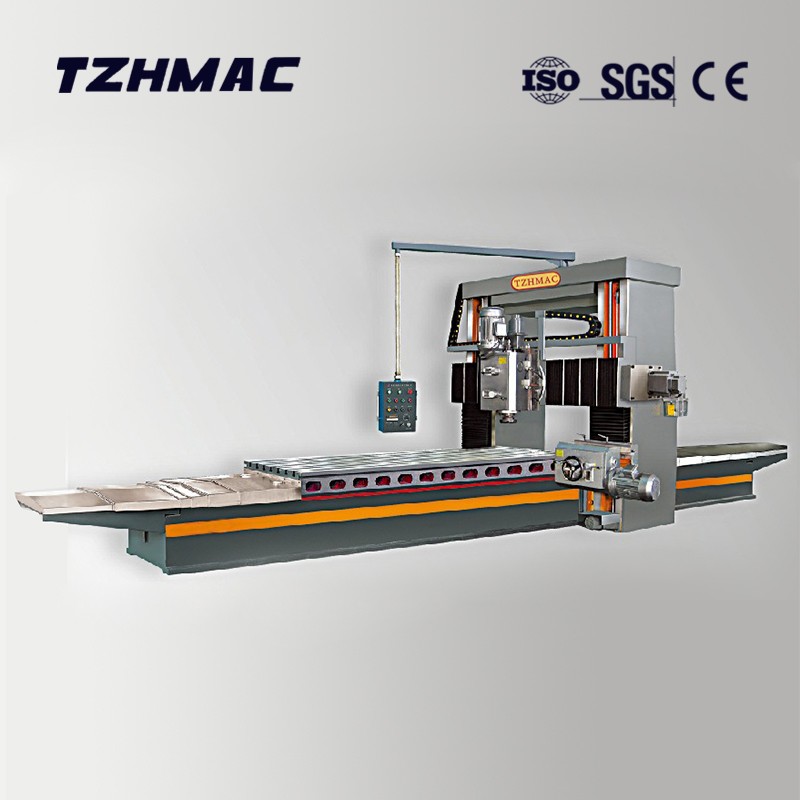

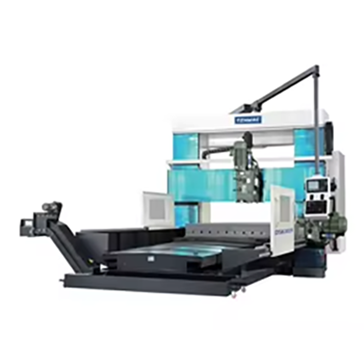

Factory Direct Sale Industrial Bt50 Spindle Taper 7.5/5.5KW Motor Fanuc System Gantry Cnc Milling Machine

Product Description

Model	KX2016	KX3016	KX3020
Distance between columns	1600mm	1600mm	2100mm
Worktable size	2000*1200mm	3000*1200mm	3000*1600mm
Worktable load	2000kg	4000kg	6000kg
T slotting size	7-28*160mm	7-28*160mm	7-28*220mm
X travel	2000mm	3000mm	3000mm
Y travel	1400mm	1400mm	1800mm
Z travel	800mm	800mm	800mm
Distance from spindle to worktable	200-1000mm	200-1000mm	200-1000mm
Spindle taper	BT50	BT50	BT50
Spindle speed	0-6000rmp	0-6000rmp	0-6000rmp
Main motor power	15kw	15kw	15kw
Feed speed	0.1-10m/min	0.1-10m/min	0.1-10m/min
Max. diameter of tool	φ100mm	φ160mm	φ160mm
Max. length of tool	300mm	300mm	300mm
Max. weight of tool	15kg	15kg	15kg
Cnc control system	Fanuc	Fanuc	Fanuc
Weight	18T	25T	28T

Our Service

Warranty & After-sale service

24-hours technical support by E-mail or telephone.
Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
All of our products’ warranty period for 12 months.
Man-made destroy will be exception.
We can supply the materials or tech support to our customers to help them fix the problems. We will pay the delivery charge if the repair, return or replacement cases happen.

Packing & Delivery

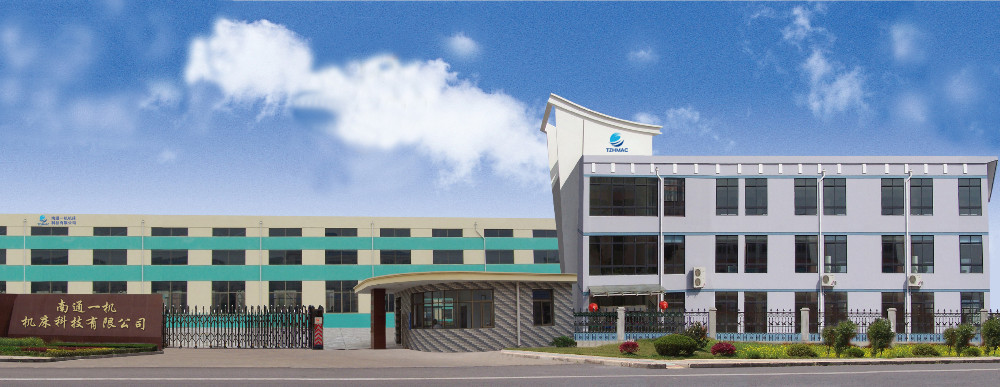

Our Company

Mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe, milling machine, grinding machine, power press, guillotine shearer, hydraulic press brake, CNC Machine and so on, which have been exported to 40 or more countries & areas.

Related Products

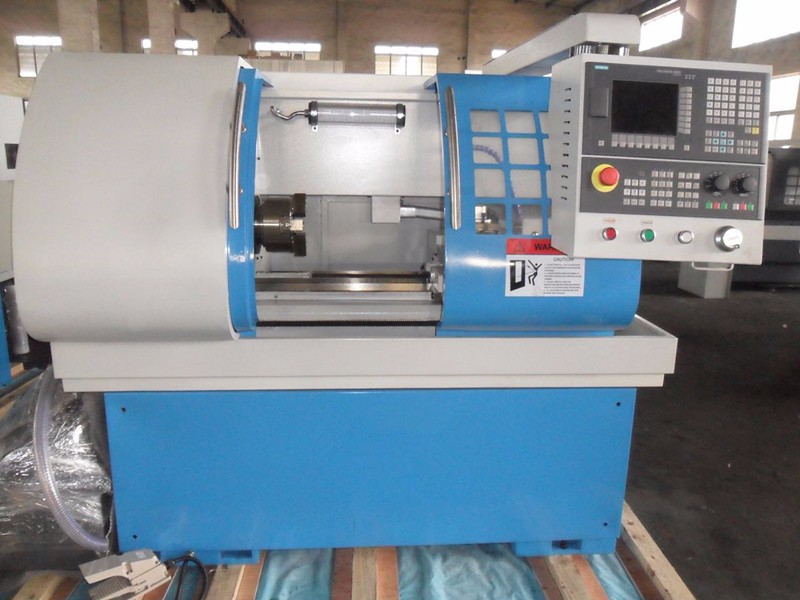

cnc turning machine

91.8% Response Rate

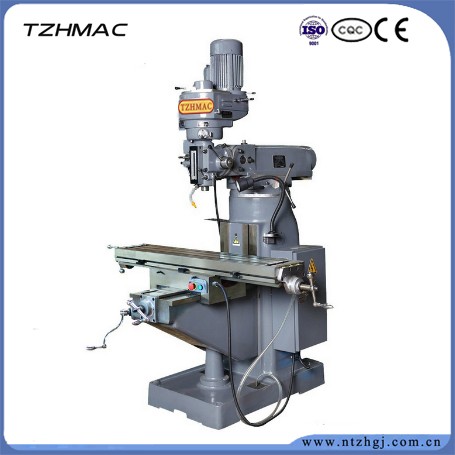

universal milling machine

91.8% Response Rate

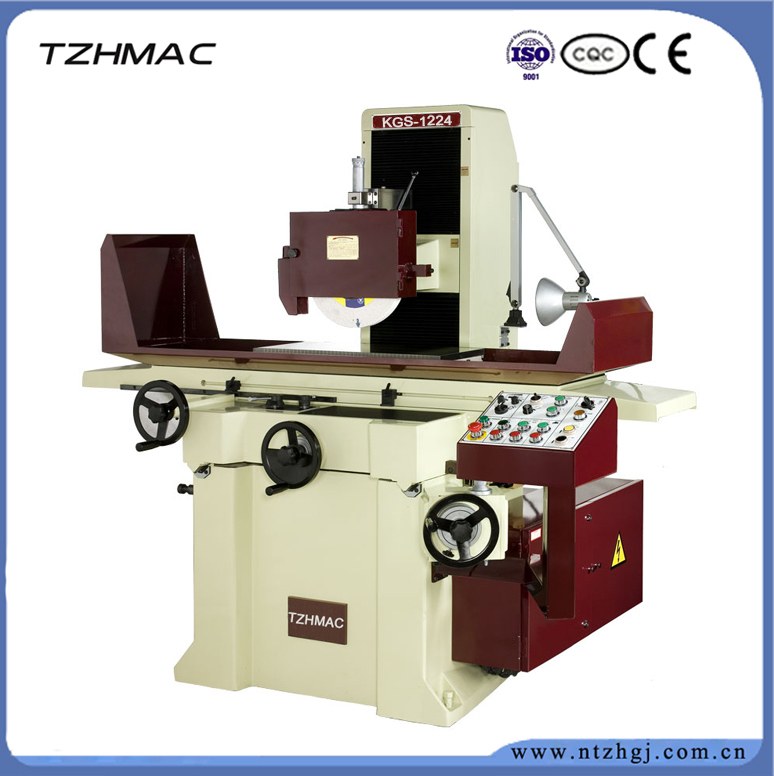

surface grinding machine

91.8% Response Rate

Certifications

Frequently Asked Questions

Q1 How should I pay for my order? What is the process of this purchase?

We accept TT by bank. You can do 30% prepayment at first, then we will start to make production. When the machine is ready, we will take pictures to you, and then you can do the balance. After we get your payment, we will send the machine to you.

Q2 How about your service after sales? Can your engineer speak fluent English?

We offer the service from when you get the machine, including how to install the machine, how to use the machine, how to let the machine work, and so on. Usually we will teach you how to do by email or by Skype. Our engineer has many years of experience for CNC machine service. He can speak very good English, so he can solve the problem in a short time.

Q3 Are you a factory or trading company?

We are the manufacturer. As only the machine is made by ourselves, the quality can be trusted, and the most important thing is we can do better service after sales. We know how to fix the problem in each part easily. Welcome to visit our factory.

Q4 How long is the delivery time?

For standard machines, it would be 7-10 days; for non-standard machines and customized machines according to clients' specific requirements, it would be 15 to 30 days.

Q5 How about the documents after shipment?

After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by the client.

Q6 How to master the stability of machine castings?

The castings of the numerical control machine all adopt HT250 and HT300. It is treated by two times tempering and one time vibration aging to release internal stress, in order to ensure structural stability and maintain long-term machine accuracy.
