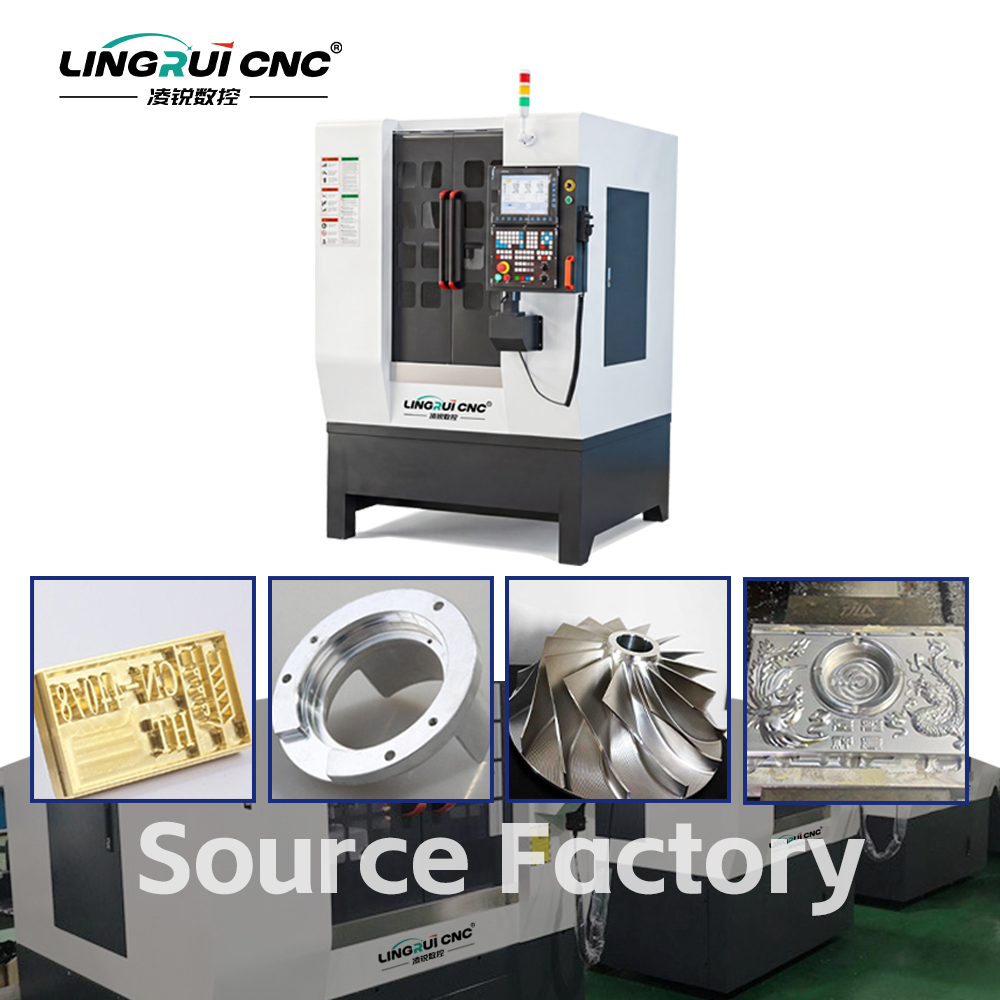

Fully Enclosed 5 Axis ATC CNC Milling Machine With High-quality Electrical Components

Product Description

CNC Machine Header

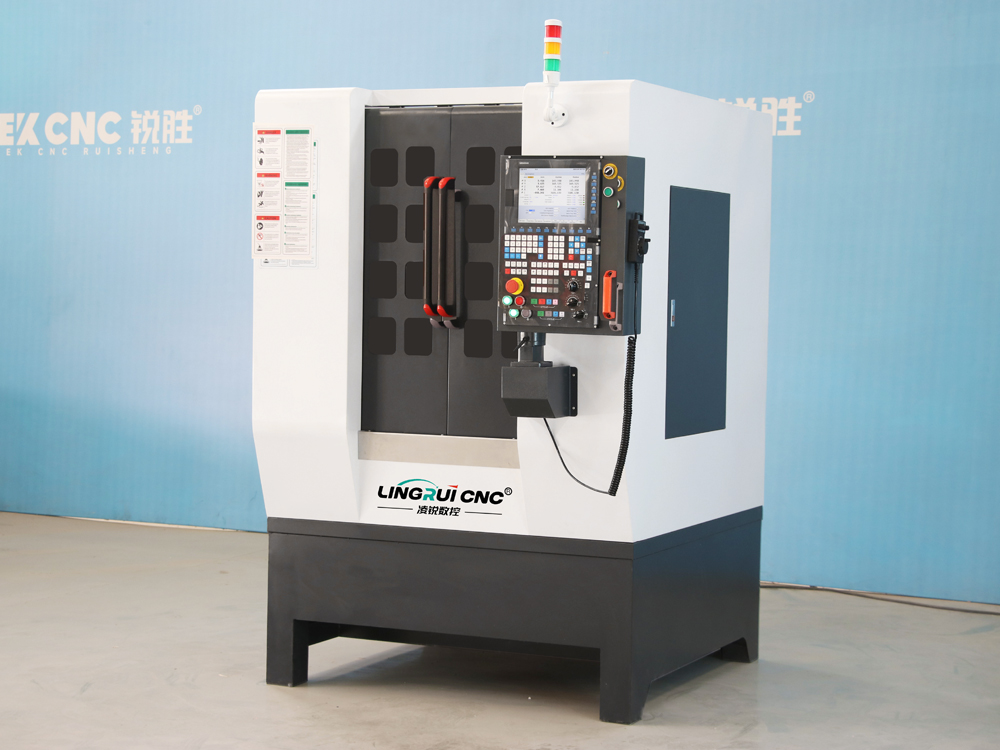

Machine Photos

Machine Photo View 1 Machine Photo View 2 Machine Photo View 3

Product Parameters

Product Parameters Overview
Model LR-6060-5S
Travel X: 600mm Y: 600mm Z: 400mm A: 0-130° C: 360°
Bed Heavy-duty thickened cast iron bed
Gantry Heavy-duty integrated gantry
Spindle 3.5KW high-speed water-cooled automatic tool change spindle
Spindle Speed 6000-24000rpm
Tool Magazine Flip-top linear tool magazine
Tool Holder Type NBT30 ER32 φ20
Rotary Axis 5-axis trunnion-type rotary axis (100mm diameter)
Drive Mode Weihong 750W bus absolute value servo motors *3 + multi-axis servo driver
Transmission Mode High-precision tbi ball screw
Guideways Taiwan Hiwin 25 high-precision linear square rails / flange sliders
Cables Pure copper high-flexibility cables
Frequency Converter Fuling Inverter
Worktable Heavy-duty T-slot worktable
Electrical Components Schneider circuit breakers, surge protectors, AC contactors, etc.
Lubrication System Fully automatic lubrication and oil maintenance system
Operating Voltage AC380V/220V 50/60Hz
Air Pressure ≥0.6Mpa
Compatible Software Artcam, Type3, AutoCAD, CDR, SolidWorks, UG, PowerMill, etc.
Engraving Instruction Standard G code, u00, mmg, plt
Security System XYZ three-axis all photoelectric limit
Repeat Positioning Accuracy ±0.02mm
Engraving Accuracy 0.01mm
Max. Rapid Traverse Speed 18000mm/min
Max. Working Speed 35000mm/min
Dimensions 1400*1800*2100mm
Weight 1450kg

Details Images

3.5KW high-torque water-cooled automatic tool changer spindle
3.5KW high-torque water-cooled automatic tool changer spindle, 24000r/min speed, NBT 30 tool holder, ER25 tool clip, adjustable speed, water circulation cooling, high cooling efficiency, can work continuously for 24 hours.

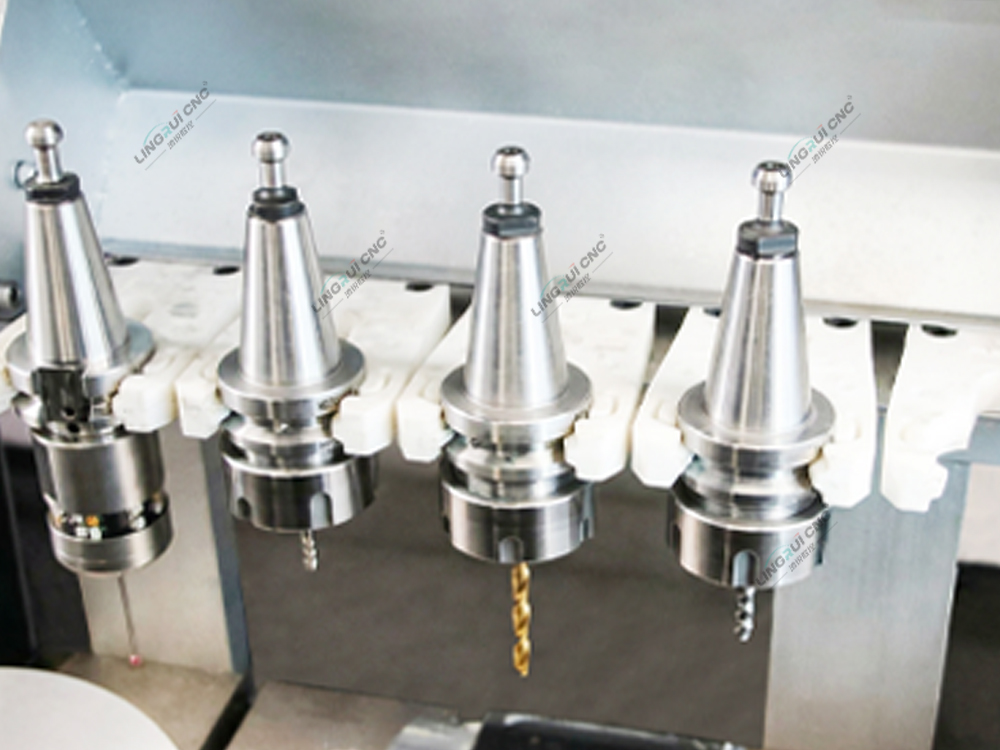

Flip-top linear automatic tool changer
The flip-top linear automatic tool changer can hold five different tools at a time. During machining, it automatically changes tools according to machining requirements, saving tool change time and improving workpiece machining efficiency.
Detachable cradle-type five-axis rotary axis
The detachable cradle-type five-axis rotary axis is bolted to the T-slot worktable. The cradle-type rotary axis uses an integral structure to precisely integrate two rotary axes, ensuring minimal torsional and bending deformation and achieving high-precision machining.

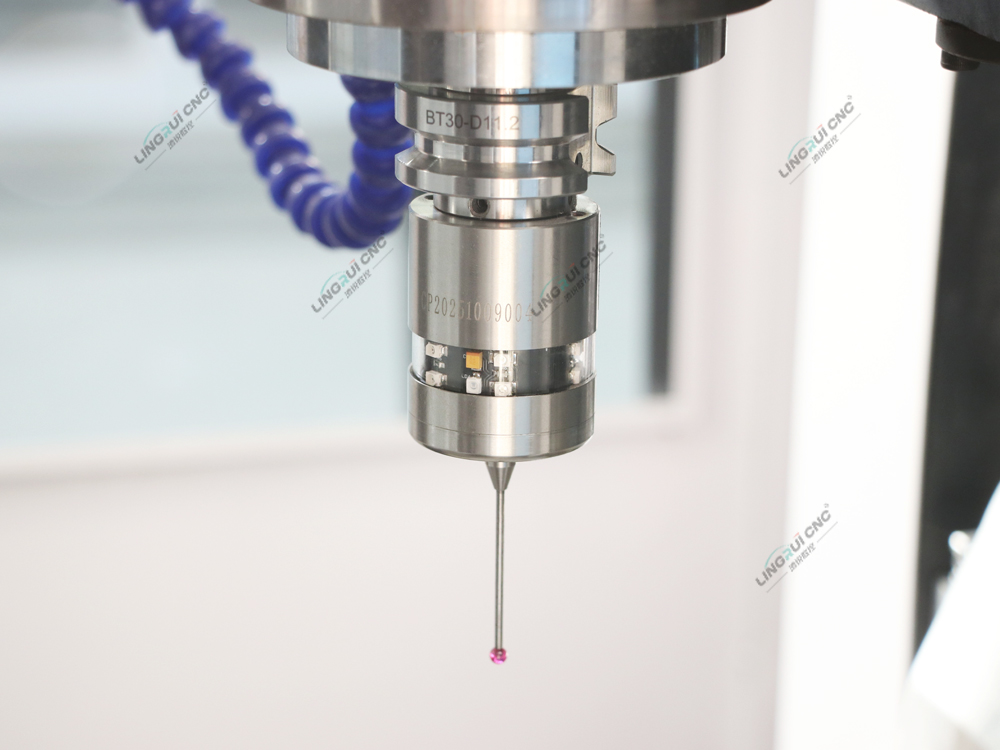

Infrared optical signal transmission detector
Using infrared optical signal transmission, it is used to detect the workpiece position and has functions such as automatic centering and workpiece measurement. It accurately matches the positioning and measurement requirements of precision metal processing and is suitable for processing various precision parts, effectively ensuring processing accuracy.

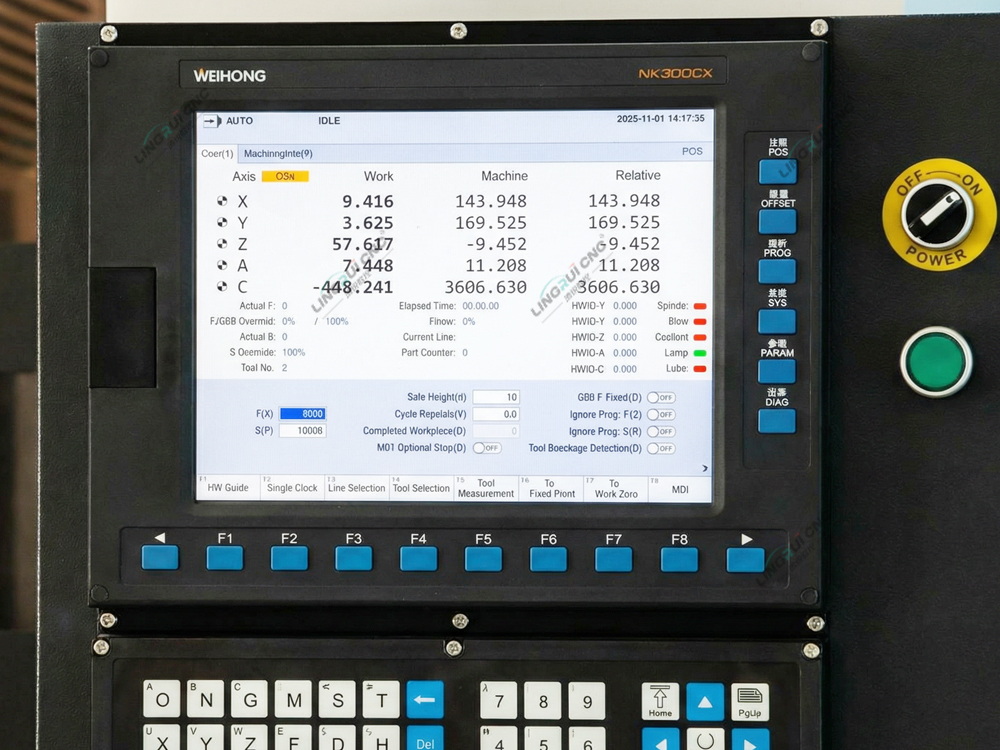

Weihong NK300CX control system
Equipped with the Weihong NK300CX control system, it supports five-axis operation, multiple language interface displays, and is compatible with various CAD/CAM software, making it easy to operate.
Five-axis pulse handwheel
The five-axis pulse handwheel allows for precise control of the spindle or tool movement to the target position. When used in conjunction with a control system, it can achieve advanced functions such as handwheel simulation and is easy to use.
Contact-type automatic tool setter
The contact-type automatic tool setter, in conjunction with the control system, can automatically calibrate tools of different lengths, eliminating the need for manual tool calibration, making it convenient to use and saving tool calibration time.
Constant-temperature water chiller
Equipped with a constant-temperature water chiller, it can keep the coolant temperature at a fixed value with temperature control accuracy to ±1°C, effectively reducing the spindle operating temperature and enabling continuous operation 24 hours a day.
Bus multi-axis servo drive system
The bus multi-axis servo drive system, using the EtherCAT industrial bus protocol, offers higher real-time performance and high response bandwidth, effectively ensuring contour accuracy in complex surface machining. Its compact, integrated multi-axis design simplifies wiring, debugging, and maintenance.
Protective covers
The X-axis is equipped with an accordion-style protective cover, the Y-axis with a steel plate telescopic protective cover, and the Z-axis with a sheet metal protective cover. These features effectively prevent debris, dust, cutting fluid, and other contaminants from entering the guide rails and lead screws, ensuring long-term machine accuracy, extending machine lifespan, and reducing failure rates.

Sample Display

Application Materials
Copper, aluminum, steel, iron, stainless steel, aluminum alloy, light alloy, wood, plywood, MDF, PVC board, acrylic, engineering plastics, epoxy resin, ABS, PP, PE, jade, crystal, graphite, bakelite, carbon fiber, stone, foam, and various other metallic and non-metallic materials.
Application Industries
Aerospace: Impellers, engine casings, wing-body structures, landing gear structures, aircraft parts, panel structures, wall panels, slide rails, etc.
Automotive and New Energy: Engine housings, gearbox housings, battery trays, motor housings, automotive wheel hubs, motor end covers, brake discs, steering knuckles, control arms, gears, ratchet wheels, splined shafts, etc.
Mold Industry: Injection molds, stamping molds, die-casting molds, biscuit molds, chocolate molds, food molds, copper motherboards, etc.
Hardware Industry: High-end door locks, hinges, gearbox housings, valve bodies, valves, connectors, fasteners, etc.
Medical devices: Implants, surgical instruments, imaging equipment stands, collimators, endoscopic lens barrels, metal-framed lights.
Precision components: Watch cases, watch parts, speaker housings, mobile phone housings, mobile phone frames, eyeglass frames, etc.
Sample Display Image
