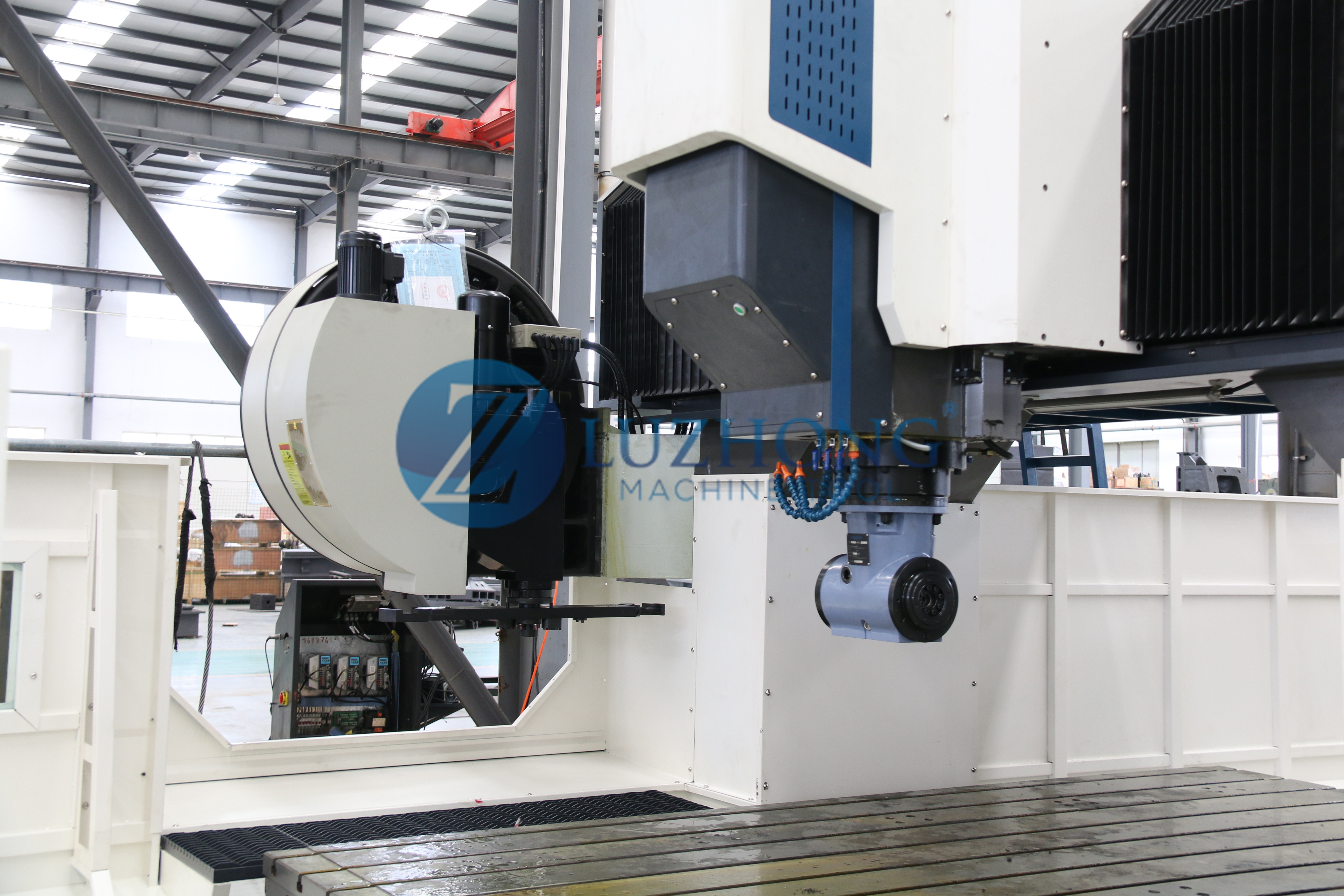

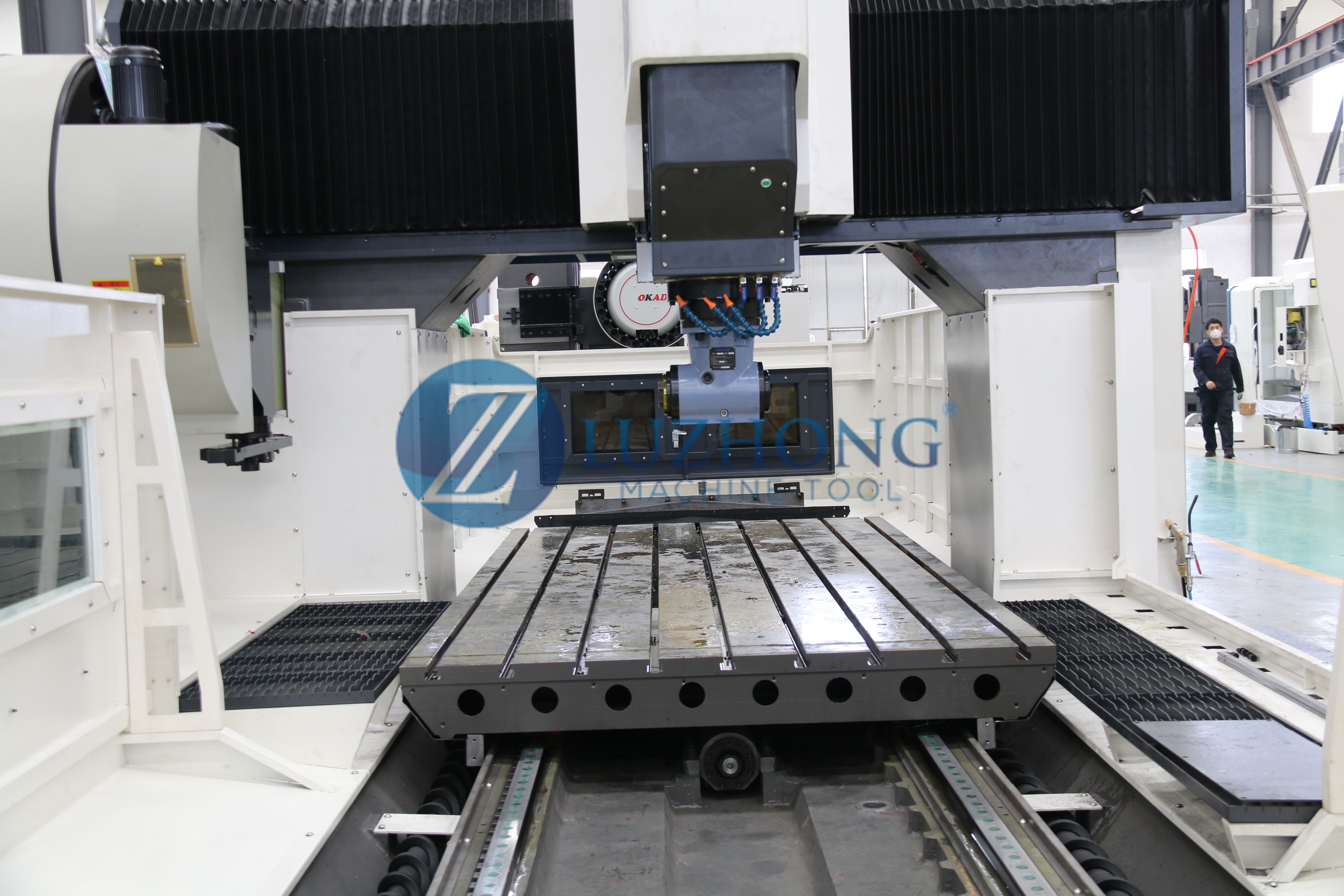

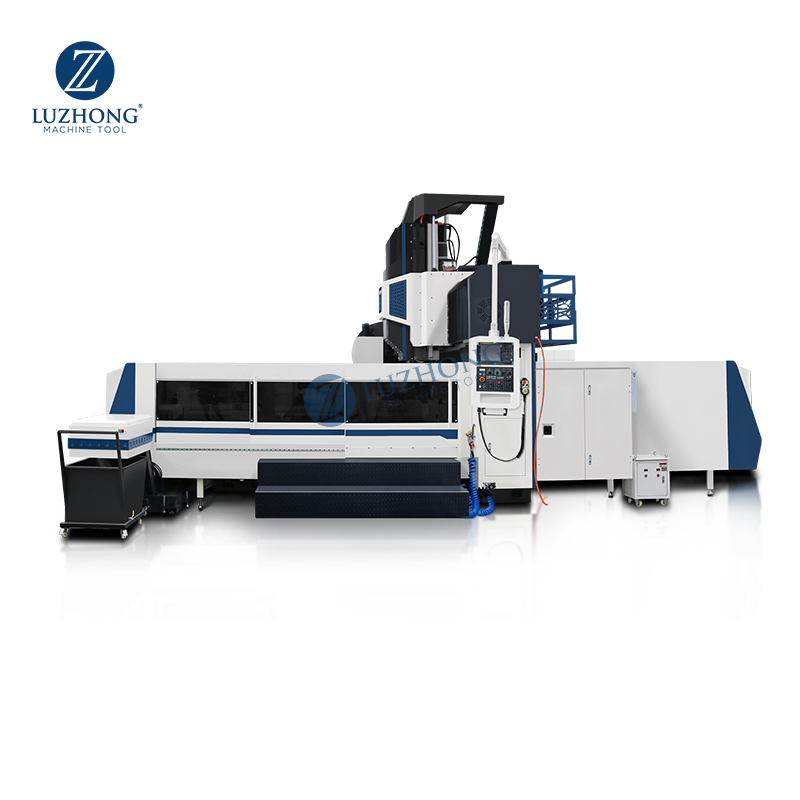

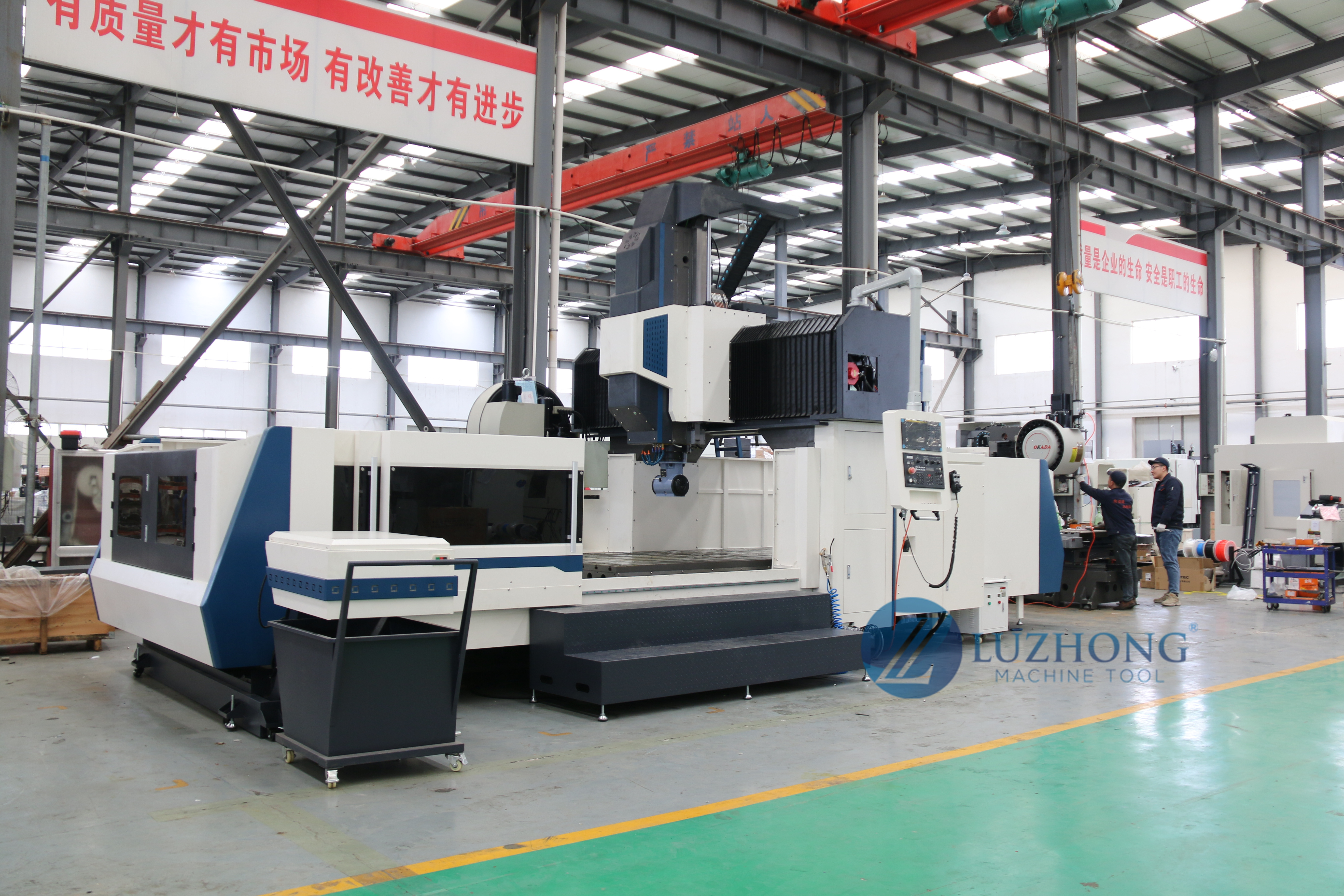

CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
1 / 5
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle
CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle

CNC Machinery GMC2516 Gantry Type CNC Milling Machining Center BT50 GSK Single Spindle

Send Inquiry

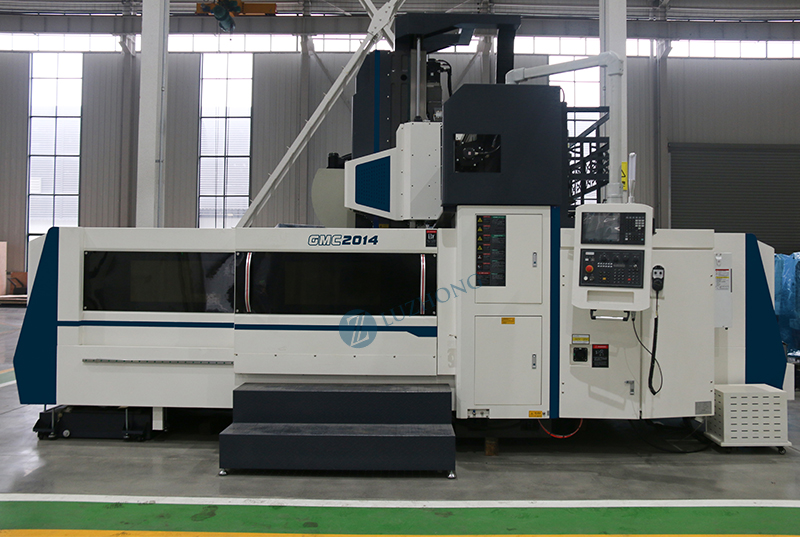

Product Description

Product Description
Product Description
Specification
Parameter Units GMC2016 GMC2516 GMC3016 GMC3516
Table size (W*L) mm 1400*2100 1400*2600 1400*3100 1400*3600
X axis travel mm 2000 2500 3000 3500
Y axis travel mm 1700 1700 1700 1700
Z axis travel mm 800 800 800 800
Gantry width/passing height mm W:1700/H:1080 W:1700/H:1080 W:1700/H:1080 W:1700/H:1080
Table load t 4 5 6 7
Distance between spindle nose and table surface mm 200 - 1000 200 - 1000 200 - 1000 200 - 1000
T slot(number-width*pitch) - 7-22*200 7-22*200 7-22*200 7-22*200
Spindle taper - BT50/190 BT50/190 BT50/190 BT50/190
Spindle speed r/min 6000 6000 6000 6000
Rapid traverse speed m/min 15 15 15 15
Cutting feed speed m/min 10 10 10 10
Main motor power kw 15/18.5 15/18.5 15/18.5 15/18.5
Tool magazine - Arm 24 Arm 24 Arm 24 Arm 24
Overall dimension(L*W*H) mm 7200*4500*4300 8200*4500*4300 9200*4500*4300 10200*4500*4300
Machine weight(about) t 18.5 20.5 22.5 25
Standard Features

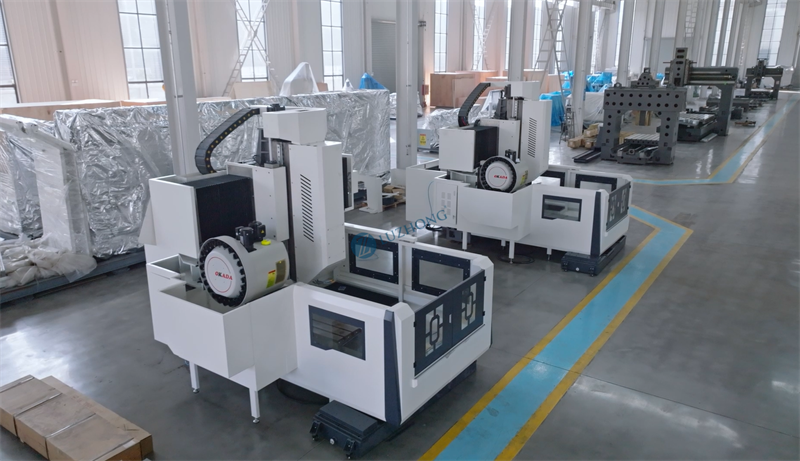

Feature Banner 1
Feature Banner 2

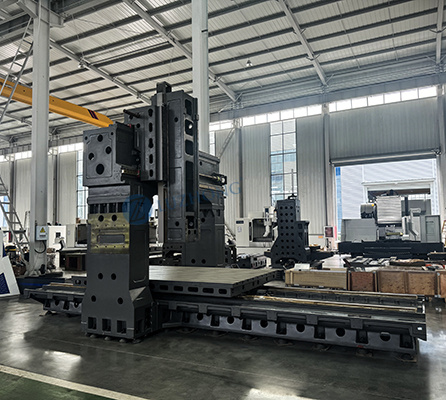

Machine Construct
MACHINE CONSTRUCT
High strength high quality HT300 cast iron.

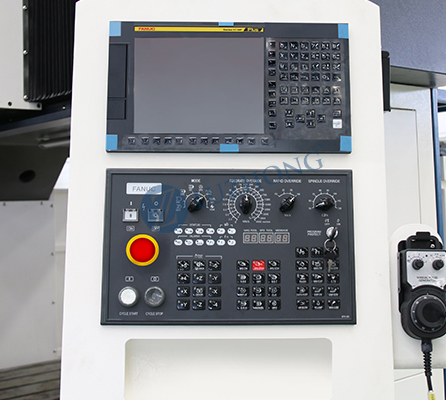

Control System
CONTROL SYSTEM
Standard configuration: FANUC control system.

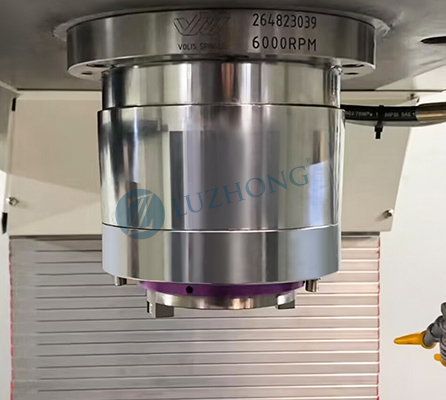

Spindle
SPINDLE
TAIWAN BT50 precision spindle operating at 6000rpm.

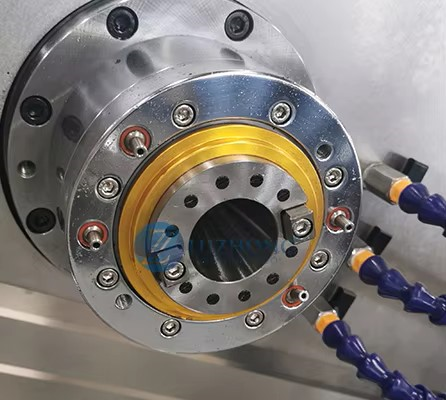

Spindle Ring Cooling
SPINDLE RING COOLING
Standard equipped with a highly efficient spindle ring cooling function.

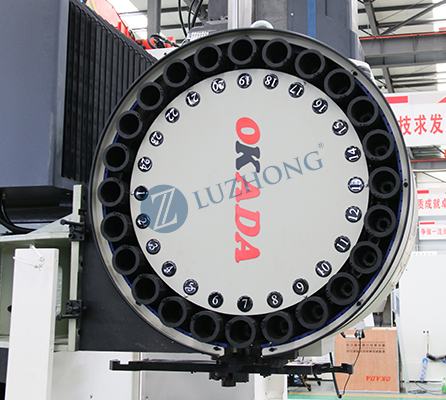

Taiwan Tool Magazine
TAIWAN TOOL MAGAZINE
1. Taiwan OKADA arm type 24 tool magazine.
2. Tool change time is only 3 seconds.

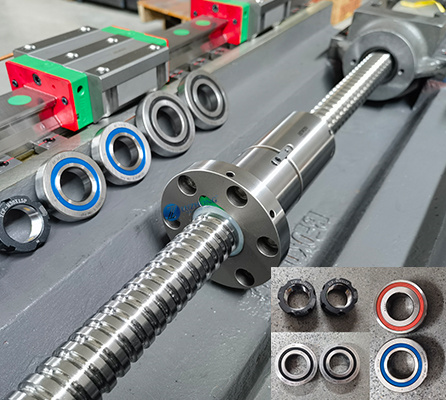

Lead Screw
LEAD SCREW
1. Equipped with Taiwan precision lead screw.
2. Built with imported bearings for durability.

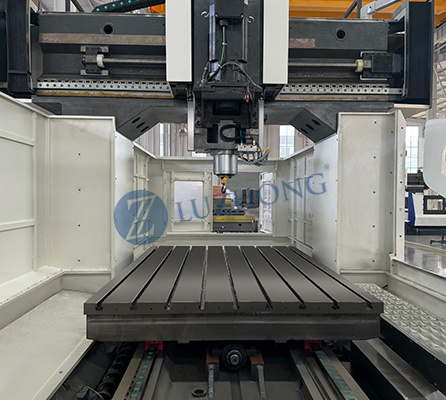

Guiderail
GUIDERAIL
Features a robust 2 axis linear rail and 1 axis hard rail structure.
Air Storage Tank
AIR STORAGE TANK
Integrated air storage tank to ensure the stability of spindle tool changes.

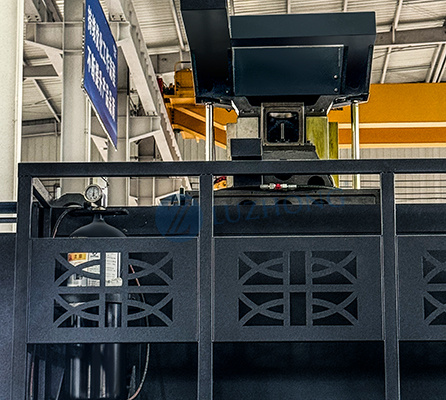

Nitrogen Balance Cylinder
NITROGEN BALANCE CYLINDER
Standard equipped with a nitrogen balance cylinder for precision machine counterweight.

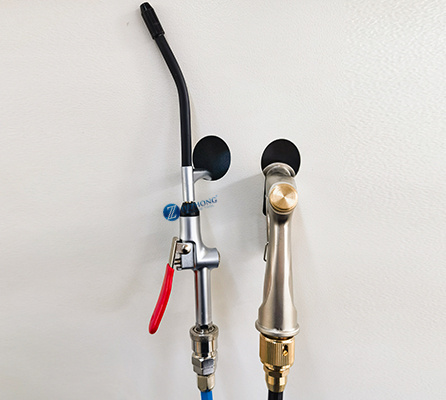

Air Gun and Water Gun
AIR & WATER GUN
Equipped with high-pressure air and water guns for clean operations.

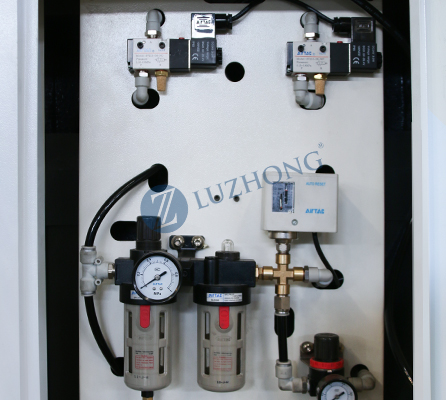

Pneumatic Components
PNEUMATIC COMPONENTS
Configured standard with high-quality AirTAC Pneumatic Components.

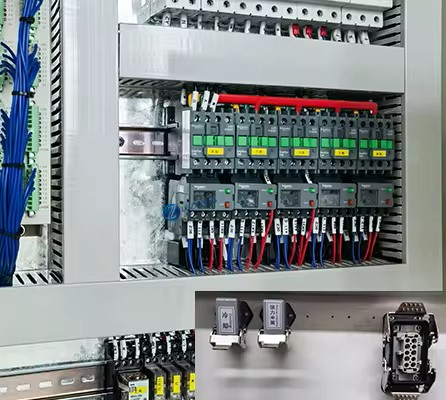

Schneider Electrical Components
ELECTRICAL COMPONENTS
1. Configured with Schneider safety electrical components.
2. Quick plug design is standard.

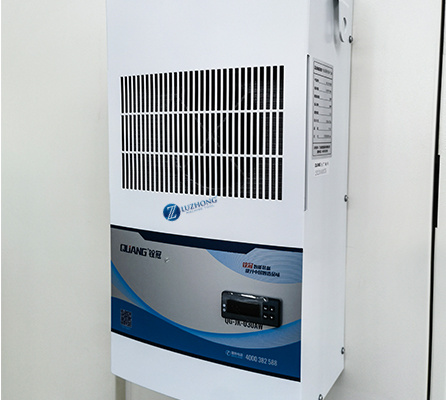

Air Conditioner
AIR CONDITIONER
Equipped with an industrial electrical cabinet air conditioner for optimal cooling.

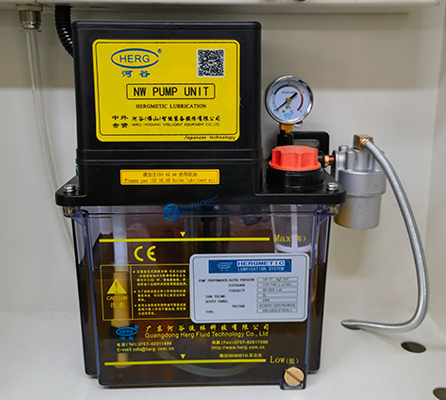

Lubrication System
LUBRICATION SYSTEM
Equipped with a HERG Automatic centralized lubrication device.

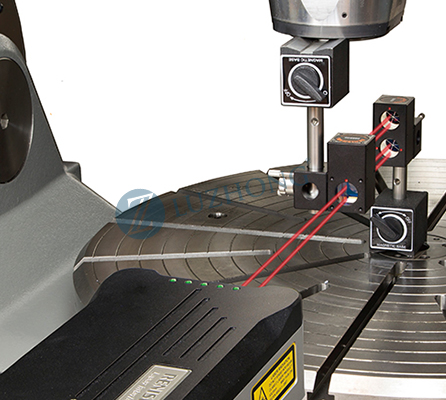

Laser Interferometer Testing
TESTING (LASER)
Each machine passes extensive Renishaw laser interferometer testing.

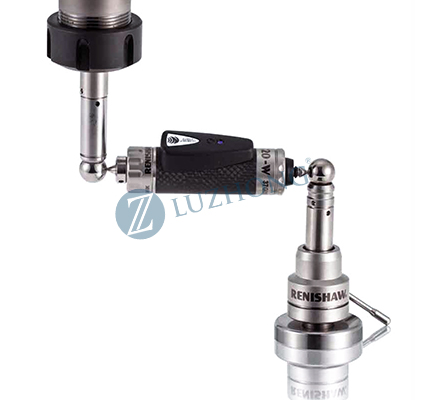

Ballbar Testing
TESTING (BALLBAR)
Each machine is validated through rigorous Renishaw ballbar testing.

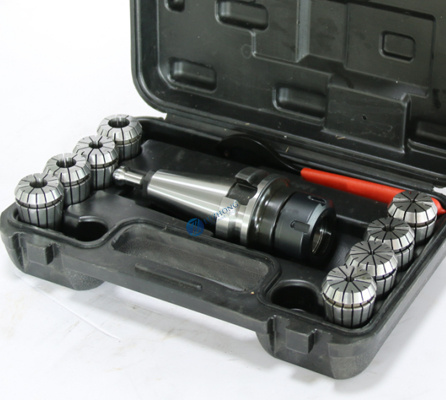

BT50 Milling Chuck
BT50 MILLING CHUCK
Standard inclusion of a highly robust BT50 milling chuck.

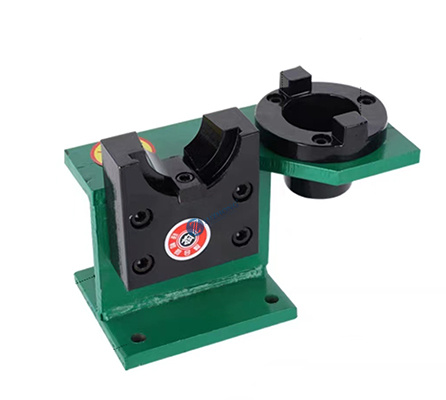

Locking Knife Block
LOCKING KNIFE BLOCK
Includes standard locking knife block for safe operations.

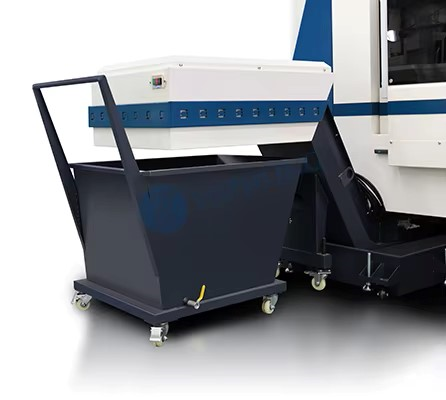

Chip Conveyor 1
CHIP CONVEYOR SYSTEM
Features 2 Spiral type chip conveyors and 1 Chain type chip conveyor.

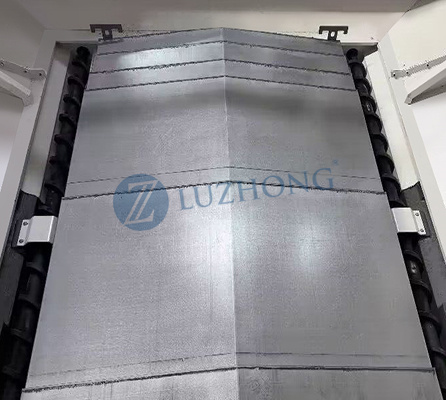

Chip Conveyor 2
CHIP CONVEYOR DESIGN
Equipped with 2 Spiral type chip conveyors and 1 Chain type chip conveyor.

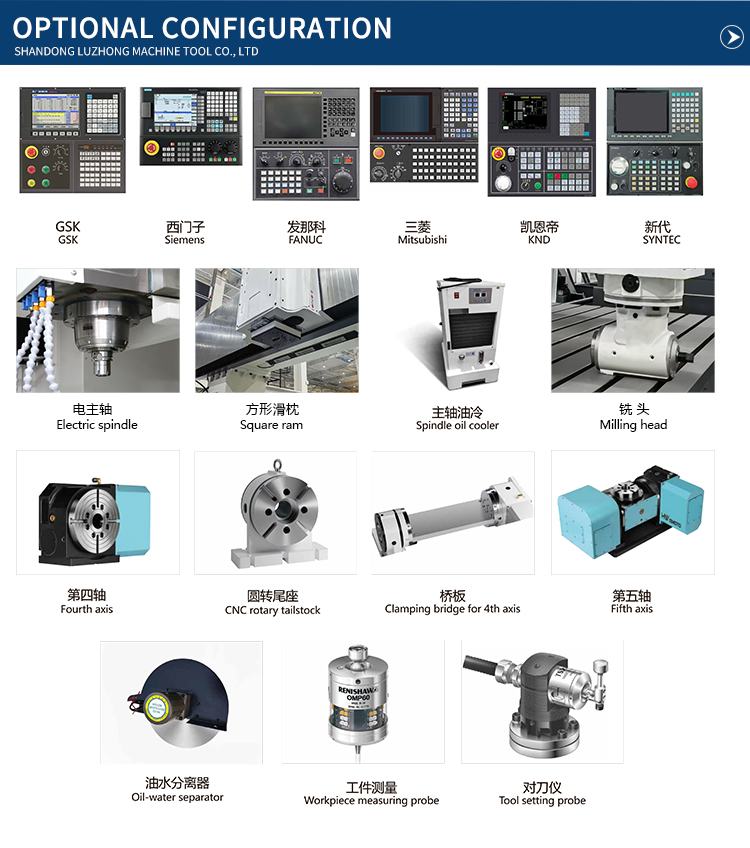

Optional Configurations
Optional Configurations
Factory Strengths & Certifications

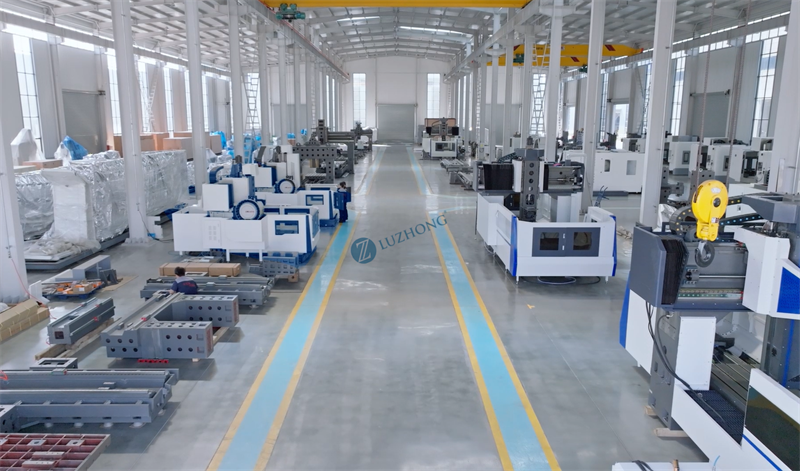

Factory Overview
Manufacturing Facility Highlights:
  • More than 80,000m² factory footprint with over 200 skilled workers.
  • Strict quality control protocols backed by more than 24 testing process steps.
  • 30+ years of experienced machinery manufacture history.
  • 24-hour online technical service support.
  • Successful export record serving clients in over 150 countries.
  • Collaborative partnerships with premier brands, including SIEMENS, FANUC, SYNTEC, and more.
  • Full ODM and OEM capabilities.
  • Standard comprehensive warranty period of 18 months.
Certifications 1
Certifications 2
Certifications 3
Our manufacturing standards comply with numerous international certification frameworks, including ISO, WIPO, CE, BV, TUV, and SGS, along with multiple design patents. Machines have been globally distributed across North America, South America, Europe, the Middle East, and Southeast Asia. We commit to supplying long-term technical guidance and after-sales support globally.
Adhering to high-quality manufacturing purposes, we consistently offer efficient, robust machinery along with thorough after-sales service to achieve reliable, win-win cooperative partnerships.
Frequently Asked Questions
How do I choose the most suitable machine for my needs?
Please share your detailed specifications or product drawings with our team. We will analyze your engineering requirements and recommend the best-suited model for your operations.
What are the primary products available in your manufacturing line?
Our manufacturing range specializes in precision equipment, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Manual Lathes, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shapers.
What standard international trade terms do you support?
We fully support and accept standard trade terms, including FOB, CFR, and CIF.
What are the standard payment terms for orders?
Our standard payment structure is a 30% initial deposit via T/T upon order confirmation, with the remaining 70% balance paid prior to shipment. Irrevocable Letter of Credit (L/C) at sight is also accepted.
What is the Minimum Order Quantity (MOQ)?
The standard Minimum Order Quantity (MOQ) is 1 set. (Only selected low-cost auxiliary machines or specific accessories may require larger quantities).
What is the standard warranty period and technical support scope?
All standard machines come with a comprehensive 18-month warranty. We also offer ongoing, long-term technical guidance and remote after-sales assistance to ensure continuous operational uptime.
