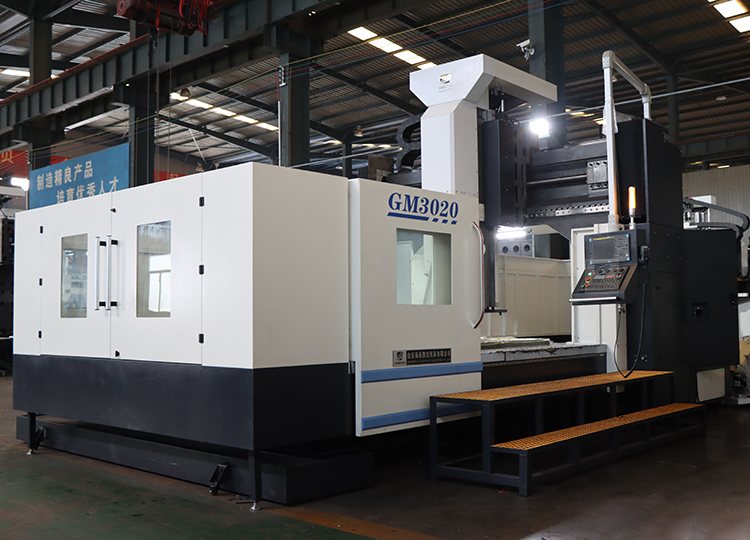

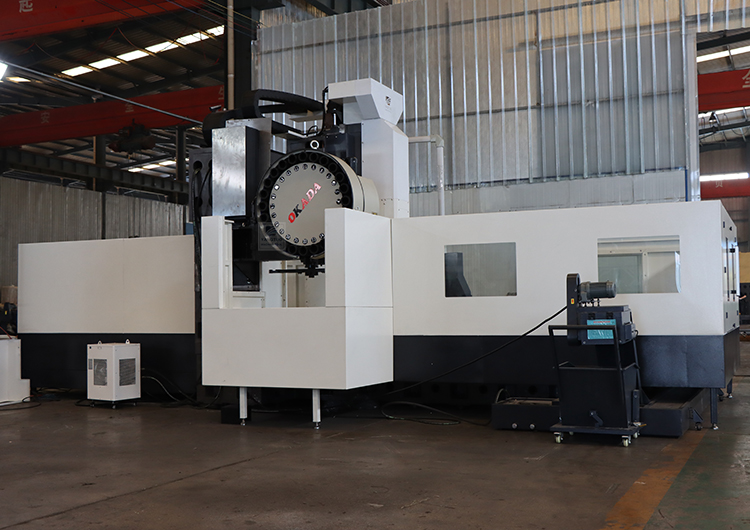

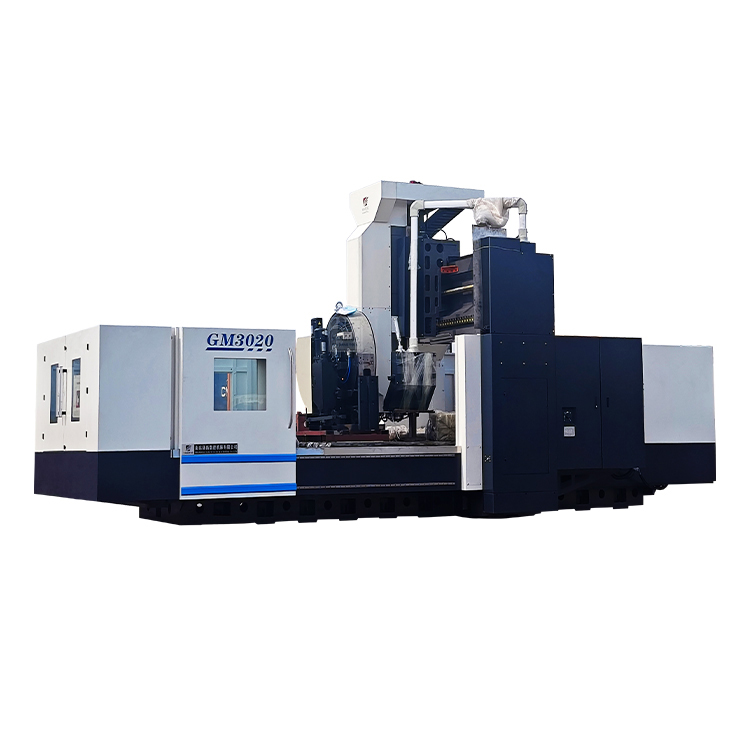

CNC Gantry Machine Center GMC3020 China Best Sell Mazak CNC Milling Machine Frame Cnc Gantry Milling Machine

1 / 5

CNC Gantry Machine Center GMC3020 China Best Sell Mazak CNC Milling Machine Frame Cnc Gantry Milling Machine

Send Inquiry

Product Description

High-Quality Casting structure Whole resin sand of high quality casting, after stress relieving and precision finish. Key positions use imported components and are installed according to international standards.
High Precision Three-Axis Rail System Three-axis precision grade high rigid line rail using HIWIN (Taiwan) or PMI. C3 grade precision double nuts ballscrew after pre-tightening eliminates intervals between axes, increases transmission accuracy, and ensures favorable positioning and resetting accuracy. This machine is suitable for machining complex curved surface parts in the machinery industry for high efficiency, performance, and high-precision molds.
Advanced Lubrication System Positive displacement oil distributor with timing and ration functionality to supply oil to each lubrication housing. Ensures uniform lubrication across all surfaces, effectively decreasing slide grind resistance.

Specifications

SPECIFICATIONS	UNITS	GMC1613	GMC2013	GMC3020
Table size	mm	1600*1050	2100*1050	3000*1800
X Axis travel	mm	1600	2000	3200
Y Axis travel	mm	1300	1300	2200
Z Axis travel	mm	700	700	800
Distance from spindle nose to table surface	mm	200-900	200-900	200-1000
Gantry width	mm	1235	1235	2000
T slot	mm	722140	722140	922200
Spindle taper	-	BT40/50	BT50	BT50
Max.spindle speed	rpm	8000/6000	6000	6000
Main motor power	kw	11/15	15	18.5
X/Y/Z axis servo motor torque	NM	30/30/40	40/40/40	40/40/40
Max table load	kg	2000	3000	8000
Table height from floor	mm	800	800	1000
X/Y/Z axis rapid traverse	m/min	18/18/12	15/15/10	12/12/10
Cutting feed speed	m/min	0-10	0-10	0-10
Positioning accuracy	mm	0.010/1000	0.010/1000	0.010/1000
Repeat positioning accuracy	mm	0.006/1000	0.006/1000	0.006
Machine dimension	mm	470032003600	650030004600	980047003500
Machine weight	kg	13000	15000	24000

After Sales Service

During the one-year warranty period, if you have any parts broken because of quality problems, we will supply them to you free of charge by express. Out of the warranty period, if you have any questions, you can contact us and we will supply our best service to you as usual.

Frequently Asked Questions

How do I send my enquiry?

You can reach us through email, phone call, or Instant Messengers such as WhatsApp, WeChat, and Skype to submit your requirements.

How can I choose the most suitable machine?

Please share your specific machine requirements or provide product drawings. Our engineers will evaluate your needs and help select the ideal model.

What are the main products available?

Specializations include CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shaper machines.

What are the Payment Terms?

We accept T/T with a 30% initial payment when ordered and a 70% balance payment prior to shipment. Irrevocable LC at sight is also accepted.

How do I handle acceptance inspection of the delivery?

Upon receiving the goods, carefully inspect the packing for damage or leakage, confirm the quantity of items and accessories matches your request, and verify the overall machine details. Take photos and contact us immediately if any issues arise.

Is OEM Service available?

Yes, we accept purchase orders configured with the customer's brand or trade mark.
