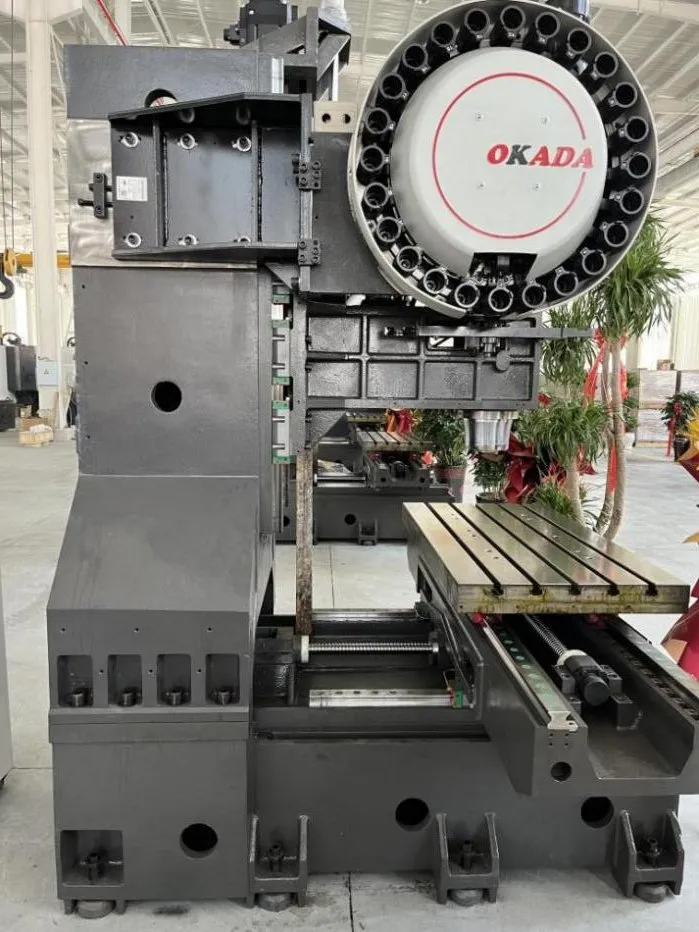

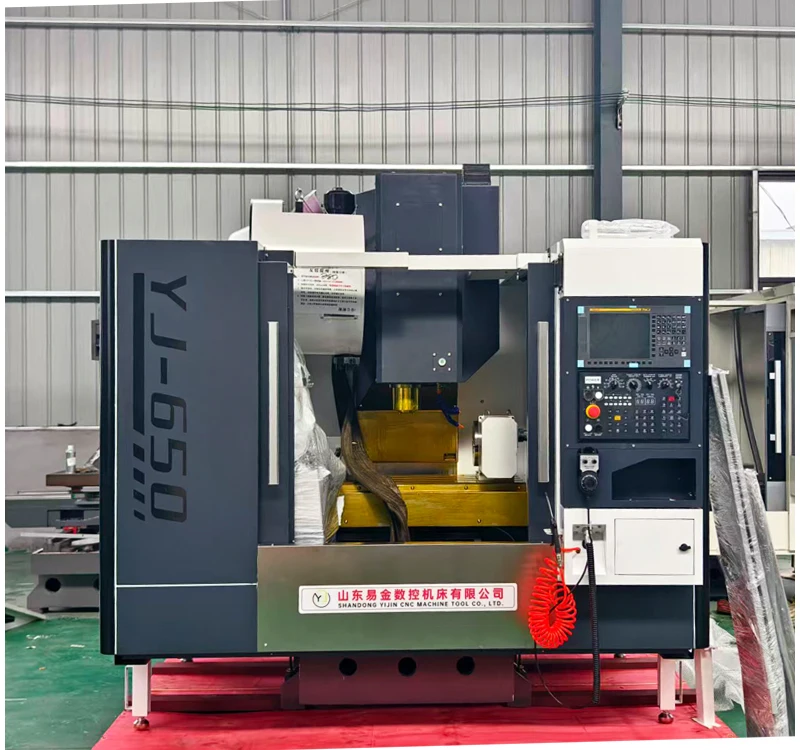

VMC650 vertical machining center is mainly used for the processing of complex parts, such as aircraft components, automotive parts, and electronic components. The machine adopts a cast iron structure and a high-strength spindle, which can ensure the stability and accuracy of the machine.
As it is a customized product, the price is subject to the actual quotation after communication.

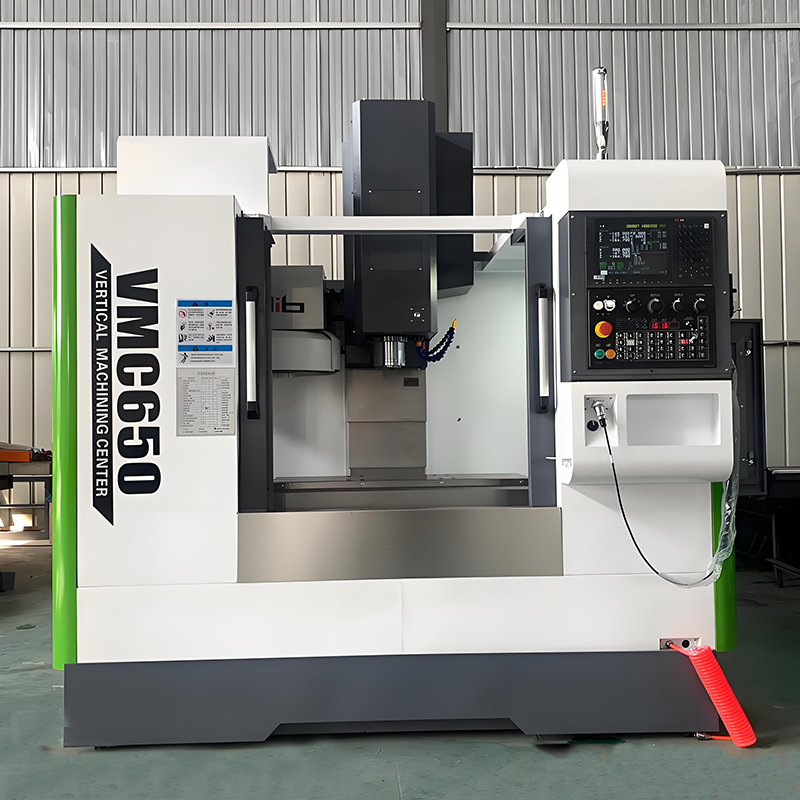

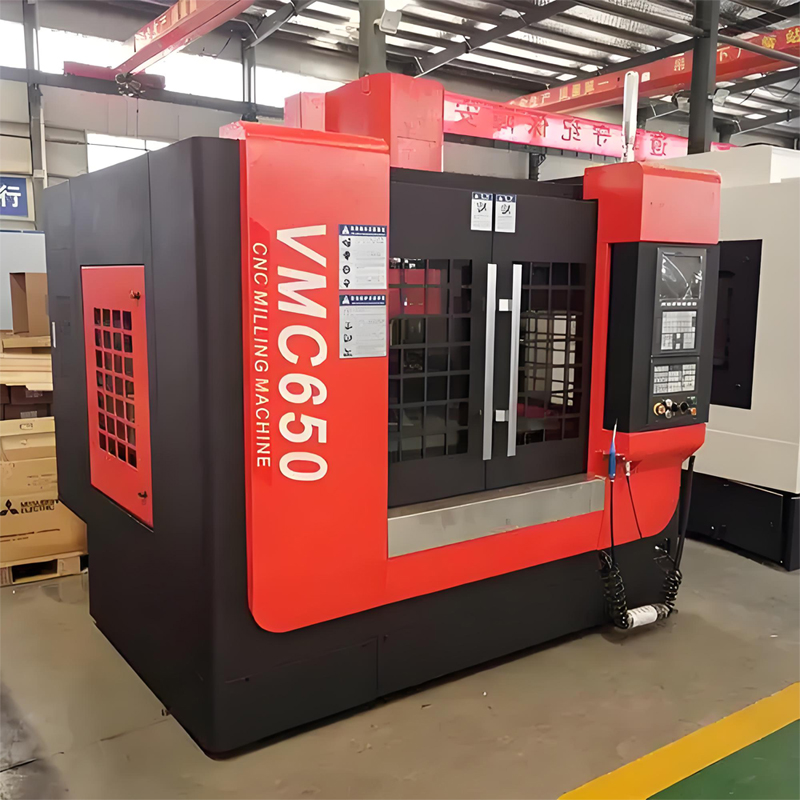

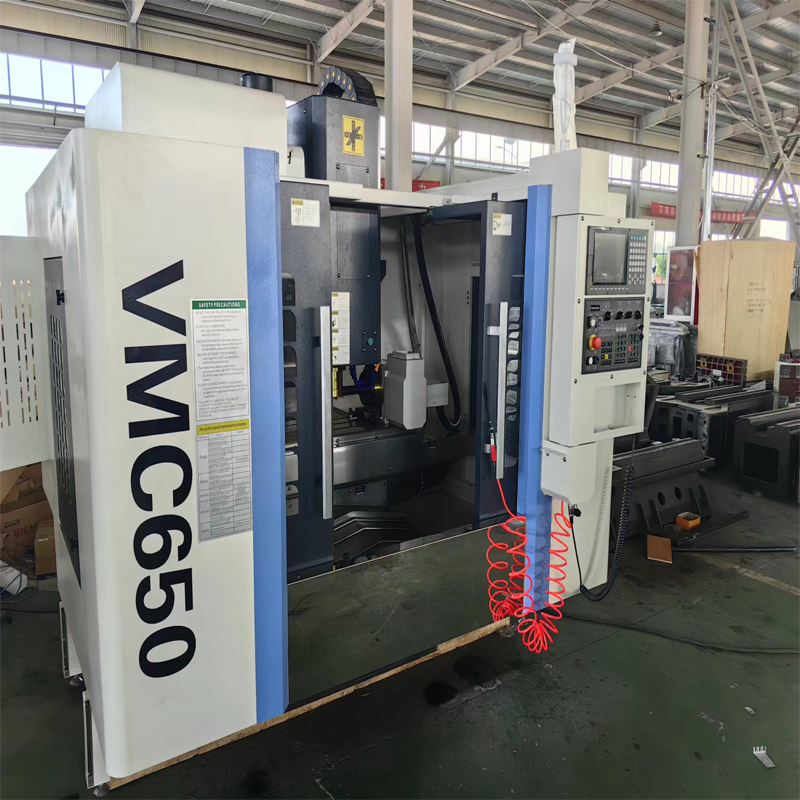

The VMC650 is a high-performance Vertical Machining Center engineered for versatility and precision. Equipped with a high-torque servo-driven spindle and a 24-tool disc-type magazine, it is the ultimate workhorse for manufacturers handling complex geometries and multi-process production.

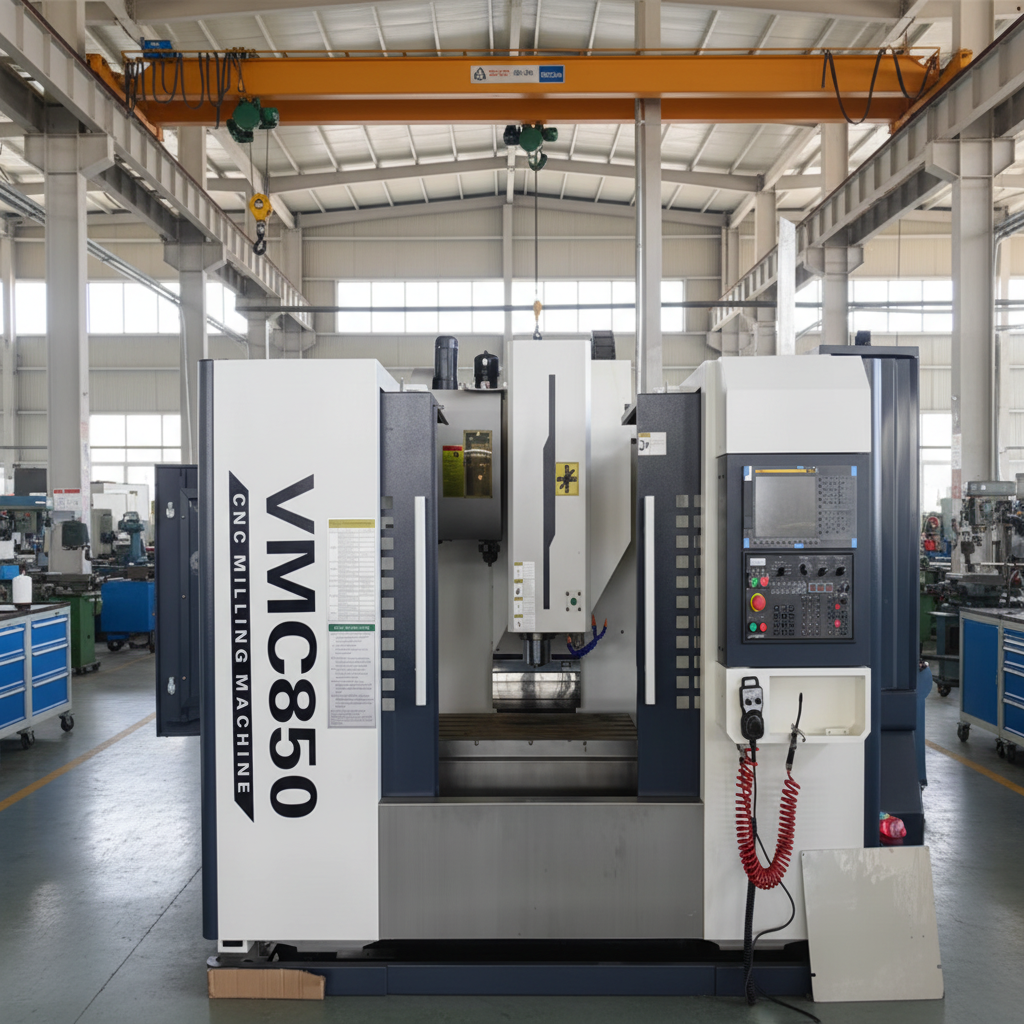

VMC850 VMC650 VMC1160 CNC Vertical Machining Center Direct from Factory: 3 axes / 4 axes / 5 axis; Fanuc / Siemens / Mitsubishi / GSK / Syntec controller system.
| Item | VMC7124 | VMC650 | VMC850 | VMC855 |
|---|---|---|---|---|
| X/Y/Z axis travel (mm) | 520/320/430 | 900/460/480 | 800/500/500 | 800/550/550 |
| Table size (mm) | 800*260 | 1000*420 | 1000*500 | 1000*550 |
| Spindle end face to workbench (mm) | 80-510 | 120-600 | 120-620 | 120-670 |
| Spindle center to column surface(mm) | 420 | 430 | 560 | 540 |
| X/Y/Z axis rapid movement(m/min) | 24/24/20 | 24/24/20 | 24/24/20 | 24/24/20 |
| Cutting feed mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Max load (kg) | 200 | 400kg | 500kg | 600kg |
| t-slot (mm) | 3-18-90 | 3-16-90 | 5-18-90 | 5-18-90 |
| Spindle diameter(mm) | 120 | 120 | 140 | 150 |
| Spindle taper | BT40-120 | BT40-120 | BT40-140 | BT40-150 |
| Main motor power(kw) | 3.7 | 5.5 | 7.5 | 7.5 |
| Weight (kg) | 2100 | 3200 | 4900 | 5500 |
| Dimensions(L*W*H)(mm) | 2200*1800*2250 | 2400*1800*2550 | 2400*2200*2500 | 2600*2450*2650 |
| Positioning accuracy(mm) | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy(mm) | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Spindle speed(RPM) | 8000 / 10000 / 12000 | |||
Taiwan HIWIN roller type linear guide rail, with fast spindle and worktable movement speed and high accuracy.
Taiwan HIWIN C3 ball screw, low noise, high accuracy, and wear-resistant.
Using Taiwan famous brand high-speed, high-precision, high-rigidity spindle unit, strong axial and radial bearing capacity, speed up to 10000rpm (12000RPM direct drive spindle).
It can be selected according to different processing requirements. Different Operating Systems. Choose Excellent system to achieve high accuracy and stable operation.
System original driver, using Schneider electrical components.
Positive displacement lubrication pump, intermittent oil supply, automatic lubrication of each part.

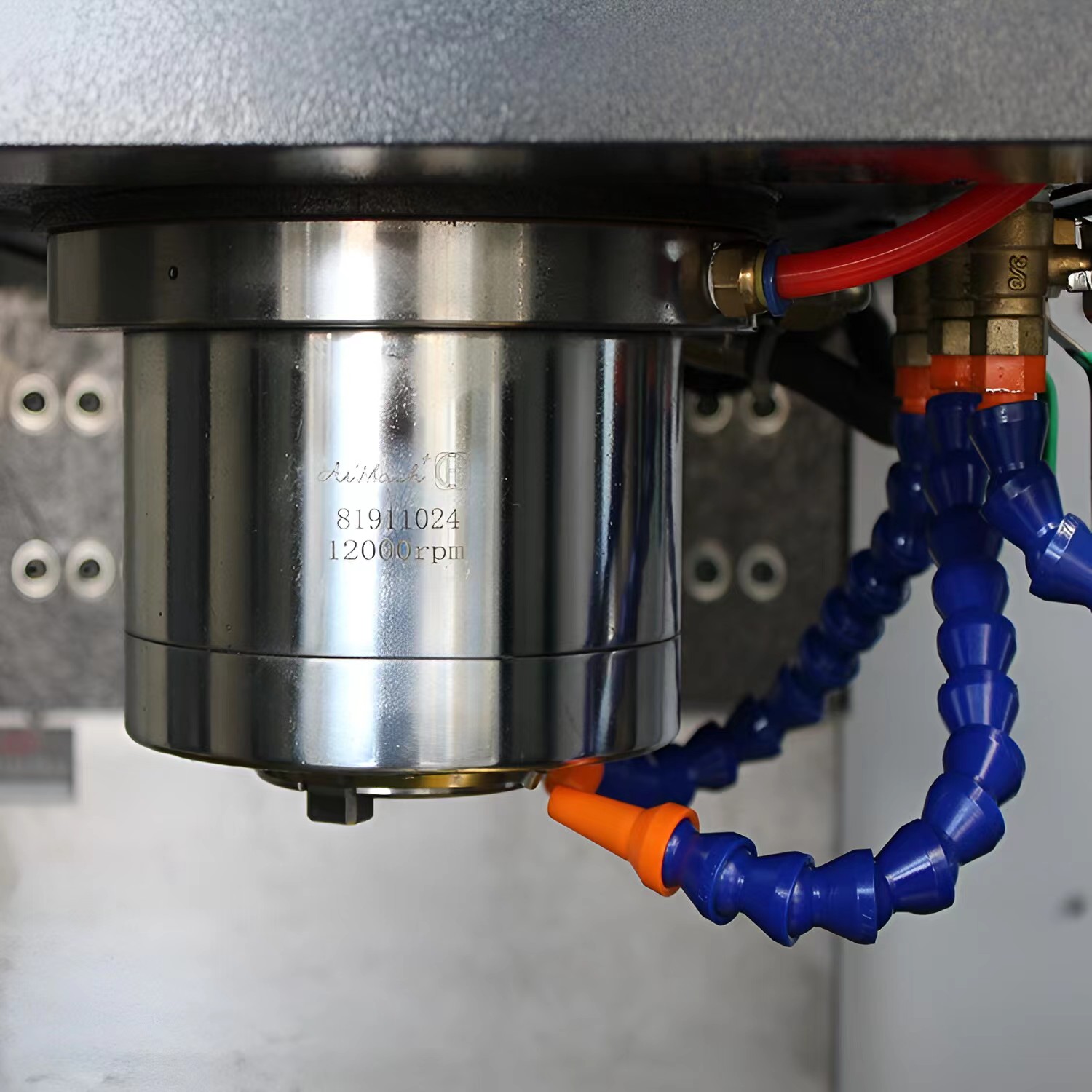

Taiwan spindle, choose 8000/10000 rpm belt spindle or 12000 rpm direct connected spindle, with high spindle accuracy and low noise.

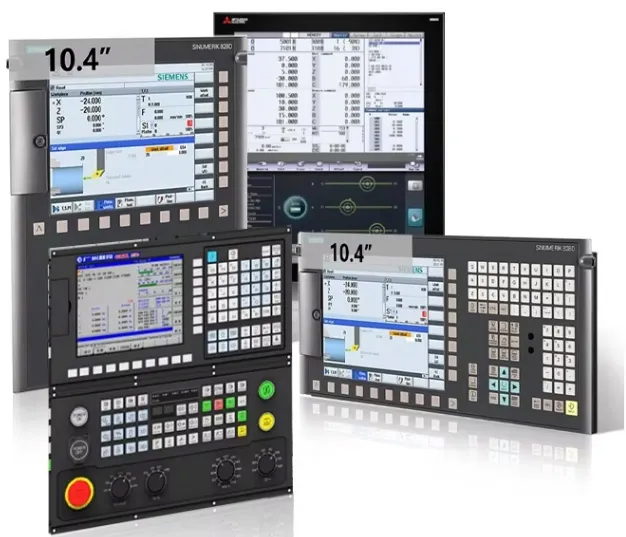

CNC controller: Siemens, Mitsubishi, Fanuc, GSK, Syntec etc.
Taiwan 12/16 armless type magazine, 24 Disc type magazine, ATC change time 2 s, stable and high efficiency.
Can choose from bridge deck four axis or chuck type four axis.
Five axis four linkage or five axis five linkage, the five linkage requires the tool tip to follow.
FANUC 0i MF PLUS
Siemens 808D or 828D system
SYNTEC 22MA system
Mitsubishi M80 system
KND 220 M PLUS system
GSK 25i system
All products have passed CE and SGS certification standards.
As a verified manufacturer, we provide factory-direct pricing on a full range of VMC models, including VMC7124 / VMC640 / VMC650 / VMC850 / VMC1160 / VMC1260. We offer comprehensive OEM/ODM customization — from spindle power upgrades to specific controller integrations. Every machine undergoes rigorous laser interferometer and ball-bar testing to meet international CE and ISO standards, ensuring it is ready for immediate production upon arrival.
Your inquiry will be replied to within 6 hours.
Yes, we have a professional after-sales service team. We provide online technical support, machine operation videos, on-site training and commissioning videos, as well as spare parts replacement and repair services.
We offer competitive pricing to meet your budget, accept custom OEM designs, treat clients as friends with prompt problem solving, utilize a strict quality control system, and provide fast delivery with optimized shipping solutions.
Yes, we provide full custom services. Please contact us to share your specific needs.
Our standard MOQ is 1 set for customers to test and review quality performance.
Delivery depends on the specific machine configuration and stock availability. For payments, we prefer 100% T/T (30% T/T in advance, 70% T/T before shipment).
