China Manufacturer 3 Axis 4 Axis 5 Axis Gantry Cnc Double Column Machining Center for Oem Aluminum Stainless Steel Products

Product Description

Product Description

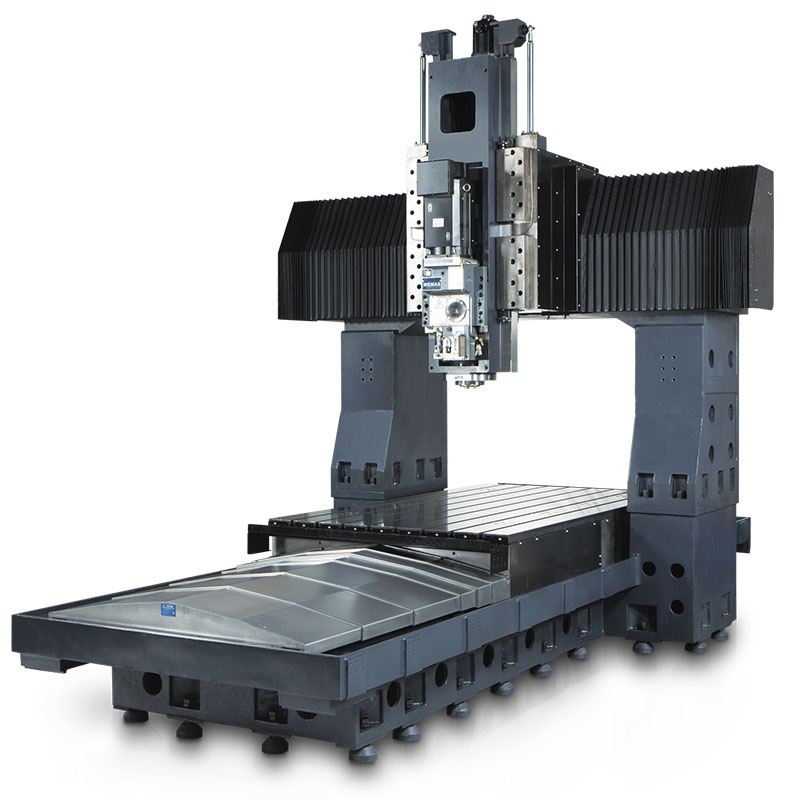

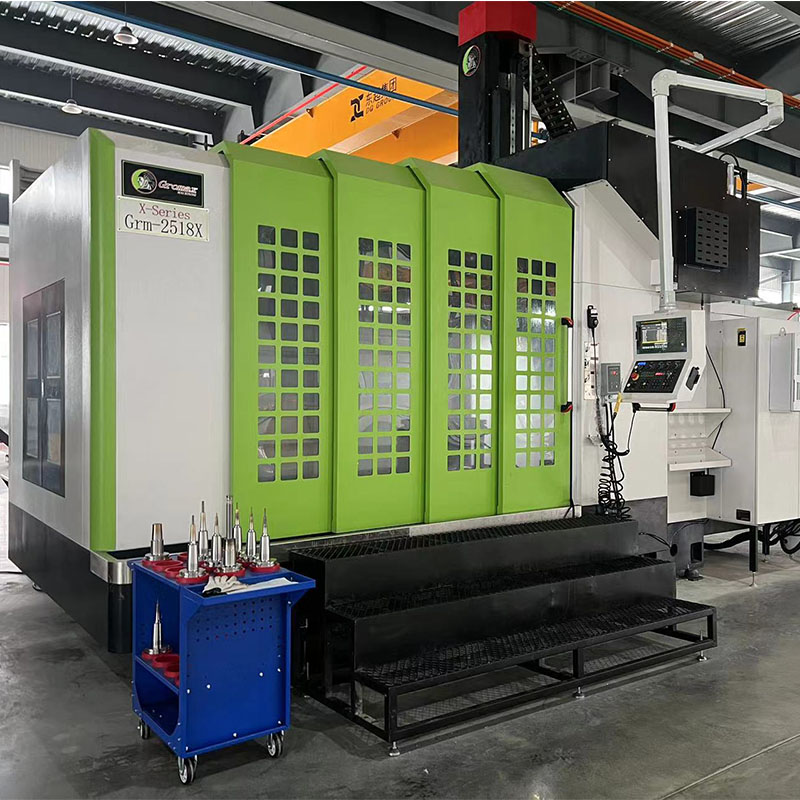

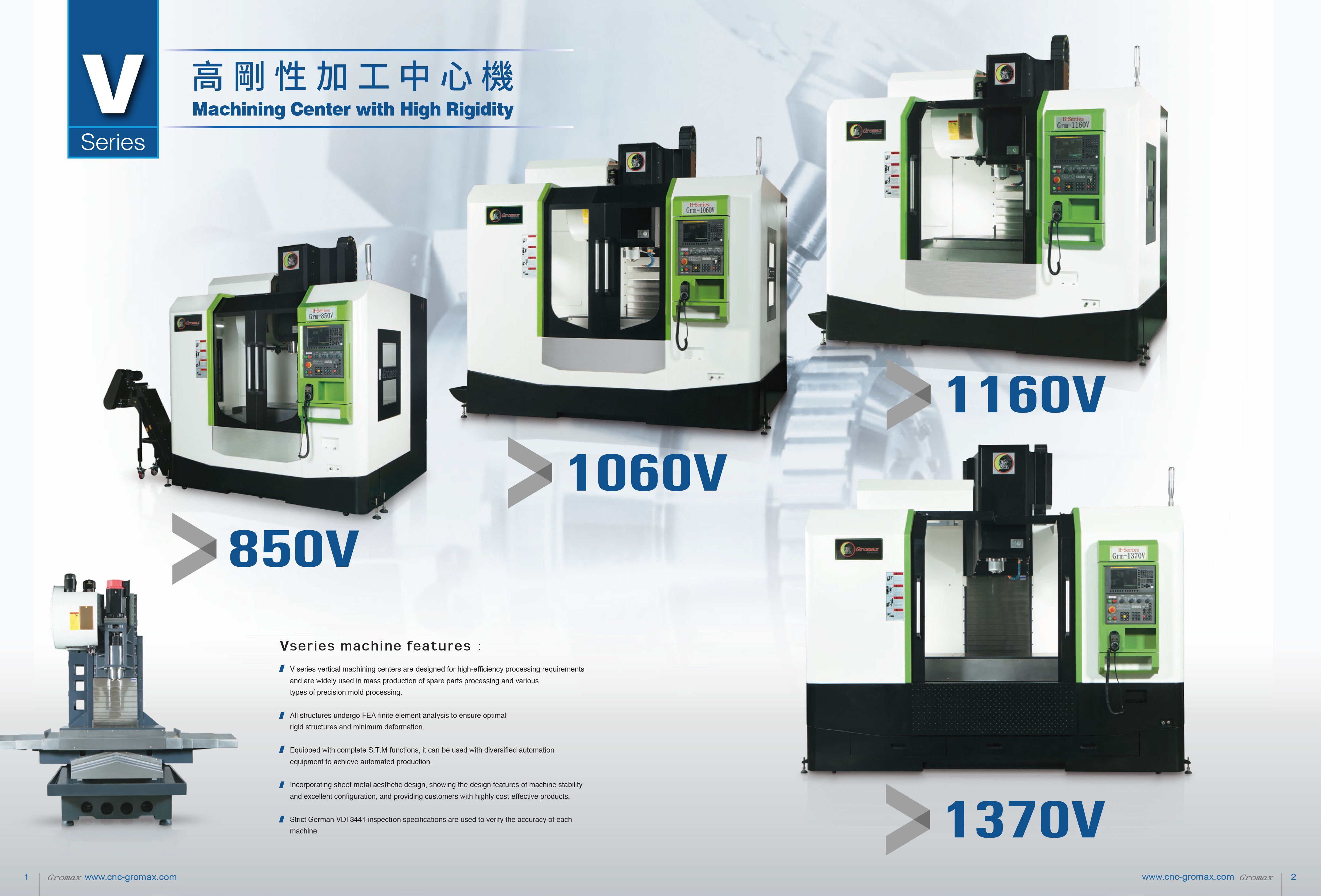

CNC Machining Center Product Image 1

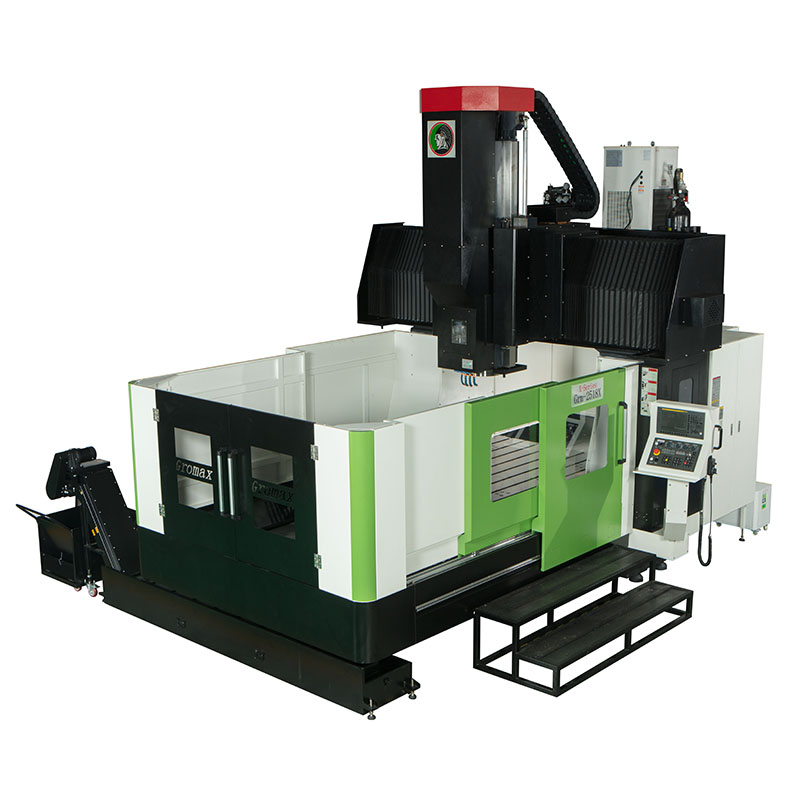

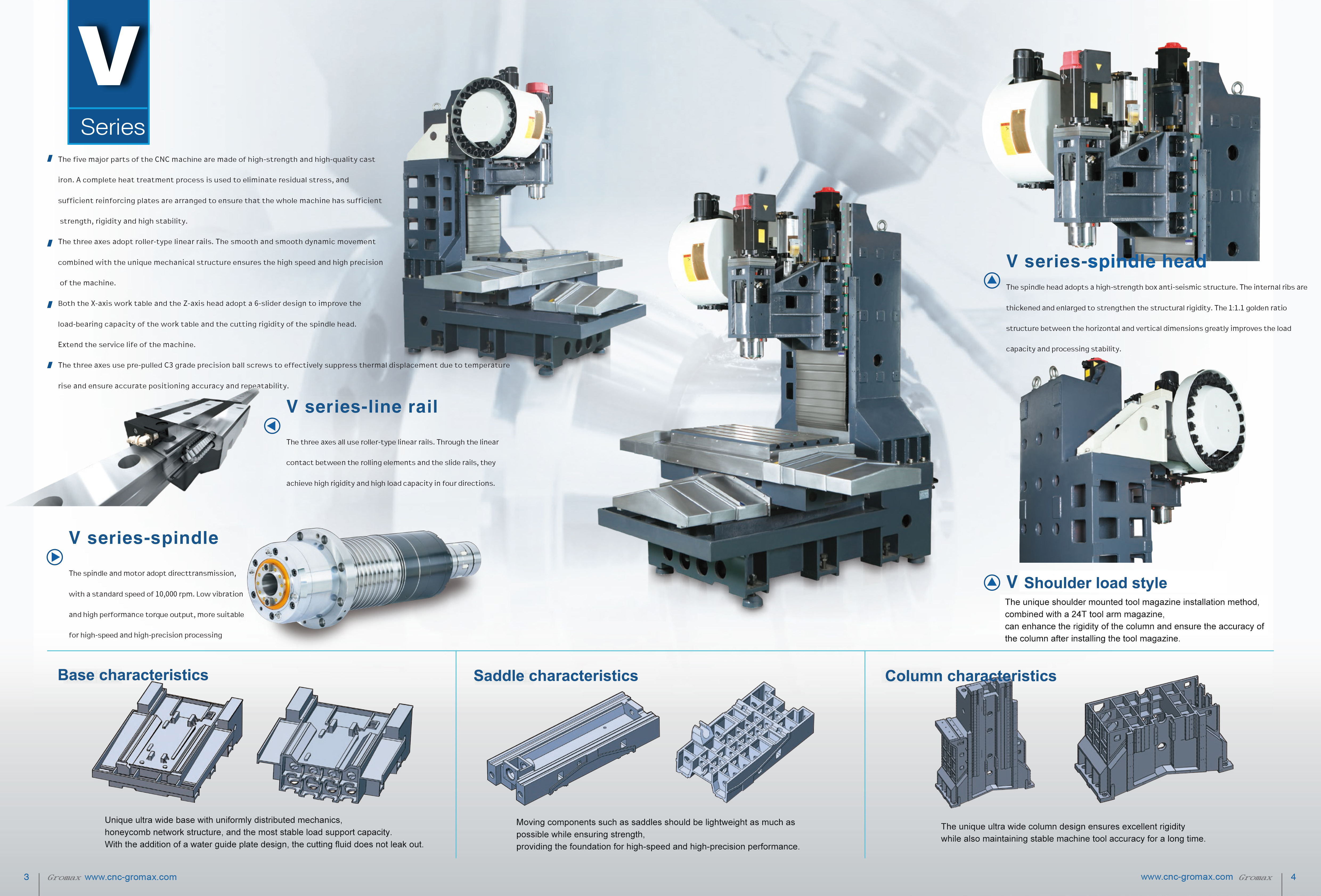

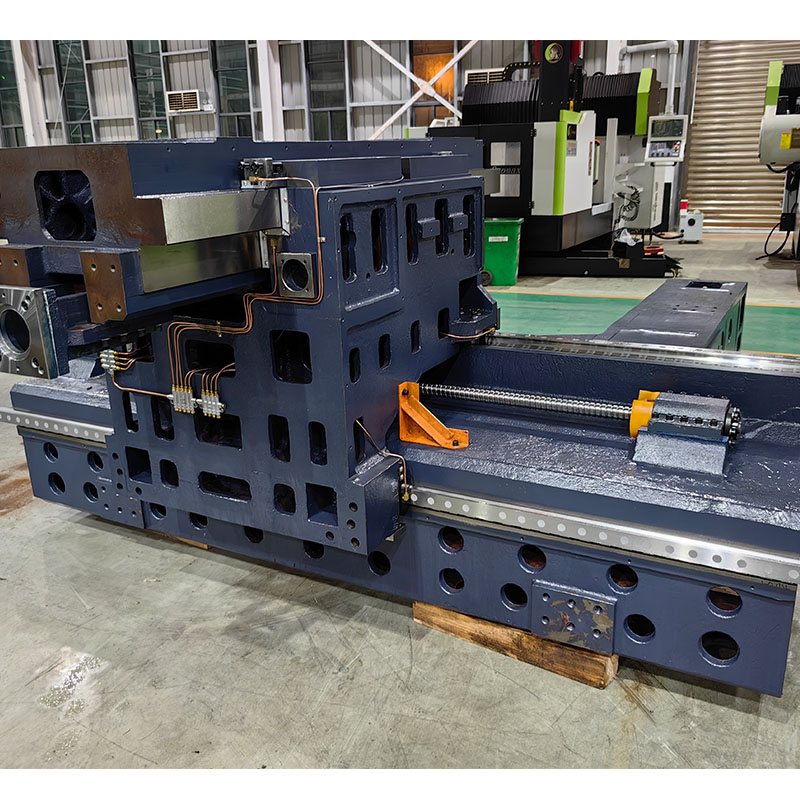

CNC Machining Center Product Image 2

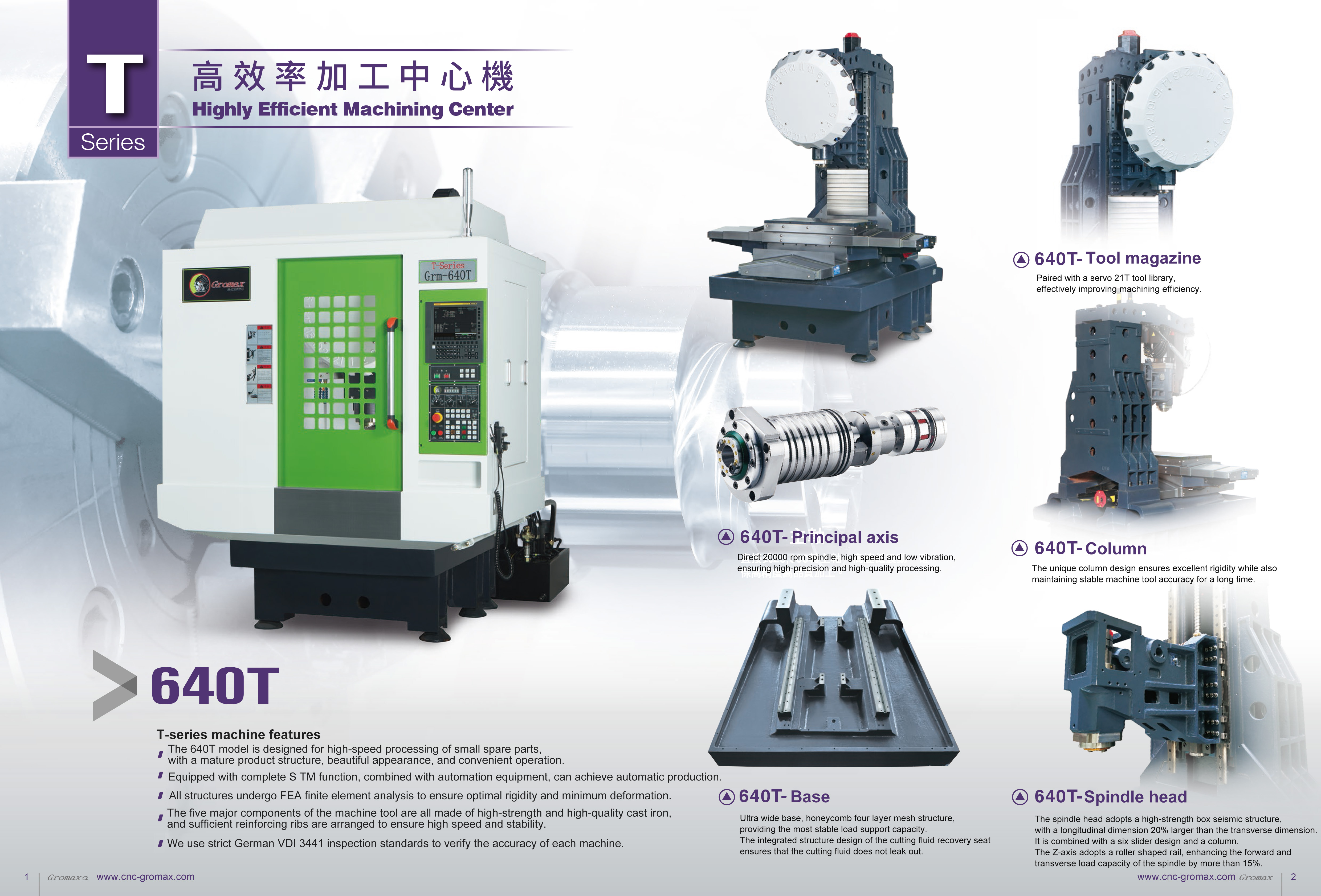

CNC Machining details 1

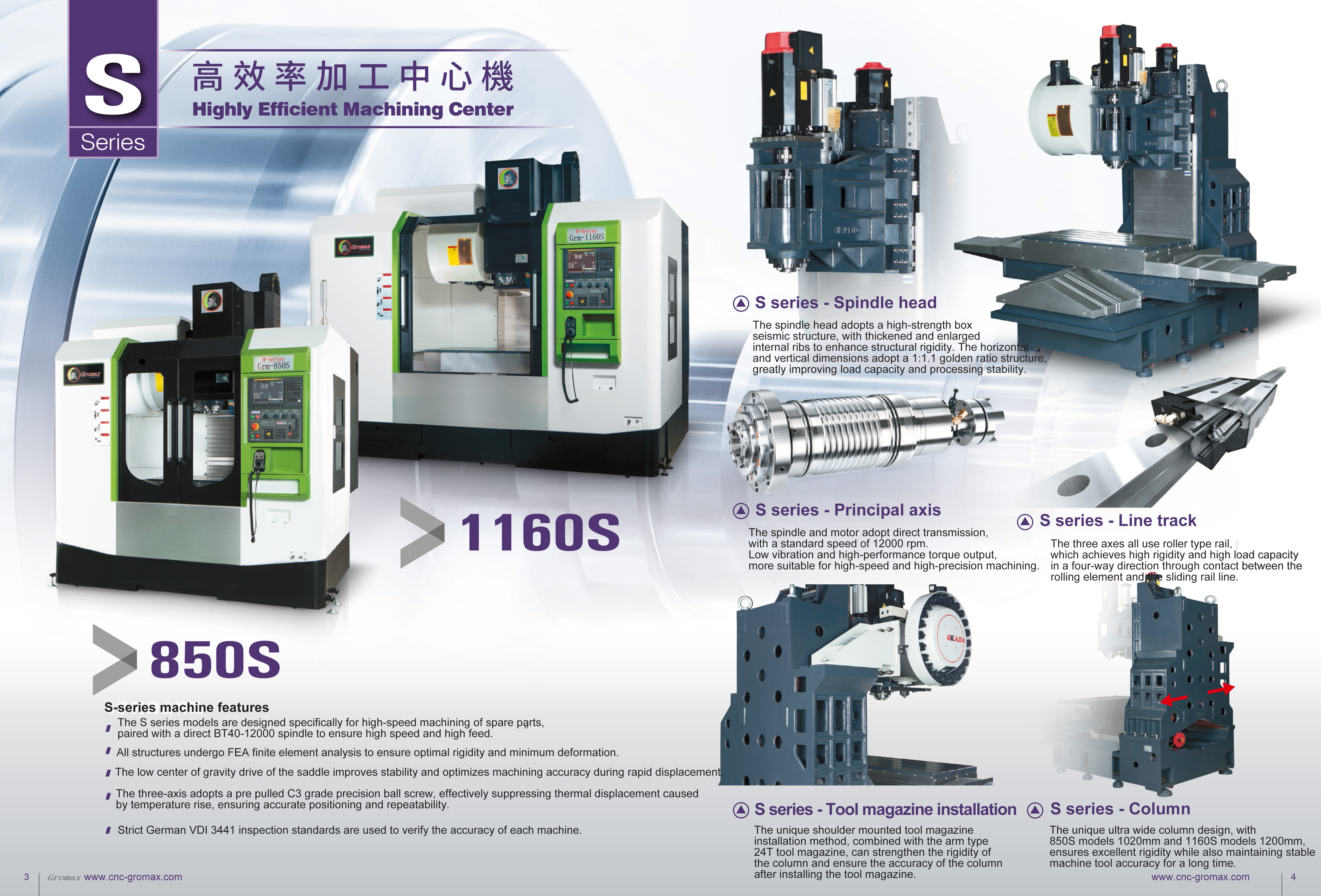

CNC Machining details 2

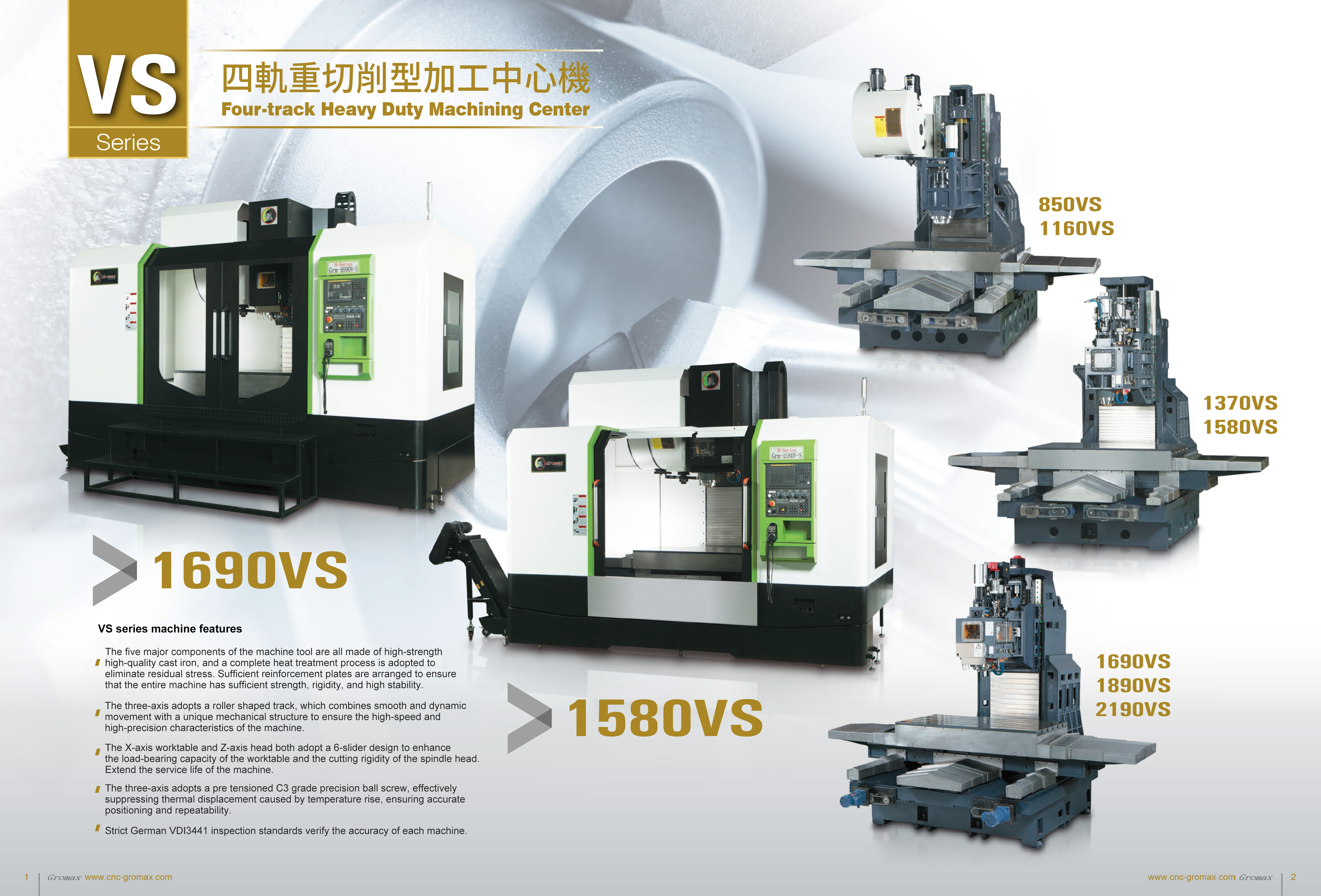

CNC Machining details 3

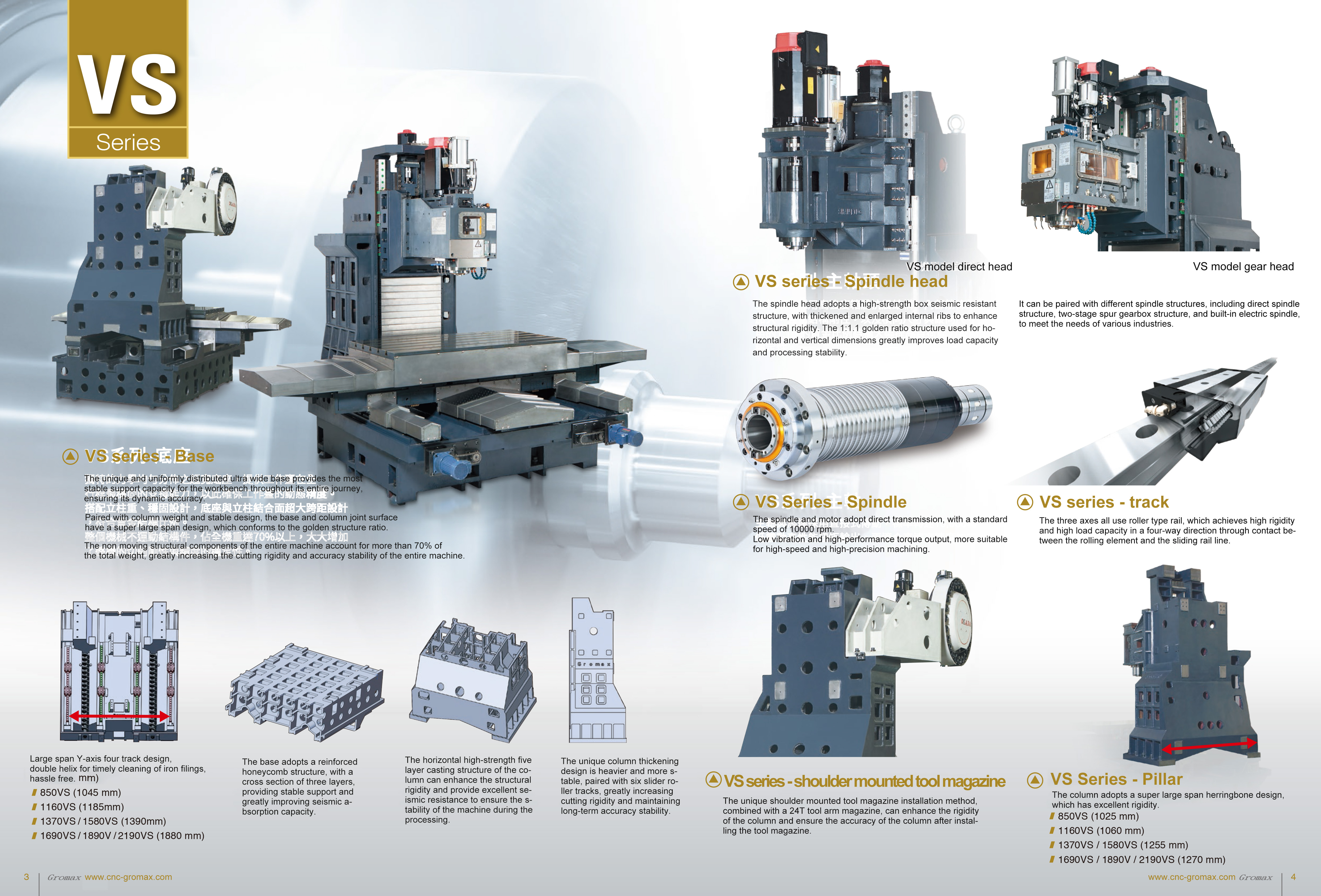

CNC Machining details 4

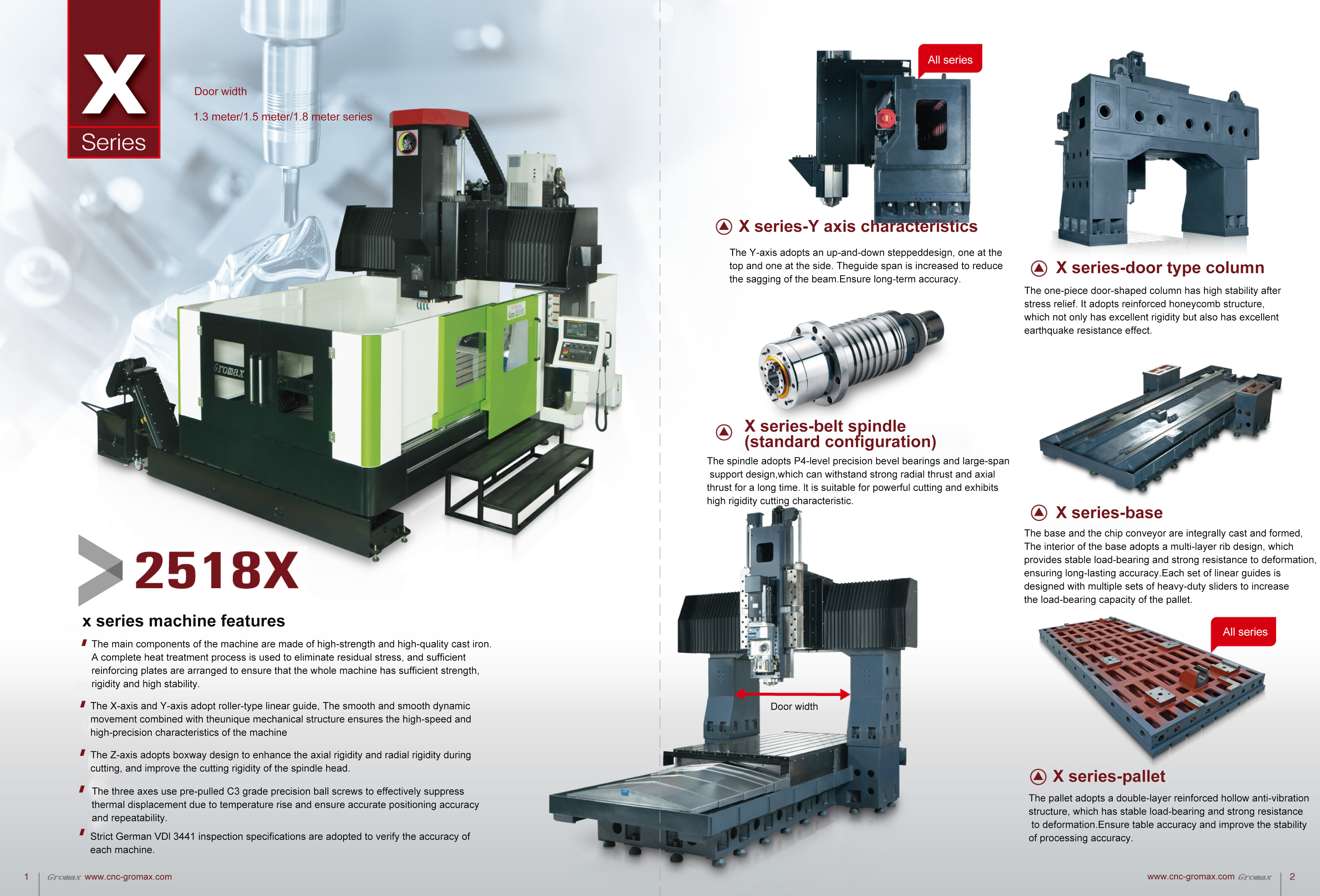

CNC Machining details 5

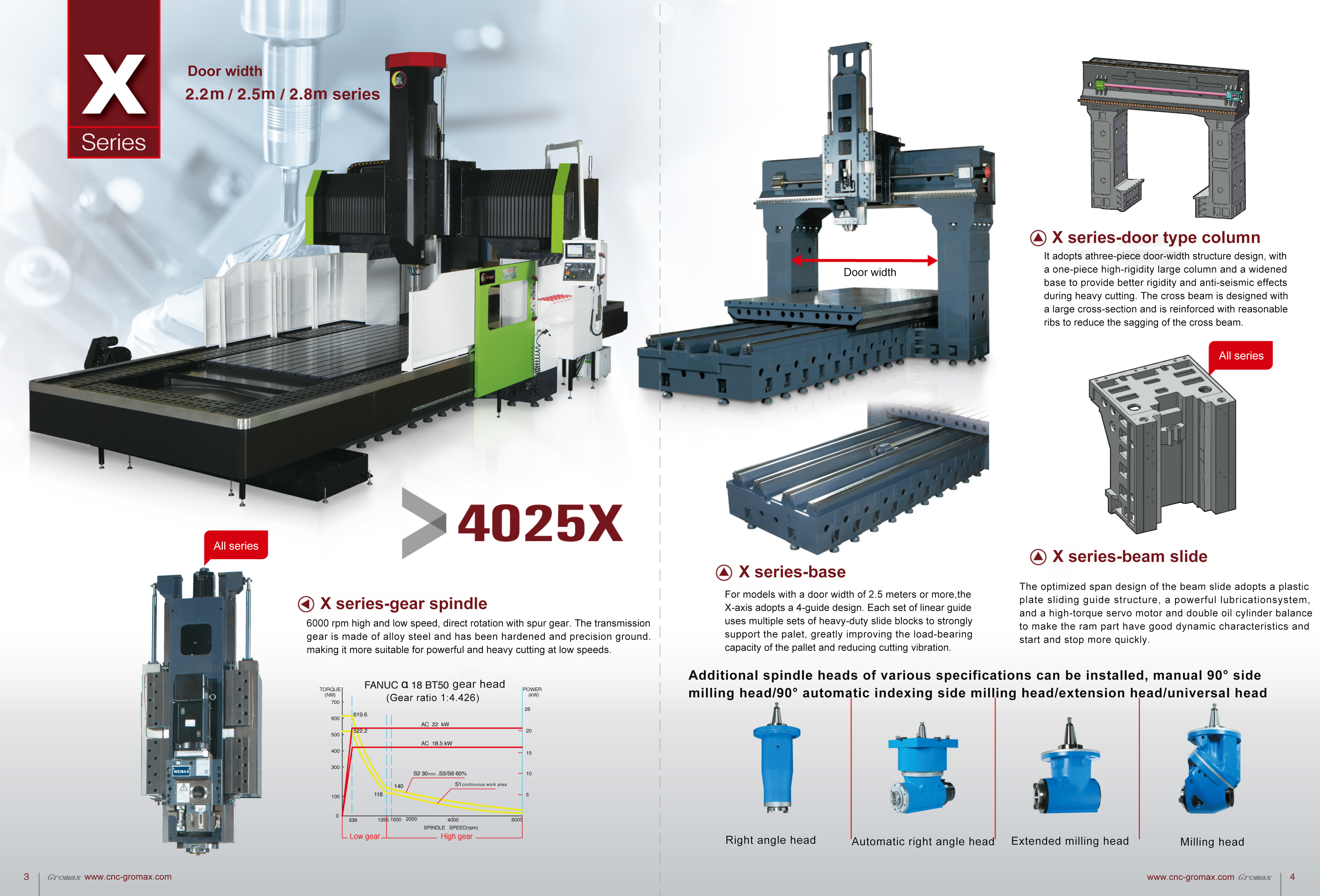

CNC Machining details 6
Specification
Item Unit GRM-2518X
Travel X*Y*Z-axis mm 2500x1800x800
Distance from spindle end face to worktable mm 180-980
Distance from spindle center to Z axis guide surface mm 450
Pallet Working desk size mm 2700x1600
Pallet load-bearing kg 6500
T-Slot width mm 22*200*7
Pallet QTY set 1
Spindle Spindle taper bore mm BT50
Maximum spindle speed r/min 6000
Spindle power (Optional) KW 15/18.5
Tool magazine Tool magazine capacity set 24T
Max. tool diameter mm 112
Max. tool length mm 350
Max. tool weight kg 18
Feed X-axis rapid displacement m/min 12
Y-axis rapid displacement m/min 12
Z-axis rapid displacement m/min 12
Cutting feed rate mm/min 8000
Three axis accuracy Positioning accuracy mm P0.025
Repeat positioning accuracy mm Ps0.02
Others Power supply capacity KVA 50
Air demand kg/cm² 6
Cutting fluid capacity Liter 400
Machine weight (combined) t 23
Dimension (L×W×H) mm 6300*1500*4500
Our Advantages
We have a full set of professional testing equipment to ensure the high quality and precision of our machines.

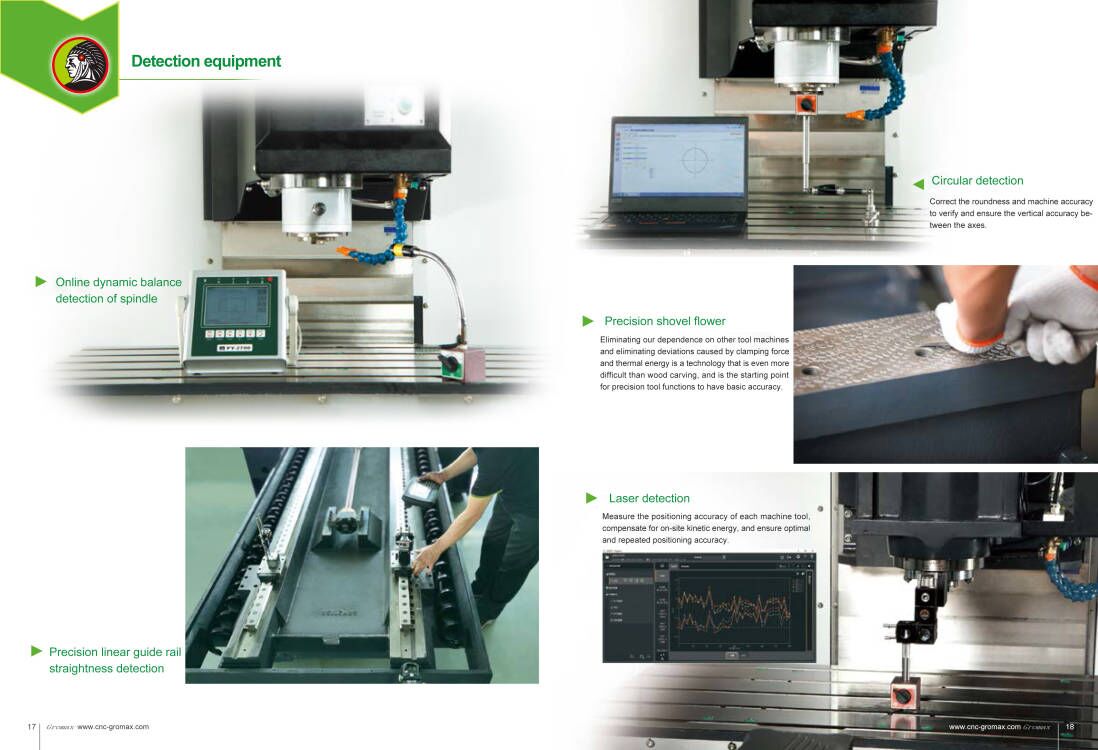

Testing Equipment and High Quality Assurance
Packing & Delivery
Packing and Delivery with Wooden Box

📦 Customized sturdy wooden box to protect machine well.

Profile

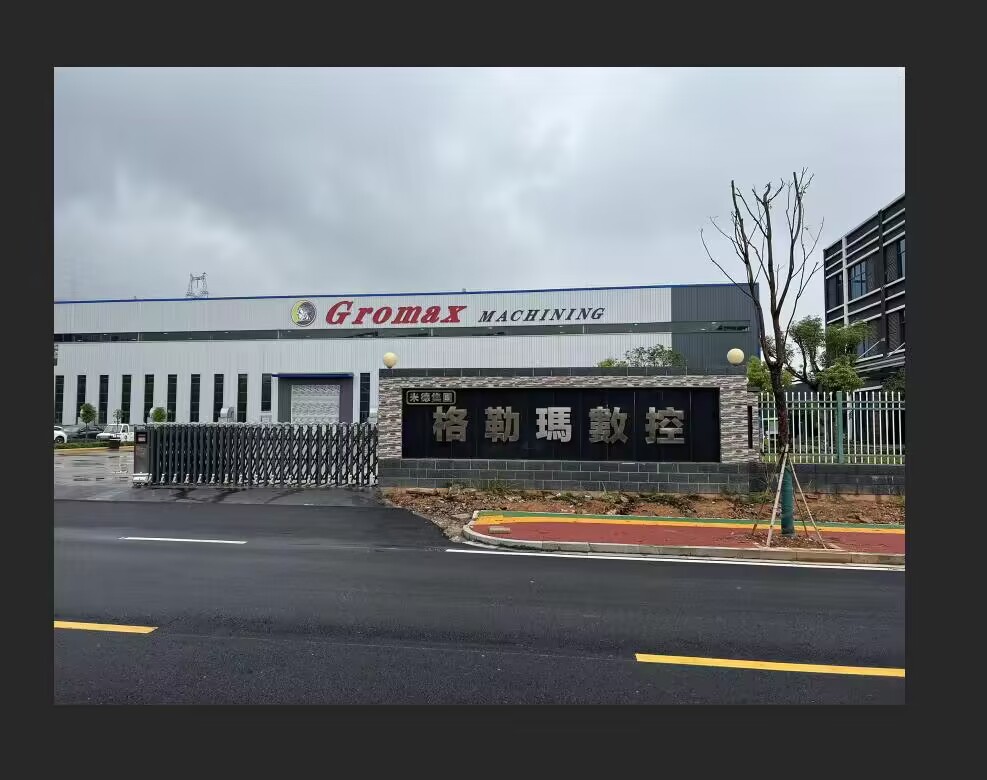

Manufacturing Center and Factory Overview

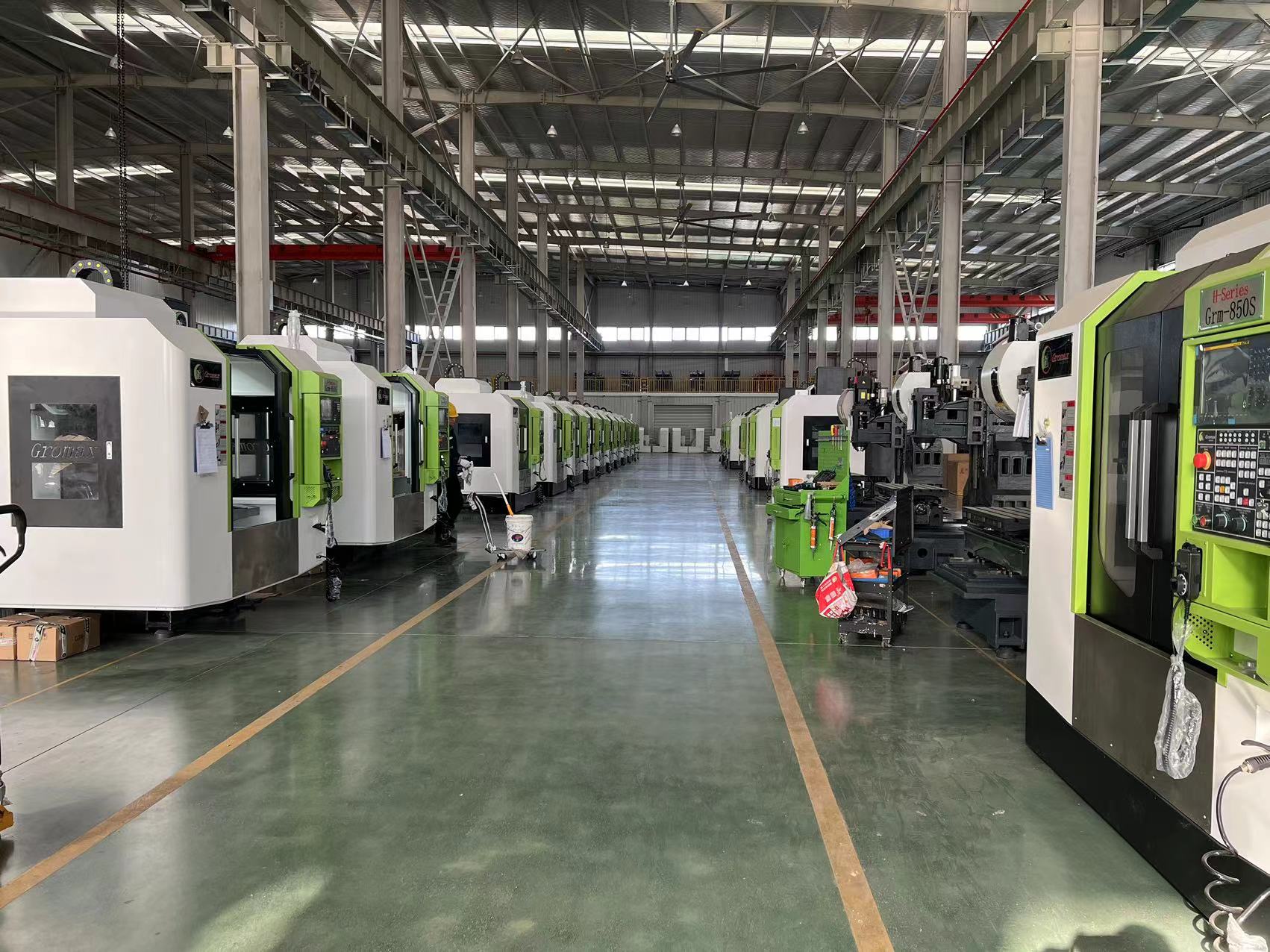

Factory Workshop Inside View 1

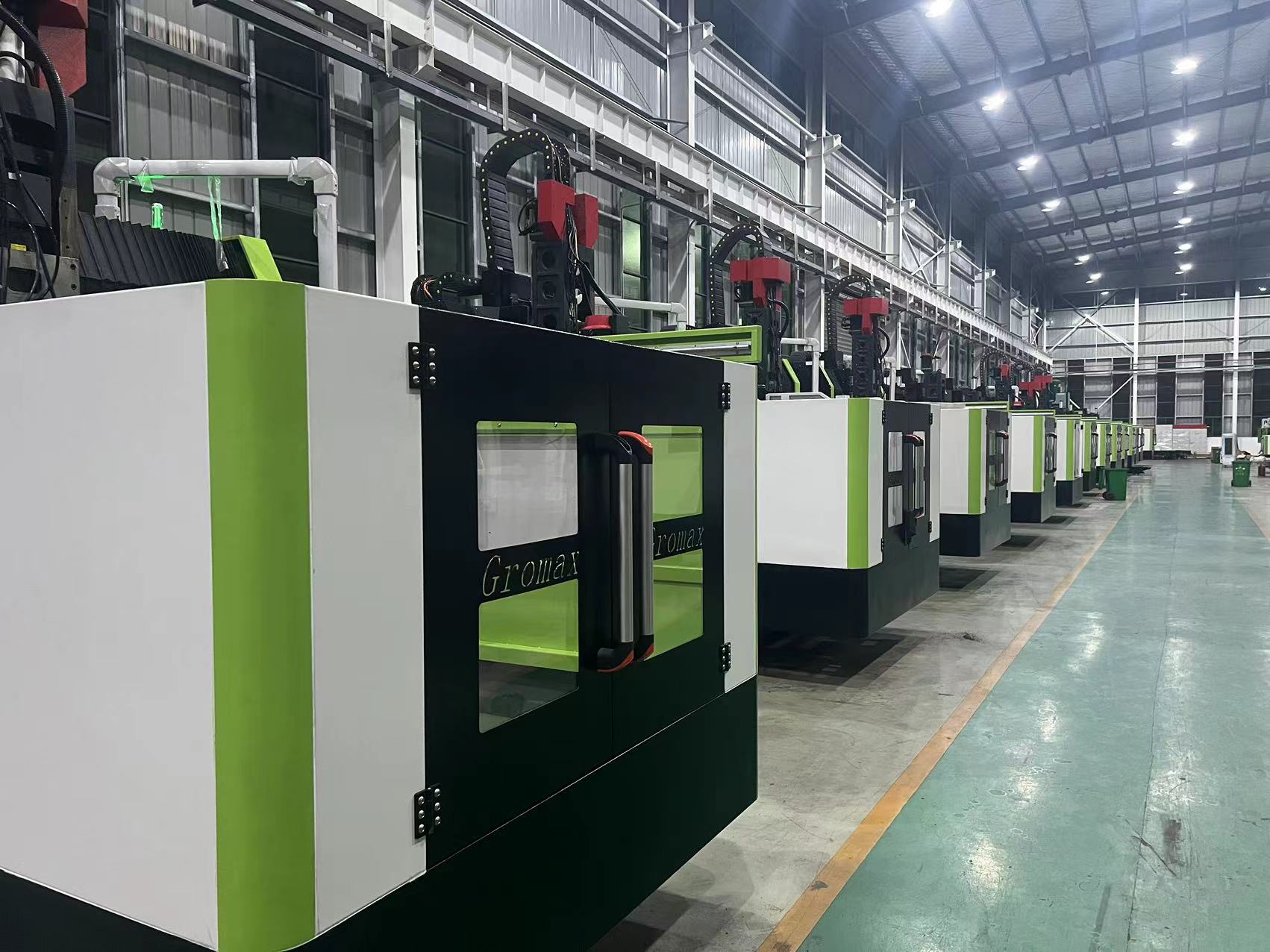

Factory Workshop Inside View 2
Established in 1985, specializing in the production of CNC machining centers. In 2004, a manufacturing center was established, specializing in the production of vertical machining centers. In 2014, a comprehensive production base was established, specializing in the production of vertical and horizontal machining centers. In 2015, complete machine assembly factories were established. In 2019, a casting production base and a gantry machining center production base were established. In 2020, a vertical machining center production base was established.
We devote ourselves to research and development, keep up with market demand, pay attention to every link in the processing process, strictly require quality, and strive to cultivate high-end products in the industry. After nearly 40 years of development, we have adopted a global strategy and put quality first, innovative and developed, with a dedicated and professional R&D team, advanced production equipment, complete testing and measurement facilities, exquisite processing skills, and rigorous quality management systems to create high-end quality equipment for global users.
To do your job well, you must first sharpen your tools. After years of innovation and development, we have become a professional manufacturing enterprise integrating development and production of modern machine tool equipment. We now possess a number of core vertical machining and milling machine manufacturing technologies, equipped with high-end production and high-rigidity designs and complete after-sales services. We have always launched the drilling machining center, vertical machining center, horizontal CNC lathe, moving column horizontal open machine, gantry machining center, overhead crane type gantry machining center, automatic CNC double-head milling machine, marble CNC dragon pattern based on professional international manufacturing industry. Nine series of products, including grinding machines and five-axis machining centers, are sold well all over the country and in many countries around the world. Motivate every employee to use professional knowledge as support to improve the product production line and adjust the structure of the machine tool industry. The manufacturing team is based on skilled skills and strives for excellence in details. The sales team has insight into market needs and delivers accurately. Get market feedback in real time to promote innovation and improvement of product series. With the ebb and flow, world-renowned achievements have been achieved along with the take-off of the economic equipment manufacturing industry. Looking back on the past, we have forged ahead and won high recognition from the market with professional technology, super cost-effectiveness and perfect after-sales service. Facing the future, we are still full of confidence, pursue our original intention, challenge higher, and break new ground in more fields.
Our dedication has received enthusiastic response from customers. We will strive for excellence true to perfection, the entrepreneurial spirit of excellence, do our part, while grateful for the trust of customers, promising to never let down our customers.
Frequently Asked Questions (FAQ)
What are the travel dimensions for the X, Y, and Z axes on the GRM-2518X?
The travel specifications for the X, Y, and Z axes are 2500 mm, 1800 mm, and 800 mm respectively.
What is the maximum table load capacity of this machining center?
The pallet has a maximum load-bearing capacity of up to 6500 kg, and the working table size is 2700x1600 mm.
What spindle speeds and power configurations are available?
The machine features a BT50 spindle taper bore with a maximum spindle speed of 6000 r/min. Spindle power is customizable with optional choices of 15 KW or 18.5 KW.
How is the tool magazine set up for tool change efficiency?
It includes a 24T capacity tool magazine. The maximum allowable tool diameter is 112 mm, the maximum tool length is 350 mm, and the maximum tool weight is 18 kg.
What measures are taken to guarantee shipping protection?
All equipment is packed in customized sturdy wooden boxes specifically designed to protect heavy CNC machinery from impact during shipping.
What are the precision standards for positioning and repeat accuracy?
The three-axis positioning accuracy reaches P0.025 mm, and the repeat positioning accuracy reaches Ps0.02 mm, verified by high-end testing instruments.
