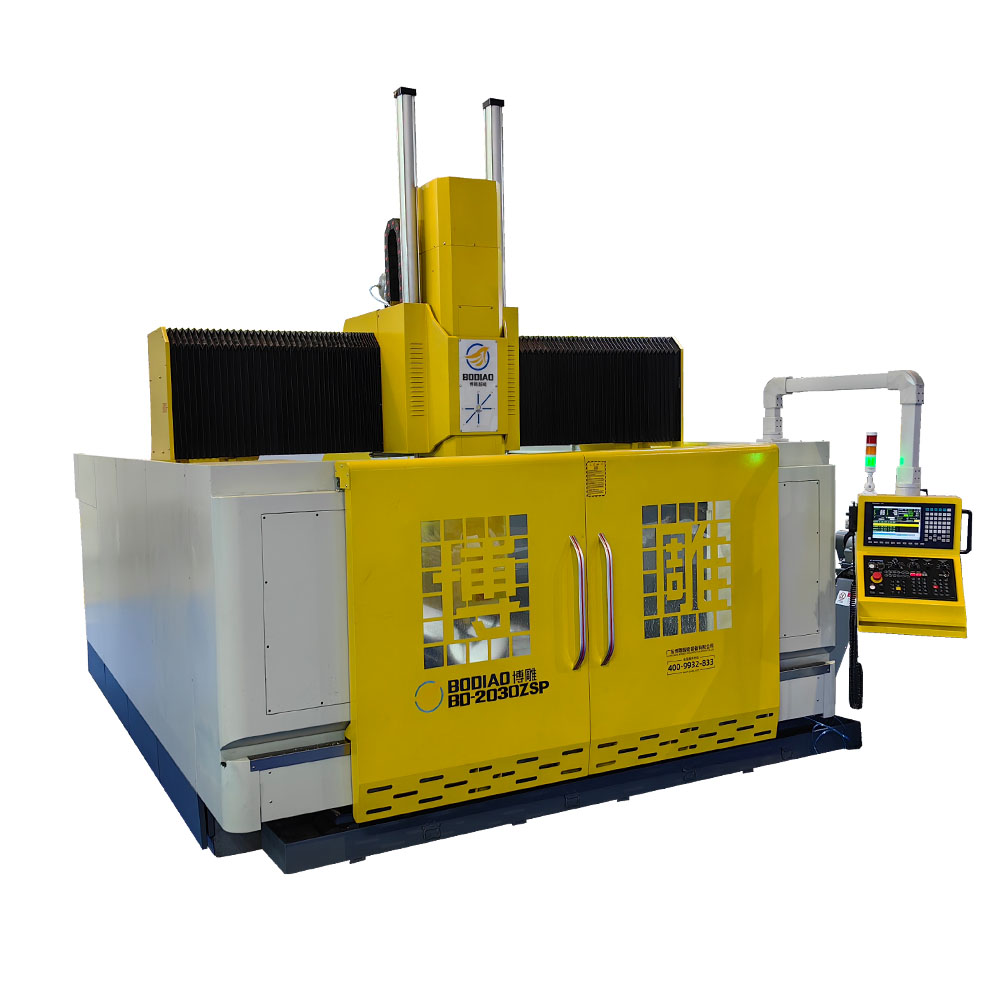

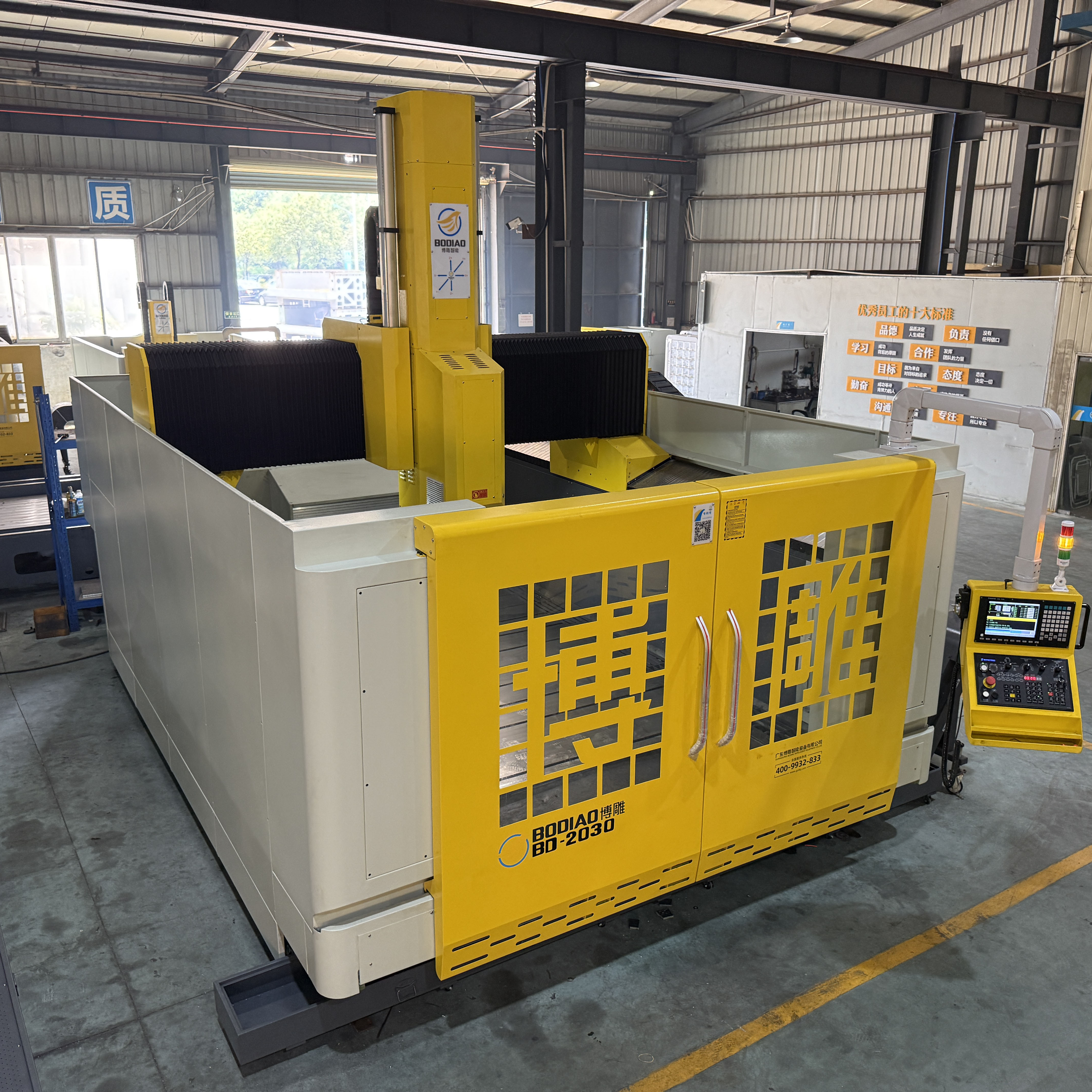

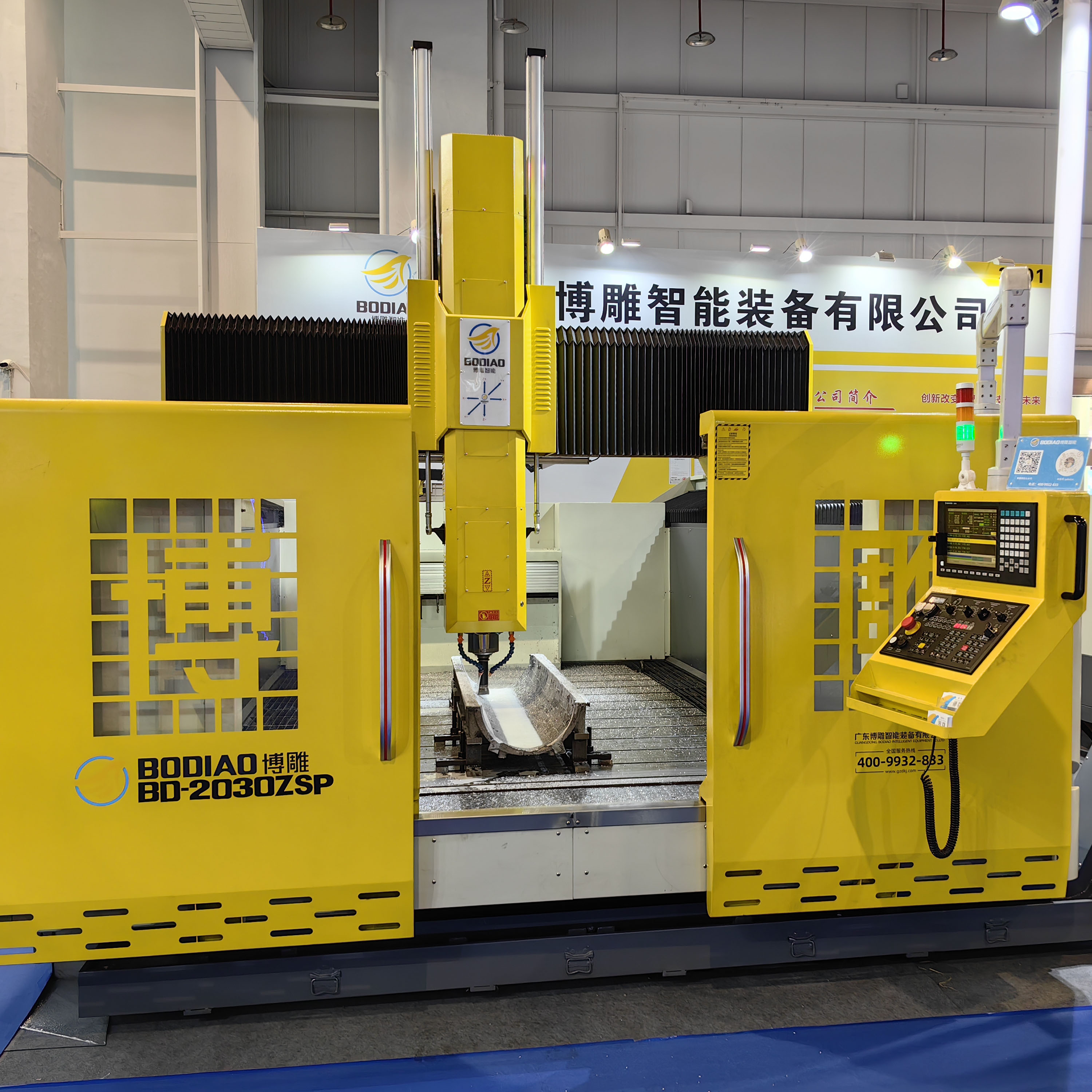

BD-2030 Single Spindle BT40 Automatic CNC Gantry Machining Center Heavy Duty Milling & Boring Machine

Product Description

Product Description

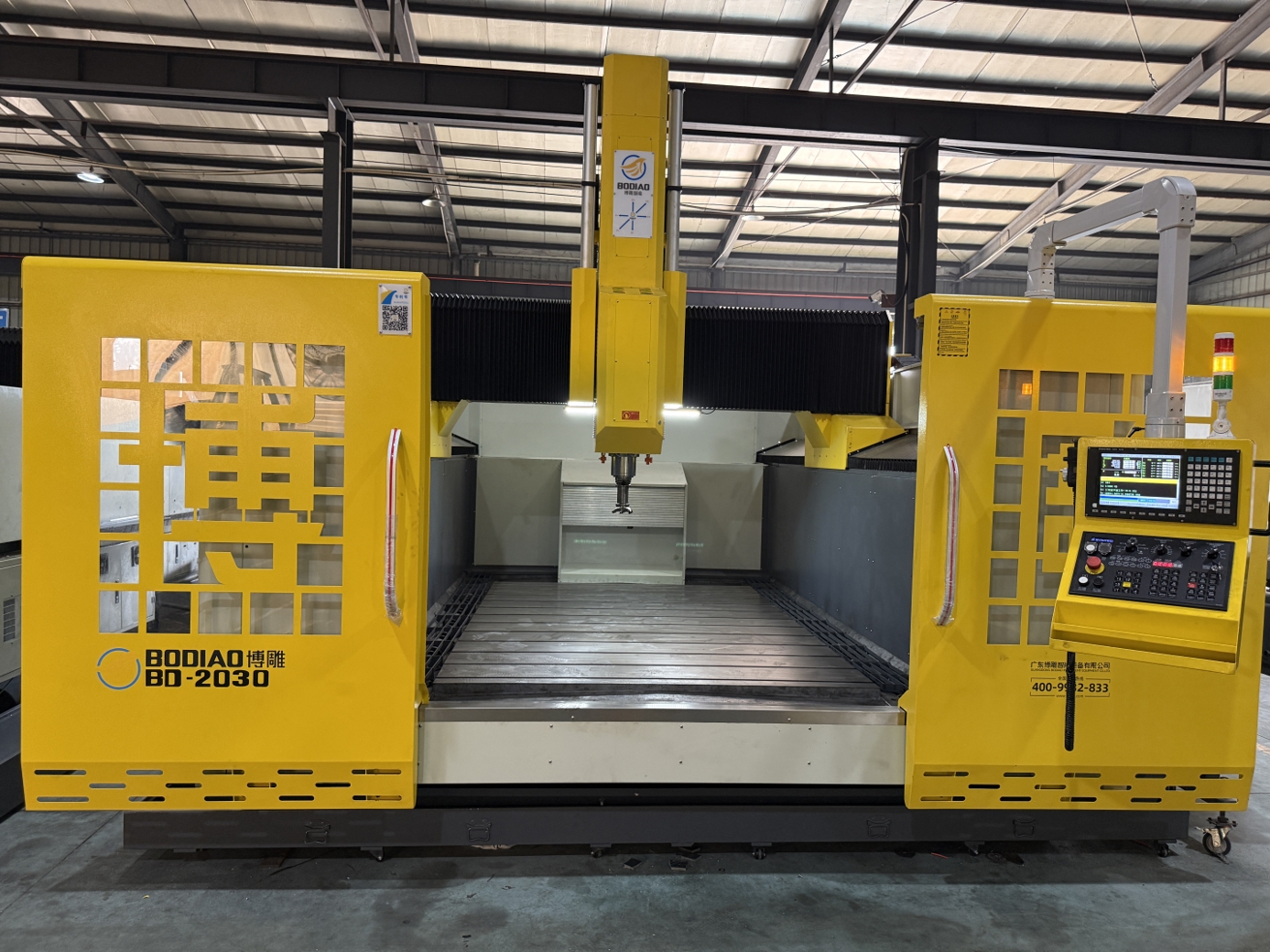

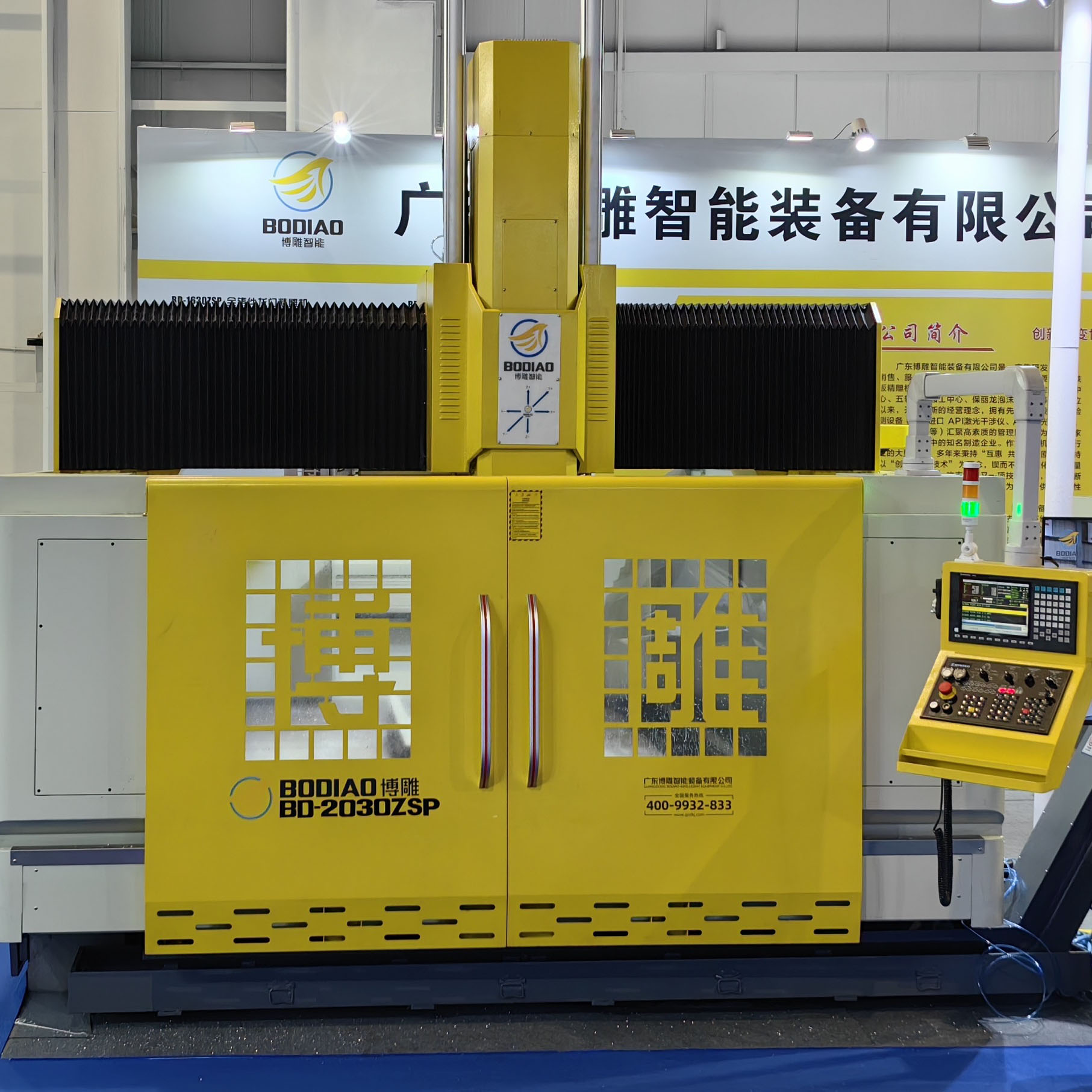

CNC Machining Center

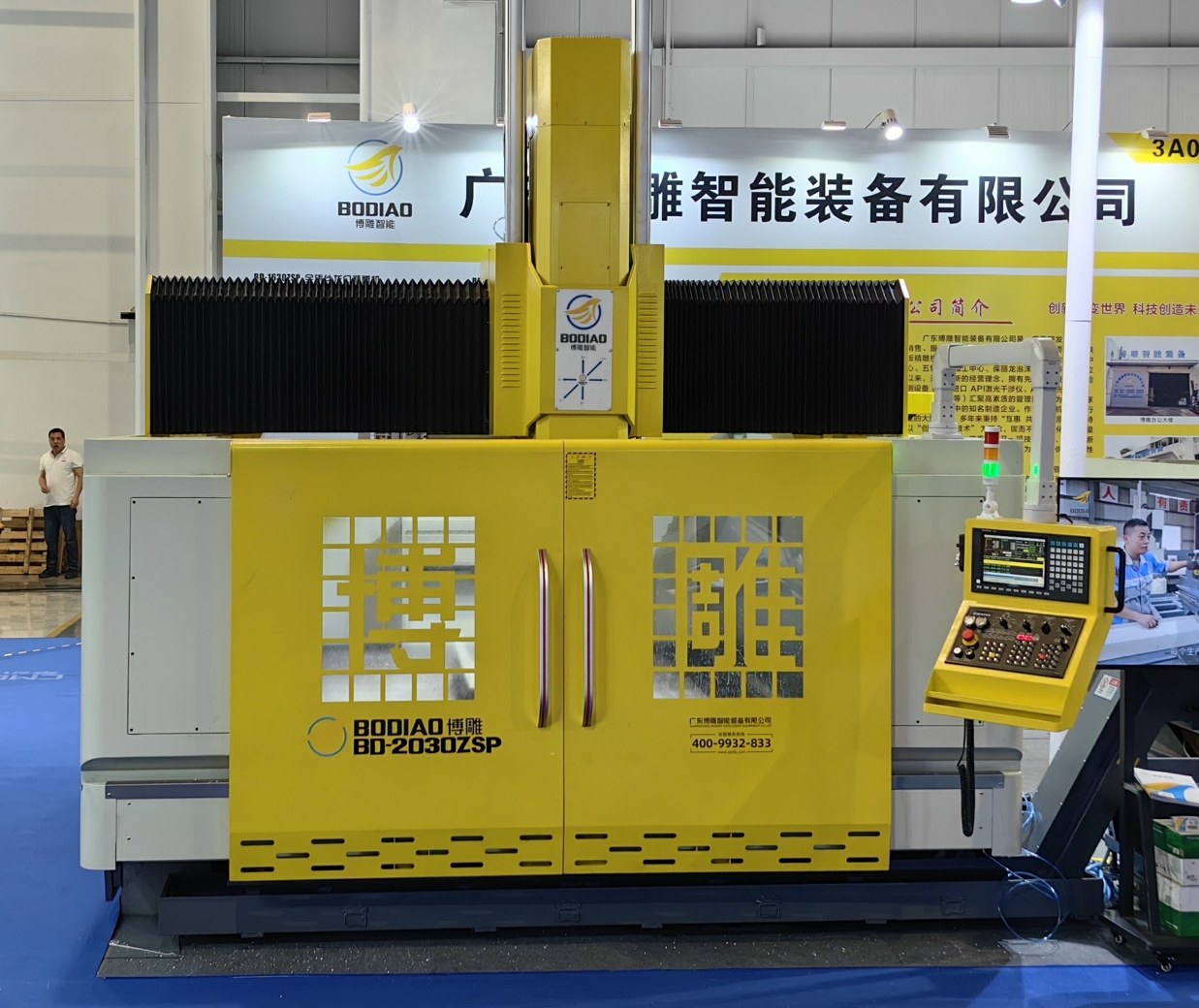

CNC Machine Component

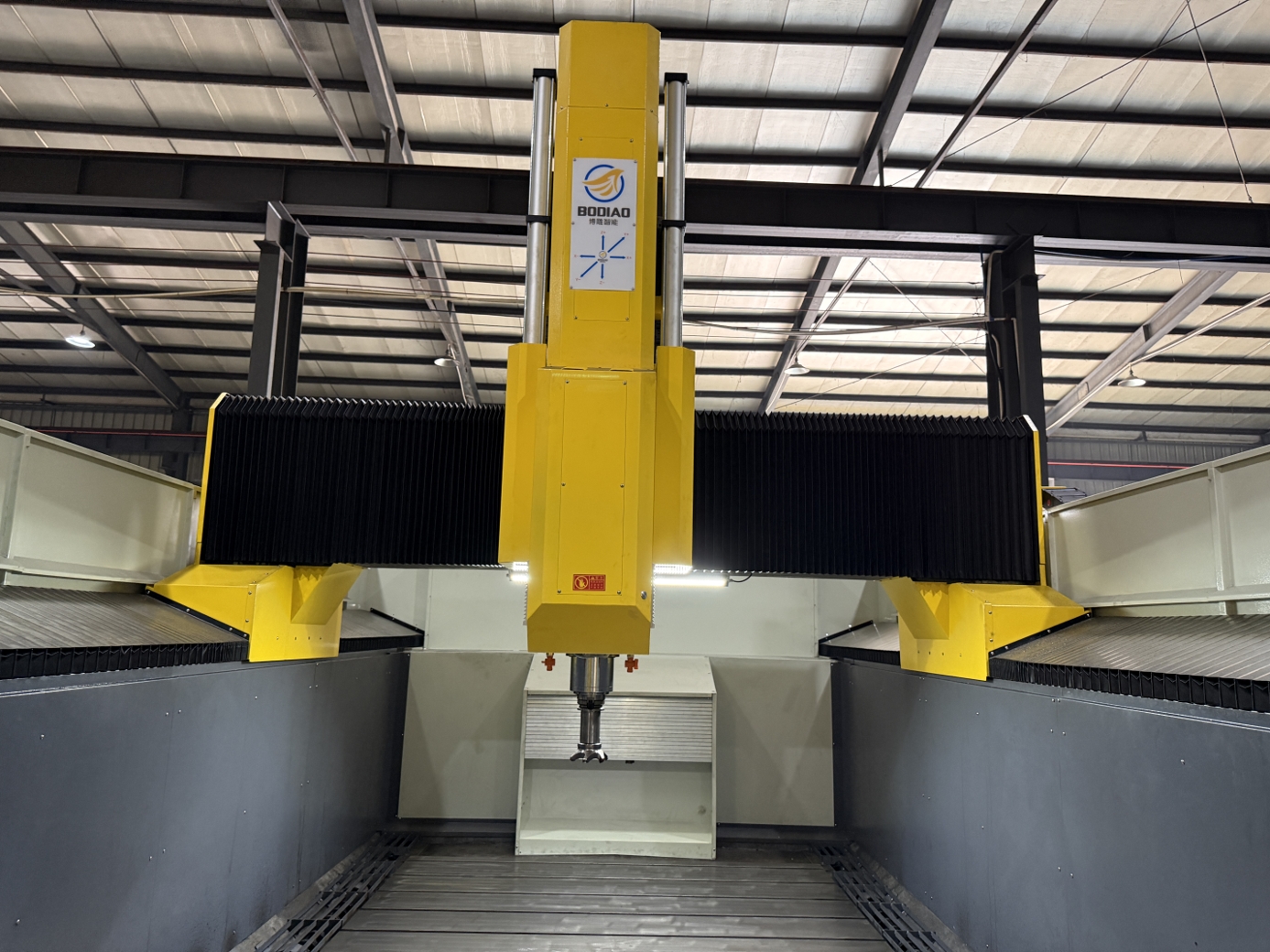

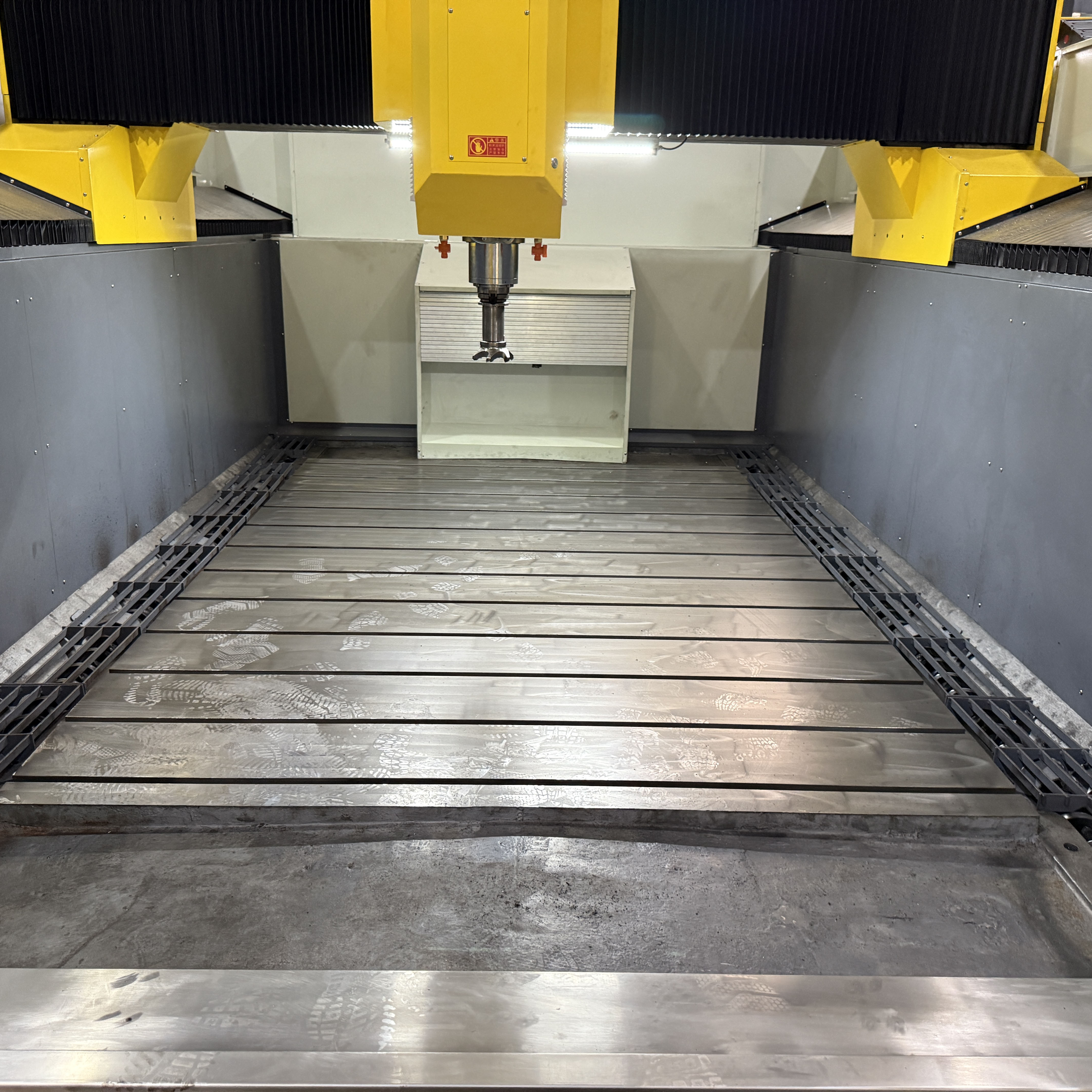

CNC Processing Detail
Product Advantages
Robust Processing Capabilities
As the core processing equipment in the mold industry—such as for metal molds, plaster molds, aluminum cast molds, and foam molds—machining centers possess robust processing capabilities. Their high-precision control systems and advanced mechanical structure design enable them to easily handle high-accuracy machining of various complex molds, providing solid assurance for users in the mold industry to produce high-quality processed products.
Aerospace Engineering Standards
In the aerospace field, our machining centers achieve efficient processing of components, meeting the industry's stringent high-precision standards and requirements, thereby contributing to the development of the aerospace industry.
New Energy Automotive Solutions
In the new energy vehicle industry, gantry machining centers can rapidly and accurately complete the processing of new energy vehicle parts, improving production efficiency, reducing manufacturing costs, and helping new energy automotive enterprises stand out in the fierce market competition.
Specification
Processing Range X stroke 2000mm X maximum speed 25m/min
Y stroke 3000mm Y maximum speed 25m/min
Z stroke 800mm Z maximum speed 15m/min
Operating mode Servo Spindle power 11KW
Operation instructions G code, F/S command compatible with G code, F/S command Spindle speed 0-8000RPM/min
Operating voltage AC380V/50HZ Positioning precision engraving 0.02mm
Operating system SYNTEC 22MA System resolution 0.001
Dimensions 5400x3800x3800mm Weight 20000KG
Details Display

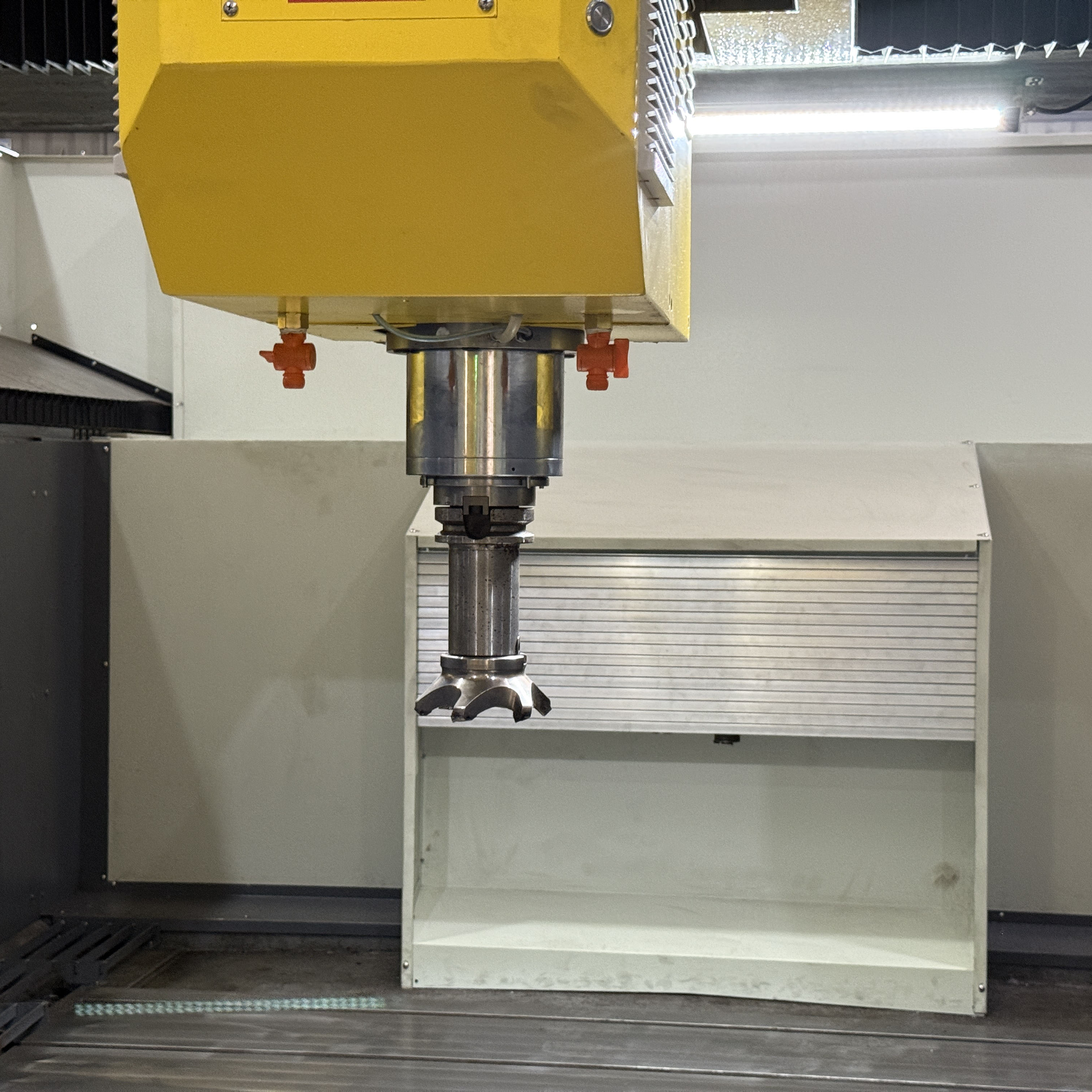

BT50 Spindle
The machine features a metallic BT50 mechanical spindle that delivers robust cutting force. It supports tool changes for 8-12 tools simultaneously, with an optional upgrade to a 16-tool magazine.

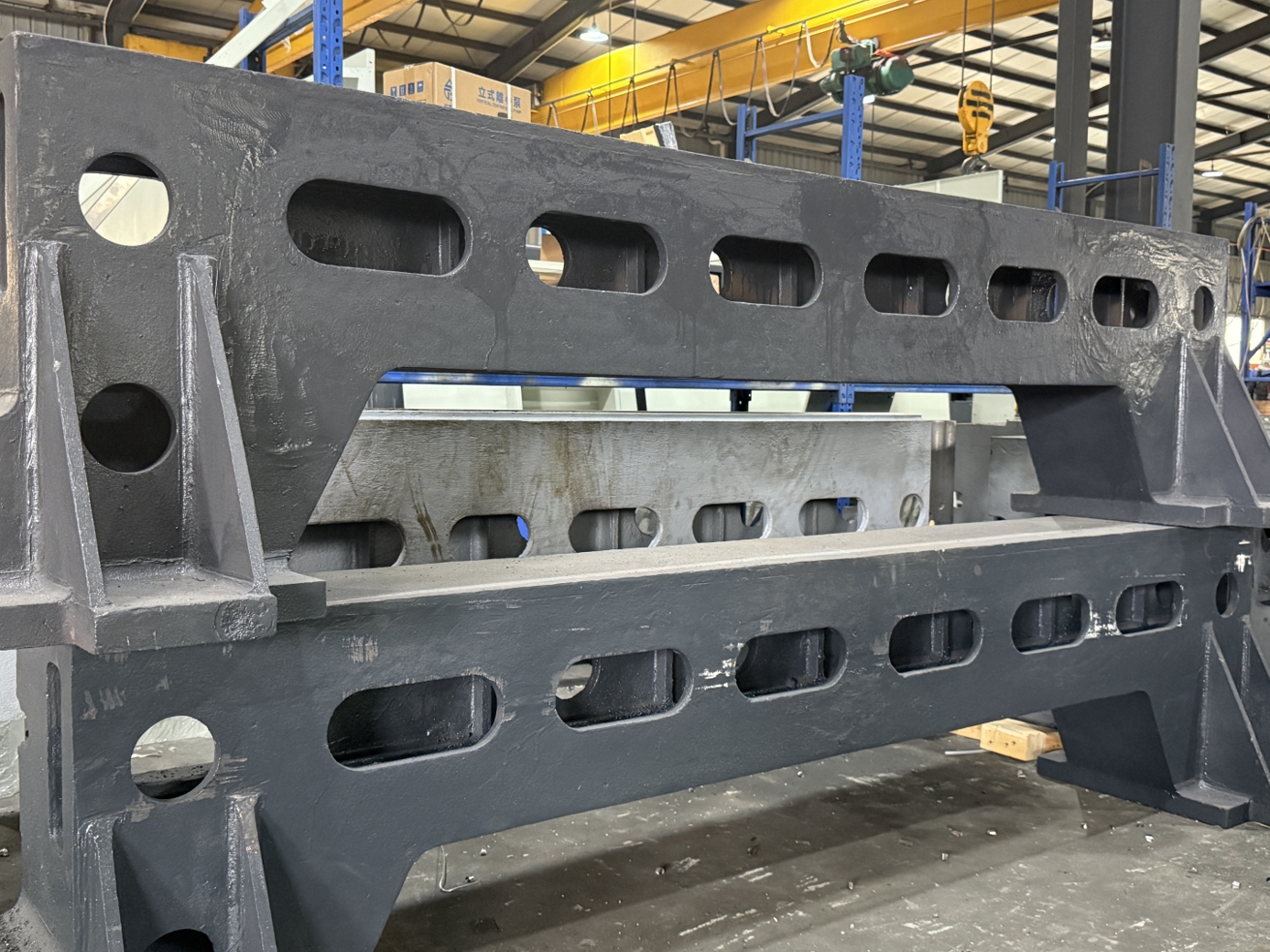

Gray Iron Casting
Gray iron casting, TH300 casting, reducing stress, improving machine tool stability and rigidity.

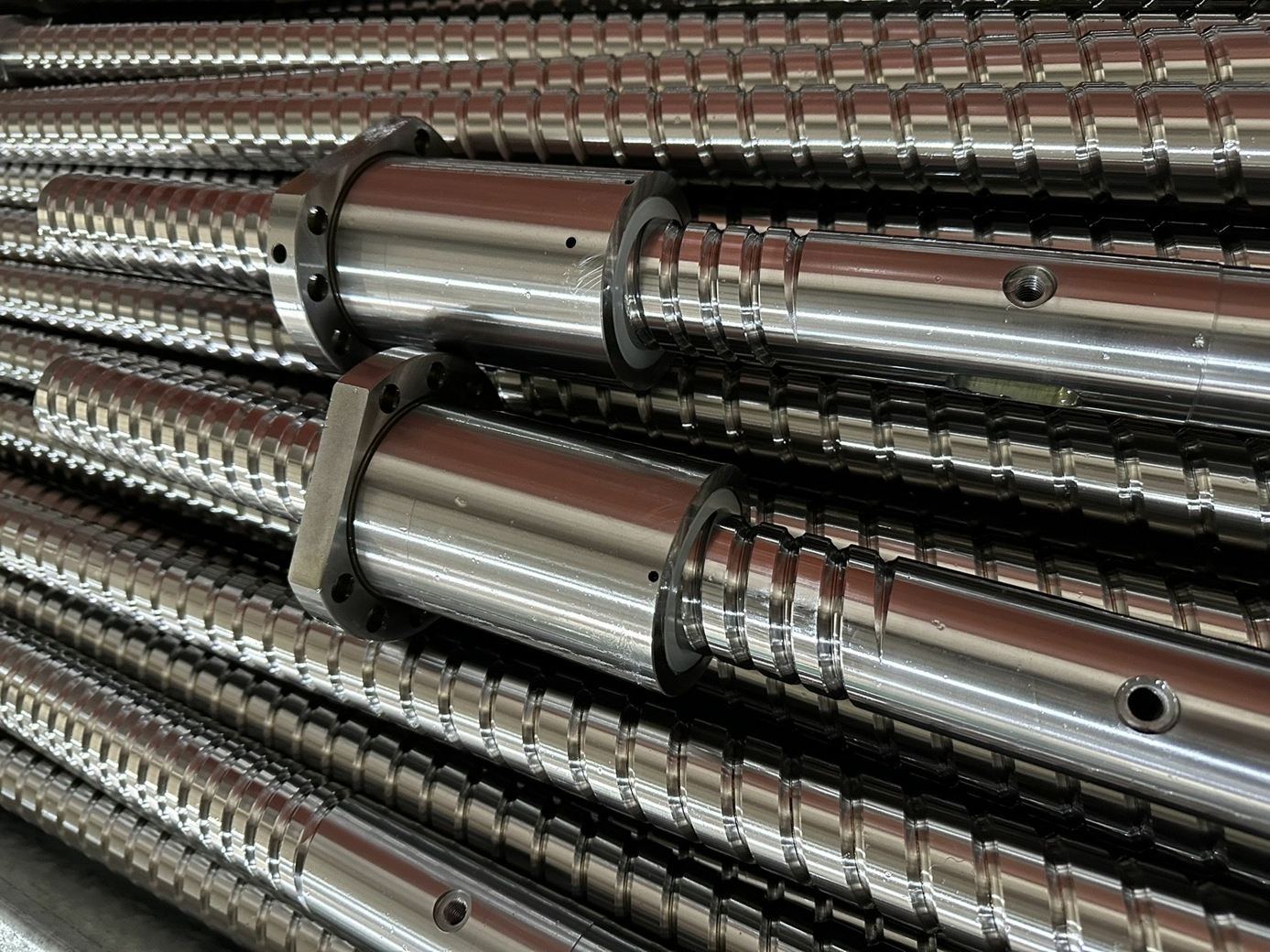

Ball Screws
All three axes utilize TBI high-precision ground ball screws, ensuring high positioning accuracy, low friction, and long-term precision retention.

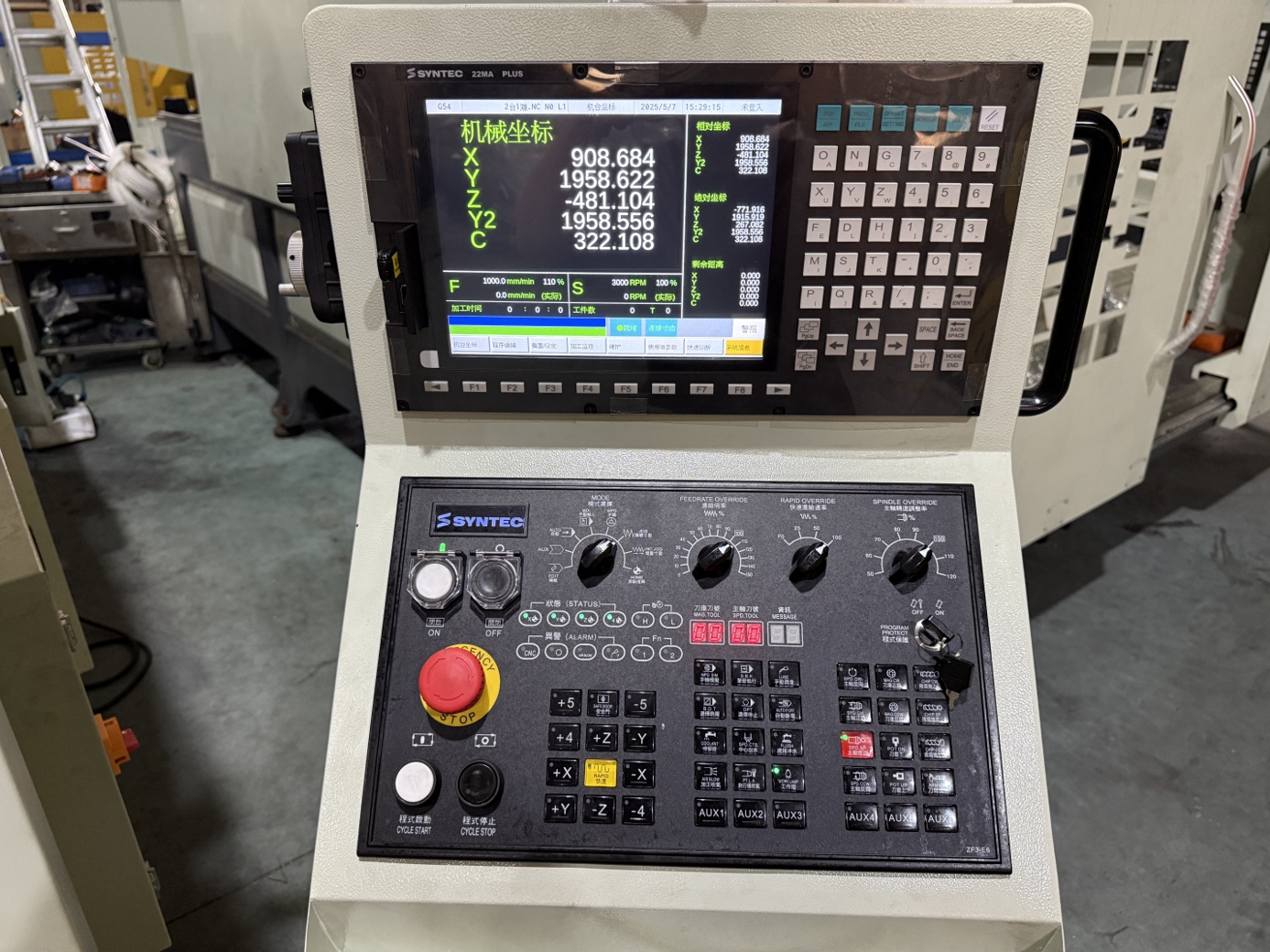

Control System
High-speed system and an intuitive HMI, ensuring straightforward operation. Optional Control Systems: SYNTEC, Siemens and Mitsubishi (to suit different needs).

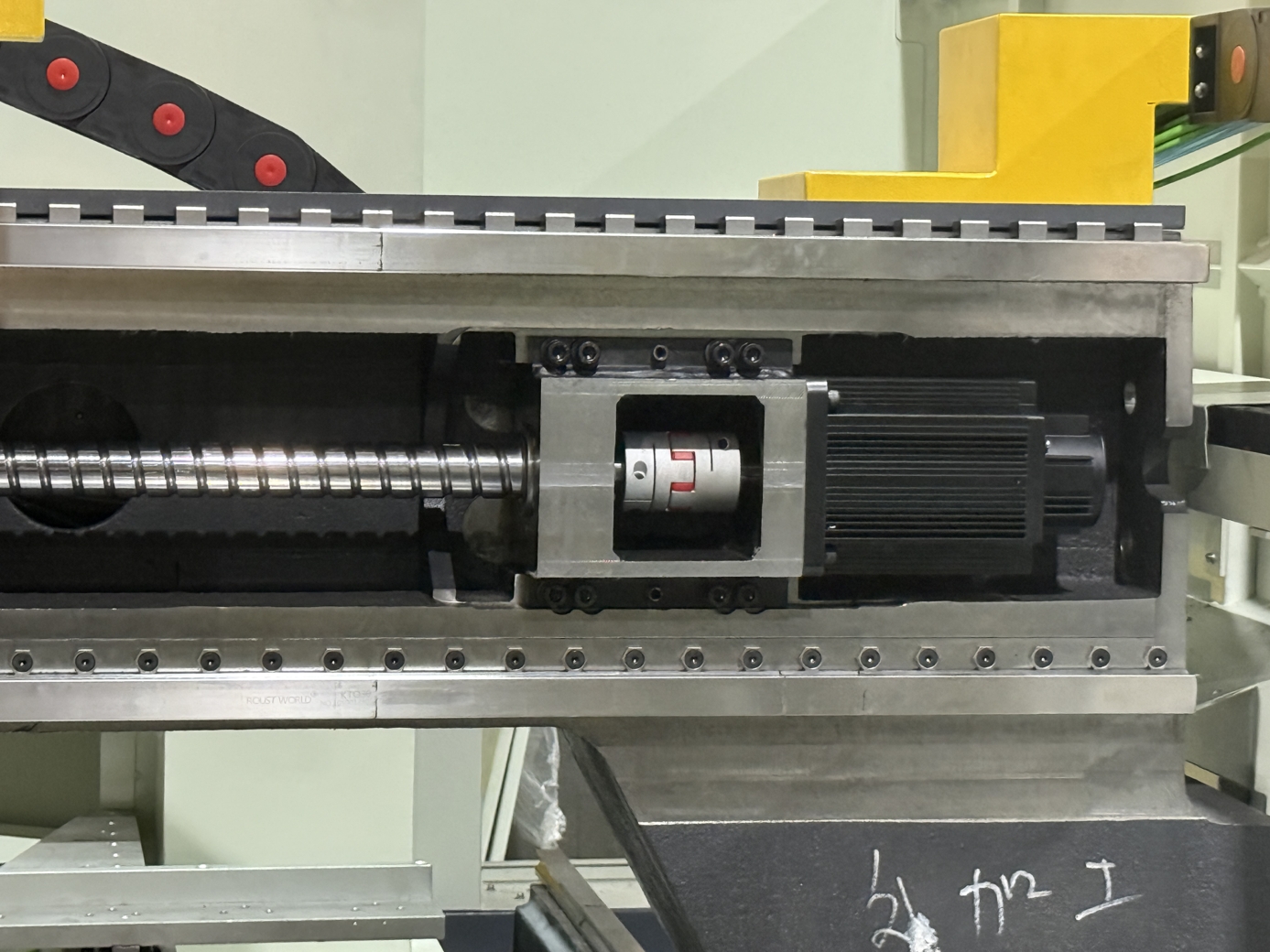

Roller Guideways
Wide roller 30 type guideways are employed, with the Y-axis utilizing a four-guideway structure to deliver high rigidity, superior guiding accuracy, and smooth motion.
Servo Motors
Servo motors from Japan and Taiwan deliver exceptional performance, user-friendly operation, and enhanced durability, with a maximum load capacity of up to 30 times.

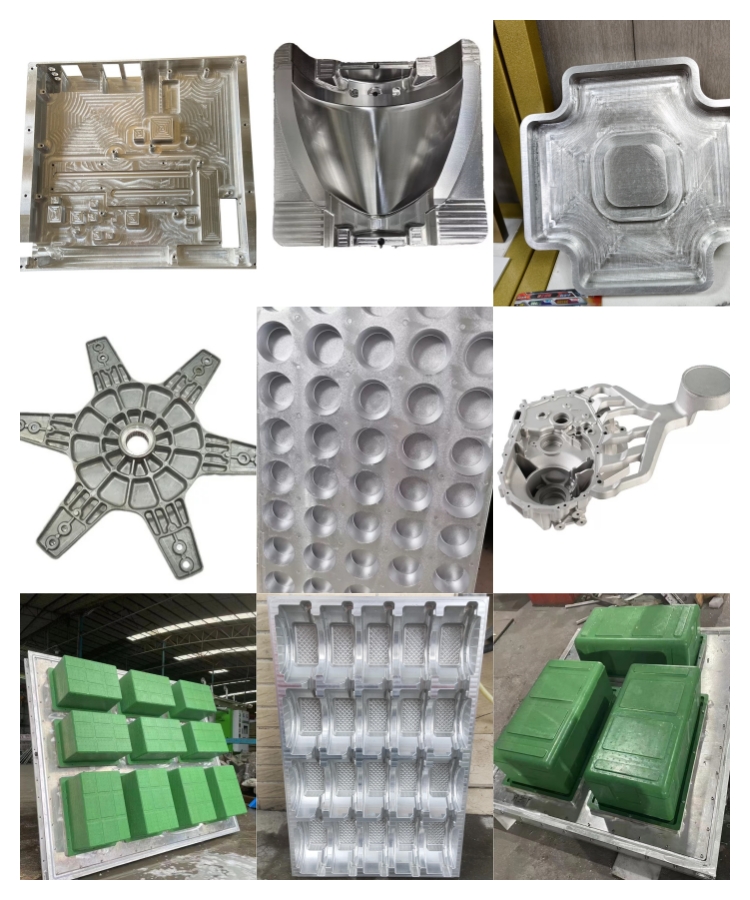

Application Industries
Application Industries
Quality Testing
Quality Testing Process
Company Profile
With over 30 years of specialization, we are dedicated to manufacturing and exporting high-quality machinery worldwide. Our facility spans more than 80,000 square meters and employs over 200 skilled workers. The company has obtained numerous international certifications, including ISO, and holds more than 40 patents. Our machines have been exported to over 100 countries and regions, and we provide long-term overseas technical guidance and after-sales service to these markets. We adhere to the business philosophy of "Quality First, Service Foremost, Continuous Improvement, and Innovation to Meet Customer Needs." This is backed by a strict quality control system with over 24 steps in our testing process. We sincerely look forward to collaborating with partners from around the globe for mutual growth and success.
Factory Environment
Manufacturing Facility
Workshop
Product Packaging
Product Packaging and Delivery
Frequently Asked Questions
How to choose the most suitable machine?
Please tell us your material specifications, and we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
What are the main products?
We specialize in various CNC equipment, such as CNC machine tools, gantry machining centers, metal engraving machines, three-axis/four-axis/five-axis engraving machine equipment, Poly Dragon engraving machines, and so on.
What needs to be confirmed before placing an order?
Before placing an order, please confirm the voltage, frequency, plug type requirements, as well as preferred trade terms and whether there is an designated freight forwarder.
Can I place a small order?
Yes, the minimum order quantity for our product is 1 unit. Different order quantities have different price points.
What are our payment terms?
Our standard payment terms are a 30% initial payment upon ordering, with the remaining 70% balance payment due before shipment.
