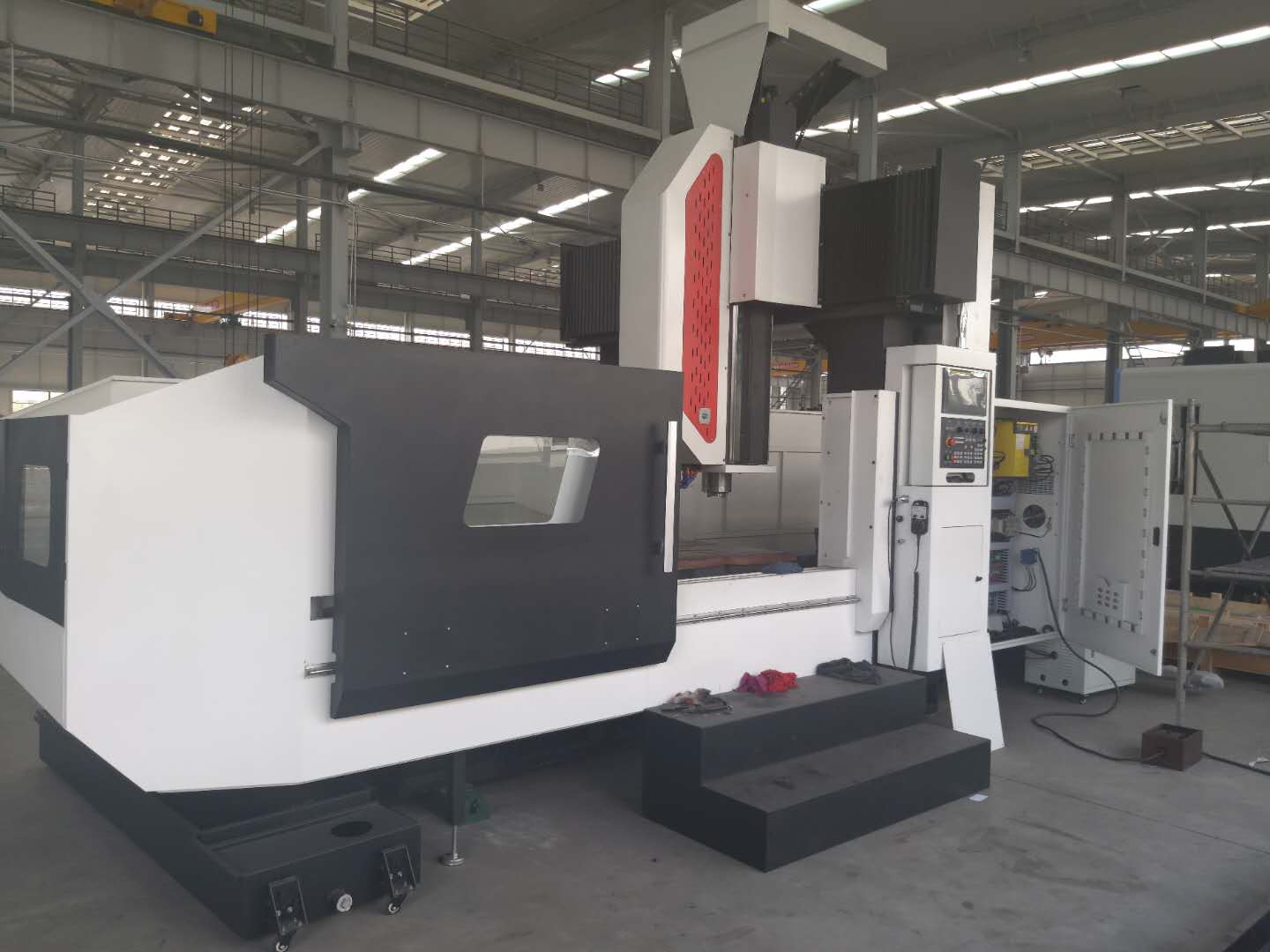

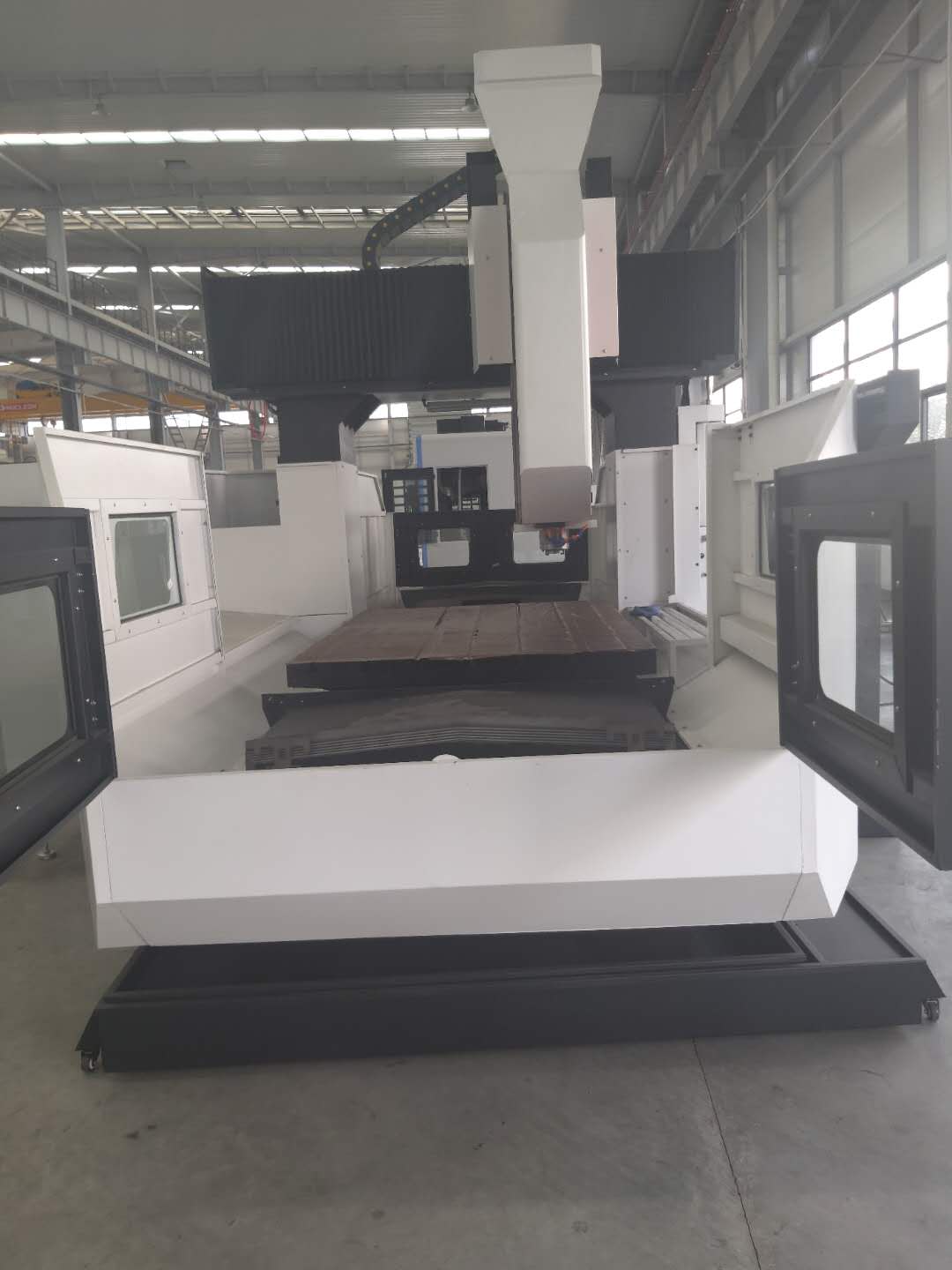

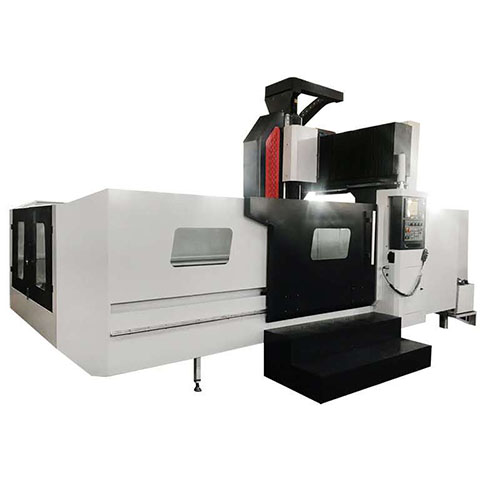

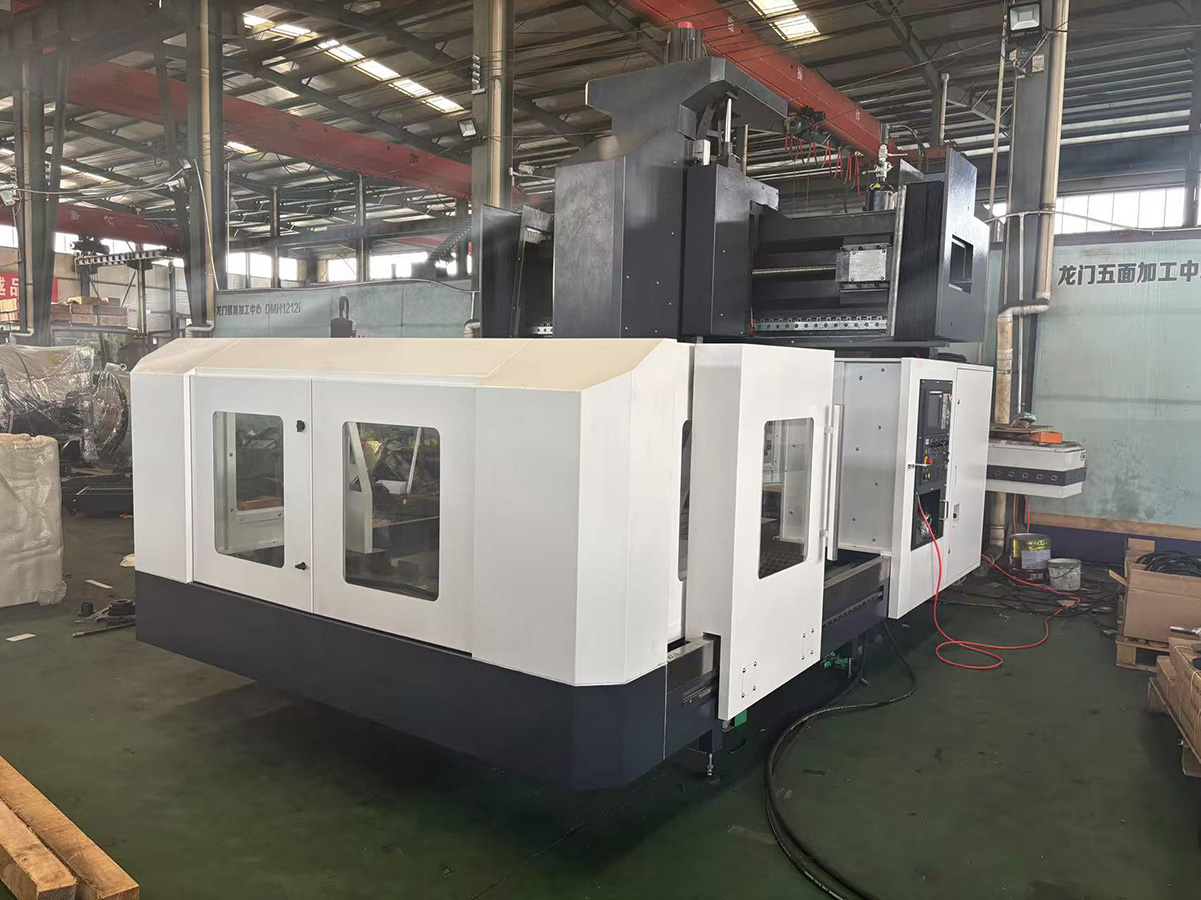

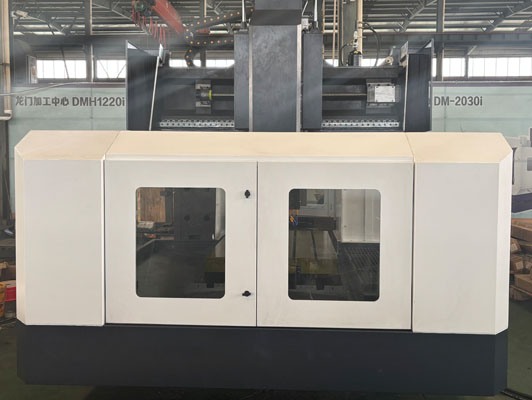

Gantry machining center is a large, high-precision digitally controlled machining equipment, which can perform high-speed, high-precision milling, drilling, boring, and other machining operations. It is suitable for precision machining of large, heavy workpieces. The main feature of the gantry machining center is that the worktable is fixed and the tool magazine is moving, so it can be used for machining large workpieces, and it can be controlled by a multi-axis linkage such as three-axis, four-axis, five-axis, etc. so that it can be machined with high precision and surface quality.
| Specifications | Unit | GMC1413 | GMC2016 |
| Table size | mm | 1100×1400 | 1300x3200 |
| Worktable longitudinal stoke (X axis) | mm | 1300 | 2000 |
| Spindle lateral stroke (Y axis) | mm | 1300 | 1650 |
| Spindle up and down stroke (Z axis) | mm | 700 | 800 |
| Cross gate width | mm | 1400 | 1650 |
| Distance between spindle nose and table surface | mm | 120-820 | 250-1050 |
| Workbench T-slot | - | 9-18*125 | 7-22*200 |
| Spindle specifications | - | BT40/150 or BT50/155 | BT50/190 |
| Spindle speed | r/min | 8000 | 6000 |
| Gear ratio | - | Pulley Ratio 1:1 | Pulley Ratio 1:1 |
| X/Y/Z axis ball screw specifications | - | 5010/5010/5010 | 6310/5010/5010 |
| X/Y/Z axis servo motor drive mode and ratio | - | X, Y, Z axis direct connection | |
| Recommended spindle motor selection | - | 11kw Wide Area Motors | 18.5kw Wide Area Motors |
| X/Y/Z axis motor torque | N.m | 36/36/36 | |
| Rapid traverse | m/min | 20 | 16 |
| Overall dimension | mm | 4200*2700*3300 | 6300*3400*3500 |
| Table load | t | 2 | 5 |
| Machine weight | t | 10 | 19 |

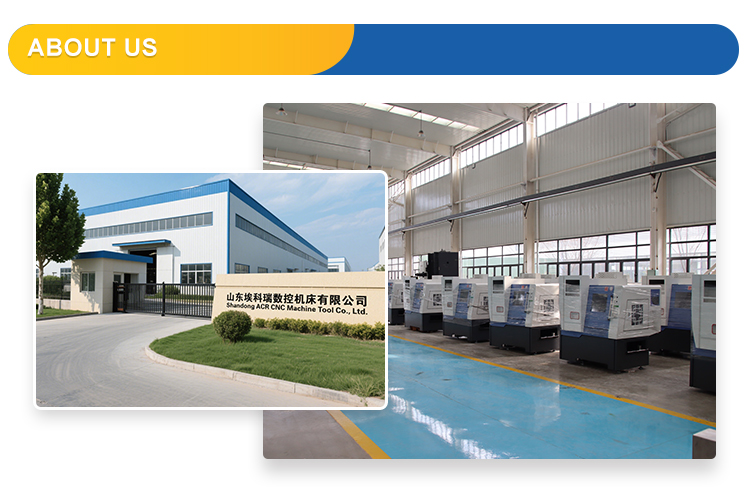

We are a professional enterprise integrating product design, research and development, manufacturing, and sales. The main production and operation of CNC lathe machines, CNC milling machines, vertical machining centers, horizontal machining centers, gantry machining centers, manual lathes, manual milling machines, and other series of machine tools products.
