| Configuration Parameter | Specification Details |
|---|---|
| Axis Control & Original Point | |
| Controlling Axis | X Axis: Spindle component moves left and right (infeed stroke) +X Y Axis: Moves forward and backward along working table (longitudinal stroke) +Y Z Axis: Spindle component moves up and down (vertical stroke) +Z |
| Original Point of Controlling Axis | X axis: Left side of working table Y axis: Back of working table |
| Controlling Stroke | |
| Working Stroke | X Axis Stroke: 1200mm Y Axis Stroke: 2000mm Z Axis Stroke: 1000mm A Axis Stroke: ±120° C Axis Stroke: 360° |
| Speed & Accuracy | |
| Rapid Traverse | X/Y Axis: 45m/min Z Axis: 10m/min A Axis: 82.5°/SEC C Axis: 74°/SEC |
| Max. Cutting Speed | X/Y Axis: 25m/min Z Axis: 10m/min |
| Repositioning Accuracy | ±0.05mm |
| Machine Structure & Components | |

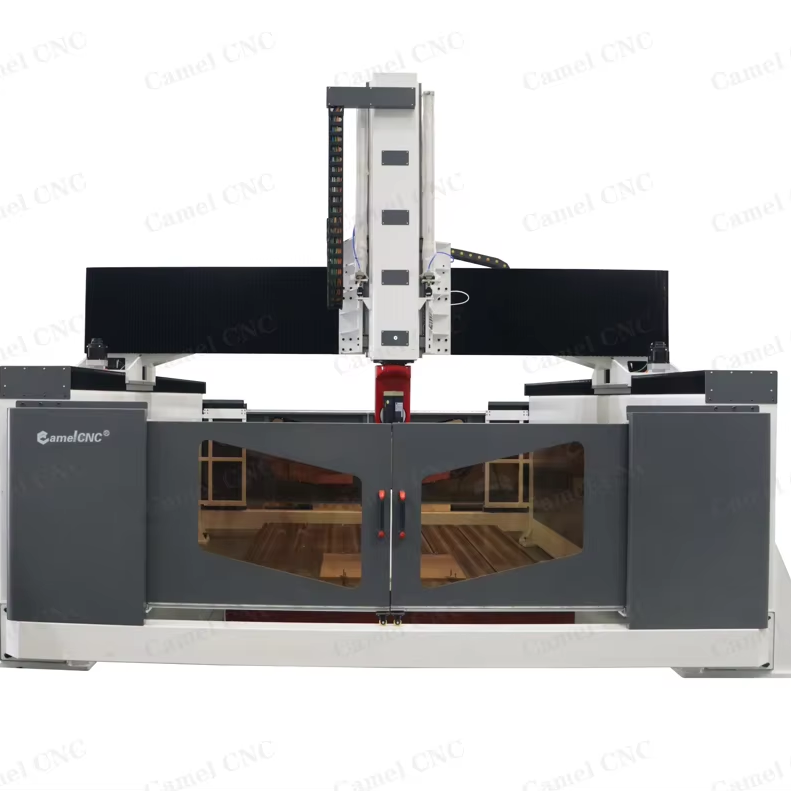

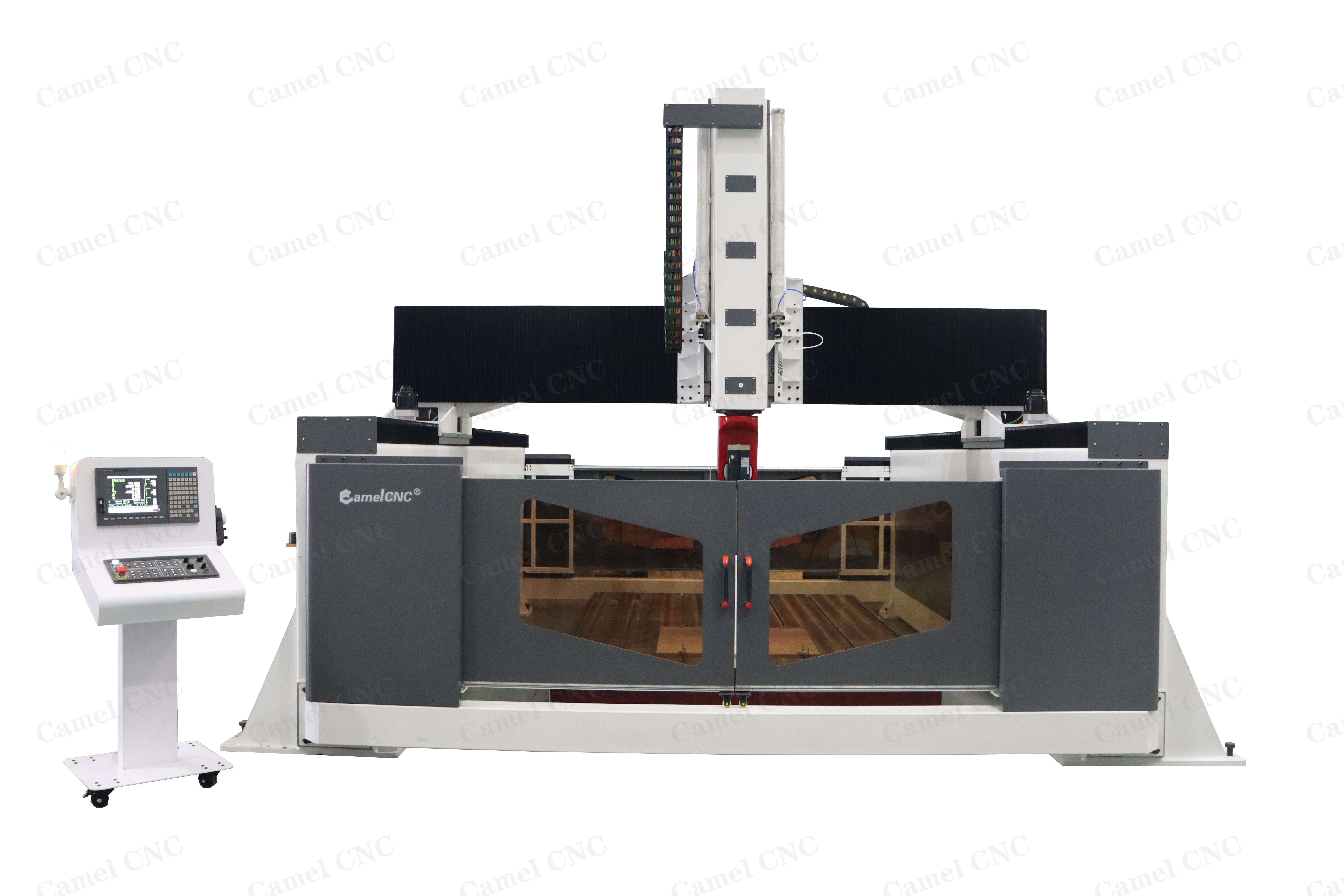

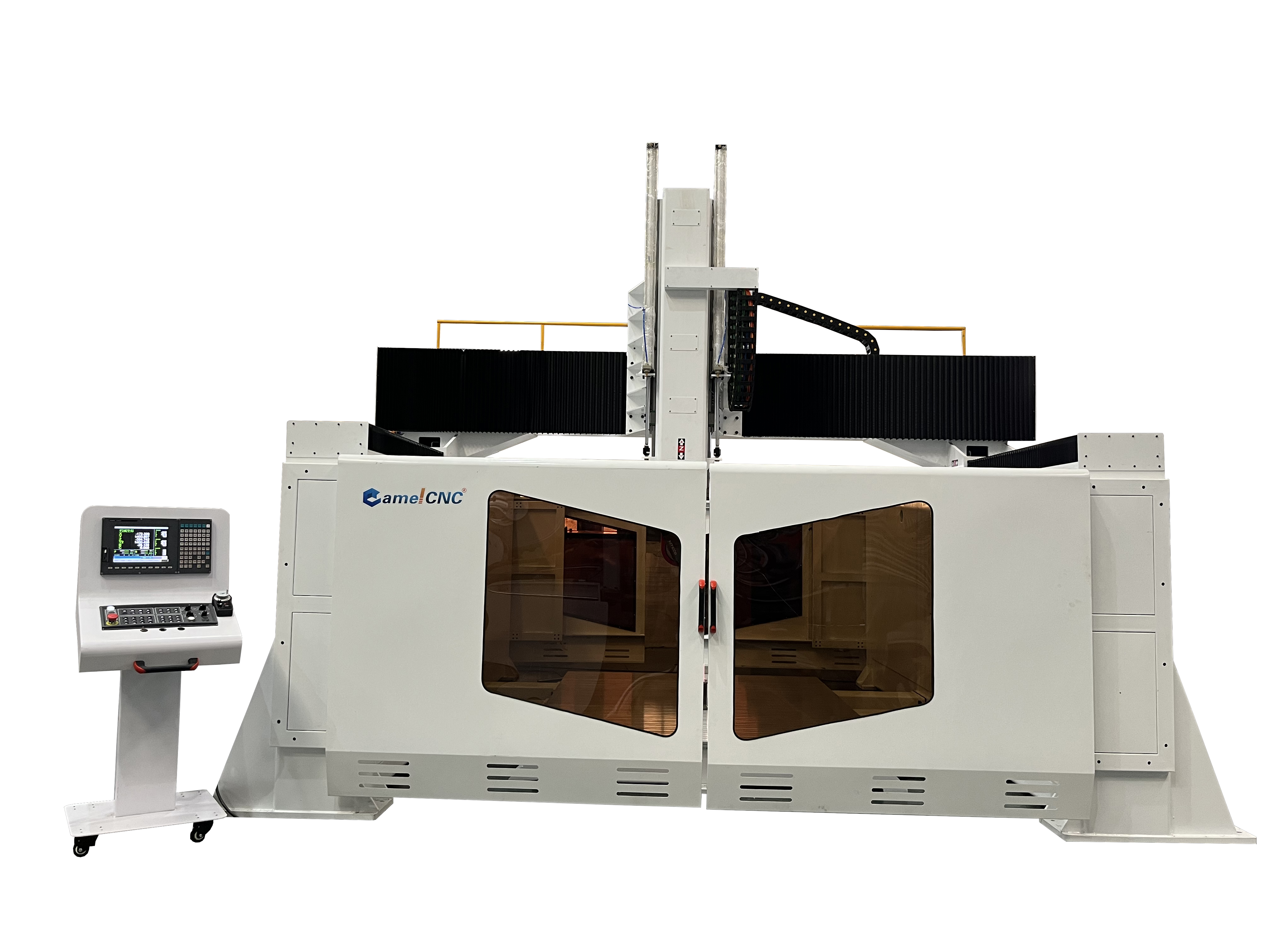

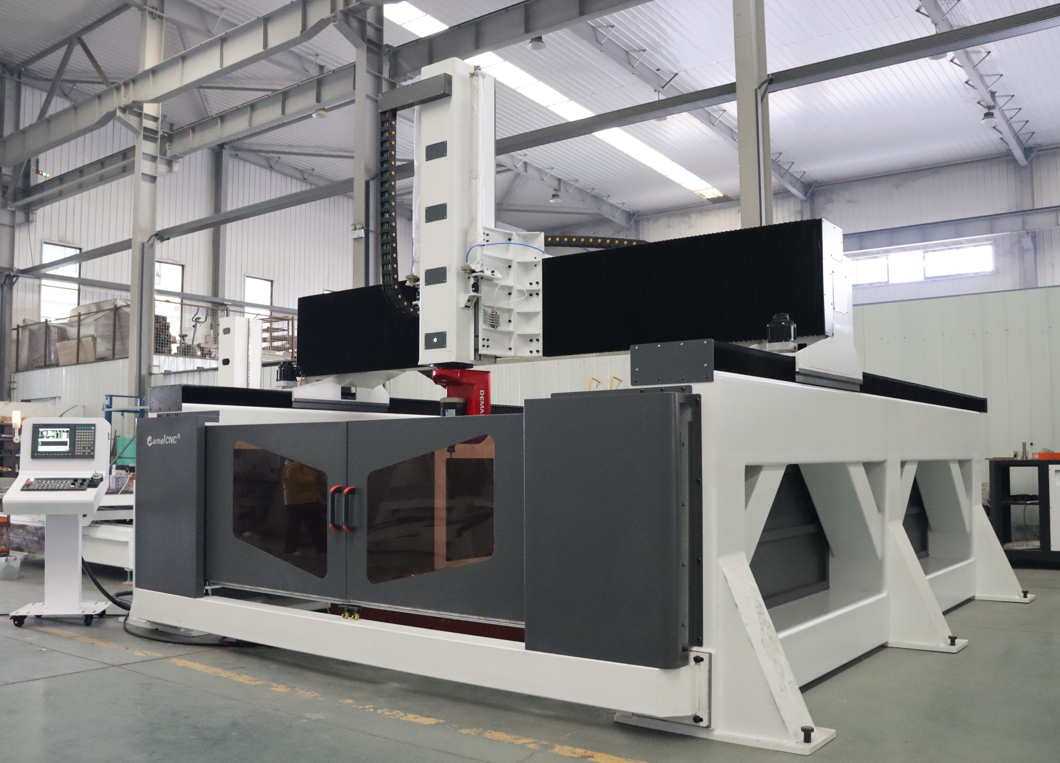

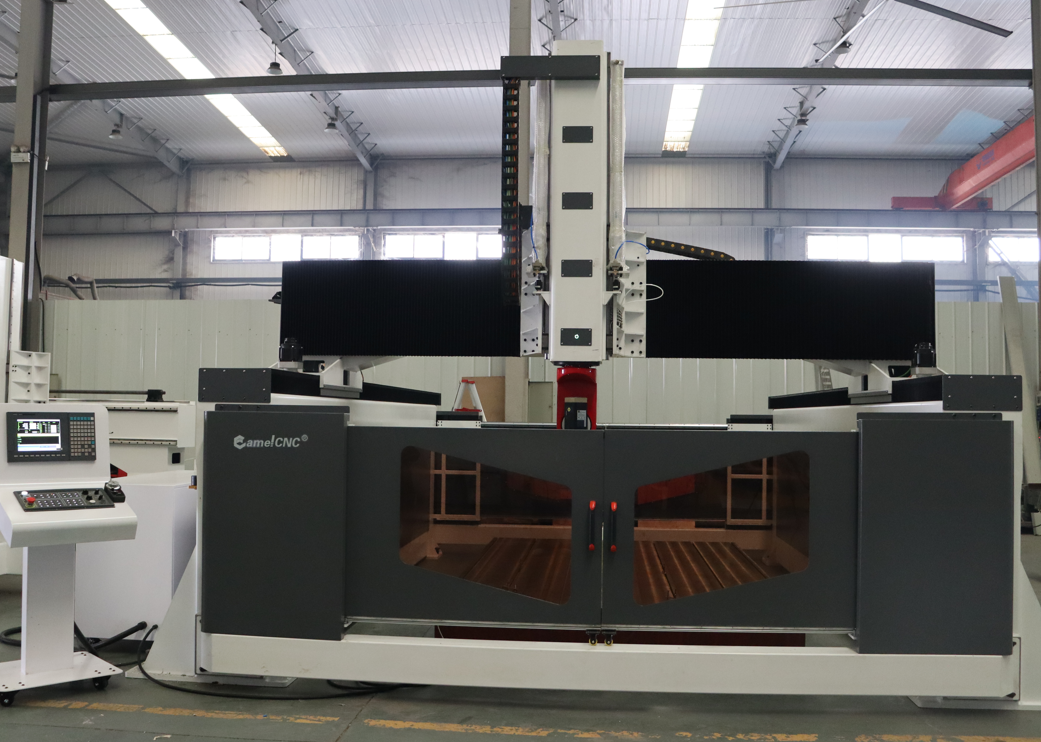

| Working Table & Structure | T-slot working table, Gantry type structure Size: 1200*2000*1000mm |

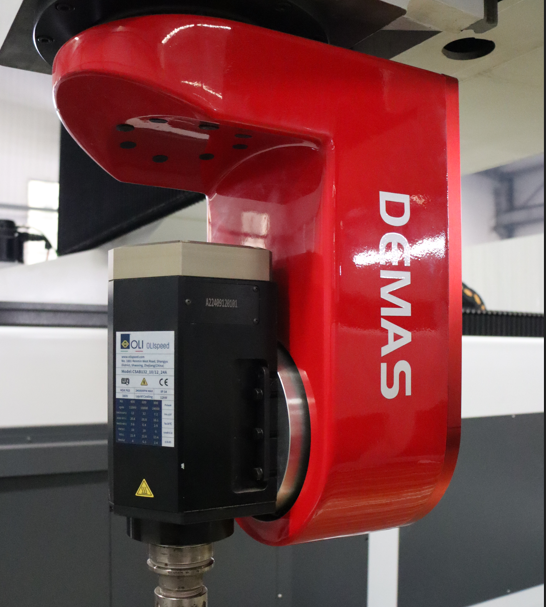

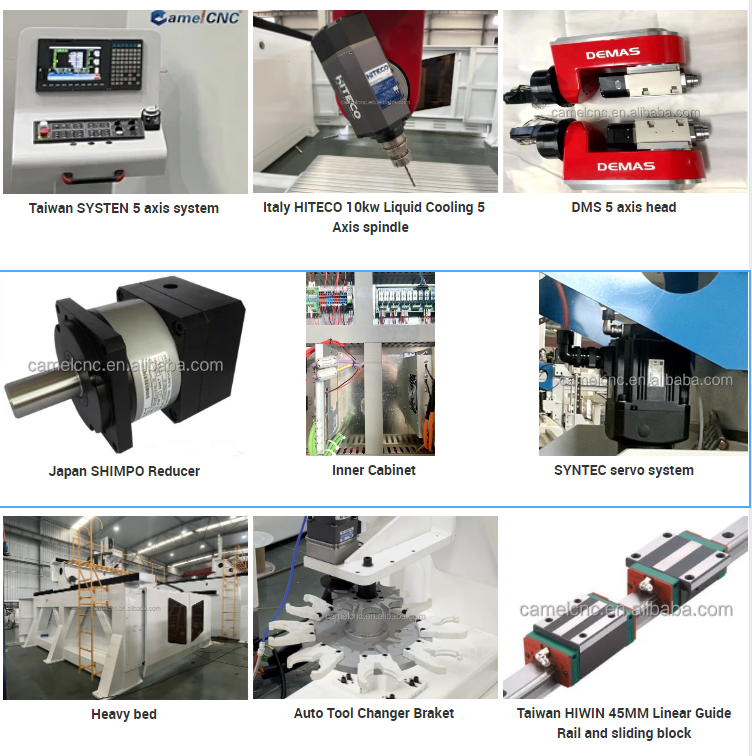

| Spindle & 5 Axis Head | 9KW HQD water cooling Spindle with water chiller, ISO30 tool holder DEMAS 5 axis head Spindle rotating speed: 24000 r/min (RPM direct order) |
| Control & Drive System | Taiwan SYNTEC 5 AXIS system 610MA + RTCP (Activated) Taiwan SYNTEC servo motor + servo driver Wireless Hand Held Control Unit included |
| Hardware Components | FULING Frequency Converter Japan SHIMPO reducer French SCHNEIDER Electric Components |
| Control Cabinet | Control cabinet with universal wheel + AC Cooling with Air Conditioner |
| Lubrication & Tools | Auto lubrication system, Auto tool length measuring sensor, Tool box |
| Machine Structure & NC Features | |
| Machine Frame | Bed, stand column, and base are cast by quality steel, high-precision five-sided CNC processed. Excellent static/dynamic rigidity, heat stability, and impact resistance. |
| NC Features | Man-machine conversation, manual option and background edit, large internal storage, pitch and tool compensation function. |
| Quality Guarantee & Power | |
| Quality Guarantee Components | TZK guide rail, Taiwan ball screw, HQD spindle, SYNTEC servo motor |
| Power & Software | Total Power: ≈25kw Software Recommendation: PowerMill (not included in price, free cracked version provided with machine if needed) |
