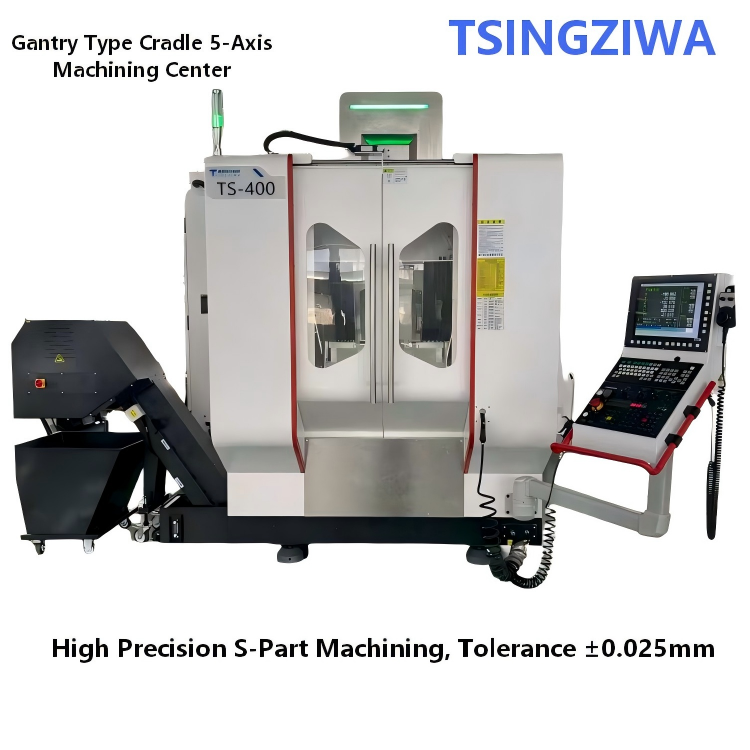

Gantry Cradle 5 Axis CNC Machining Center High Precision Simultaneous Milling Machine

PRODUCT SPECIFICATIONS

No	Item	Data
1	X/Y/Z Travel	450/550/400 mm
2	Rotary Table Diameter	Φ400 mm
3	A/C Axis Positioning Accuracy	A:7 Arcsec ; C:4 Arcsec
4	A/C Axis Drive	DD Direct Drive Zero Backlash
5	Spindle Power	11kW Rated / 15kW Max
6	Max Spindle Speed	15000 rpm
7	Tool Magazine Capacity	24 pcs Disc Tool
8	Positioning Accuracy	0.008mm
9	Max Table Load	150kg
10	Machine Net Weight	6500kg

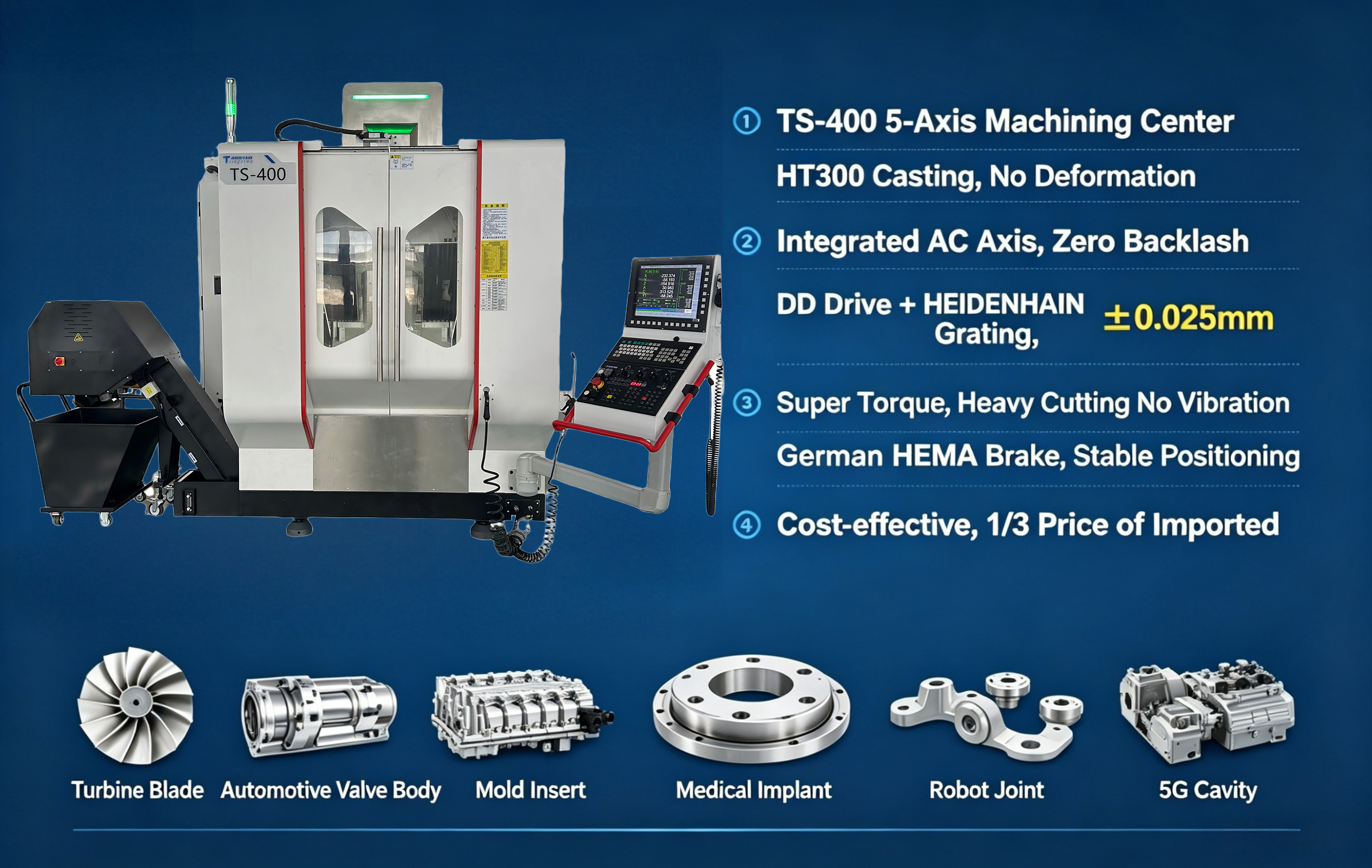

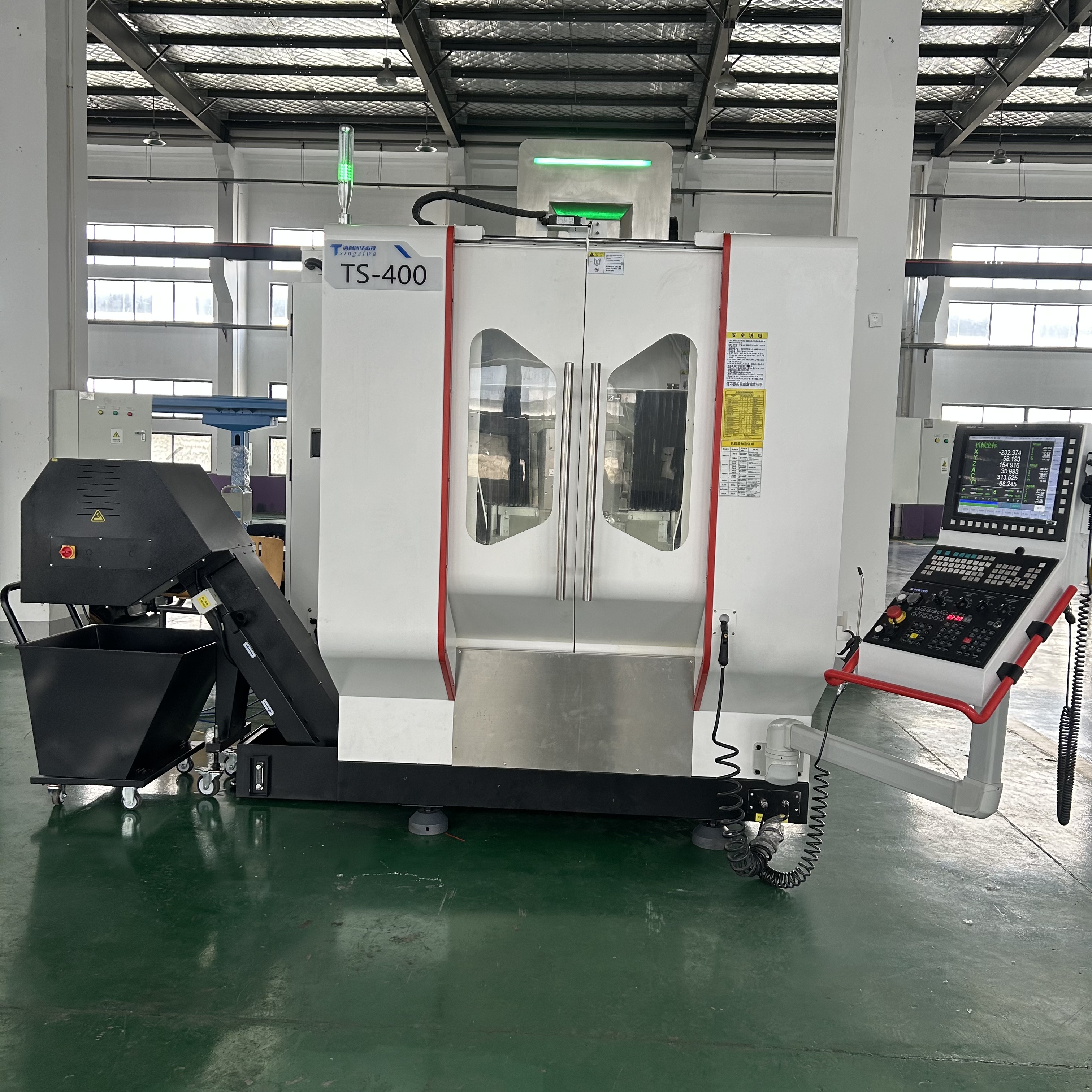

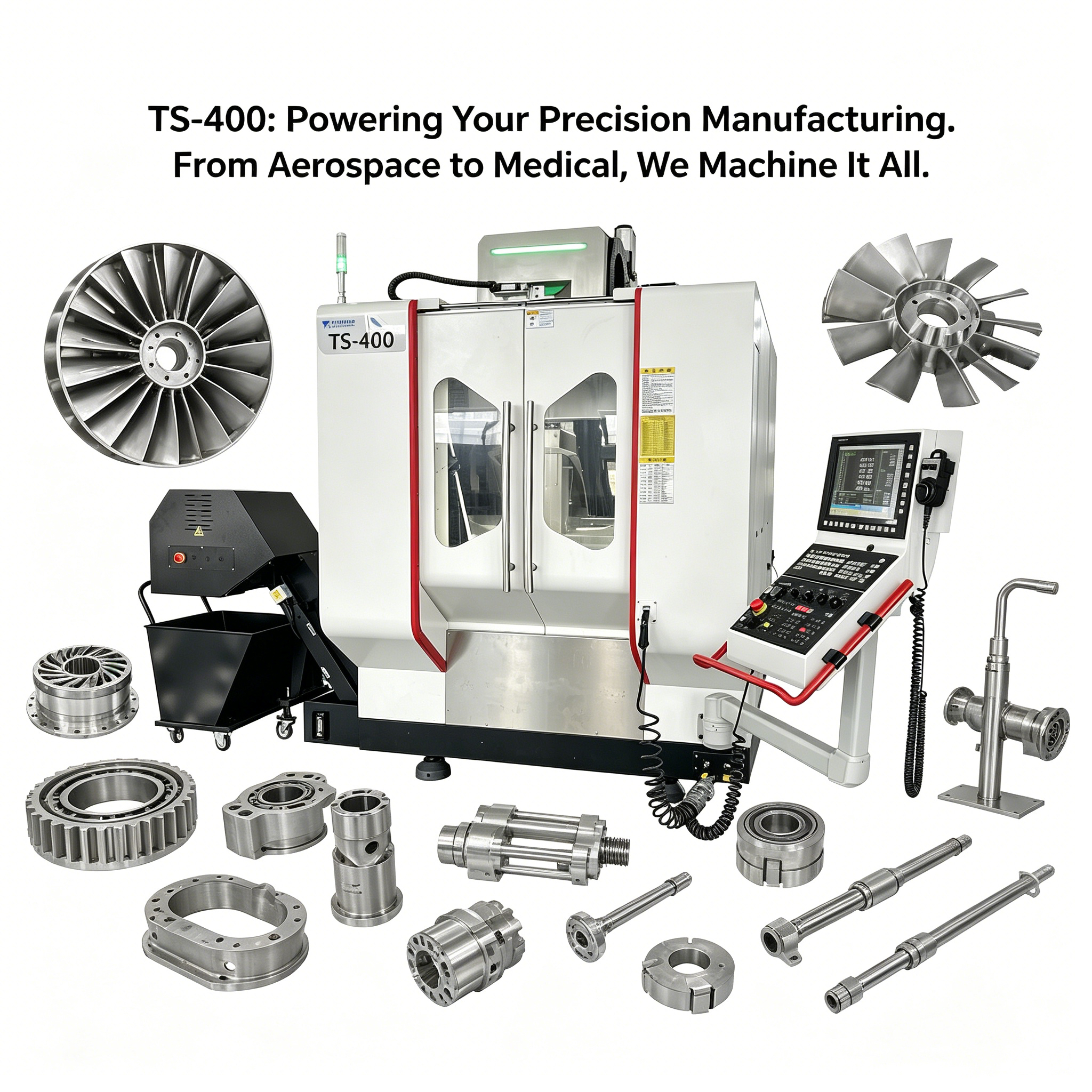

TS-400 Full 5-Axis CNC Center Solutions

Common Machining Troubles

Frequent clamping errors
Backlash vibration
Unstable precision
Low production efficiency

TS-400 5-Axis Solutions

Integrated AC Cast Structure: Strong anti-vibration rigidity
DD Direct Drive: Zero clearance & high long-term accuracy
One-Clamp Machining: Cut positioning error effectively
Disc Tool Magazine: High production efficiency for complex workpieces

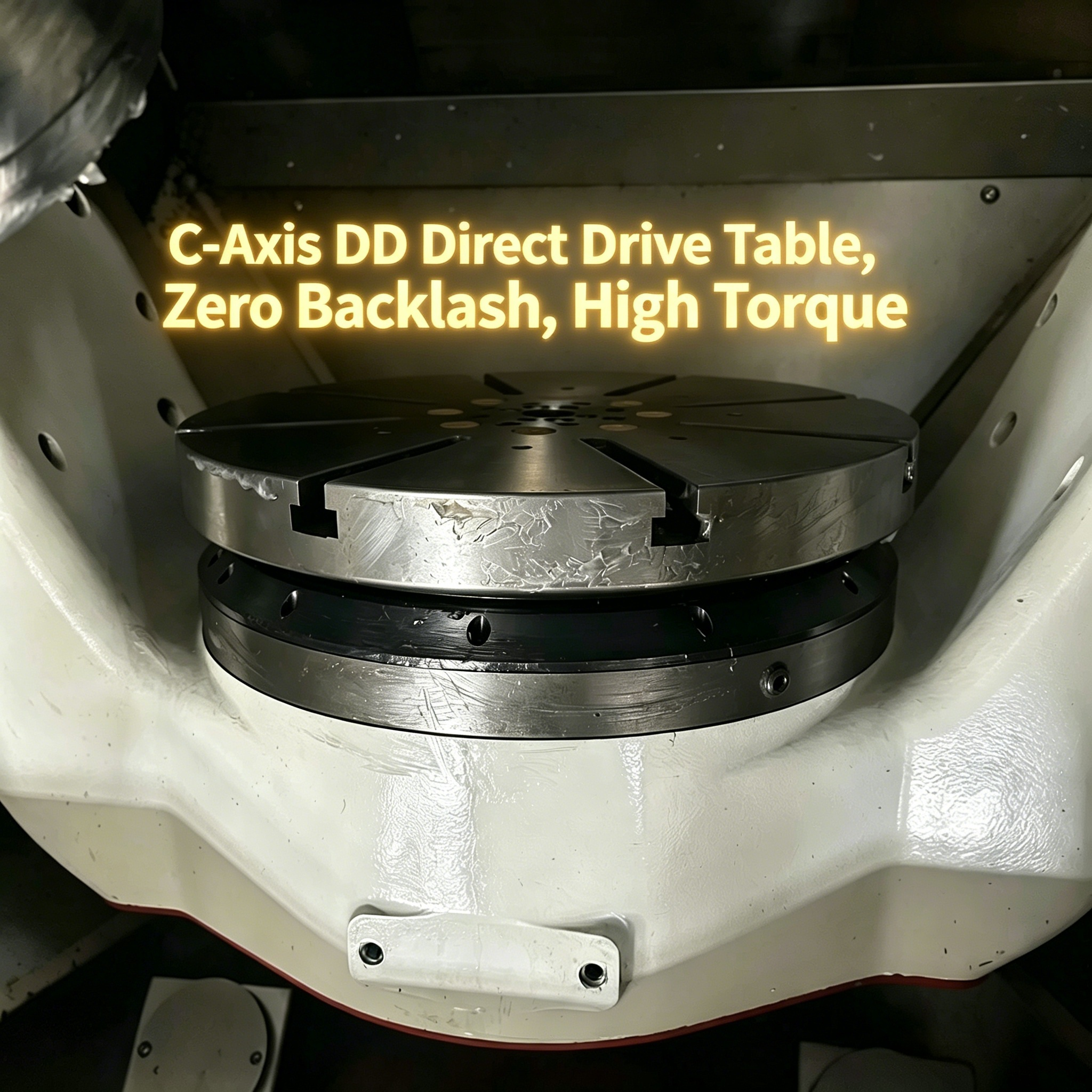

DD Direct Drive C-Axis Table

Zero backlash, no gear wear. Provides high torque for heavy stock removal.

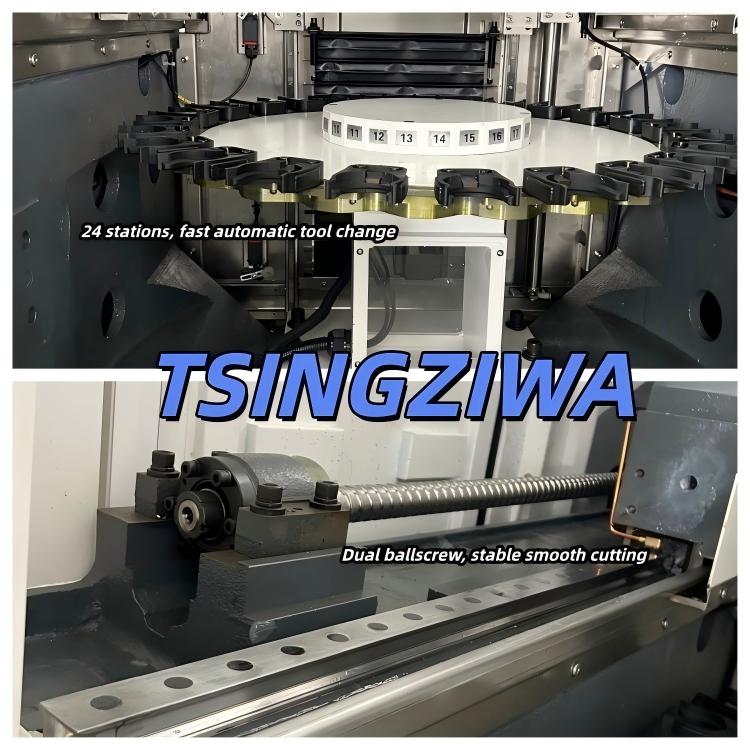

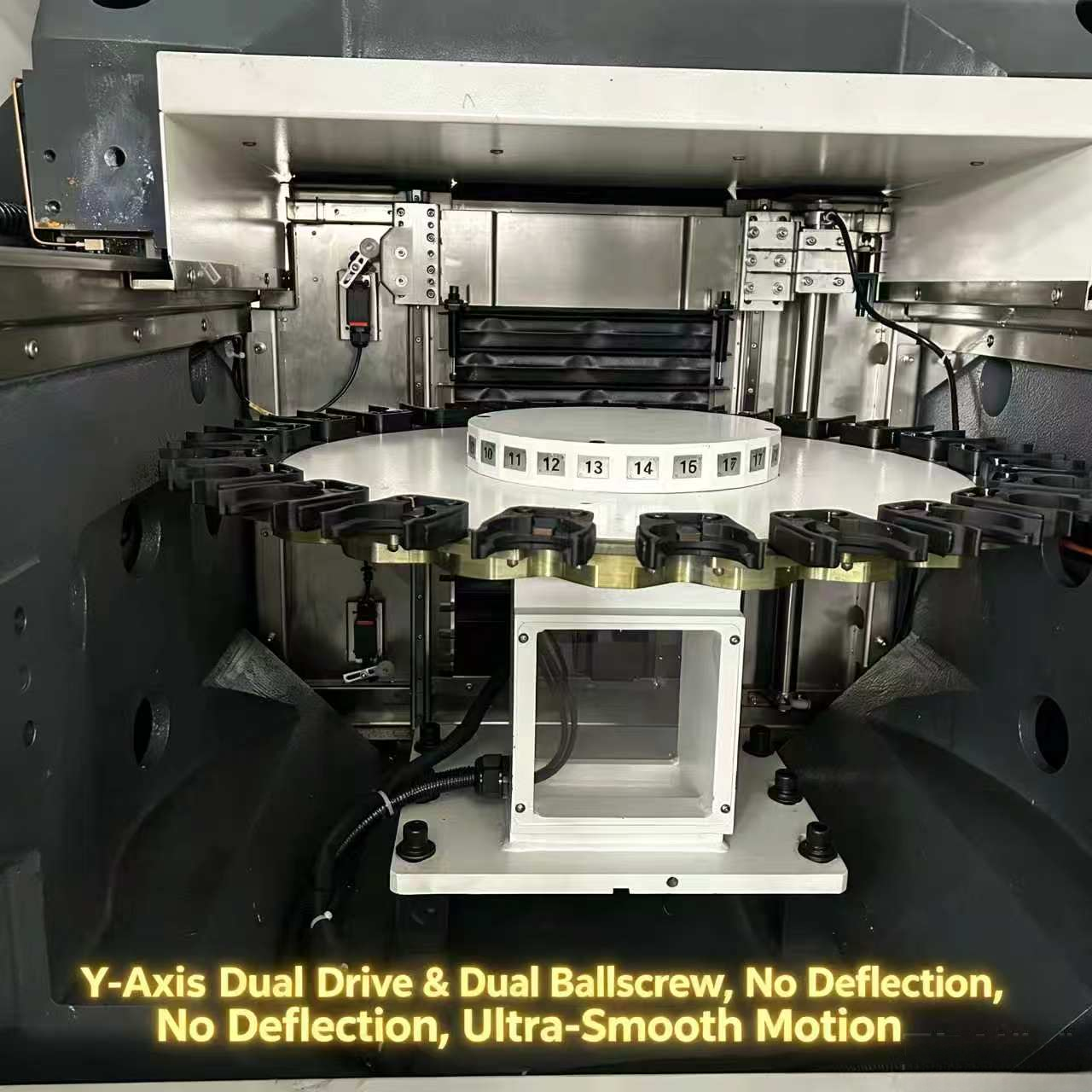

Disc Automatic Tool Magazine

Large tool storage capacity. Features fast & smooth automatic tool changing.

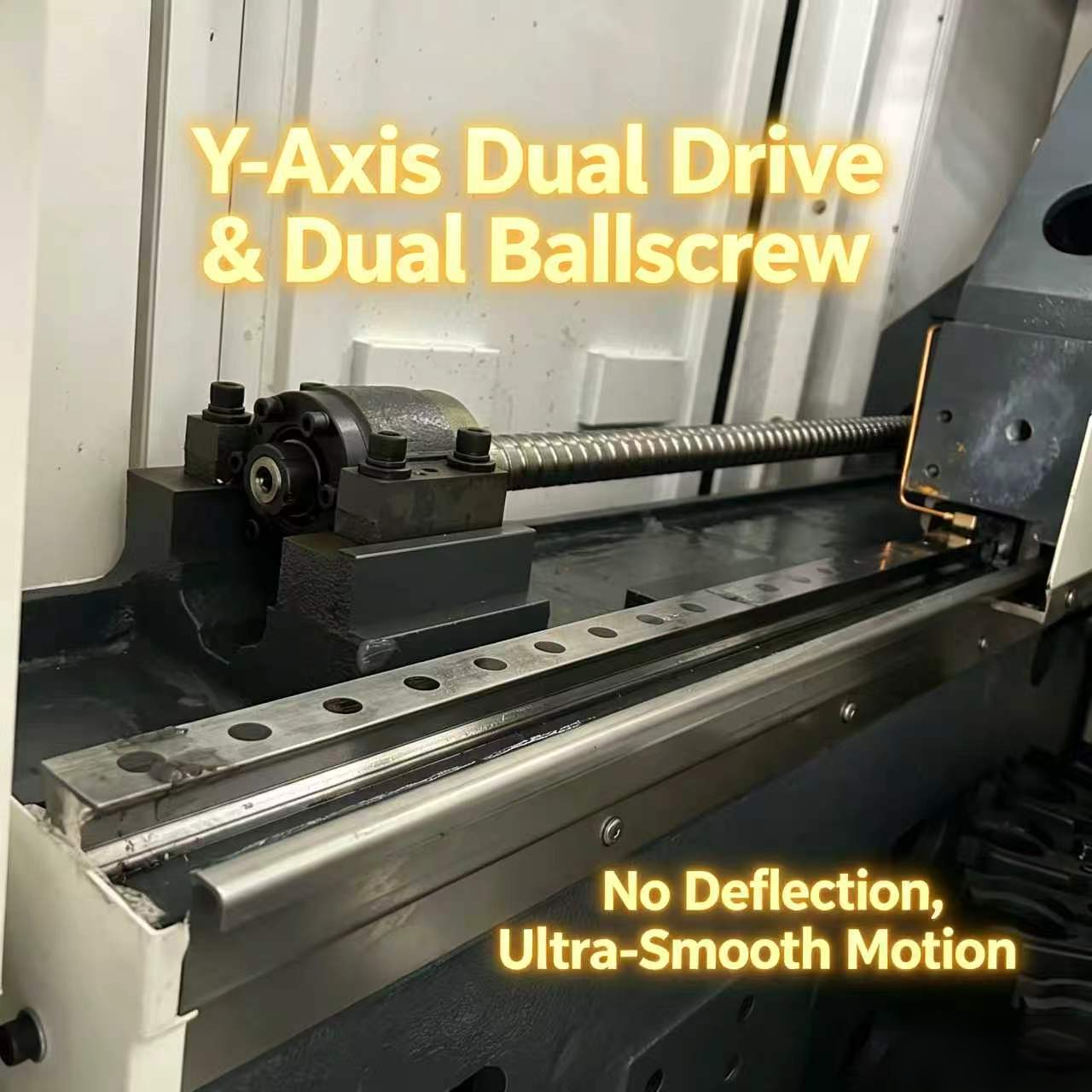

Y-Axis Dual Drive & Dual Ballscrew

Balanced force distribution without deflection, offering ultra-smooth feed movement.

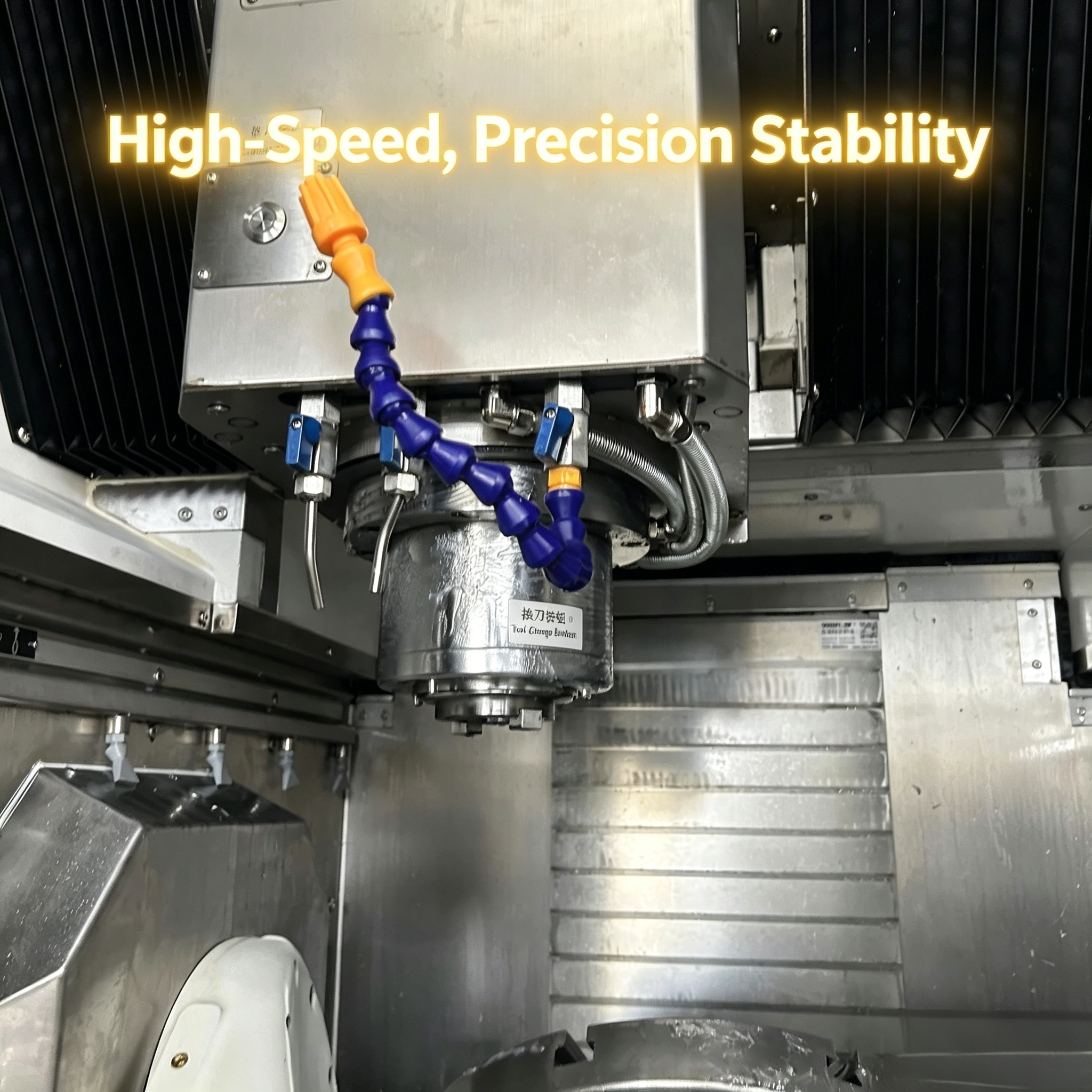

High Precision Spindle Unit

Ensures stable high-speed operations and consistent machining accuracy.

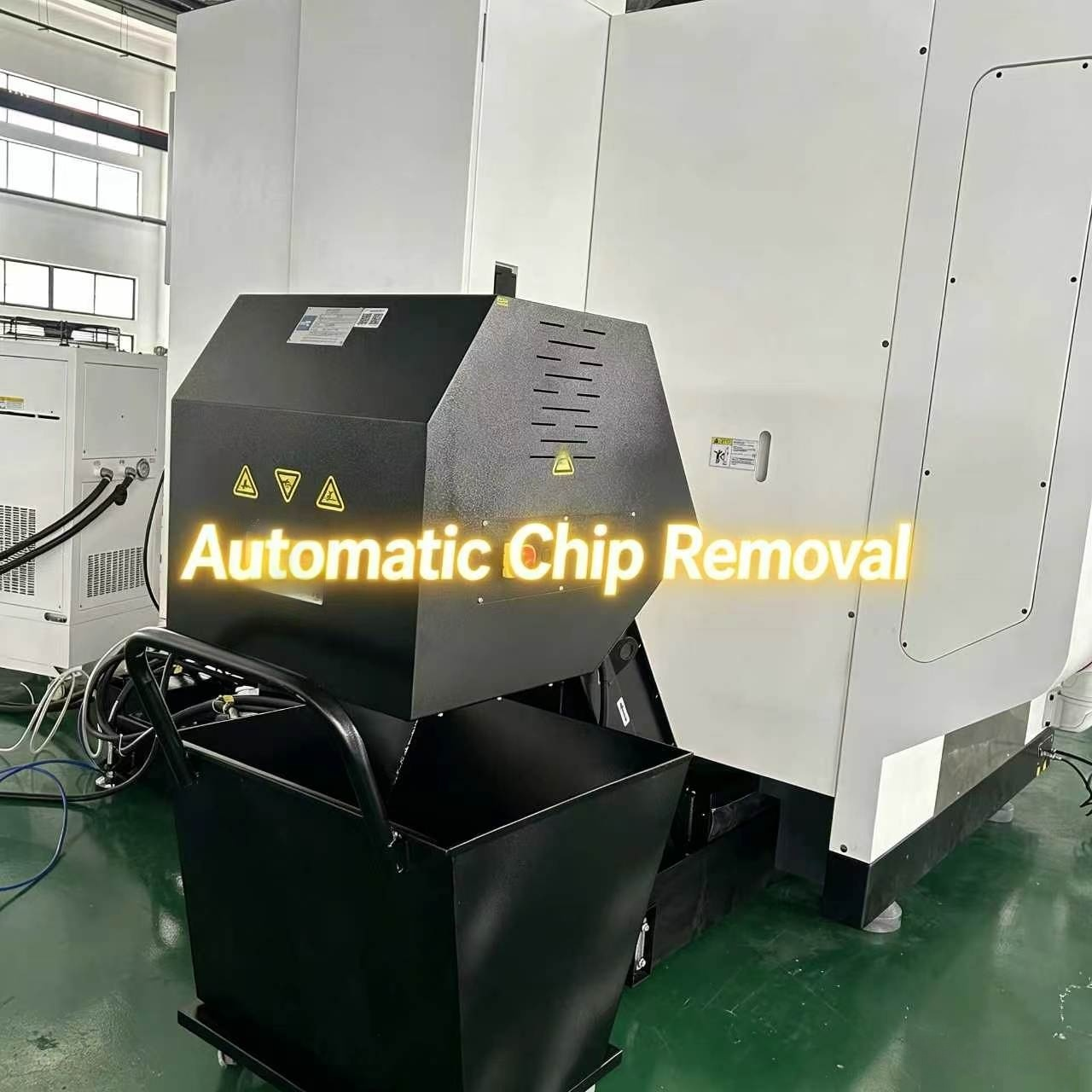

Automatic Chip Conveyor

Timely chip removal process to maintain clean inner working areas.

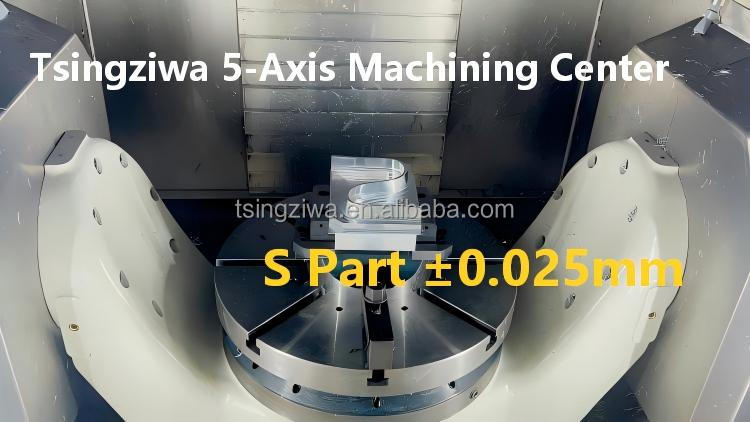

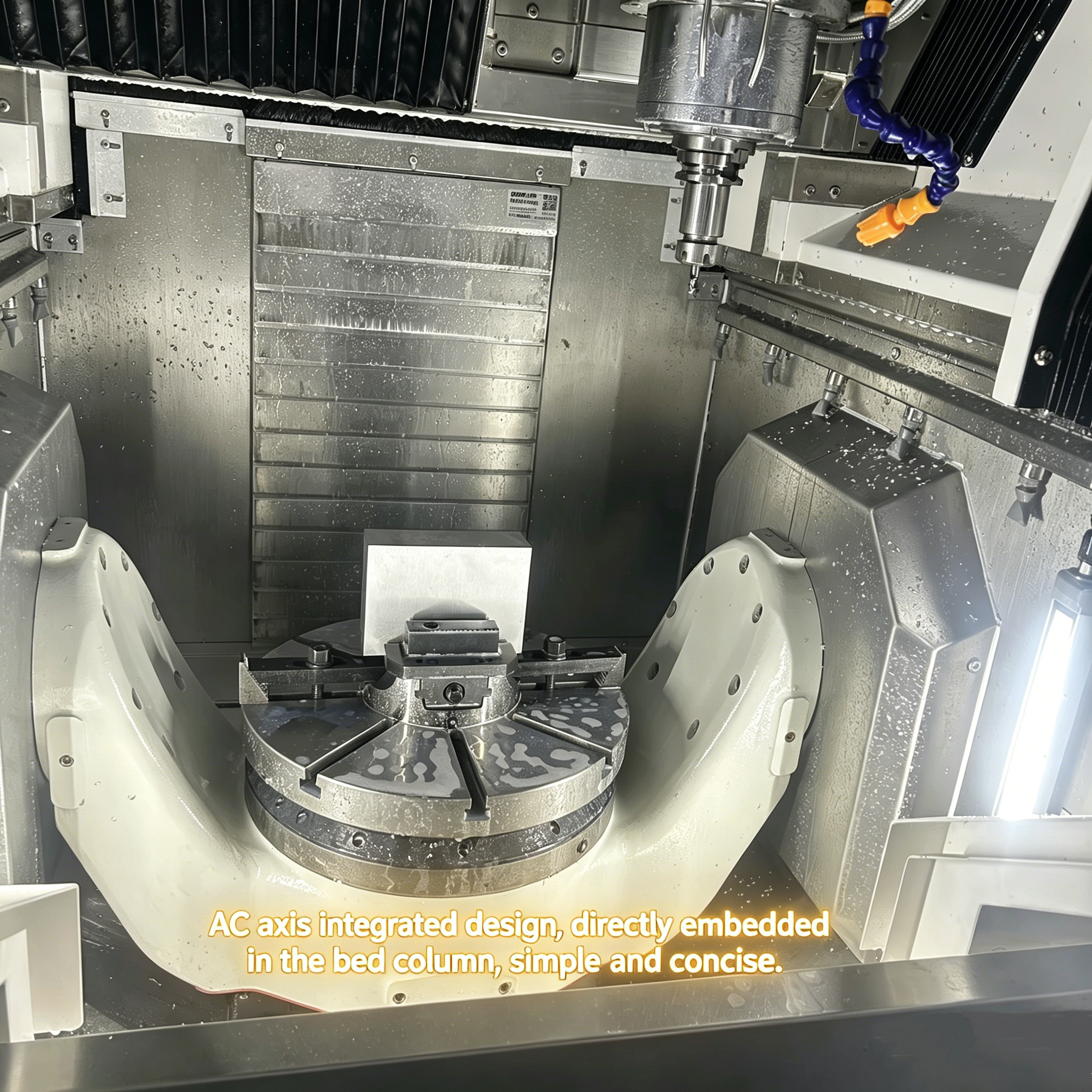

Integrated AC Rotary Table

One-piece casting integrated AC axis with no assembly gap
Φ400mm worktable designed for stable heavy cutting performance
Full closed-loop grating scale ensuring long-lasting precision

Manufacturing Excellence & Automation Solutions

We are a professional manufacturer specializing in 3-axis and 5-axis machining centers, CNC lathes, and automation production line solutions. We deliver one-stop customized automatic production line solutions tailored for the automotive, new energy, aerospace, and precision mold sectors. Our professional team provides comprehensive on-site installation, commissioning, and full lifecycle technical support globally. We sincerely recruit worldwide agents for long-term, win-win collaborations to co-develop local CNC machinery markets.

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a professional CNC machine manufacturer with full in-house R&D, production, and technical service capabilities.

2. What is your warranty policy?

We provide a standard 12-month warranty from delivery, with optional extended warranty configurations available.

3. How do you ensure product quality?

We implement a strict 12-step quality control process, including precision calibration, load testing, and a 72-hour continuous running test before shipment.

4. What if there is a quality issue?

We offer 24/7 technical support, remote troubleshooting assistance, and fast replacement parts delivery to minimize machine downtime.

5. Can I order a single unit?

Yes, we accept single-unit orders for our standard models. Fully customized industrial solutions are also available based on requirements.

6. What is the standard lead time?

For standard CNC models, the lead time is 7-15 days. For customized system solutions, lead times range from 30-60 days.
