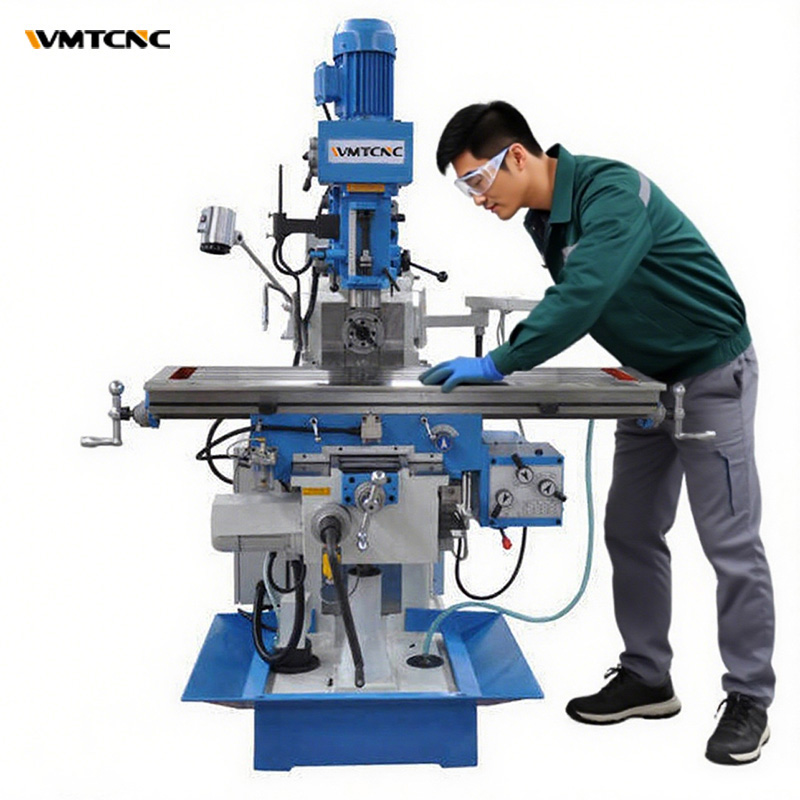

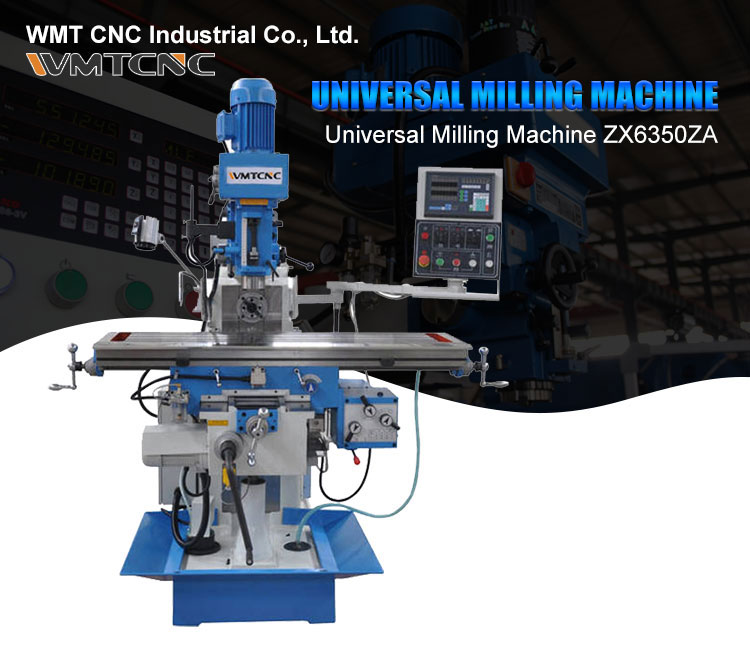

| Model | Unit | ZX6350ZA |
|---|---|---|
| Spindle taper | - | MT4/ISO40 |
| Distance vertical spindle to table | mm | 100-500 |
| Distance horizontal spindle to table | mm | 0~400 |
| Distance spindle to column | mm | 240~710 |
| Spindle speeds range | r/min | (8 steps)90-2000(vertical) / (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1370×320 |
| Table travel | mm | 800/320/400 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 40-605(8 steps)(max.810) |
| T of table (no./width/distance) | mm | 3/14/70 |
| Main motor | kw | 2.2 |
| Motor of table power feed | w | 1000 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1550/1700 |
| Overall dimension | mm | 1700×1480×2150 |
