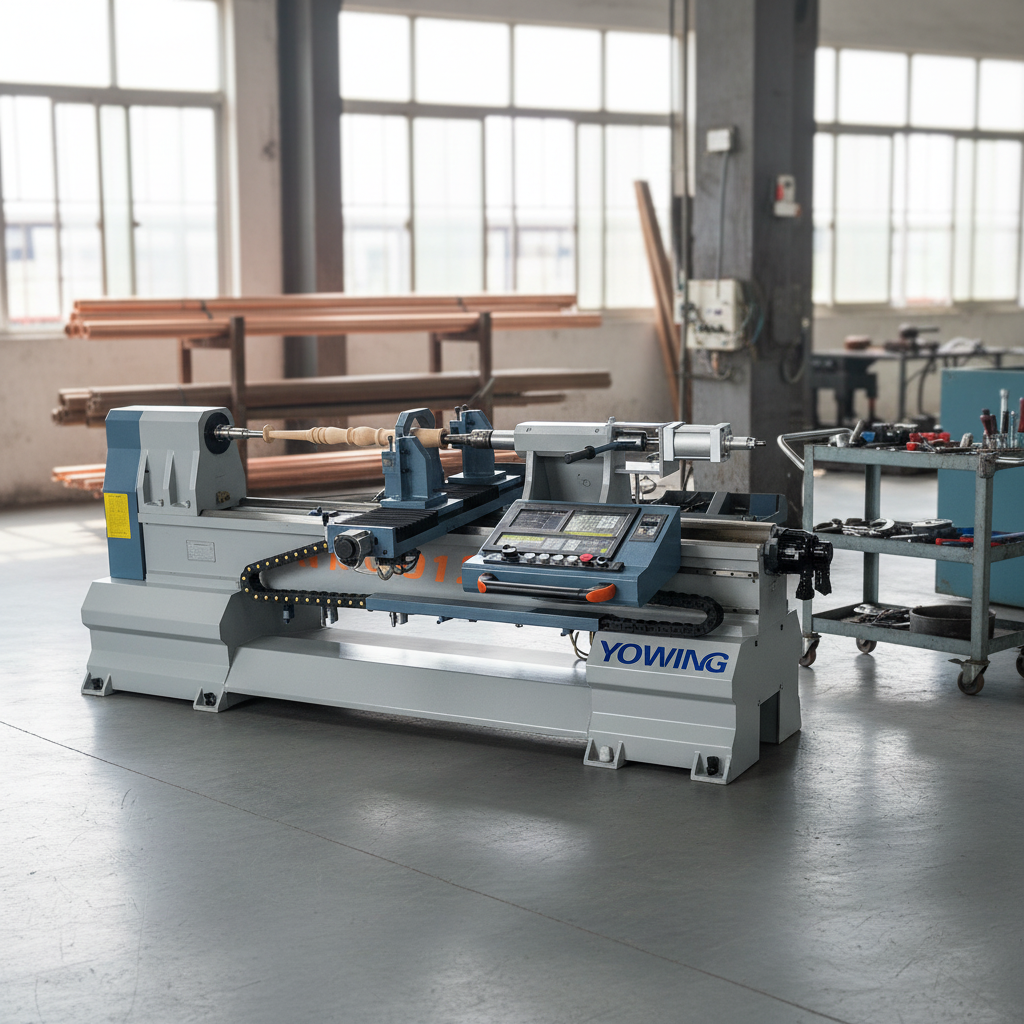

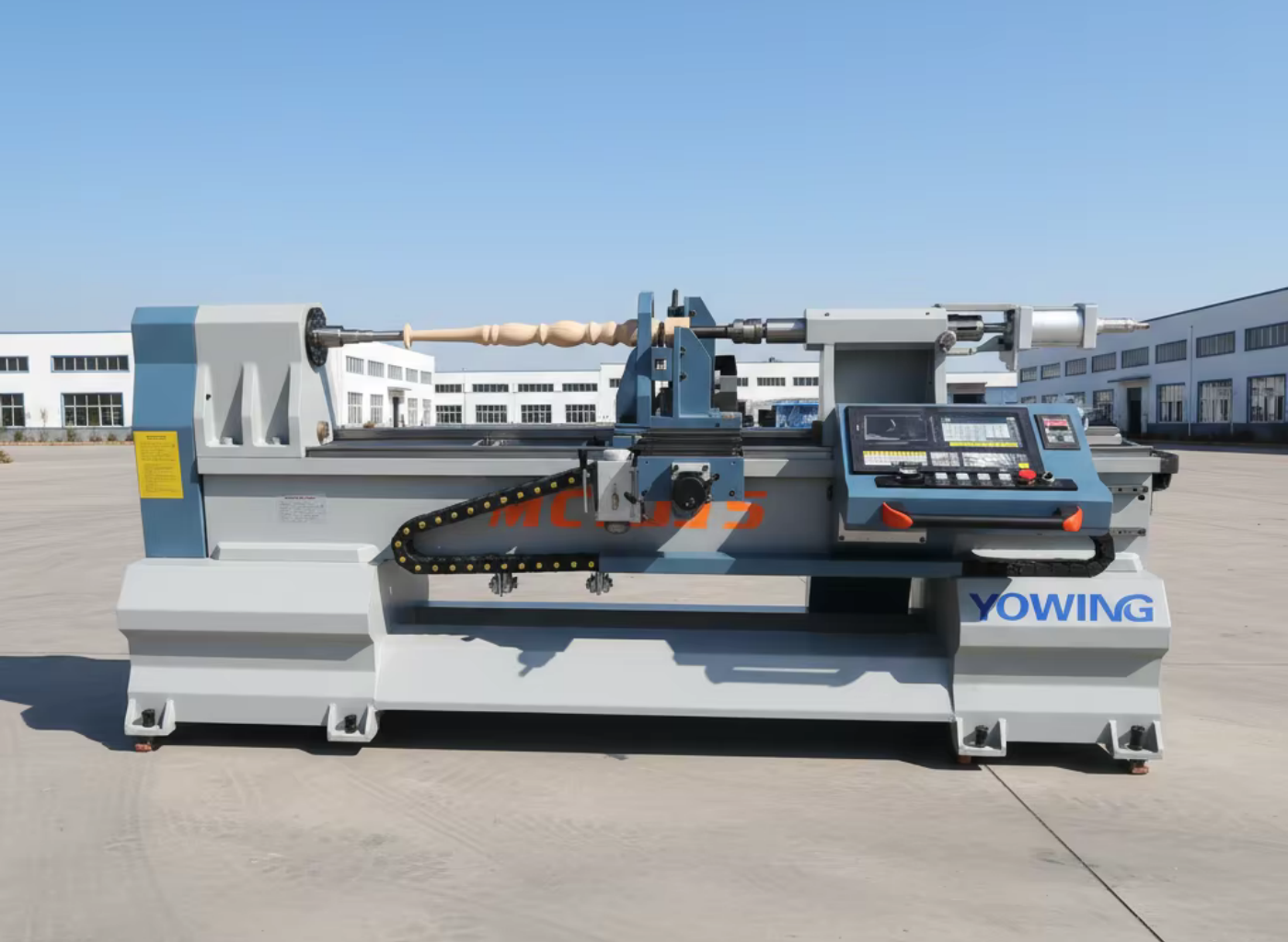

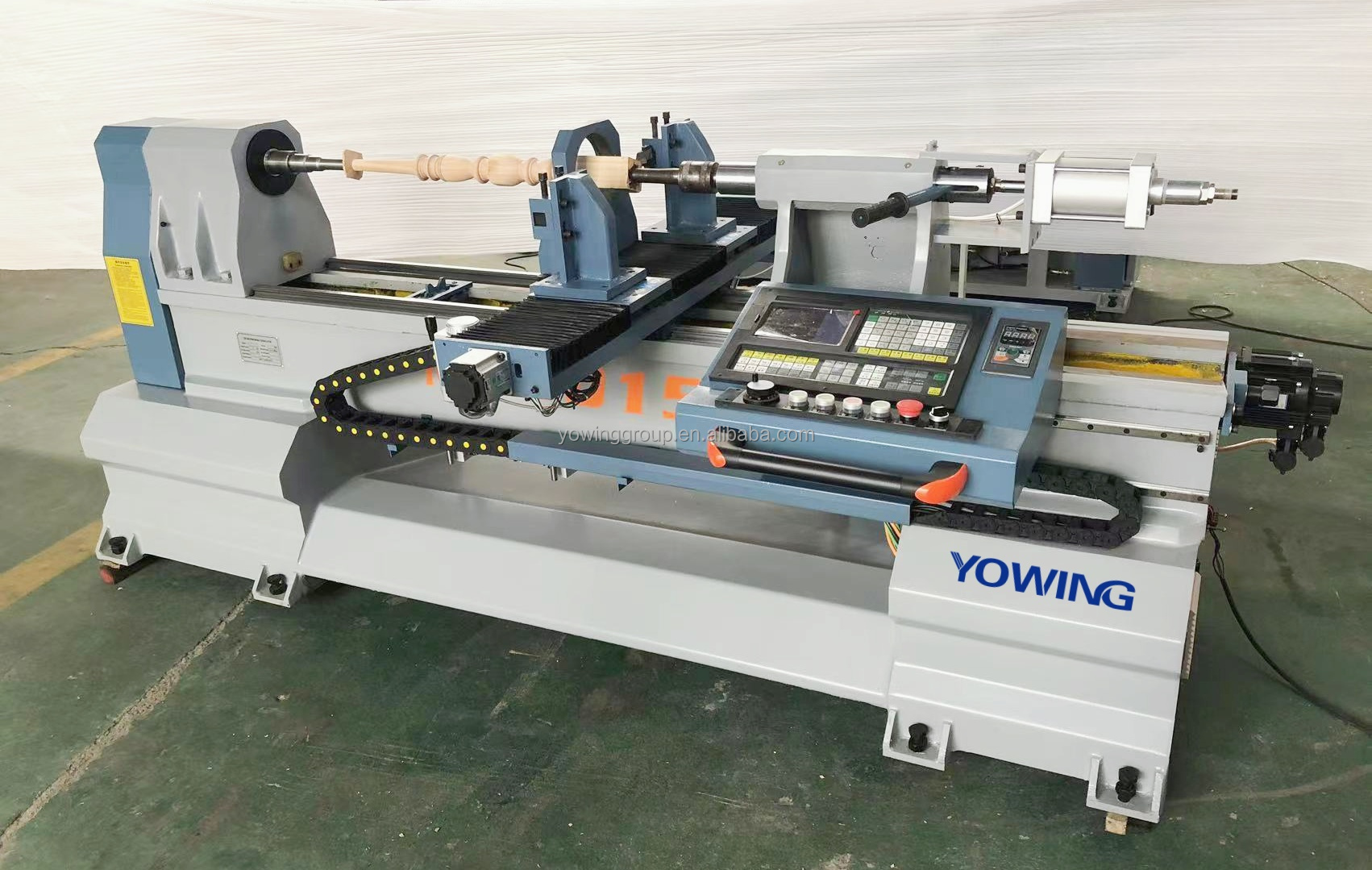

The machine utilizes intelligent CNC control, supporting standard .dxf file formats with fast data reading and straightforward, easy operation.

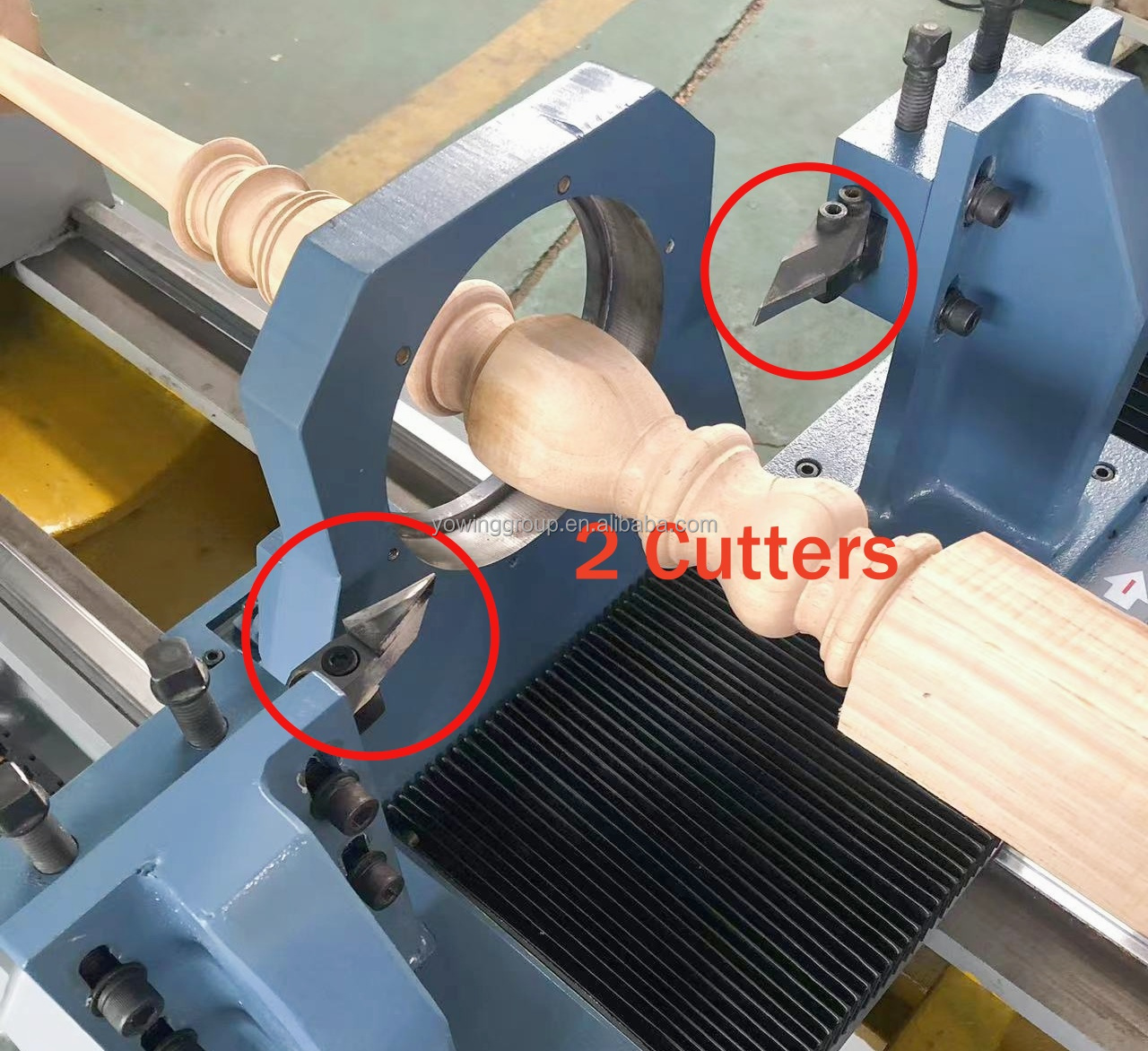

Equipped with 2 wood lathe cutters working in tandem to double efficiency and ensure rapid processing speeds.

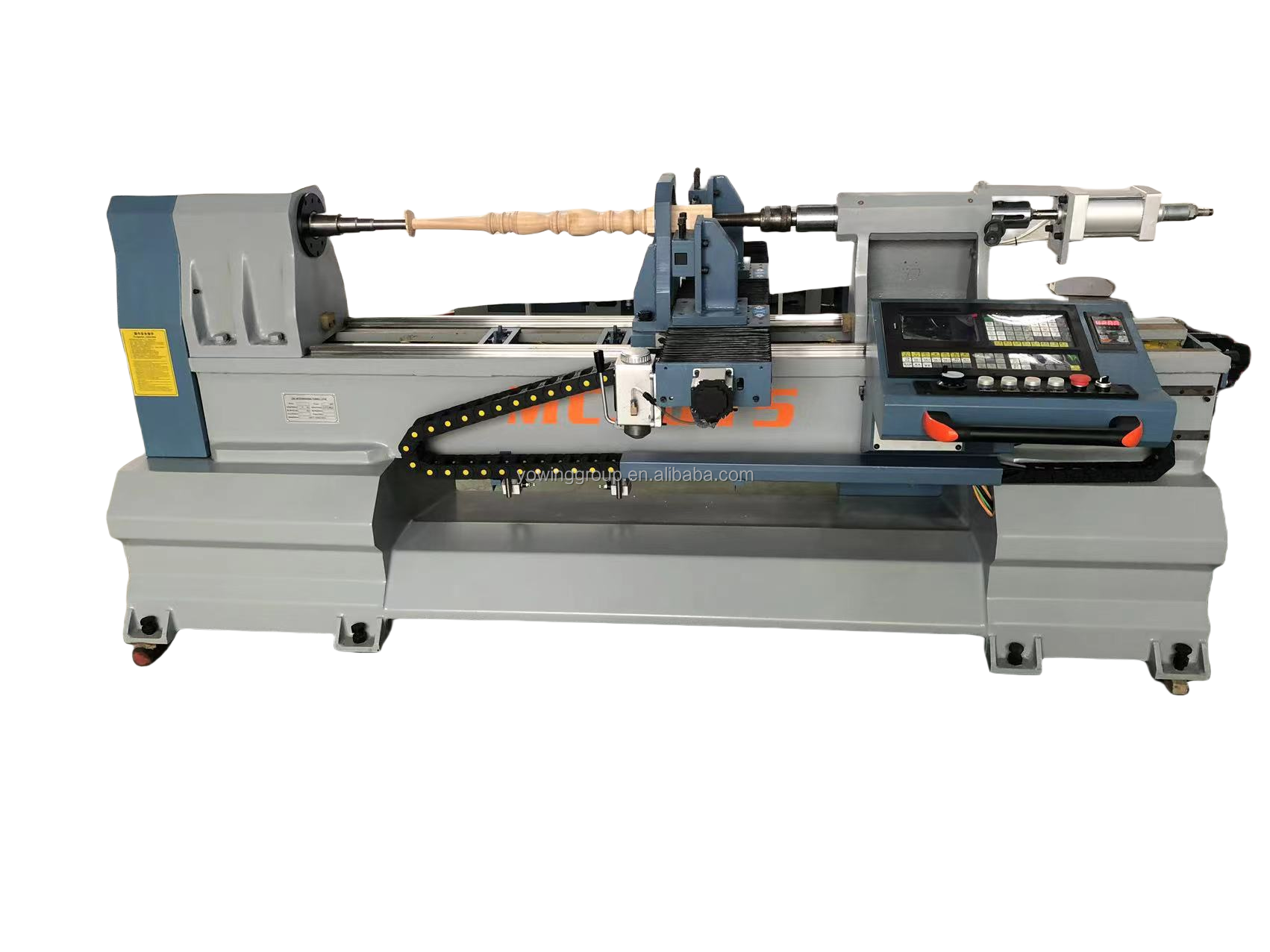

Features an automated feeding unit that delivers raw material to the active workspace, saving significant time and reducing manual labor.
Built with high-quality guide rail systems, ensuring exceptionally smooth axis movement. The robust structure keeps operations stable for perfect surface finishes.

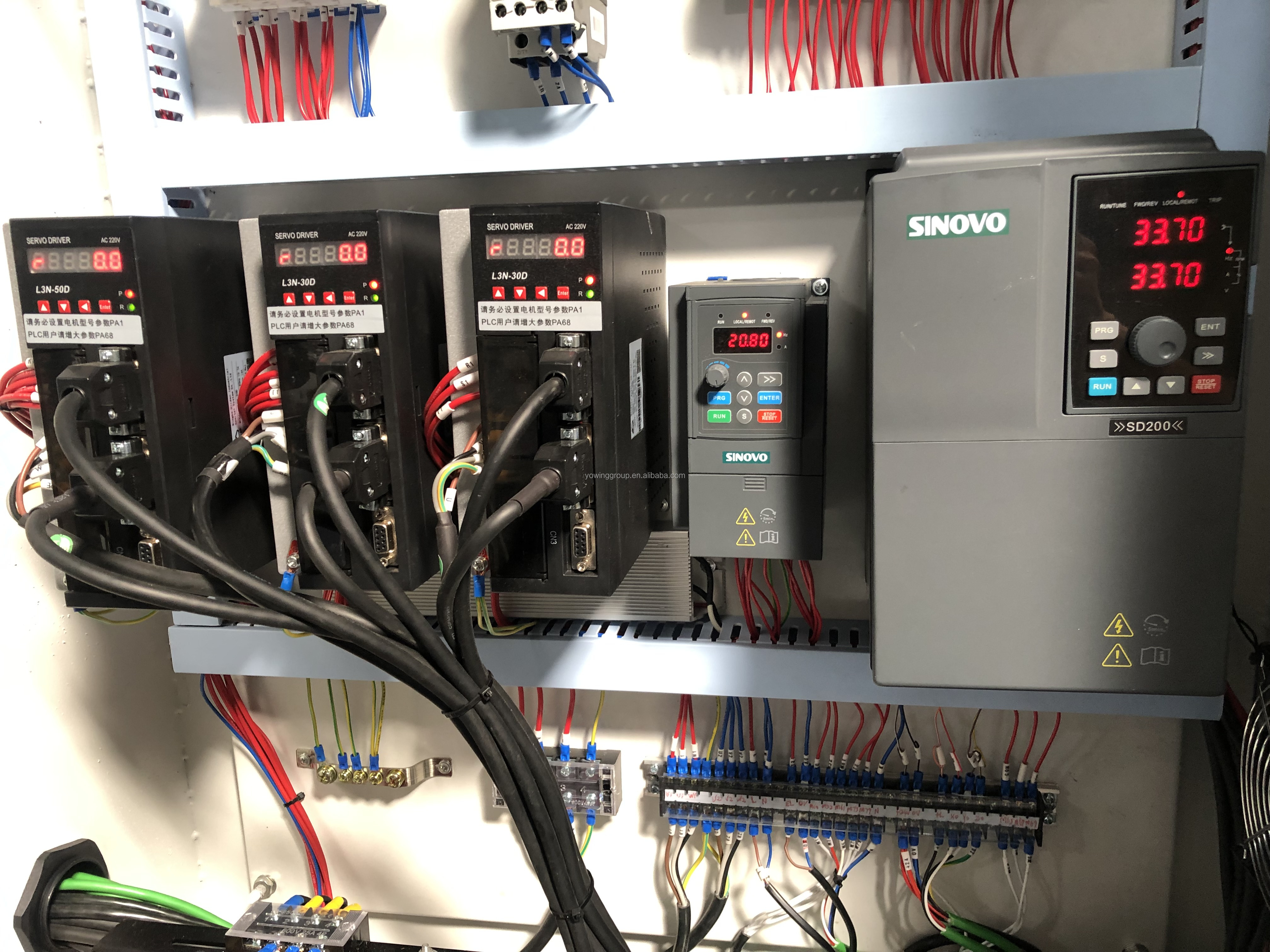

Driven by high-torque, high-accuracy servo motors and drivers. Integrated with a professional inverter for seamless spindle speed regulation.

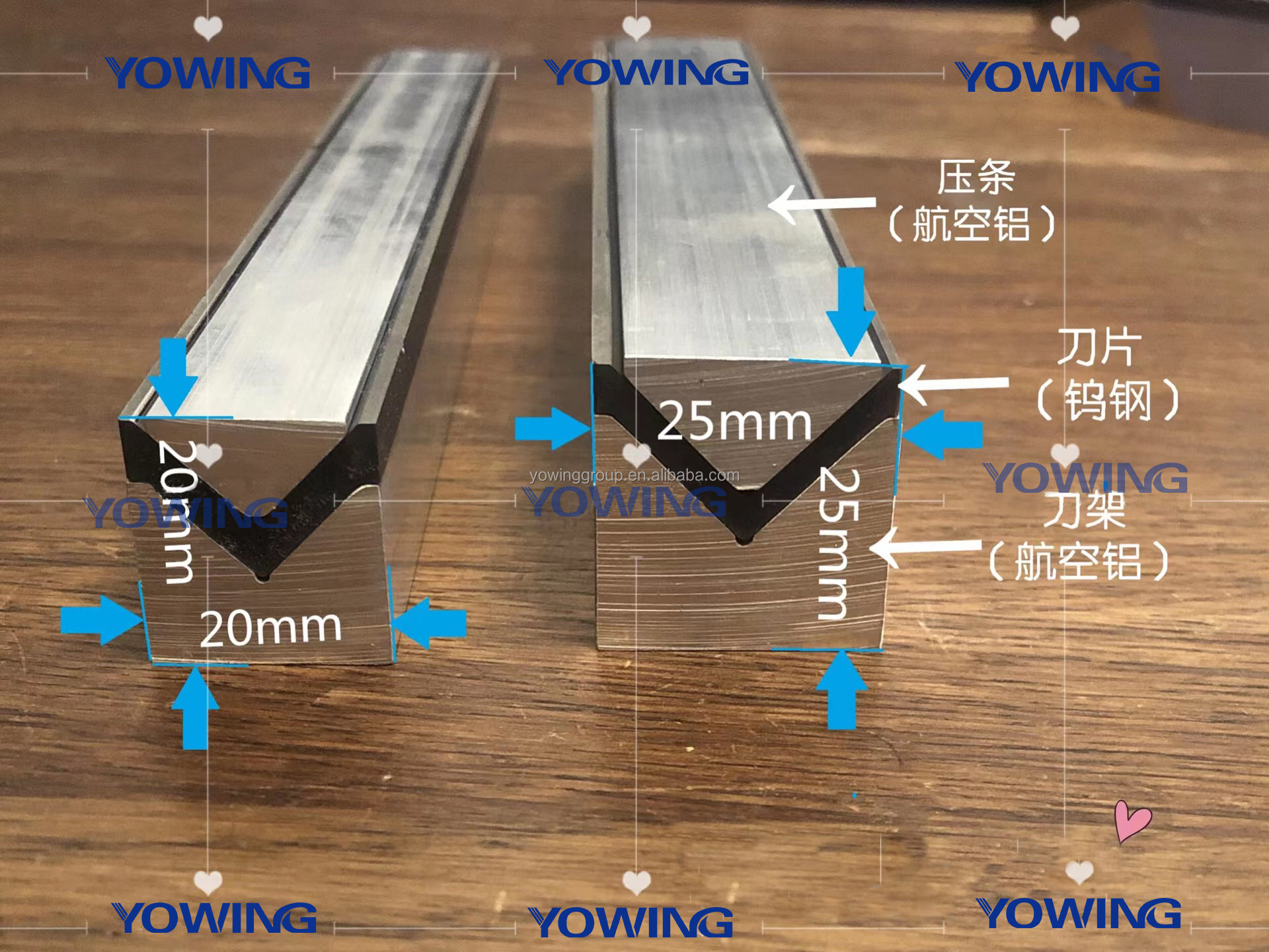

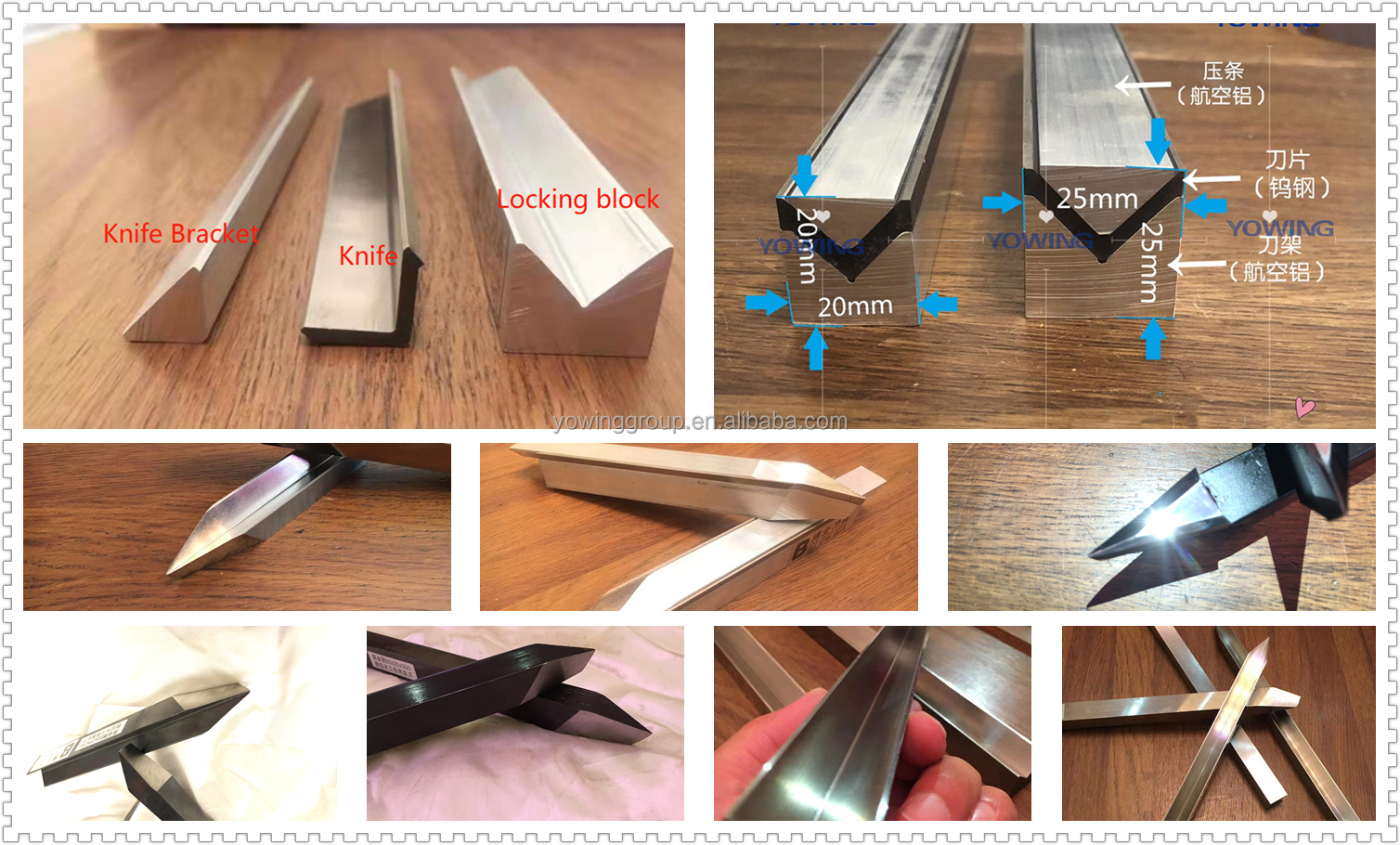

Offers tungsten steel knives and white steel knives in a variety of configurations and sizes to adapt to different wood densities.
| No. | Model Feature | Specification (MC3015) |
|---|---|---|
| 1 | Working Diameter (mm) | 15 - 200 mm |
| 2 | Working Length (mm) | 80 - 1500 mm |
| 3 | Weight (KG) | 2600 KG |
| 4 | Power (kW) | 15 KW |
| 5 | Transmission System | Brand guide rail and ball screw |
| 6 | Material Feeding | Driven by oil cylinder |
| 7 | Control System | Smart CNC Control |
| 8 | Spindle Speed | 4000 rpm |
| 9 | Bed Structure | Heavy Cast Iron Lathe Bed |
| 10 | Axes Control | CNC - 4 Axis |
| 11 | Motor Type | Big Servo Motor |

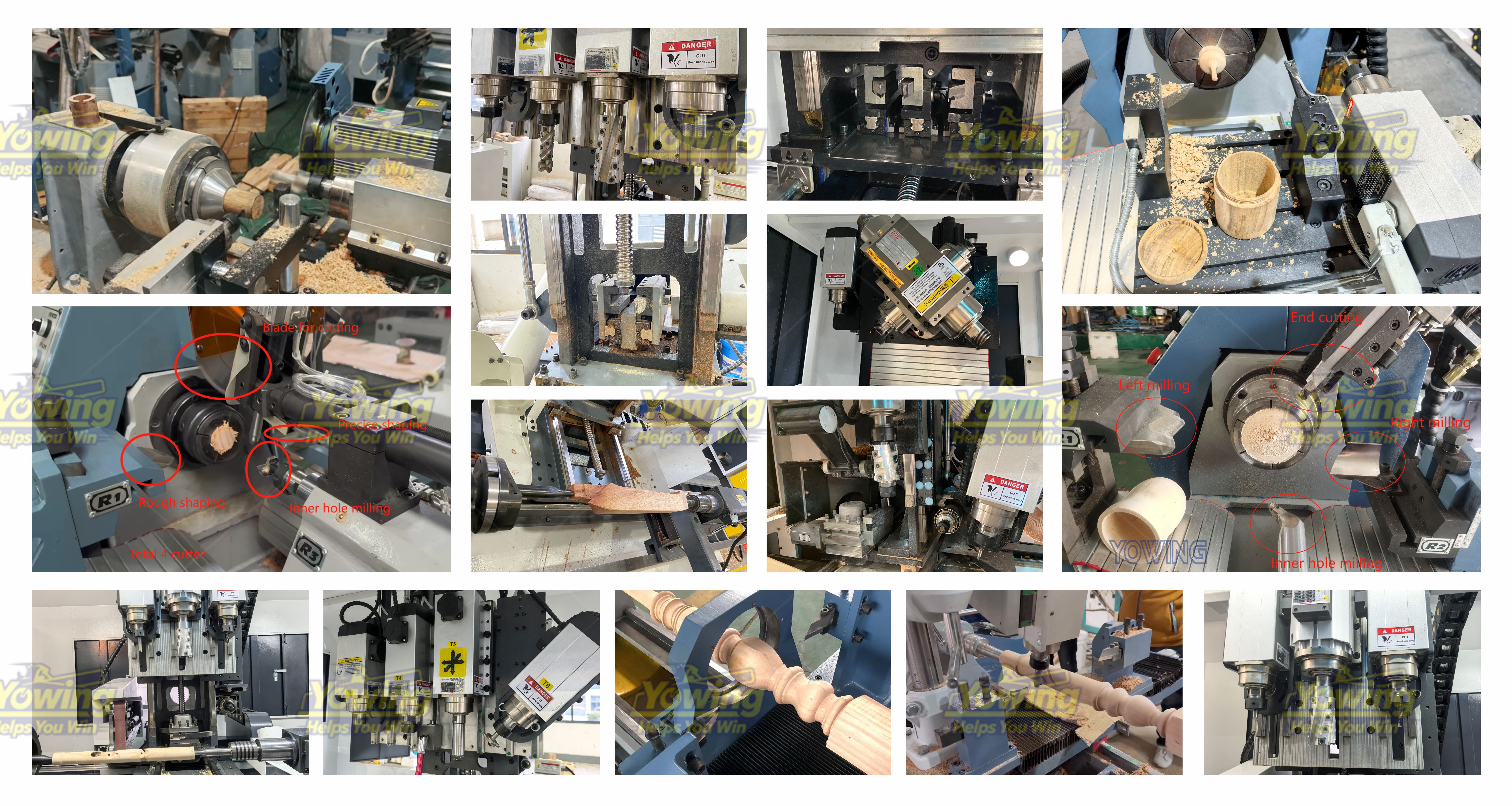

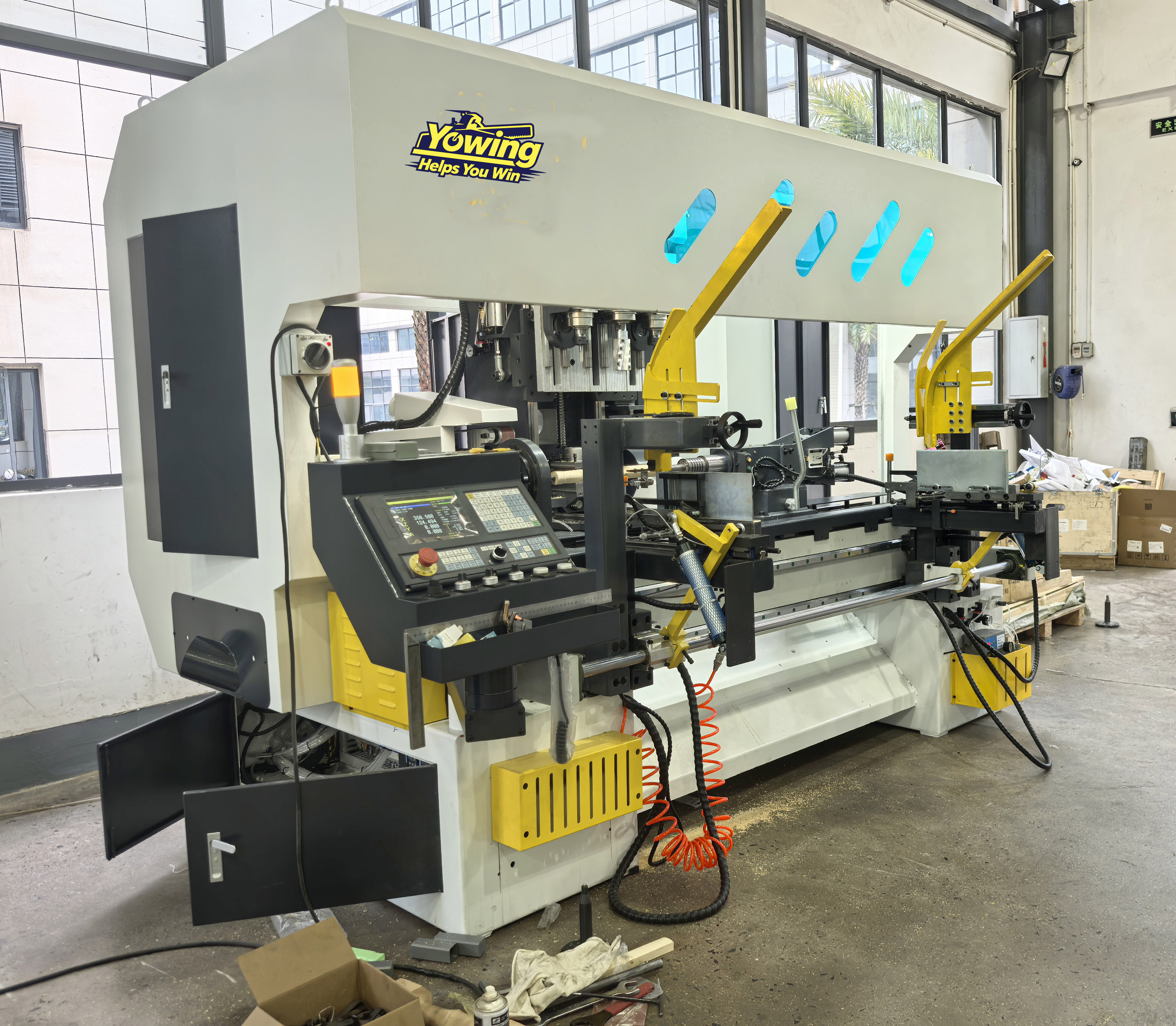

We offer diversified operational modules to customize your CNC lathe according to your technical requirements: double-end boring, angle boring, angle milling, sponge sanding, brush sanding, heavy-duty milling, light milling, vertical boring, side lathing, shaping, slotting, grooving, inner hole milling, outer shaping, screw boring, end boring, and 5-axis head processing.

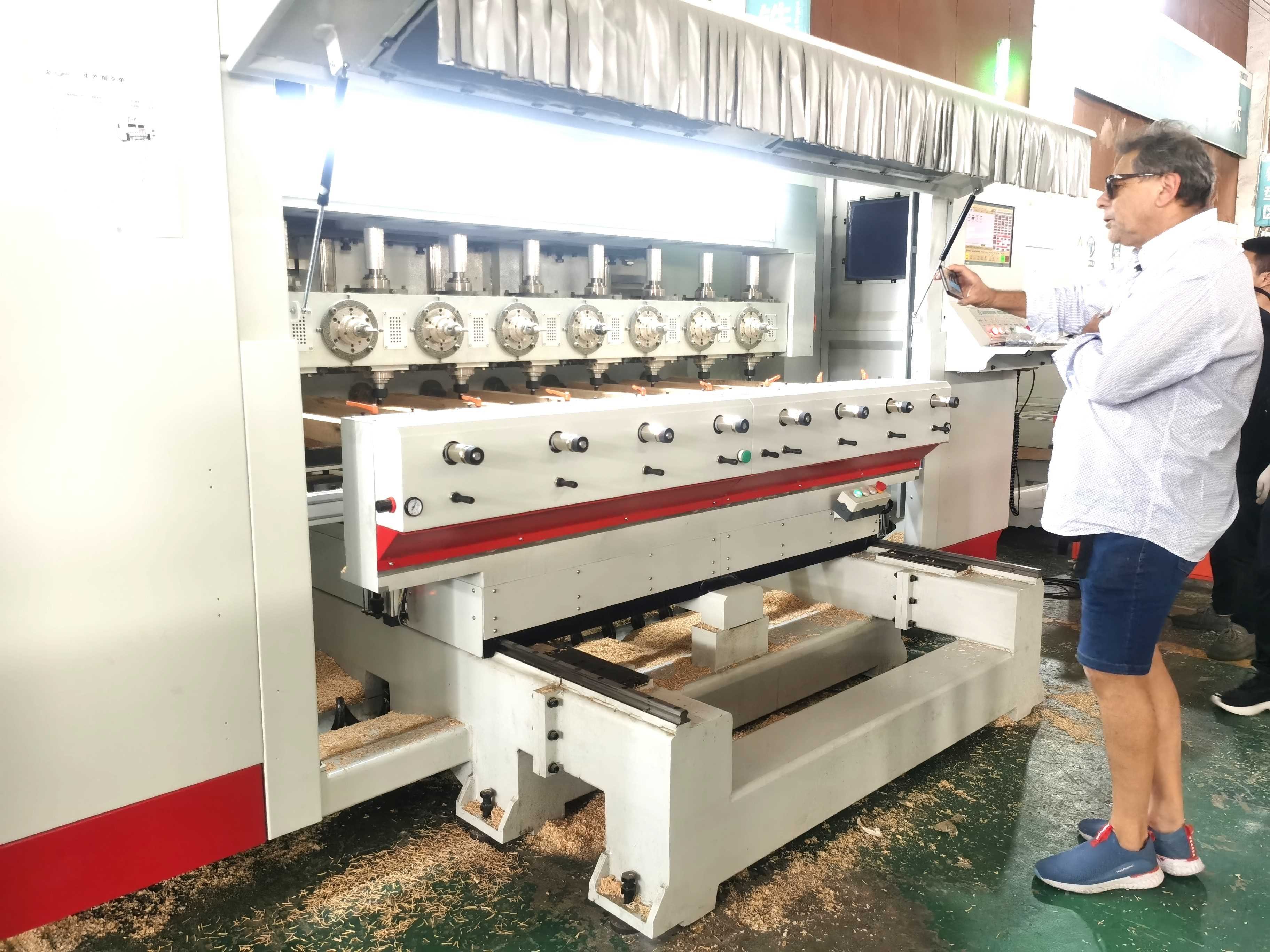

Designed with up to 7 optional spindles to optimize versatile profile operations.

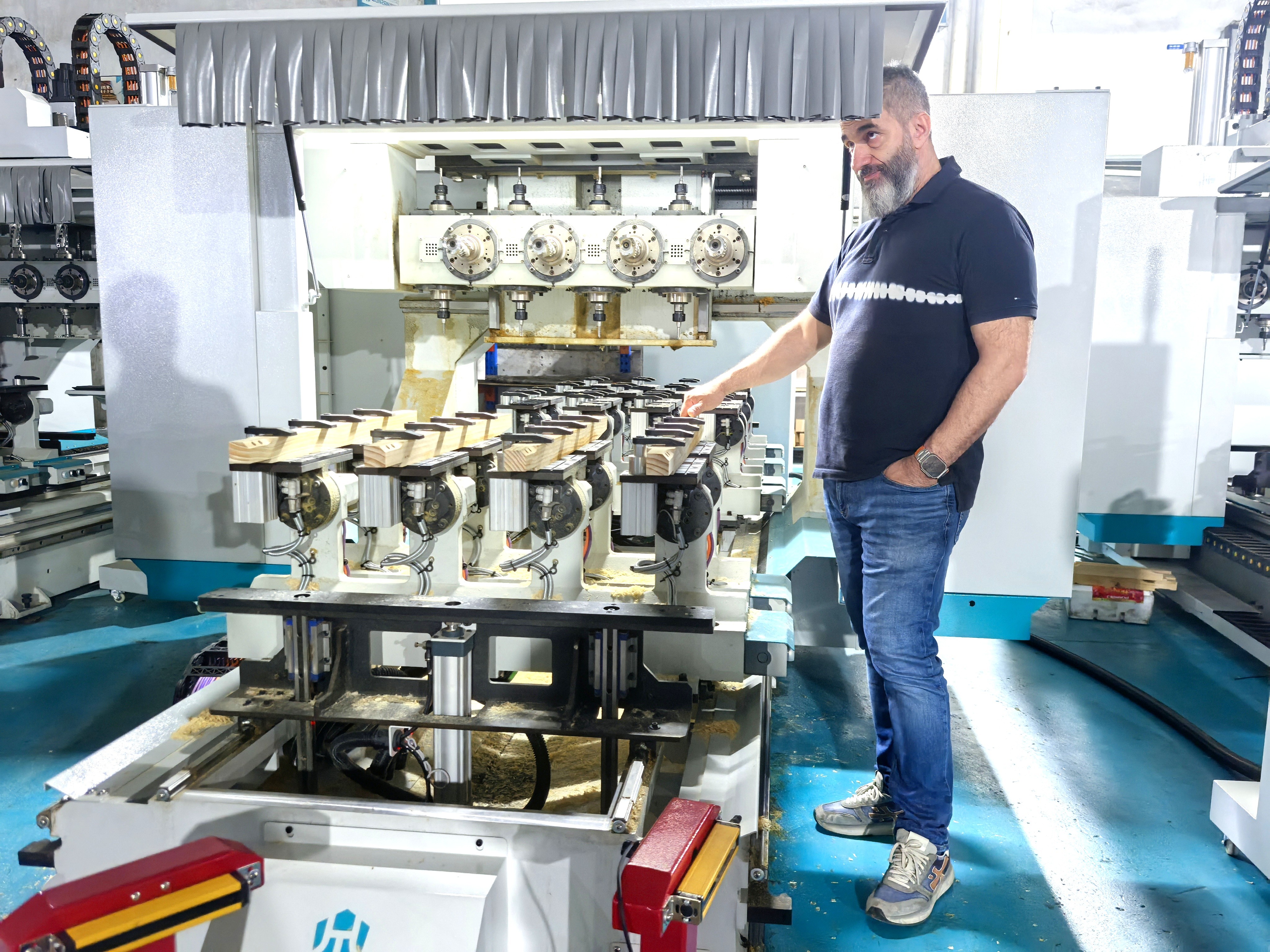

Engineered for complex five-sided wood milling, opening up endless manufacturing possibilities.
Available in configurations supporting 4, 8, or 12 active cutters for maximum scaling potential.

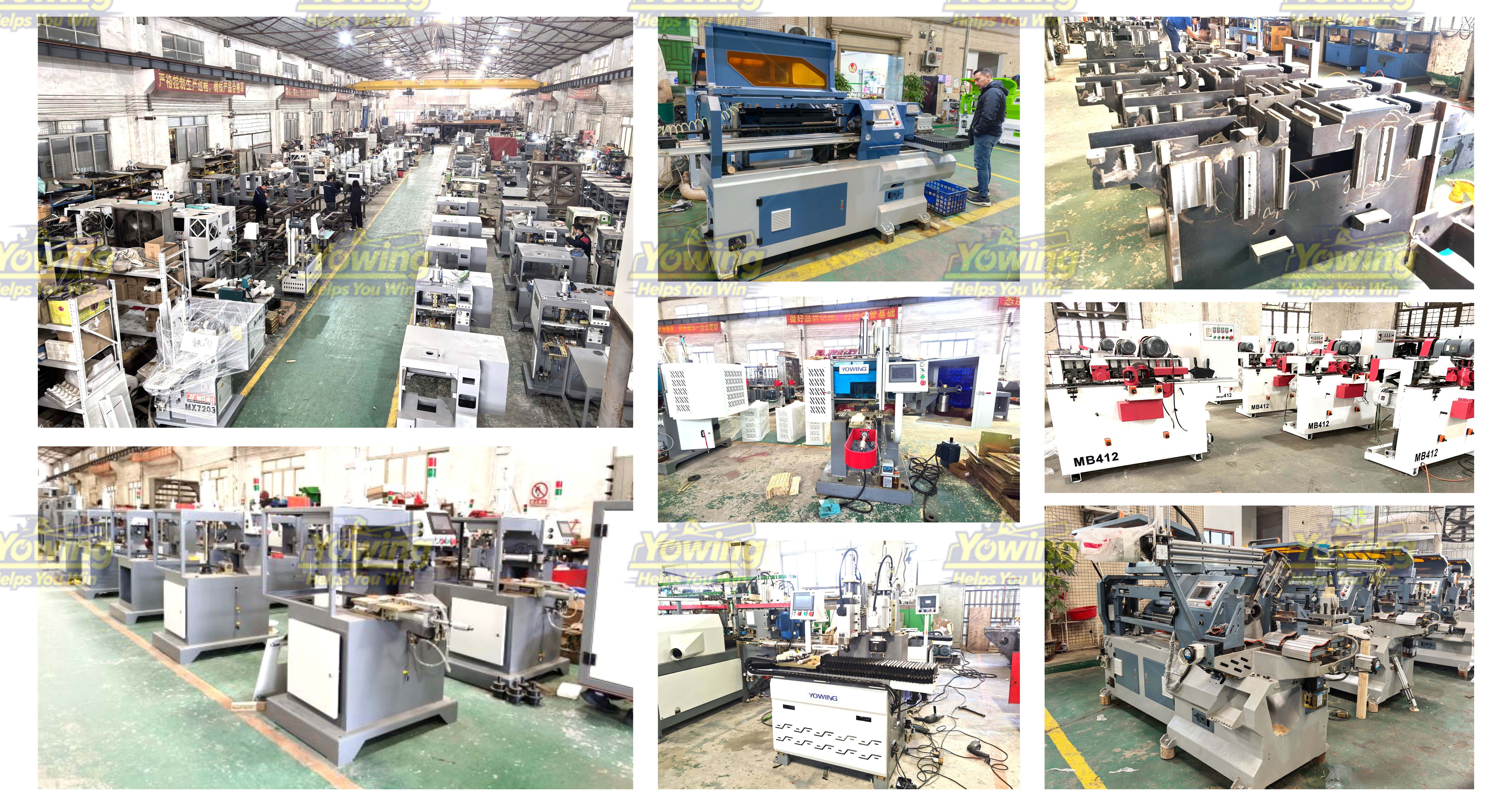

Our factory is located in a world-renowned woodworking machinery manufacturing center. We are fully committed to developing premium CNC Lathes, CNC Turning & Machining Lathes, and 5-Axis Processing Centers. Currently, we offer 8 distinct series of CNC systems and more than 30 professional woodworking machines.
With 2 national invention patents and over 20 utility model patents, we operate as a verified High-Tech Enterprise, consistently upgrading our CNC lathes, multi-cutter systems, and universal 5-axis machining stations.
Our high-precision equipment has been successfully exported worldwide:
We offer dedicated online training services and remote diagnostic software support. Our CNC Lathes, 5-Axis Centers, and flexible machining setups receive global recognition for their precision, reliability, and competitive pricing.

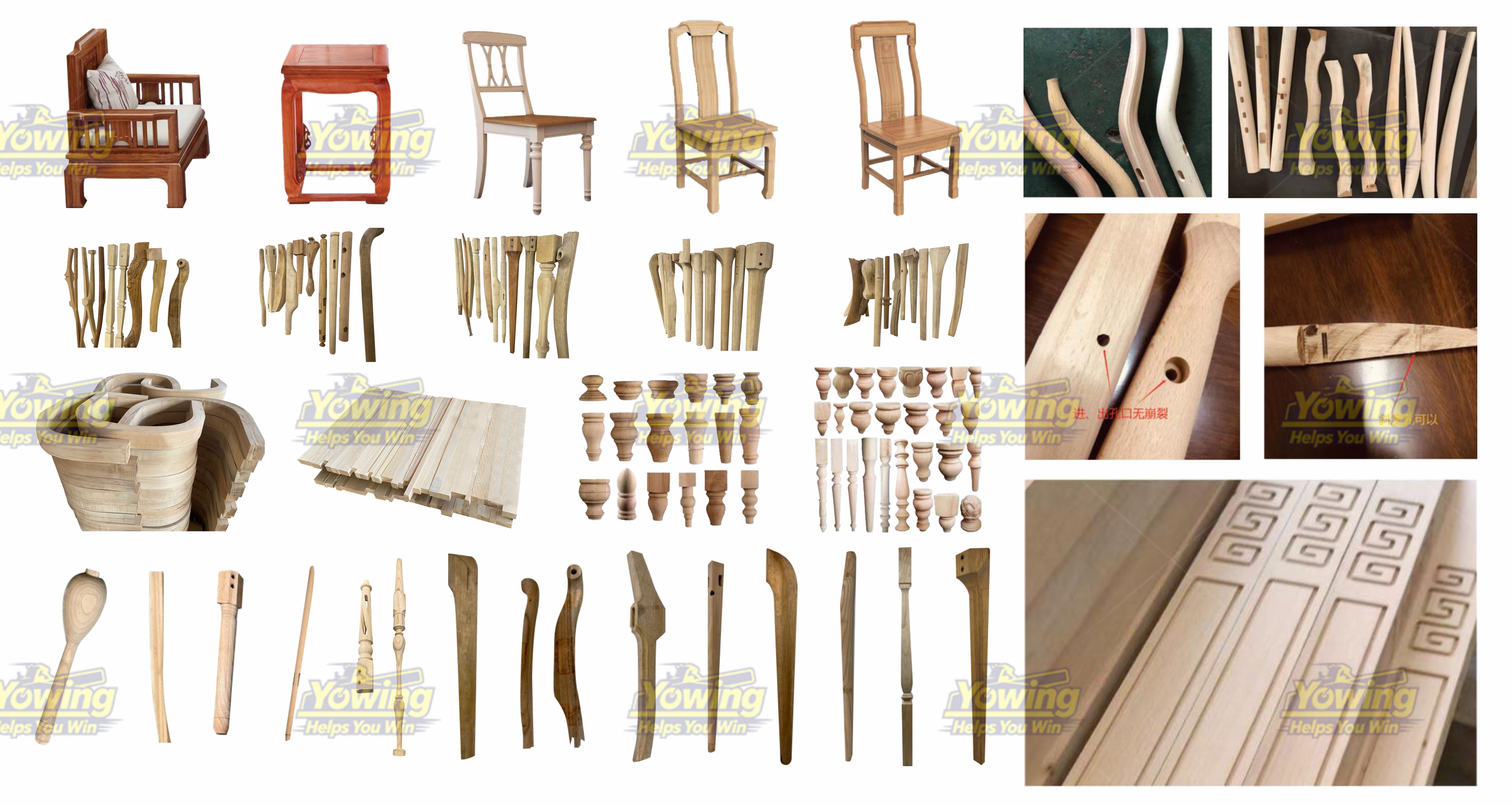

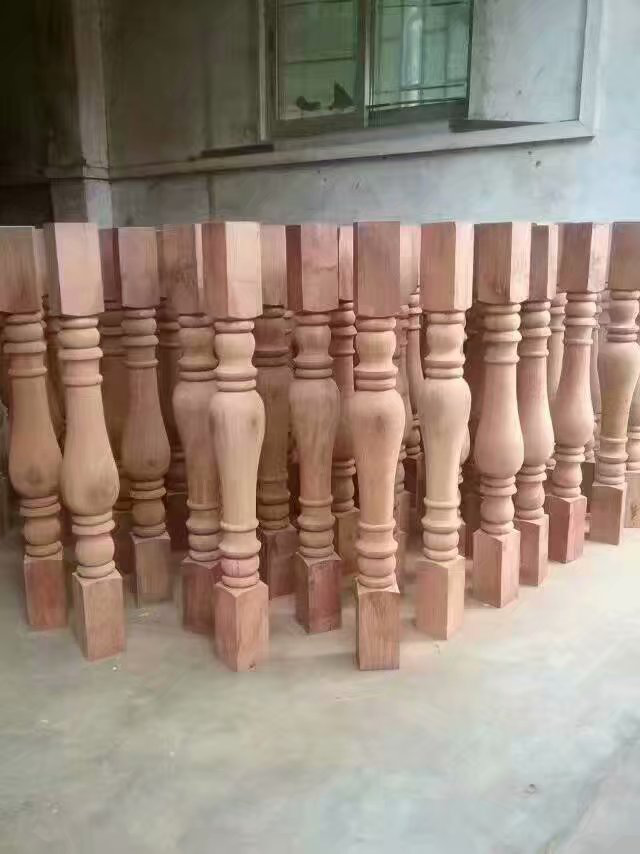

This CNC wood lathe is highly versatile and ideal for manufacturing furniture components (like table, chair, and bed legs), stair railings, round columns, wooden bowls, cups, rolling pins, instrument parts, and various artistic wood crafts.
The standard model (MC3015) handles workpiece lengths from 80 mm up to 1500 mm, and working diameters ranging from 15 mm to 200 mm.
Yes. The machine comes equipped with an automated feeding device driven by an oil cylinder. It feeds the raw timber directly into the machine, which reduces manual labor and improves safety and efficiency.

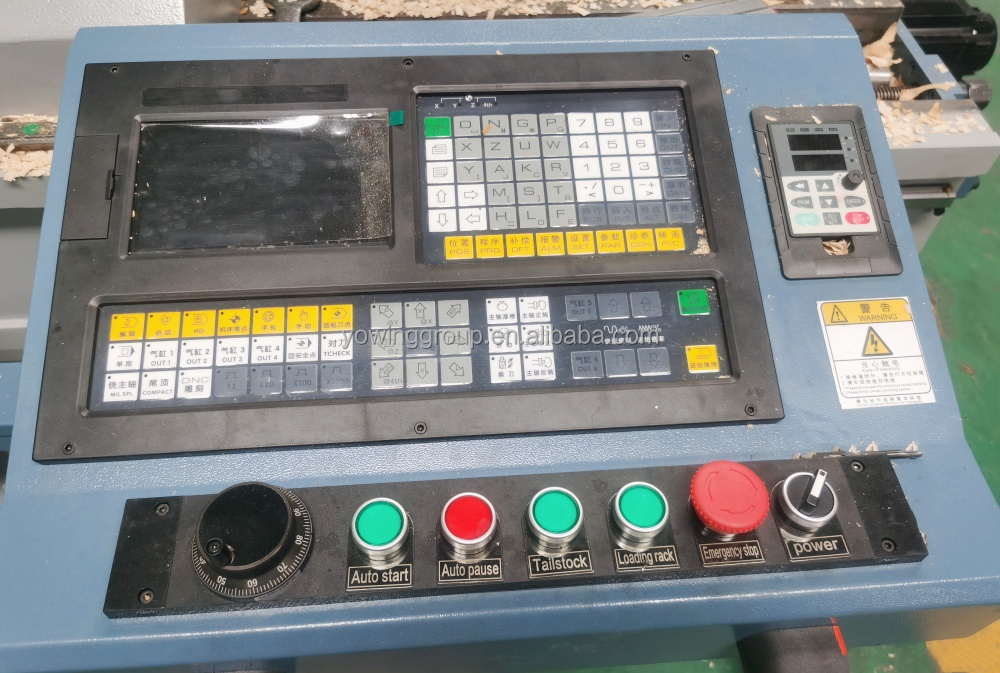

The smart CNC controller reads standard .dxf format files. You can generate files from AutoCAD or other common design programs, load them via USB, and start processing quickly.
The machine uses high-torque, high-precision servo motors and drivers paired with an inverter for smooth, infinite spindle speed regulation (up to 4000 rpm), ensuring stable cuts and clean finishes.
We provide comprehensive online training and support. Our technical team can also interface directly with the machine using remote diagnostic software to help you configure settings, troubleshoot issues, or update programs.
