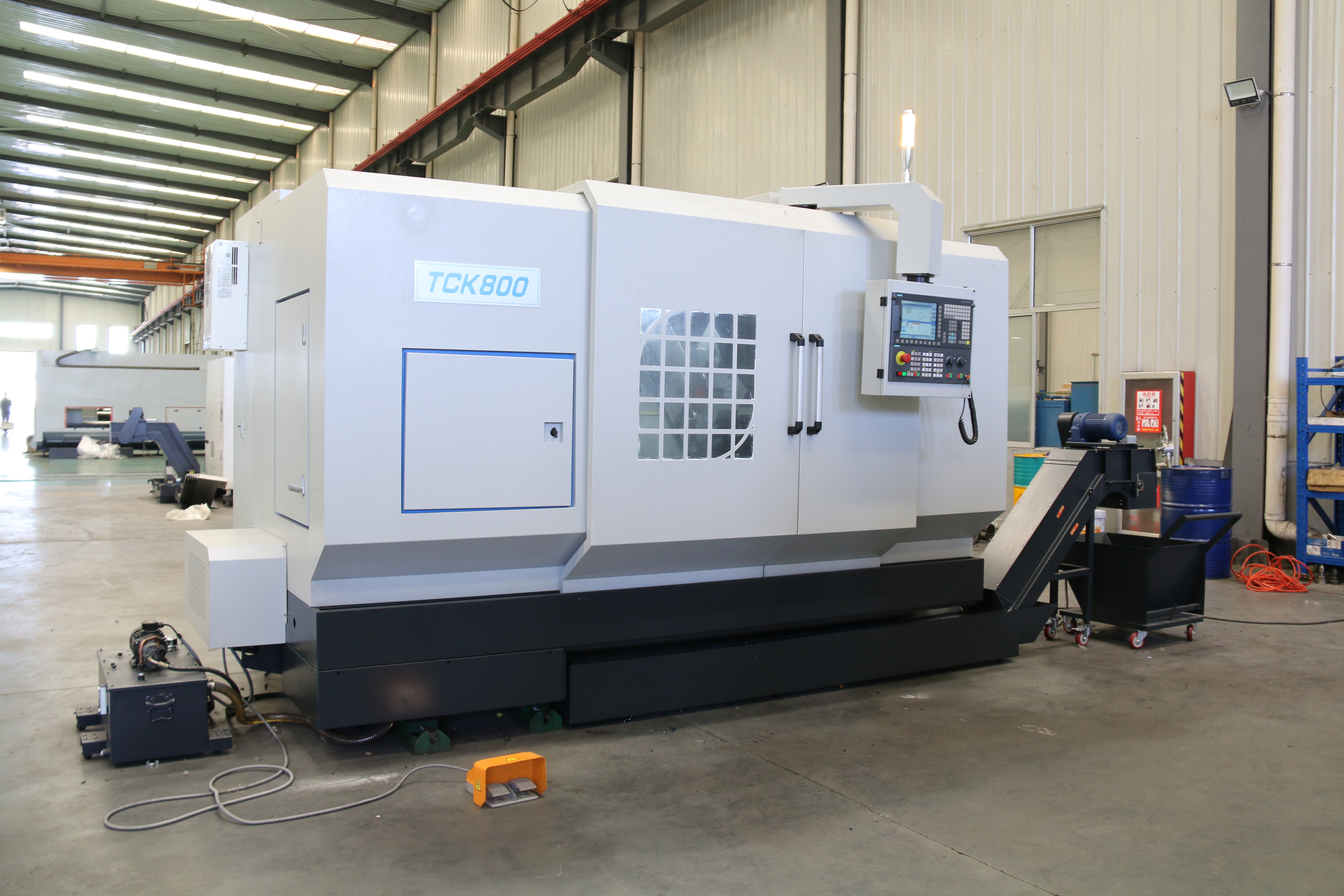

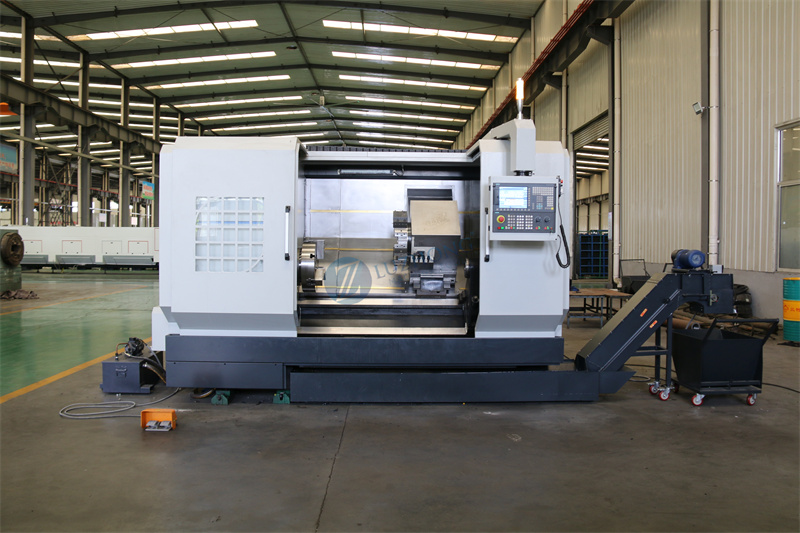

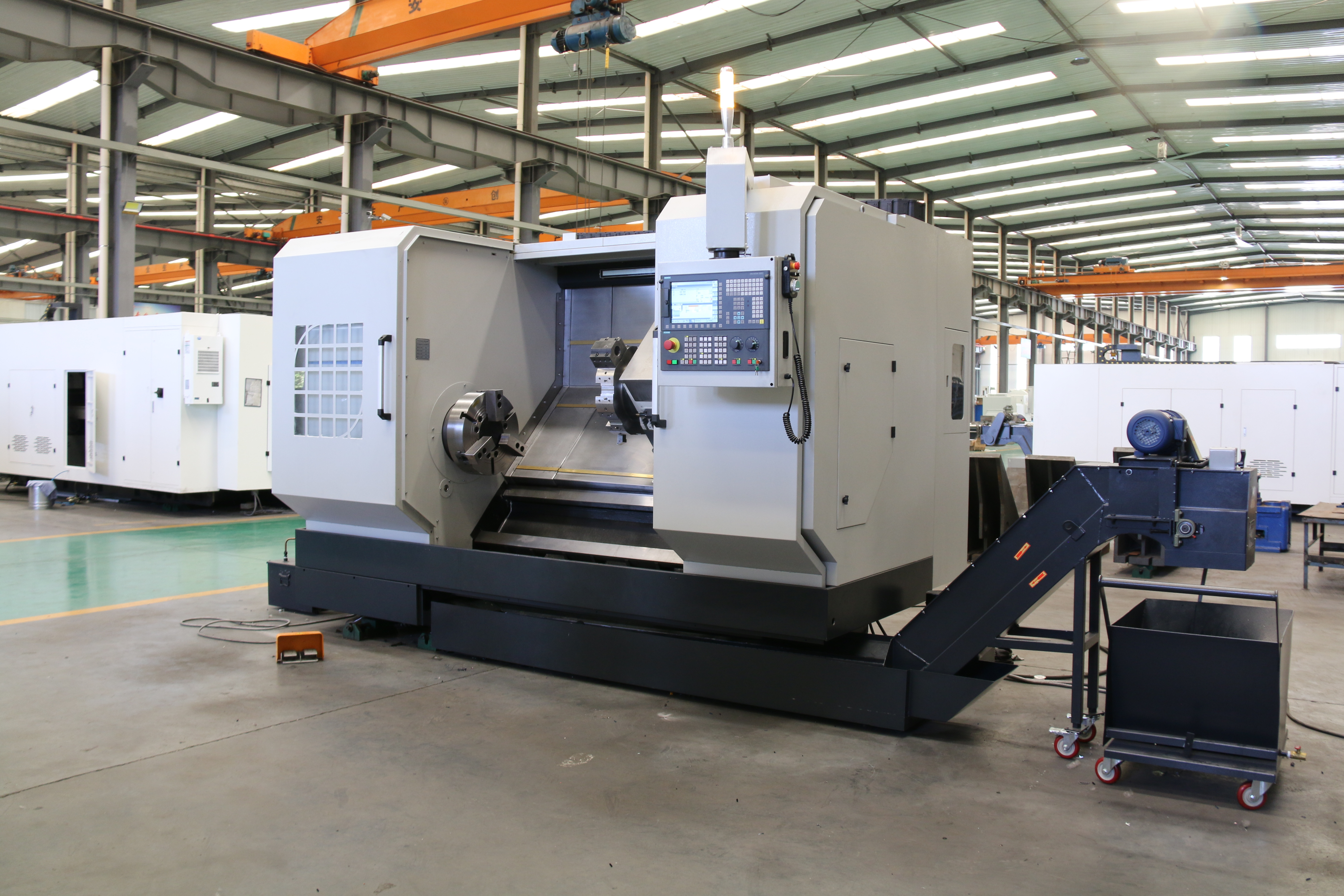

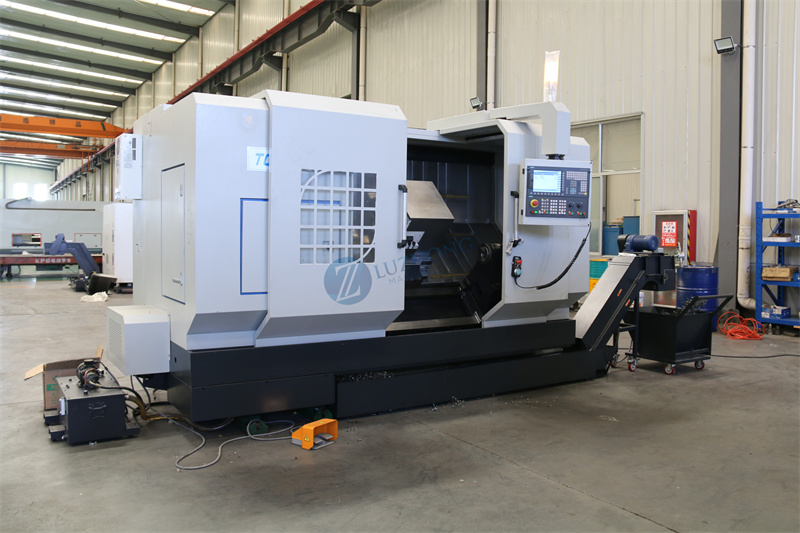

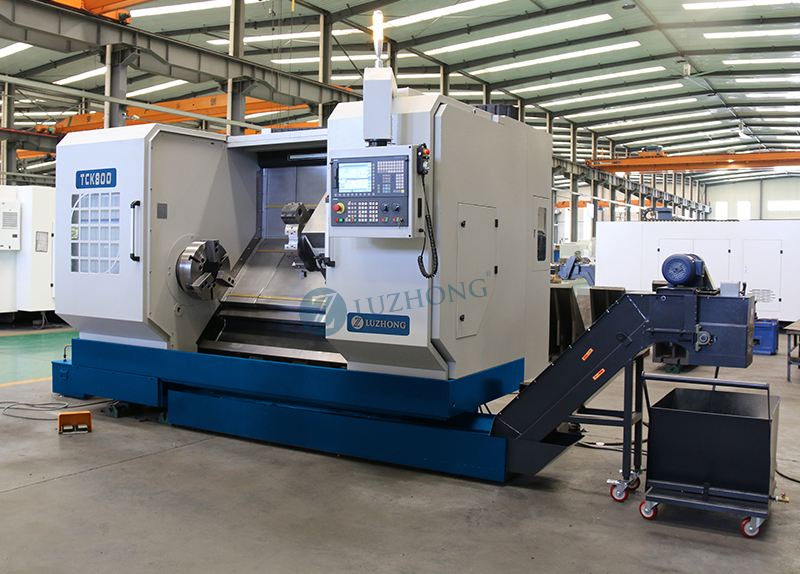

CNC LATHE INTRODUCTION
This series slant bed CNC lathe is a new type of automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpieces. Characterized by high efficiency, easy operation, and high accuracy, this series lathe machine is mainly used for turning internal and external cylindrical surfaces, conical surfaces, and other rotating surfaces, as well as turning various types of threads.

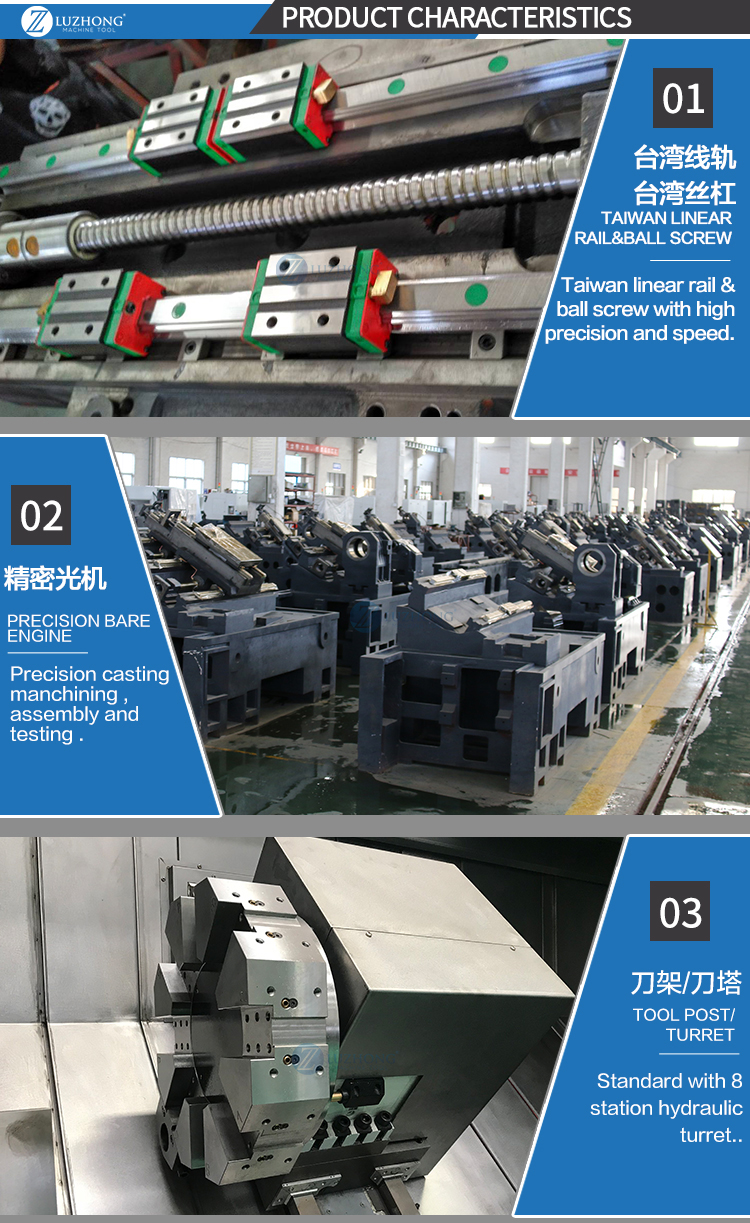

FEATURES

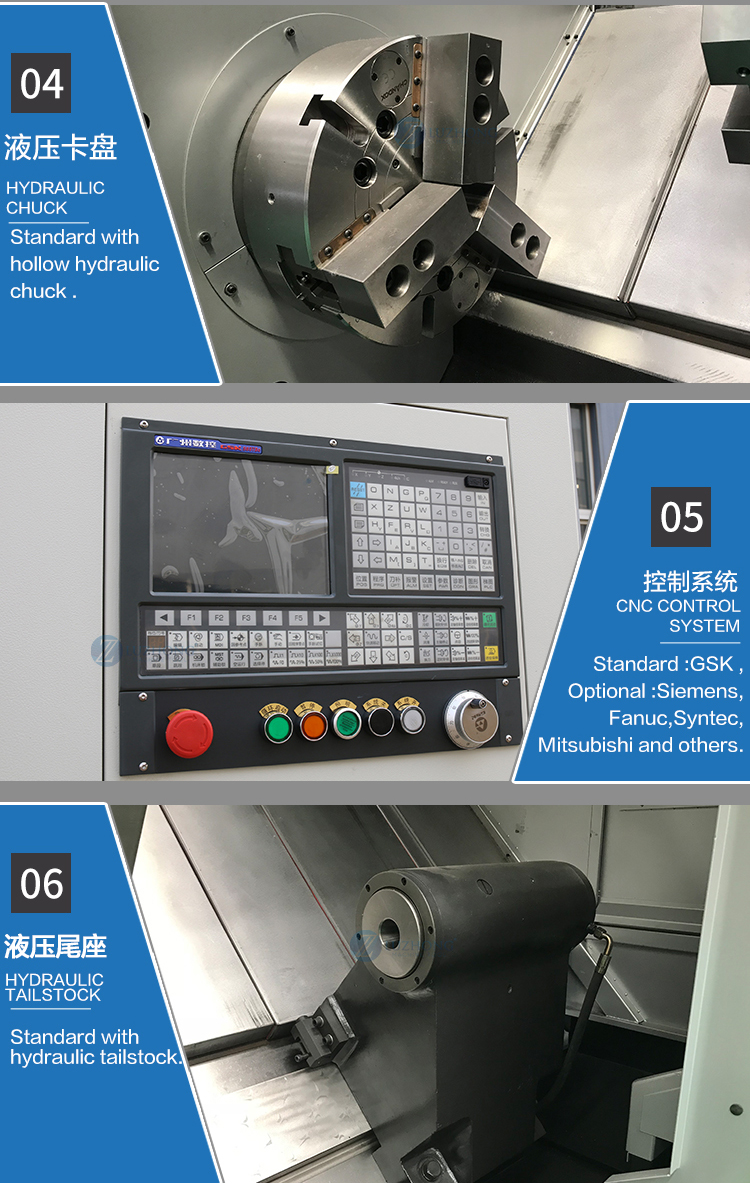

| Specifications | Units | TCK800 |
|---|---|---|
| Swing over bed | mm | 800 |
| Swing over cross slide | mm | 650 |
| Distance between centers | mm | 1000/1500/2000/3000 |
| Guide form | Integral type 45° | |
| Spindle bore | mm | 105 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 50-1500 |
| Chuck | in | 15in Hydraulic chuck |

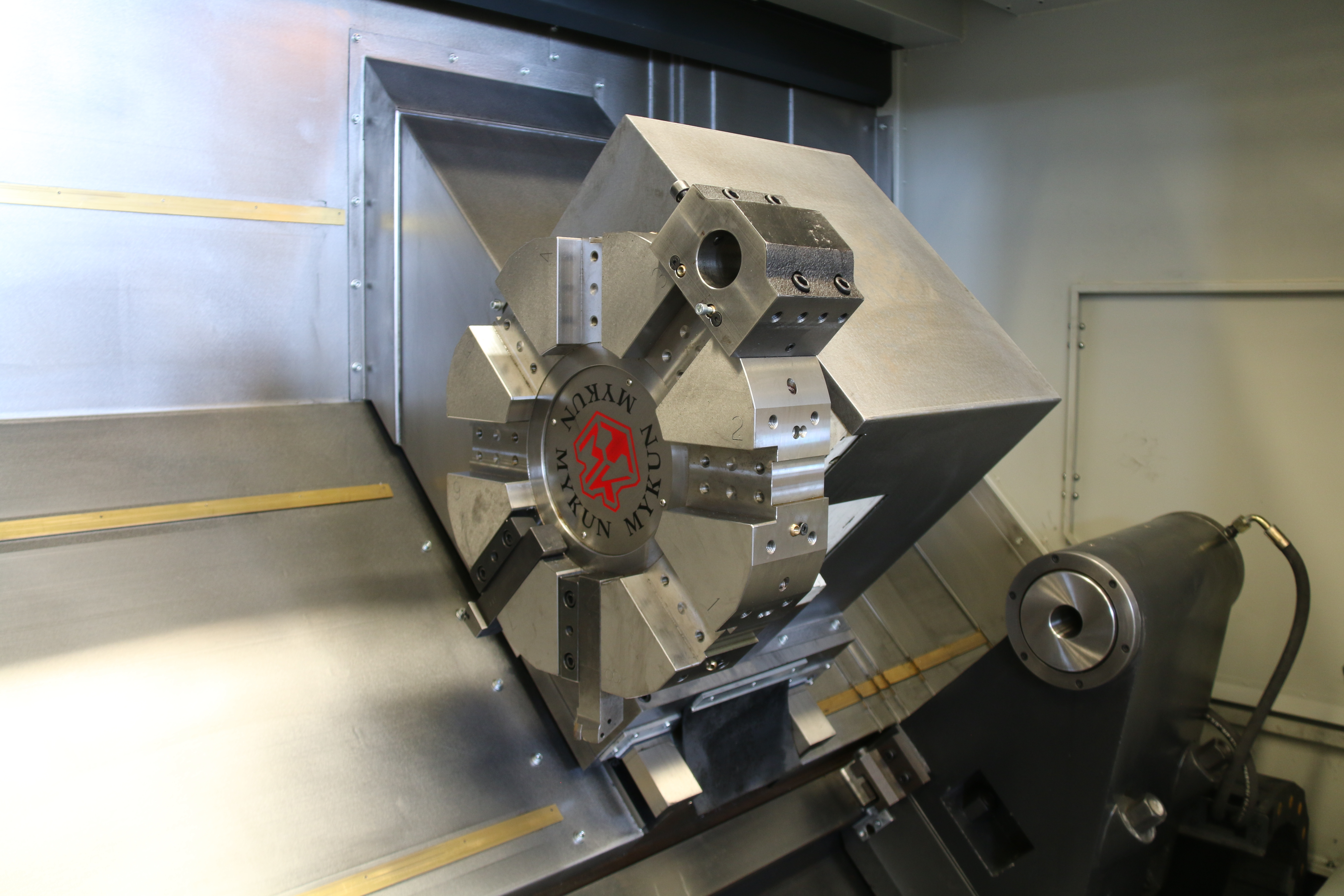

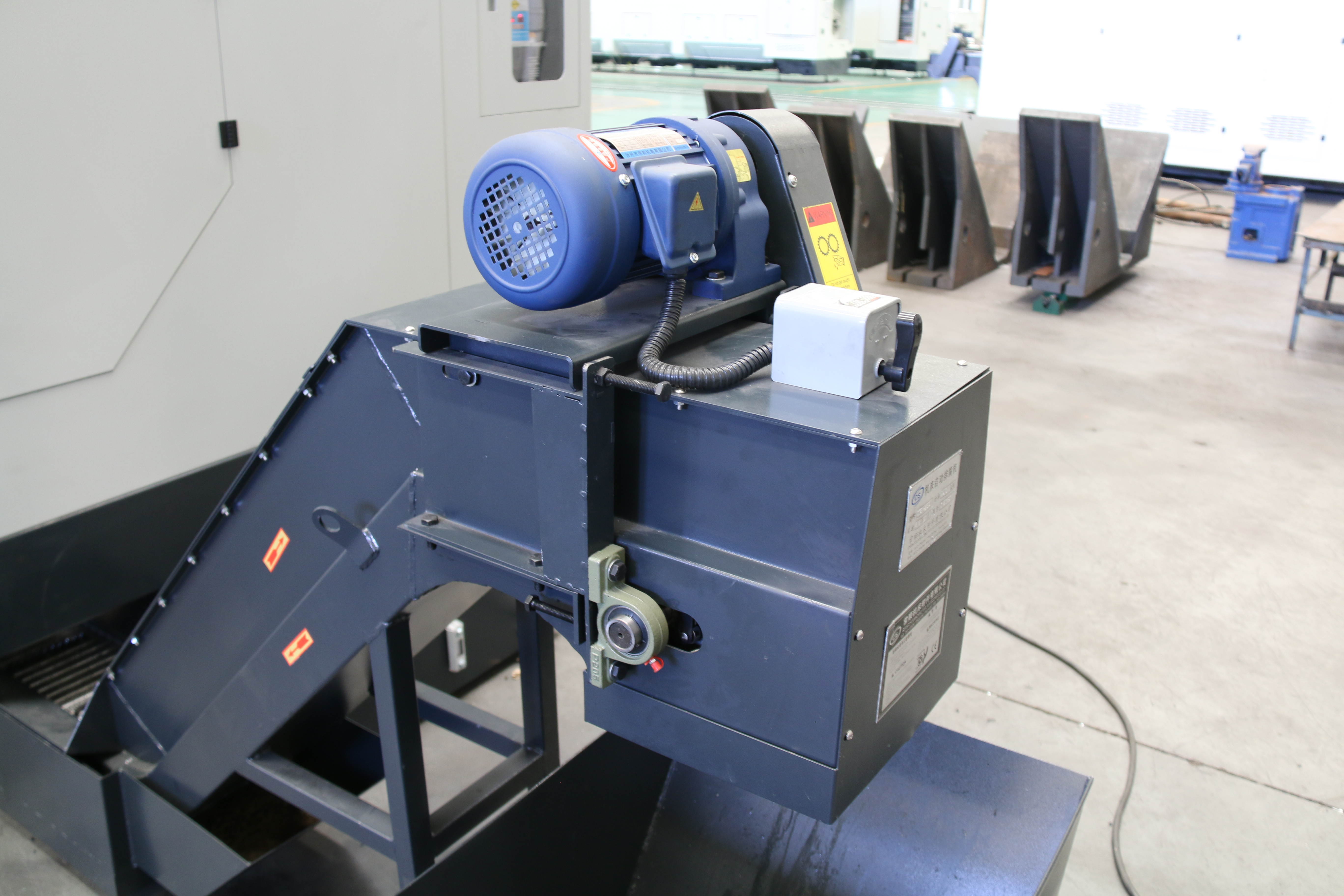

| Turret/tool post | - | Hydraulic turret 12position |
| Tool shank size | mm | 32 x 32 |
| Boring tool holder size | mm | Φ50 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 1000/1500/2000/3000 |
| X axis rapid traverse | mm/min | 10000 Linear guideway |
| Z axis rapid traverse | mm/min | 15000Linear guideway |
| Tailstock quill diameter | mm | Φ130 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 150 |
| Main spindle motor | kw | 22 |
| Coolant pump motor | kw | 0.37 |
| Weight for 500 | kg | 7000 |
| Weight for 1000 | kg | 7500 |
| Weight for 1500 | kg | 8000 |
| Weight for 2000 | kg | 9000 |
| Weight for 3000 | kg | 9500 |
| Dimension for 500 | mm | - |
| Dimension for 1000 | mm | 4850x2570x2400 |
| Dimension for 1500 | mm | 5350x2570x2400 |
| Dimension for 2000 | mm | 5850x2570x2400 |
| Dimension for 3000 | mm | 6850x2570x2400 |
