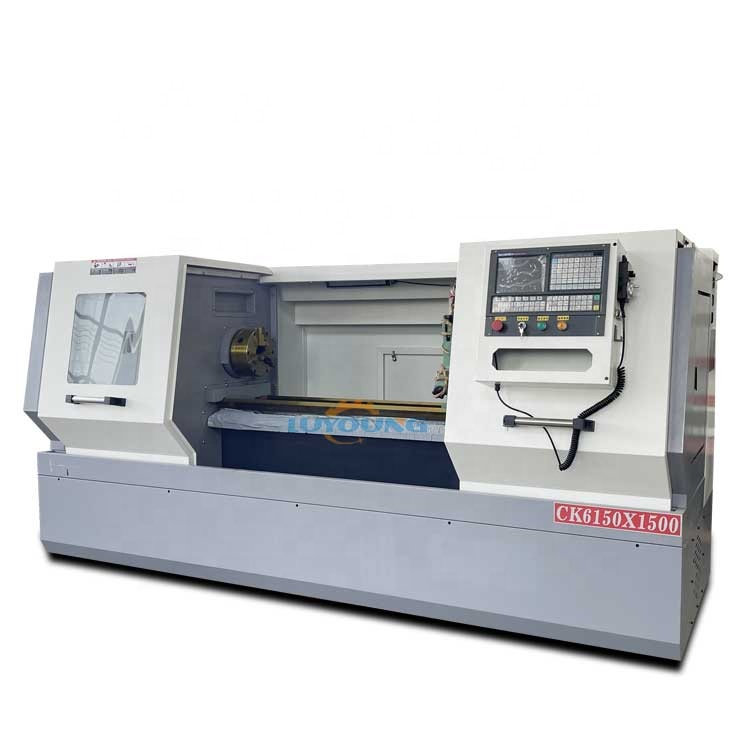

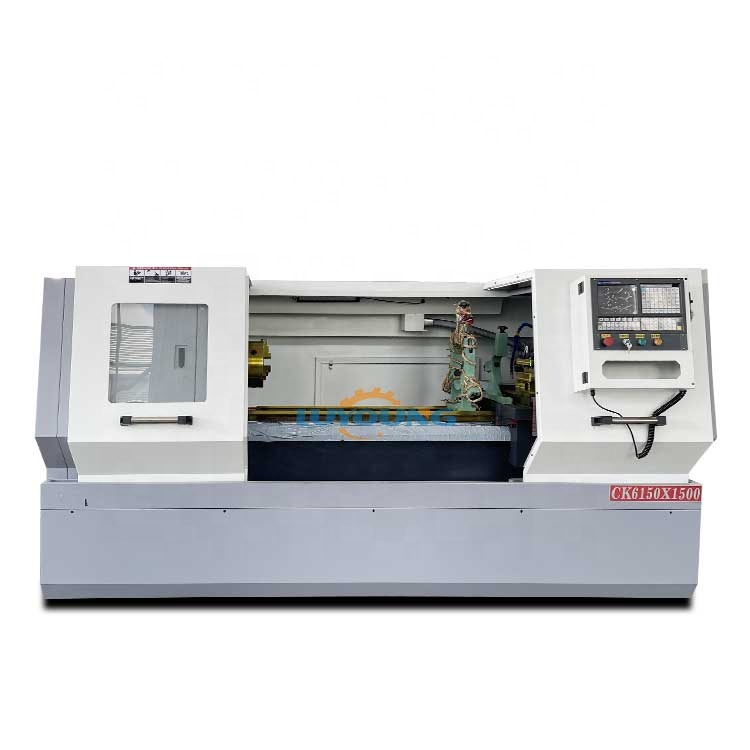

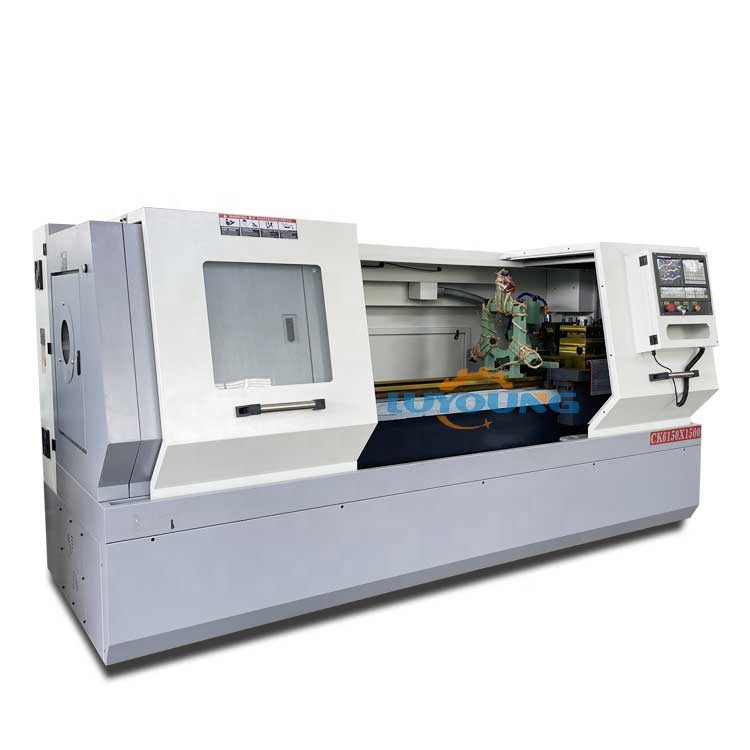

CK6150 1500mm Chinese CE Small Benchtop Horizontal CNC Lathe Machine

1 / 5

CK6150 1500mm Chinese CE Small Benchtop Horizontal CNC Lathe Machine

Send Inquiry

Product Description

Choose our machine by turning diameter

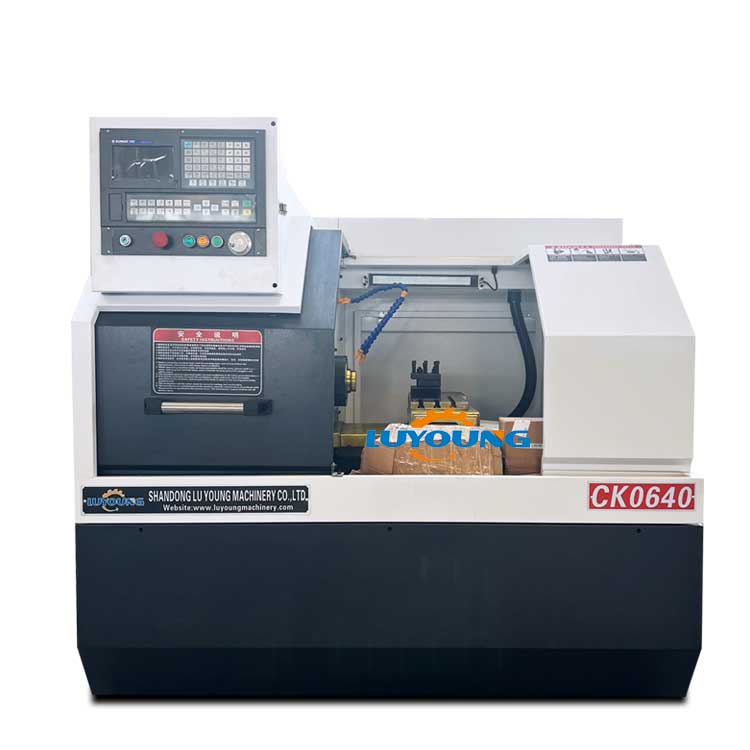

300/320mm

(ck0640/ck6130/ck6132)

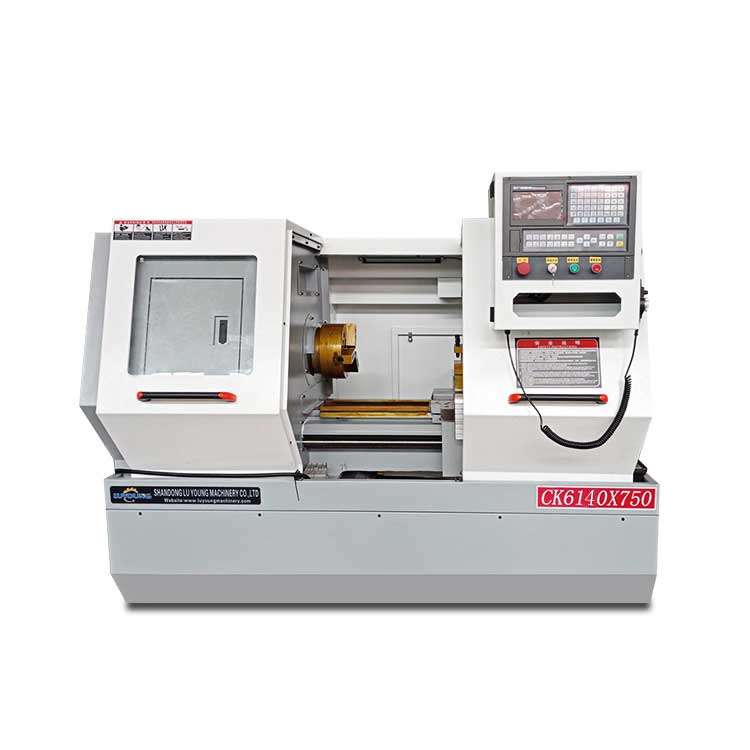

360/400mm

(CK6432/CK6136/CK6140)

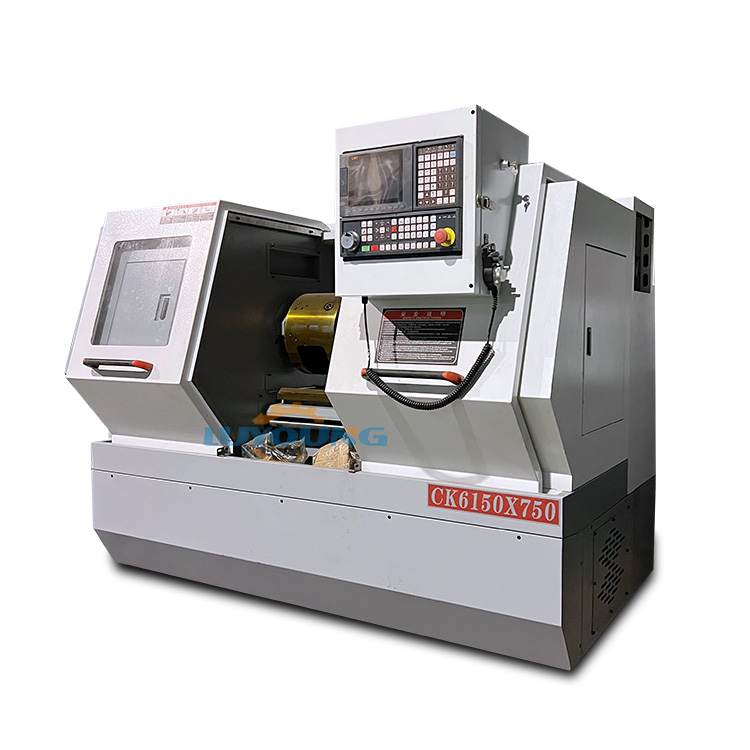

500mm

(CK6150)

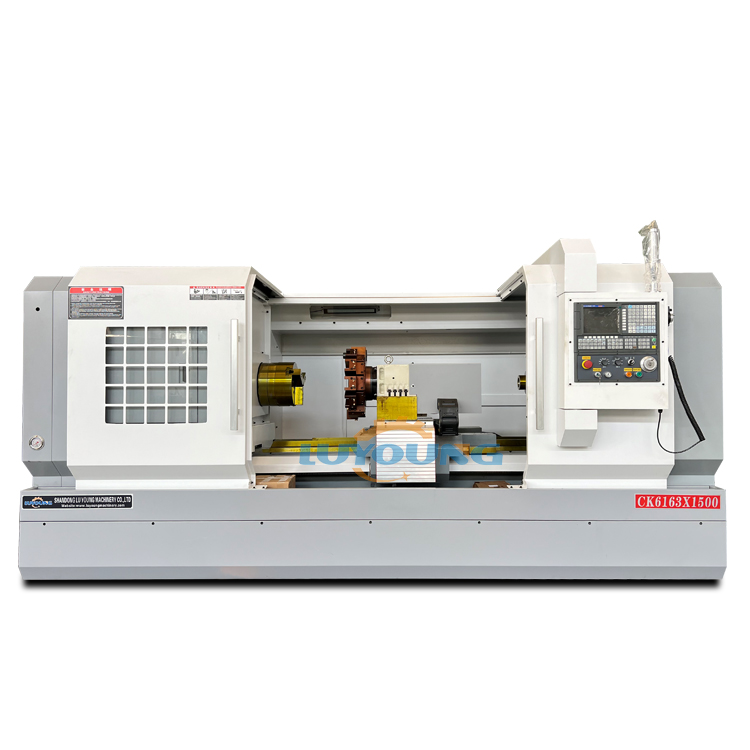

600/630mm

(ck6160/ck6163)

800mm

(ck6180)

1100/1250

(CK61100/CK61125)

Choose Our CNC lathe machine by function:

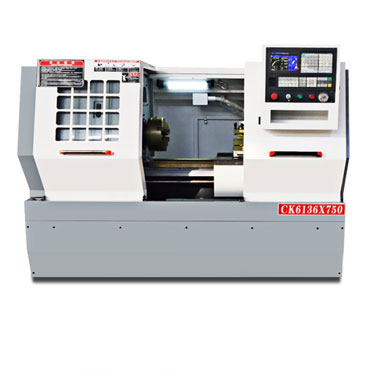

Flat bed cnc lathe machine

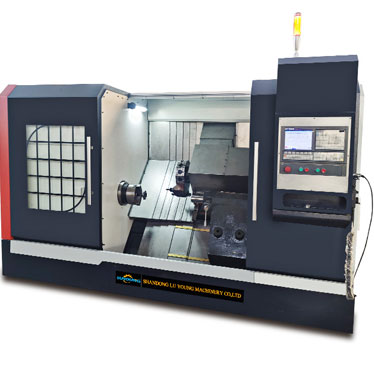

Slant bed cnc lathe machine

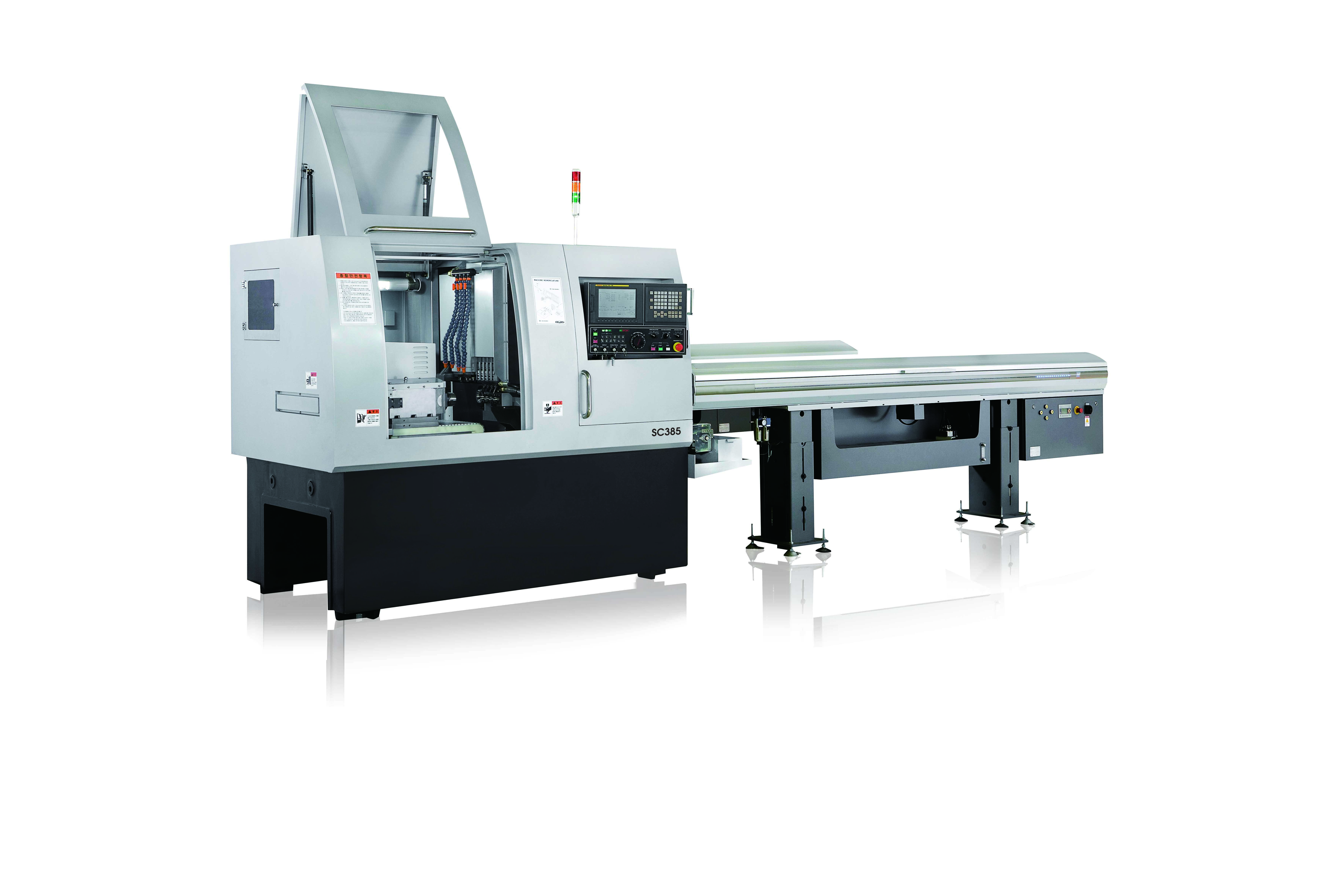

Swiss type cnc lathe machine

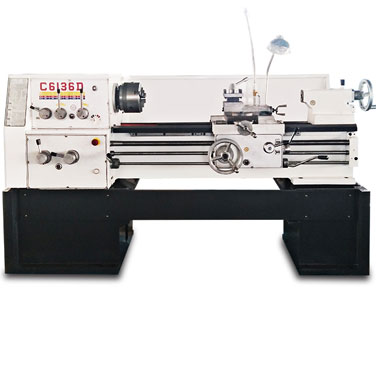

Manual lathe machine

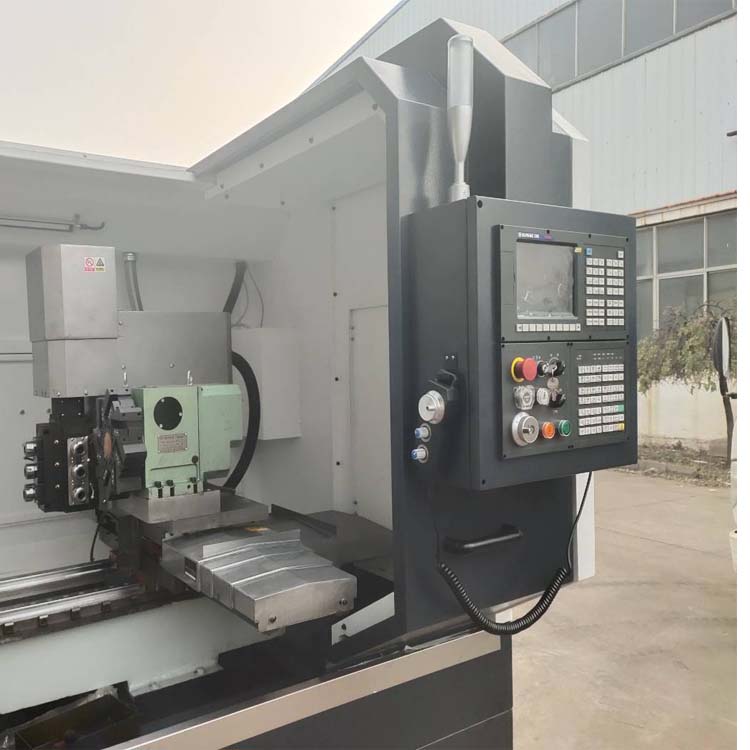

Flat bed cnc lathe with living tools

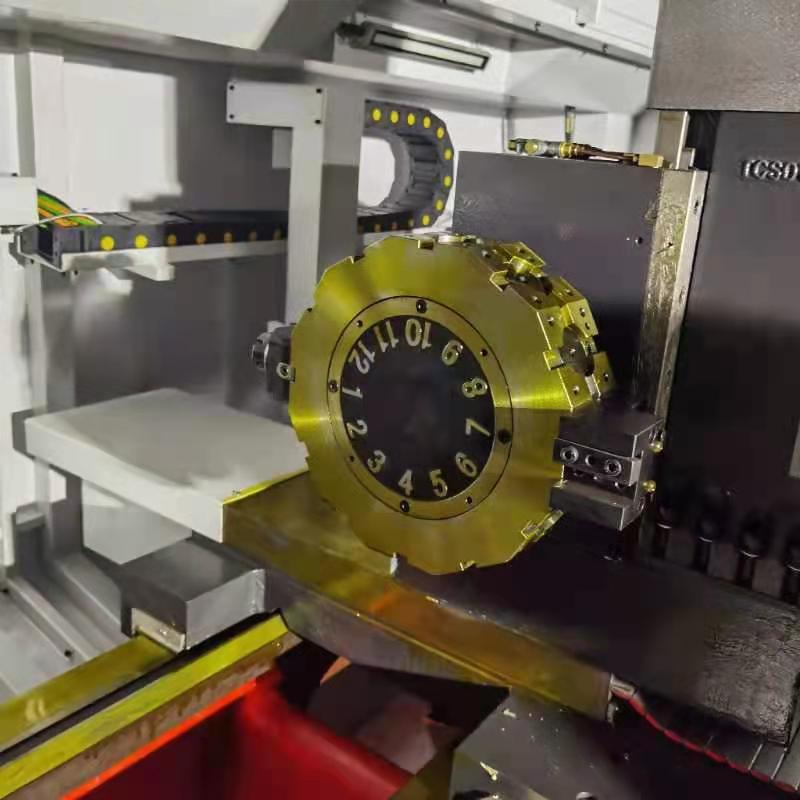

Flat bed cnc lathe with living turret

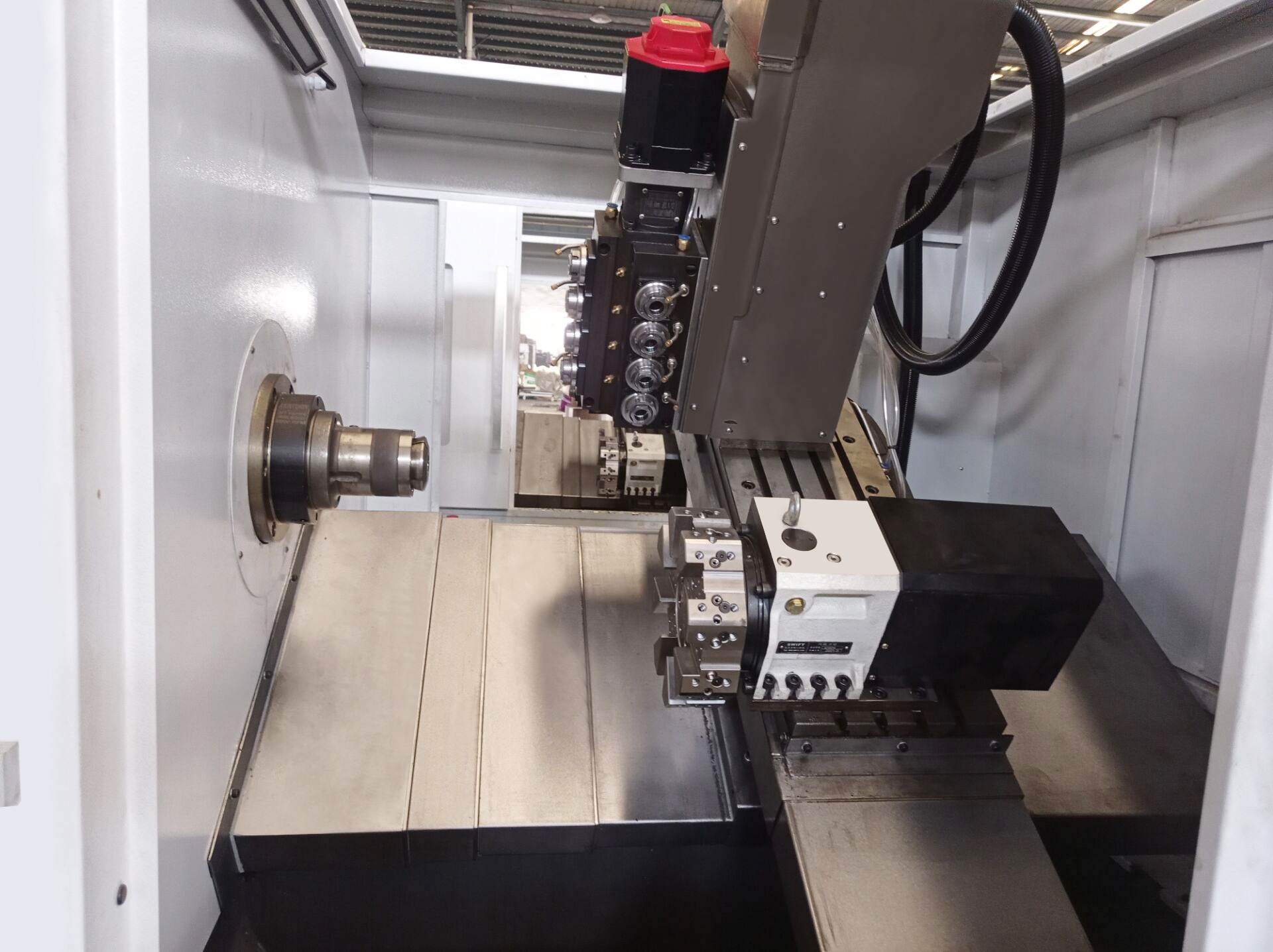

Slant bed cnc lathe with living tools

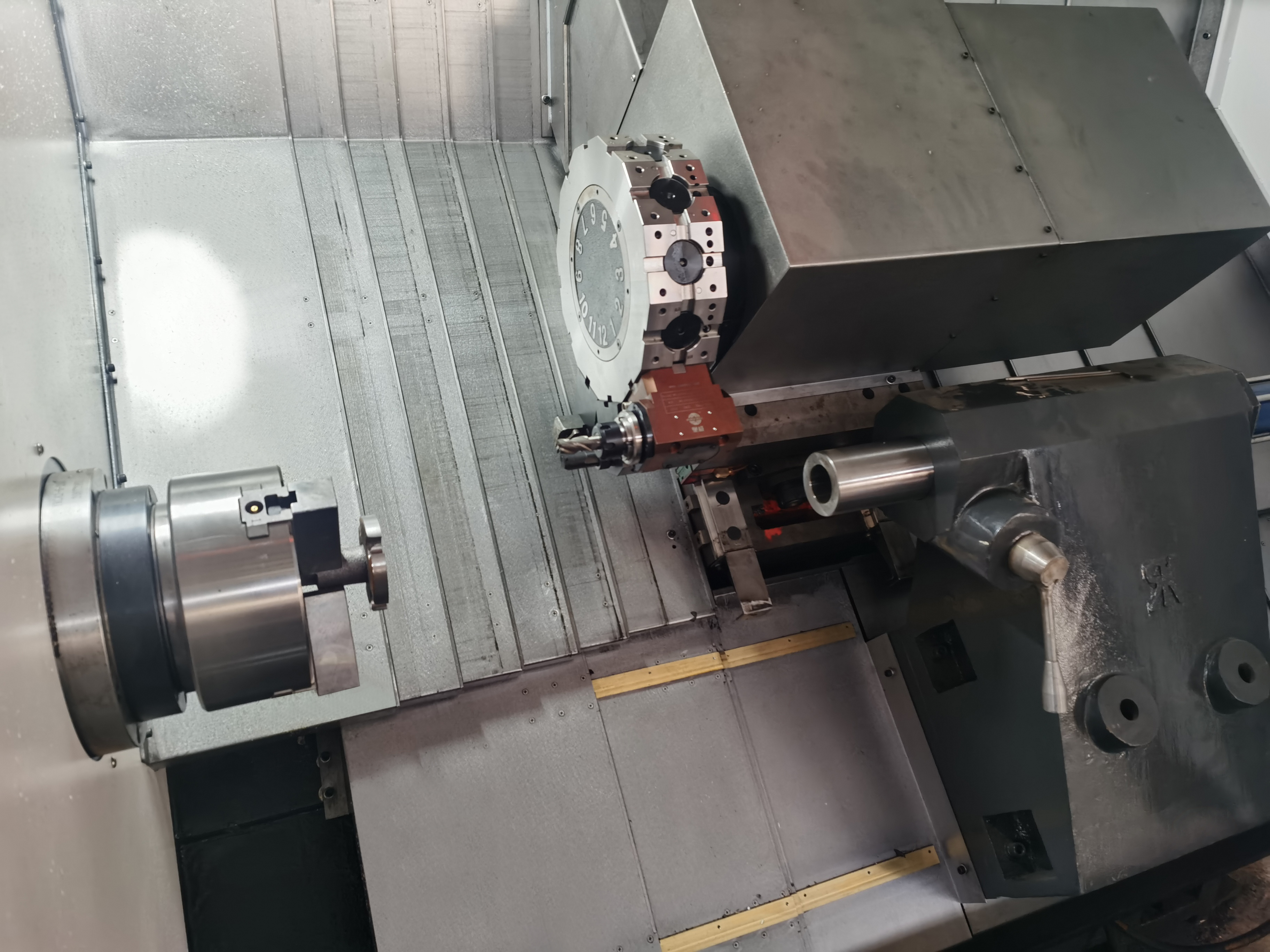

Slant bed cnc lathe with living turret

Product Description

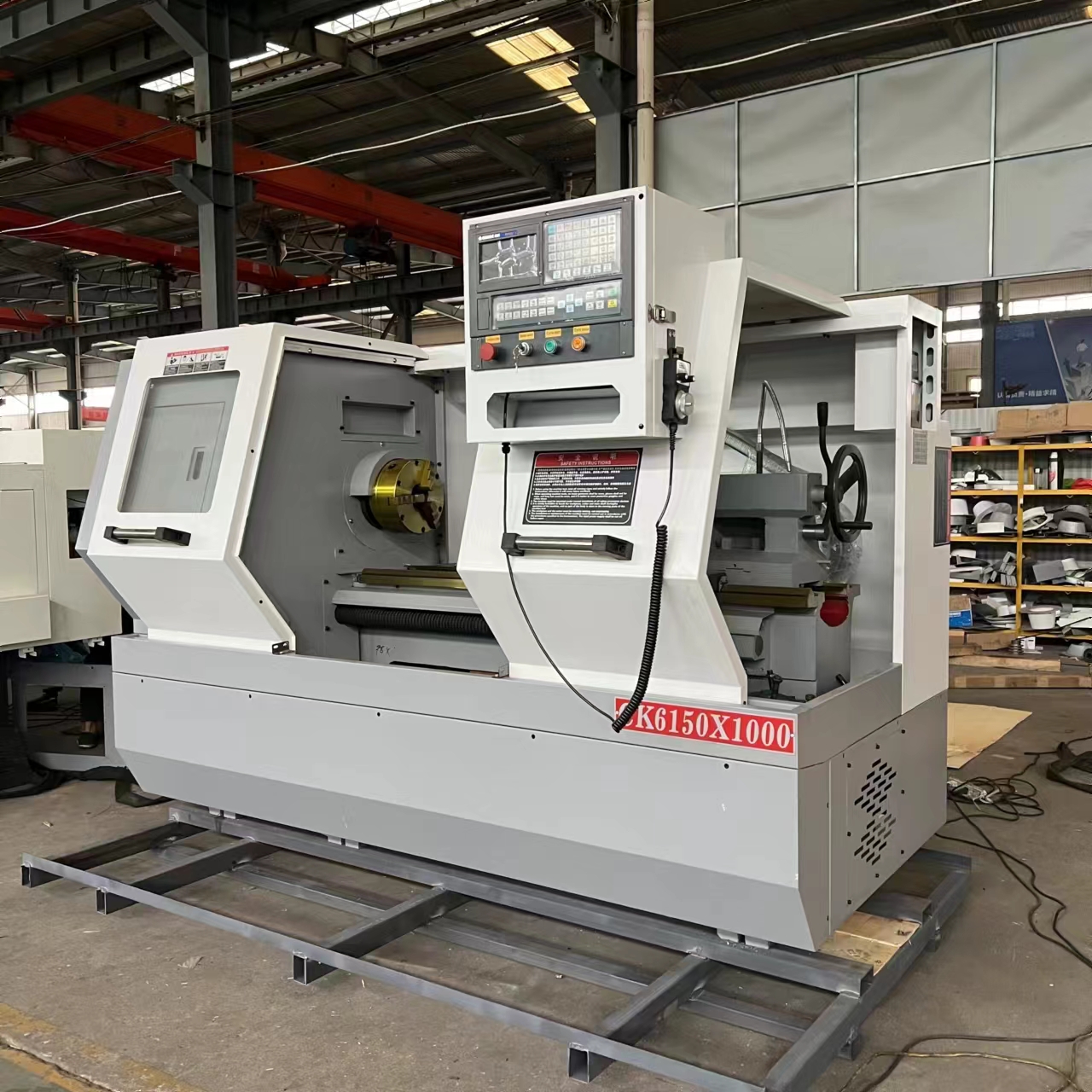

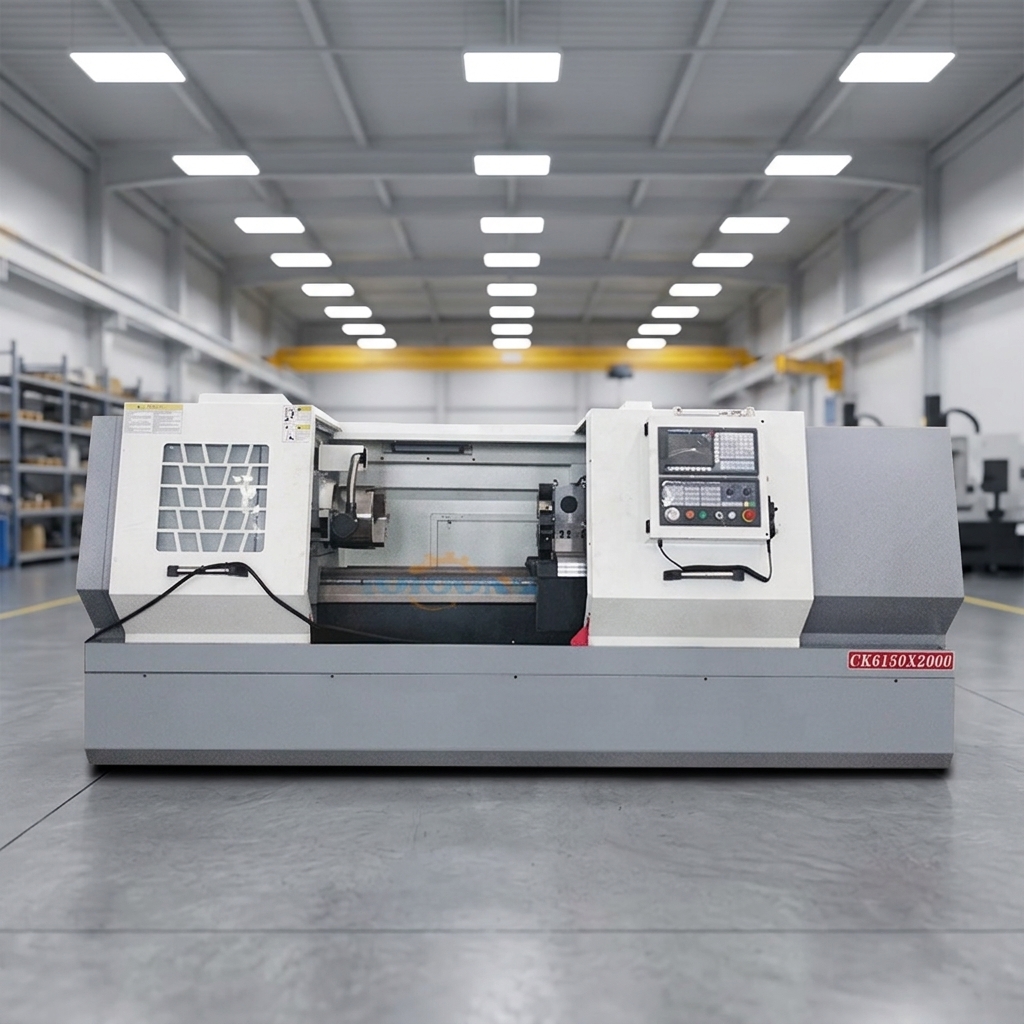

ck6150 1500mm Chinese CE Small Benchtop Horizontal CNC Lathe Machine is a high-precision, high-efficiency automated machine tool built with an integrated protection structure and a beautiful outer appearance. Mainly used for complex shape parts or high precision parts processing, it can automatically complete internal and external round surfaces, conical cotton, round faces, end faces, a variety of threads, drilling, hinging, boring and other turning operations. The machine is tested in strict accordance with the inspection procedure. Each machine adopts a laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.

Item	CK6150A	ck6150B
Max. swing dia. over bed	Φ500mm	Φ500mm
Max. swing dia. over cross slide	Φ280mm	Φ280mm
Processing length	750/1000/1500/2000mm
Dia. of spindle	Φ82mm
Spindle speed step	step-less	Three gear speed manual change, frequency conversion stepless
Spindle speed	14-1500 rpm	30-150 / 100-500 / 320-1600rpm
Taper of spindle bore	1:20/Φ90
Spindle nose	Type of spindle head D-8
Tool holder	4 station electric tool post
Tool bar section	25X25mm
Main motor power	7.5KW
X/Z axis position accuracy	0.02/0.025mm
X/Z-axis repeatability(mm)	0.01/0.012mm
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve travel	150mm
Tailstock taper	MT5
Dimension	2410/2660/3160 × 1560 × 1730mm
Net weight	2800/3200/3500kg

Standard Configuration

GSK928 CNC Controller
3 jaw manual chuck
4 electric tool holder
Auto lubrication system
Lighting system
Cooling system
One-piece bed casting
Manual tailstock

Optional Configuration

Siemens, Fanuc CNC controller system
Pneumatic chuck, hydraulic chuck
Pneumatic tailstock, hydraulic tailstock
6 station tool turret, 8 station tool turret
Auto feeder system
Chip conveyor
Centre-rest
Follow-rest

Detailed Components

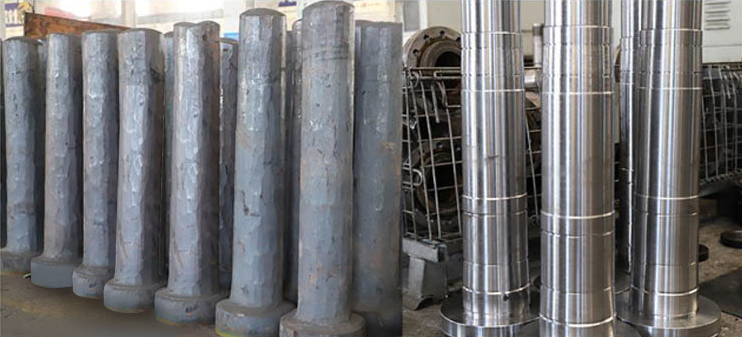

Spindle

45# steel forged spindle features high speed, high precision, and strong rigidity. The spindle speed change adopts manual four-speed speed change and stepless speed regulation within the gear, which greatly reduces the probability of machine tool operation failure. It offers a mature structure, stable performance, easy programming, and simple operation.

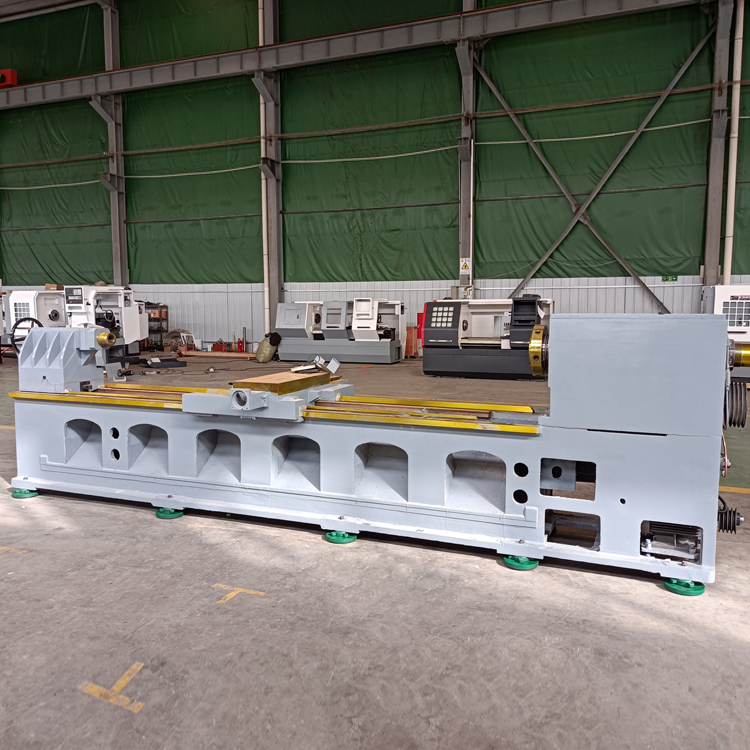

High-strength Grey Cast Iron Bed

Resin sand mould integral casting. The casting is tempered twice to eliminate the internal stress of the casting itself. The whole machine is good, the machining accuracy is high, and the stability of the machine tool is guaranteed for long-term use.

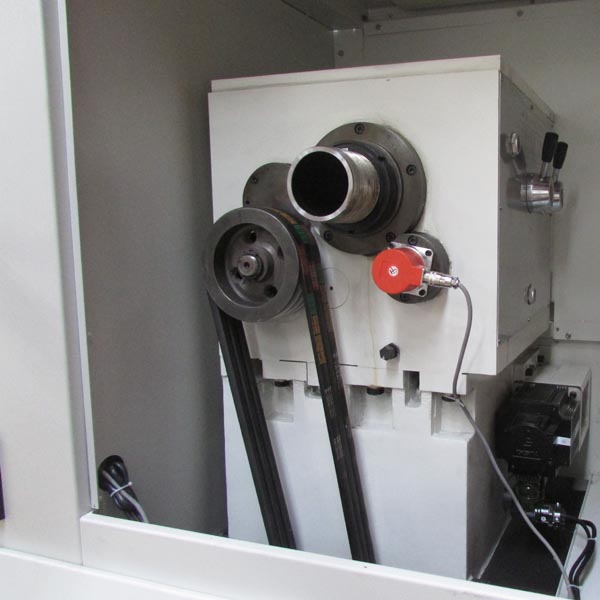

Spindle Box

The four-speed speed regulation of the main shaft adopts a gear box structure, especially the three-point support of the main shaft of this machine tool, which has the outstanding characteristics of high speed, high precision, strong rigidity, small thermal deformation, stable operation, and low noise.

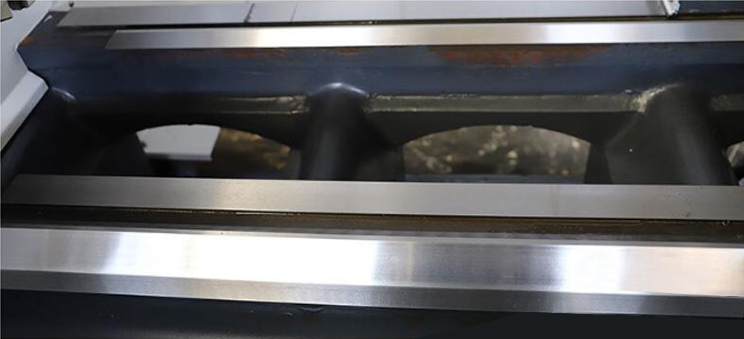

Guide Rail of the Bed

The guide rail of the bed is finely ground after being quenched by the super-audio frequency, featuring high hardness, good rigidity, and long service life. The carriage adopts the plasticization process of the guide rail surface, which has good wear resistance and high precision.

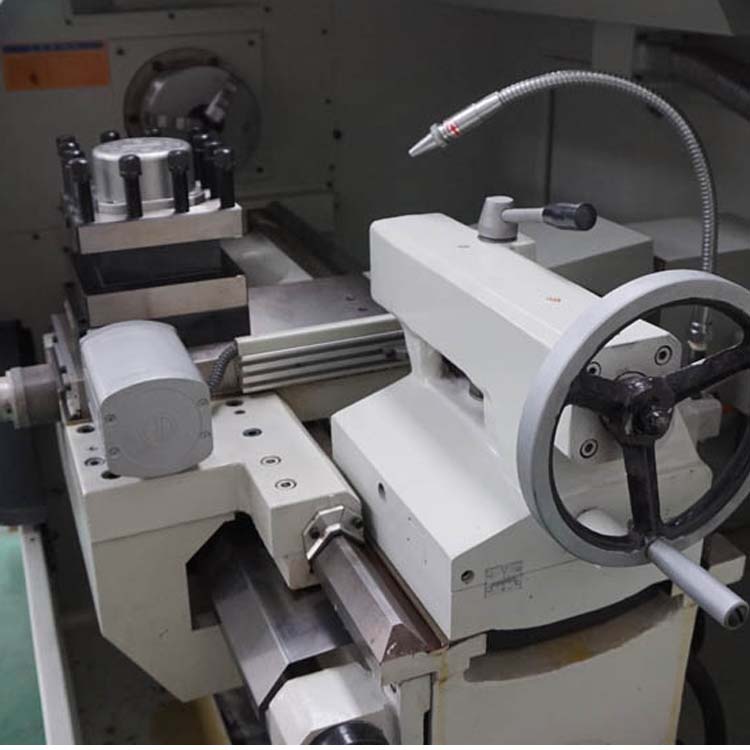

Tailstock

There is a device in the tailstock sleeve to prevent the rotation of the drill bit, which avoids damage to the taper of the inner hole of the tailstock sleeve due to rotation caused by misoperation, effectively protecting the tailstock components.

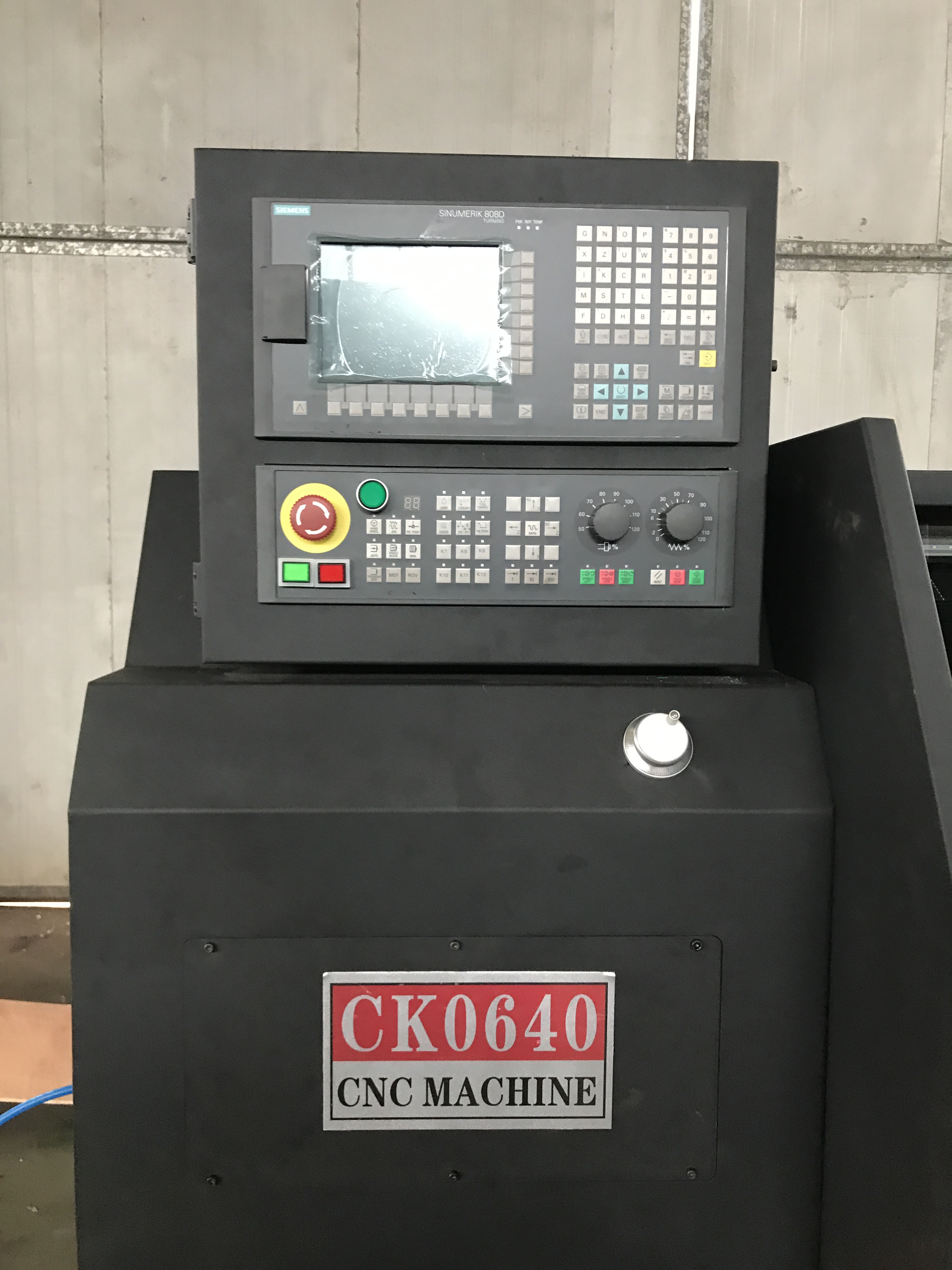

Controller System

The standard configuration is the GSK980TB3 controller system; optional options include Siemens, Fanuc, or Syntec controller systems. Simple and easy to operate, with the operation manual provided.

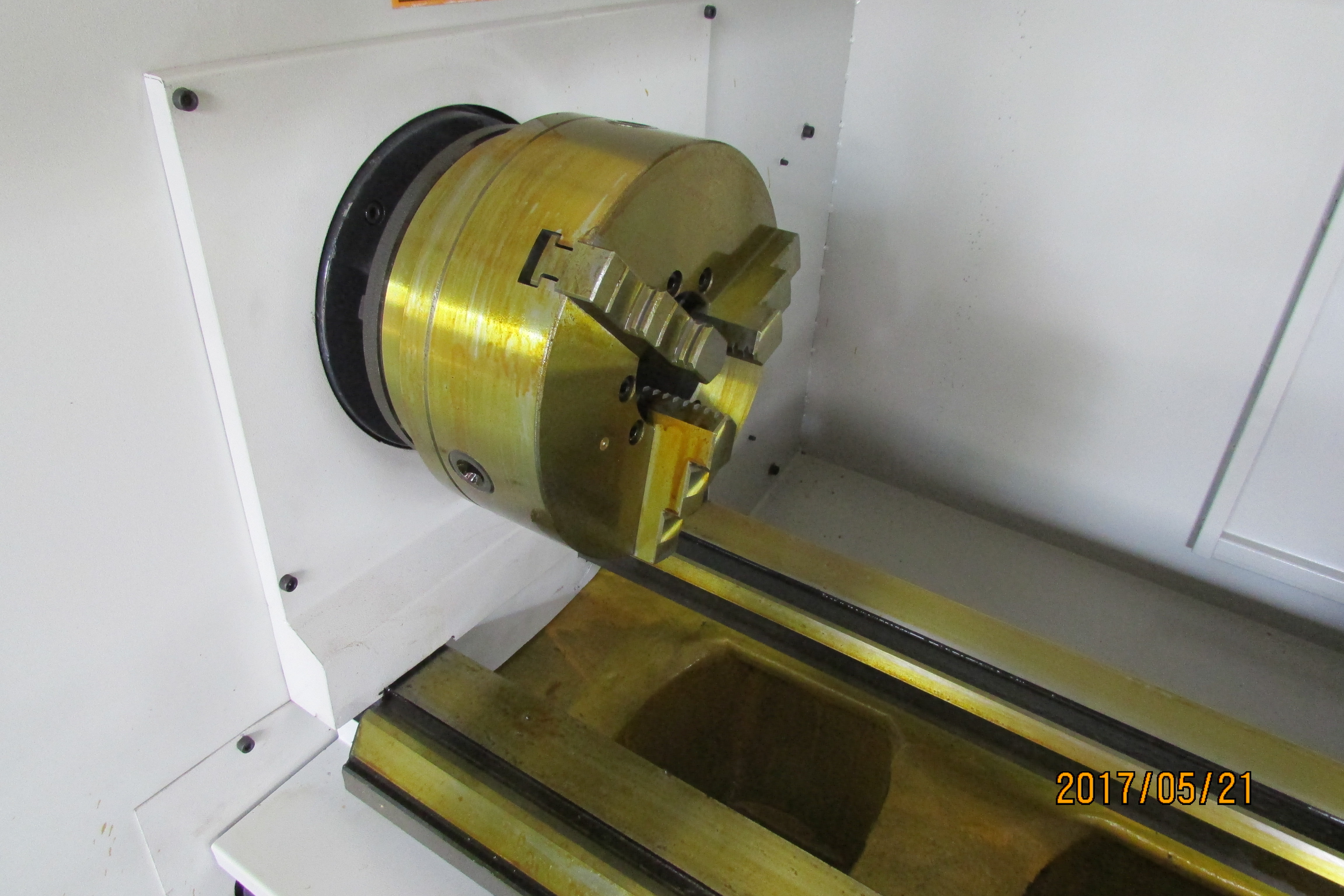

Chuck

The standard chuck is a 3-jaw manual chuck. The optional configuration includes a 3-jaw or 4-jaw hydraulic hollow chuck.

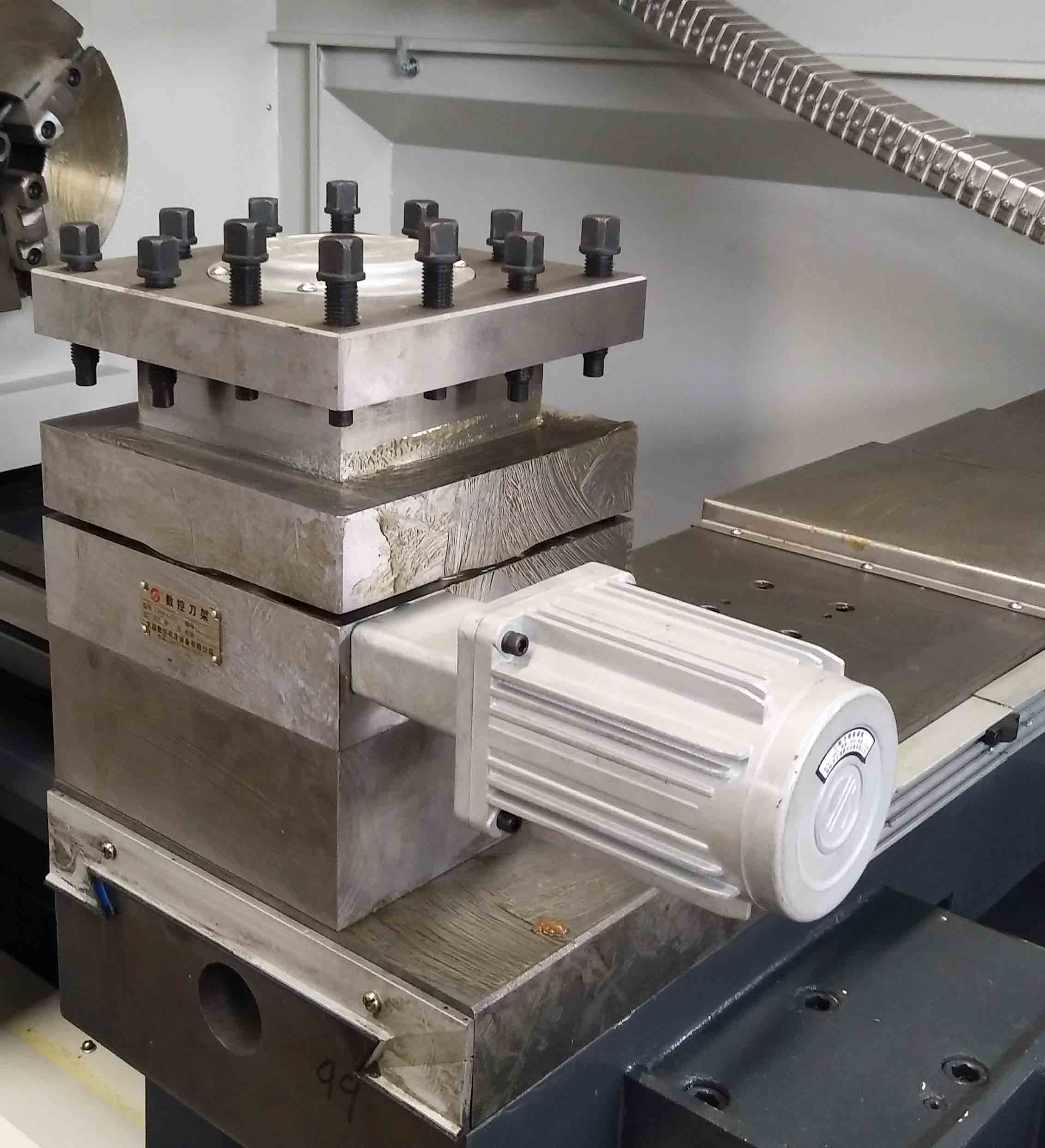

Turret

The standard turret is a 4-station electric turret. Optional configurations include a 6/8-station electric turret or a 12-station living turret.

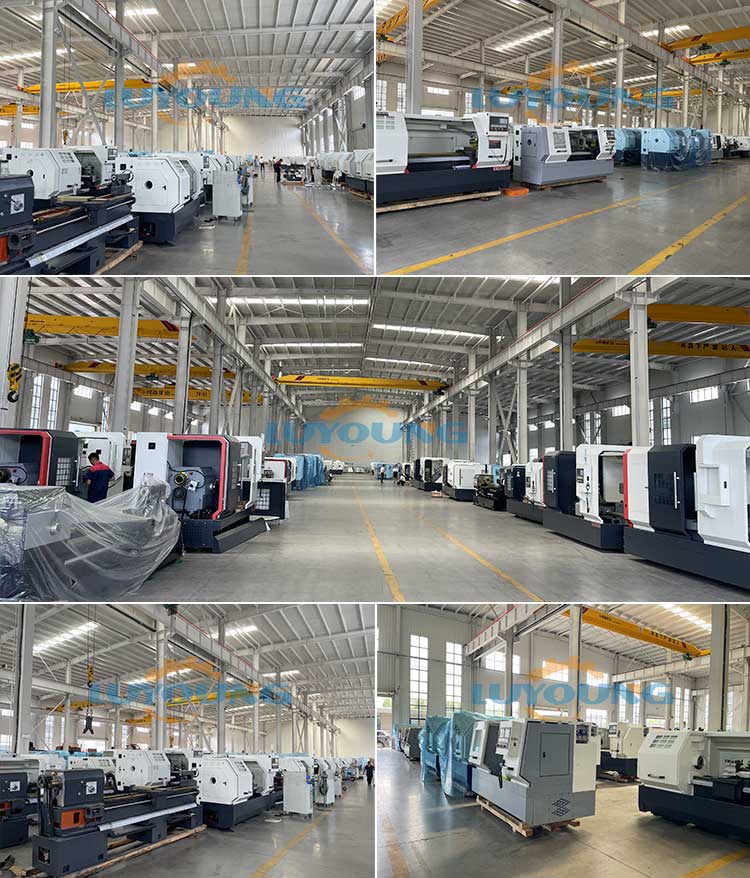

About Our Factory

Established in July 1996, we are one of the professional CNC lathe machine, CNC milling machine, and Swiss lathe machine manufacturers in China. Over more than 20 years of development, we have built three factories specializing in CNC lathe and CNC milling production. With advanced production technology, a dedicated R&D team, and facilities covering more than 5000 square meters, we employ approximately 500 workers and 40 engineers.

Our engineering team has rich experience in equipment selection and process design, allowing us to provide professional, customized solutions quickly and free of charge. We produce over 1000 sets of CNC machines annually, and our tools have been exported to more than 40 countries with excellent feedback.

More than 20 years of production experience.
Exported to more than 40 countries.
More than 300 staff members in the factory.
CE and ISO9001 certification.
24/7 online service support.

Customer Cases

Our Service

We supply 24 hours on-line service.
Upon receiving your request, we will analyze the issue immediately.
We offer professional custom solutions to solve your specific requirements.
The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free replacement accessories. Outside the warranty period, we only charge for the cost of the parts.
Provide lifetime free technical support; you can contact us at any time if you encounter operational difficulties.
We provide overseas services. Engineers can go to the customer's factory for debugging, installation, maintenance, and repair (under normal non-epidemic conditions).

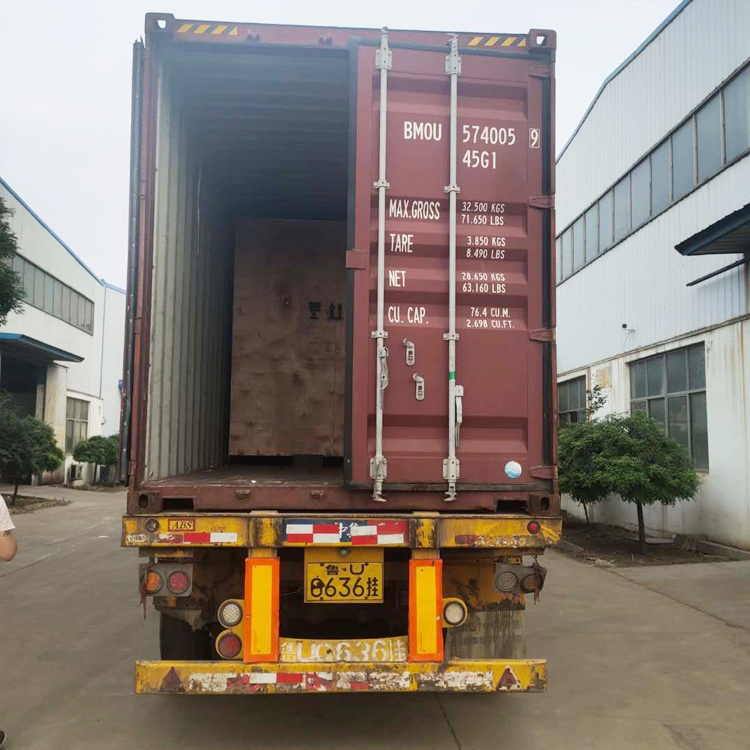

Packaging & Delivery

Port: Qingdao port or Shanghai port
Payment Methods: T/T, L/C, D/P, D/D etc.
Terms: 30% T/T as deposit, 70% balance paid before shipment.
Delivery Time: 30 days after receiving the 30% T/T deposit.
Packaging: Non-fumigation seaworthy plywood packaging.
Base Plate: Strong steel base plate, 3-5 times stronger than normal plywood base plates.
Protection: Water-proof and damp-proof film wrapped around the entire machine.

Frequently Asked Questions

Can the CK6150 CNC lathe machine be customized?

Of course. If our standard configuration cannot meet your needs, please share your specific requirements with us, and we will redesign and produce the machine accordingly.

How long is the warranty period of the CNC lathe machine?

The warranty period is one year. If any parts are damaged within this period, we will send replacements free of charge. We also offer free online training and paid overseas installation and commissioning services.

What are your operational hours for support?

We work online 24 hours a day to provide quotes, technical support, and solutions whenever needed.

Do you support Trade Assurance?

Yes, we process orders with Trade Assurance to guarantee both the quality of the product and the security of your payment.

How do I request a quote?

Please share the model number you need or send us the technical drawings of your workpieces. We will recommend the most suitable machine and provide our best offer within 24 hours.

What packaging is used for shipping the machines?

We use non-fumigation seaworthy plywood packaging reinforced with a steel base plate (3-5 times stronger than standard plywood base plates). The entire machine is also wrapped in a water-resistant and damp-proof film.
