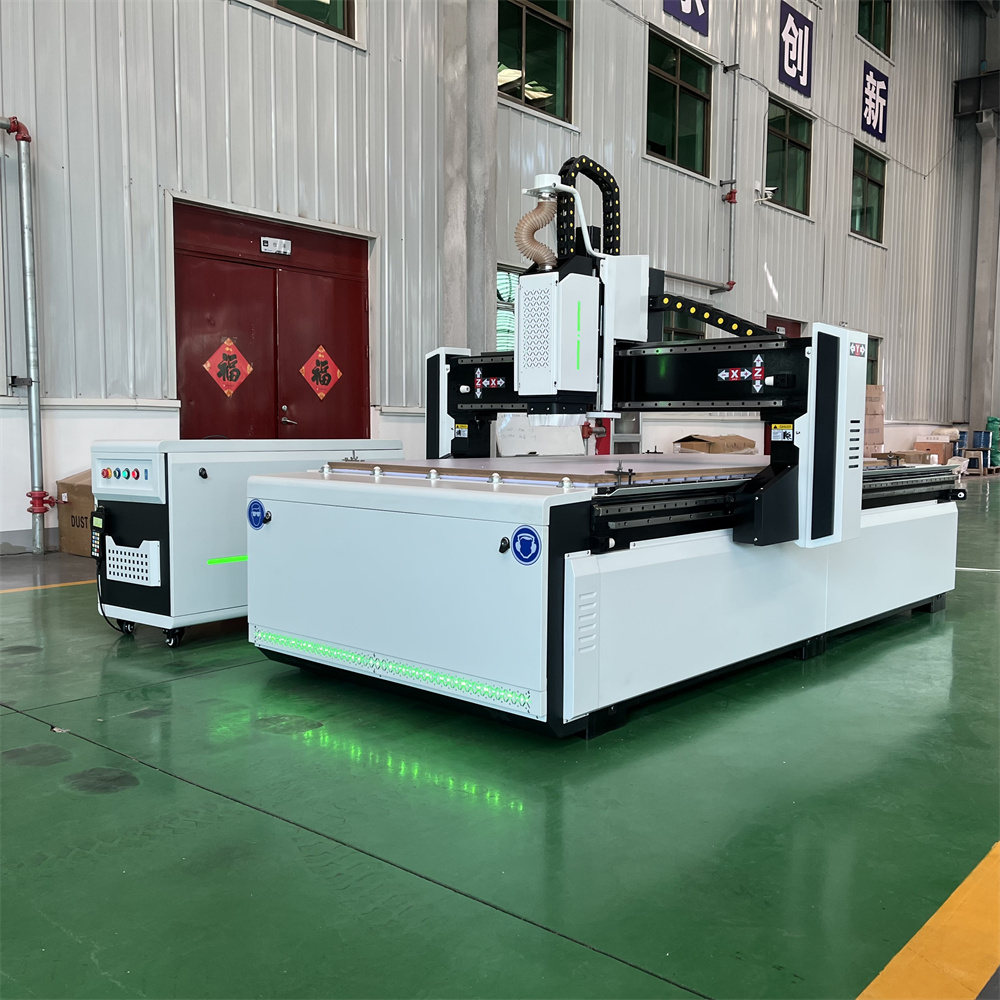

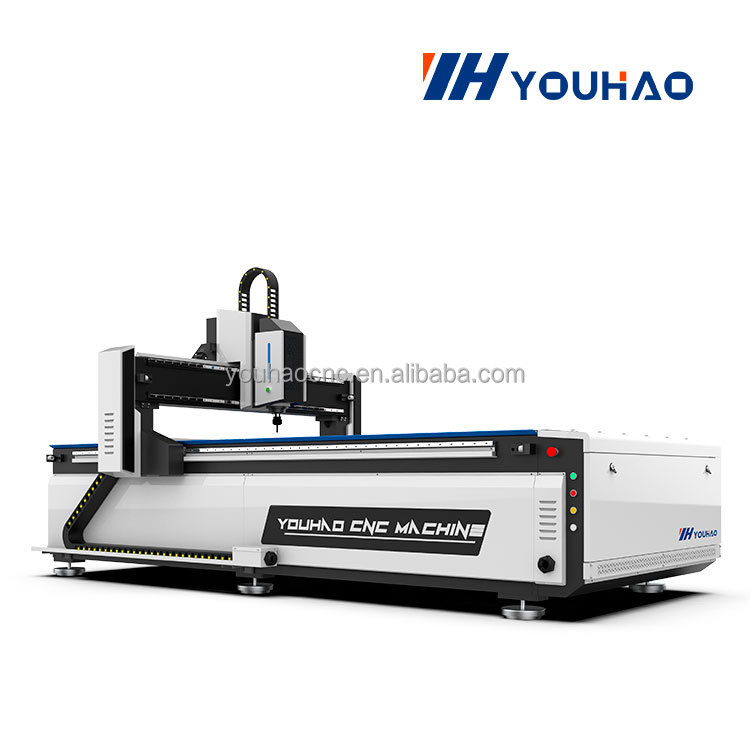

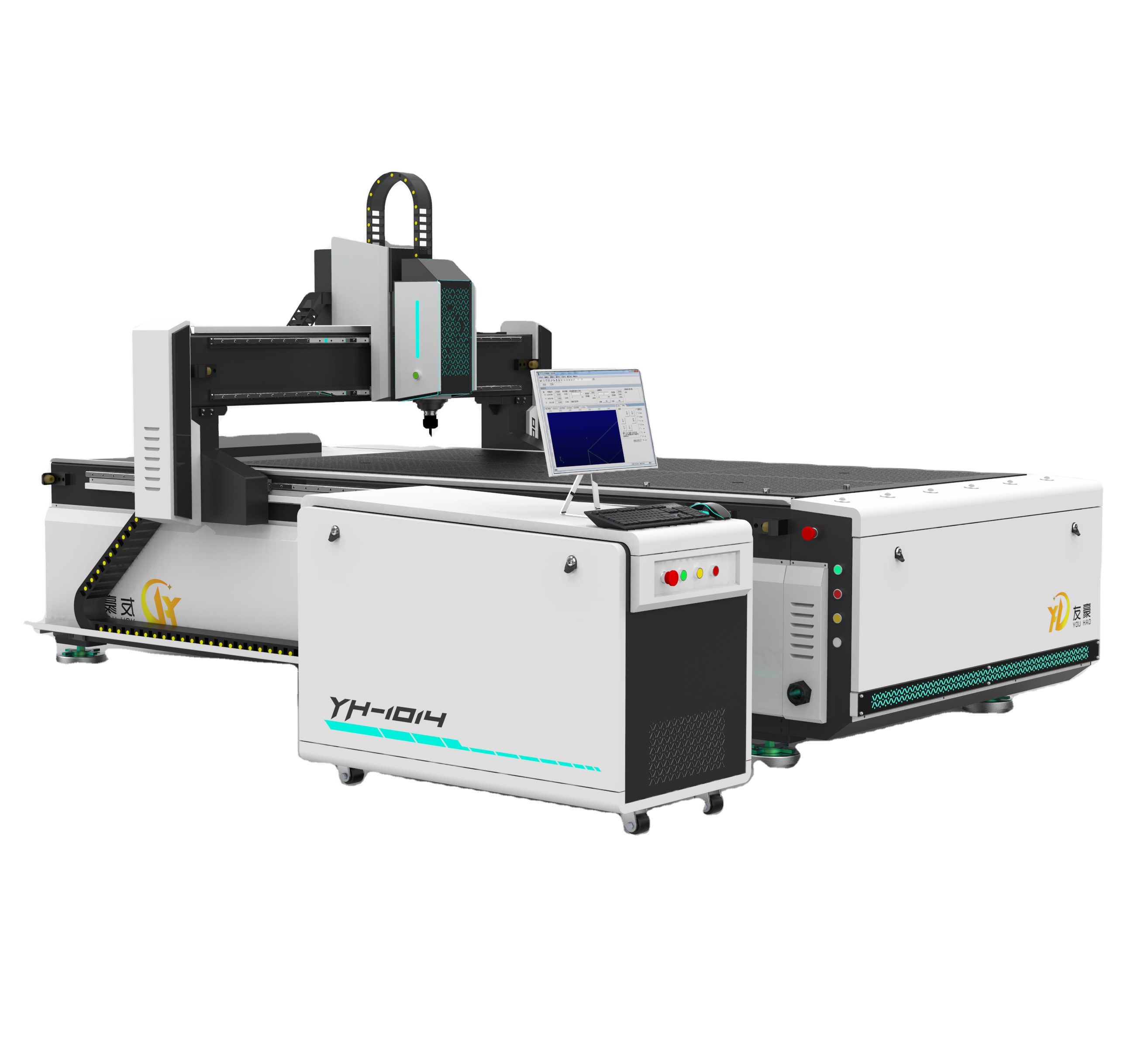

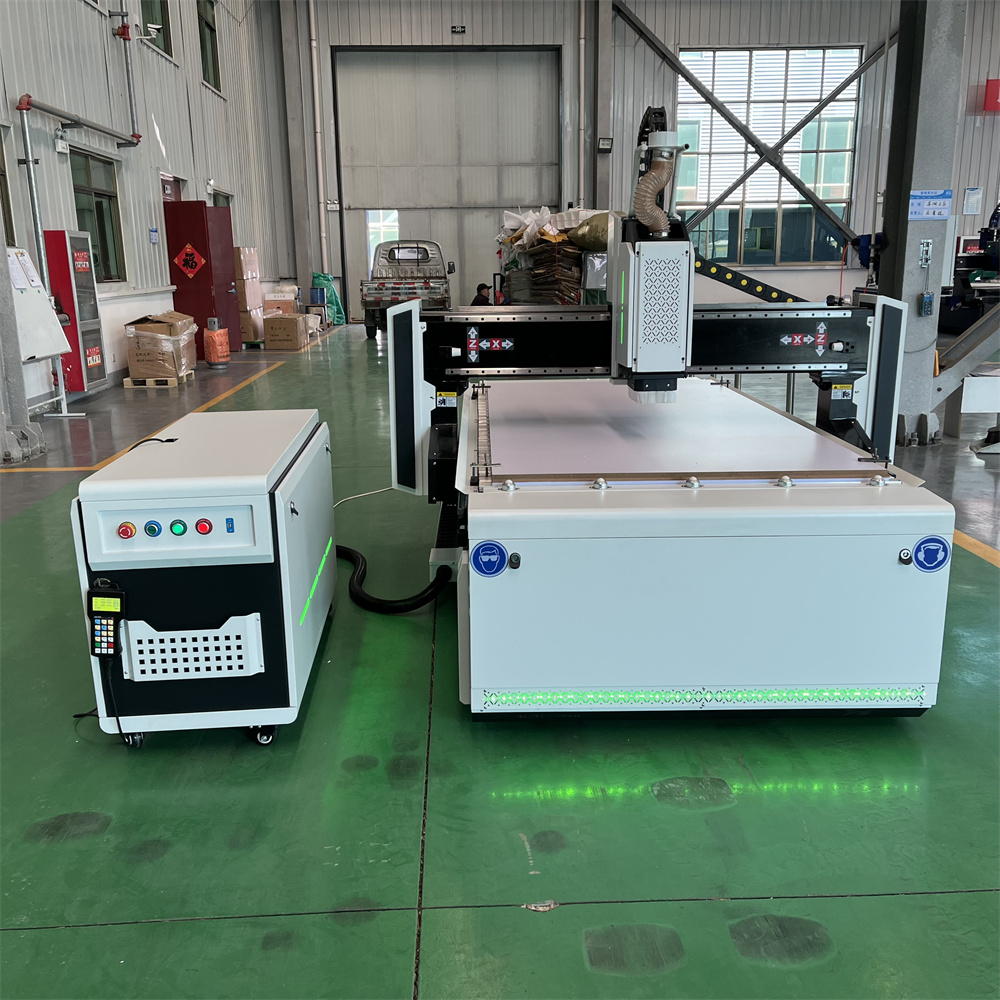

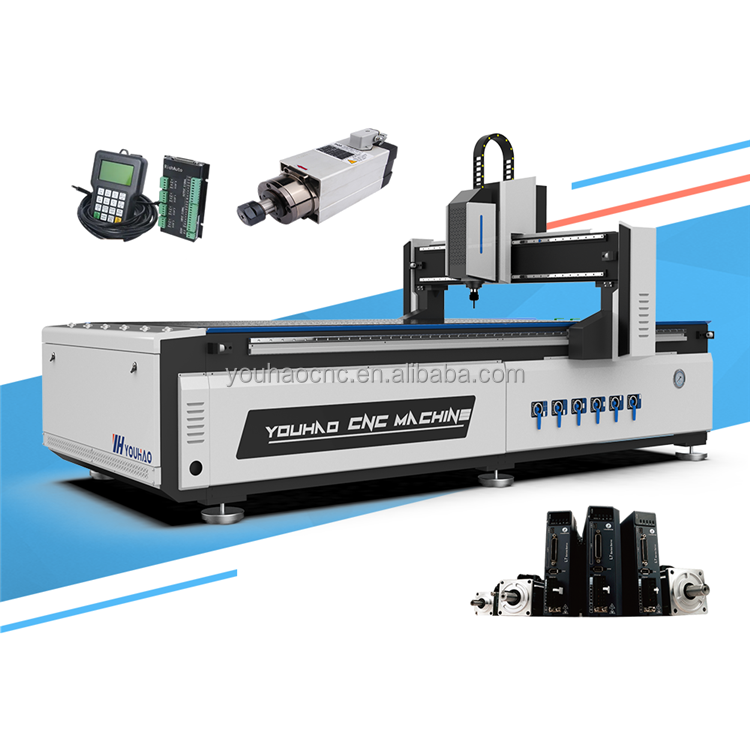

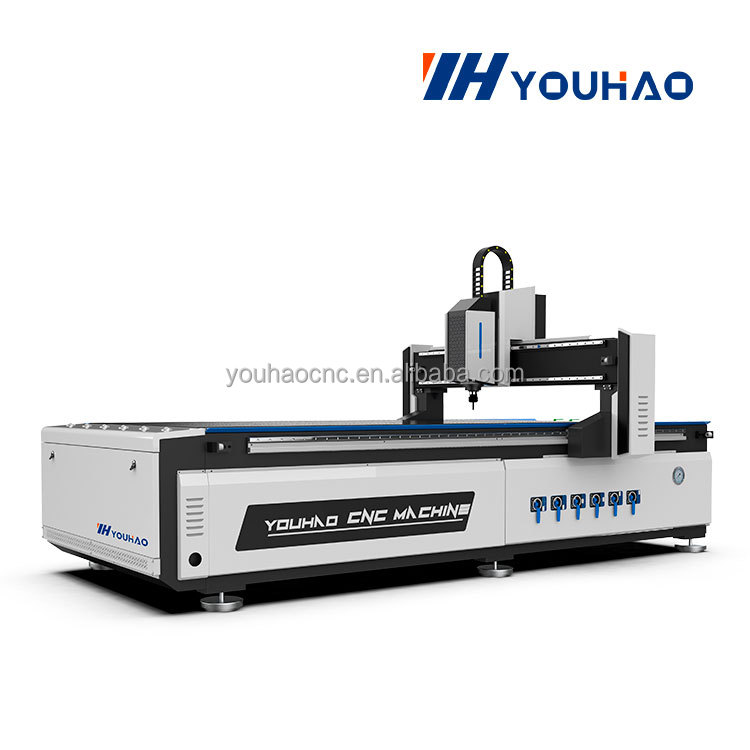

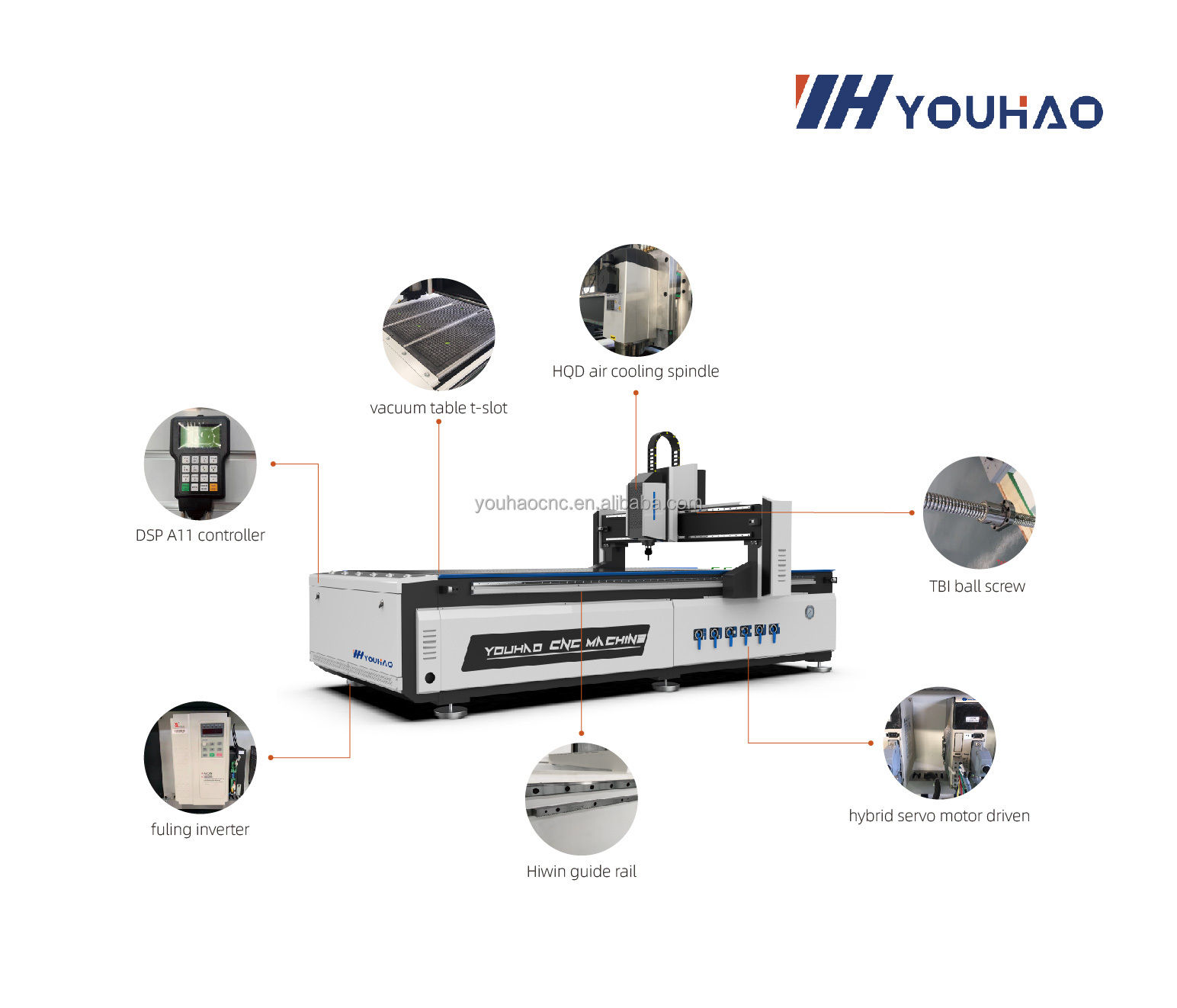

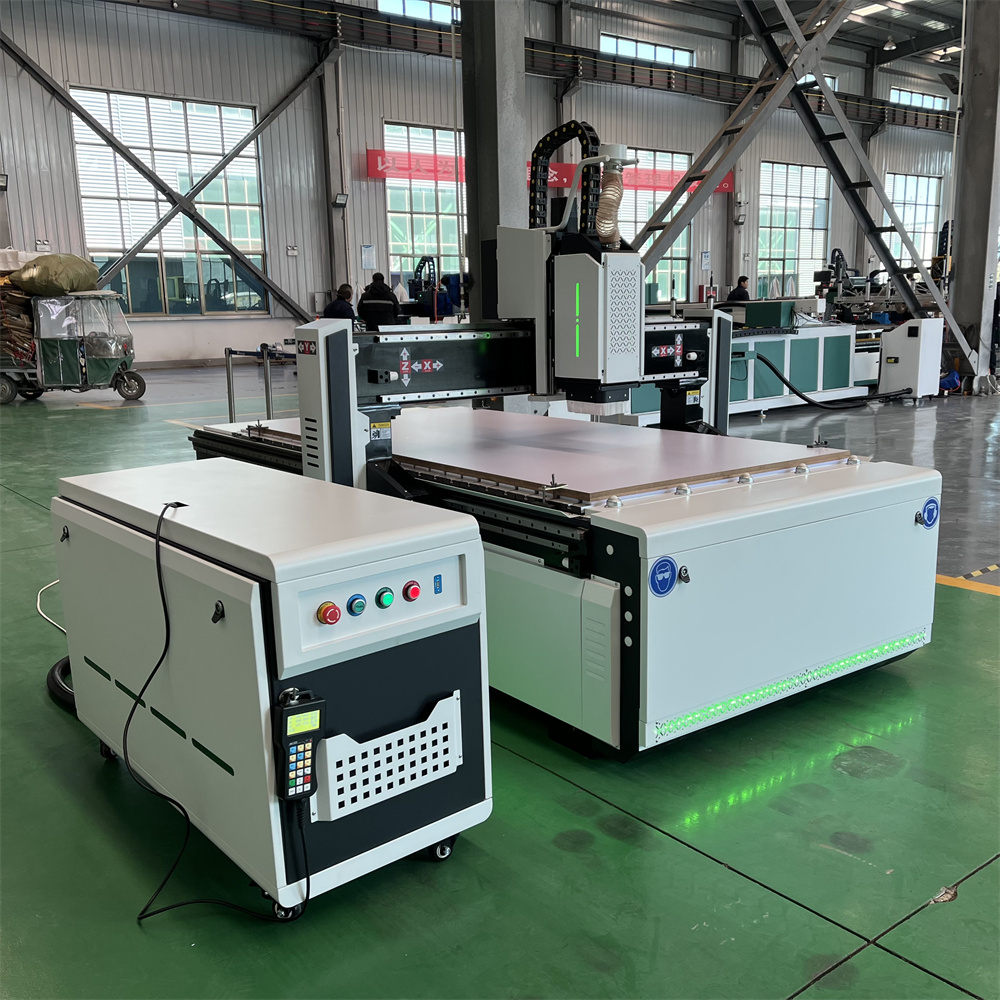

Discover the key components that define the high efficiency and stability of our 3-axis desktop CNC router machine:
| Parameter | Specifications |
|---|---|
| Model | YH-1325 |
| Table size | 1300*2500*200mm |
| Transmitting way | X,Y axis transmitting by gear and rack, Z axis transmitting by rolling ball screw |

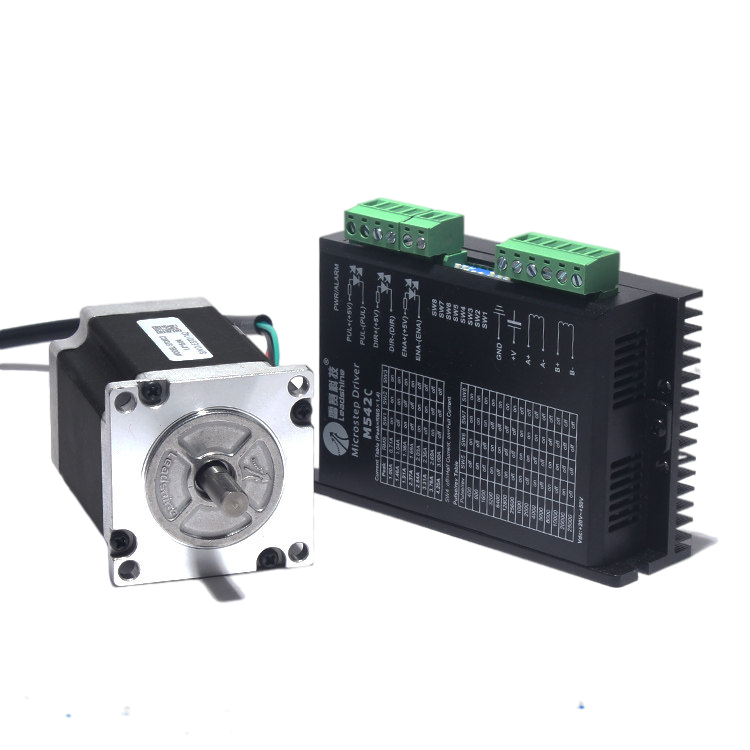

| Motor | Leadshine stepper motor and driver |
| Spindle motor speed | 0~24000rpm/min |
| Control system | DSP A11 control system |
| Limit stop | Hard limit stop and omron etromic |
| Inverter | Follin inverter |
| Working table | T-slot + PVC table |
| Working voltage | AC380V/50Hz |

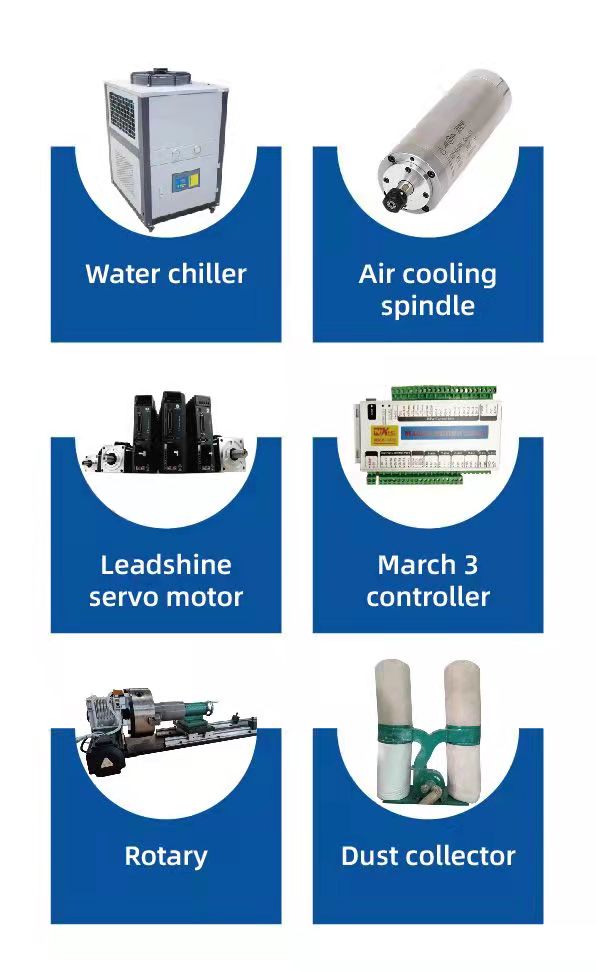

| Optional | Dust collector, Servo system, Vacuum system, Oil spray system, Oil lubrication system |

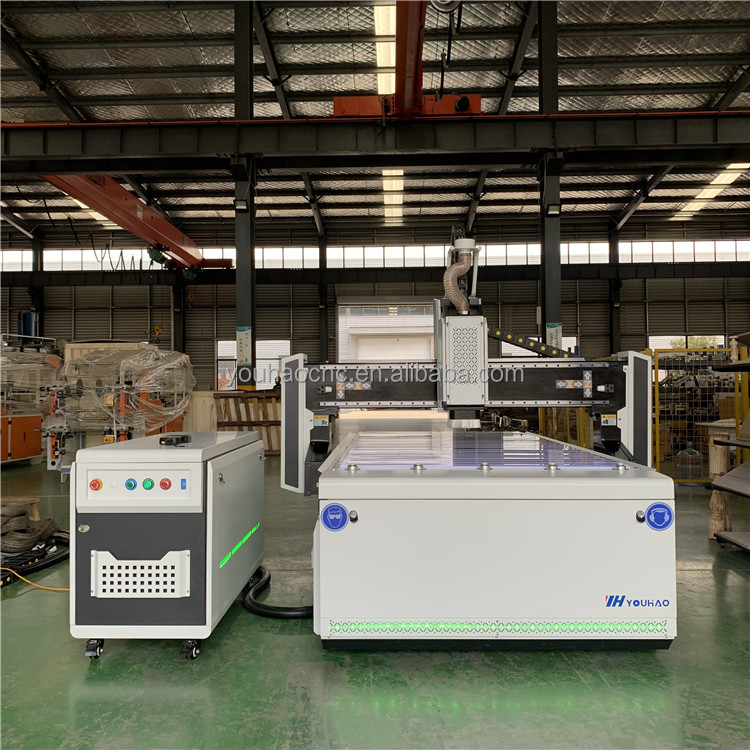

Constructed with a 1.2mm industrial class square tube strong bed, providing a durable build designed to last for over 10 years of intensive routing operations.

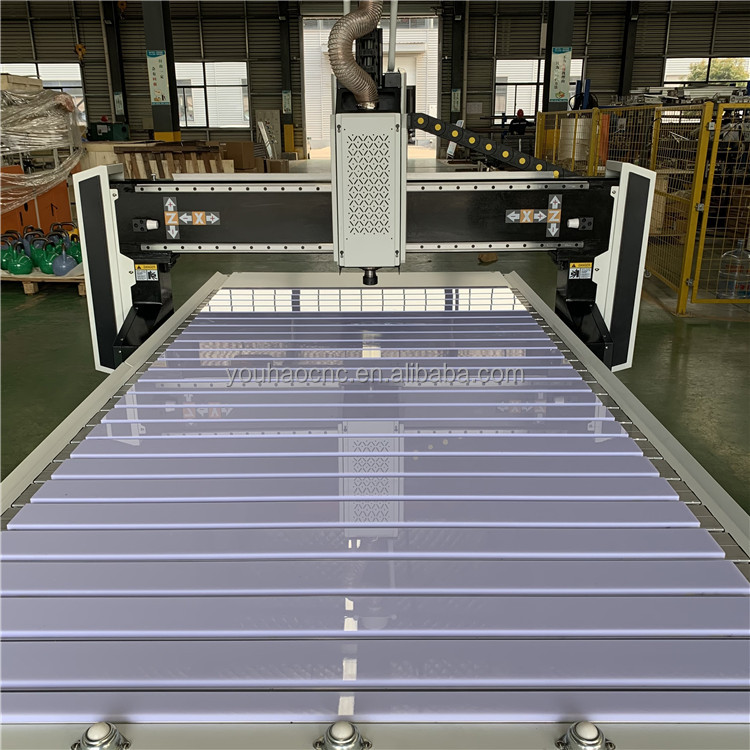

Features a T-slot working table with PVC protection. A vacuum table and vacuum pump are also available for selection based on material requirements.

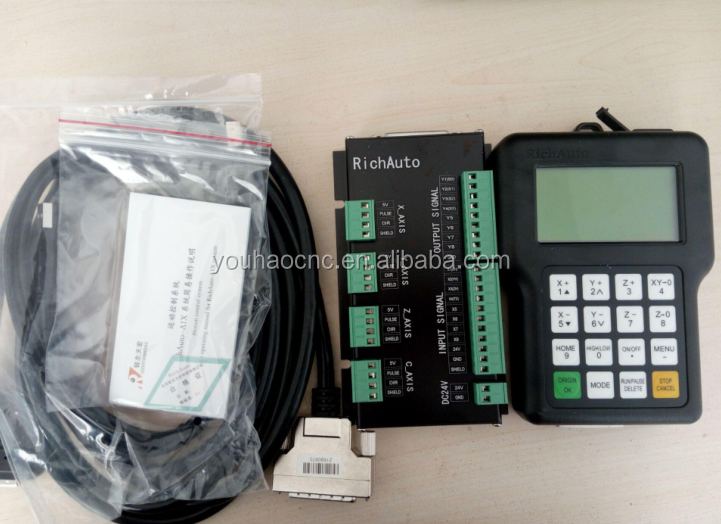

Extremely easy operation with DSP system. Supports offline execution which means you can continue operation tasks even in power off situations.

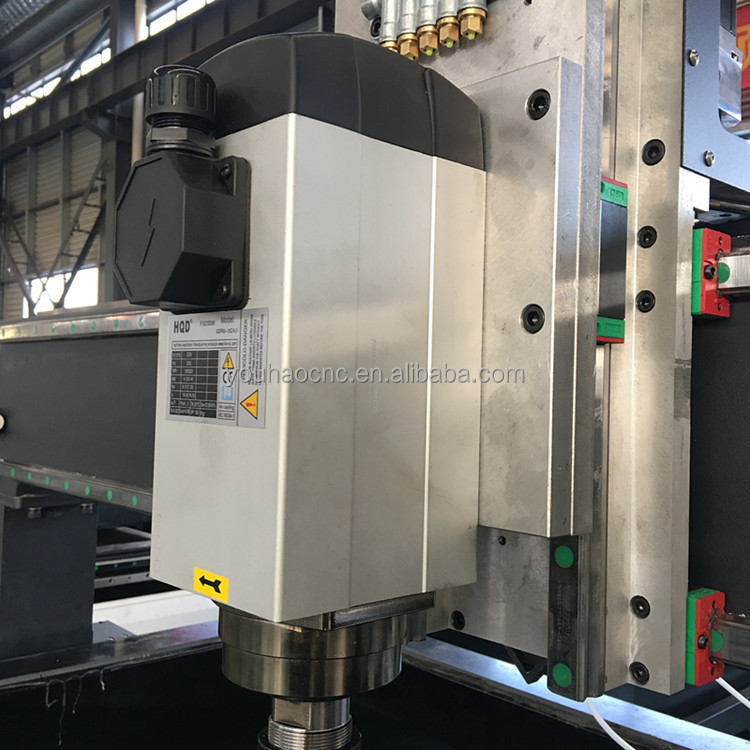

Equipped with either an Italy HSD Air cooling spindle or a high-grade water cooling spindle. Renowned brand names ensure robust usage and after-sale service.
Standard stepper motor setup supported by a large power supply unit. Servo motor configurations are optionally available.

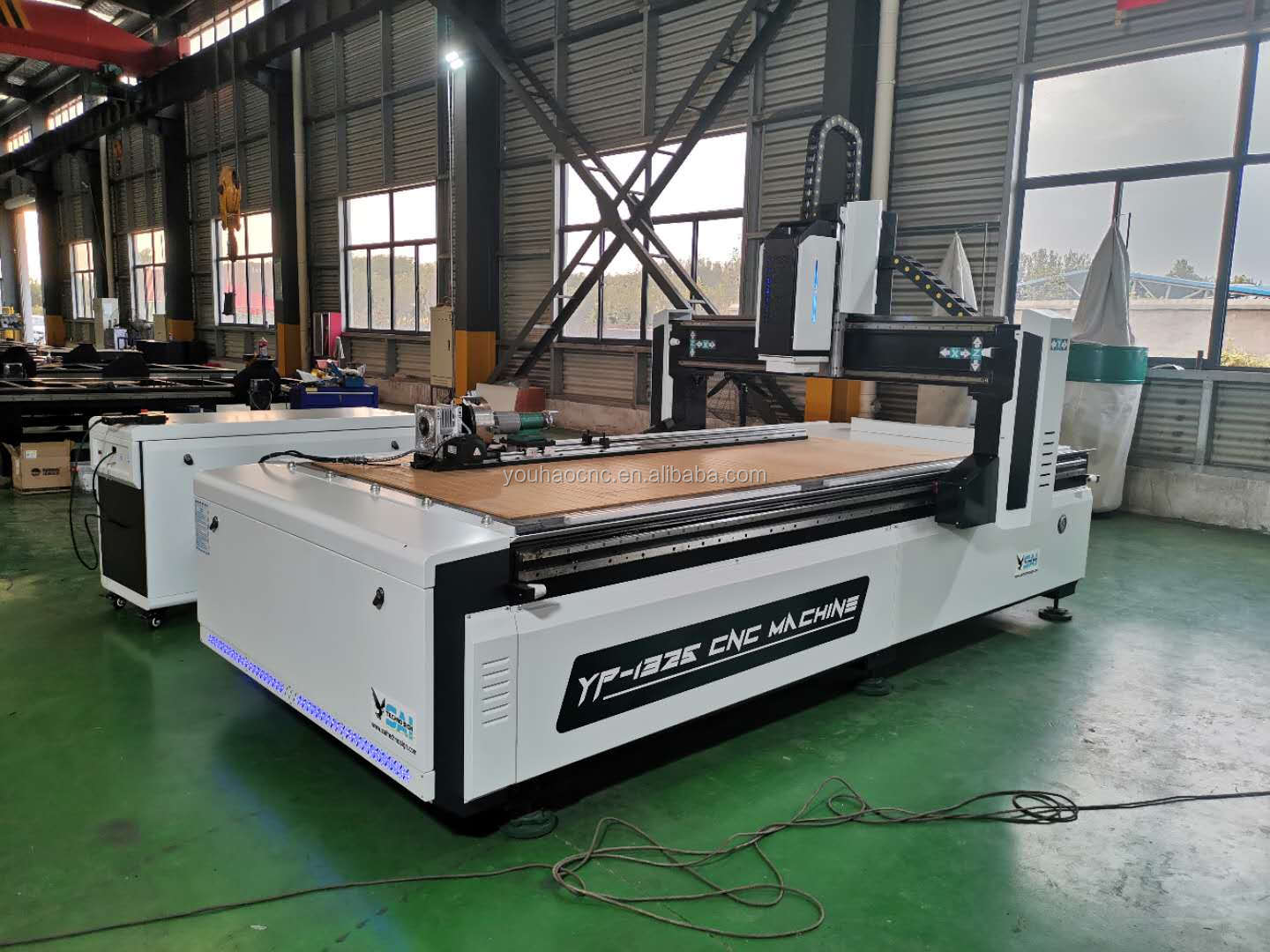

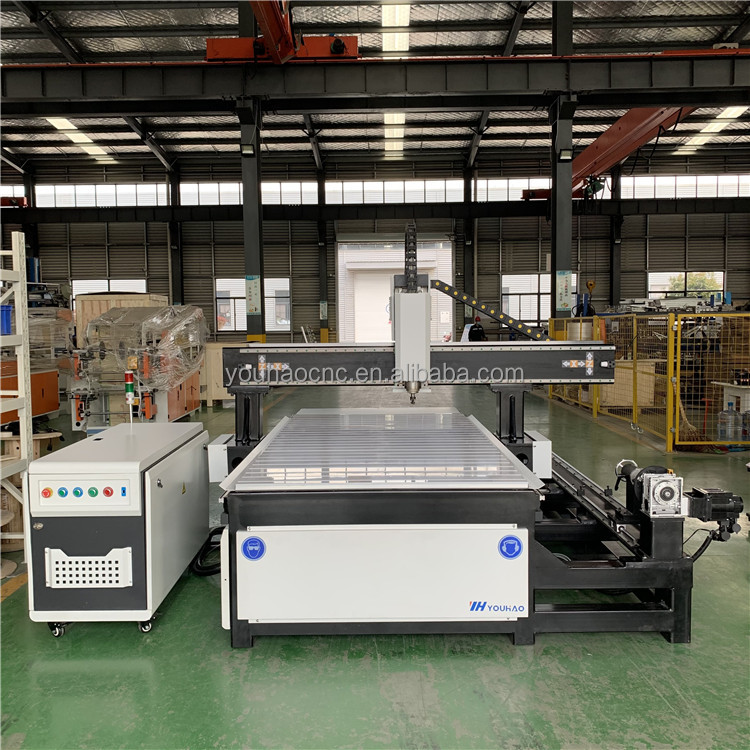

Machines can be customized according to special production needs. For cylinder objects, we provide two distinct structural layouts:
Saves workspace and keeps machine shipping costs lower.
Provides convenient access for switching between flat and cylindrical processing.

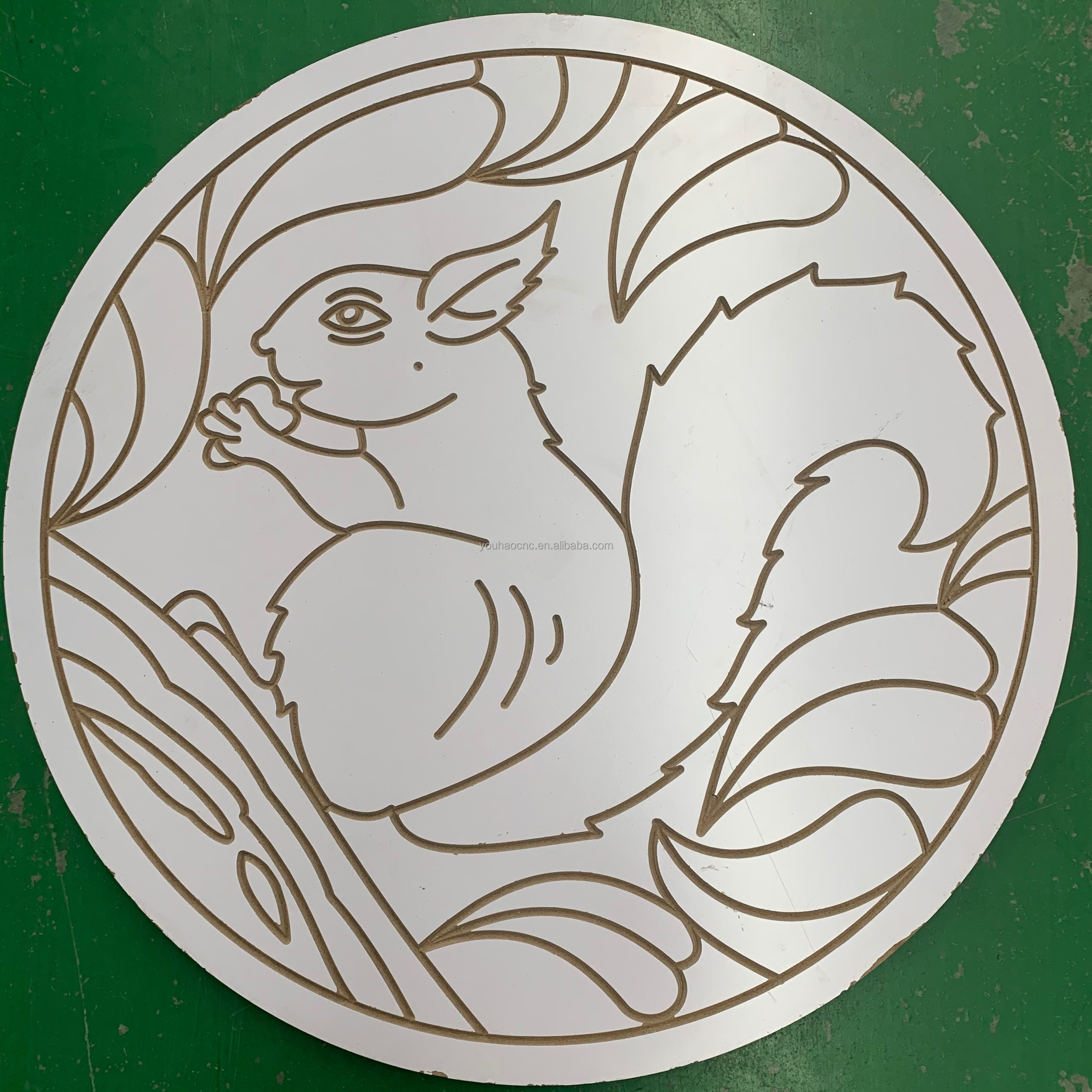

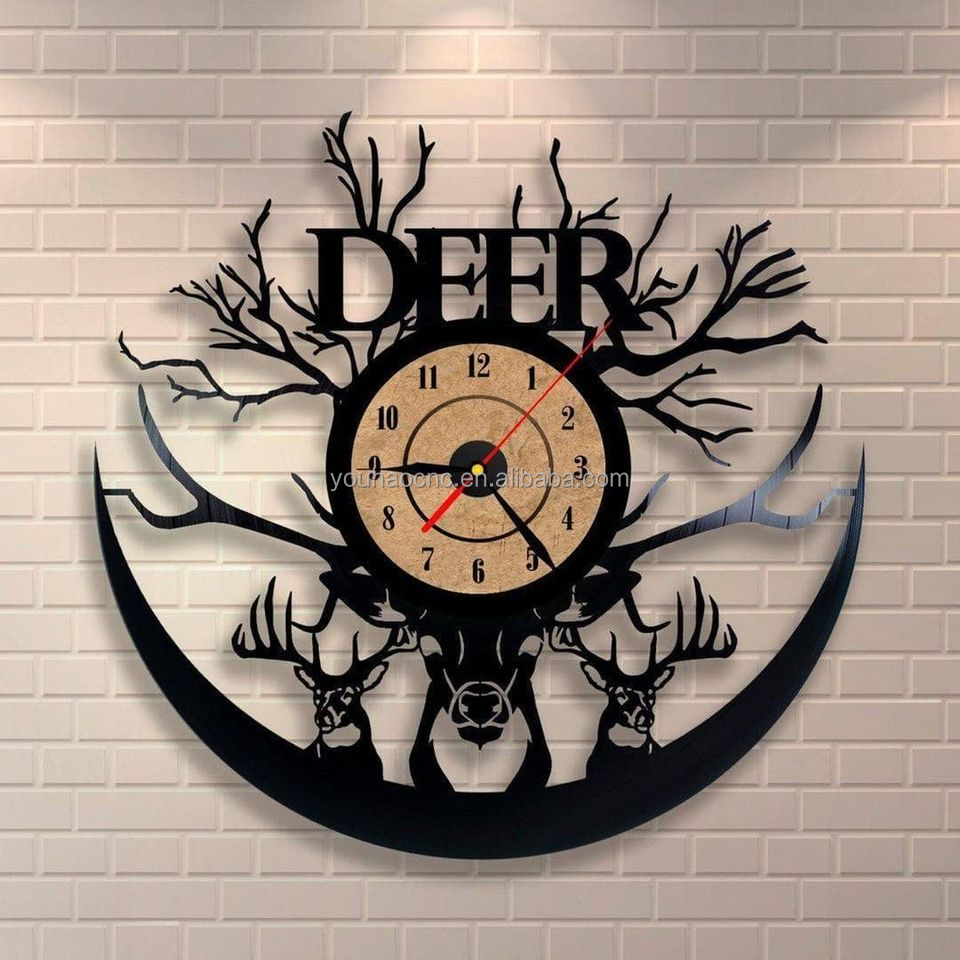

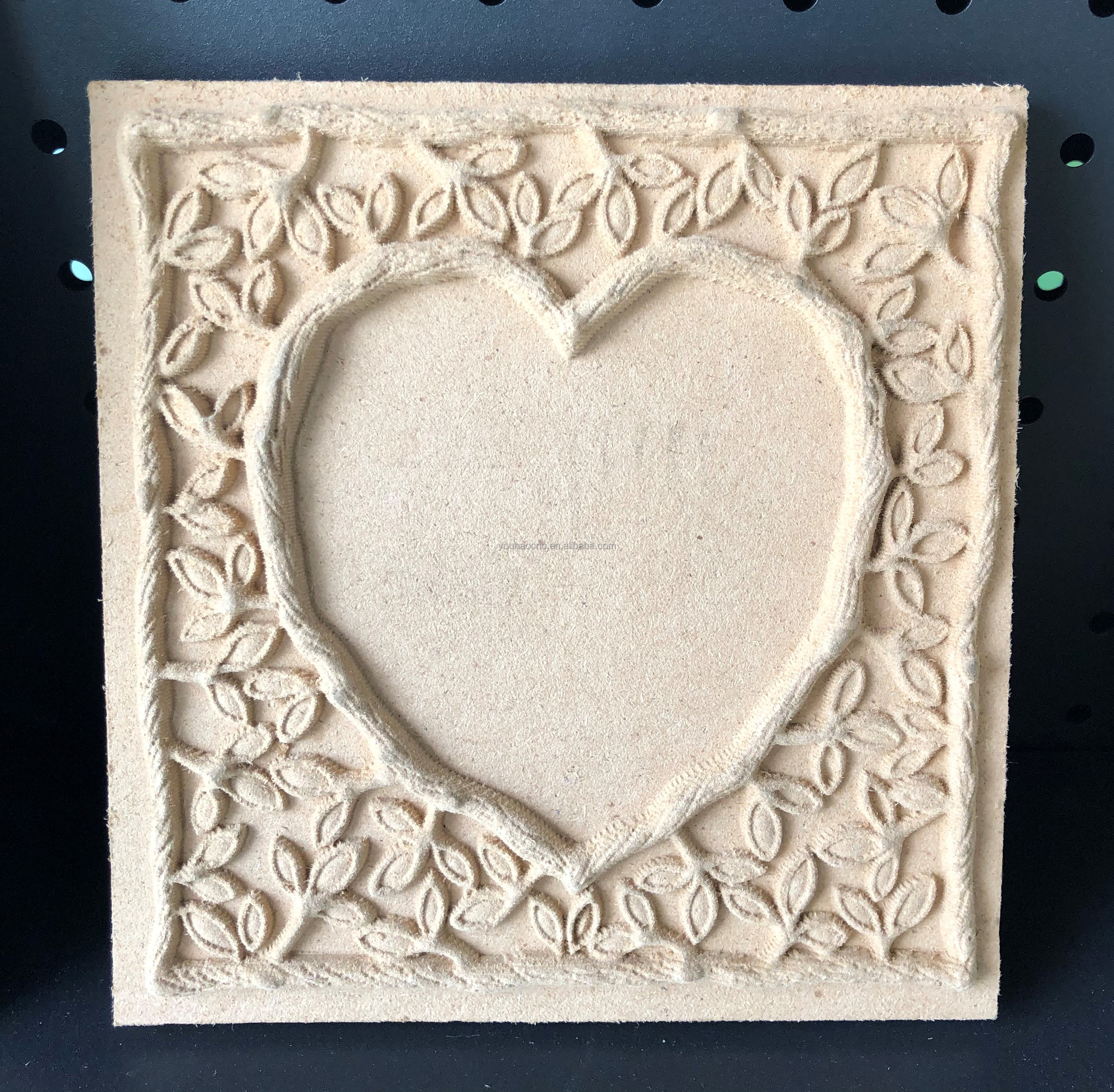

Processing wave plates, fine furniture patterns, antique wood furniture, wooden doors, screens, craft sashes, composite gates, cupboard doors, interior doors, sofa legs, headboards, and more.

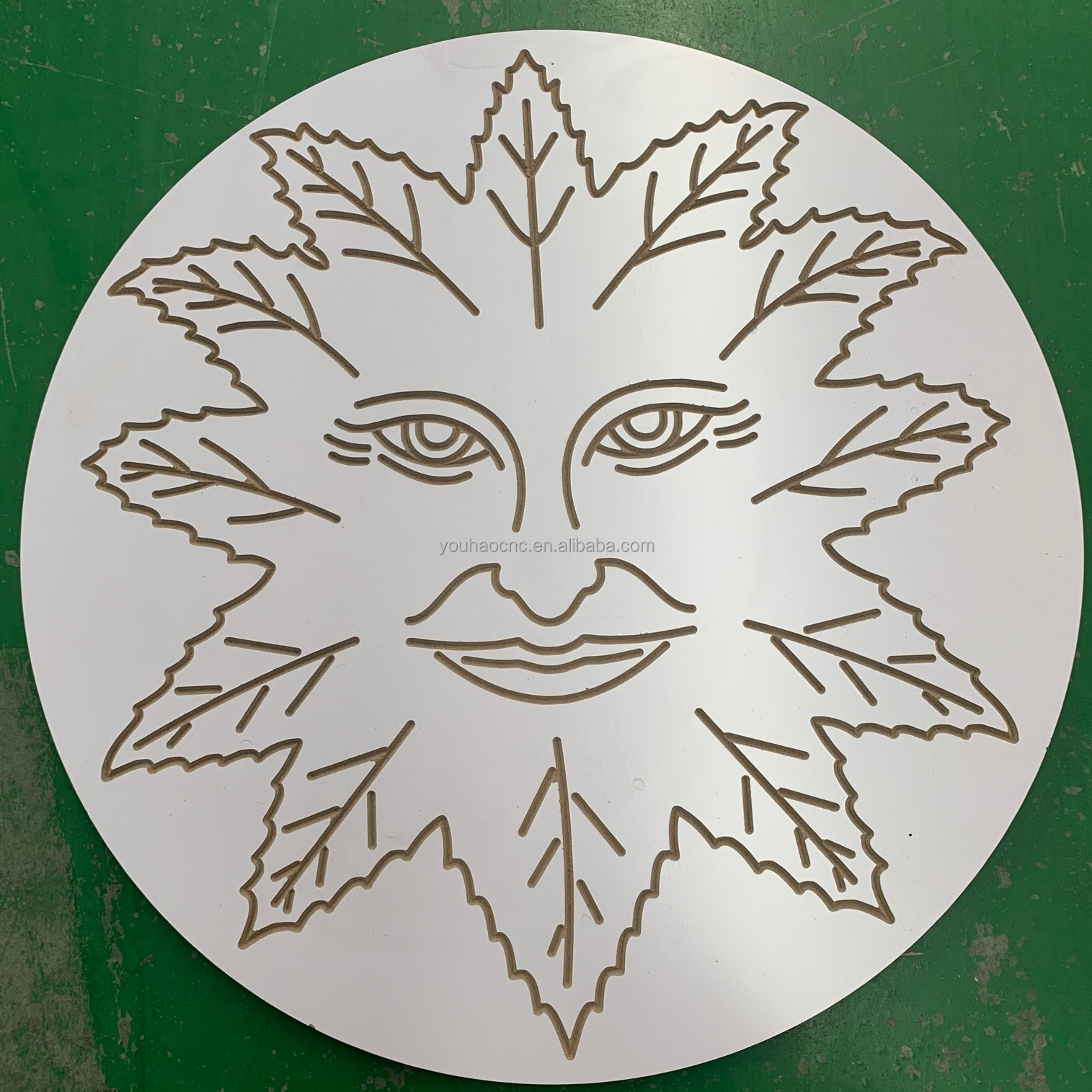

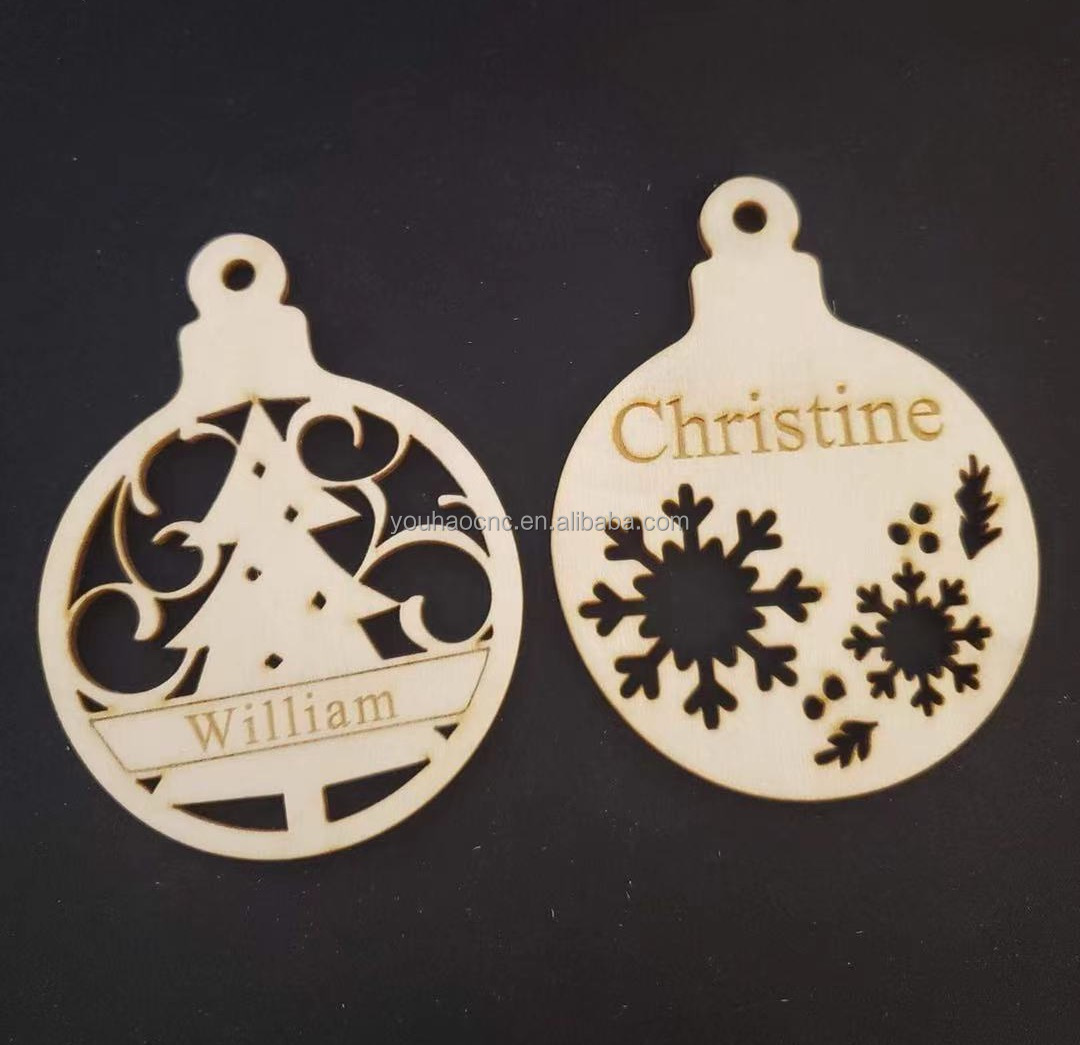

Creation of advertising identification, signages, acrylic engraving & cutting, crystal word making, blaster molding, and other advertising material derivatives.
Sculpting of copper, aluminum, iron, and other metal molds, alongside non-metallic molds like artificial marble, sand, plastic sheeting, PVC pipe, wood planks, relief sculptures, and 3D cylindrical engraving.
To secure the safety of machines during transit, professional, environmentally friendly, convenient, and highly efficient packaging services are provided.
When choosing a CNC Mill to facilitate specific production operations, the following key details are essential to observe:
Determine the maximum size dimensions of your workpiece. The maximum travel limit of the CNC machine dictates the size it can route.
Softer materials like wood require less drive power than hard metals like steel. Match your materials with the proper spindle power.
Harder materials require a stiffer, more robust CNC router structure to prevent torsional vibration and ensure high accuracy.
Ensure the CNC router is tailored precisely to the material parameters you cut most. Customized options secure highly precise outcomes.
