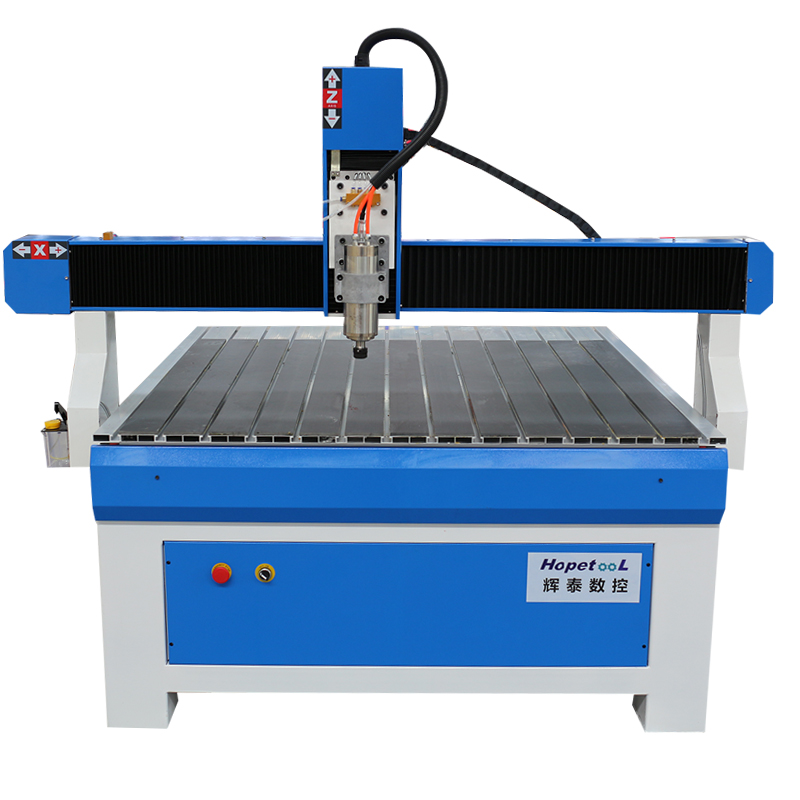

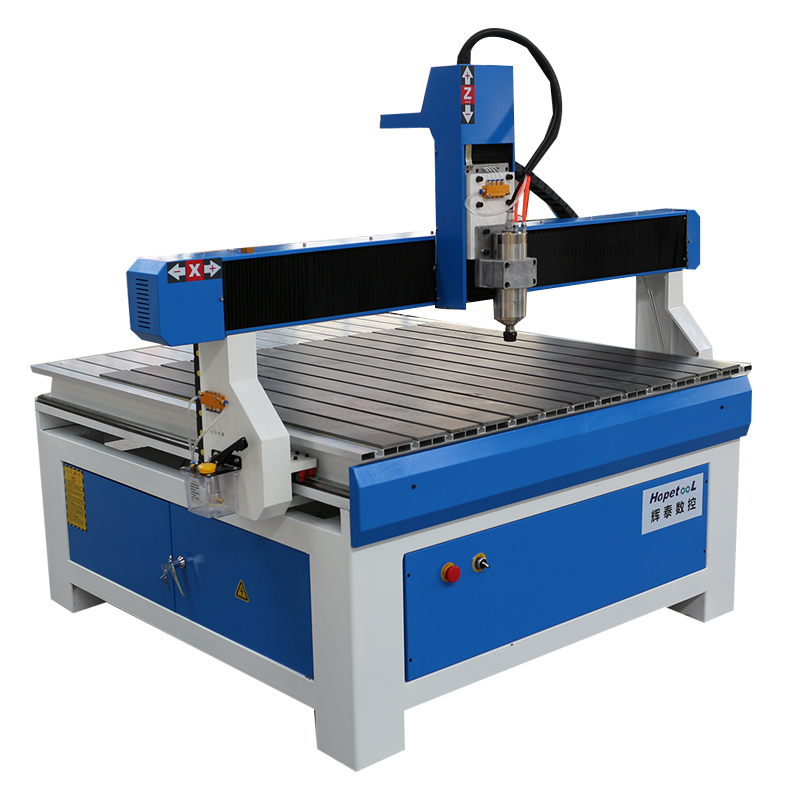

It is capable of carving and cutting various materials, such as density board, solid wood, PVC board, various plastic boards, and acrylic boards, etc.
| No. | Description | Parameter | No. | Description | Parameter |
|---|---|---|---|---|---|
| 1 | XYZ working area | 1200*1200*100mm | 13 | work mode | Stepper |
| 2 | Table size | 1750*1550mm | 14 | Working voltage | AC220V |
| 3 | XYZ travel positioning accuracy | ±0.01mm | 15 | Command language | G code |
| 4 | XYZ repositioning positioning accuracy | ±0.01mm | 16 | Interface | USB or parallel port |

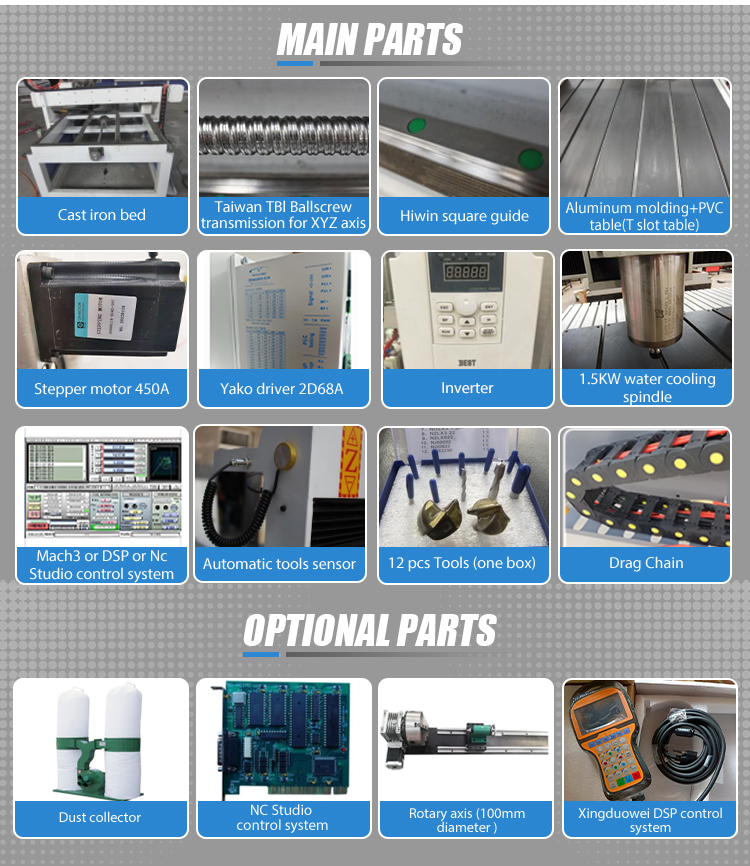

| 5 | Table surface | Aluminum molding | 17 | Operating system | Ncstudio/DSP/Mach3 |
| 6 | Lathe structure | Cast iron | 18 | Flash memory | 128 |

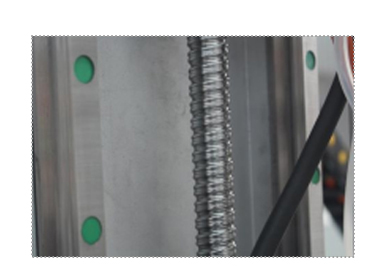

| 7 | drive system X-Y axis | Ball screw | 19 | X-Y resolution | ≤0.025mm |
| 8 | drive system Z axis | Ball screw | 20 | Software environment | Type, Artcam, Ucancam |

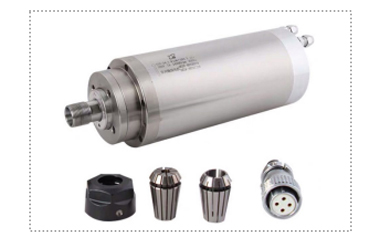

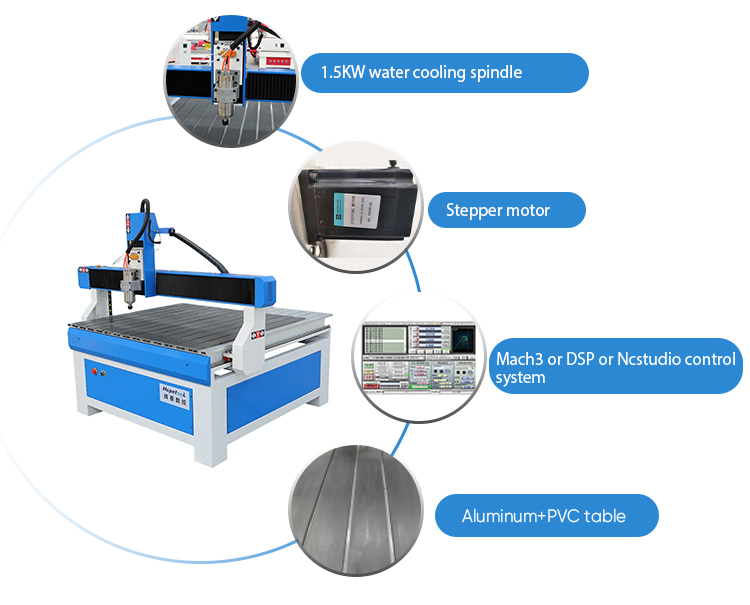

| 9 | Spindle power | 1.5/2.2/3.2KW | 21 | Running environment | Temperature: 0-45°C |
| 10 | Max velocity | 8m/min | 22 | Packing size | 2000*1850*1750mm |
| 11 | Max working speed | 6m/min | 23 | Net weight | 400KG |
| 12 | Spindle speed | 0-24000rpm | 24 | Gross weight | 530KG |
We are a professional company specializing in developing and manufacturing CNC routers and CO2 laser machines. After 15 years' hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries. We are a professional manufacturer of CNC routers, 1325 CO2 laser machines, 3000w 3015 Fiber laser cutting machines, 3000W Handheld laser cutting machines, bridge cutting machines, push table saws, and 120A 1530 Plasma laser cutting machines. Our company has been established for 15 years.
