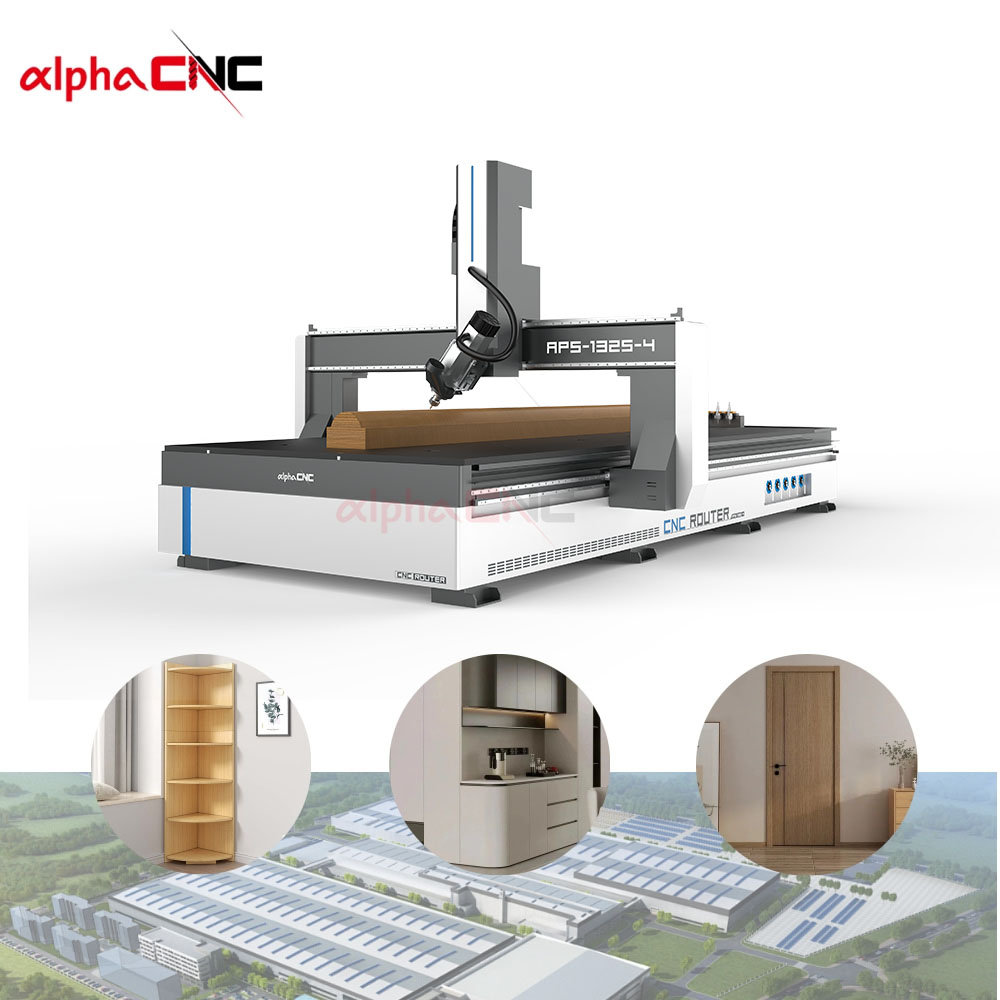

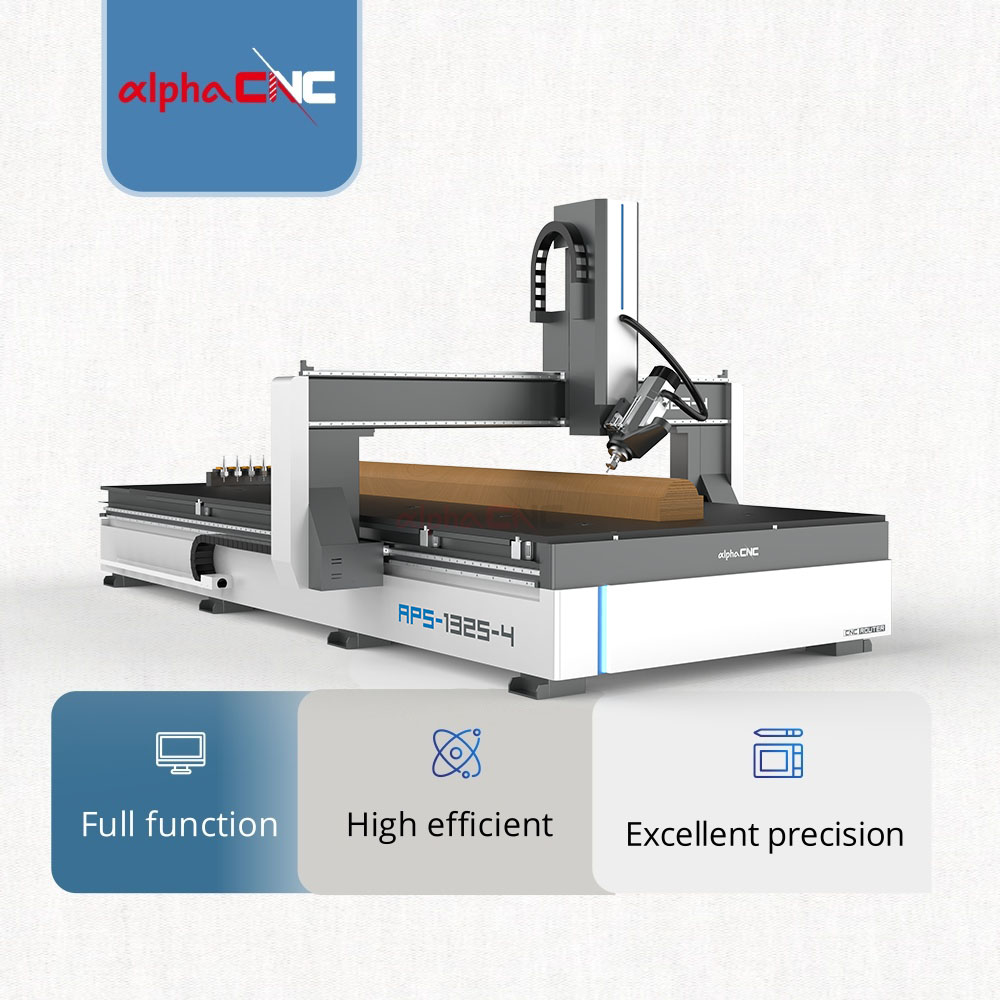

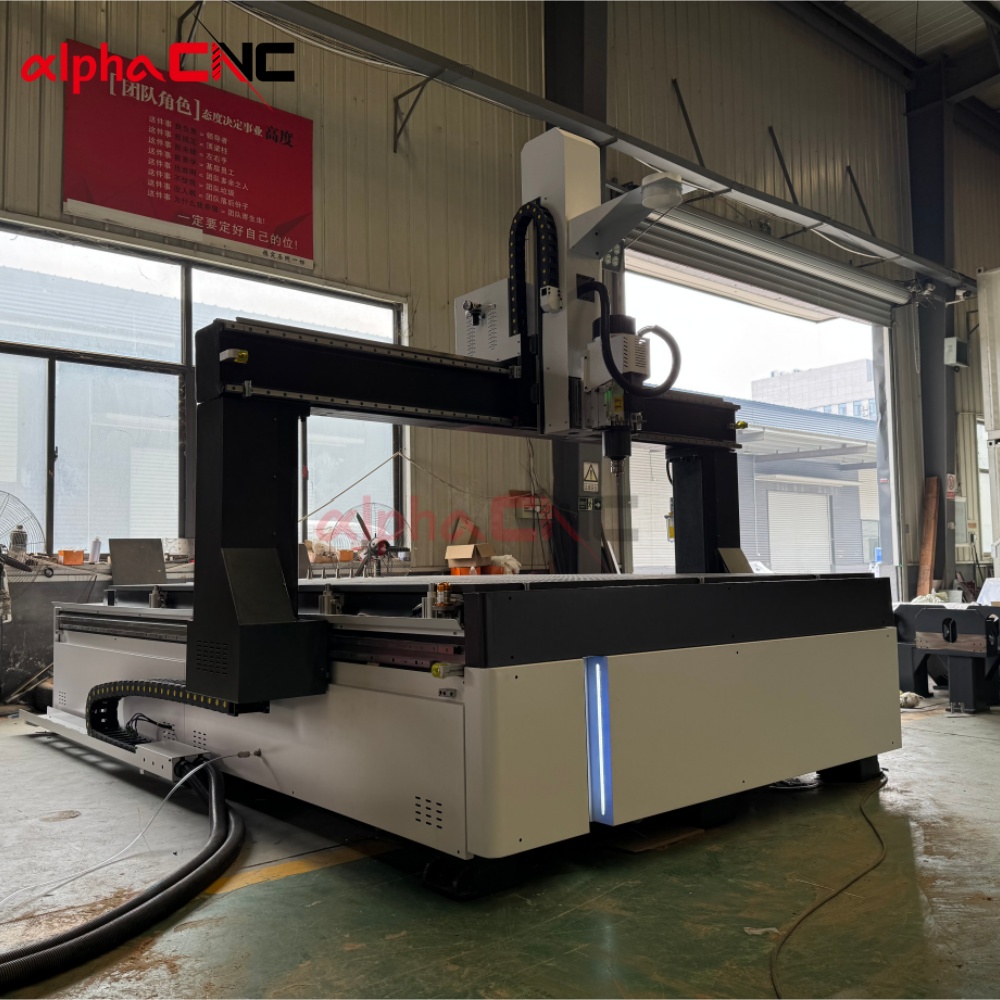

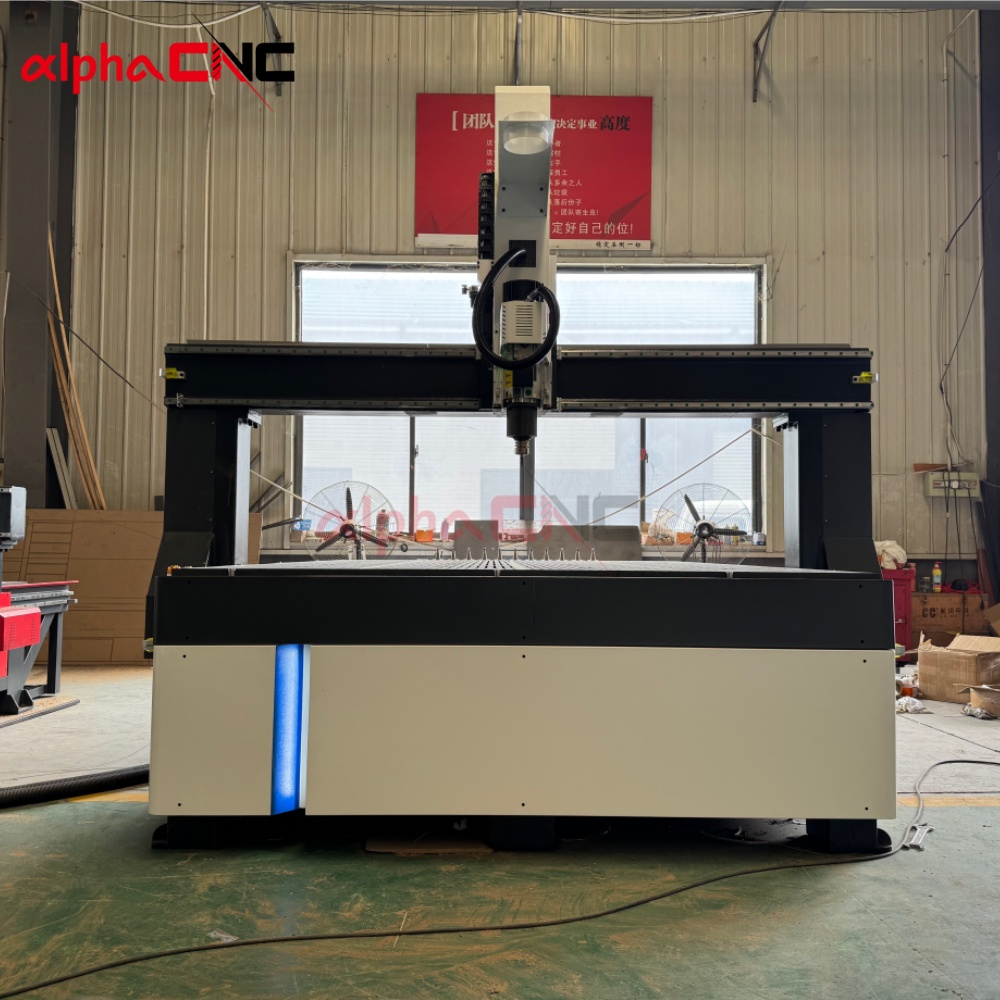

Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
1 / 5
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture
Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture

Alpha CNC Router 4 Axis ATC Wood Working CNC Milling Machine High Speed 3D Carving 4axis ATC CNC Router For Furniture

Send Inquiry

Product Description

4 Axis ATC CNC Router

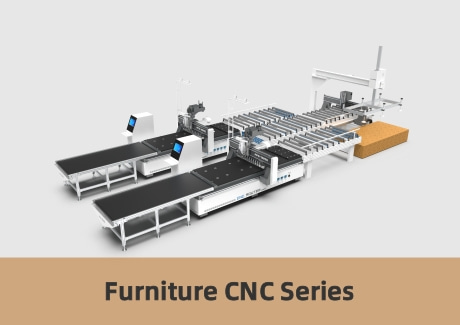

CNC Router Processing 1 CNC Router Processing 2
CNC Machine Detail 1 CNC Machine Detail 2
Products Description
Product Overview
The APS-1325 4 Axis ATC CNC Router excels in heavy-duty 3D wood carving, furniture manufacturing, and intricate design work on wood, MDF, and polywood. Its advanced 4-axis system enables unmatched precision for complex projects like custom furniture and decorative art. Customize working areas and specifications to fit your workshop needs.

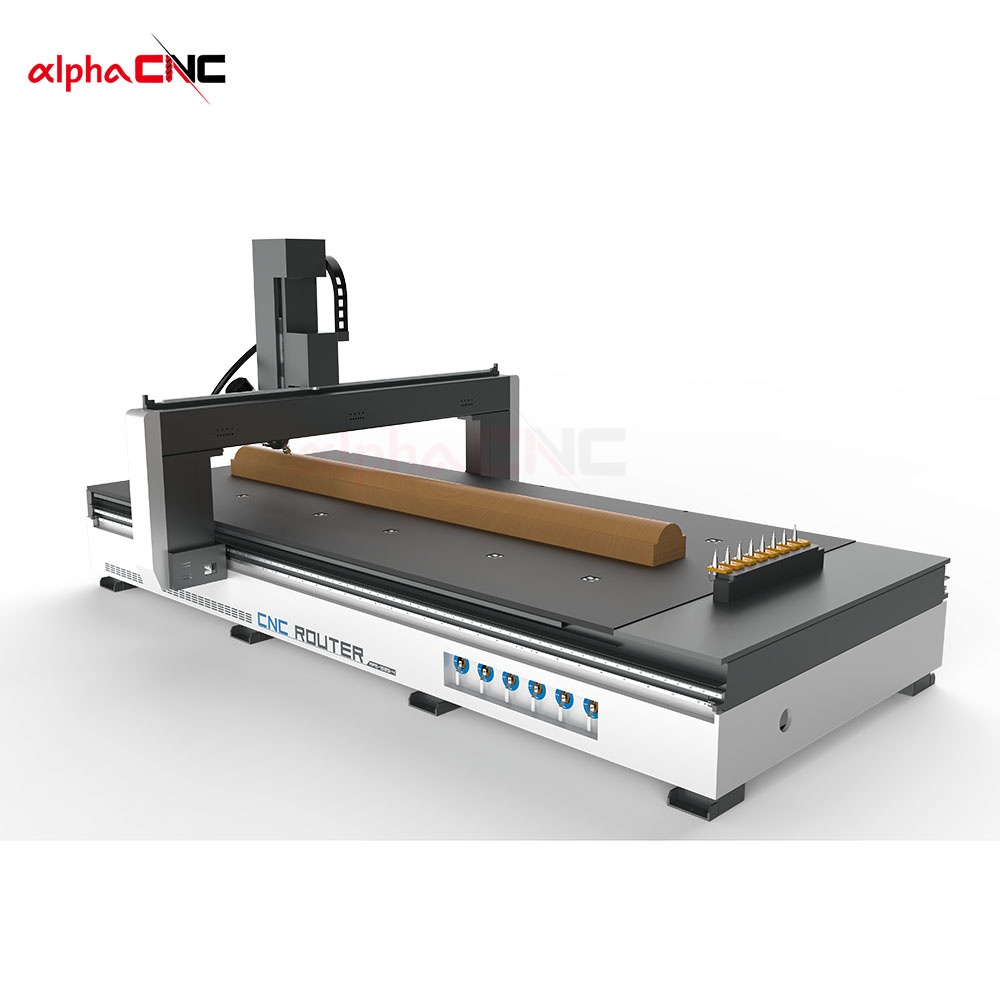

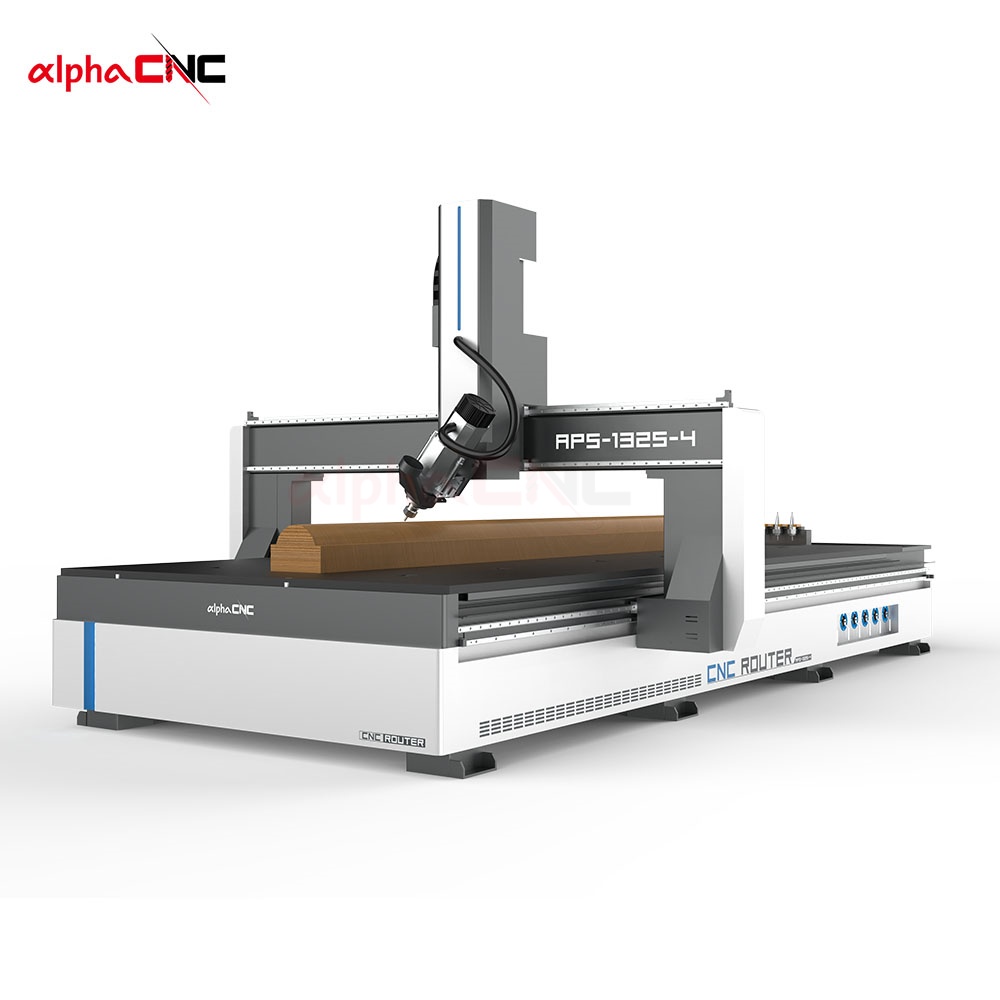

Processing Example Left Processing Example Right
Feature Icon 1 Feature Icon 2 Feature Icon 3 Feature Icon 4 Feature Icon 5 Feature Icon 6 Feature Icon 7 Feature Icon 8
Key Features

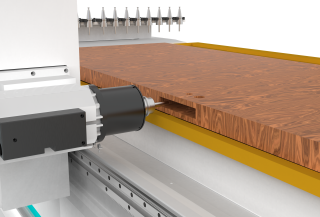

Rear Linear Tool Magazine
Uninterrupted operation—ideal for intricate projects and furniture manufacturing.

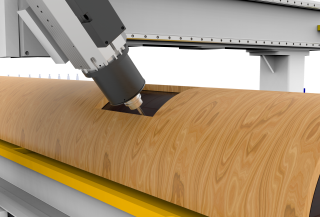

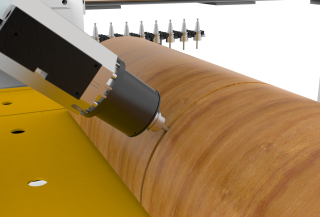

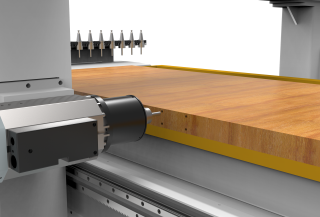

180° 4-Axis Spindle
Tackles advanced 3D carving beyond standard 3-axis machines, perfect for curved designs and complex cnc furniture machine tasks.
Industrial-Grade Durability
Reinforced steel frame and vibration-dampening tech ensure stability during high-speed cutting.
Premium Components
Branded parts guarantee smooth operation, reliability, and extended machine life.
Safety Protection
Air pressure detection system automatically stops operation & alarms if pressure drops. Voltage phase sequence protector prevents damage.
Machine Configuration Detail

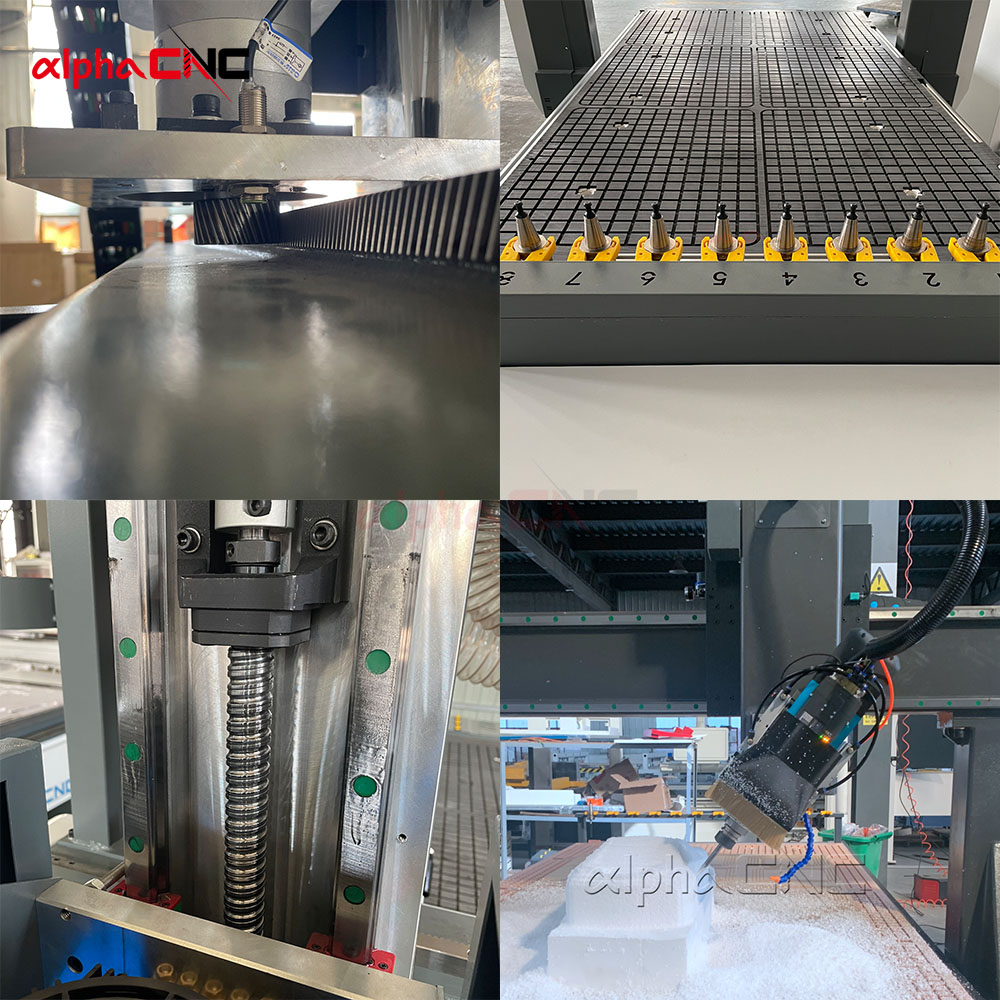

Product Details

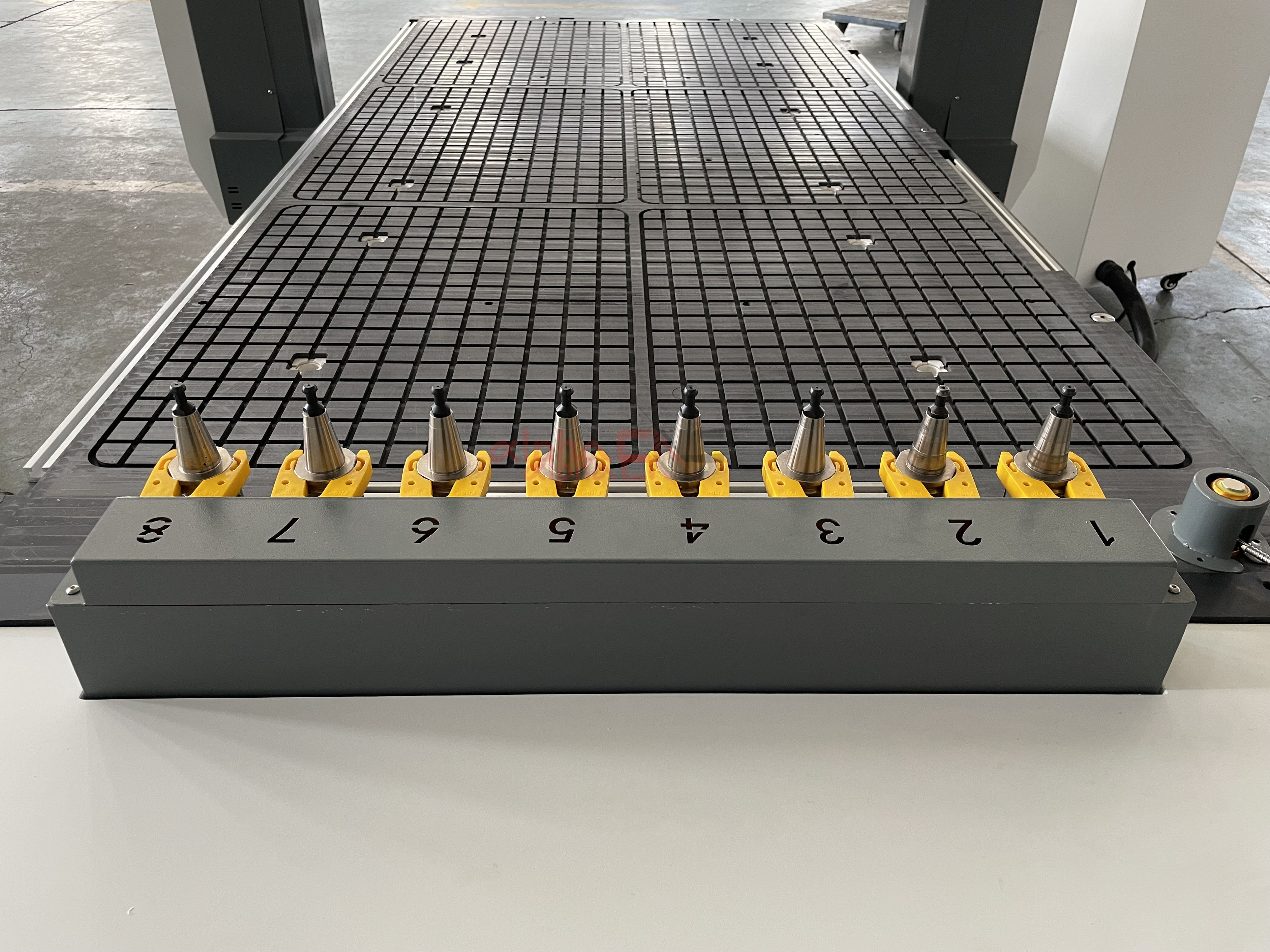

Linear Tool Magazine
Efficient Rear Linear Tool Magazine
The rear linear tool magazine design supports up to 12 tools with quick tool change times and no manual intervention required. It can process multiple workpieces simultaneously, increasing productivity by over 30%! It's ideal for batch orders.

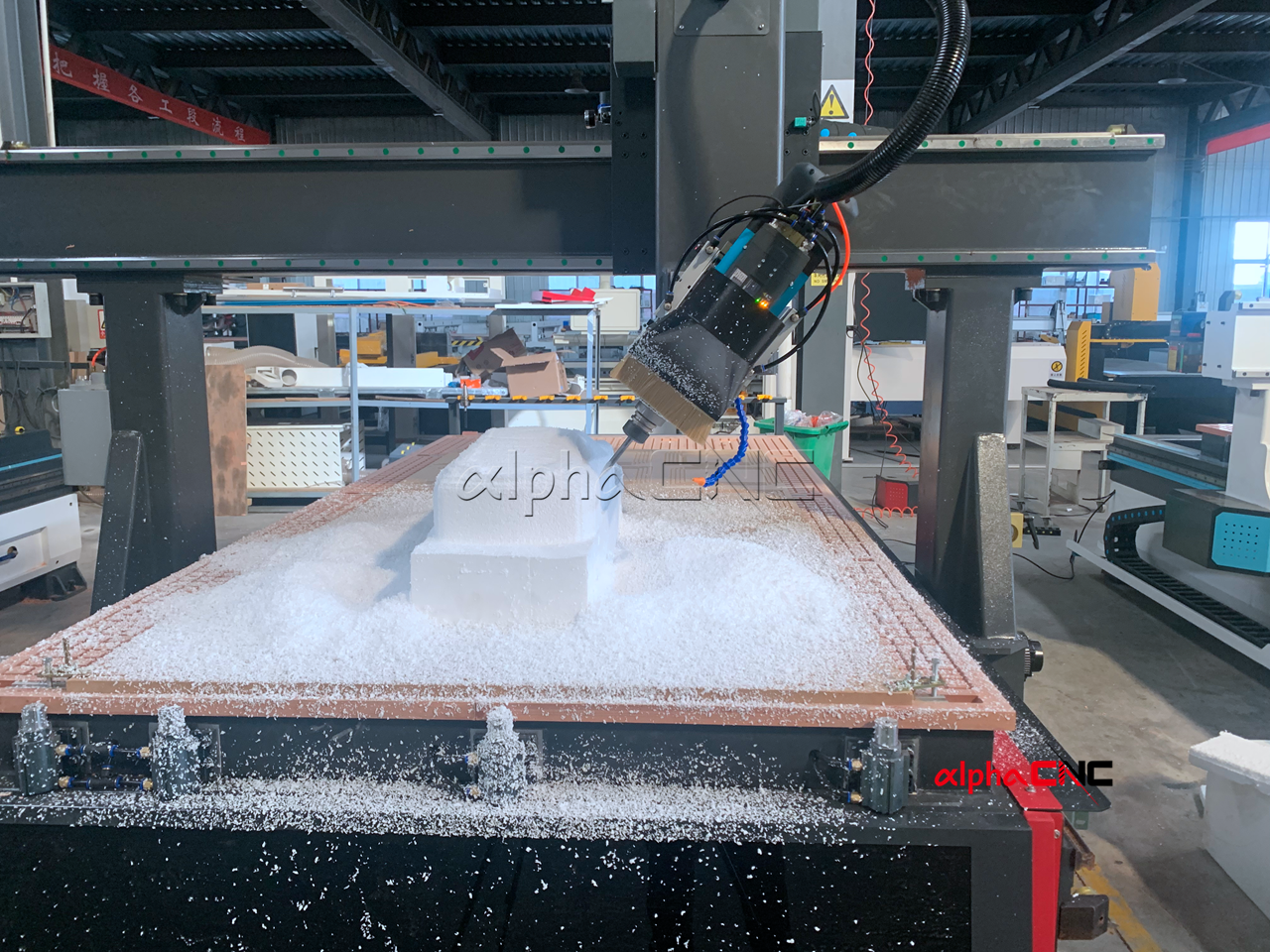

ATC Air Cooling Spindle
Four-axis ATC Air Cooling Spindle
This high-precision spindle can rotate at a speed of up to 24,000 revolutions per minute, with a rotation range of ±90°. It can complete complex three-dimensional engraving in one go. The quick tool change and stable positioning accuracy of ±0.01mm have improved the processing efficiency.

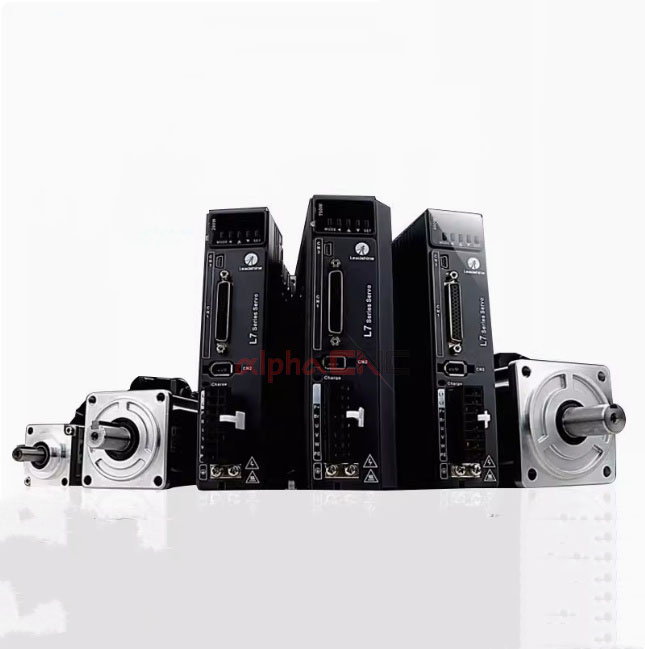

Servo Drive System
High-precision Servo Drive System
Utilizing a high-performance servo motor with strong instantaneous overload capacity, it easily handles high-load machining demands. Positioning accuracy reaches ±0.1mm, and repeatability accuracy reaches ±0.03mm, perfectly capturing fine engraving details.

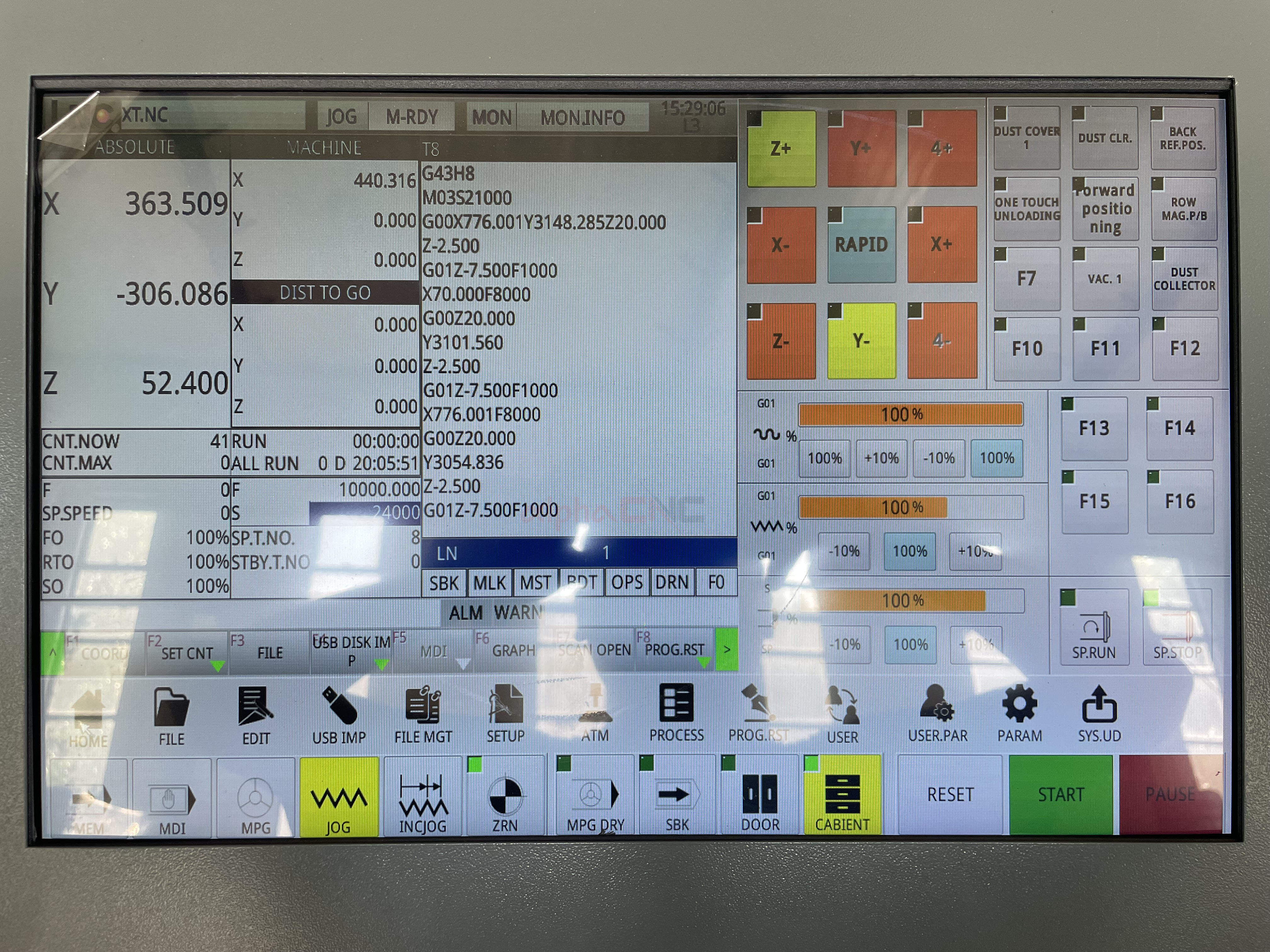

Control System
User-Friendly Control System
The high-performance Taiwan SYNTEC/LNC numerical control system features rapid processing speed and responsiveness, enabling the execution of high-precision woodworking processes such as solid wood engraving and panel furniture, without any delays or stalling.

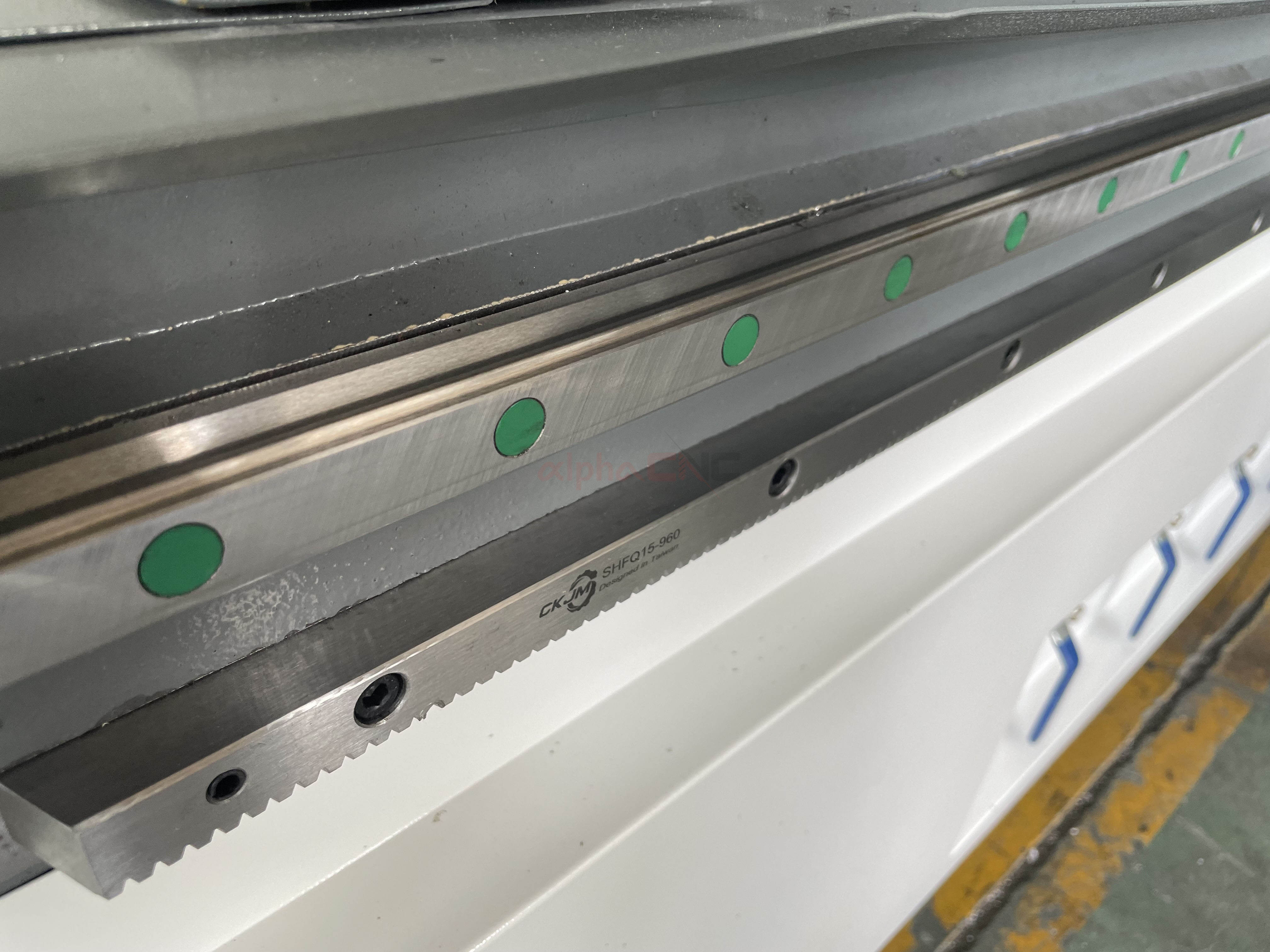

Guide Rails
High-rigidity Precision Guide Rails
Utilizing high-rigidity linear guide rails from Taiwan, the system boasts a repeatability of ±0.03mm and a three-year accuracy retention rate exceeding 95%. It boasts a maximum operating speed of 80m/min and is exceptionally durable.

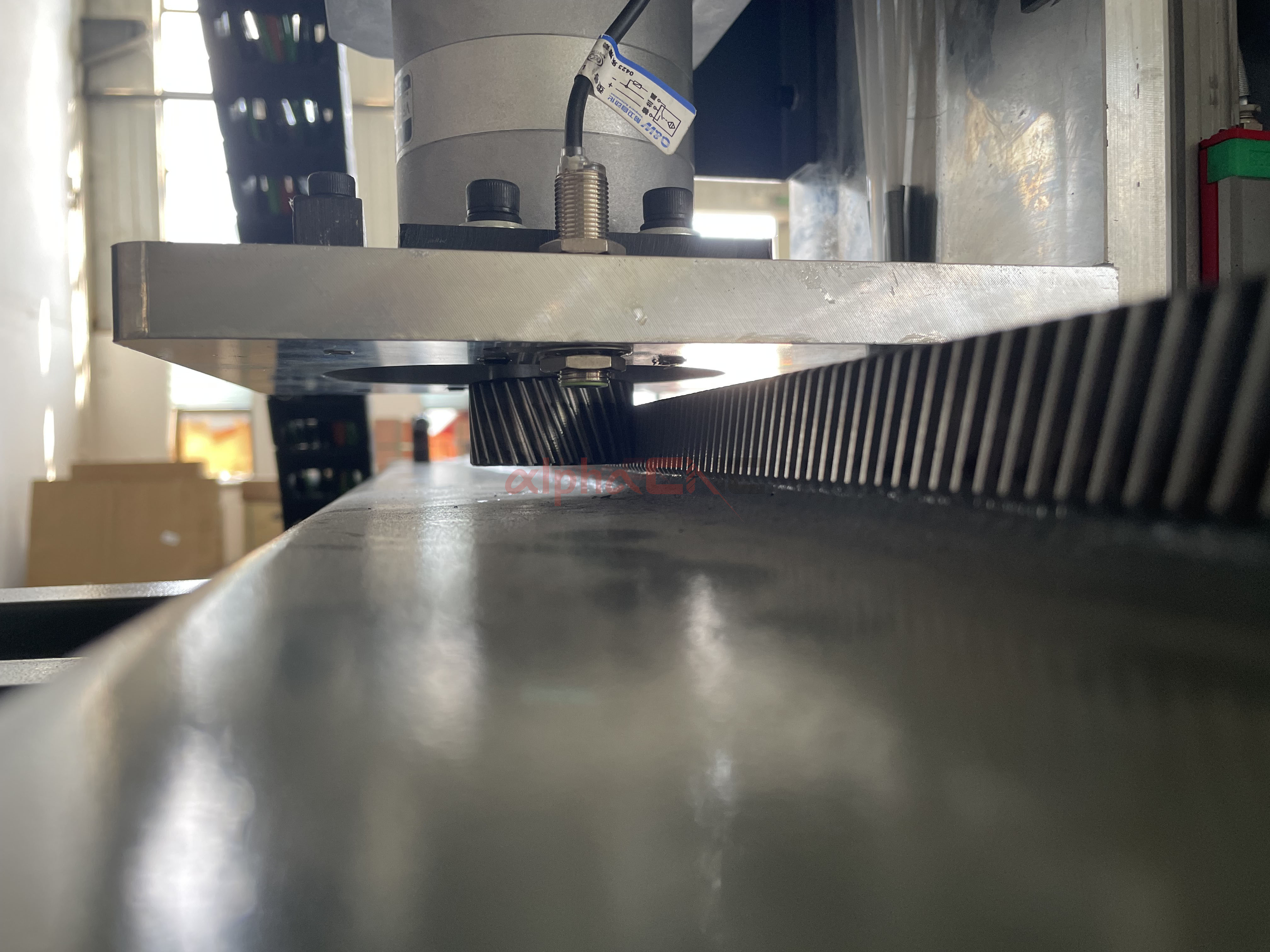

Rack and Pinion Drive
High-precision Rack and Pinion Drive System
This product is made of high-quality alloy steel and features excellent wear resistance and impact resistance. The linear accuracy reaches 0.1 millimeters per meter, and the repeatability error is ±0.03 millimeters, ensuring precise and stable operation.
Alternative Configuration Detail
Recommend Products

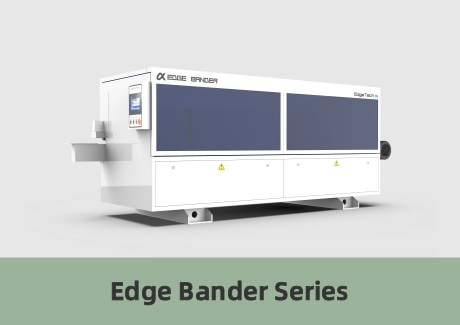

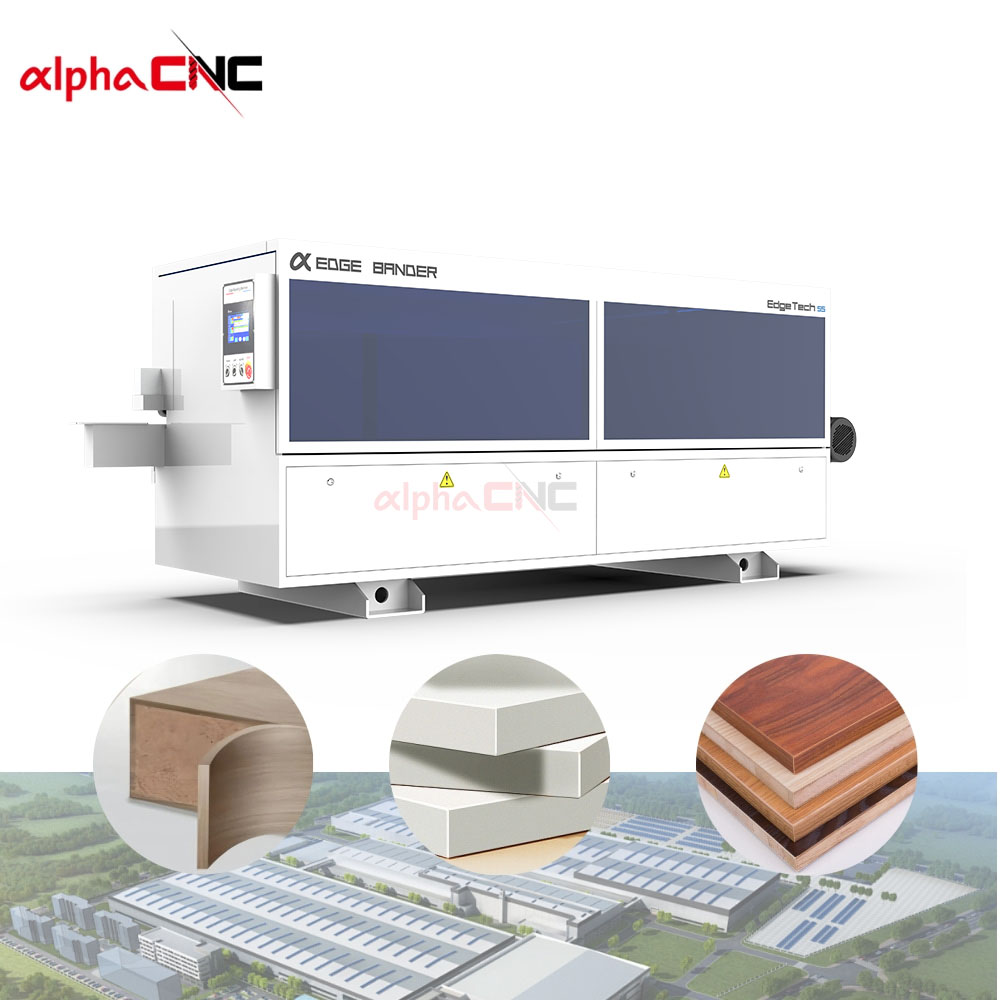

Edge Banding Machine
5 Functions Fully Automatic Edge Banding Machine for PVC
$ 1500-2300 / set
Size: 4500*1600*1800mm
Feeding Speed: 12m/min
Panel Length: ≥80mm
Panel Thickness: 8~60mm
Edge Band Thickness: 0.4~3mm

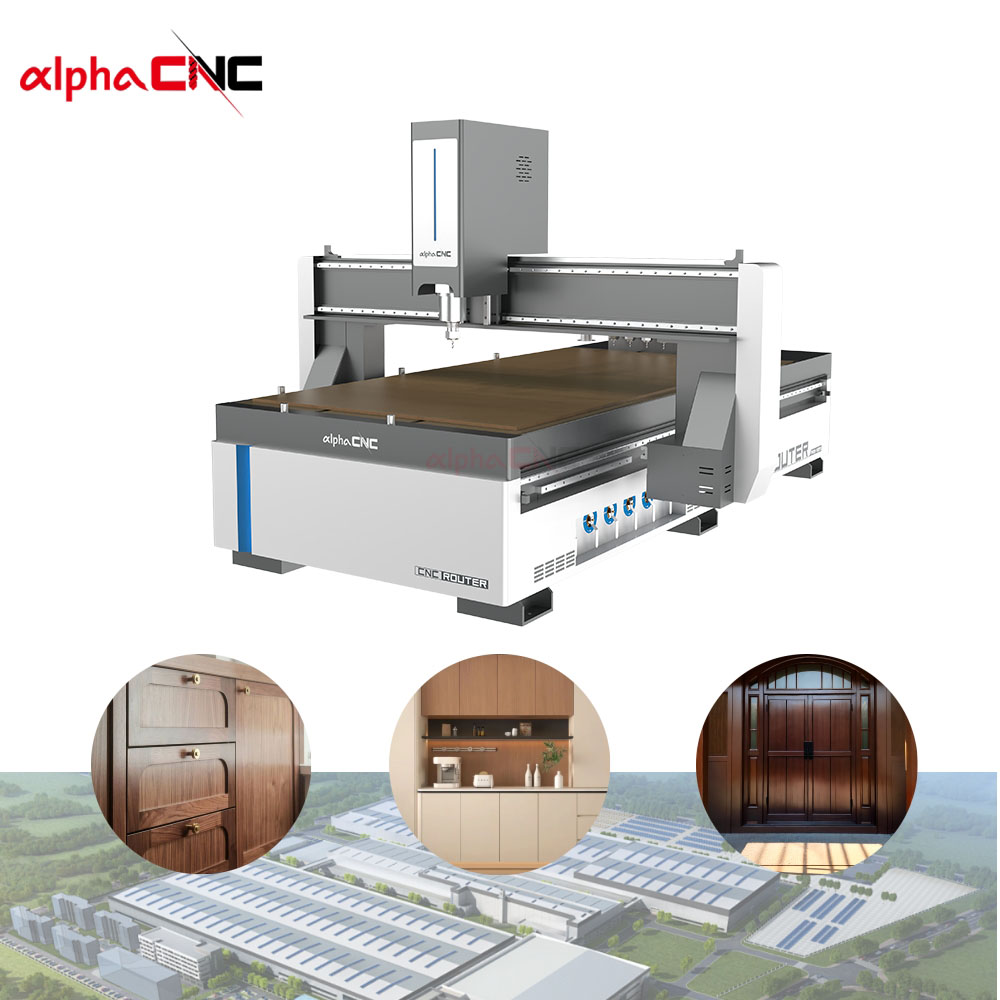

3 Axis ATC CNC Router
3 Axis ATC CNC Router Machine 1325 for Wood
$ 1500-2000 / set
Working Area: 1300x2500*200mm
Table Structure: Vacuum Work Table
Control System: DSP / LNC / Syntec
Inverter: Delta / Fuling / Best
Motor: Servo Drive + Japan SHIMPO Reducer

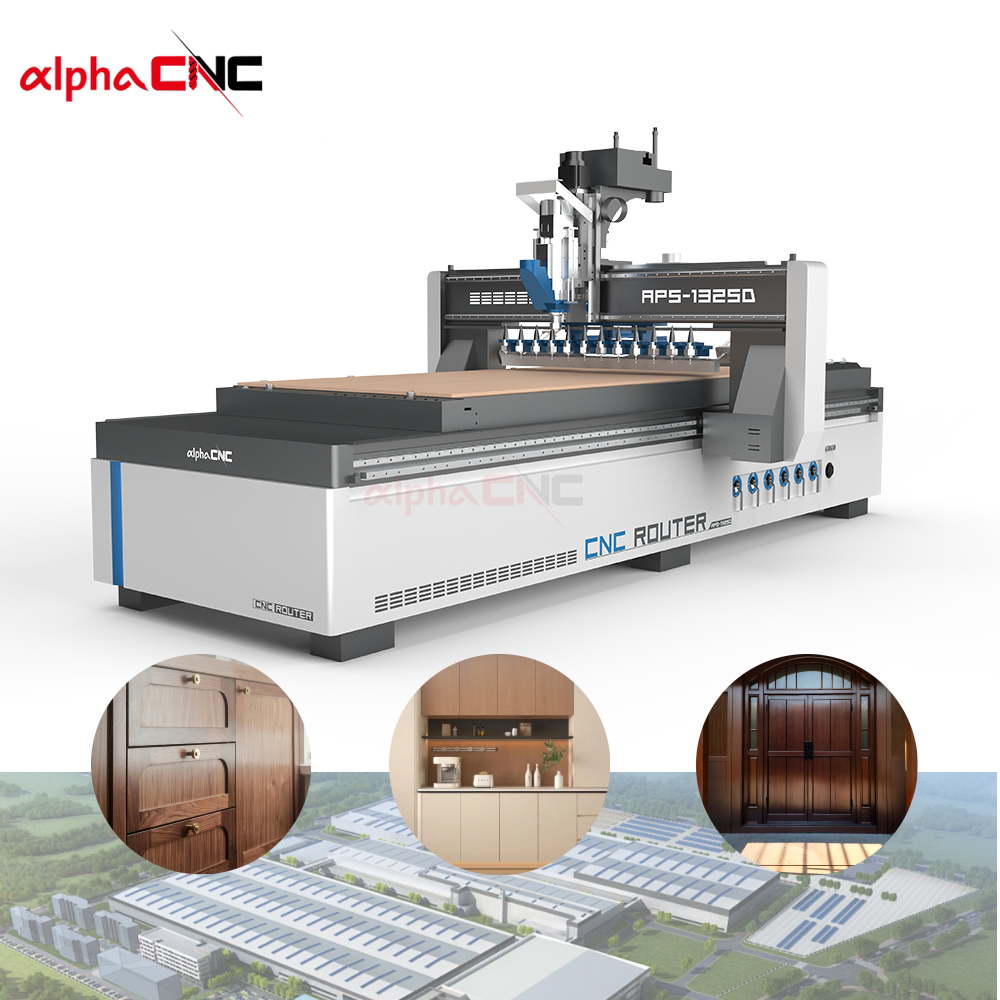

3 Axis Air Cooling CNC Router
3 Axis ATC CNC Router 1325 Air Cooling Spindle for Furniture
$ 1500-2000 / set
Working Area: 1300x2500*200mm
Table Structure: Vacuum Work Table
Control System: DSP / LNC / Syntec
Inverter: Delta / Fuling / Best
Motor: Servo Drive + Japan SHIMPO Reducer

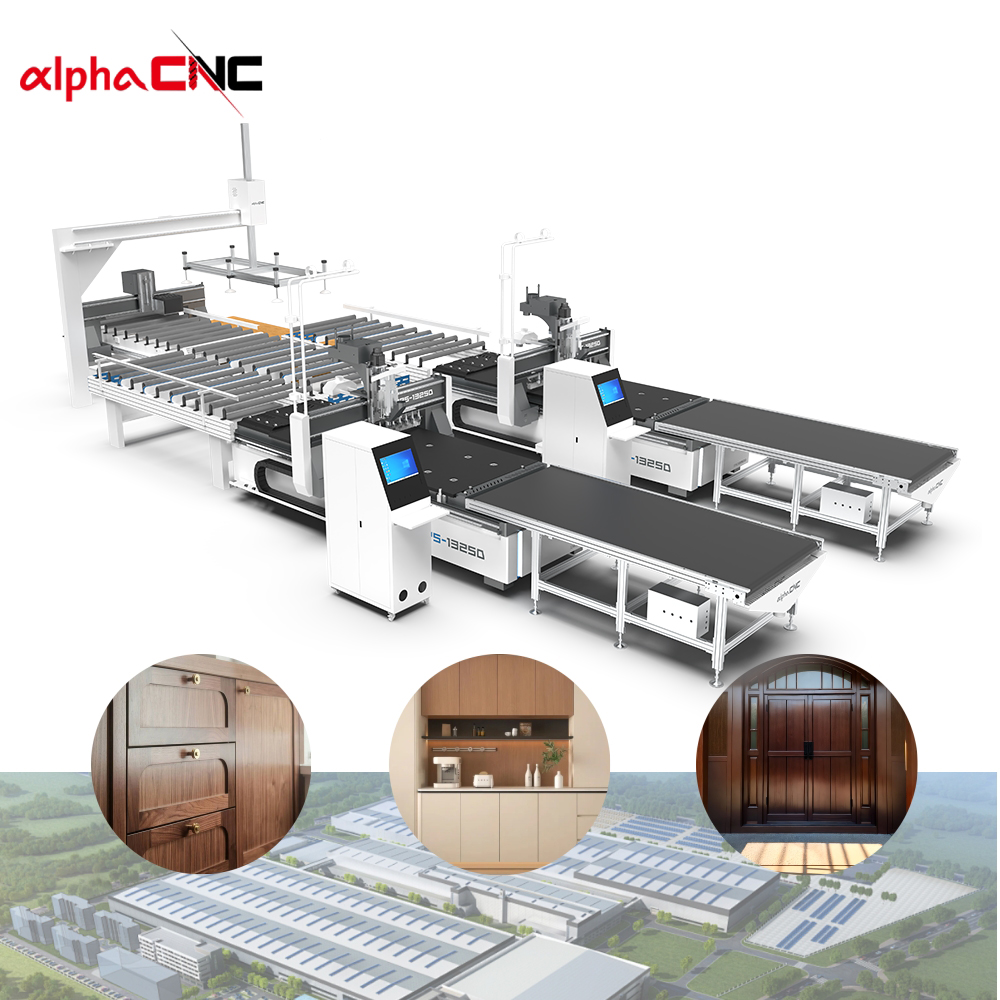

Auto Loading CNC Router
Automatic Loading & Unloading ATC CNC Router
$ 1500-2300 / set
Working Area: 1300x2500*200mm
Table Structure: Vacuum Work Table
Control System: SYNTEC / LNC
Inverter: Delta / Fuling / Best
Motor: Servo Drive + Japan SHIMPO Reducer

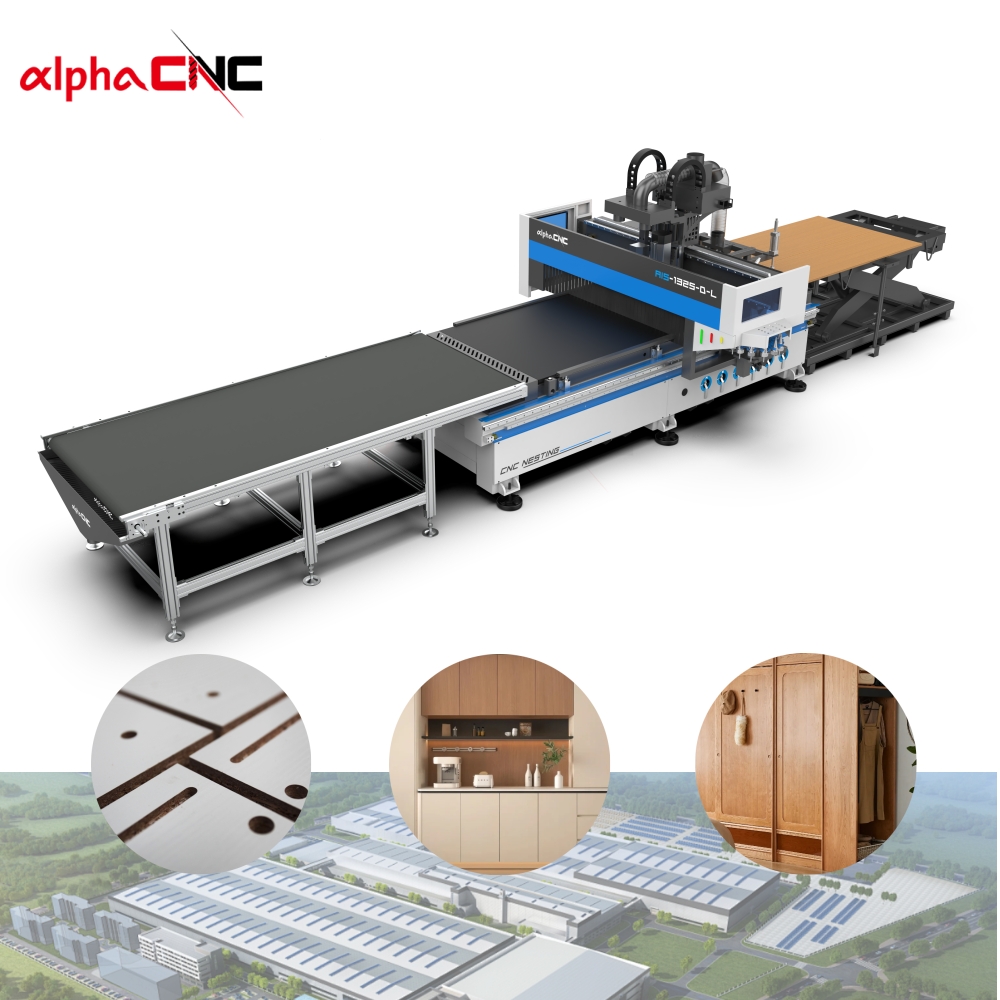

Disc Tool CNC Router
3 Axis ATC CNC Router Disc Tool Magazine Loading and Unloading Drilling
$ 1500-2400 / set
Working Area: 1300x2500*200mm
Table Structure: Vacuum Work Table
Control System: SYNTEC / LNC
Inverter: Delta / Fuling / Best
Motor: Servo Drive + Japan SHIMPO Reducer
4 Axis Wood Carving CNC
4 Axis Wood Carving ATC CNC Router Machine for Furniture Production
$ 1500-2400 / set
Working Area: 1300x2500*200mm
Table Structure: Aluminum & Vacuum
Control System: SYNTEC / LNC
Inverter: Delta / Fuling / Best
Motor: Servo Drive + Japan SHIMPO Reducer
Product Parameters
Parameter Specification Details
Model APS-1325-4, APS-1530-4, APS-2030-4, APS-2040-4, etc.
Working area(X-Y-Z) 1300x2500*200mm (Option: 1500*3000*200mm; 2000*3000*200mm; 2000*4000*200mm, etc.)

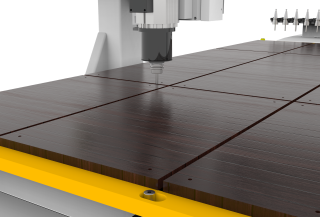

Table structure Aluminum T-slot & vacuum work table
The 4th axis Spindle swing from -90° to +90°
Tool magazine Linear type auto tool changer (Option: Carousel type auto tool changer)
Control system Taiwan SYNTEC/LNC controller
Supported file formats *.g; *.nc; *.ug; *demo; *.iso; *.eng; *.cut etc.
Spindle type ATC air cooling spindle
Inverter 11kw Fuling inverter
Motor and driving system Servo motor drive + Japan SHIMPO reducer
Transmission X, Y axis: Taiwan helical rack; Z axis: Taiwan TBI ball screw
Guide rail Taiwan square rail
Lubrication system Automatic lubrication system

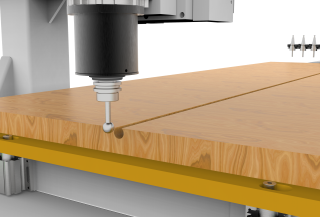

Tool calibration Auto tool sensor calibration
Compatible software Powermill, UG, Alphacam, Fusion 360, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
System resolution ±0.0025mm
Working air pressure ≥0.8MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ | 380V 3PH 50HZ/60HZ
Optional items Vacuum Pumps, Dust Collection Systems, Air Compressors, Rotary Devices, Spindles (9kW-15kW ATC), Safety Upgrades.
Sample and Application
Samples processed by machine
Manufacturing Excellence

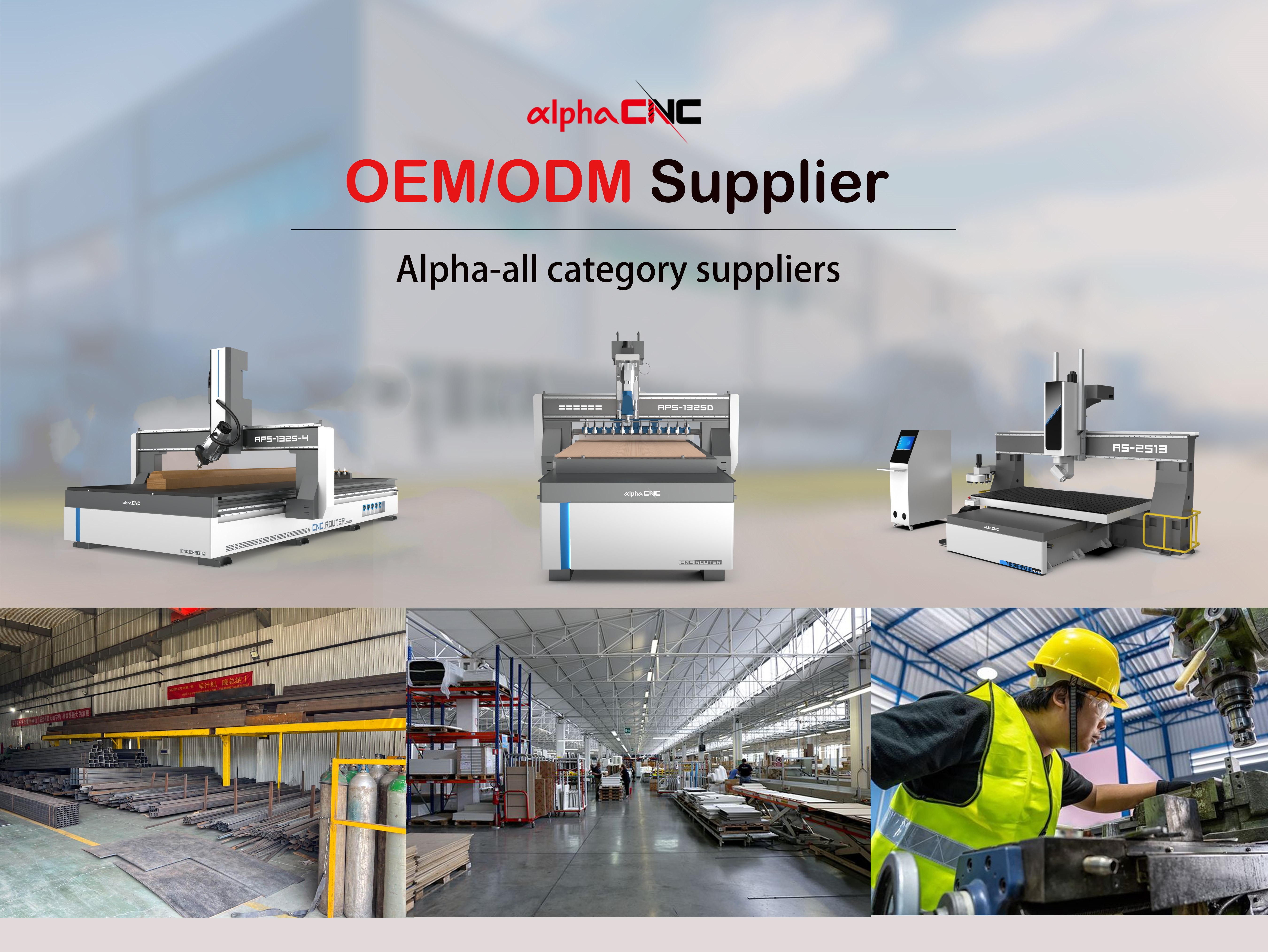

Production Base 1 Production Base 2 Production Base 3
We have specialized in the OEM/ODM business of CNC Routers and laser machines since 2000. Our extensive product range includes CNC Routers, laser machines and plasma cutting machines. The manufacturing facility features a complete infrastructure and more than 5 production bases to meet various customer requirements. Managing the entire machine production process—from design to machining, sheet metal bending, painting, and installation—ensures top-quality machinery for all clients.

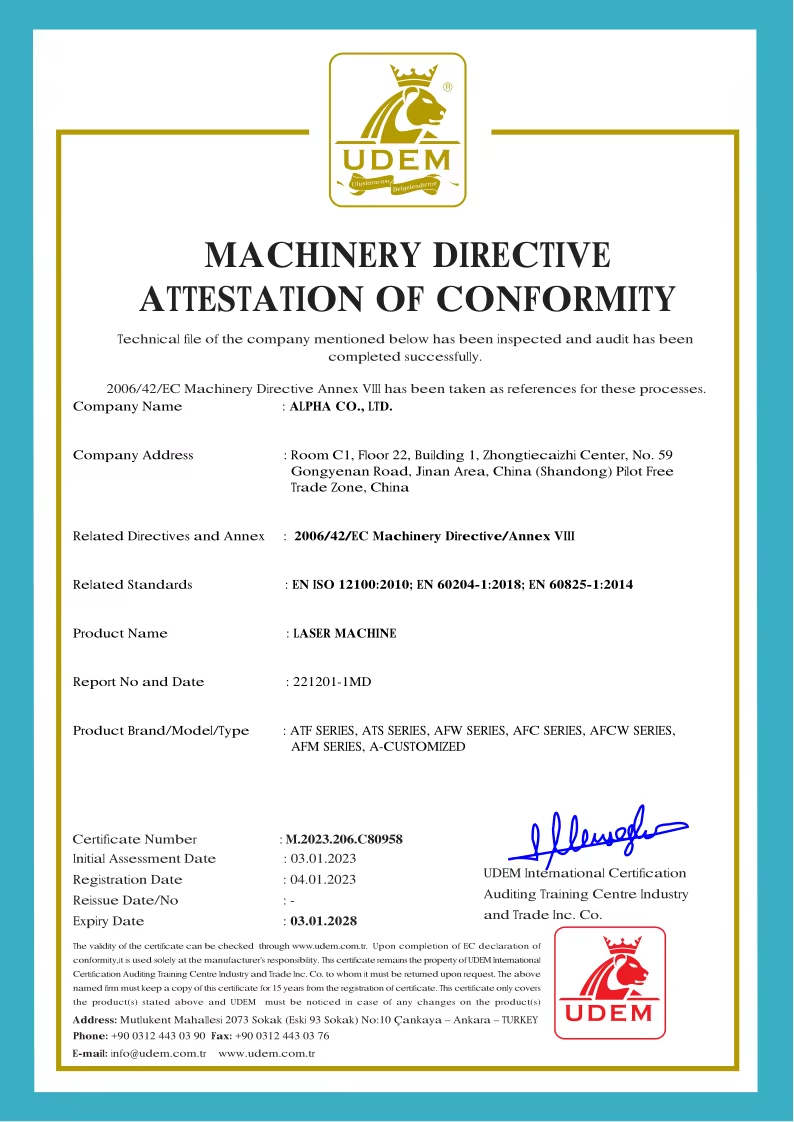

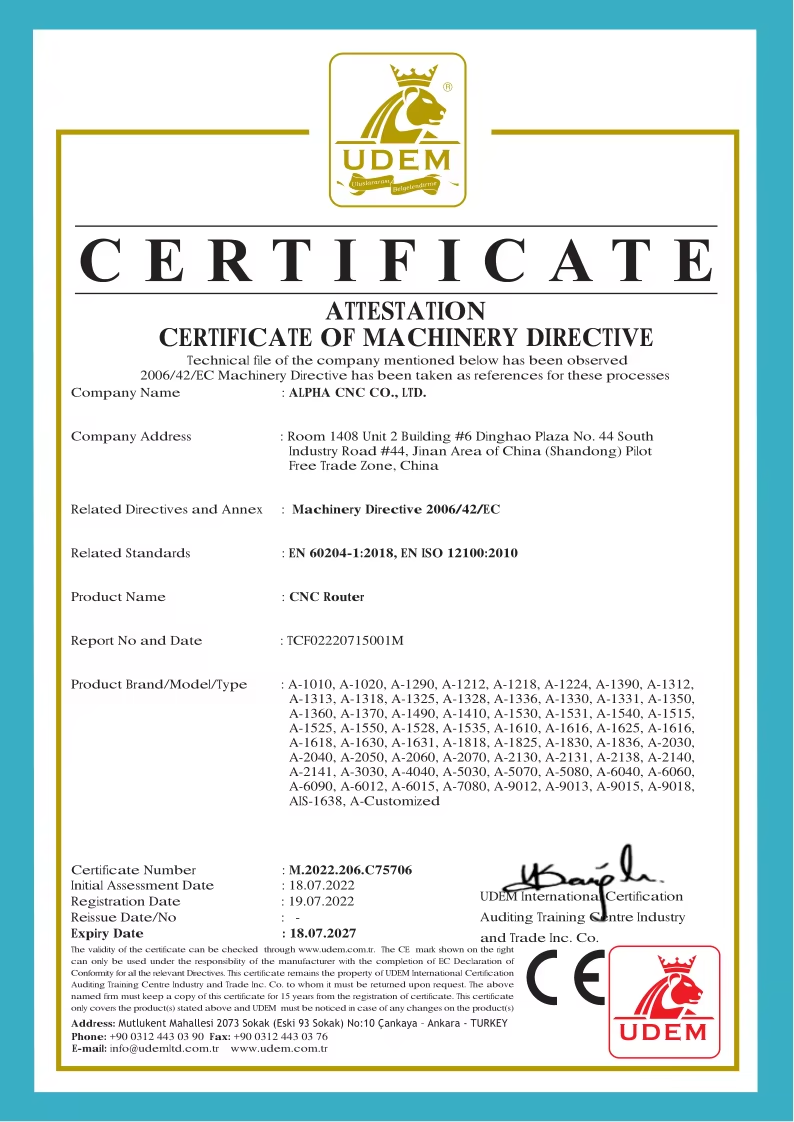

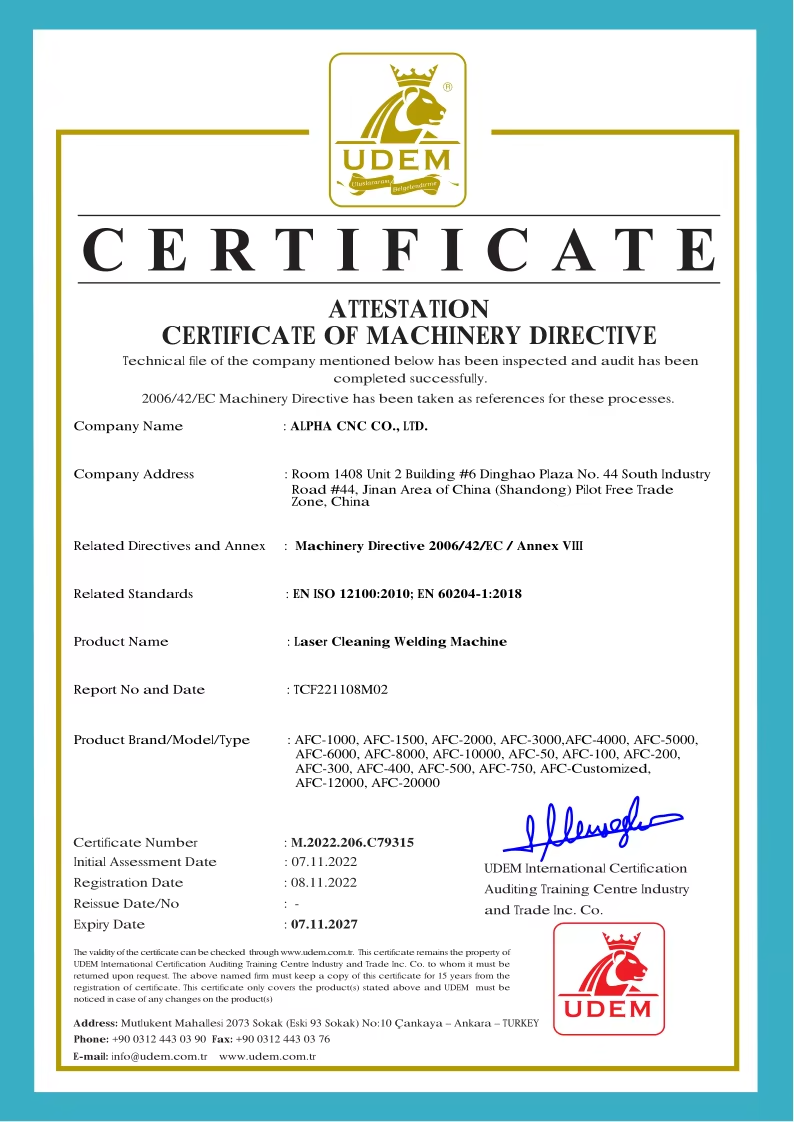

Certifications & Services

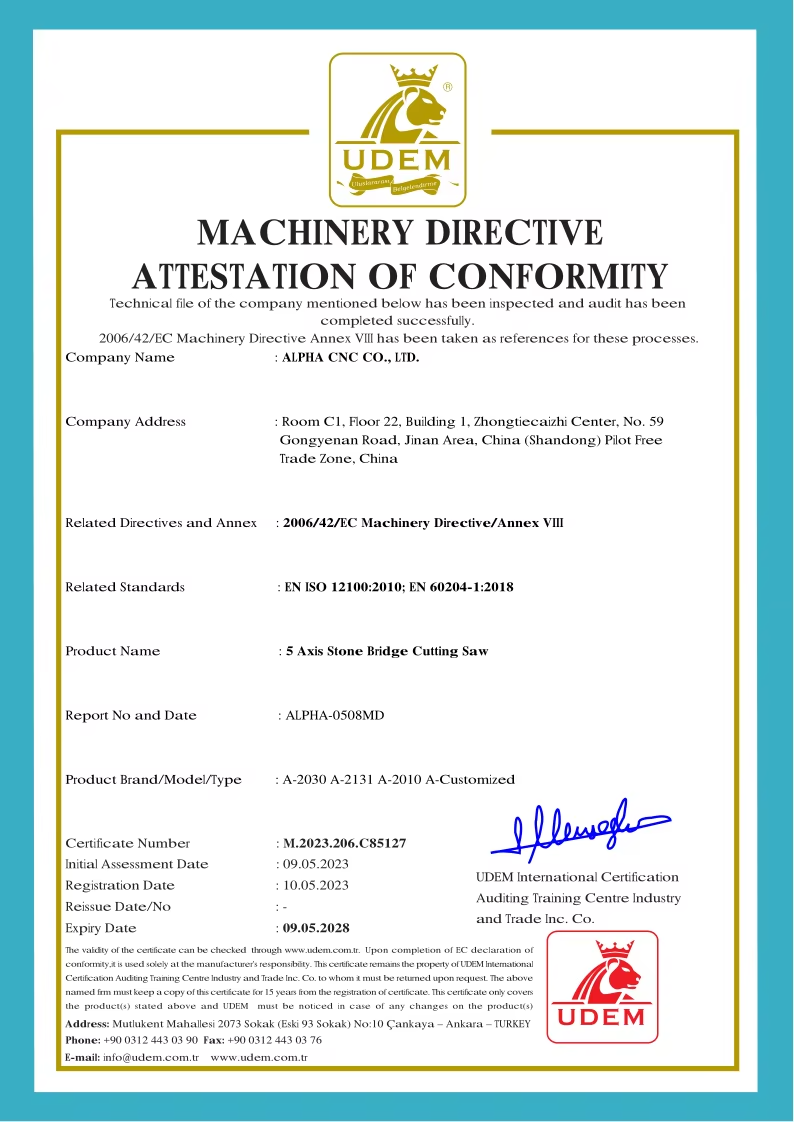

Certification 1 Certification 2
Certification 3 Certification 4
Worldwide Service Network
Service Step 1 Service Step 2
Service Step 3 Service Step 4
Frequently Asked Questions
Is the machine easy to operate? Do you provide training?
Yes, most users achieve proficiency in less than 3 days with our comprehensive video tutorials, operational manuals, and 24/7 remote support.
Can this machine handle large furniture panels?
Yes! The APS-1325-4 supports custom bed sizes for full-panel processing, specifically optimized for cabinet and furniture production.
What materials can this machine process?
It can process a wide variety of materials including wood, MDF, acrylic, plastics, and non-ferrous metals.
Can the machine be customized for specific materials or label sizes?
Yes, we provide extensive customization options for blade types, label sizes, and conveyor systems based on your specific application needs.
Do you offer after-sales technical support?
Yes, we provide 24/7 remote technical support, consistent spare parts supply, and engineer dispatch if on-site assistance is required.
