YH200A Mini 4 Axis CNC Milling Machine BT30 Small Vertical CNC Machining Center For Aluminum Steel Prototyping Milling Lathe

Product Description

Performance Characteristics

Repeatability	0.01mm
Min.command increment of system	0.0001mm
Rotational accuracy	±1"
X/Y/Z-axis travel	220/120/200mm

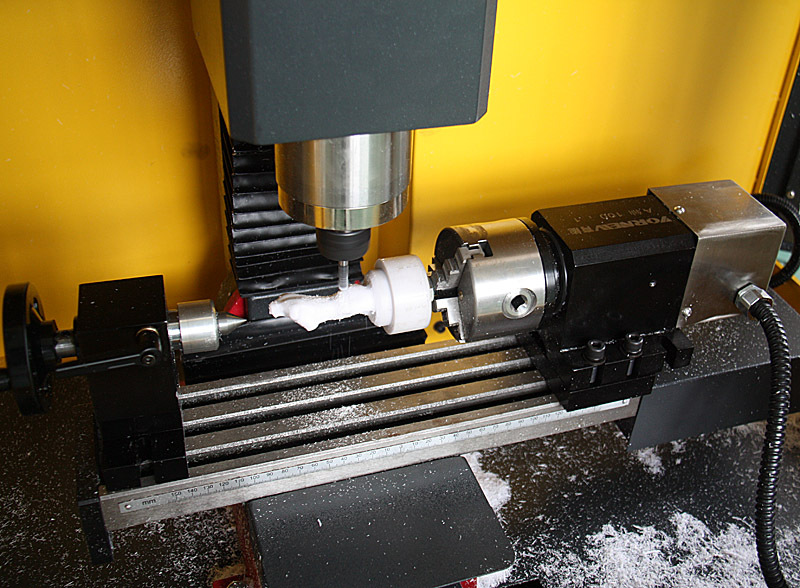

A-axis travel	360º
Worktable size	460×130mm
Table T-slot size/quantity/pitch	12/3/24
Dividing head speed range	0-50rpm
Dividing head clamping outer diameter	60mm
Reduction ratio	100:1
Tailstock travel	50mm
Drilling capacity	13mm
Face milling capacity	16mm
Surface milling capacity	60mm
Spindle speed	100-3500rpm
Spindle motor	0.75kw
X/Y/Z-axis fast moving speed	2000mm/min
X/Y/Z-axis guide rails	Precision linear guideways
X/Y/Z-axis ball screw specifications	1605
Oil circuit lubrication system	Centralized multi-line pipe type
Workpiece cooling	Air cooling
Electronic handwheel	4-axis 3-speed electronic handwheel
CNC System	980MC
Power supply	AC220V/50Hz
Machine power	1.1kw
Net weight	165kg
Machine Dimensions(L×W×H)	850×650×1000mm

✦

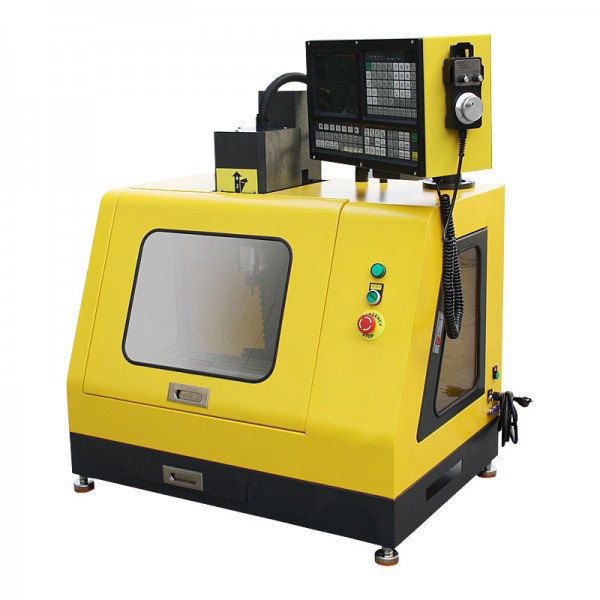

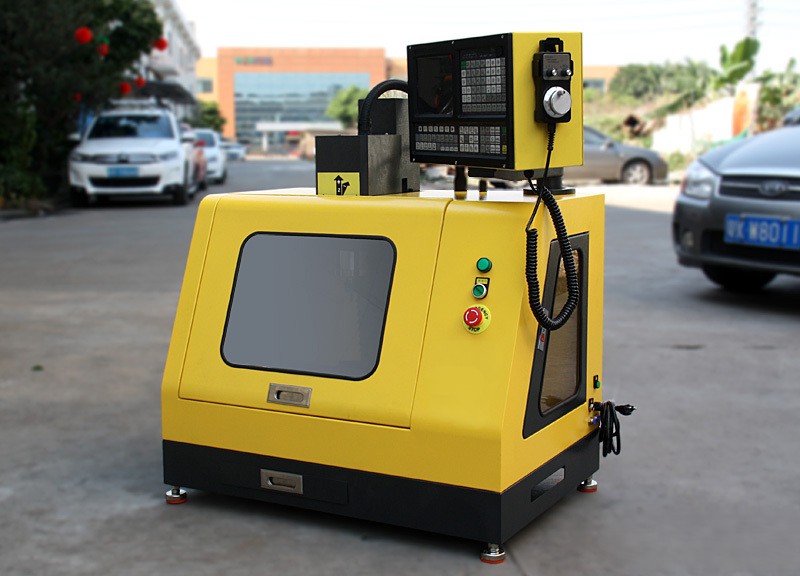

Adopts a fully enclosed structure with transparent acrylic panels and metal sheet metal. It operates on 220 V voltage, enhancing safety and visibility. Constructed from selected high-quality cast iron and equipped with high-precision ground ball screws to ensure machining accuracy. Occupying only 0.5 square meters, it delivers powerful practical machining performance.

✦

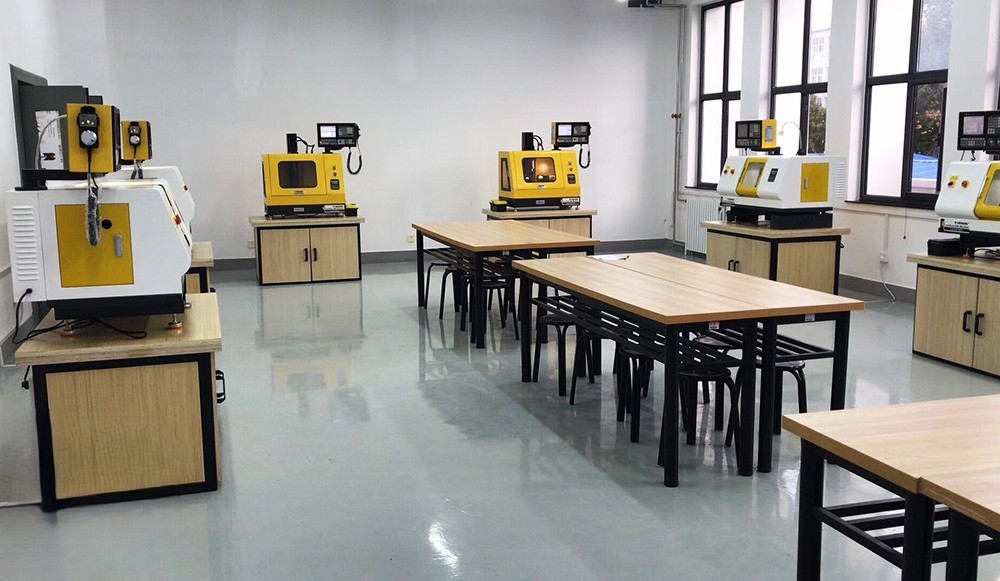

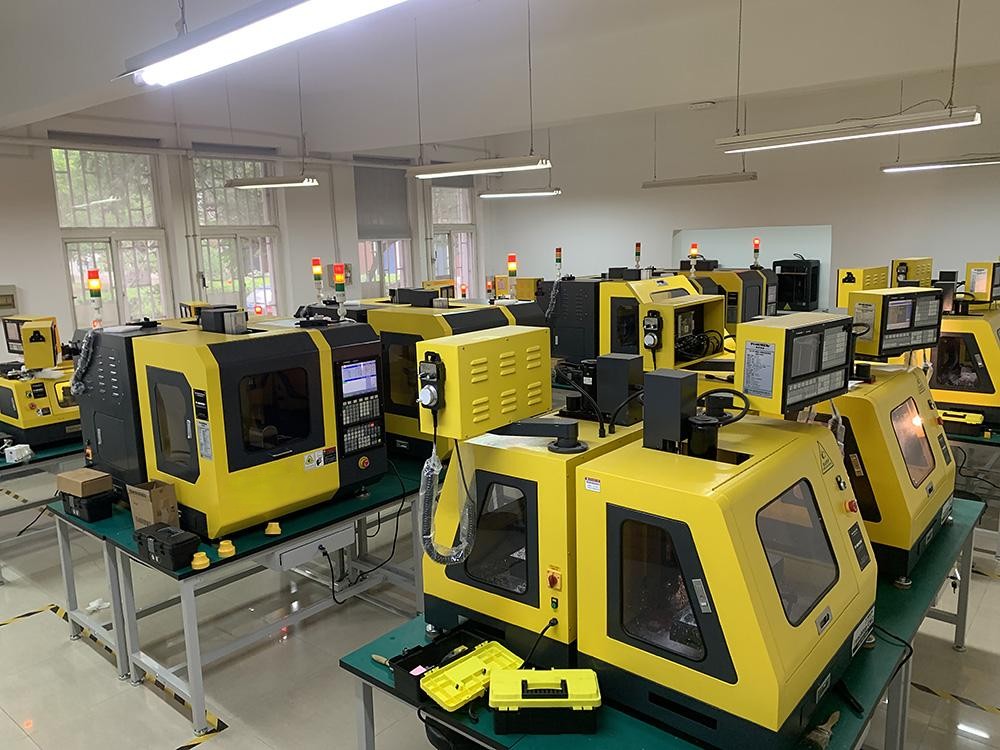

Widely applied in maker spaces, innovation studios for technical prototyping and part processing, integrated theoretical and practical CNC professional training, as well as small-component machining for enterprise research institutions.

✦

Supports ISO standard G-code programming, compatible with M-codes and S-codes. Fully interoperable with FANUC and Mitsubishi G-codes, as well as various CAD/CAM software including MasterCAM, UG and CAXA, featuring graphical programming functions.

Company Profile

Why Choose Us

1. Unrivaled Machine Portfolio

Leveraging 10+ years in China's equipment ecosystem, we aggregate 200+ validated models across CNC machining, grinding & milling systems - all customizable to your part specifications.

2. Performance-Guaranteed Quality

Every machine we supply is field-proven by Tier-1 manufacturers, delivering ISO-certified precision (±0.002mm repeatability) with 98% uptime reliability.

3. Drawing-to-Equipment™ Sourcing

Share your part drawings → We engineer turnkey equipment solutions (including automation integration) with technical validation reports.

4. Pearl River Delta Cost Advantage

Strategic location in Guangdong's manufacturing hub enables 15-30% cost savings versus imports, while maintaining JIS/Taiwan-grade quality control.

5. Zero-Risk Acceptance Protocol

Option A: Machine sign-off upon achieving your KPIs (e.g., ±0.005mm tolerance, 500pcs/hr output).
Option B: Full acceptance after 30-day mass production trial with your actual parts.

6. Lifetime Support Ecosystem

Enjoy comprehensive 1-Year Warranty, remote diagnostics, priority spares supply, and on-site maintenance contracts built for long-term operations.

FAQ

Can we pay by L/C, Paypal, Western Union, or online order (Trade Assurance)?

Yes, we support T/T, L/C, and other common secure payment options to accommodate global buyer requirements.

What is your delivery time?

Normally, manufacturing one machine takes 10 to 30 days. If the unit is currently in stock, we can arrange shipment shortly after receiving your payment.

Is your company a factory or a trading company?

We are a factory with over 11 years of professional production experience in vertical lathe manufacturing, ensuring maximum quality control and competitive pricing.

How can I get a quotation?

A detailed quotation will be submitted to you promptly after receiving your inquiry. Our professional sales team will get back to you within one business day.

What programming standards and CAD/CAM software are compatible with your systems?

Our equipment supports ISO standard G-code programming, and is compatible with M-codes and S-codes. It is fully interoperable with FANUC and Mitsubishi G-codes, along with leading CAD/CAM software including MasterCAM, UG, and CAXA.

What environments are these machines best suited for?

These machines are ideal for maker spaces, innovation studios for prototyping, integrated theoretical/practical CNC training programs, and small-component manufacturing in research laboratories.
