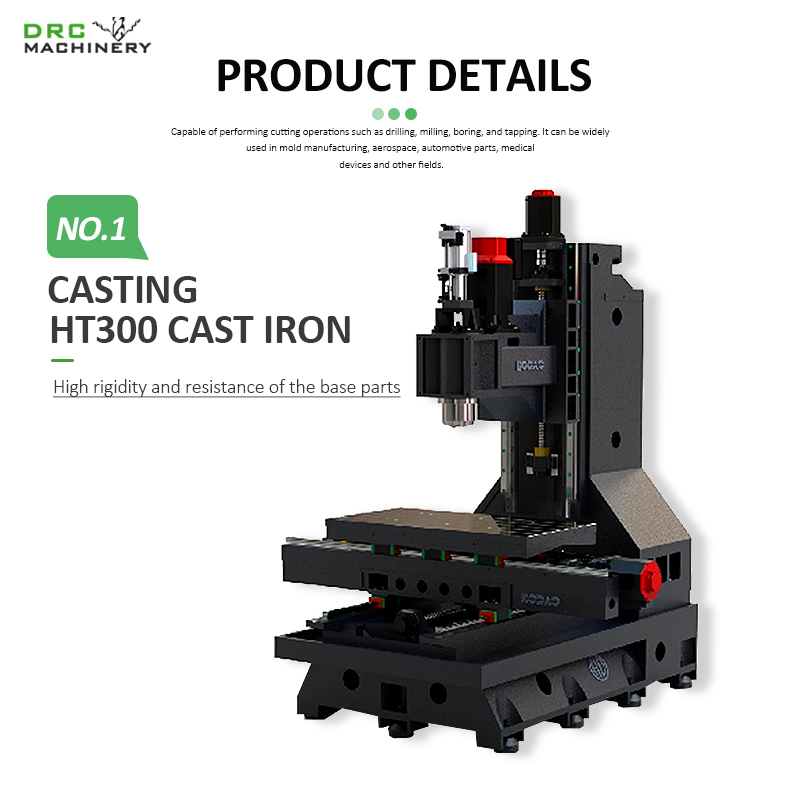

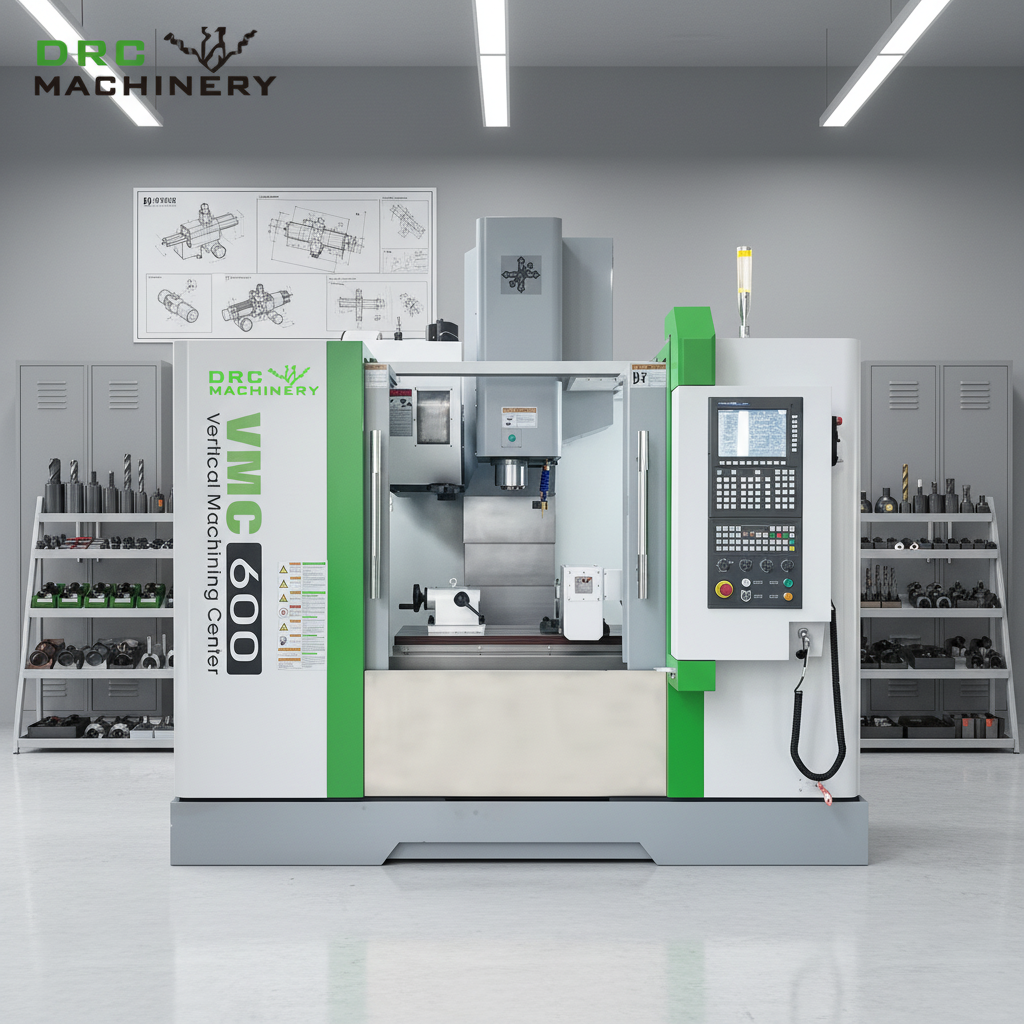

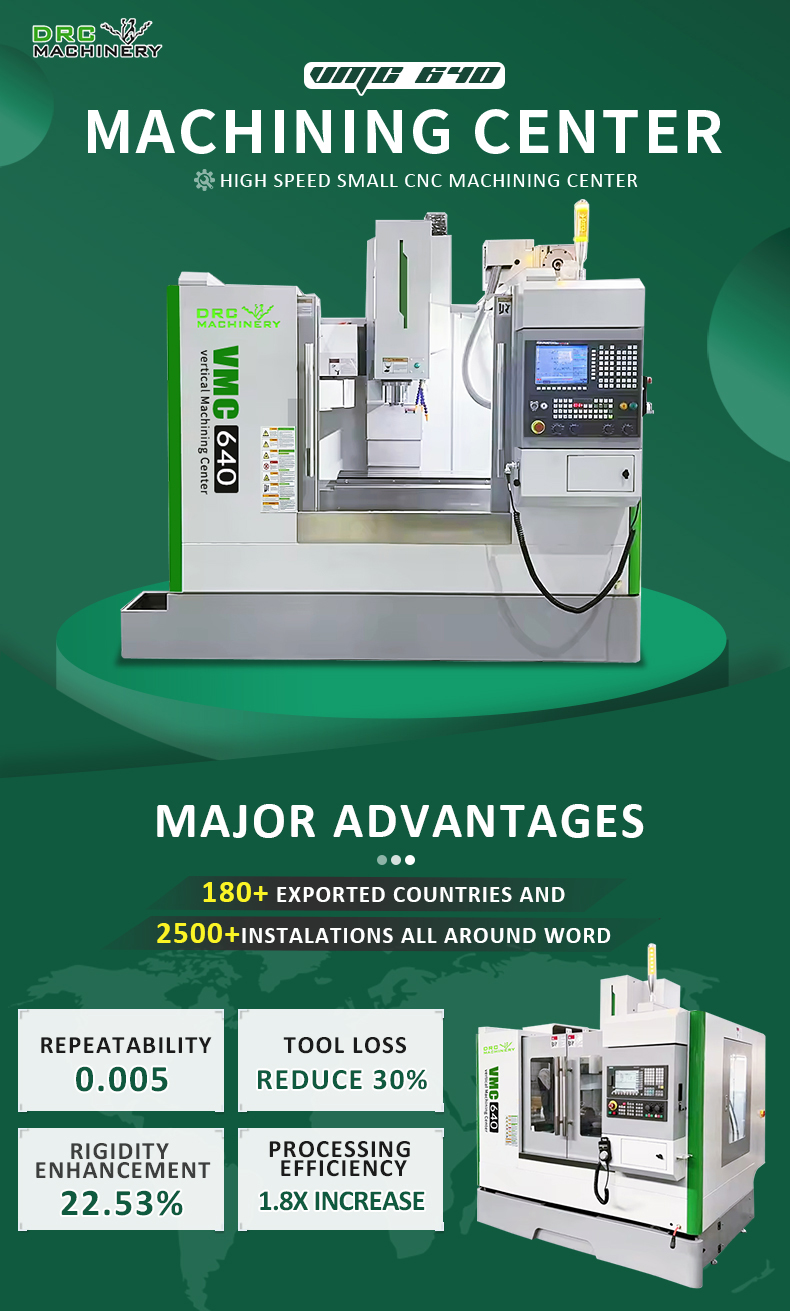

The VMC600 machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace, and hardware.

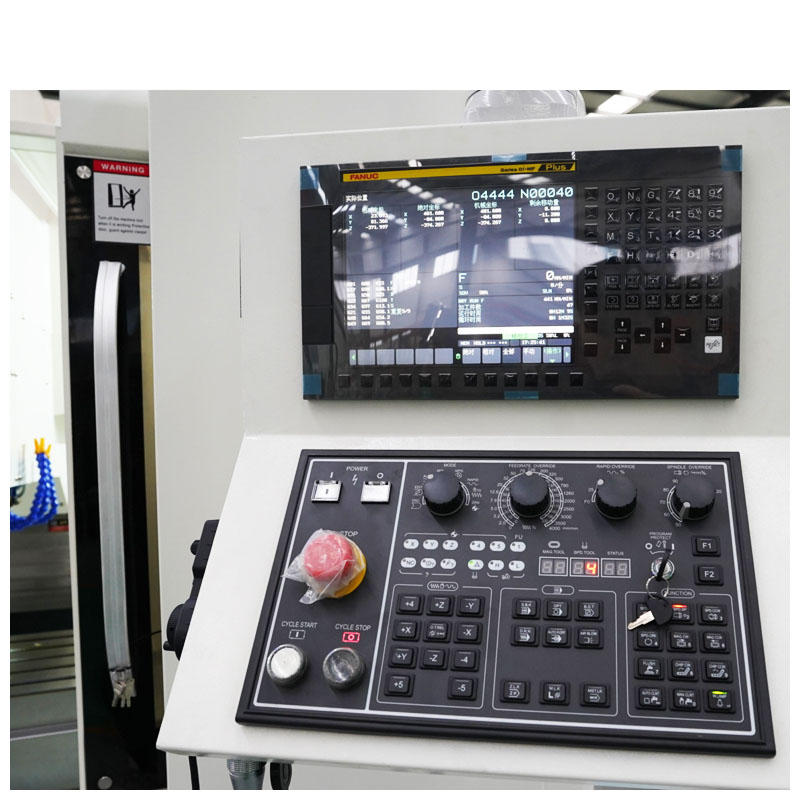

The CNC machining center is equipped with a tool magazine that automatically changes tools, enabling diverse processing operations within a single setup. Once the workpiece is clamped, the CNC system automates the selection and replacement of tools, adjusting spindle speed, feed rate, and movement paths. This seamless integration performs drilling, countersinking, reaming, boring, tapping, and milling processes efficiently. Minimizing manual intervention reduces setup time, error rates, and storage requirements, delivering high accuracy and significant economic benefits.
| Model | VMC 600 | VMC 640 | VMC 650 |
|---|---|---|---|
| Travel parameters of 3 axis | |||
| X / Y / Z axis travel | 500 / 320 / 450 mm | 600 / 400 / 450 mm | 650 / 450 / 500 mm |
| Spindle face to table distance | 70 - 520 mm | 80 - 530 mm | 100 - 600 mm |
| Distance between spindle center and column guide surface | 360 mm | 400 mm | 500 mm |
| Worktable parameters | |||
| Worktable size | 800 × 260 mm | 800 × 320 mm | 900 × 400 mm |
| Maximum load bearing of worktable | 400 kg | 400 kg | 450 kg |
| T Slot | 3 × 16 × 75 mm | 3 × 16 × 100 mm | 5 × 16 × 75 mm |
| Feeding parameters | |||
| X / Y / Z axis rapid movement rate | 24 / 24 / 16 m/min | 24 / 24 / 16 m/min | 24 / 24 / 16 m/min |
| Feed moving velocity X, Y, Z | 1 - 10 m/min | 1 - 10 m/min | 1 - 10 m/min |
| Spindle parameters | |||
| Main shaft connection | Belt | Belt | Belt |
| Spindle taper | BT40-120 | BT40-120 | BT40-120 |
| Range of spindle speed | 8000 rpm | 8000 rpm | 8000 rpm |
| Spindle motor power | 5.5 kW (AC servo) | 5.5 kW (AC servo) | 5.5 kW (AC servo) |
| ATC parameters | |||
| ATC capacity | 12 qty | 16 qty | 16 qty |
| Maximum tool size | Φ92 mm (tool from a distance) | Φ92 mm (tool from a distance) | Φ92 mm (tool from a distance) |
| Maximum tool weight | 5 kg | 5 kg | 5 kg |
| Precision | |||
| Positional accuracy (JIS standard) | ±0.008 / 300 mm | ±0.008 / 300 mm | ±0.008 / 300 mm |
| Repeated positioning accuracy (JIS standard) | ±0.005 mm | ±0.005 mm | ±0.005 mm |
| Shape and weight | |||
| Machine size | 2200 × 2100 × 2260 mm | 2600 × 1950 × 2400 mm | 2500 × 2100 × 2360 mm |
| Weight | 2400 kg | 2600 kg | 3800 kg |
