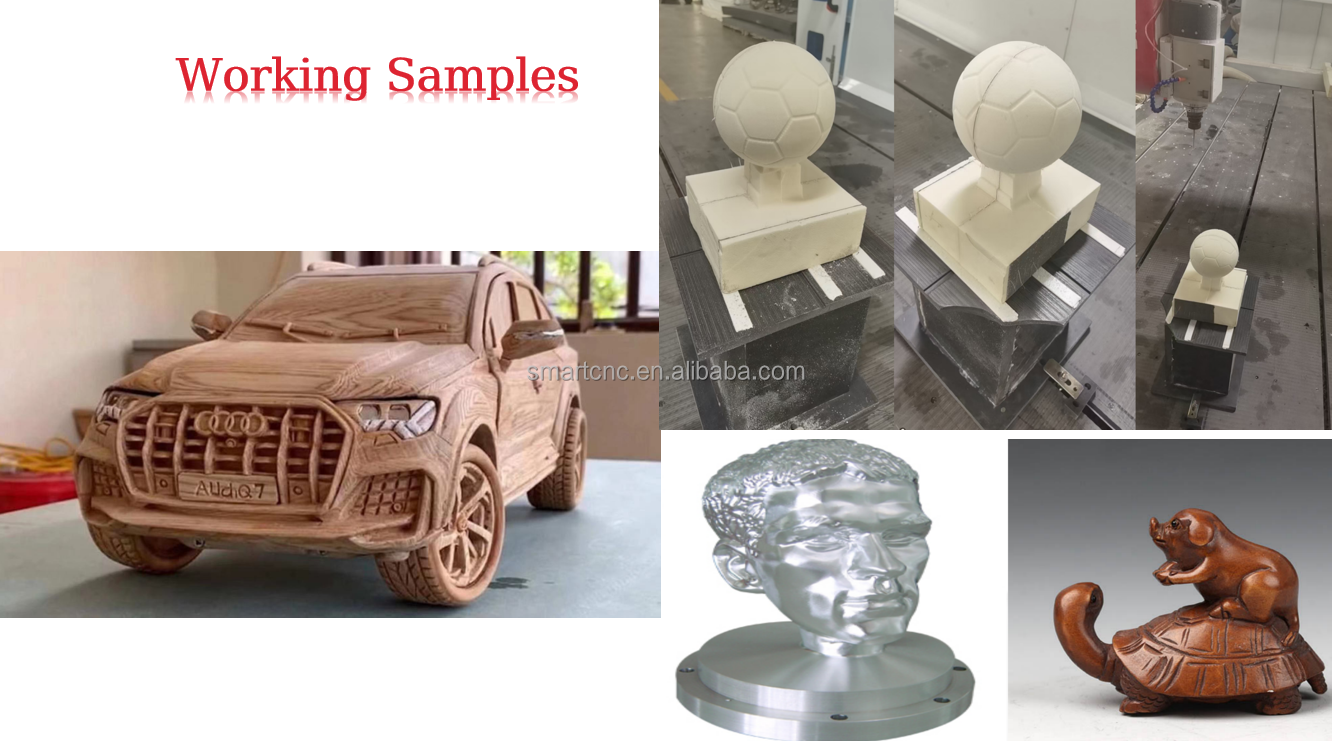

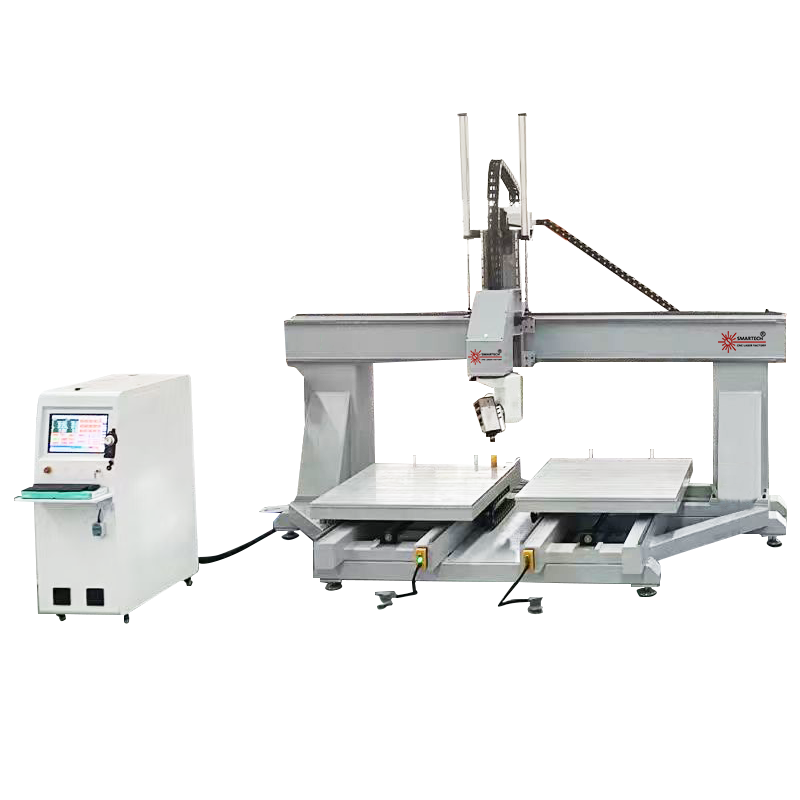

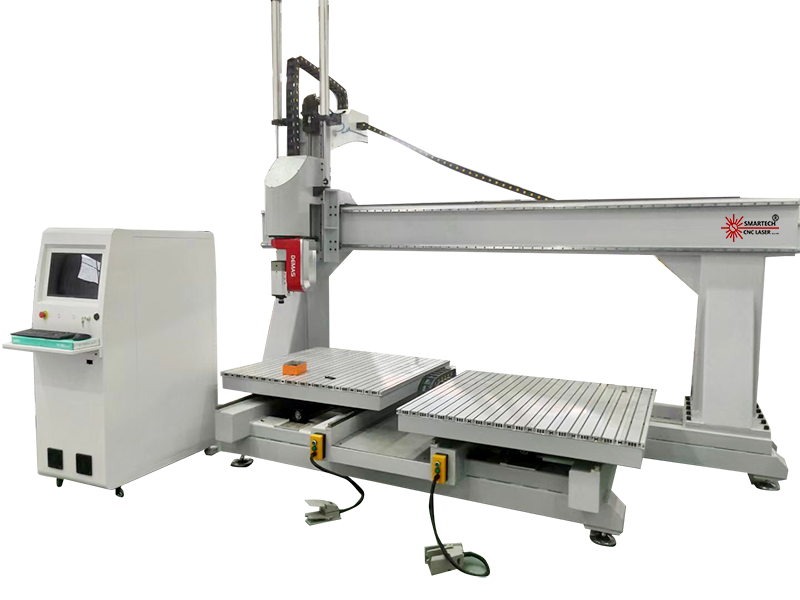

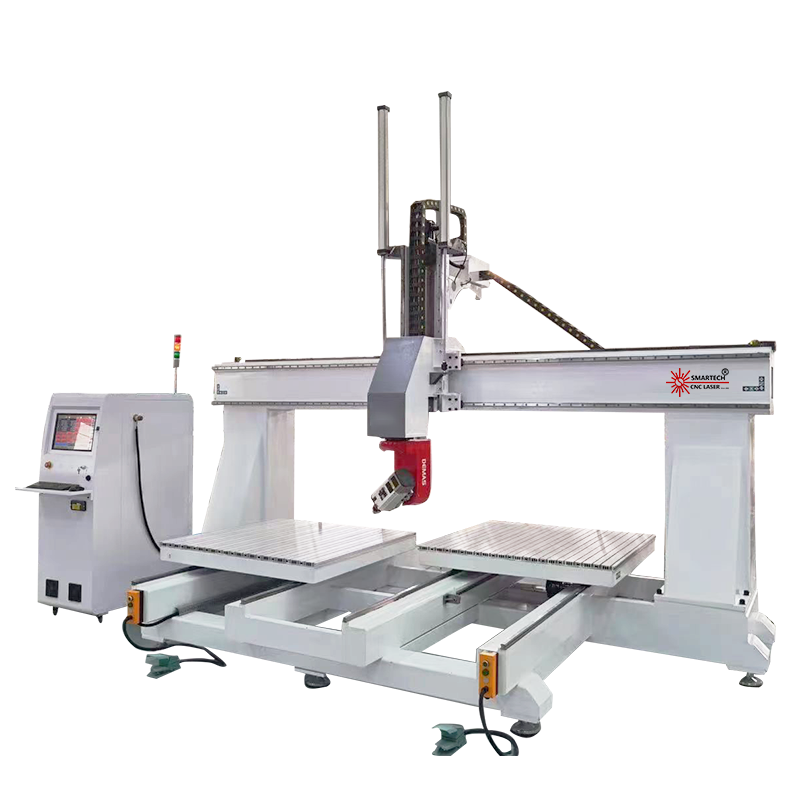

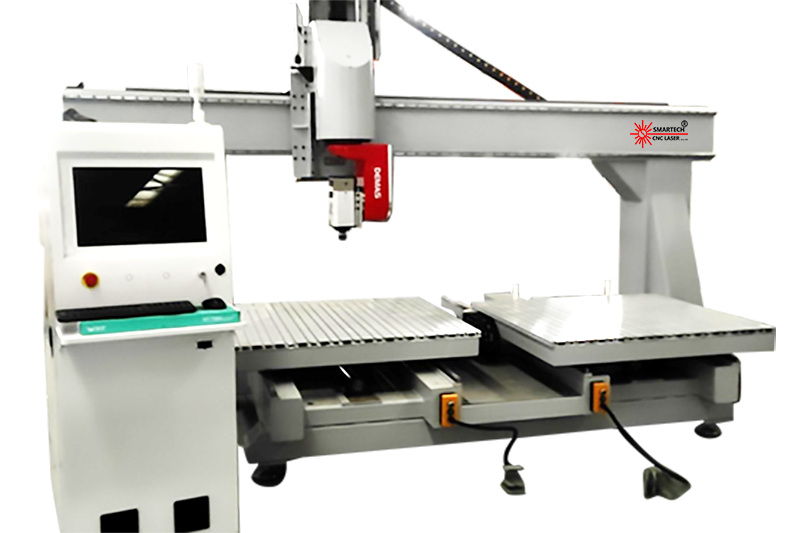

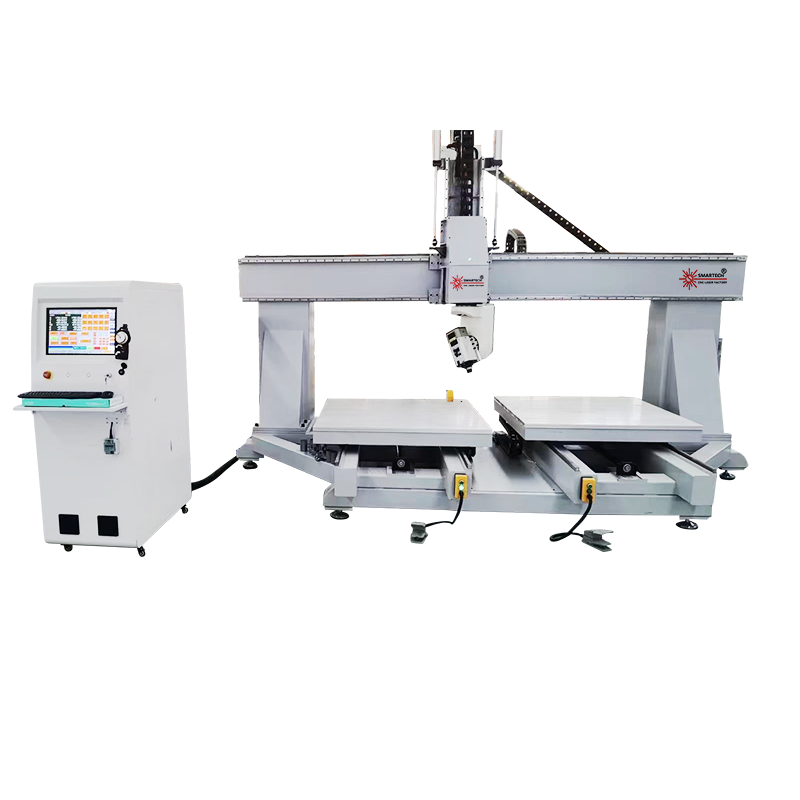

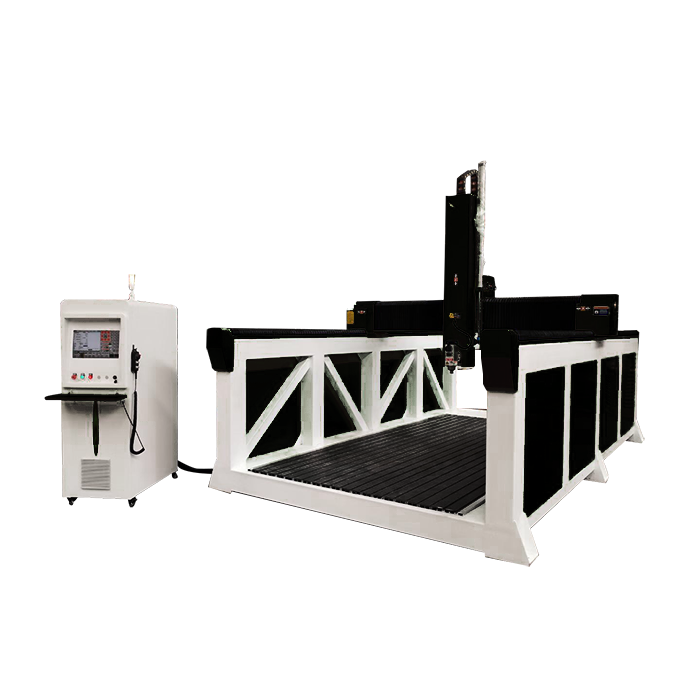

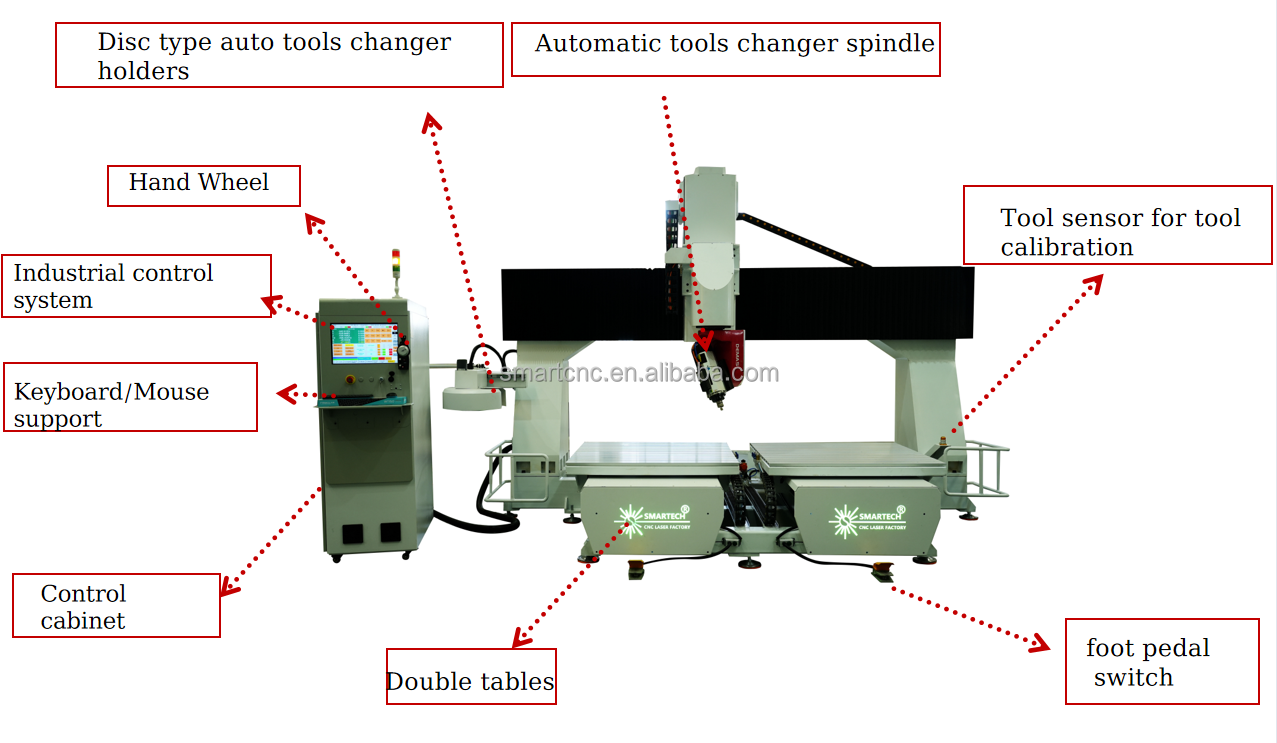

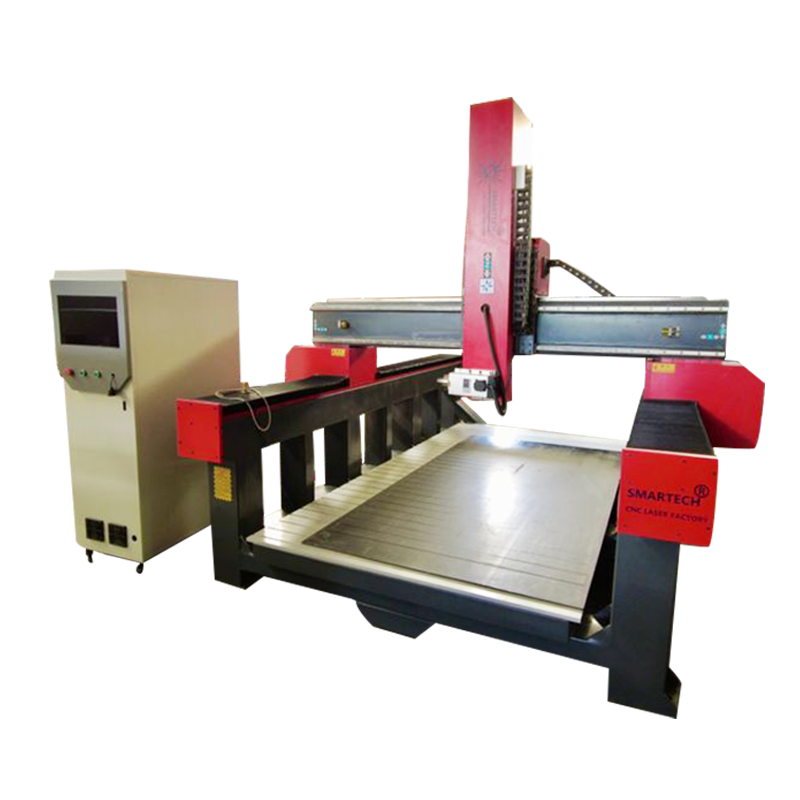

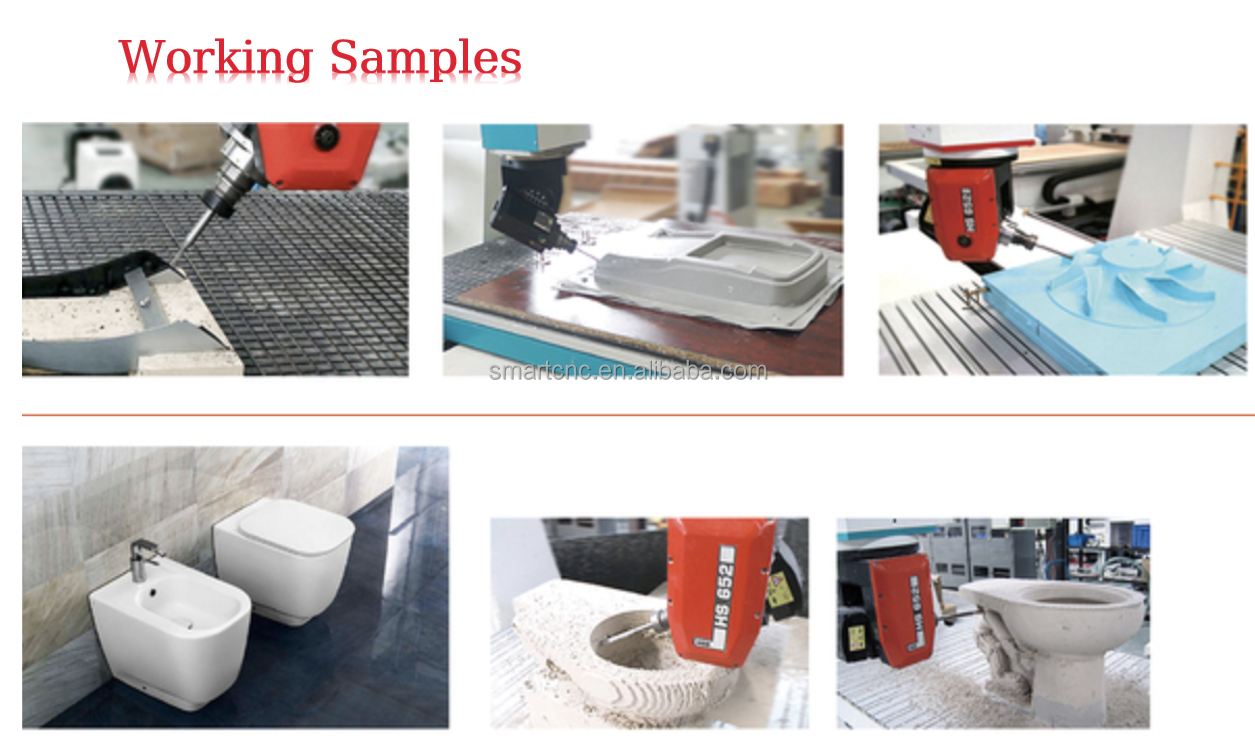

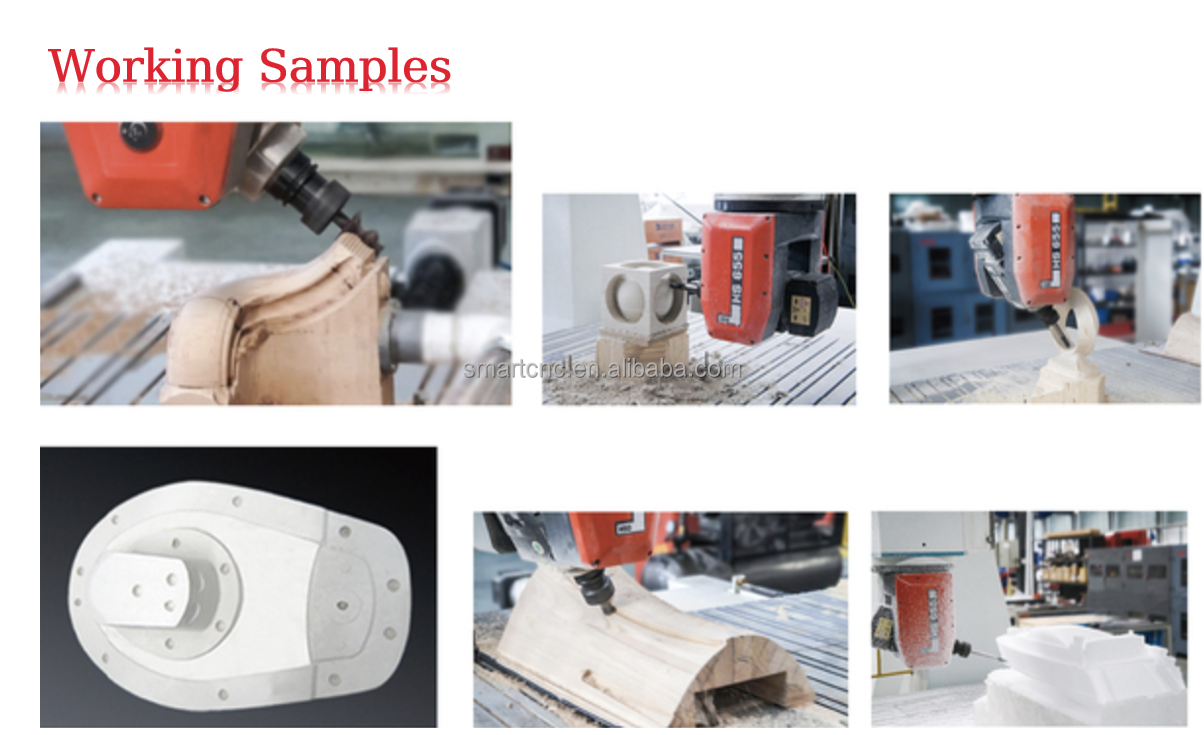

| Technical Specification | SMT1212-2 5 Axis Details |
| Maximum working size |
X Axis: 1200mm Y Axis: 1250mm Z Axis: 800mm A Axis: ±120° C Axis: ±400° |
| Table structure | Cast Steel Movable Table |
| X, Z Structure | Taiwan-made HIWIN Guide rail: X 30, Z 25; Germany-made rolling ball screw |
| Y Structure | Taiwan HIWIN Guide rail: 30 Helical Rack and pinion |

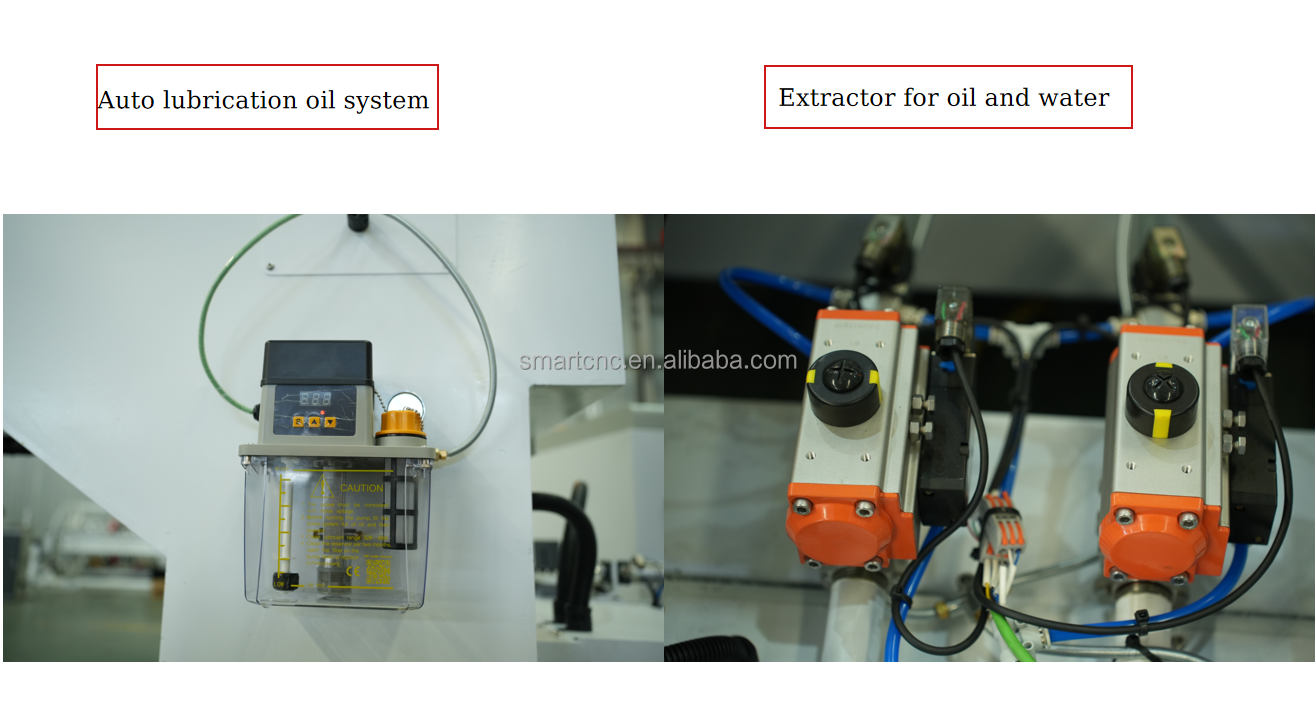

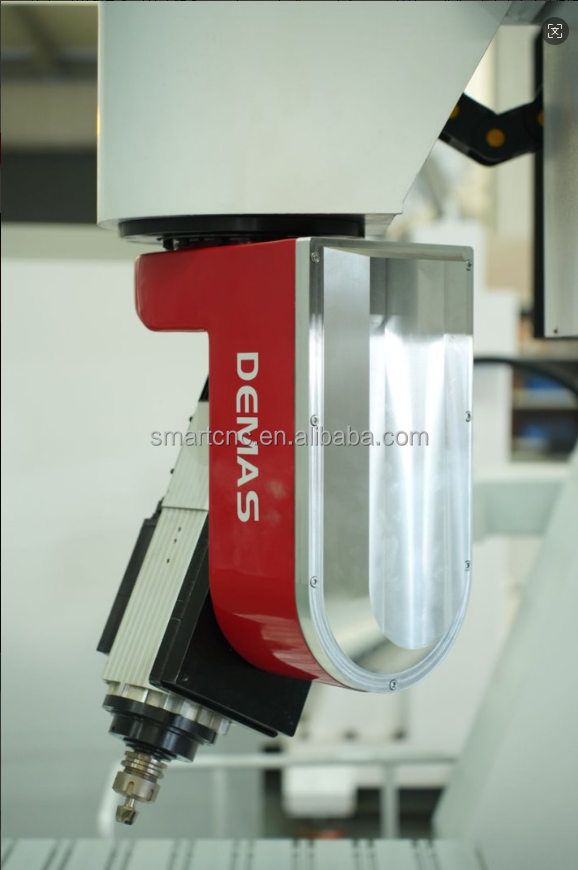

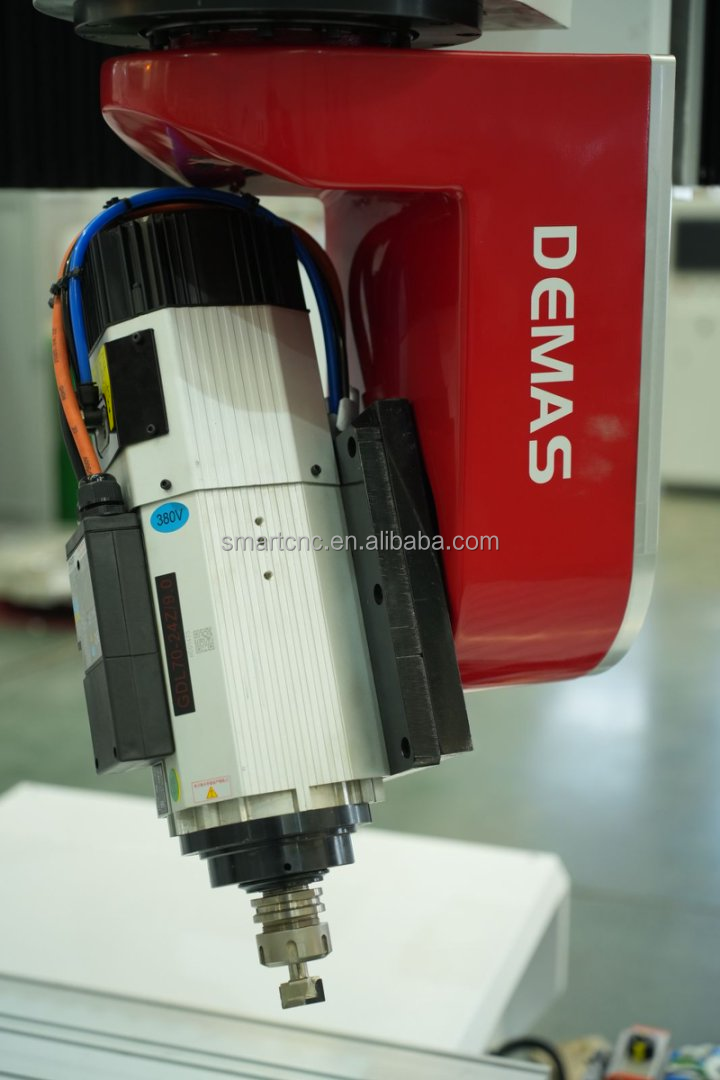

| Spindle | 10kw spindle, air-cooled |
| Magazine | Linear-type ATC 12 tools (Option) |
| Fast moving speed | 55m/min |
| Working speed | 20m/min |
| Diameter of Cutter | φ3.175 - φ12.7 |
| Spindle Speed | 12000(400HZ) - 24000r/min(800HZ), variable speed |
| Motor and driver | Servo |

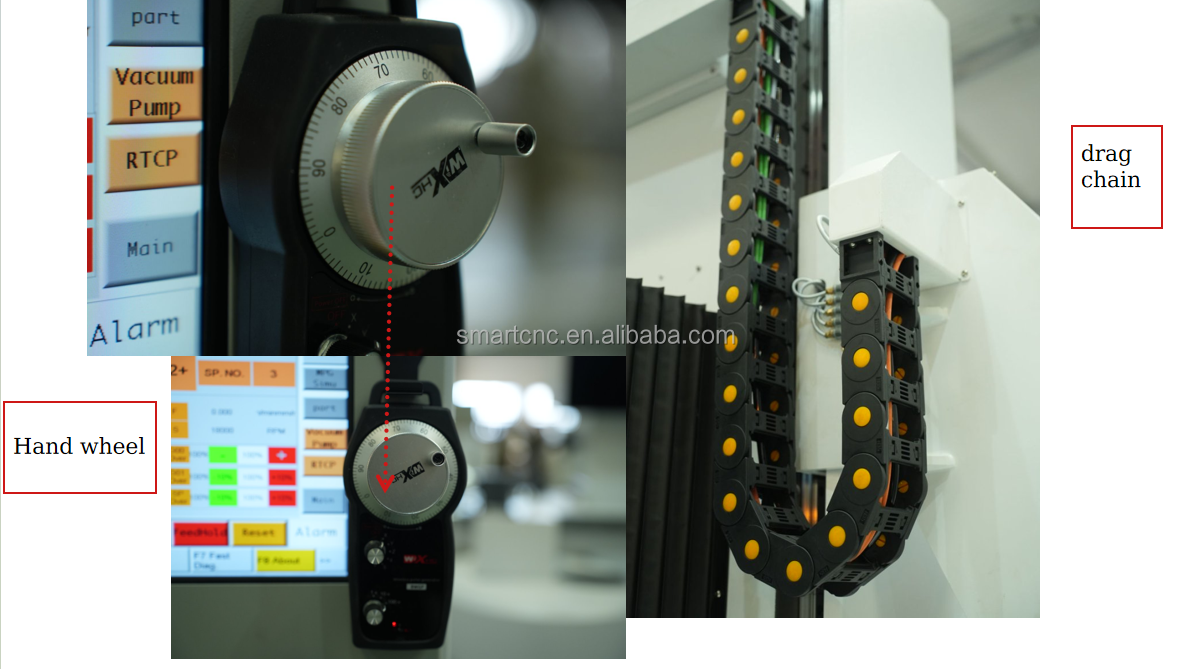

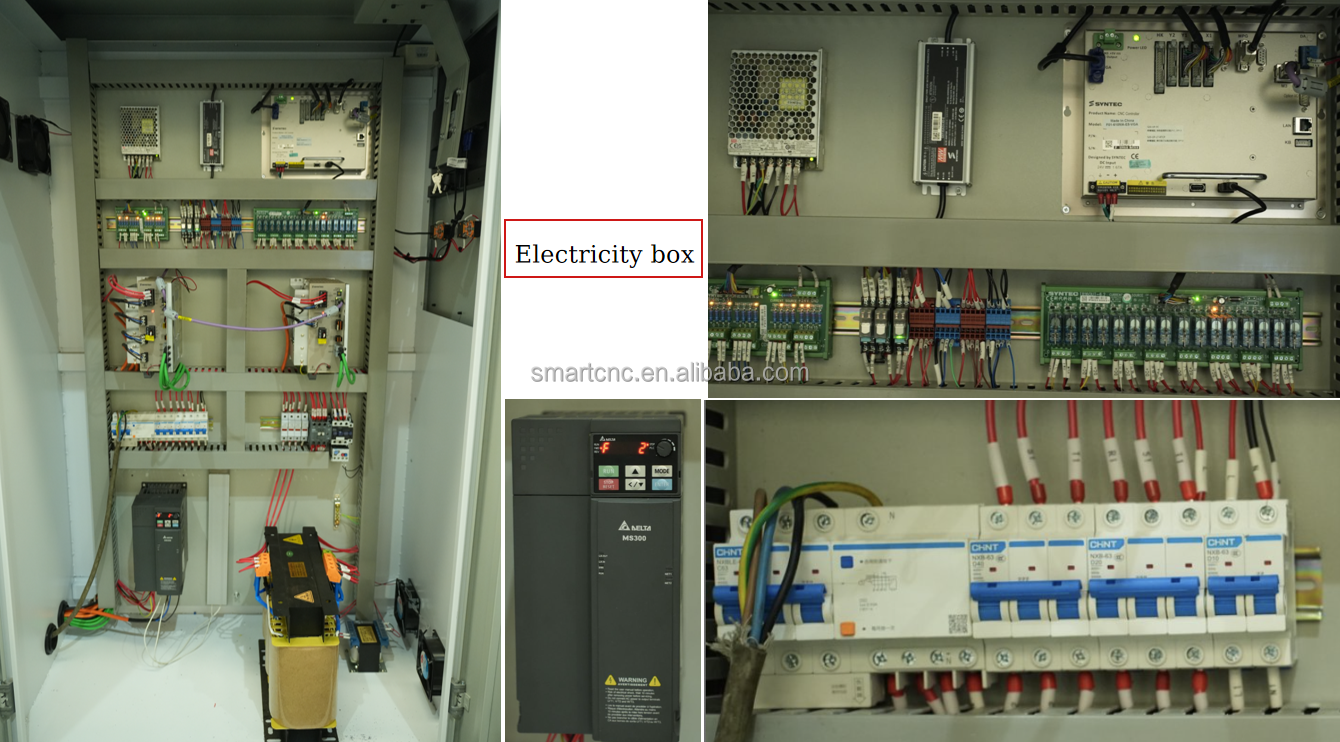

| Inverter | Taiwan Delta inverter |
| Command | G code |

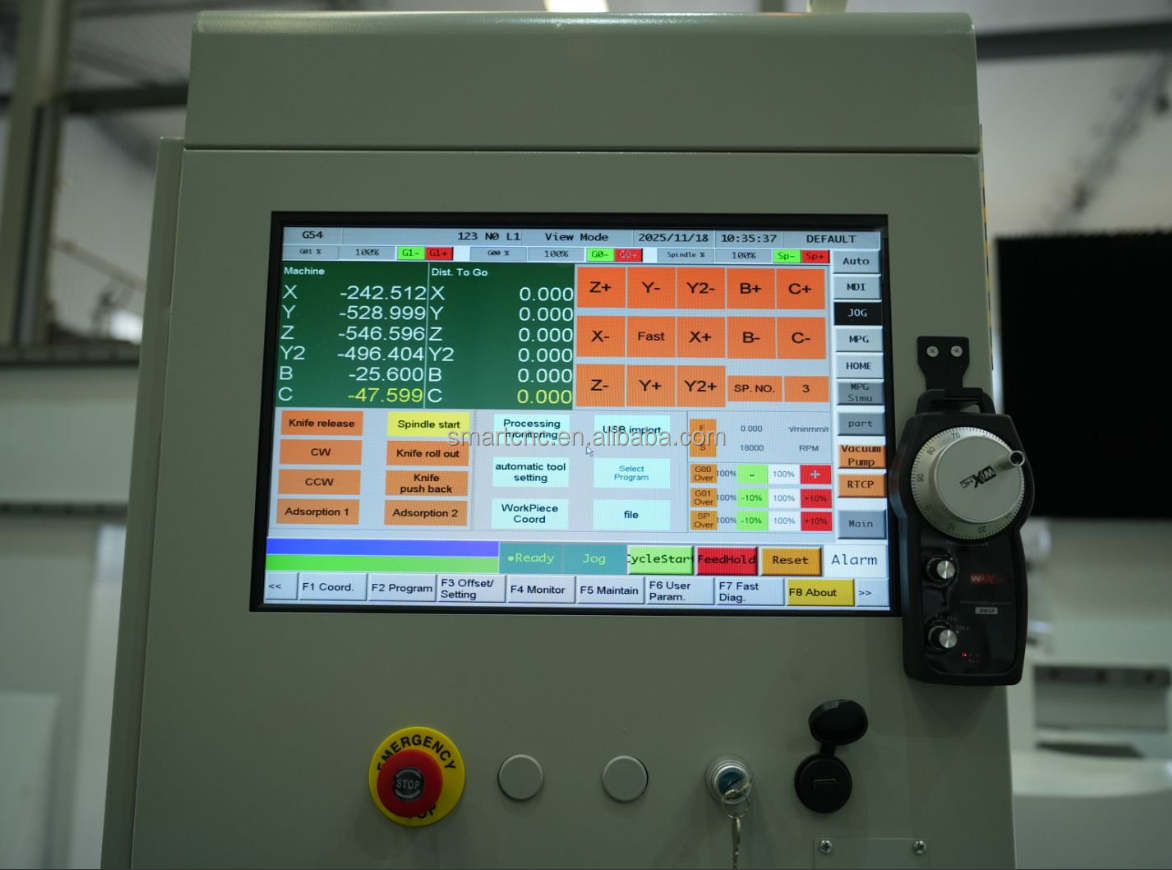

| Controller | Syntec from Taiwan |
| Software | Power mill |
| Dust-collect function | Optional part |
| Working table | T-slot Table (Vacuum table for option) |
| Net weight / Gross weight | 4500kg / 4600kg |
| Machine size | 4200 * 2800 * 3700mm |
| Working voltage | AC380V/50HZ or Customized as your workshop |
| Parameter | A Axis Details | C Axis Details |
| Reducer | CRV27C (QINCHUAN MODEL: 27C) | CRV27C (QINCHUAN MODEL: 27C) |
| Reduction ratio | 1:190 | 1:190 |
| Continuous torque | 470NM | 470NM |
| Maximum torque | 680NM | 680NM |
| Maximum Rotation Angle | ±110° | ±110° |
| Axis positioning accuracy | 1 arcmin | 1 arcmin |
| Servo Drive & Torque Specs | A Axis | C Axis |
| Servo Motor | Servo | Servo |
| Servo Motor Power | 400W / 750W | 750W |
| Servo Motor Encoder | Absolute value | Absolute value |
| Reducer Type | Harmonic | RV |
| Maximum Continuous Torque | 167 | 215 |
| Peak torque | 568 | 680 |
| Reduction ratio | 1:131 | 1:131.147586 |
| Shaft maximum rotation angle | ±110° | ±360° |
| Axis positioning accuracy | 1 arc minutes | 1 arc minutes |
| Weight | - | 40KG |
