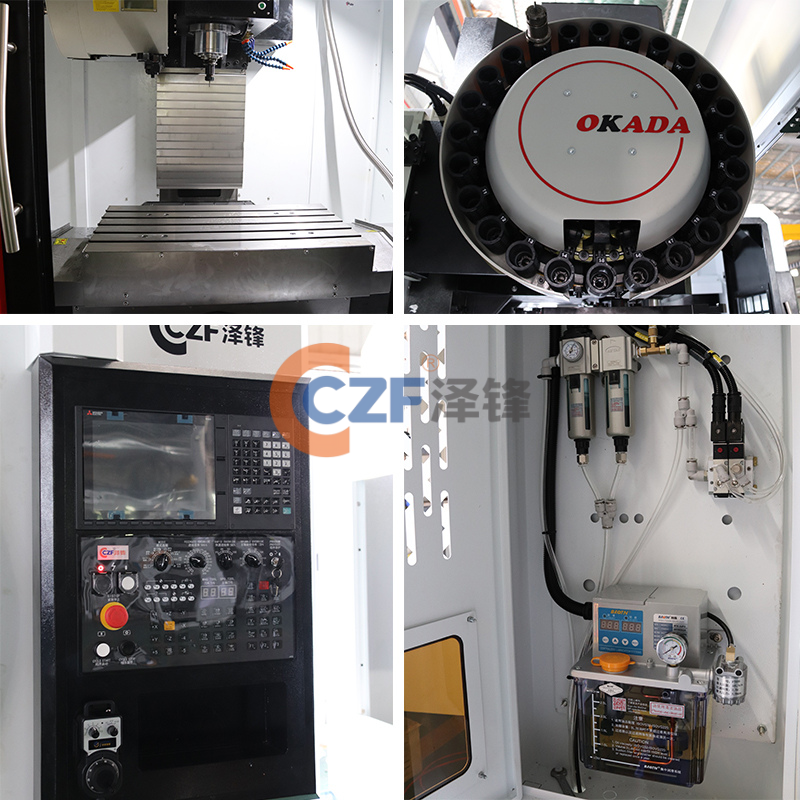

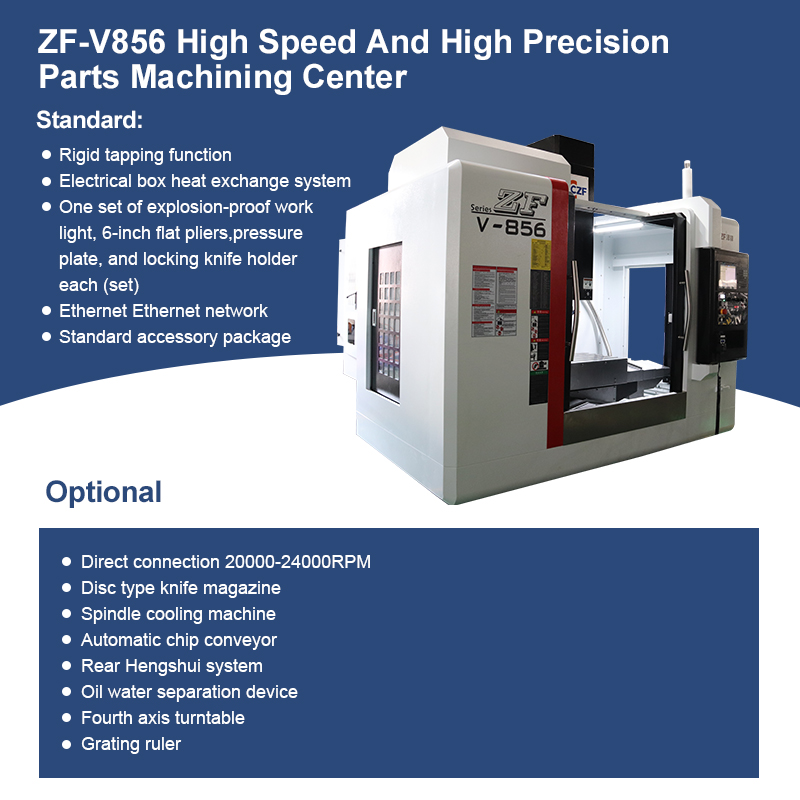

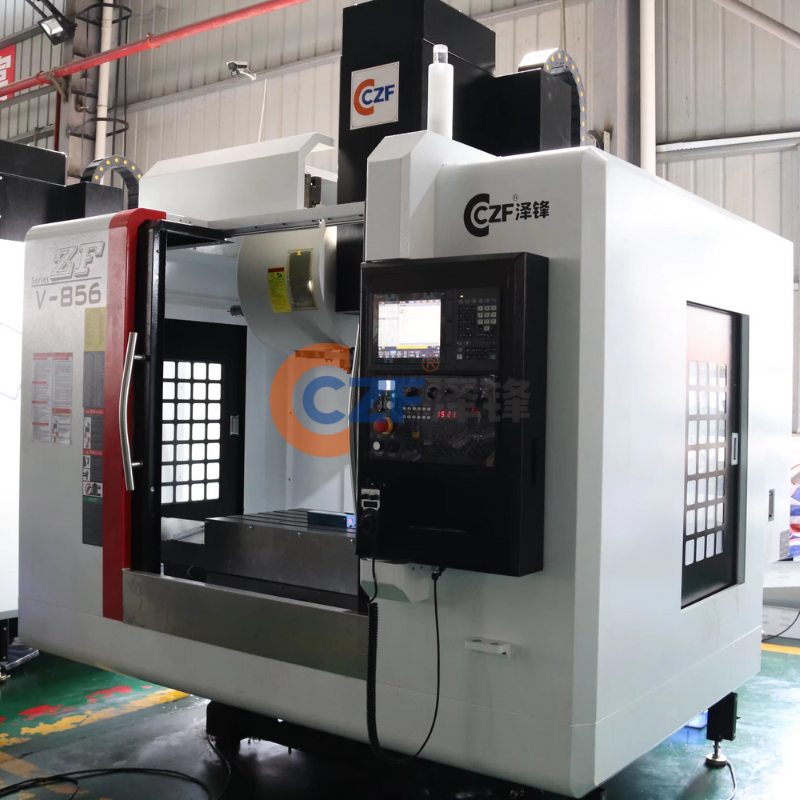

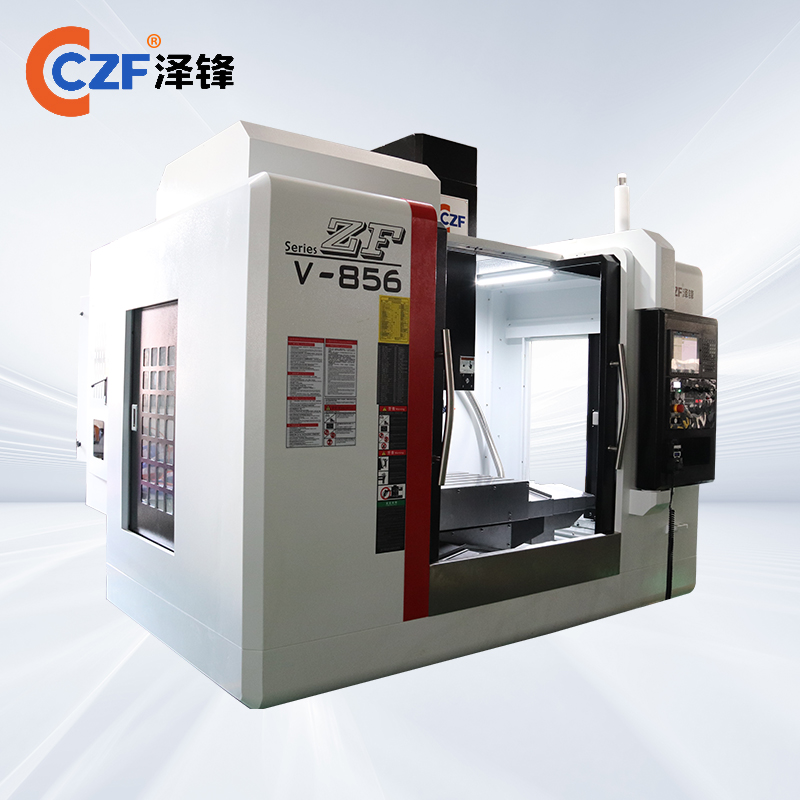

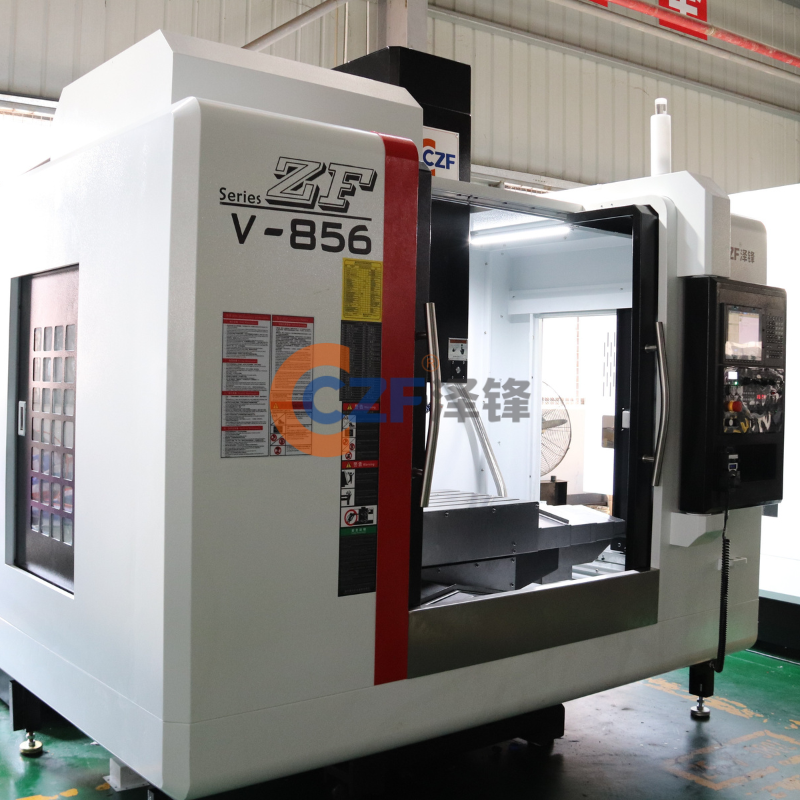

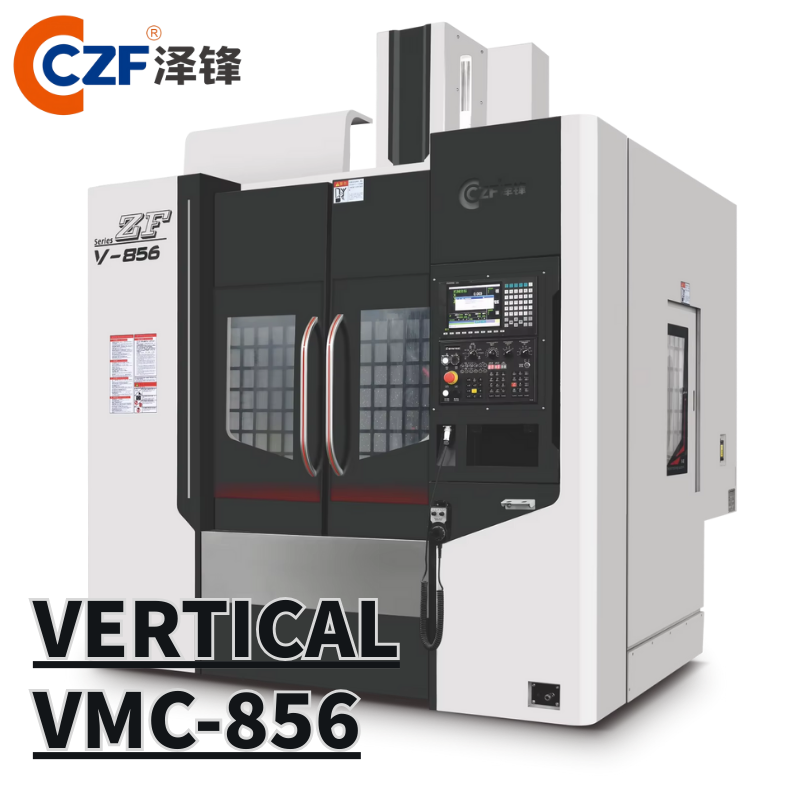

| Specification | Unit | VMC856 |
|---|---|---|
| Three axis travel | mm | 800*500*600 |
| Workbench size | mm | 1000*550 |
| The maximum load-bearing capacity of the workbench | kg | 400 |
| Distance from spindle center to column | mm | 560 |
| Distance from spindle nose to worktable | mm | 110-710 |
| Three axis motor power | kw | 2*2*3 |
| XYZ axis rapid feed | m/min | 36/36/36 |
| Controller | Standard Configuration: Mitsubishi M80VB system Optional Configurations: Mitsubishi M80VA system, Fanuc system, Siemens system, HNC system, Sinumerik system | |
| Specification of spindle end | BT40 | |
| Spindle speed | r.p.m | 12000 |
| Spindle motor power | kw | 7.5 |
| Air compression specifications | kg/c | 6-7bar |
| Size | mm | 2700*2600*2700 |
| Weight | kg | 5200 |
The mechanical specifications are subject to change with the increase in quality!
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
We are a factory entity with our own manufacturing brand. We have a dedicated export department for global business, allowing you to buy directly from the source.
Please provide your specifications, and we can select the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
A 30% down payment after signing the contract and a 70% payment before shipment can be discussed based on your specific situation.
Yes, we can. Please provide the specifications of the machine you need and let us know your requirements.
The machine warranty period is 12 months from the date of receiving the goods.
We have 3-5-axis machine tools. Please share the dimensions you require, including the 4th and 5th rotary tables, NC controller, motor brand and model, so we can provide you with an accurate quotation.
