Products Description

Machine Tool Introduction

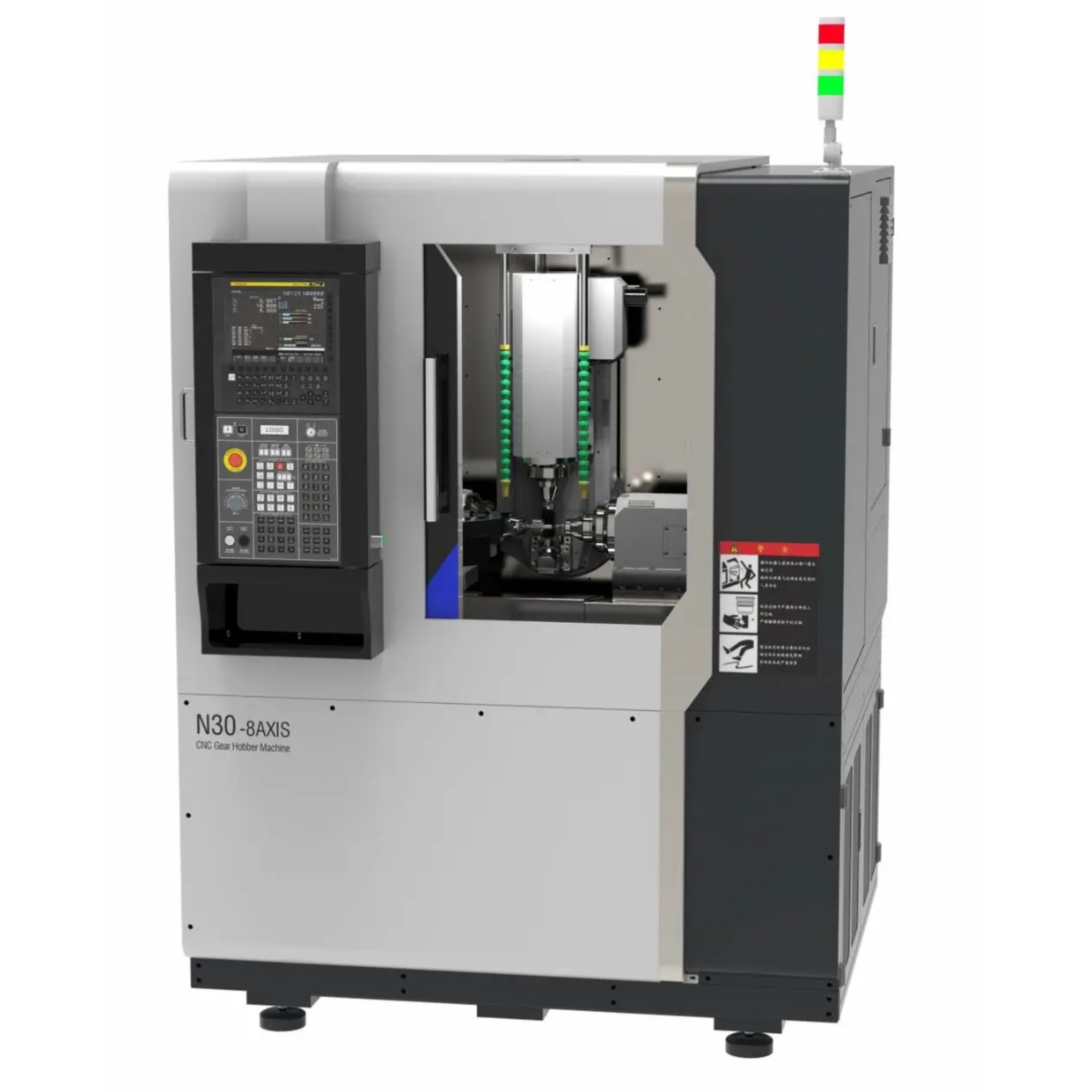

The N30 high-speed CNC gear hobbing machine is a horizontal-type machine designed for machining small-module gears. It features a precision-cast bed and an enclosed guard. Equipped with a Higeman control system (or an optional FANUC control system), it is operated by eight CNC-controlled axes working in coordination: B (tool spindle), C (workpiece spindle), C1 (tailstock spindle), A (helix angle rotation axis), X (tool radial feed axis), Z (workpiece axial feed axis), Z1 (tailstock axial feed, capable of synchronized movement with the Z-axis), and Y (tool traverse axis), with axes B, C, X, and Z operating in coordination.

Human-machine interaction is simple and intuitive; based on the generating method principle, it achieves efficient and high-precision gear machining, with accuracy reaching Grade 5-6 of GB/T 10095-2008. The machine tool features a dual-spindle and dual-axial feed structure, making it suitable for the machining of high-precision micro-miniature gears and slender gear shafts. It includes reserved interfaces for automation equipment and can be paired with automatic loading/unloading devices. It is widely used in fields such as robotics, aerospace, smart home, watchmaking, home appliances, instrumentation, and medical devices.

Machine Tools Features

• Machine Body and Control System: The HT300 features a cast iron bed that has undergone stress relief treatment, offering high rigidity, vibration damping, wear resistance, and stable precision. It features a horizontal configuration with a dual-spindle and dual-feed design. The standard configuration includes the Higeman HI102M system, with the FANUC system available as an option. It provides 8-axis control and supports 4-axis simultaneous motion.
• Transmission Components: Utilizes imported precision lead screws and high-rigidity linear guides for precise transmission, enabling high-speed hard-tooth-surface machining.
• Spindle Drive: Dual-spindle servo direct-drive system eliminates transmission errors and backlash, suitable for high-speed, high-precision machining. The N30FG is equipped with a 12000rpm high-speed motorized spindle for high-speed hard cutting and dry cutting.
• Operating System: Built-in EGB electronic gearbox with a simple user interface; machining can be completed by simply entering parameters, eliminating the need for complex programming.
• Lubrication System: Independent automatic metered lubrication ensures the precision and stable operation of all moving components.
• Protection, Cooling, and Chip Removal: Fully enclosed protection prevents leakage; circulating coolant maintains uniform machine temperature; a magnetic chip conveyor is standard, with customizable models available for copper and aluminum chips.
• Electrical System: Complies with national standards; powered by 380V/50Hz; the electrical control cabinet is equipped with temperature-controlled air conditioning, and wiring is neatly organized.
• Environmental Protection Features: Equipped with an oil mist collection system to purify the workshop environment and protect operator health.
• Power Failure / Emergency Stop Protection (Optional): Automatically retracts the tool upon power failure or emergency stop to prevent tool damage.

Machine Parameters

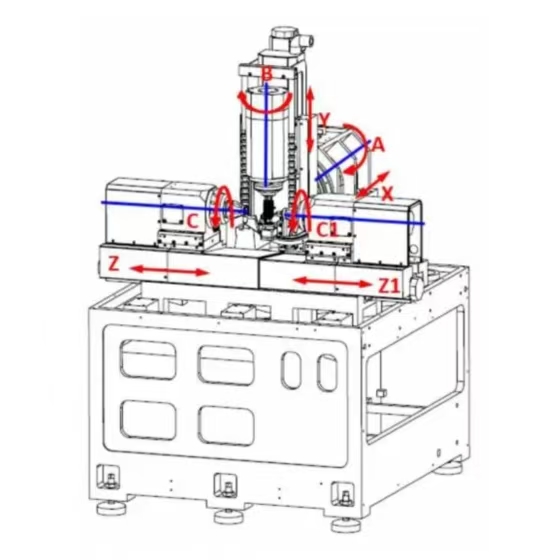

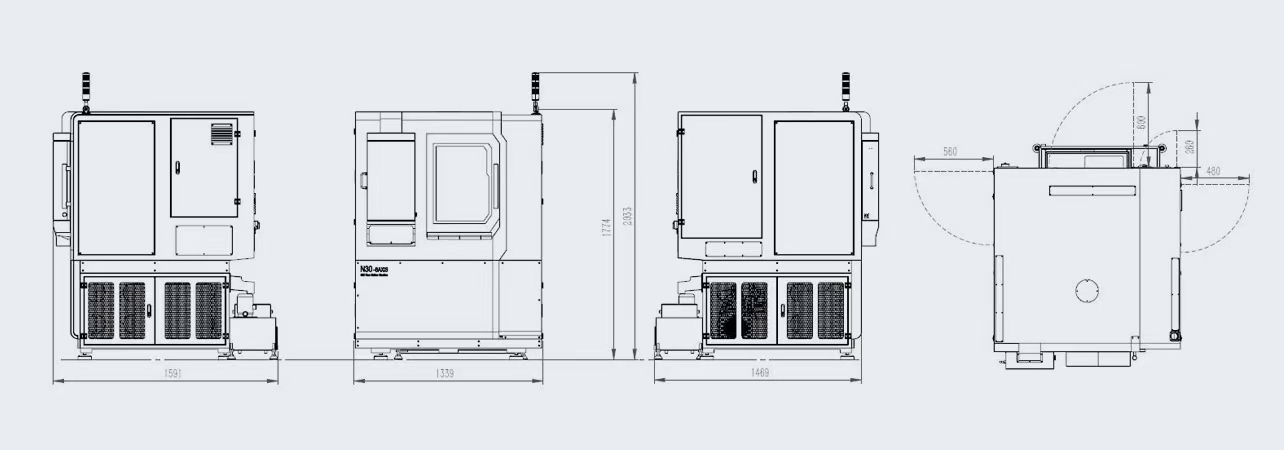

Machine Structure

Display of Finished Products

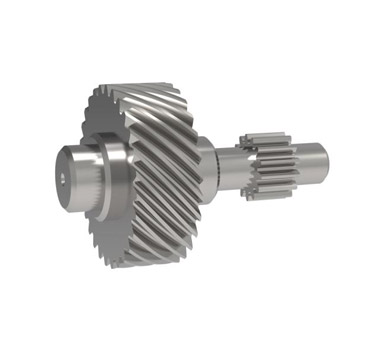

Duplex Gears / Double Gears

Suitable for machining duplex gears with different tooth profiles, modules, and tooth counts.

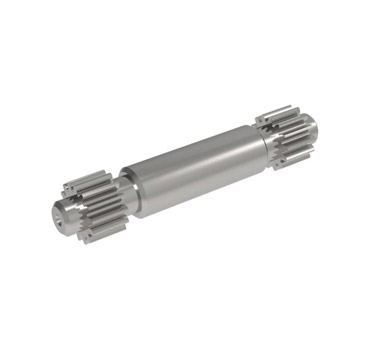

Gear Shafts / Spline Shafts

Suitable for machining various shaft-type gears and synchronous double-ended shaft gears.

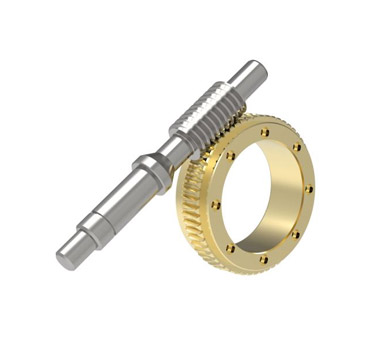

Worm Gears & Worms

Suitable for machining worm gears and worms.

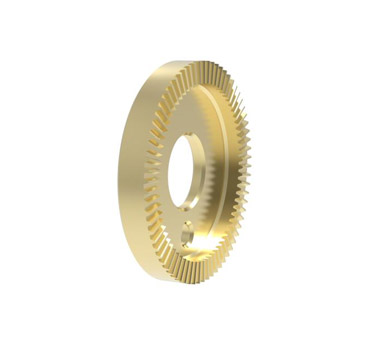

Face Gears

Suitable for machining face gears.

Automation Application

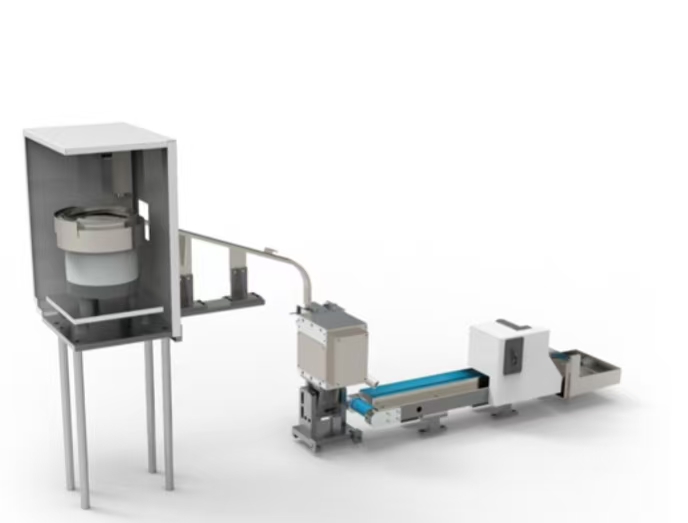

Vibration Type

Feeding via vibratory bowl feeder, loading by pneumatic feeder, and unloading via conveyor belt. Suitable for mass loading/unloading of gears.

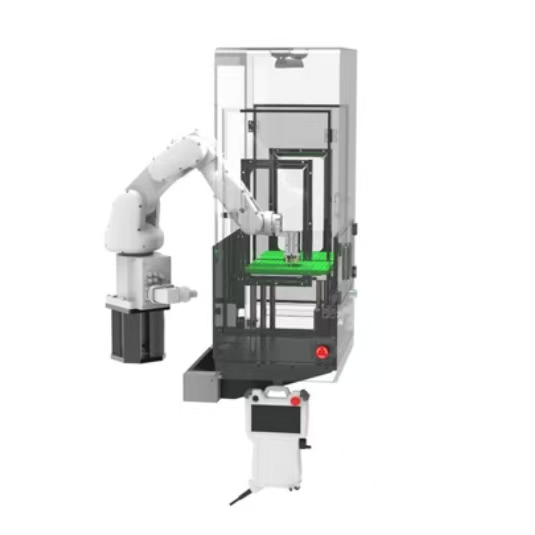

Robot Type

Feeding via parts tray, loading/unloading by robot. Suitable for both mass production and small-batch, diversified gear loading/unloading.

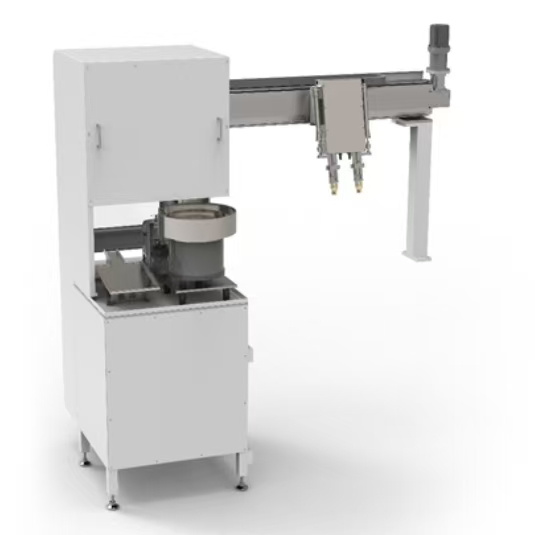

Gantry Type

Feeding via vibratory bowl feeder or parts tray, loading by gantry manipulator. Suitable for both mass production and small-batch, diversified gear loading/unloading.

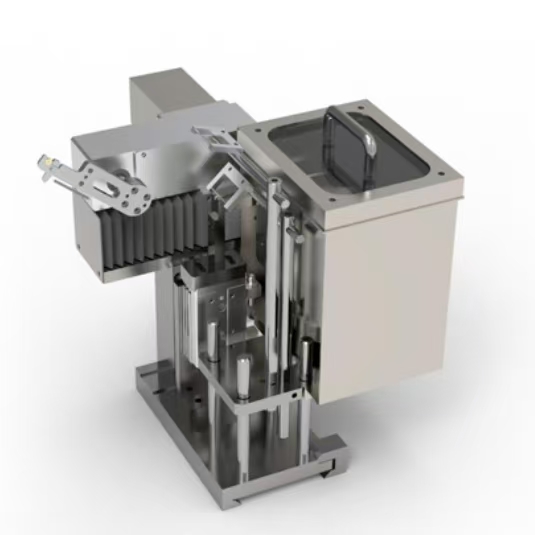

Servo Automatic Feeder

Feeding via vibratory bowl feeder, loading by 3-axis servo feeder. Suitable for mass loading/unloading of micro gears.
