| Model | LR-1530-7T-5AXIS |
| Processing Dimensions | 1500 * 300mm (customizable according to processing requirements) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds, independent anti-interference control cabinet |
| Linear Axis Drive Motor | Bus-type absolute 1500W servo motor |
| Fifth Rotary Axis Drive Motor | Bus-type absolute 750W servo motor |
| Linear Axis Transmission Mode | Z axis: high-precision helical rack + Taiwan Hiwin 30 guide rail/flange slider X, Y axis: TBI ball screw + Taiwan Hiwin 30 guide rail/flange slider |
| Reducer | Shimpo (Japan) planetary gear reducer |
| Frequency Converter | Hpmont frequency converter/servo frequency converter |
| Drive-Spindle Motor | 4KW pure servo high-torque and high-speed motor |
| Drive-Spindle Speed | 0-6000r/min |
| Turning Tool | Two mounting positions for turning tools (self-installable) |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle (supports 5-axis RTCP) |
| Multi-functional Spindle Speed | 0-18000r/min |
| Multi-functional Spindle Collet | ER40 φ26mm |
| Sanding Device | Independent 1100W variable frequency servo motor control, replaceable sanding belt, selectable sandpaper grit |
| Sanding Device Speed | 0-6000r/min |
| Automatic Loading and Unloading | Four-bar linkage cylinder loading/unloading device (simple and easy to use) |
| Control System | Taiwan LNC control system |
| Lubrication System | Central lubrication and maintenance system (automatic timed lubrication) |
| Electrical Components | Delixi/Schneider AC contactors, relays, circuit breakers |
| Operating Voltage | AC380V/220V 50/60Hz |
| Compatible Software | Artcam, Type3, AutoCAD, CDR, Carving, Powermill, UG, Mastercam, etc. |
| Engraving Instructions | Standard G code, u00,mmg,plt |
| Security System | XYZB four-axis all photoelectric limit |
| Repeat Positioning Accuracy | ±0.02mm |
| Weight | 2300kg |
| Dimensions | 3750*2150*2150mm |

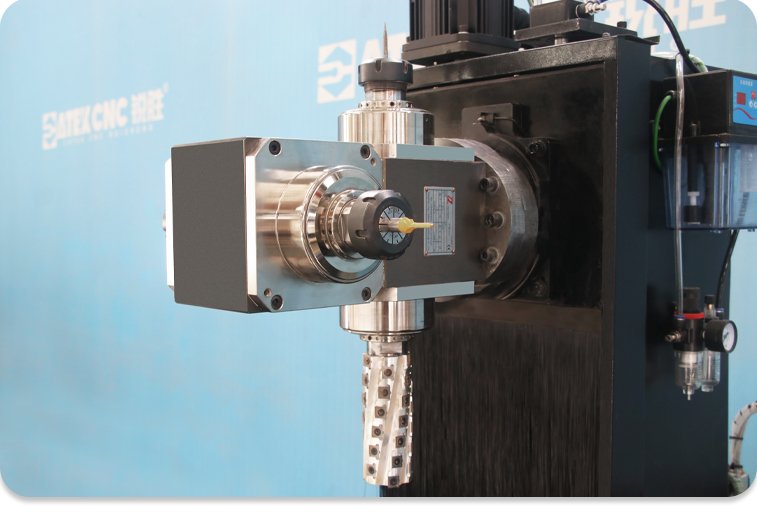

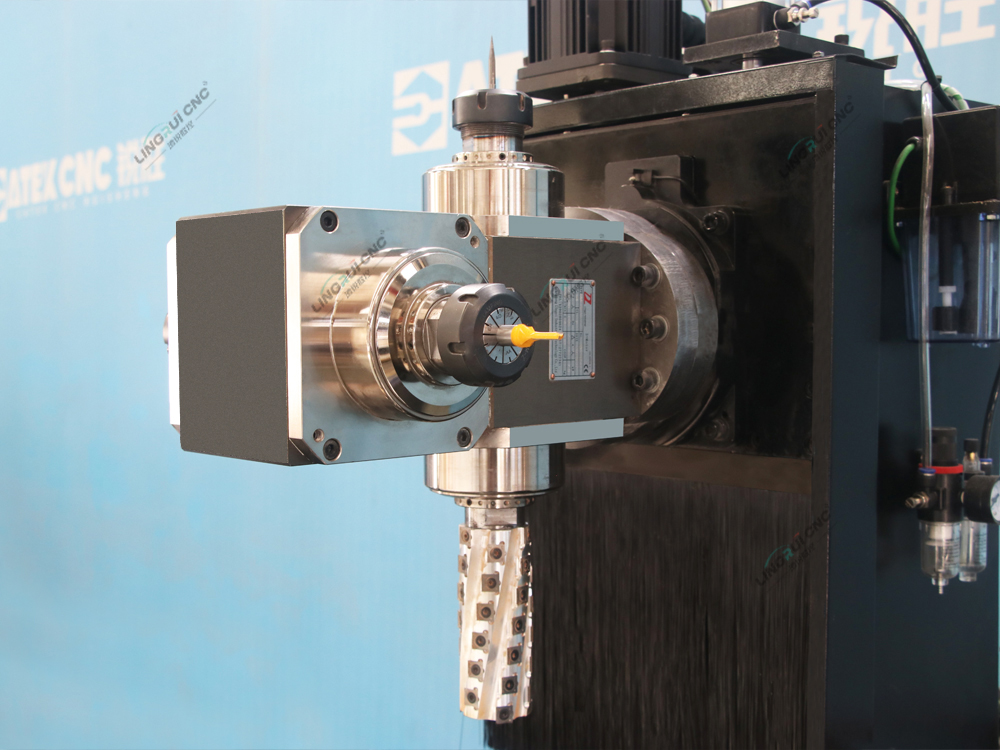

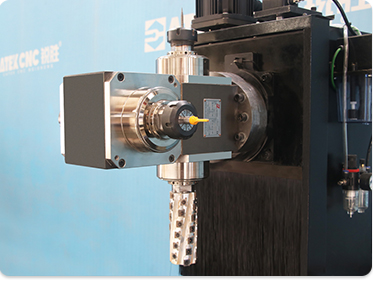

The four-head electric spindle, designed specifically for five-axis machining centers, features an integrated design and boasts a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it can accommodate four different tool types at a time. During machining, it automatically rotates and switches tools according to the drawing and offers ±90-degree tilt adjustment, making it easy to complete complex processes such as drilling, grooving, and engraving on both inclined and vertical workpiece surfaces.

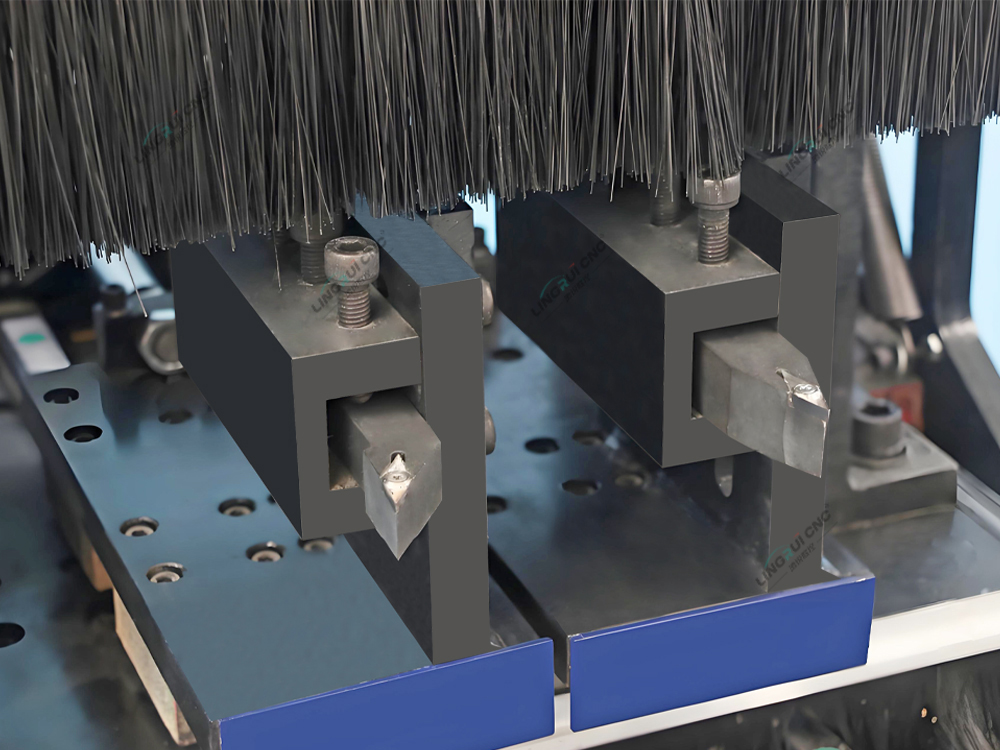

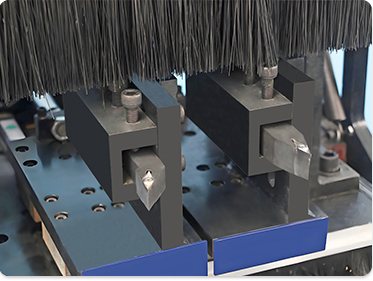

Equipped with two turning tool mounting positions, switched via a pneumatic cylinder, these two mounting positions accommodate various functional tools, including V-type turning tools, U-type turning tools, O-type turning tools, and cut-off tools. These positions automatically switch between the two positions based on workpiece requirements, meeting diverse turning needs.

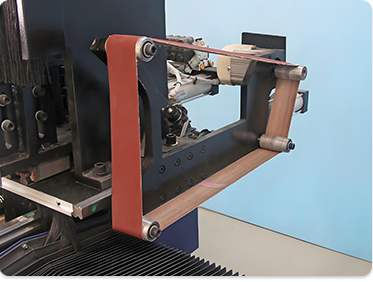

Equipped with a sanding belt unit for grinding, it's driven by an 1100W brushless servo motor, with a maximum speed of 6000 rpm. The speed can be adjusted to suit your grinding needs. A grinding wheel and a pulsating sanding unit are also available as options.

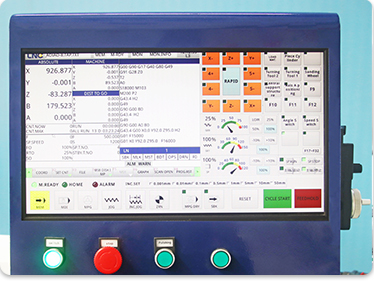

The CNC system supports advanced features such as five-axis RTCP and handwheel simulation. It is compatible with various formats including NC, TAP, and TXT, and features an intuitive interface for easy control.

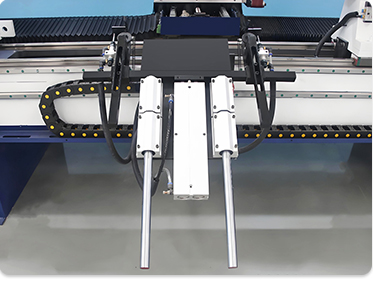

The pneumatic automatic feeding device features a four-link structure for high stability and strong load-bearing capacity. It can be adjusted to suit the size of the raw material. It's easy to use and eliminates the need for manual loading, saving labor and improving efficiency.

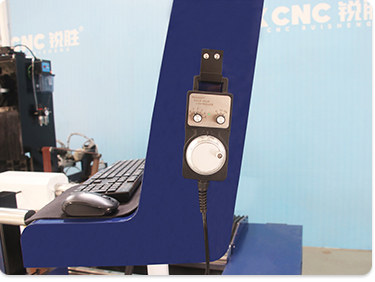

An external five-axis pulse control handwheel allows for free adjustment of the X, Y, Z, and A axes, making tool calibration even more convenient.

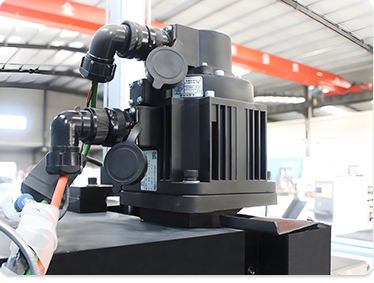

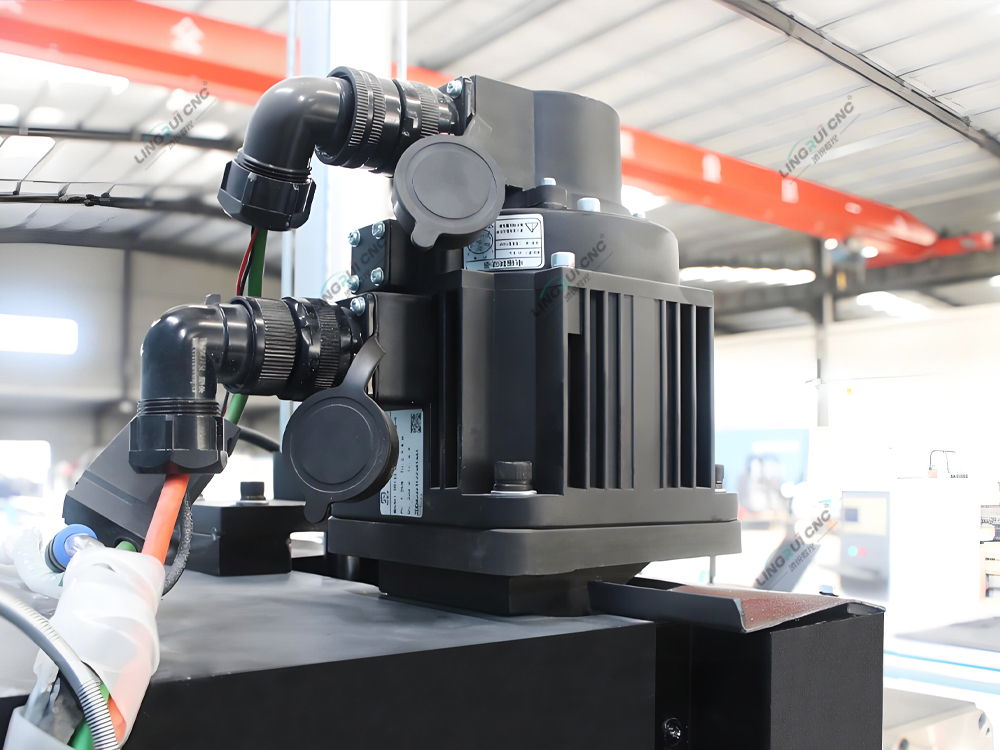

It utilizes a 1500W bus-based absolute servo motor and a planetary reducer on the Z-axis. It boasts a traverse speed exceeding 60 m/min, a wide and smooth speed regulation range, stable torque output, and high positioning accuracy, making it ideally suited for five-axis CNC woodworking lathes requiring high machining precision and multi-axis synchronization.

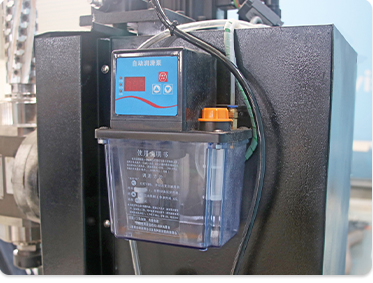

The central automatic lubrication and oiling maintenance system regularly lubricates all transmission parts of the machine, preventing untimely manual lubrication.
The central automatic lubrication and oiling maintenance system regularly lubricates all transmission parts of the machine, preventing untimely manual lubrication.

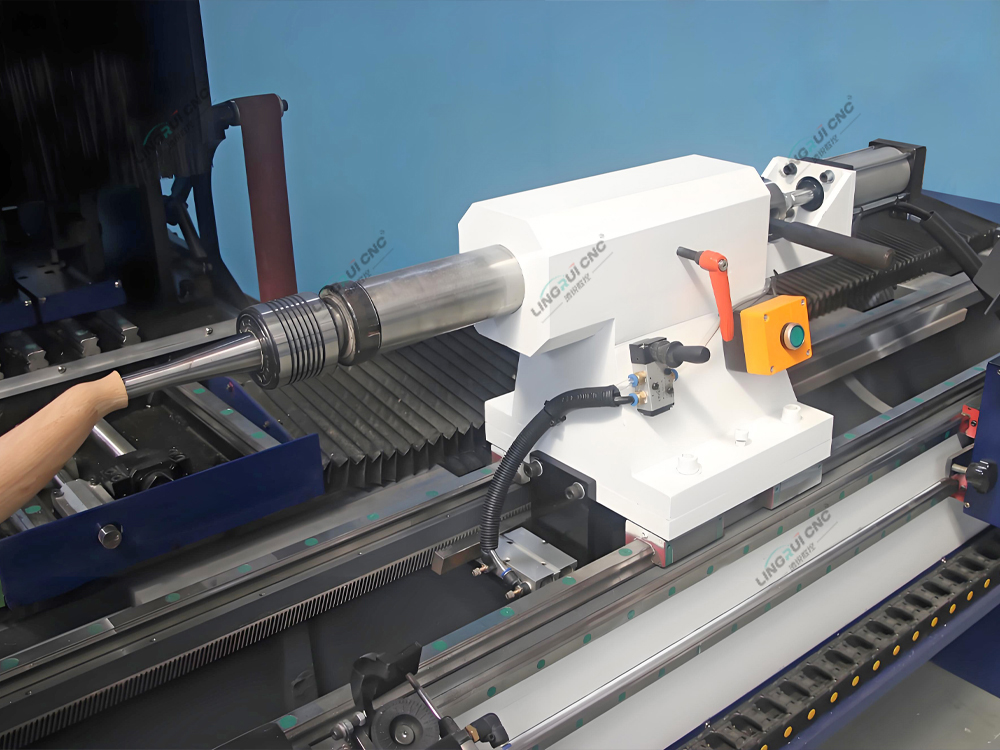

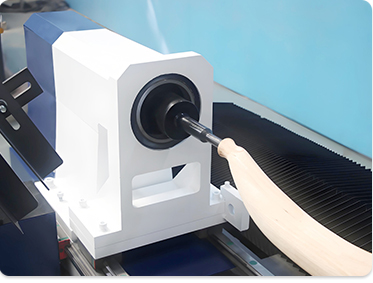

Constructed entirely of gray cast iron, it incorporates four high-strength bearings, which effectively distribute the load and reduce rotational friction, resulting in higher rotational precision and more stable speed.

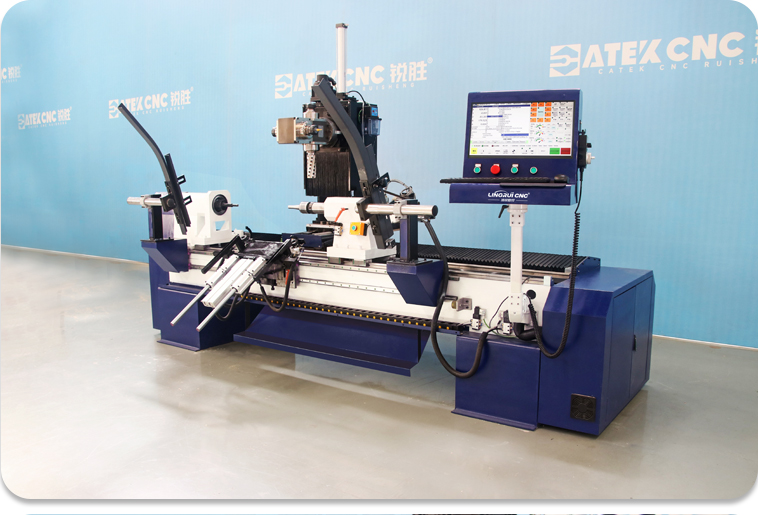

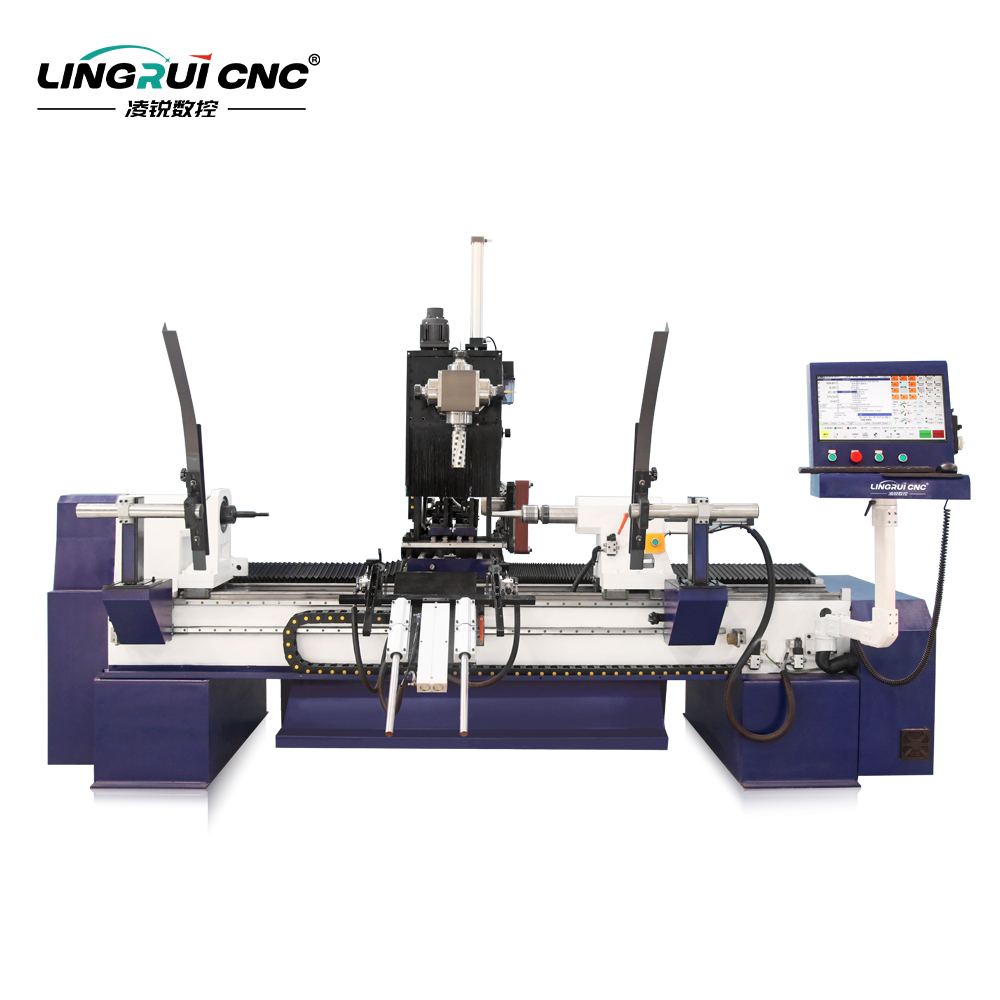

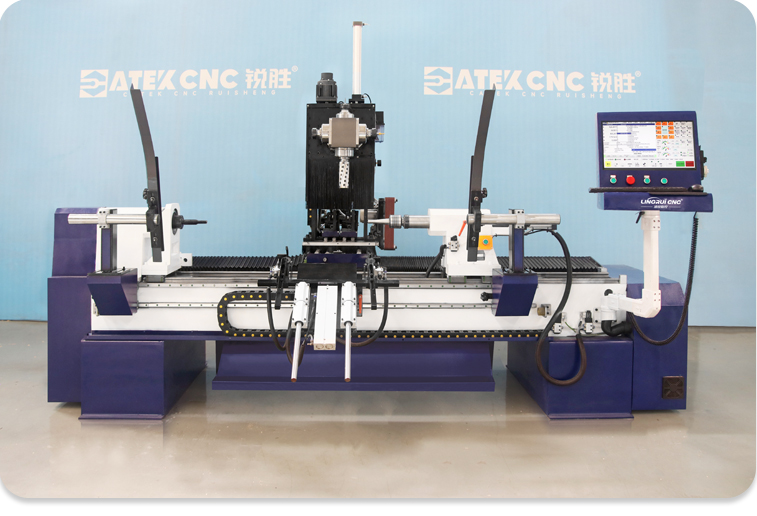

The LR-1530-7T-5AXIS five-axis multi-function CNC woodworking lathe, with its five-axis RTCP linkage, high-precision control, and multi-function automatic switching capabilities, meets the full range of processing needs from ordinary wood products to complex special-shaped crafts. Its application range covers furniture manufacturing, musical instrument production, customized crafts, architectural decoration and other industries.
Furniture Manufacturing: Specially shaped curved, arc-shaped, and wavy table legs, chair legs, sofa legs, bedposts, headboards, chair backs, chair heads, sofa armrests, and chair armrests. These legs also include European-style relief patterns, multi-faceted chamfers, S-shaped curves, oblique grooves, and beveled holes.
Architectural Decoration: Staircase columns, Roman columns, wall decorations, special-shaped carved door and window accessories, and wooden hangers.
Musical Instrument Manufacturing: Various string instrument parts, guitar necks, violin fretboards, flutes, bassoons, and other instrument accessories.
Craft Manufacturing: Wooden gun stocks, human and animal sculptures, vases, antique furniture, and art pieces.
