Metalworking Machinery

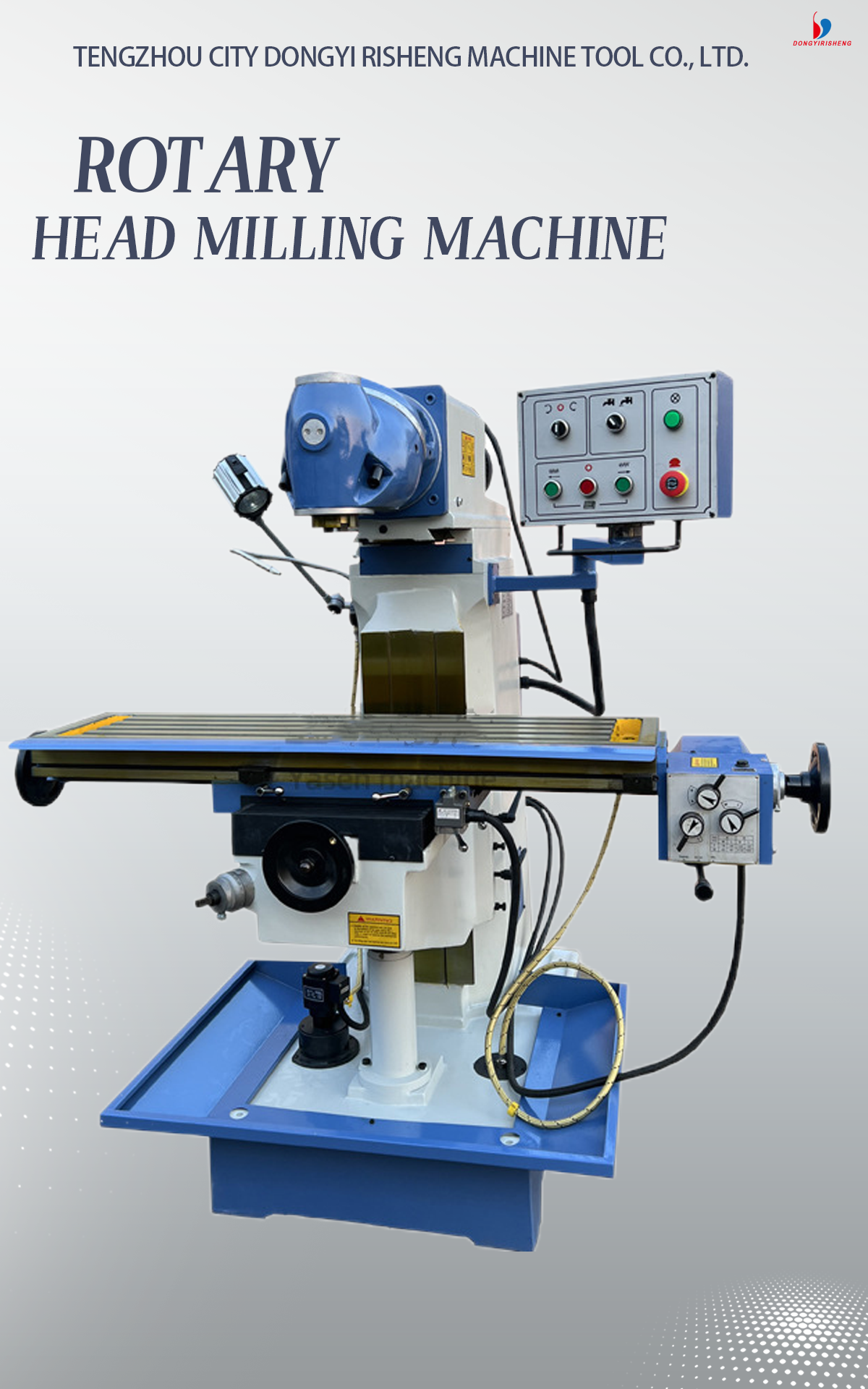

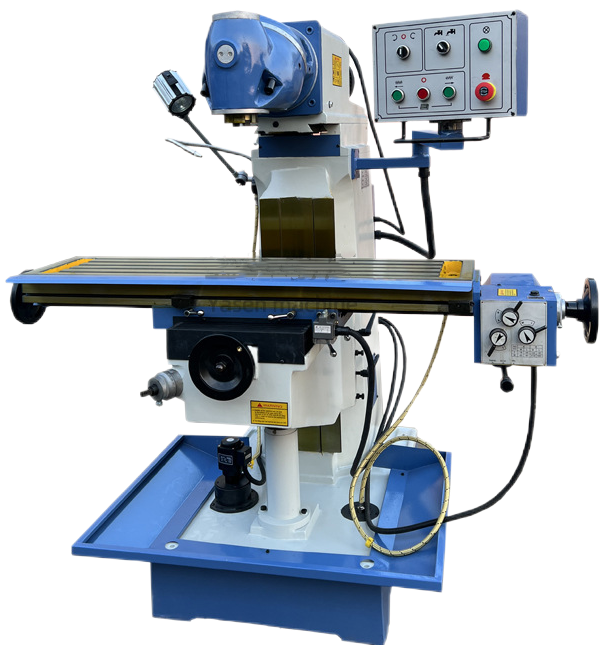

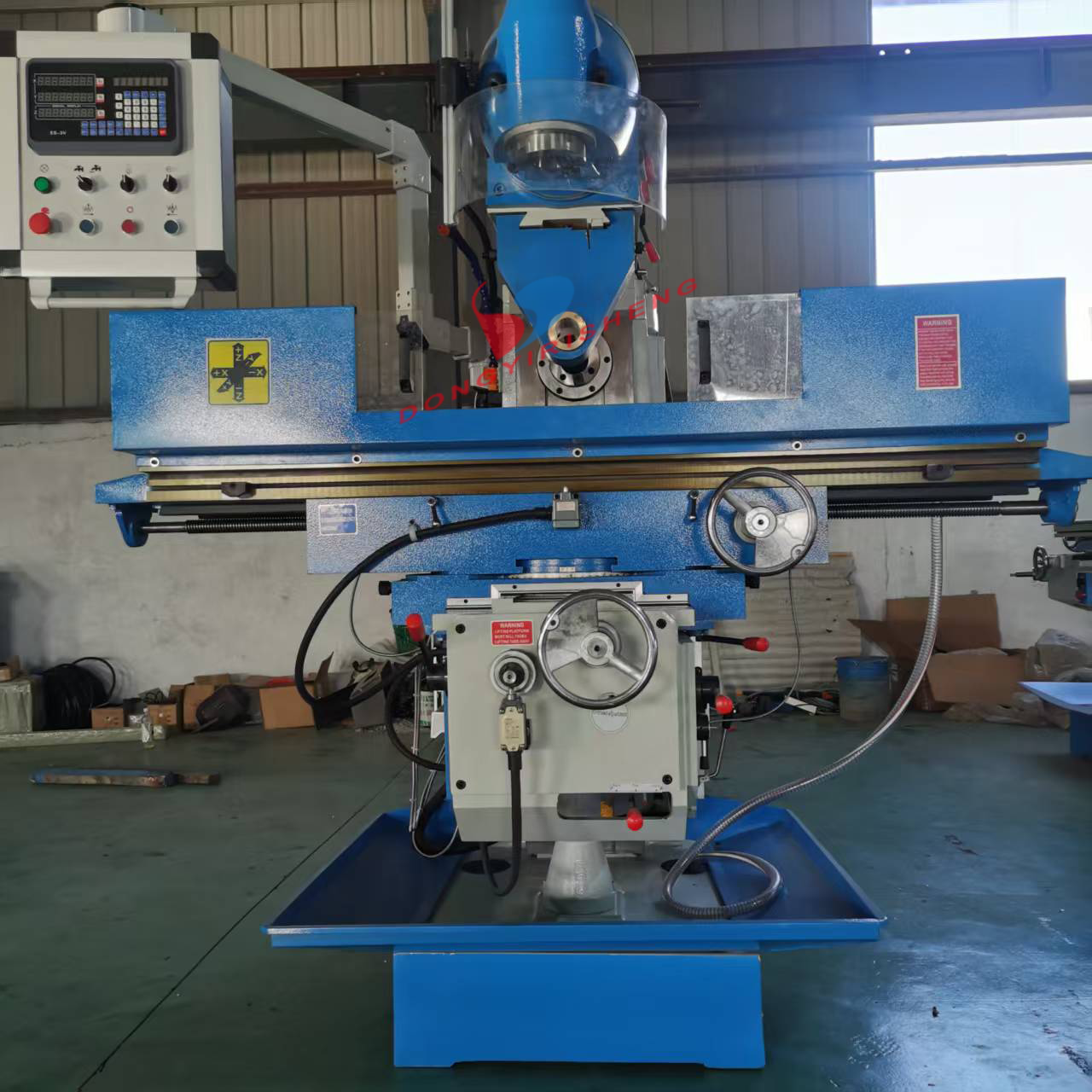

Universal Tool Milling Machine
A multi-functional machining equipment that can perform various types of cutting processes such as boring, milling, drilling, and slotting.
Key Components

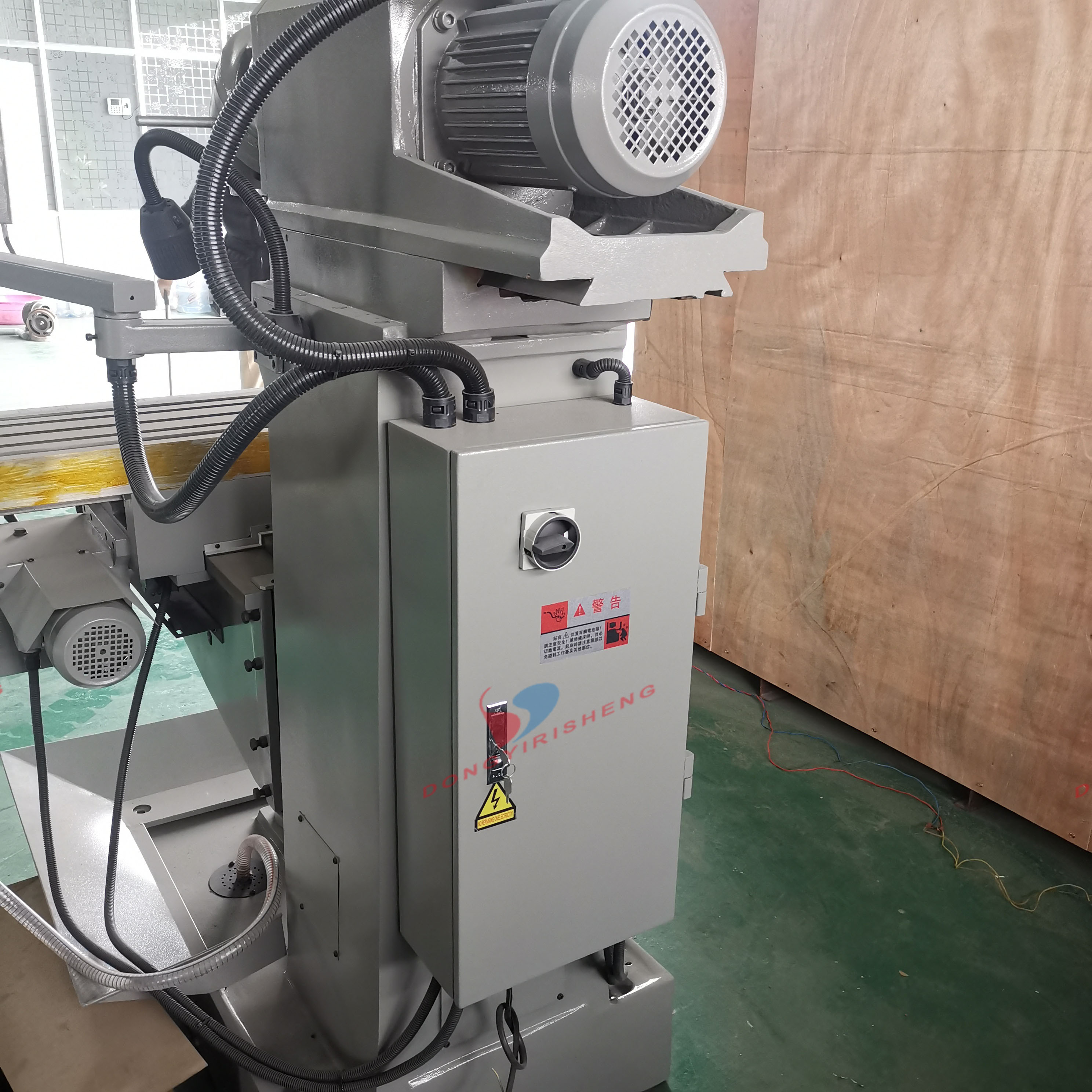

Lathe Bed
It is usually made of materials such as cast iron and has sufficient strength and rigidity to withstand various forces and vibrations during the processing.

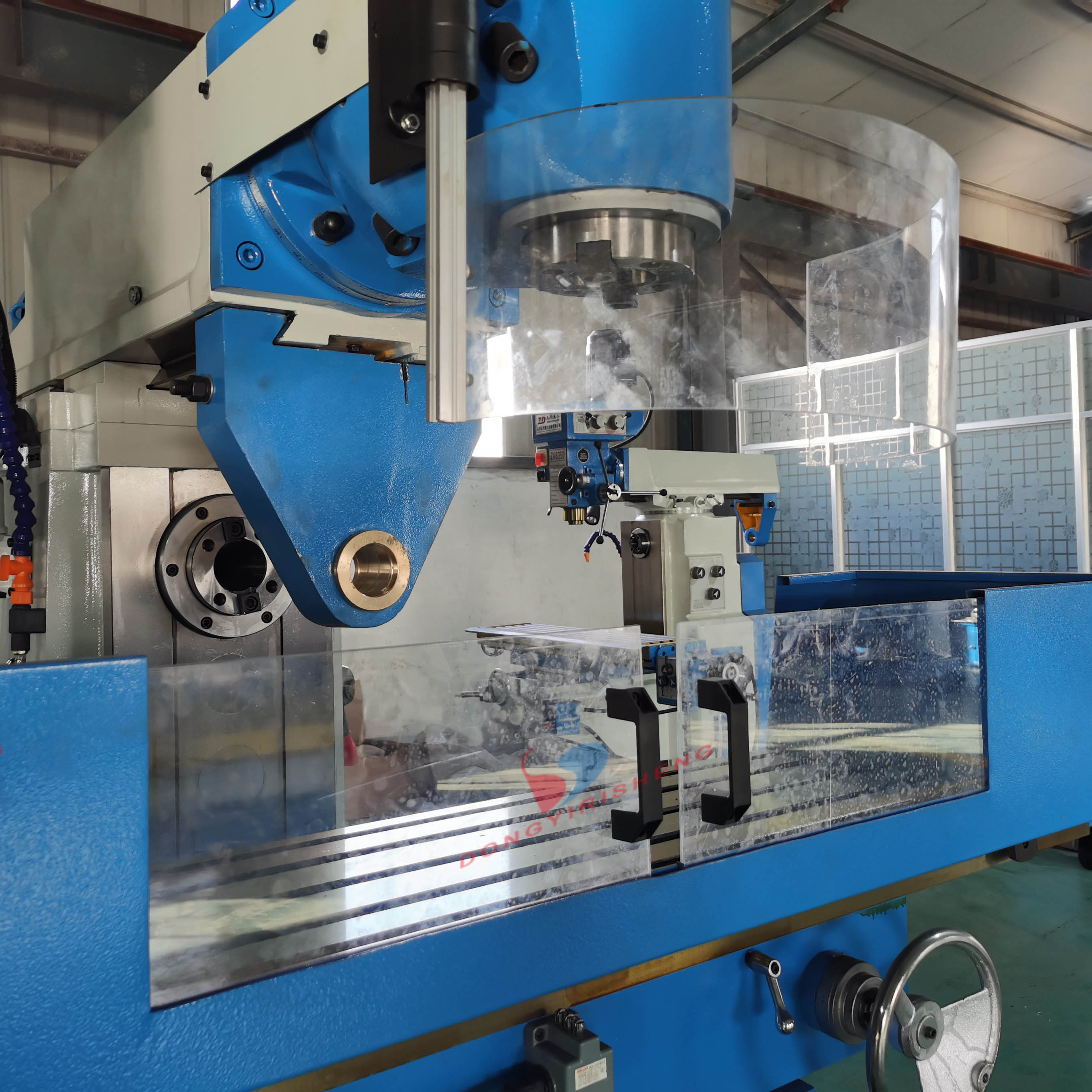

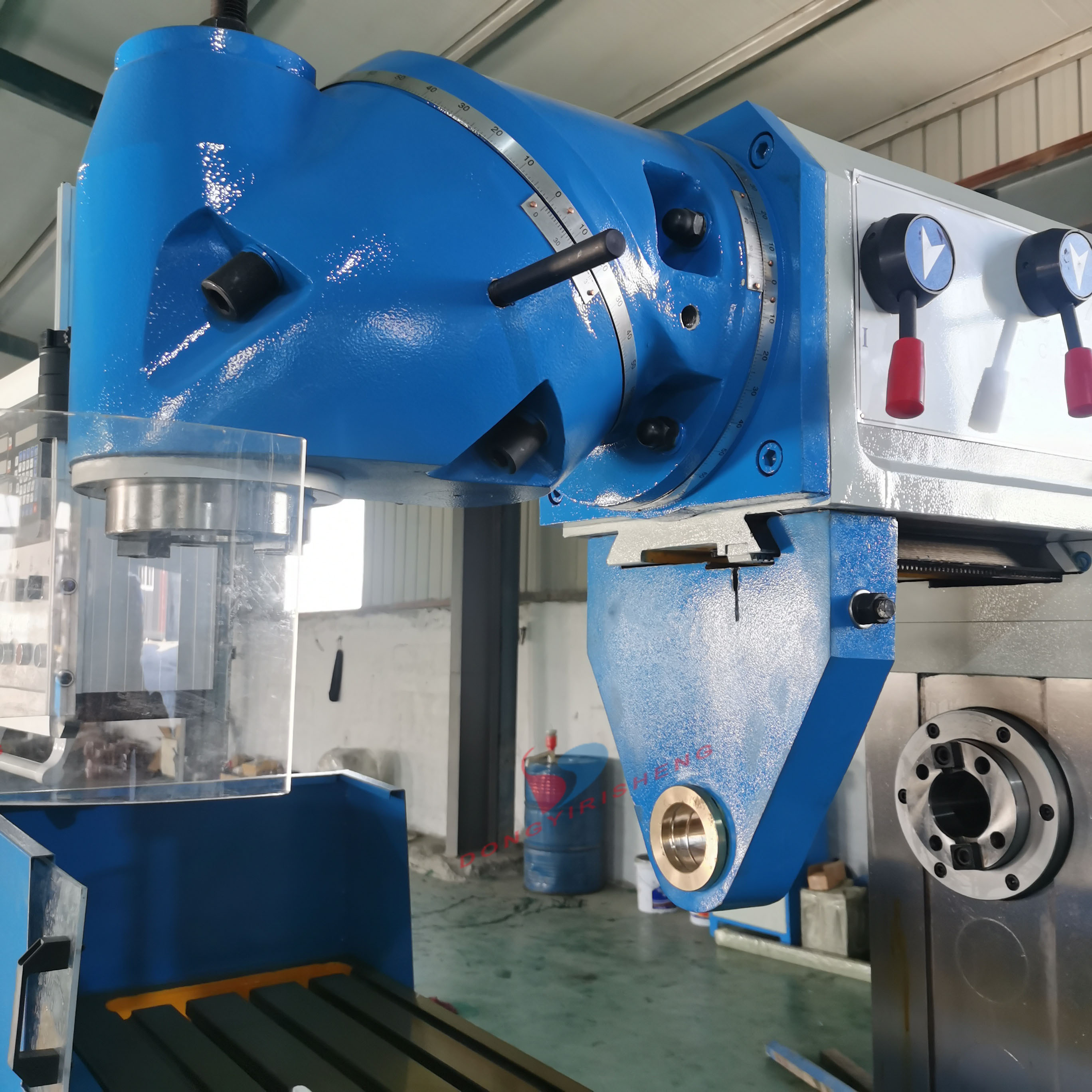

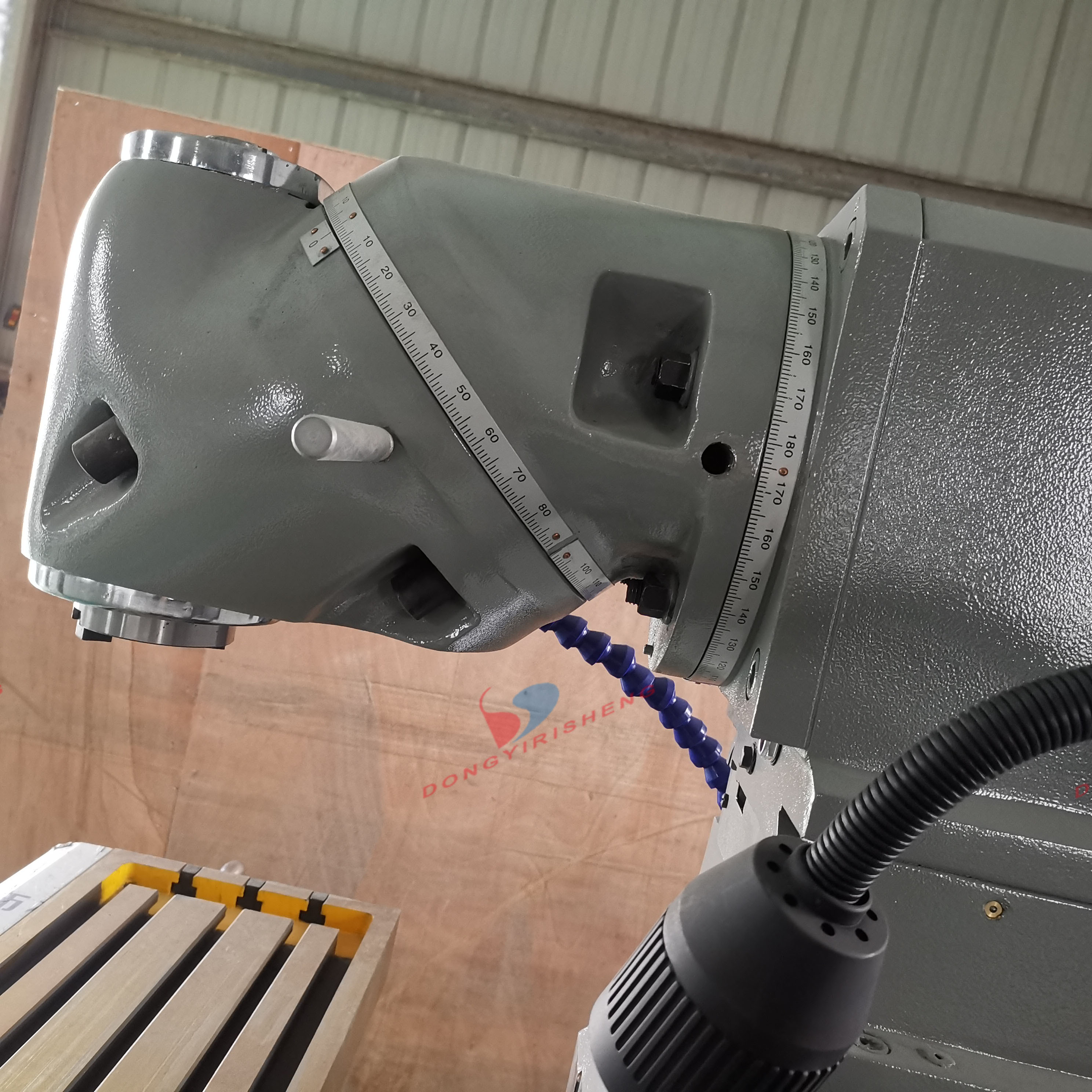

Milling Head
It is a unique component of the swiveling milling head milling machine and is installed at the front end of the spindle box.

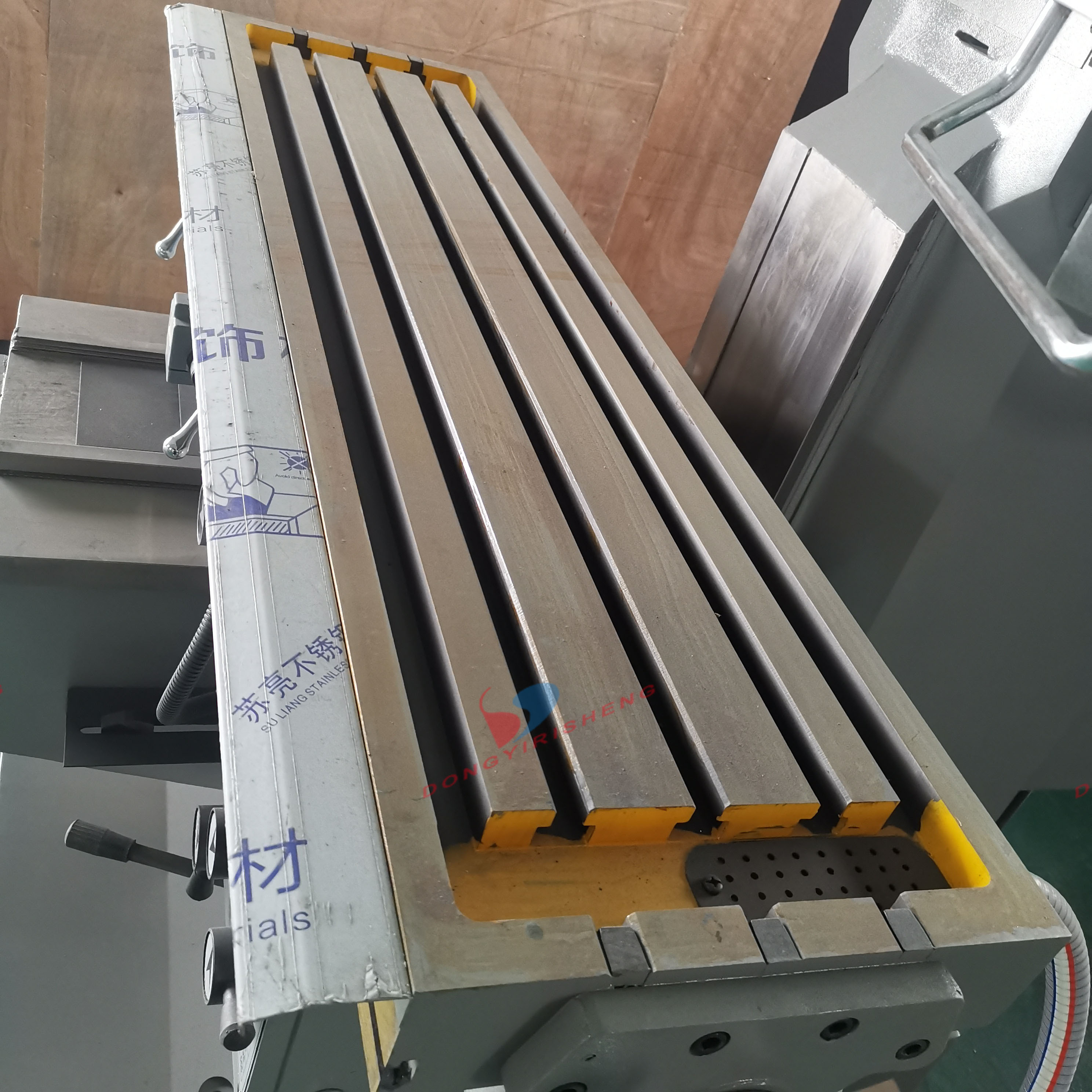

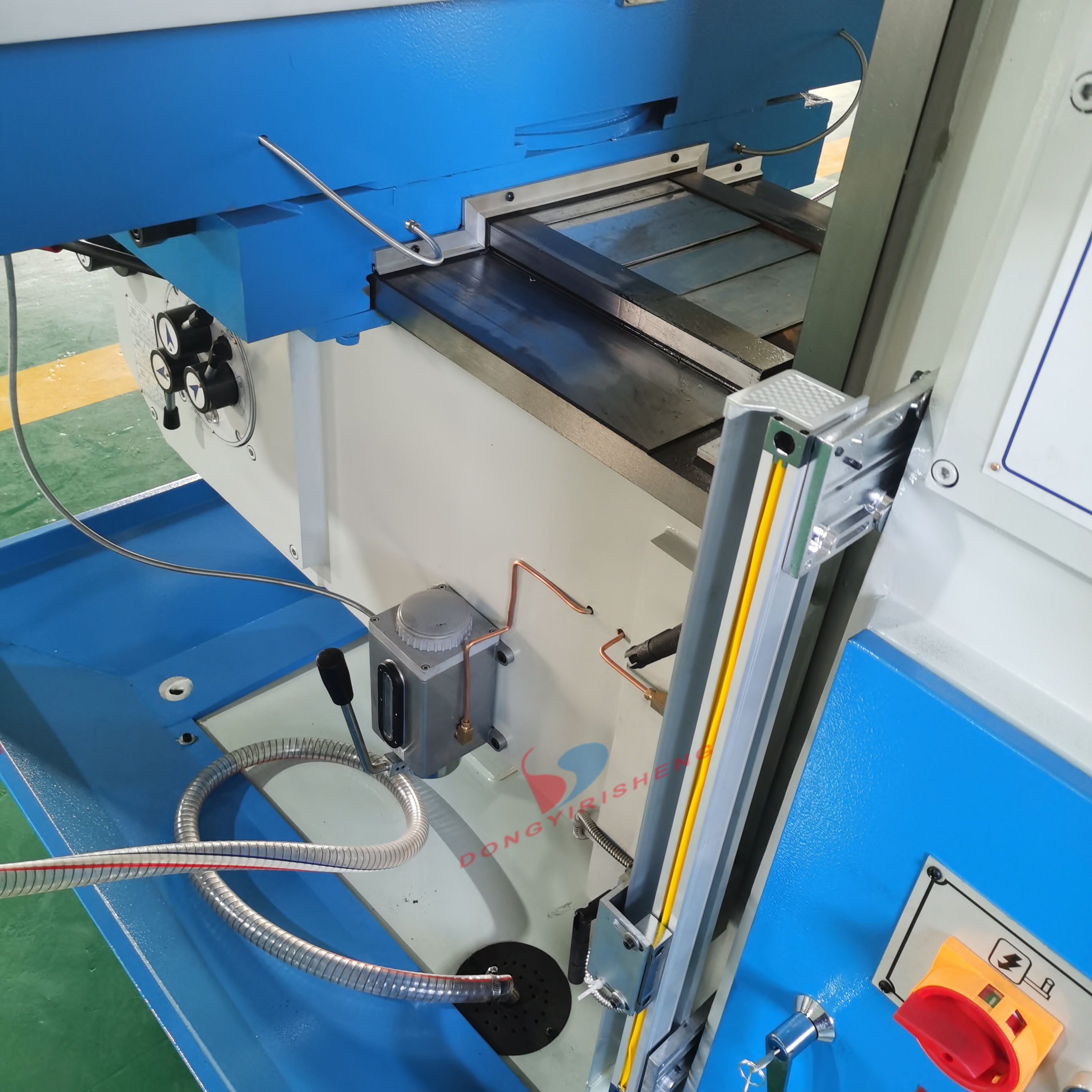

Workbench
Used for installing and fixing workpieces, it can move in multiple directions, such as longitudinally, laterally, and vertically, so as to accurately position the workpiece to the machining position.
Feed Mechanism
Drive the feed movement of the worktable and spindle in all directions to realize the relative cutting movement between the tool and the workpiece.
Technical Parameters
| Parameters |
Unit |
Model: X6232 |
| Table size |
mm |
1500X320 |
| Table size(X/Y/Z) |
mm |
800/320/450 |
| Distance from horizontal spindle to worktable |
mm |
120-490 |
| Distance from horizontal spindle to supporting |
mm |
0-500 |
| Spindle speed range |
r/min |
35-1600 |
| Swivel angle of swivel head |
- |
360° |
| Range of longitudinal cross travel |
mm/min |
22-555/810 |
| Vertical up-down speed |
mm/min |
560 |
| T-slot NO./width/distance of table |
mm |
3/14/70 |
| Main motor |
kw |
2.2 |
| N.W/G.W. |
kg |
1350/1450 |
| Overall dimension |
mm |
1960X1560X1750 |
Product Gallery
Frequently Asked Questions
Q
What machining processes can the Universal Tool Milling Machine perform?
This multi-functional machining equipment is designed to perform a variety of cutting processes, including boring, milling, drilling, and slotting.
Q
What material is the lathe bed made of, and why?
The lathe bed is typically made of cast iron to ensure sufficient strength and rigidity. This construction allows it to withstand heavy cutting forces and minimize vibrations during operation.
Q
What is the swivel capability of the milling head?
The swiveling milling head of the machine is highly adjustable and features a full 360-degree swivel angle, providing exceptional flexibility for complex cutting operations.
Q
What are the table dimensions and travel limits for the X6232 model?
The table size is 1500 x 320 mm. The travel range across the X/Y/Z axes is 800 mm, 320 mm, and 450 mm respectively, allowing ample space for positioning and processing workpieces.
Q
What are the motor power specifications and overall weight of this model?
The main motor has a power rating of 2.2 kW. The machine has a Net Weight (N.W.) of 1350 kg and a Gross Weight (G.W.) of 1450 kg.
Q
How does the feed mechanism work on the workbench?
The feed mechanism drives feed movement in longitudinal, lateral, and vertical directions. This ensures precise positioning of the worktable and spindle to achieve accurate relative cutting motion.
