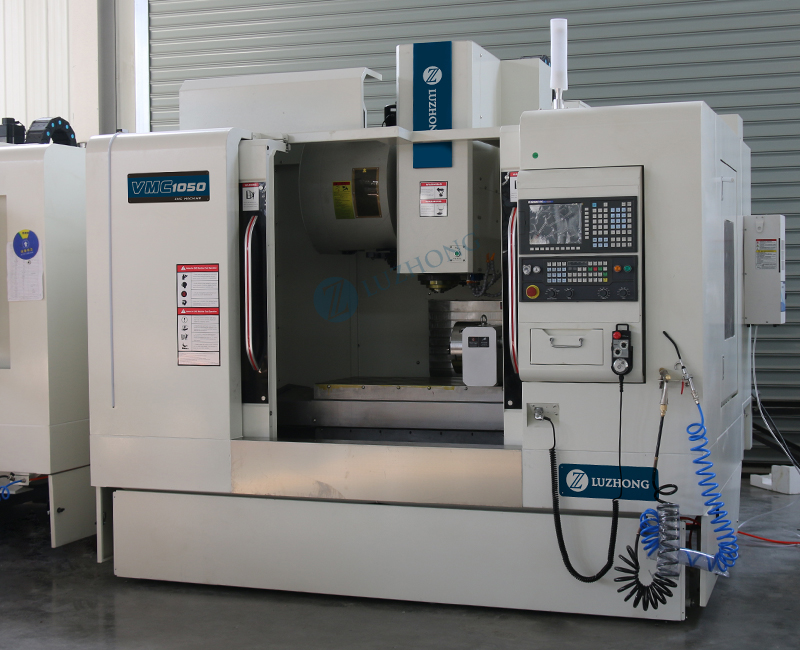

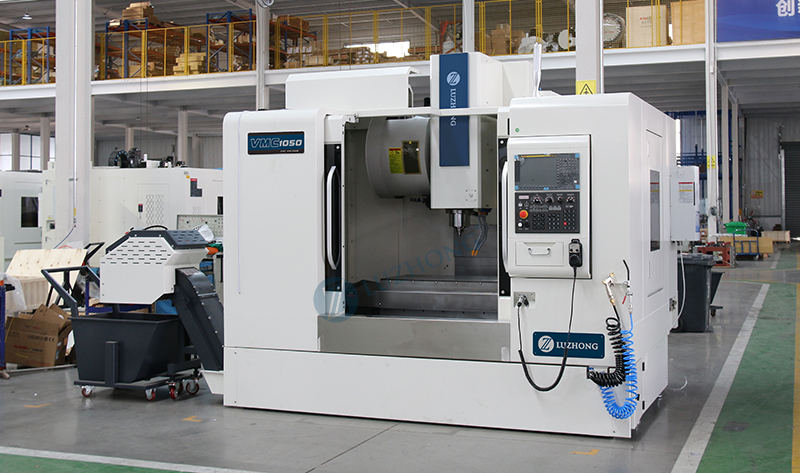

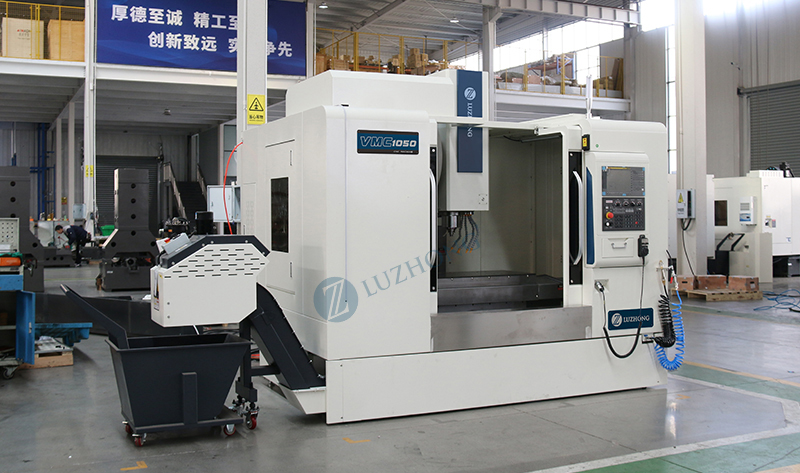

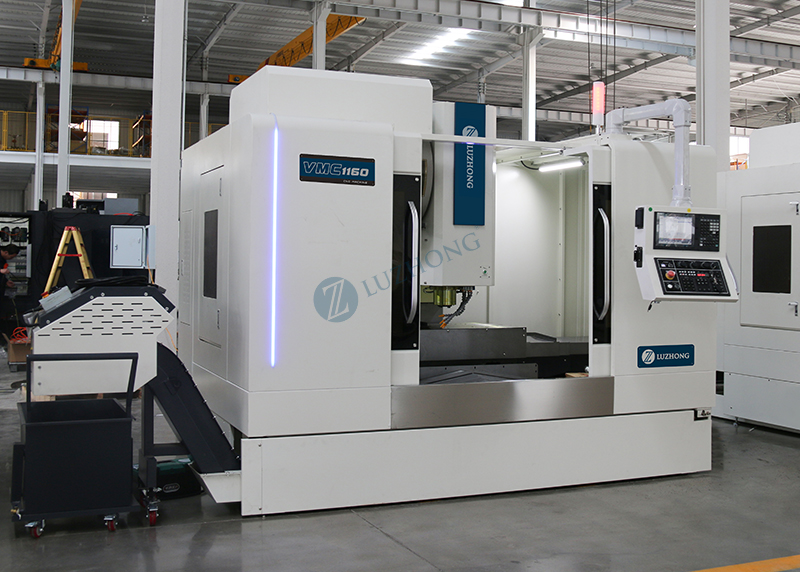

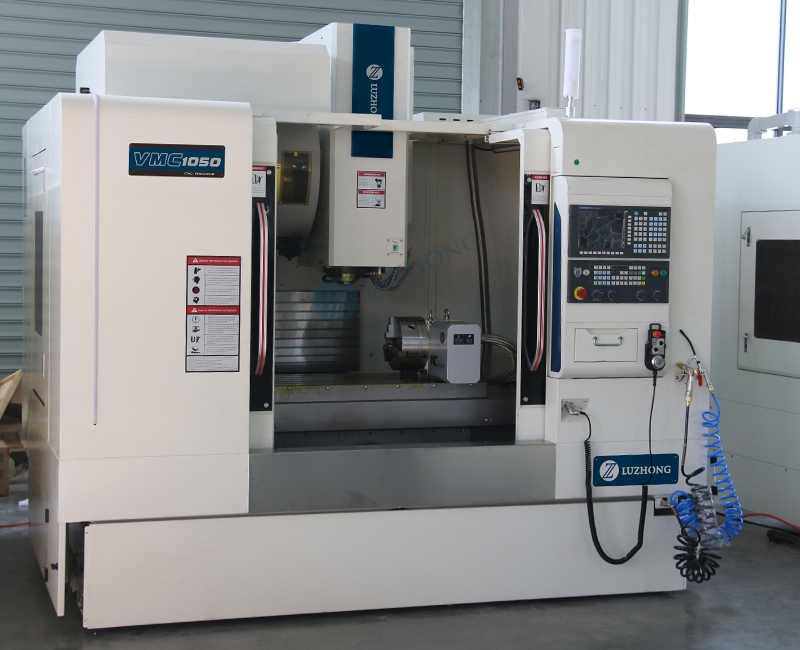

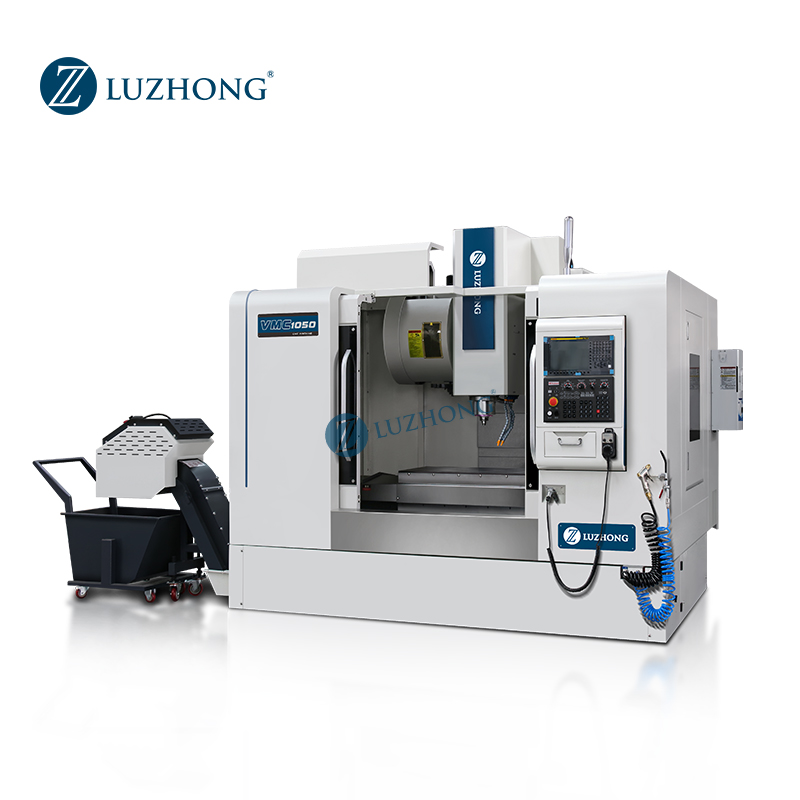

| SPECIFICATIONS | Units | VMC850 | VMC1050 | VMC860 | VMC1165 | VMC1165 |
| Table size | mm | 1000*500 | 1000*500 | 1000*550 | 1200*600 | 1200*600 |
| X axis travel | mm | 800 | 1000 | 850 | 1100 | 1100 |
| Y axis travel | mm | 500 | 500 | 600 | 650 | 650 |
| Z axis travel | mm | 500 | 500 | 600 | 600 | 600 |
| Max. worktable load | kg | 500 | 500 | 600 | 1000 | 1000 |
| T slot(number-width*pitch) | - | 5-18*90 | 5-18*90 | 5-18*90 | 5-18*100 | 5-18*100 |
| Max. spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 8000 |
| Spindle taper | mm | BT40 | BT40 | BT40 | BT40 | BT40 |
| Main motor power | kw | 7.5 | 7.5 | 7.5 | 11 | 11 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 | 24/24/20 | 24/24/20 | 24/24/20 | 24/24/20 |
| Cutting feed speed | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-6000 | 1-6000 |
| Guide rail type | - | Linear rail | Linear rail | Linear rail | Linear rail | Linear rail |
| Distance from spindle axis to column surface | mm | 525 | 525 | 590 | 665 | 665 |
| Distance between spindle nose and table surface | mm | 130-630 | 130-630 | 130-660 | 120-720 | 120-720 |
| Positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 | ±0.0075 | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | - | Arm 24 | Arm 24 | Arm 24 | Arm 24 | Arm 24 |
| Max. tool diameter | mm | 78/120 | 78/120 | 78/120 | 78/120 | 78/120 |
| Max. tool weight | kg | 8 | 8 | 8 | 8 | 8 |
| Machine weight | kg | 5000 | 5200 | 5600 | 7000 | 7000 |
High strength high quality HT300 cast iron.
Standard: GSK25I / KND1000 control.
1. Taiwan spindle BT40 8000rpm with ring cooling function.
2. Passed dynamic balance ISO rating test.
1. Taiwan OKADA arm 24 tool magazine.
2. Tool change time only 2-3 seconds.
1. Taiwan famous brand lead screw.
2. Lead screw bearing using SKF or NACHI bearing.
3. Coupling YC directly connected.
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.
Taiwan spindle Tool unclamp cylinder.
Air storage tank to ensure the stability of spindle tool change.
High-pressure air guns and high-pressure water guns.
Standard with strong chip punching function.
1. With Schneider safety electrical components.
2. Quick plug as standard.
Standard with AirTAC Pneumatic Components.
Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.
With HERG Automatic centralized lubrication device.
Passed Renishaw laser interferometer testing.
Standard with lock knife block.
1. Standard with BT40 Milling chuck.
Standard with lock knife block.

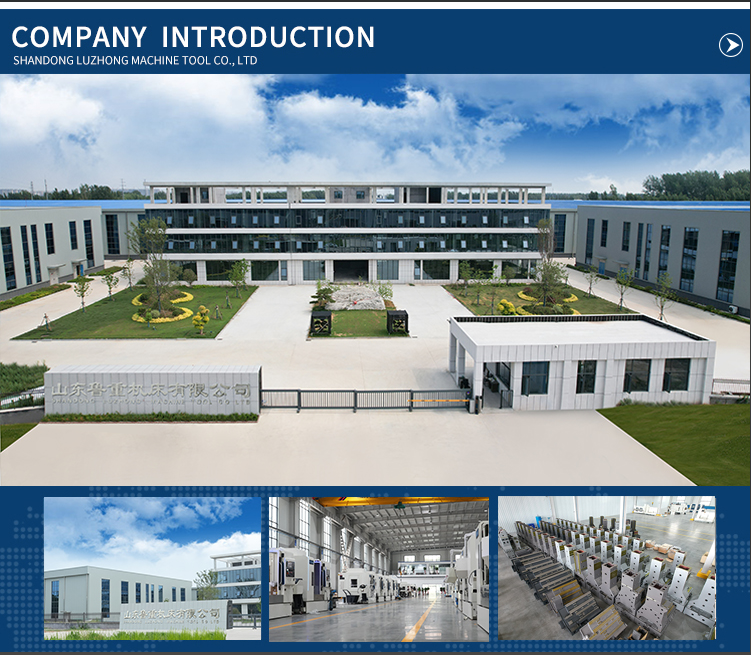

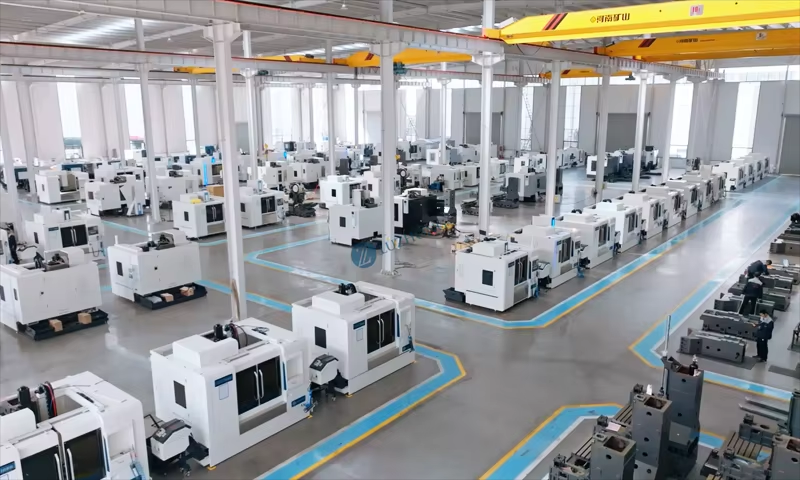

We have obtained many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, South America, Middle East, and Southeast Asia. We provide long-term overseas technical guidance and after-sales service.
Adhering to the purposes of providing high-quality machines, we provide better quality equipment and more efficient, thoughtful after-sales services to customers. We sincerely hope to communicate with friends from various countries and build win-win cooperation.
