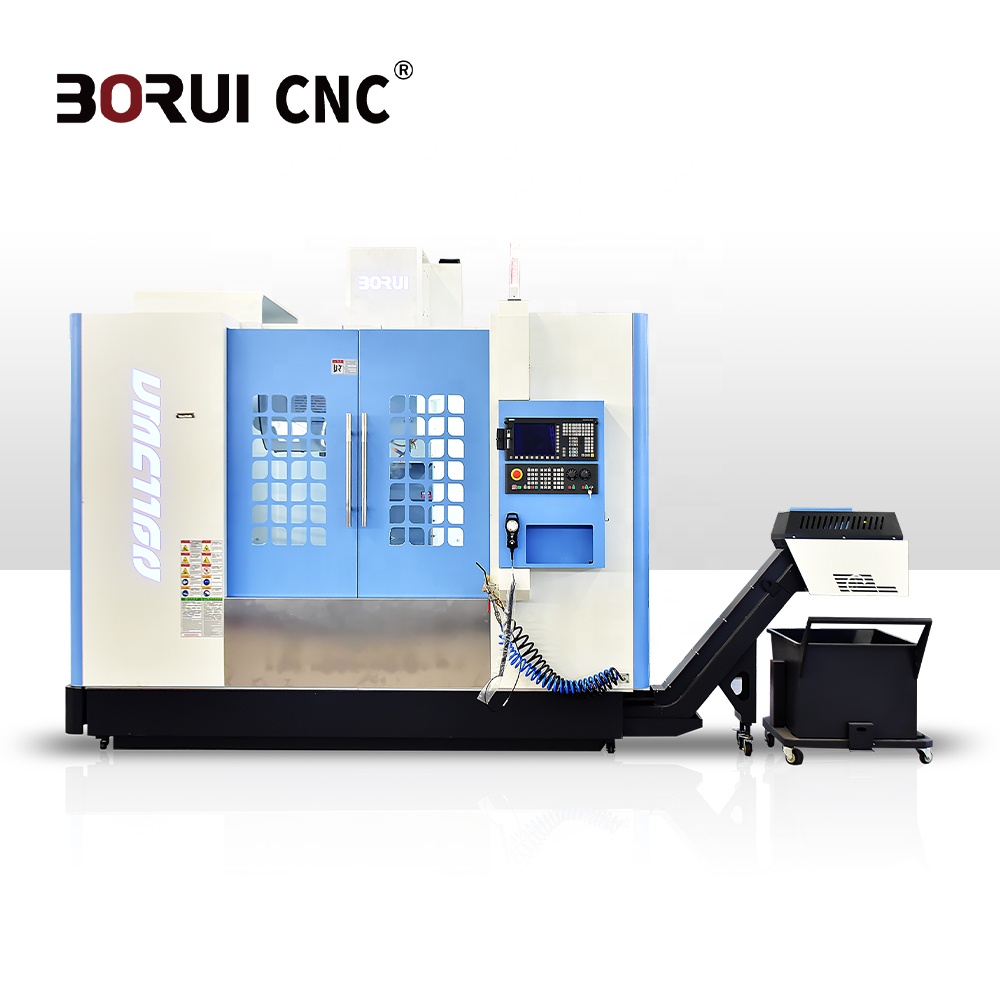

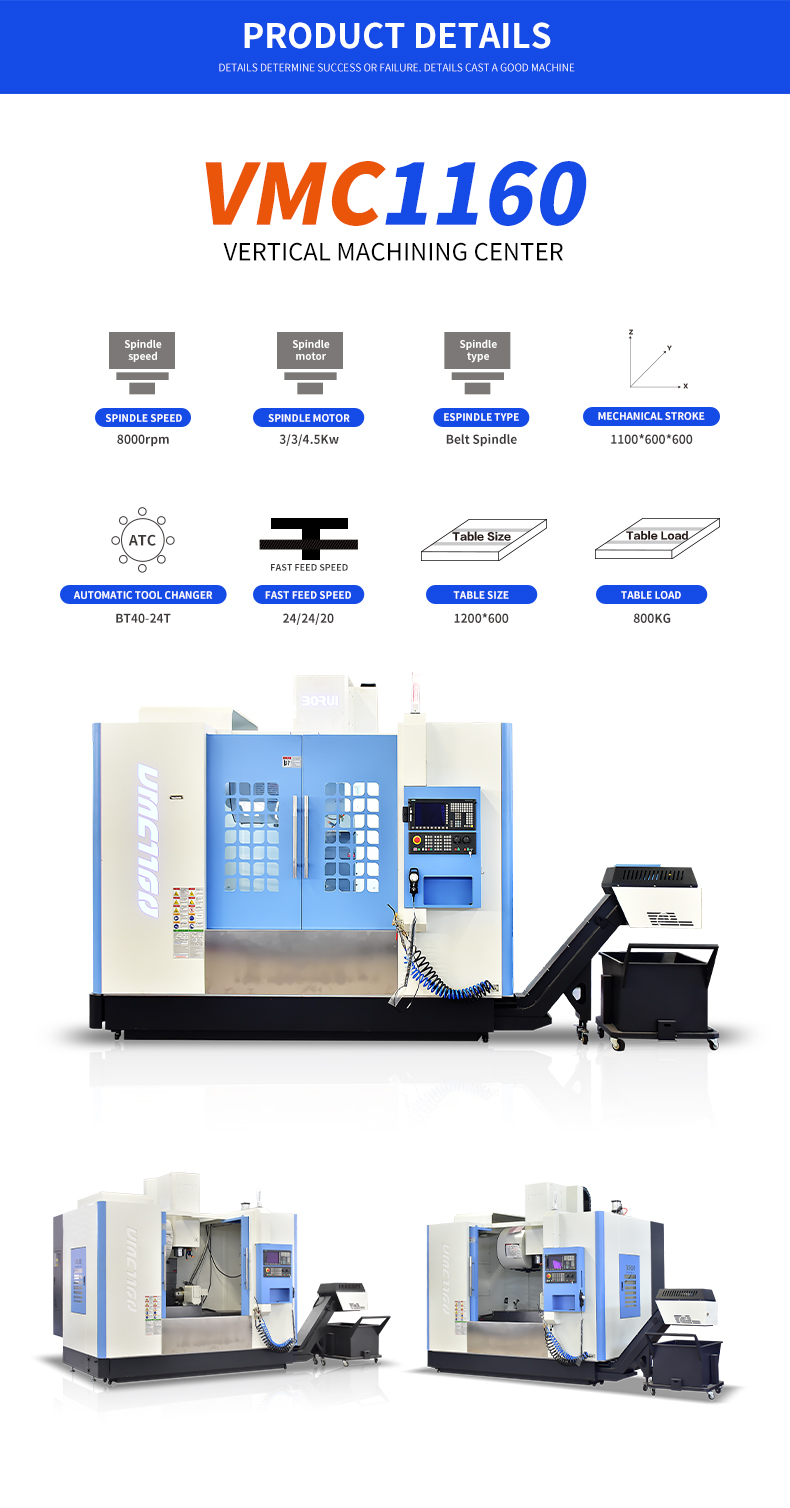

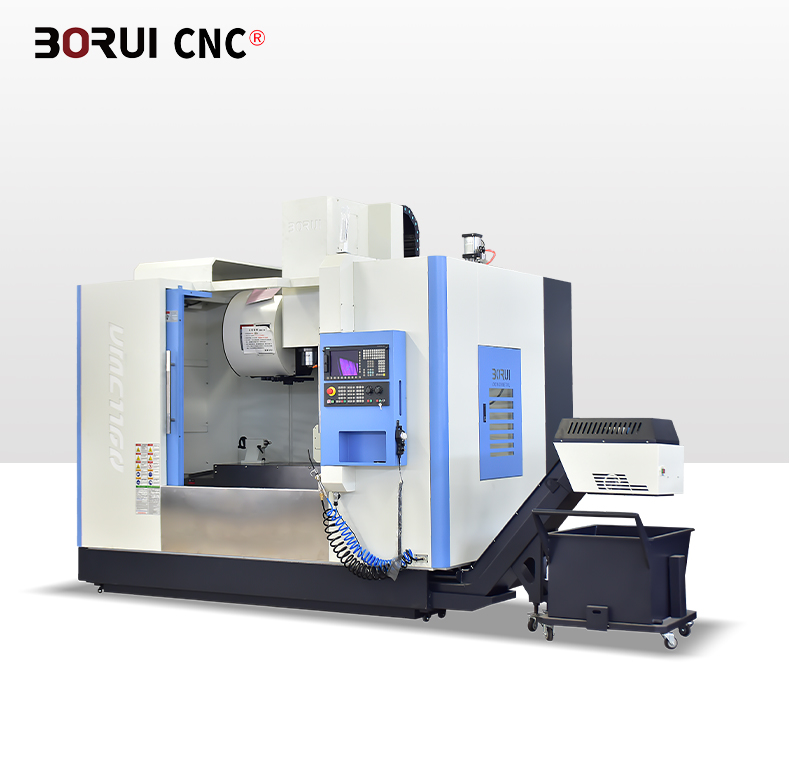

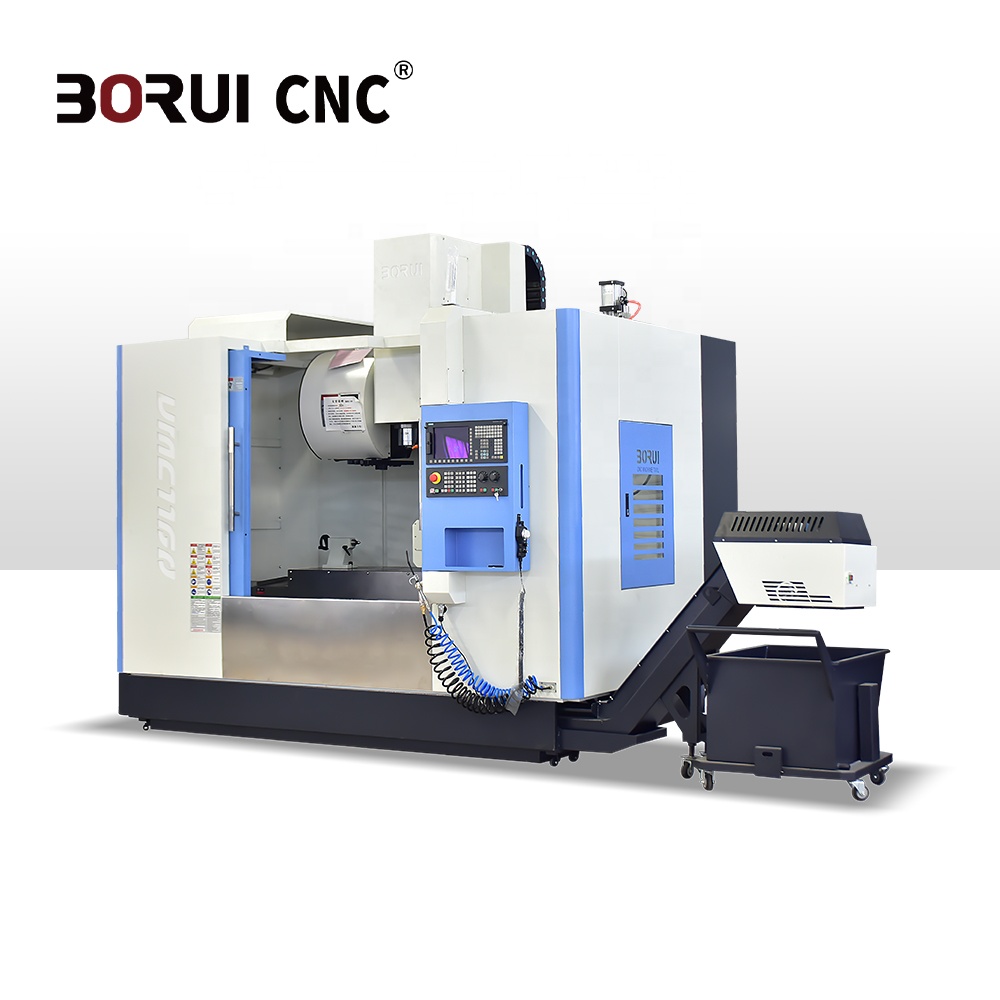

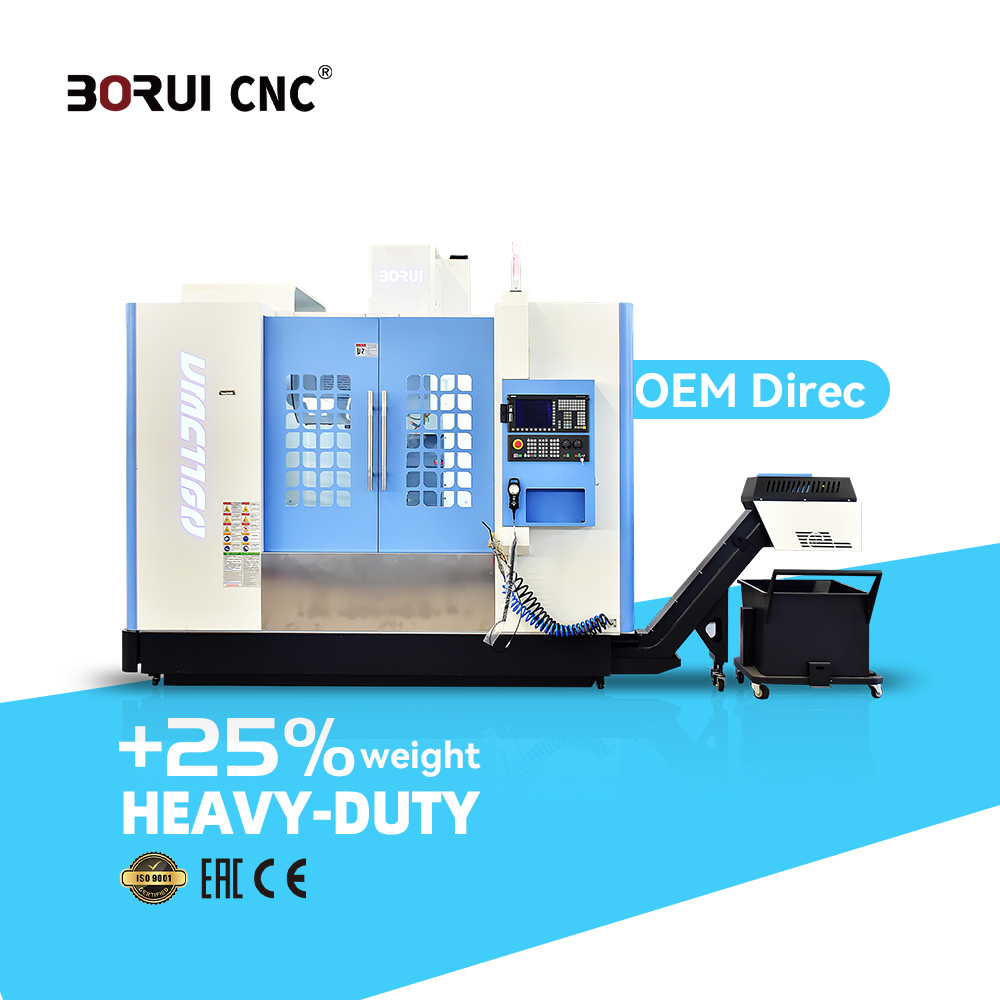

| Product model | VMC1160 | |

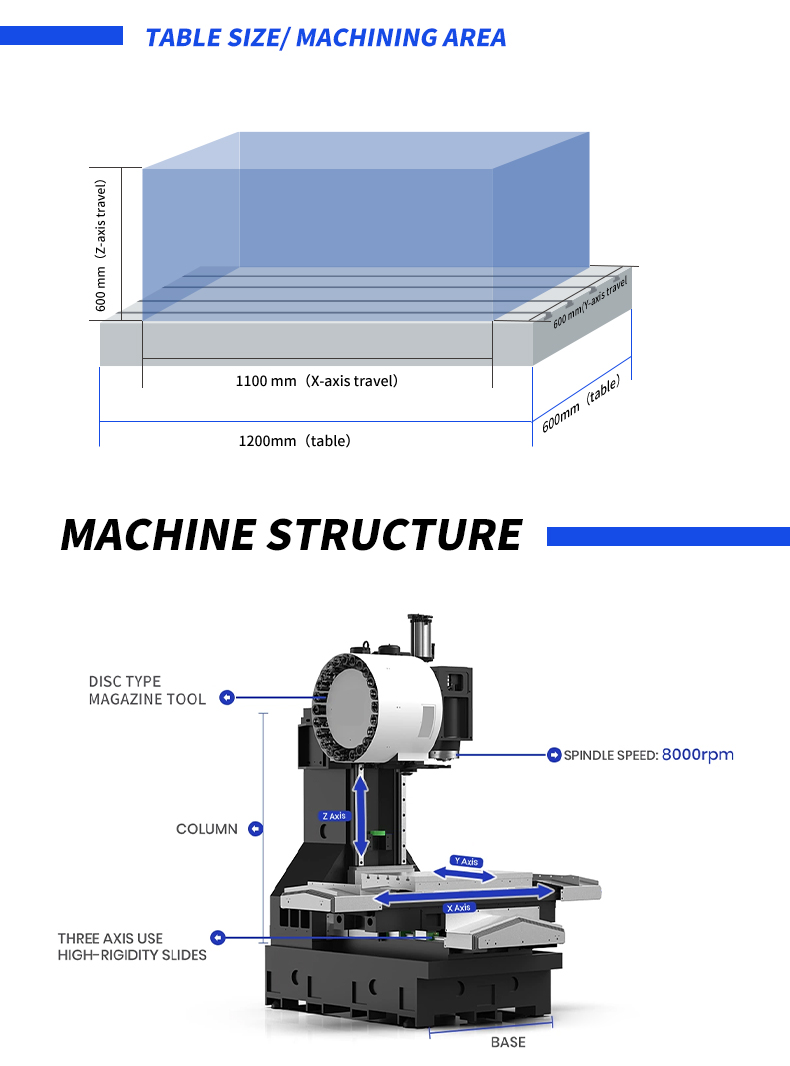

| Working table | Table size | 1200×600mm |
| T-slot | 5-18-100mm | |
| Max loading capacity of table | 1000kg | |
| Travel | Xã€Yã€Z axis travel | 1100×600×600mm |
| Distance from spindle nose to table | 120-720mm | |
| Distance from spindle center to vertical guide way surface | 600mm | |
| Feed | Rapid movement speed Xã€Yã€Z | 24/24/20m/min |
| Feed rate of cutting Xã€Yã€Z | 1~10000mm/min | |
| Three axis | X Y Z axis motor torque | 23/23/23NM |
| X Y Z axis linear guide rail width | 45mm | |
| X Y Z lead screw size | 4012 | |
| X Y Z sliding block no. | 2006/4/6 | |

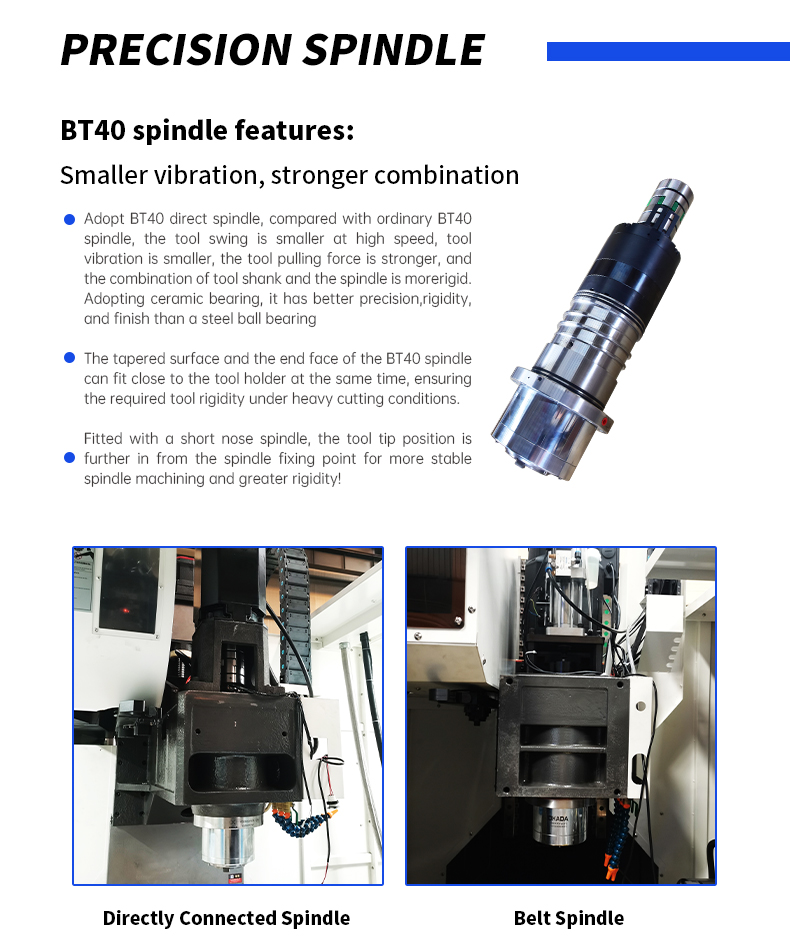

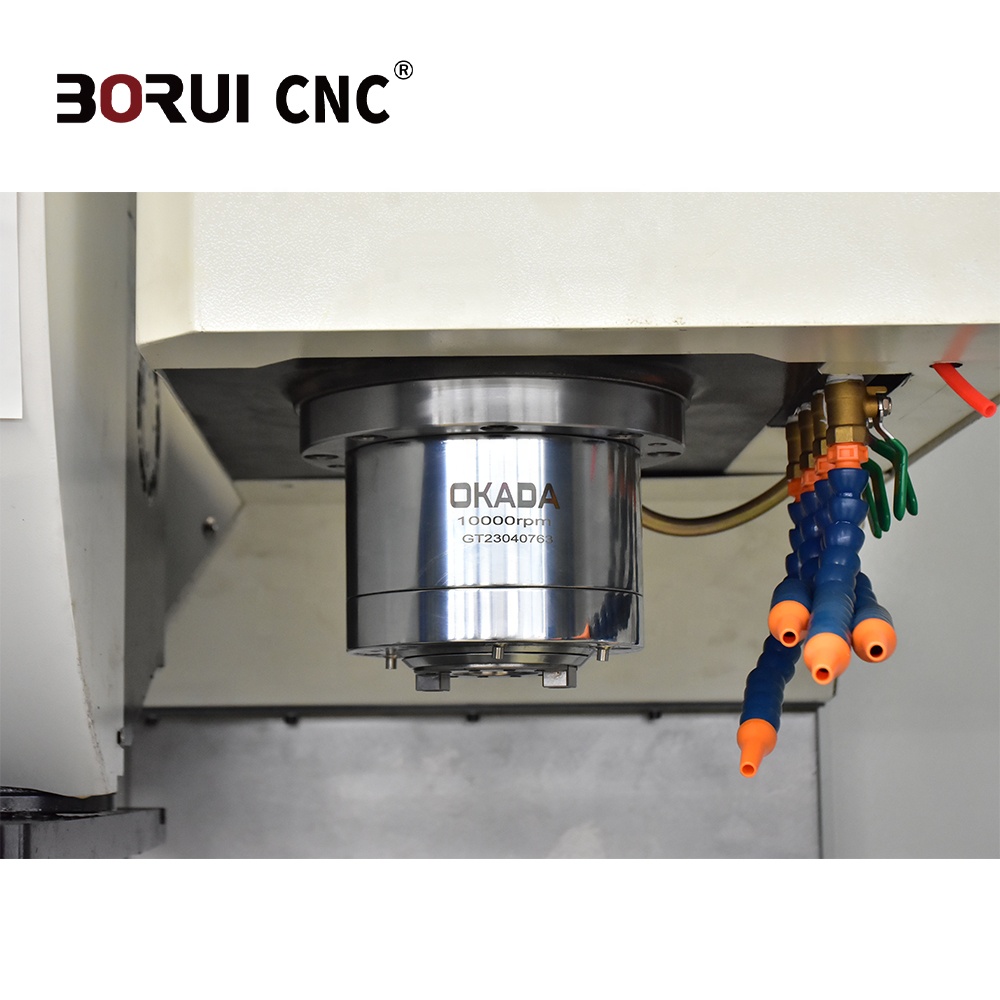

| Spindle | Spindle taper | BT40 |
| Spindle speed | 8000rpm | |
| Spindle power | 11kw | |

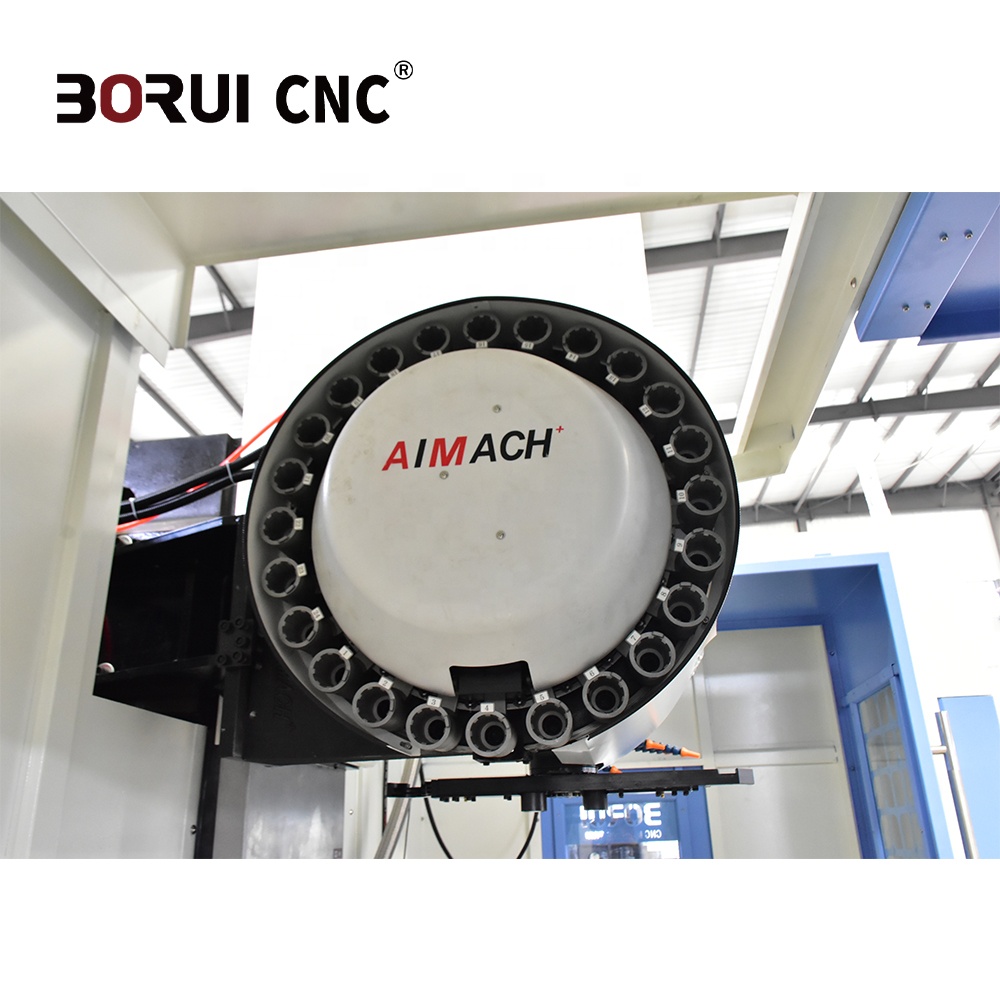

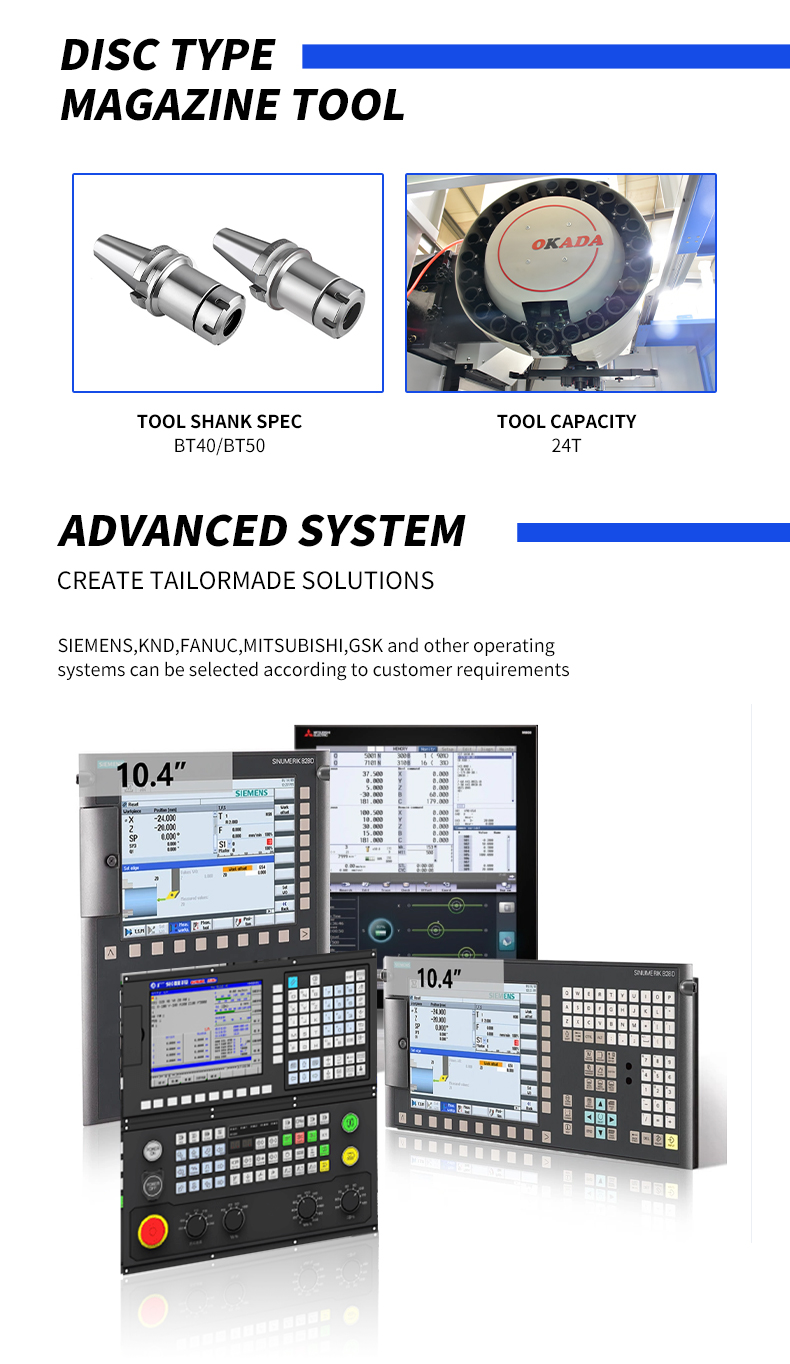

| Tool magazine | Tools capacity | 24T |
| Max tool weight | 8kg | |
| Max length | φ78/300mm | |
| Tool magazine type | Arm type | |
| Precision | Positioning accuracy X/Y/Z | 0.016mm |
| Repeated positioning accuracyX/Y/Z | 0.006mm | |
| Machine tool | Machine size | 2550*3200*2650mm |
| Casting material model | HT300 | |
| Machine hardness | 45rkc | |
| Machine weight | 7300kg | |
