Product Description

Products Description

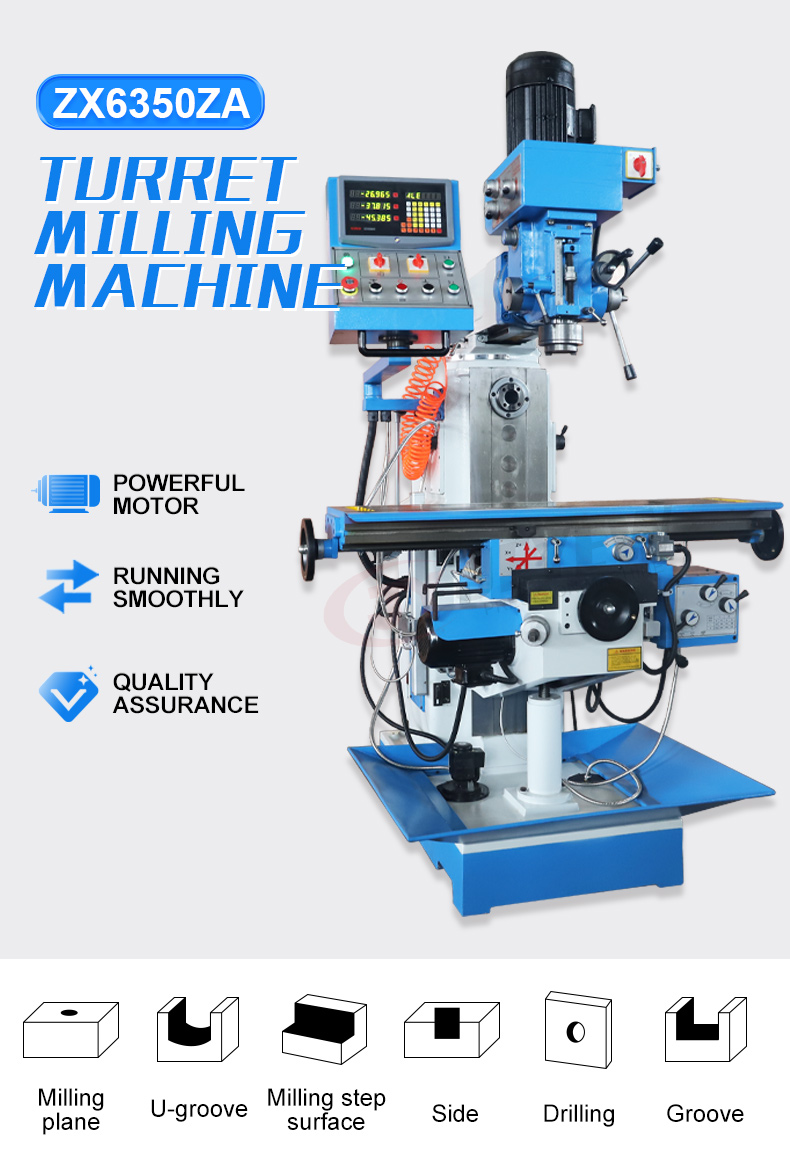

Products Description Image 1

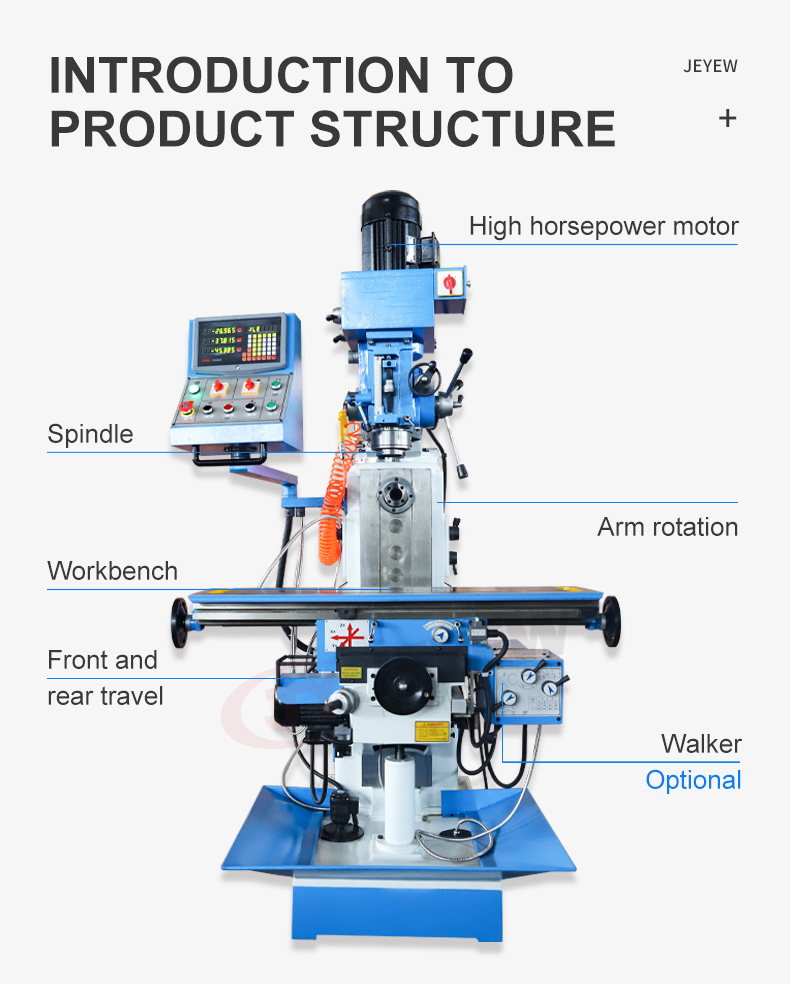

Products Description Image 2
Product Parameters
Product introduction:
  • Three axis hardened treatment, high rigidity.
  • Vertical horizontal multi-functional, drilling, milling, boring operation.
  • X axis mechanical feed, Y, Z axis can be added the automatic feed device.
  • Belt drive milling head, stable transmission, compact structure, easy maintenance, easy to operate.
Application:

Widely used in single or batch machinery manufacturing industry; instrument; building decoration and repair department.

Project Unit X6336
Table size mm 1500*360
Table travel mm 1000/320/450
T-slot(number-width-pitch) mm 3-18-80
Spindle taper - ISO40 7:24(V), ISO50 7:24(H)
Spindle speed range rpm (V)50HZ:65-4500; 60HZ:80-5440(steps)
(H)60-1800(12steps)
Spindle travel mm 127
Spindle feed range mm 0.04, 0.08, 0.15(3 steps)
Distance between spindle nose and table surface mm 140-590
Distance between spindle axis and table surface mm 0-450
Main motor power kw 3.7(V) 4(H)
Head rotation(left-right) ° ±90
Head rotation(front-back) ° ±45
weight kg 2400
Overall dimension(L*W*H) mm 2600*2200*2550
Details Images

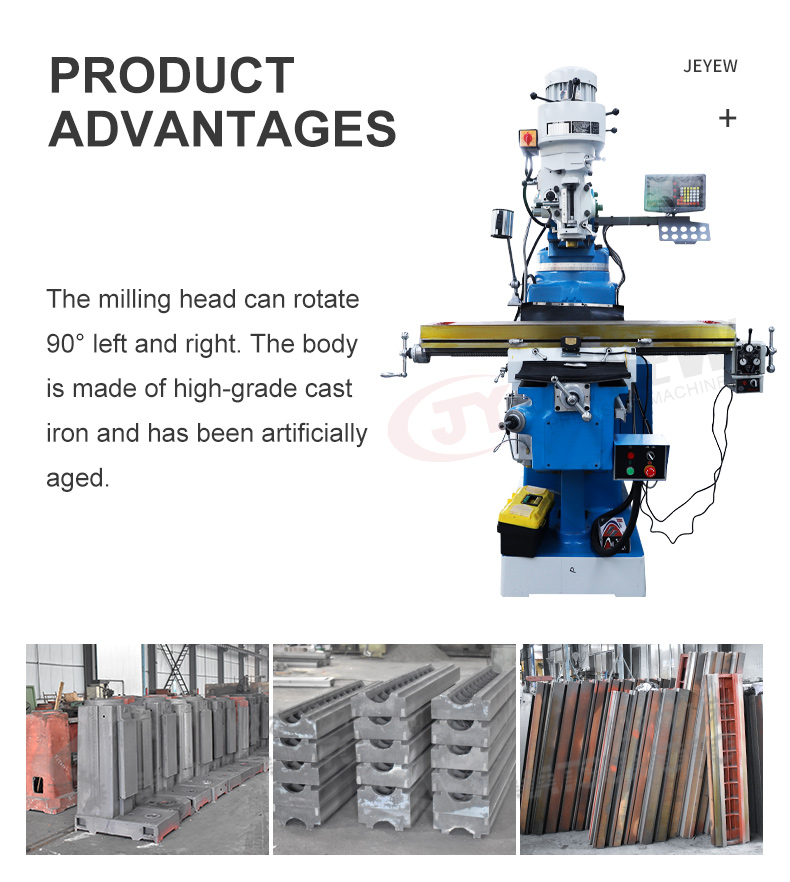

Details Image 1

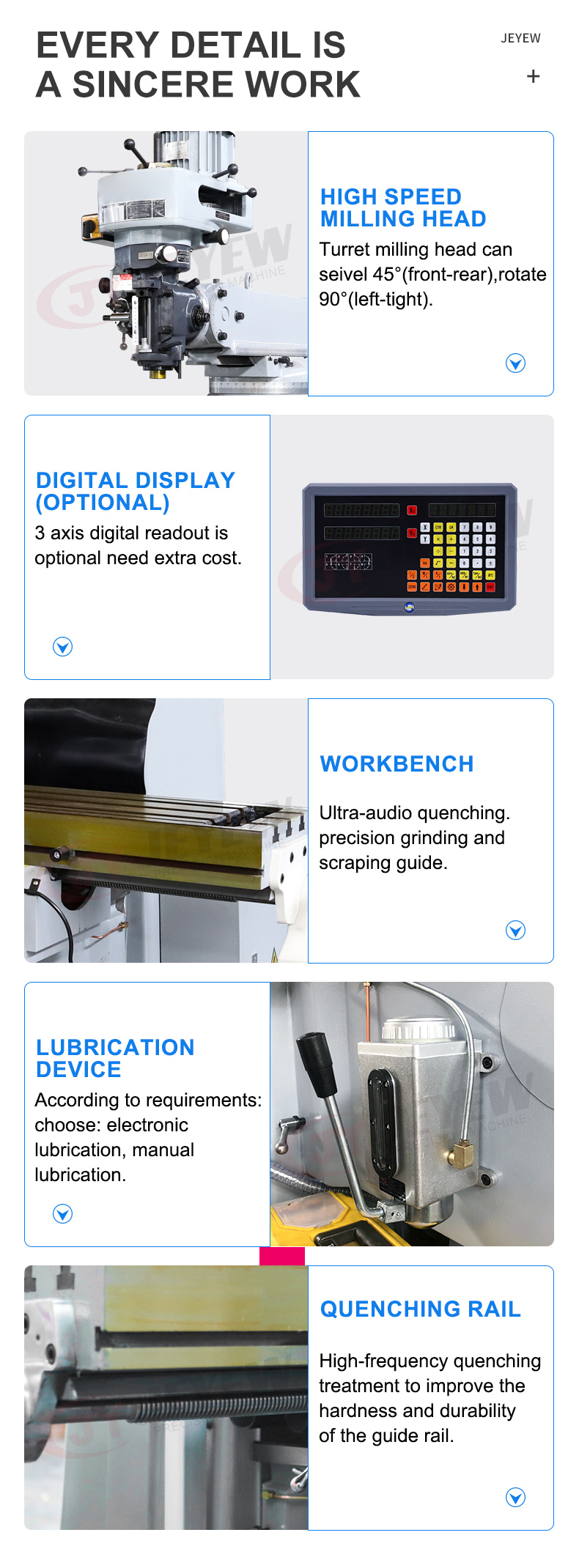

Details Image 2
Details Image 3
Our manufacturer has a strong professional technical force and integrates production, sales, and after-sales service. We specialize in manufacturing CNC lathe machines, surface grinders, milling machines, machining centers, small lathes, and other products. Our products mainly serve the precision manufacturing industry around the world.
Factory Image 1
Factory Image 2
Factory Image 3
Factory Image 4
FAQ
How can I choose the most suitable machines?
Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
What are the main products?
We specialize in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Machining Center, Grinding Machines, Milling Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on.
What about the quality of the machine and the after-sales service?
Our machine warranty period is 3 years, and we provide free technical service.
What are your trade terms?
FOB, CFR and CIF are all acceptable.
What's the Payment Terms?
T/T, 30% initial payment when ordered, 70% balance payment before shipment; Irrevocable LC at sight.
What's the MOQ?
1 set. (Only some low cost machines will be more than 1 set)
