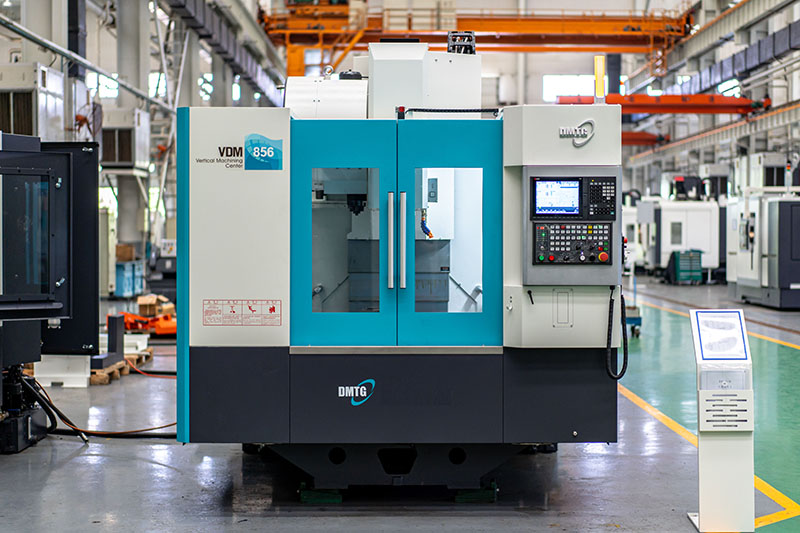

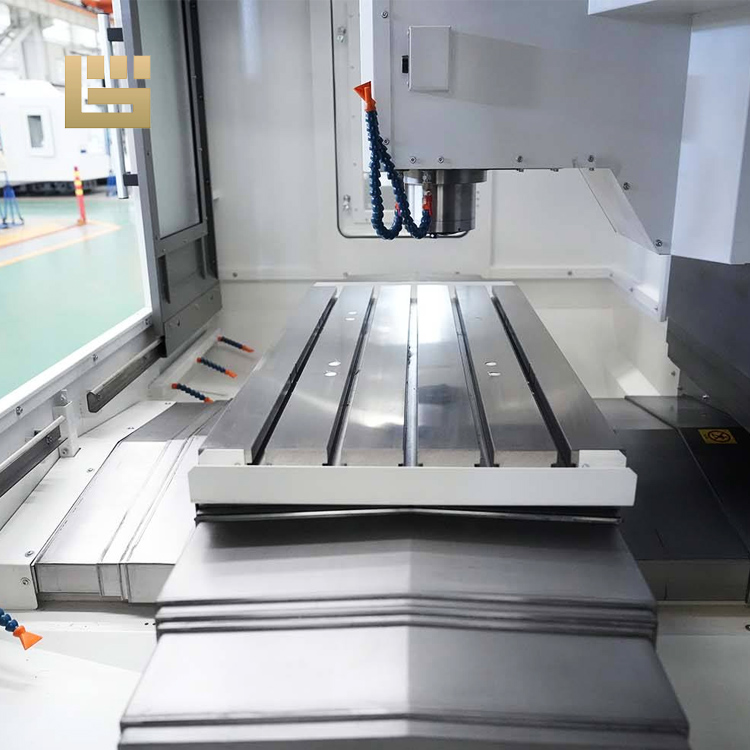

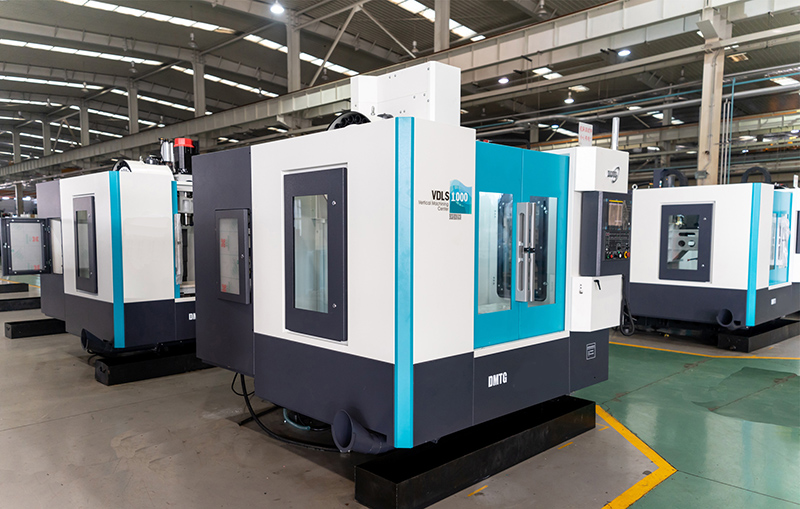

CNC Vertical Machining Center
VMC650 vertical machining center features a uniquely strong and durable rigid structure. Through repeated simulation and calculation in engineering mechanics, the robust bed structure is designed to meet engineering requirements for increased rigidity and reduced weight. It is suitable not only for machining plates, plates, housings, and precision parts, but also for mold processing. The machine is equipped with an automatic tool changer (ATC), an integrated protective cover, automatic lubrication and cooling systems, and a portable manual override (MPG). With a single part setup, it can perform multiple machining operations, including milling, boring, drilling, reaming, reaming, and tapping. It offers a high degree of automation, strong reliability, simple, convenient, and user-friendly operation, and boasts an elegant overall design and a high level of mechatronics.

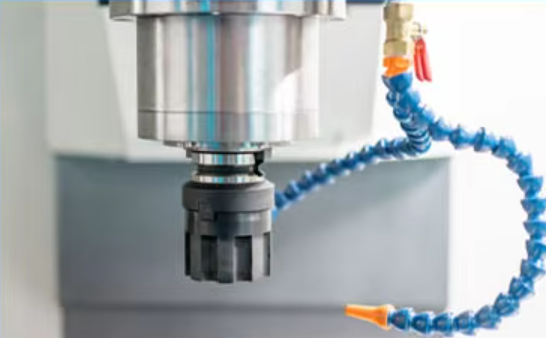

Taiwan BT40 Direct Spindle: 12000rpm

Taiwan 24 ATC

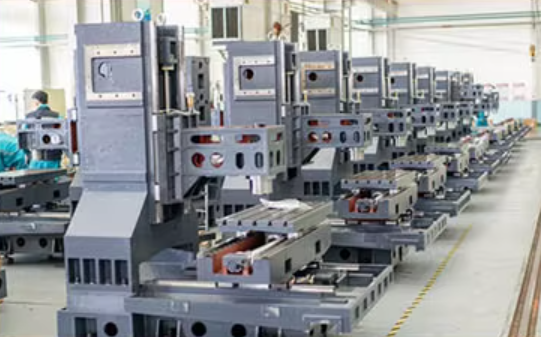

High Rigidity Bed Body

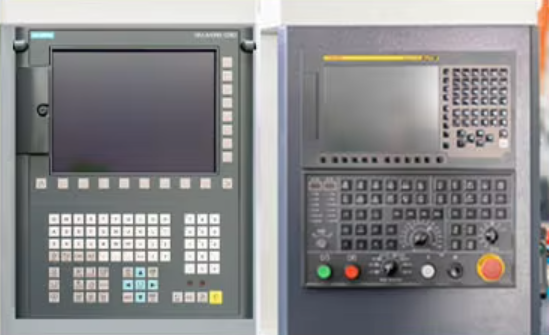

FANUC/SIEMENS/MITSUBISHI/GSK

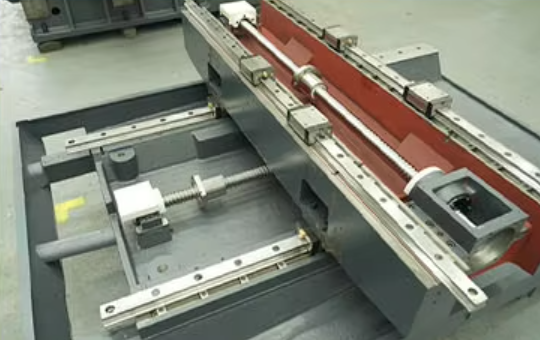

THK Guide Screw

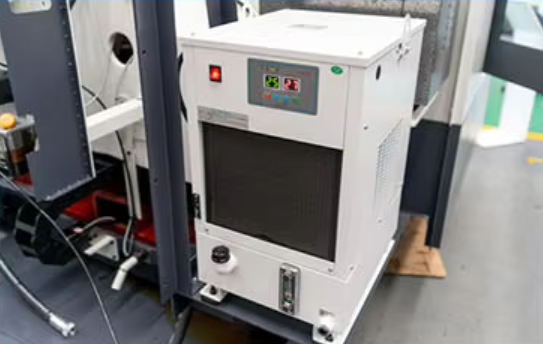

Famous Spindle Oil Cooling Box

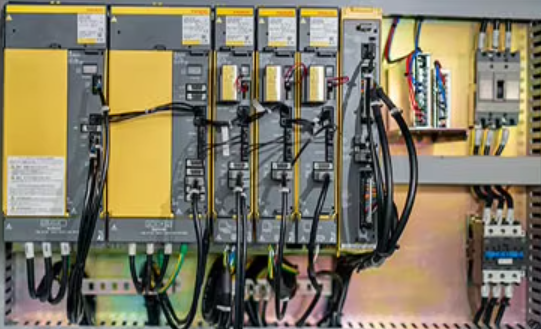

FANUC Drive

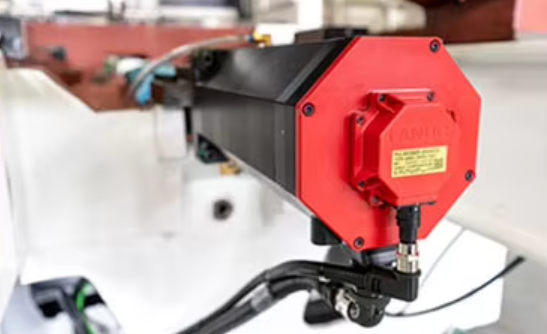

FANUC Motor(X/Y/Z Axis)

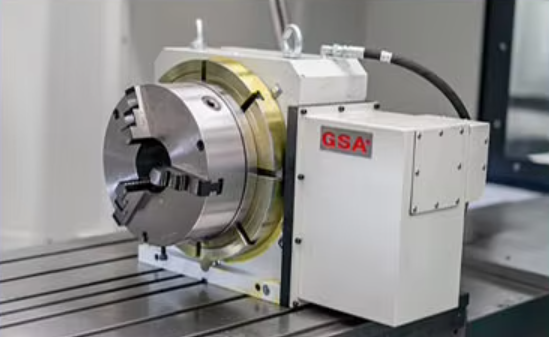

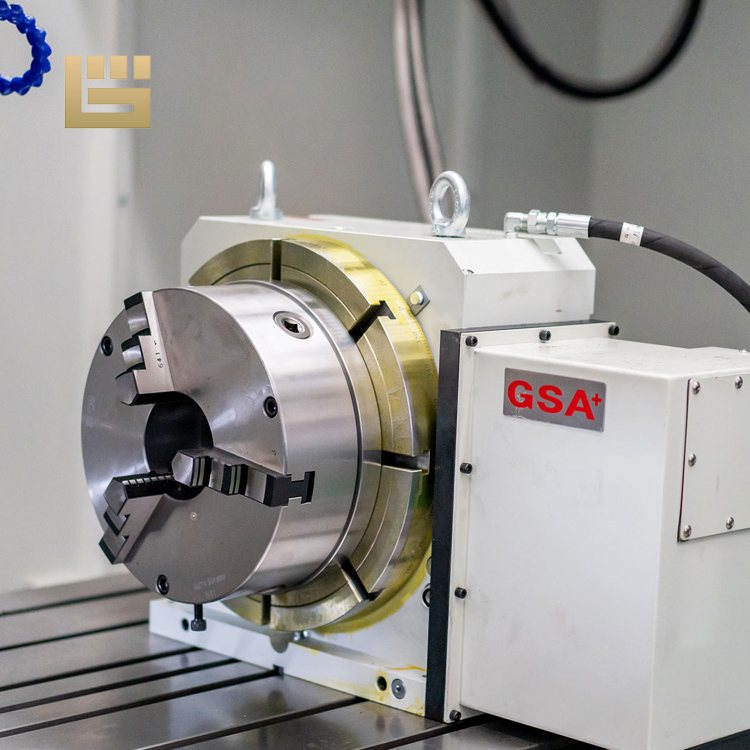

Taiwan GSA Rotary Table

• FANUC 0i-MF PLUS(5) system with 10.4″ color LCD display.
• High-strength cast iron bed.

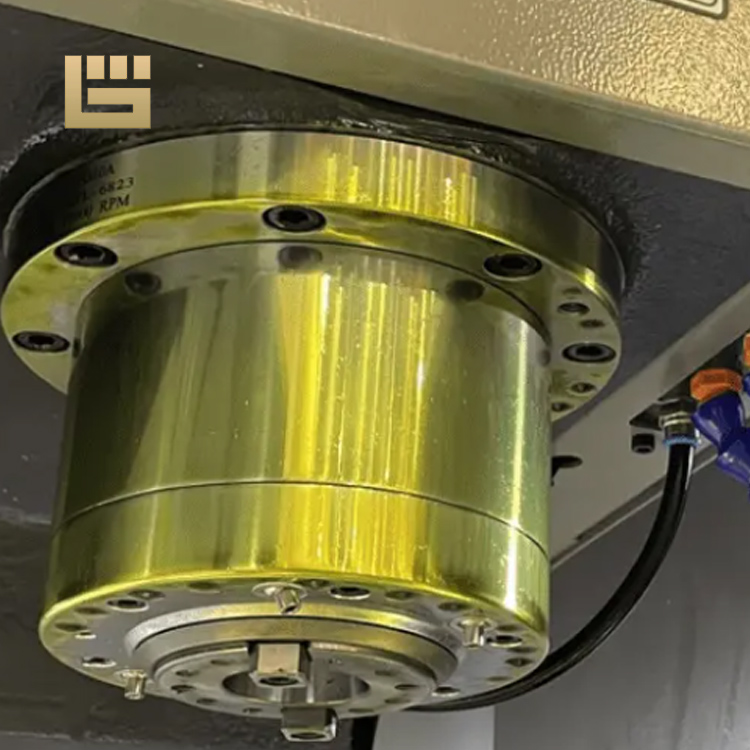

• Spindle is directly connected to the spindle motor via a high-torque flexible coupling (maximum speed 12000rpm).
• Rigid tapping.

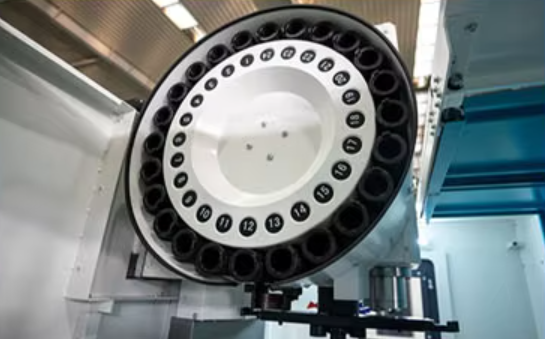

• 24-tool robot magazine.
• Linear guide rails (X – 34mm, Y/Z – 45mm).
• Servo motor is directly connected to an extra-large, double-pretensioned lead screw (X-φ40mm, Y-φ40mm, Z-φ40mm).
• Fast traverse speed (X - 36 m/min, Y - 36 m/min, Z - 30 m/min).
• Accuracy (positioning accuracy 0.008/0.008/0.008, repeatability 0.005/0.005/0.005).
