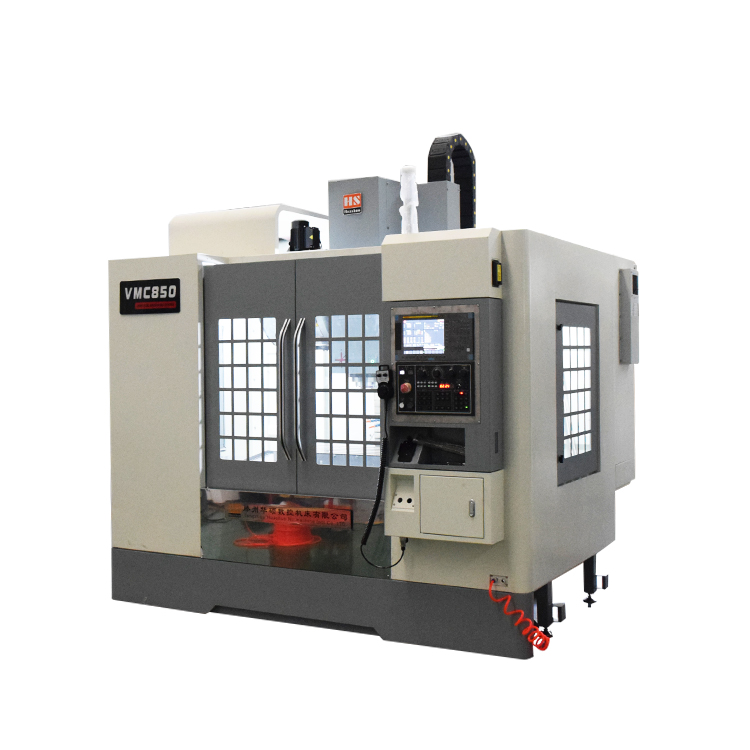

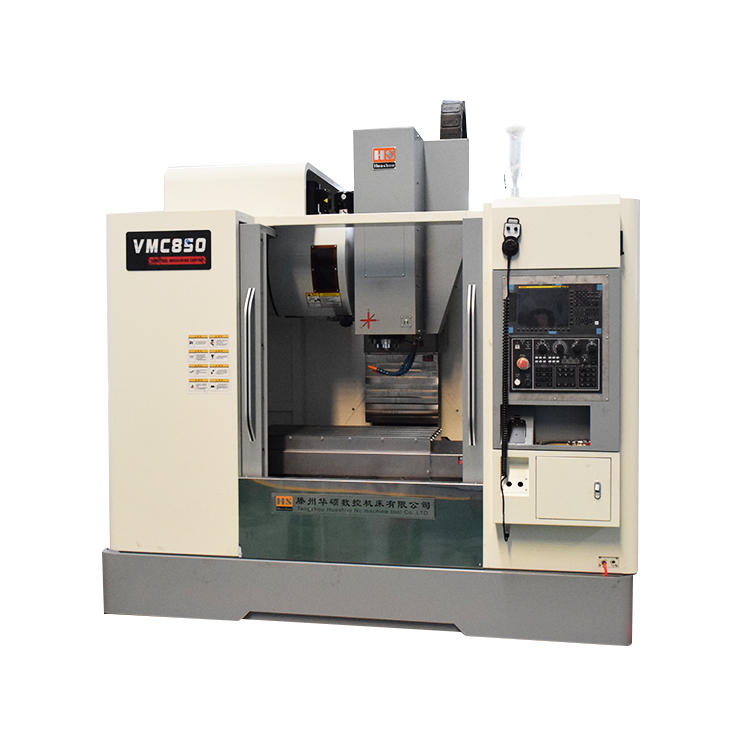

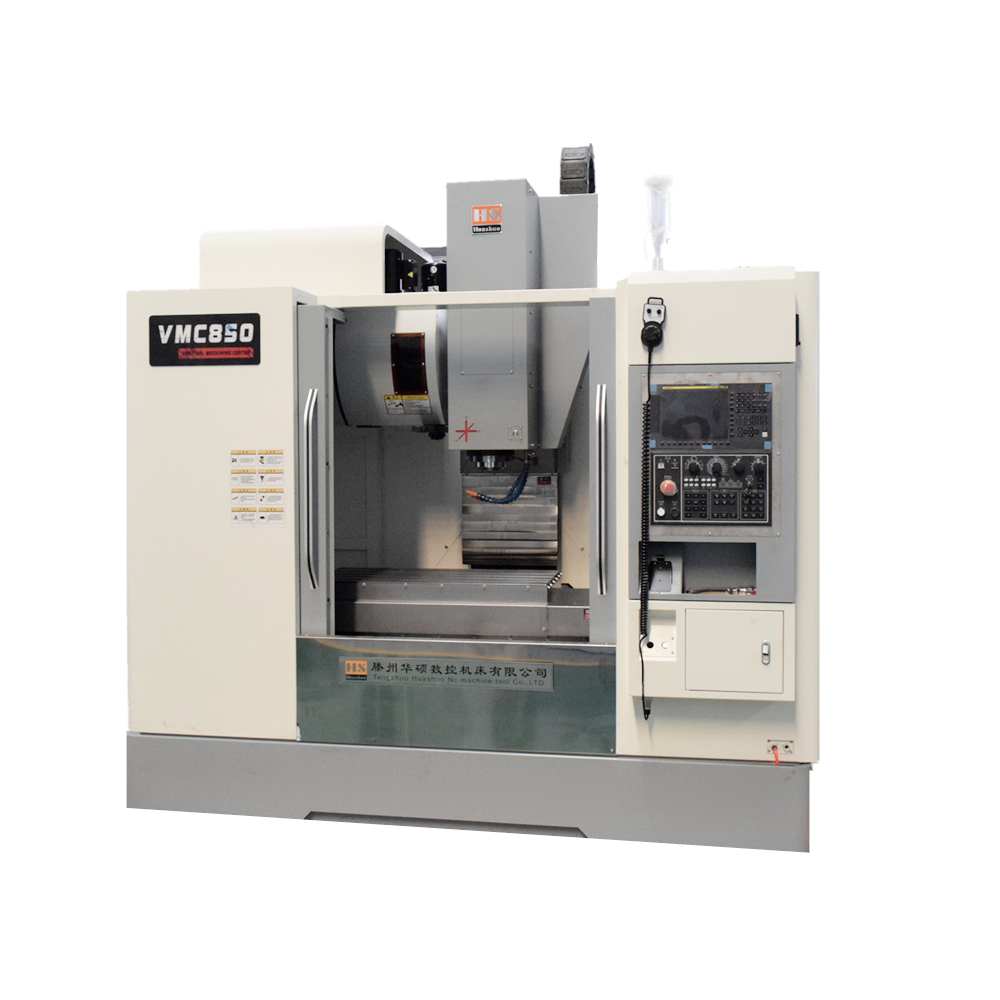

| Project | Content | Unit | Vmc850 |
|---|---|---|---|

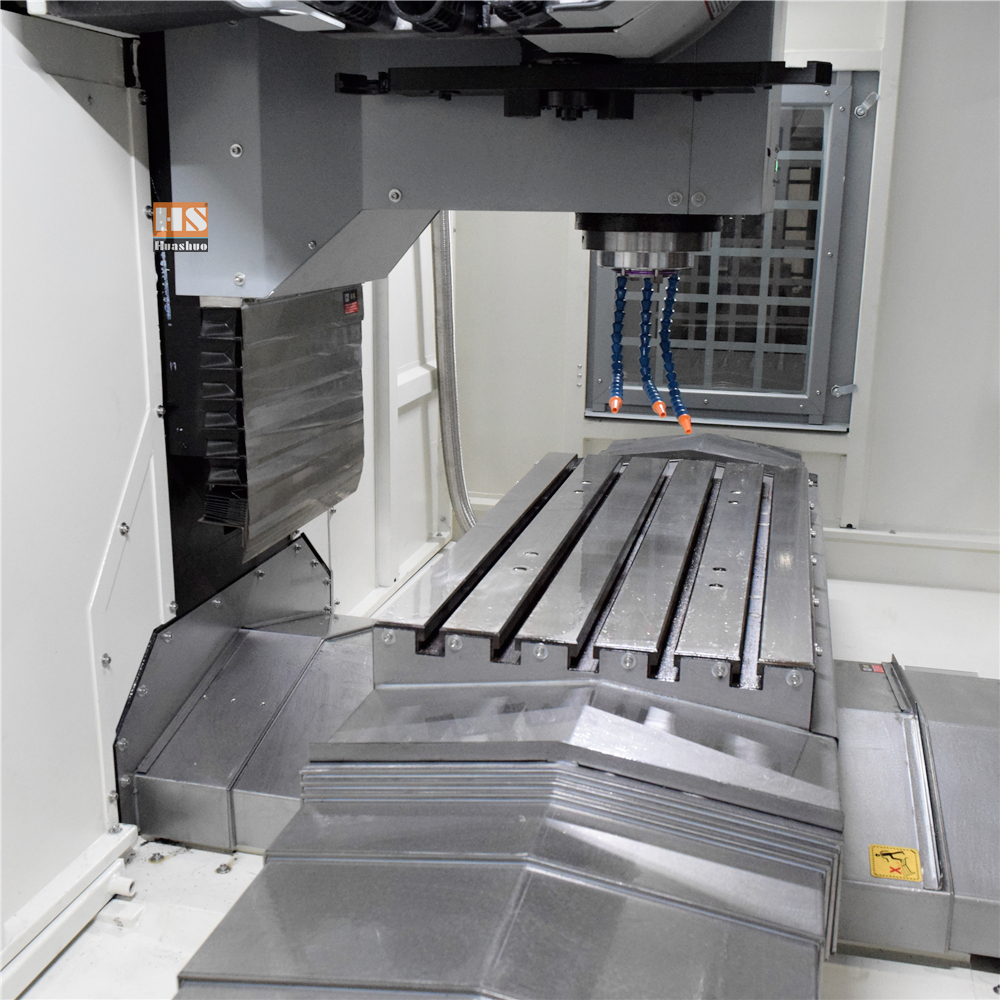

| workbench | Area of work table | mm | 1000×500 |
| T slot | mm | 5-18-100 | |
| maximum load bearing | Kg | 800 | |
| trip | Moving range X, Y, Z | mm | 800×500×500 |
| Distance from spindle center to column guide surface | mm | 500 | |
| Distance from nose of spindle to workbench | mm | 120-620 | |
| Feed | Fast moving speed X, Y, Z | m/min | 36/34/34/min |
| Cutting feed speed X, Y, Z | mm/min | 10~10000mm/min | |
| Spindle | taper hole of spindle | BT40 | |
| speed of mainshaft | r/min | 0-10000pm | |
| Spindle power | kw | AC servo 11 | |
| Tool magazine | Maximum tool capacity | Bundle | 24 |
| Maximum tool weight | kg | 8kg | |
| Maximum tool size | mm | φ150×300 | |
| Accuracy | Positioning accuracy X/Y/Z | mm | ±0.008 |
| Repeated positioning accuracy | mm | ±0.005 | |
| Dimensions | length width and height tolerance | mm | 2600*2350*2600 |
| weight | KG | 4800 |
