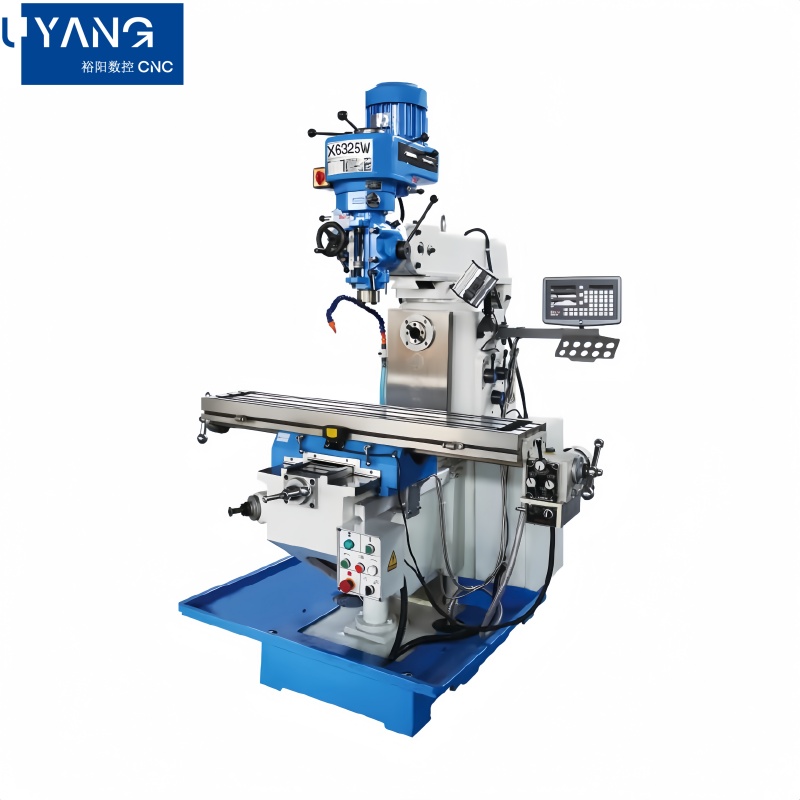

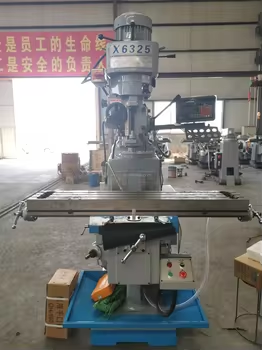

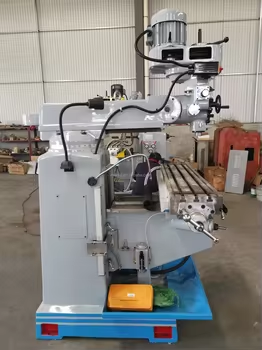

High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
1 / 5
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy
High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy

High Quality UYANG X6325W Vertical Universal Milling Machine Manual Metal Processing Turret Milling R8 Medium Duty High-Accuracy

Send Inquiry

Product Description

Milling Machine Banner
Vertical Milling Machine
Milling Machine Highlights
Milling Operation Details
The X5032 manual vertical milling machine is a robust and versatile tool designed for high-precision machining. It is ideally suited for a variety of milling operations, including surface milling, slotting, and drilling.
MAIN FEATURES
✓ ISO50 Big Spindle Hole
✓ 7.5KW 3 Phase Induction Motor
✓ Milling head swivel angle ±45°
✓ 1325x320mm large size worktable
✓ Spindle swivels +/-45 degrees
✓ X.Y.Z axis automatic feed and manual operation
✓ Worktable and guideway tempered by ultra audio spark quenching
✓ Rectangular column guideway for excellent machine rigidity
Milling Machine Structure
SPECIFICATIONS
Specifications Units X6325w
Table size mm 1270*254
Table travel (x/y/z) mm 850*400*400
Spindle taper - R8 / NT30 / NT40
Spindle speed range r/min 80-4200 (variable) / 66-4540 (16 speeds) / 40-1300 (12 speeds)
Distance between horizontal nose and table surface mm 0-400
Distance between spindle axis and ram surface mm 270
T-Slots (NO/width/pitch) mm 3 / 16 / 65
Arm travel mm 400
Spindle motor power KW 4
Overall size mm 1600x1550x2150
Net weight Kg 1380
Milling Machine Worktable Details

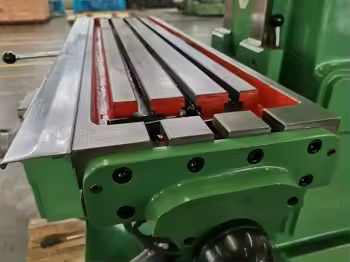

Quenched Worktable
Quenched Workbench & Guide Rail
The workbench and guide rail are quenched by ultrasonic spark quenching. Worktable size is 1325x320mm. Manual X/Y/Z travel reaches 700/255/350mm.

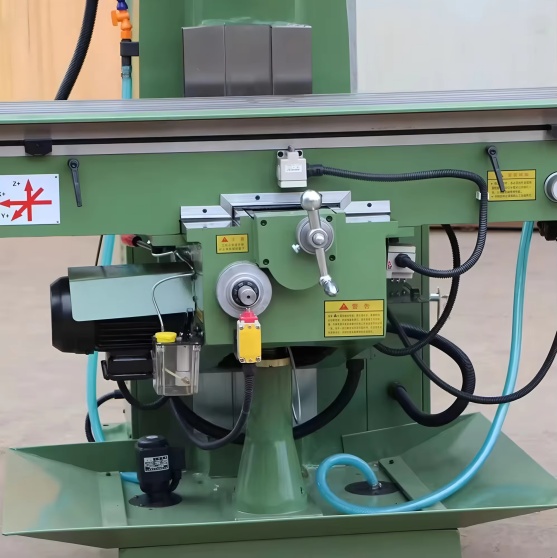

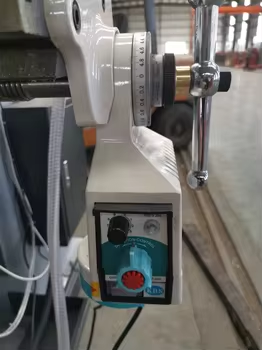

3 Axis Power Feeder
3-Axis Power Feeder
Features X/Y axis automatic feed and Z axis electric lifting for higher operating efficiency and convenience.

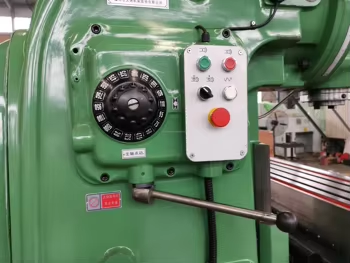

Control Panel
Robust Warning & Manual Control
Clear alert labels ensure safe operation by preventing gear changes during spindle rotation. Ergonomically designed handwheels enable fine manual precision adjustments.

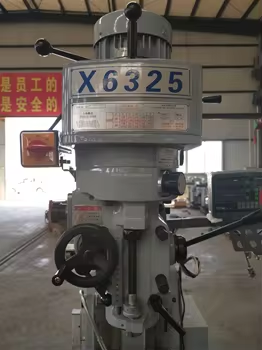

Vertical Milling Head

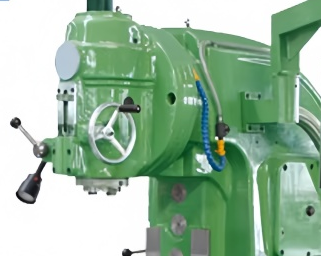

Vertical Milling Head
Spindle taper ISO50. Main spindle designed with strong load-bearing capacity, large energy-consuming braking torque, and quick shutdown characteristics.
Milling Machine Close-up
Machine Assembly
Machine Factory Quality Check
Manufacturing & Workshop
Workshop Assembly Line
Precision Machining Area
Machinery Inventory
Testing Procedures
Final Product Inspections
FREQUENTLY ASKED QUESTIONS
Q What are the payment terms for placing an order?
We accept T/T (30% initial payment when ordered, 70% balance payment before shipment) and irrevocable LC at sight. Once we receive the advance payment, production begins. Photos of the completed machine will be provided before final balance payment and shipping.
Q What types of machinery are available in the production line?
The manufacturing lineup mainly includes CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, and hydraulic presses. All operations are backed by professional quality inspections.
Q What trade terms do you support?
FOB, CFR, CIF, and other standard international trade terms are all acceptable based on buyer requirements.
Q What is the minimum order quantity (MOQ) and warranty?
The MOQ is one set. We offer a one-year warranty alongside lifetime maintenance and support services for all machines.
Q What are the key technical features of the X5032 vertical milling machine?
Key features include an ISO50 large spindle hole, a 7.5KW 3-phase induction motor, a 1325x320mm large size worktable, ±45° milling head swivel, automatic X/Y/Z axis feed, and tempered guideways for high machine rigidity.
Q How are the guideways and worktables treated to ensure durability?
The worktable and guideways are hardened and tempered using ultra audio spark quenching. The rectangular column guideway structure provides high mechanical rigidity and long-lasting stability under heavy milling operations.
