| Standard Accessories: | ||
|---|---|---|
| Name | Model | Quantity |
| Milling arbor | Φ27, φ32 | 1 |
| Elevating lift | - | 1 |
| Draw bar | M16 | 2 |
| Double end spanner | S22-24, S17-19, S32-36 | 1 |
| Allen key | 5, 6, 10 | 1 |
| Machine vice | 6" 152mm | 1 |
| Nut | M16 | 2 |
| Washer | M16 | 2 |
| Quality Certificate | - | 1 |
| Packing list | - | 1 |
| Operation manual | - | 1 |
| EP1C series servo driver manual | - | 1 |

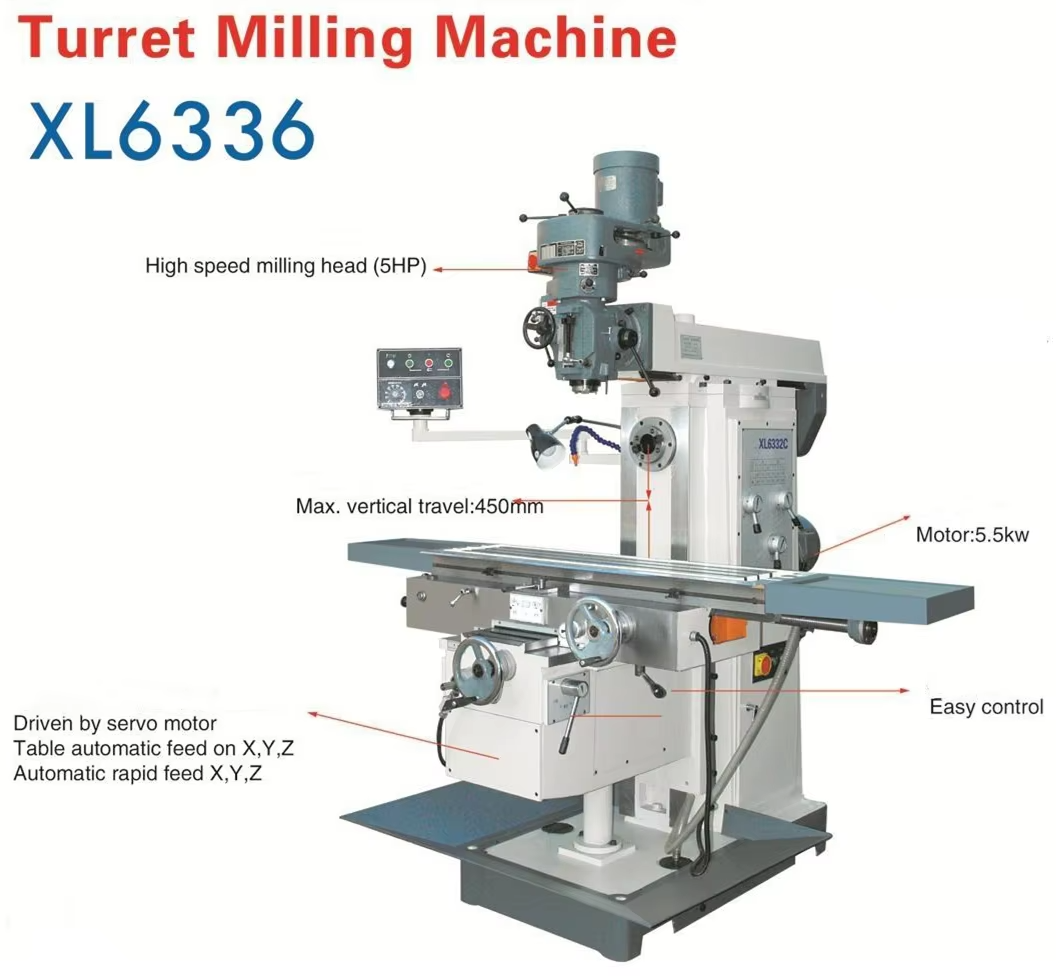

| Specifications | Unit | XL6336 | XL6336C | XL6336CL |
|---|---|---|---|---|
| Table size | mm | 1325×360 | 1325x360 | 1600×360 |
| Table travel (X, Y, Z) | mm | 750*290*450 | 1100*320*450 | 1300*320*450 |
| Table feed (X, Y, Z) | mm/min | 30~750, 20~500, 15~375 | ||
| Spindle taper | - | 7:24 ISO50 (H), 7:24 ISO40 (V) | ||
| Spindle travel | mm | 127 (V) | ||
| Distance between spindle nose and table surface | mm | 200~650 | ||
| Distance between horizontal nose and table surface | mm | 20~470 | ||
| Distance between spindle axis and ram surface | mm | 245 | ||
| Spindle speed range | r.p.m | 12 steps 60~1800 (H), 16 steps 80~4660 (V) | ||
| T-slots (NO:/width/pitch) | mm | 3/18/70 | ||
| Arm travel | mm | 550 | ||
| Main motor power | Kw | 5.5 (H) / 3.7 (V) | ||
| 3 to feed AC servo motor torque | N.m | 10 | ||
| Overall size | mm | 2520×2100×2500 | 2520×2200×2500 | 2520×2250×2500 |
| Net weight | kg | 2350 | 2450 | 2500 |
Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
30% down-payment after contract, and 70% payment before shipment. Meanwhile, it can be discussed according to your situation.
Our factory is open to international visitors. Please contact us to schedule your visit and coordinate travel details. You are warmly welcomed to visit us.
The delivery depends on different machines with different configurations. Please contact us to confirm whether the specific model is in stock or not.
We have engineers stationed regionally to support global installations. The after-sales service system is comprehensive and built to assist you promptly.
