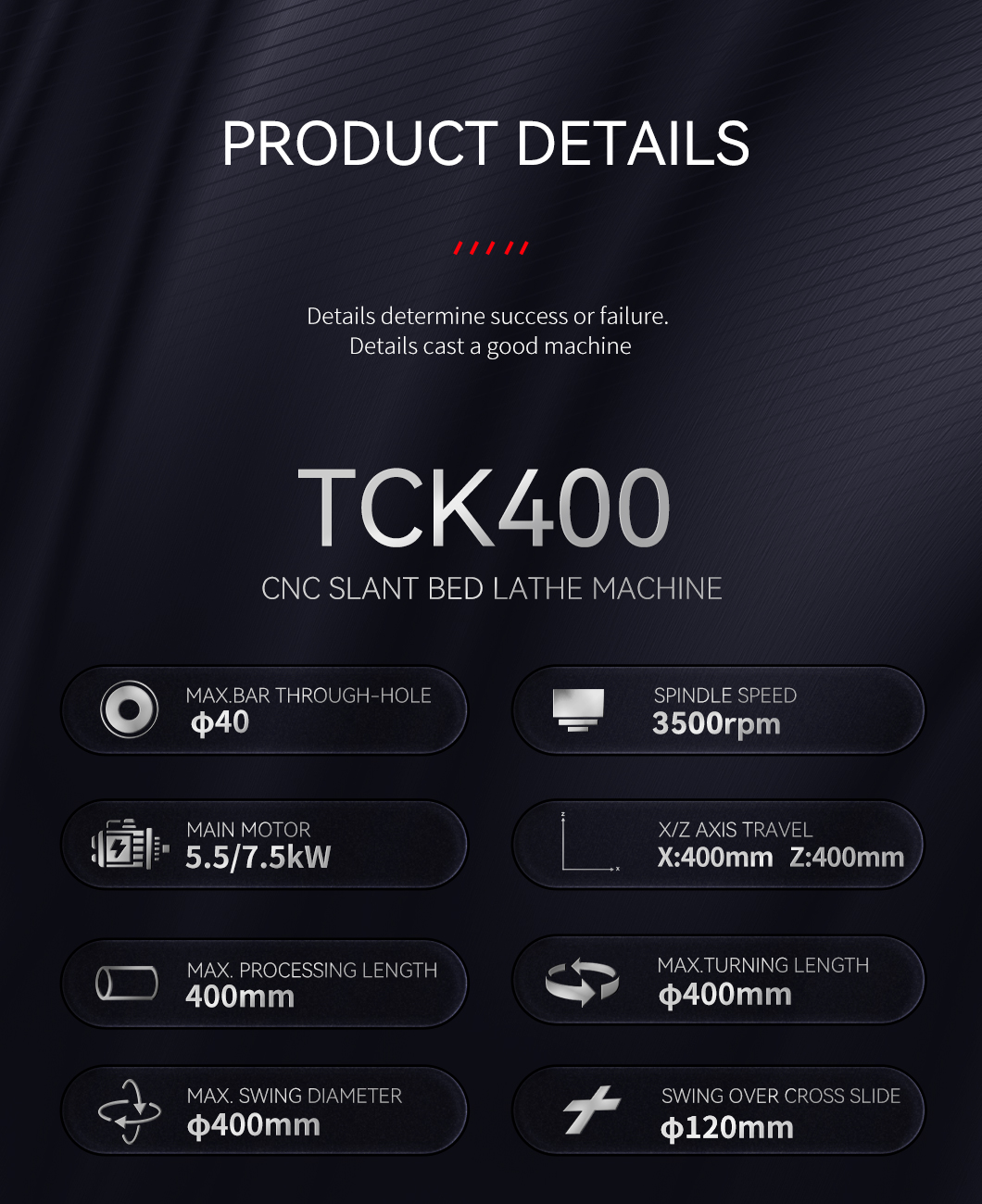

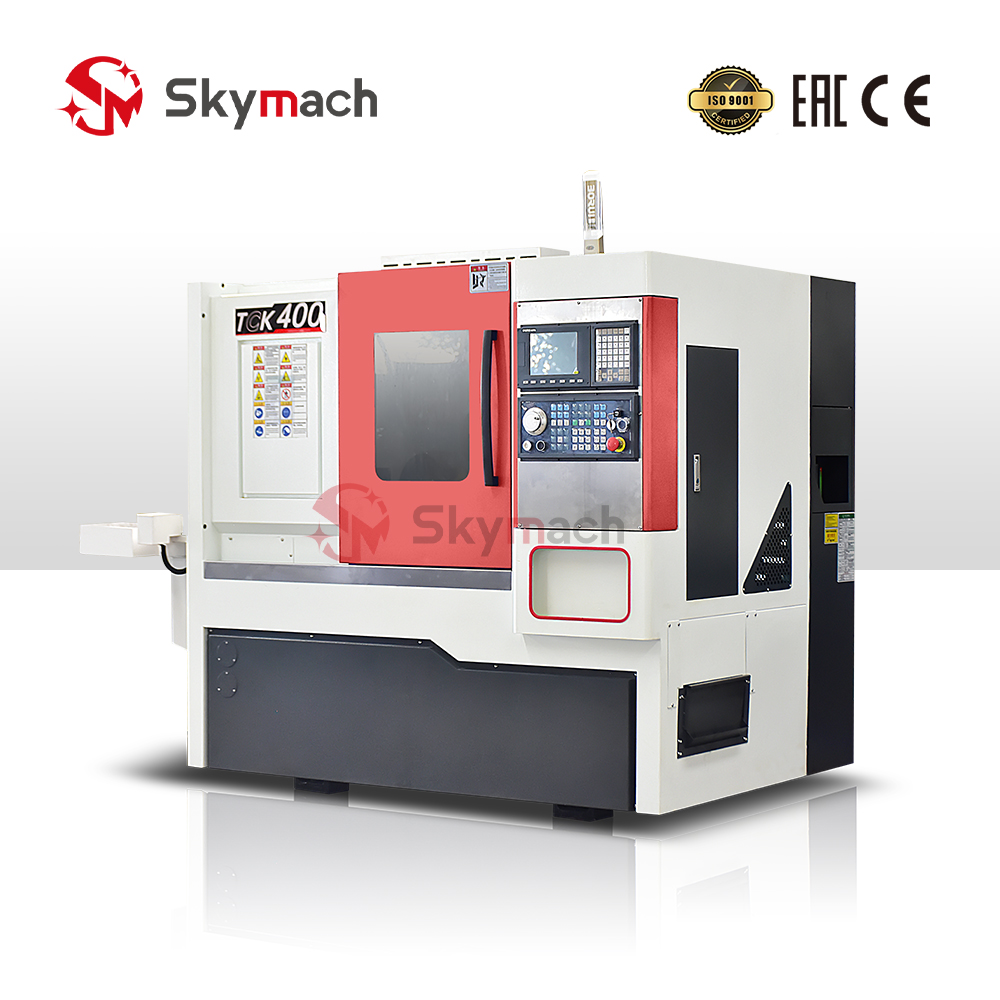

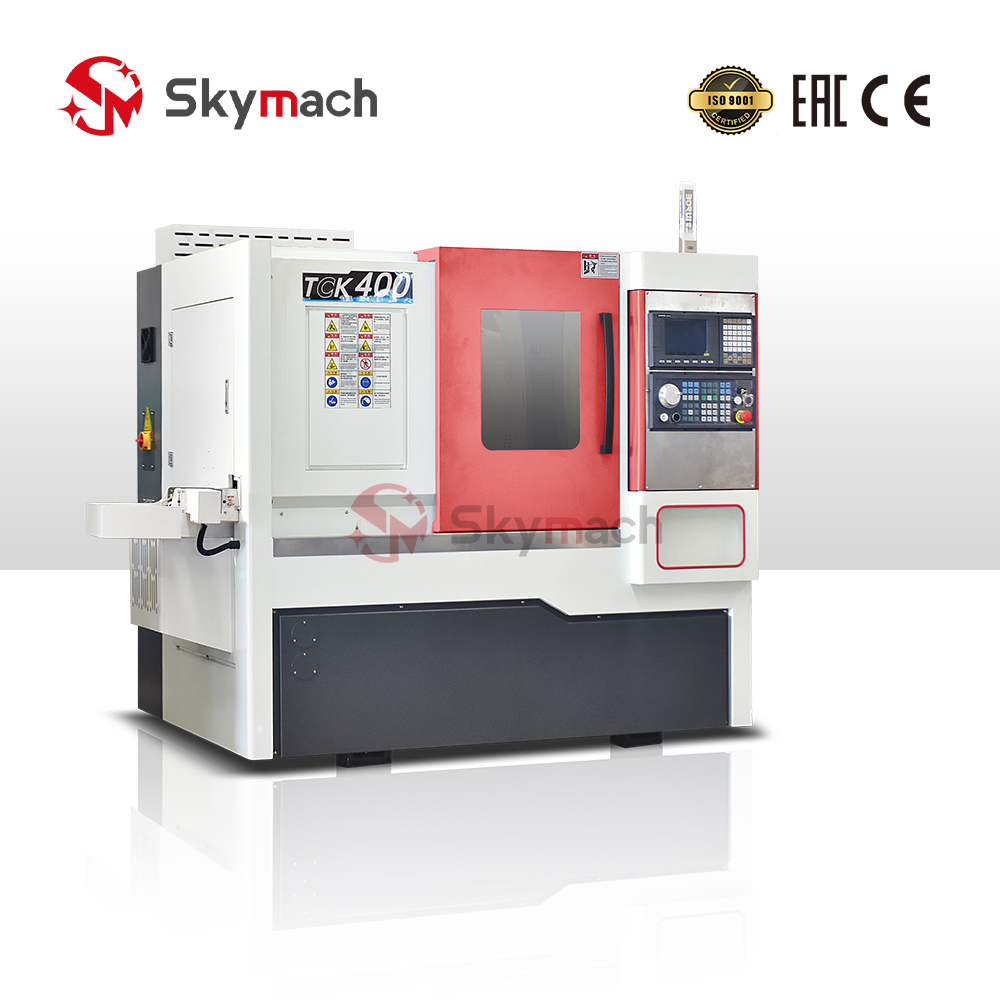

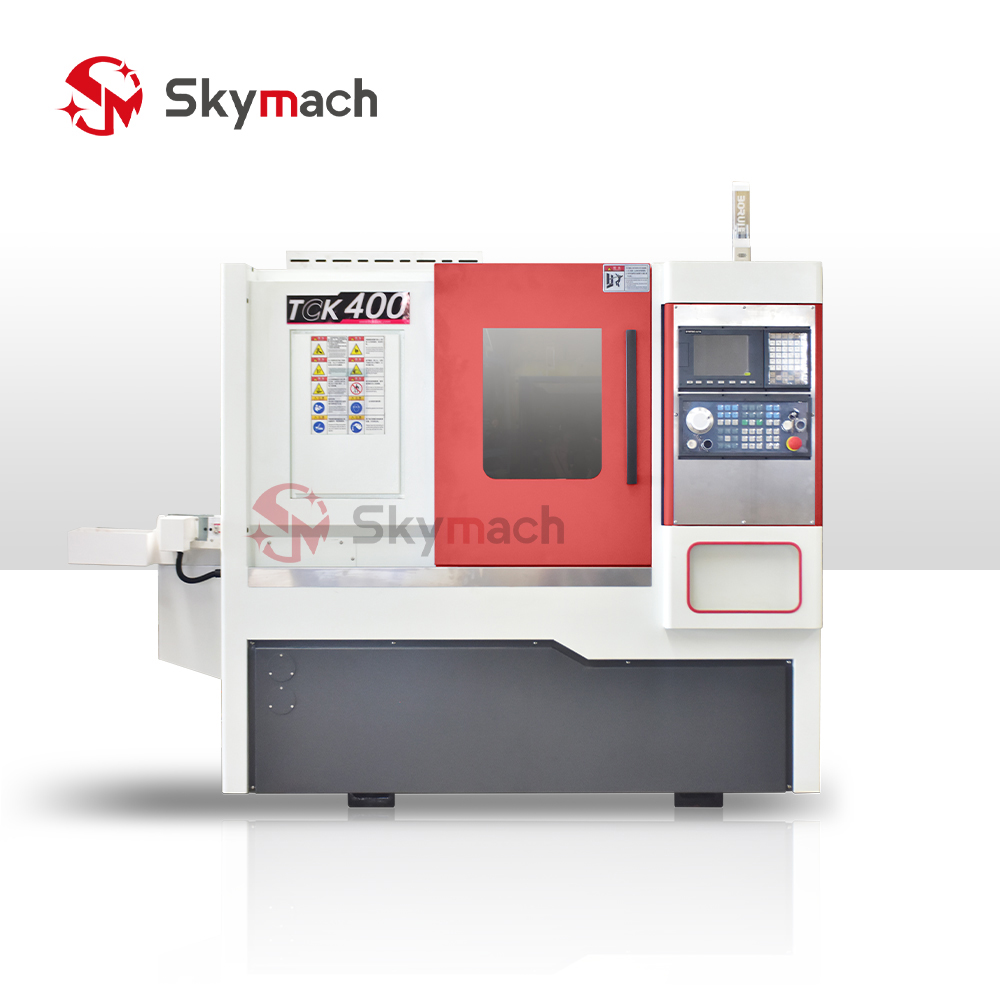

| Specification Type | Unit | TCK400 Parameter Details |
|---|---|---|

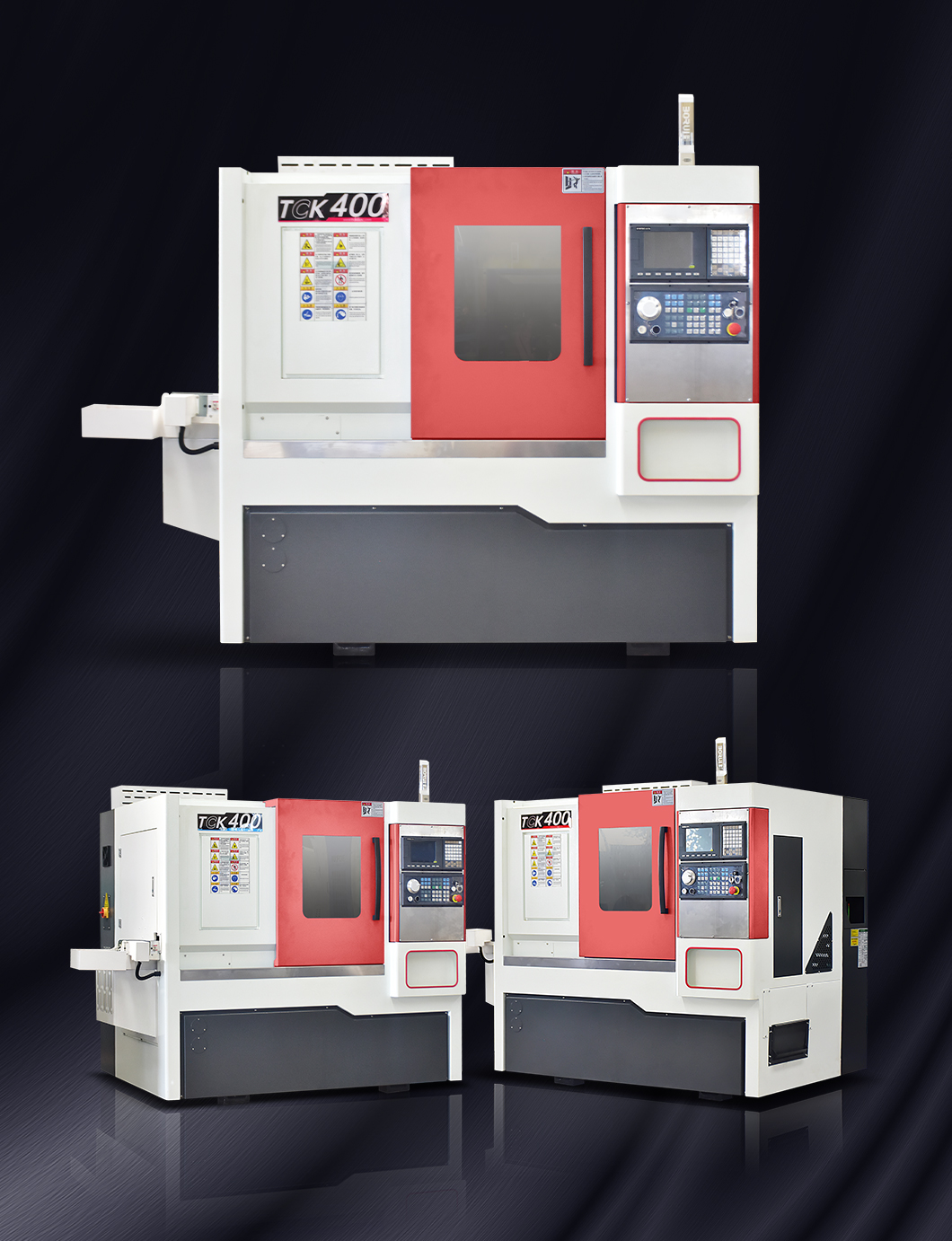

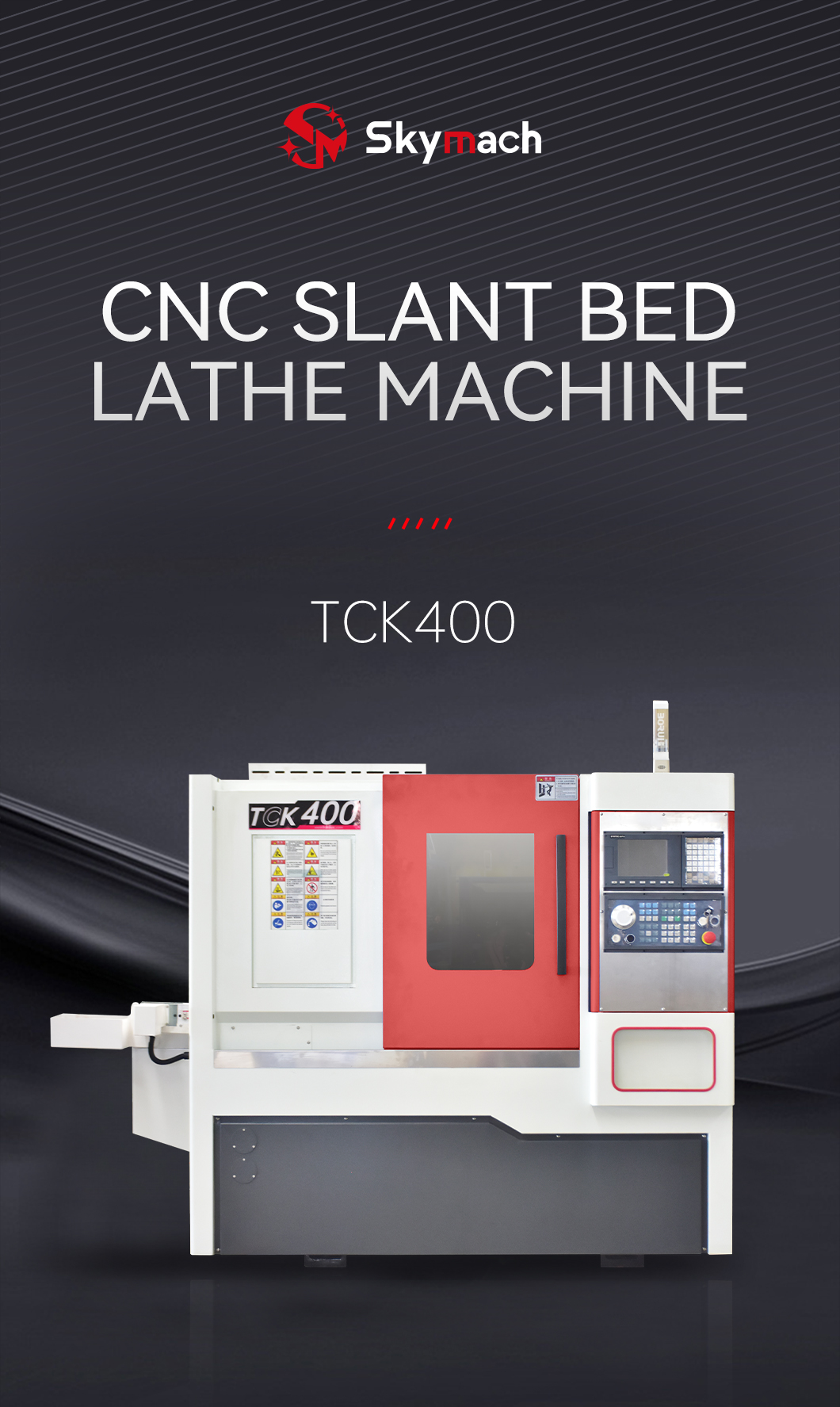

| Type | - | TCK400 |
| Max. swing diameter | mm | Ø400 |
| Swing over cross slide | mm | Ø120 |
| Max. turning length | mm | 400 |
| Max. bar through-hole | mm | Ø40 |

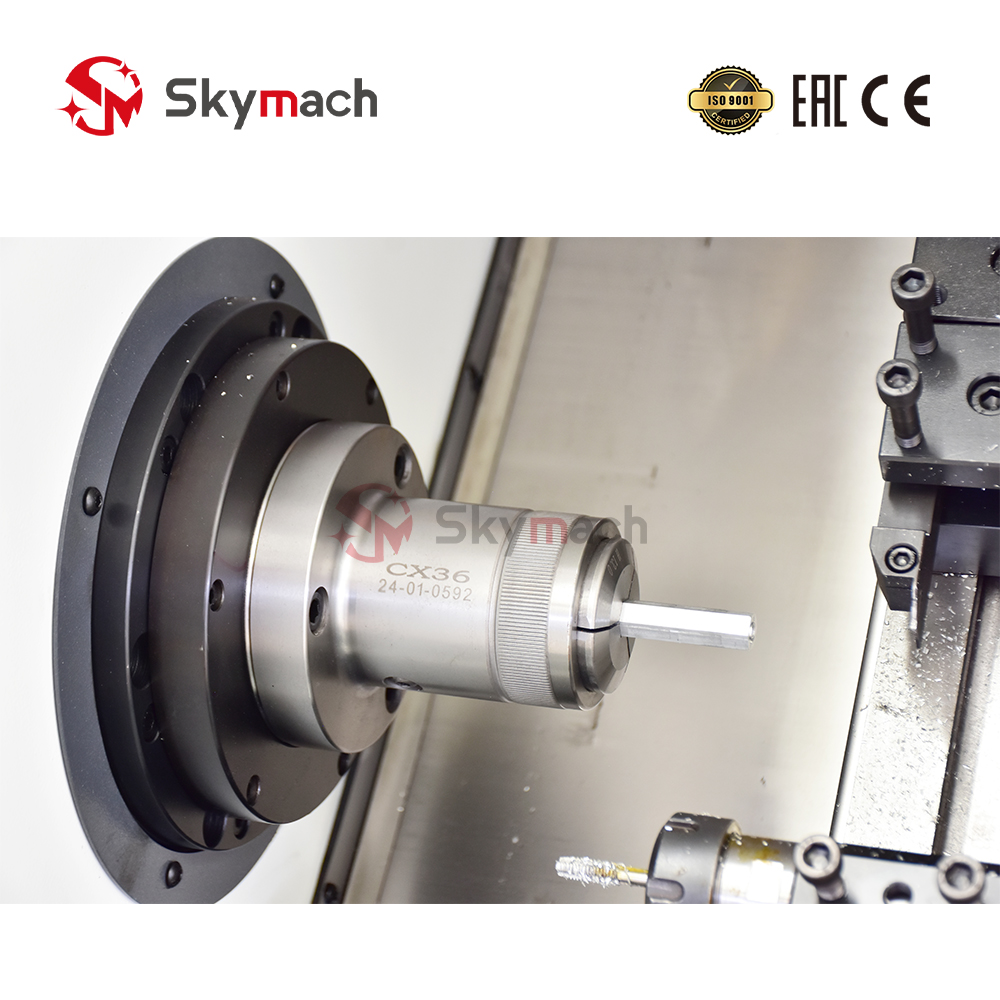

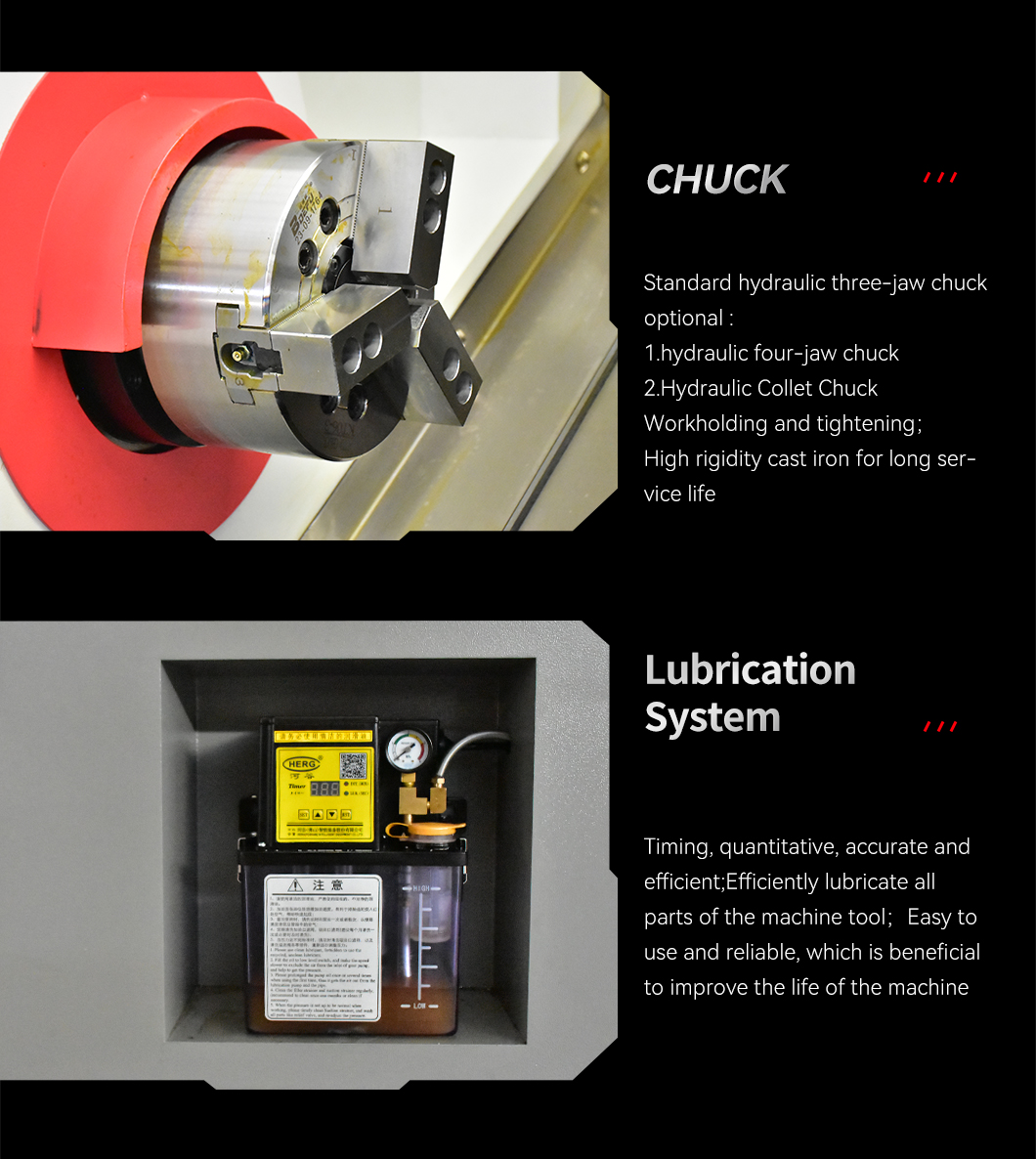

| Work piece clamping method | - | Spring collet |
| Spindle speed range | Rpm | 100-3000 (Plain spindle unit) / 100-4000 (Precision spindle unit) |
| Spindle nose size | - | A2-5 |
| X-axis rapid traverse | m/min | 24m (3210) |
| Z-axis rapid traverse | m/min | 24m (3210) |
| X-axis travel | mm | 800 |
| Z-axis travel | mm | 420 |
| X/Z axis repeating positioning accuracy | mm | 0.003 |

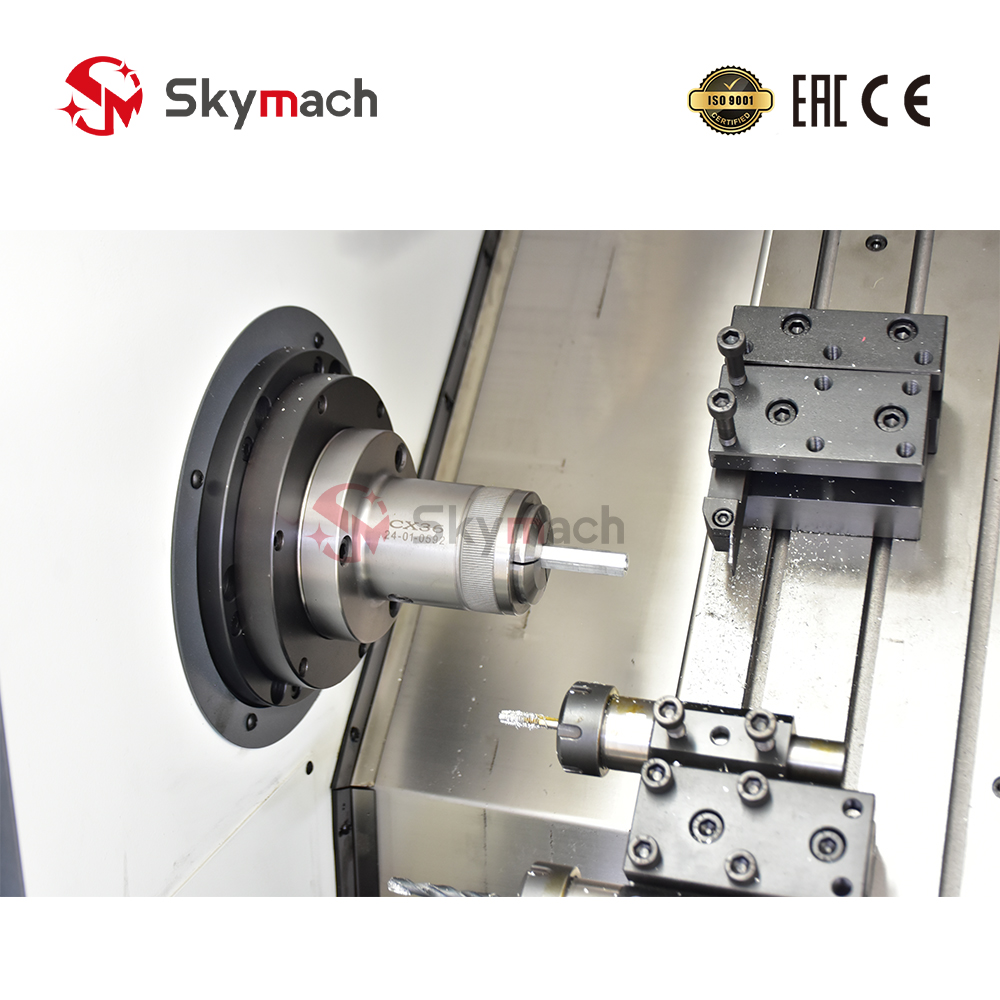

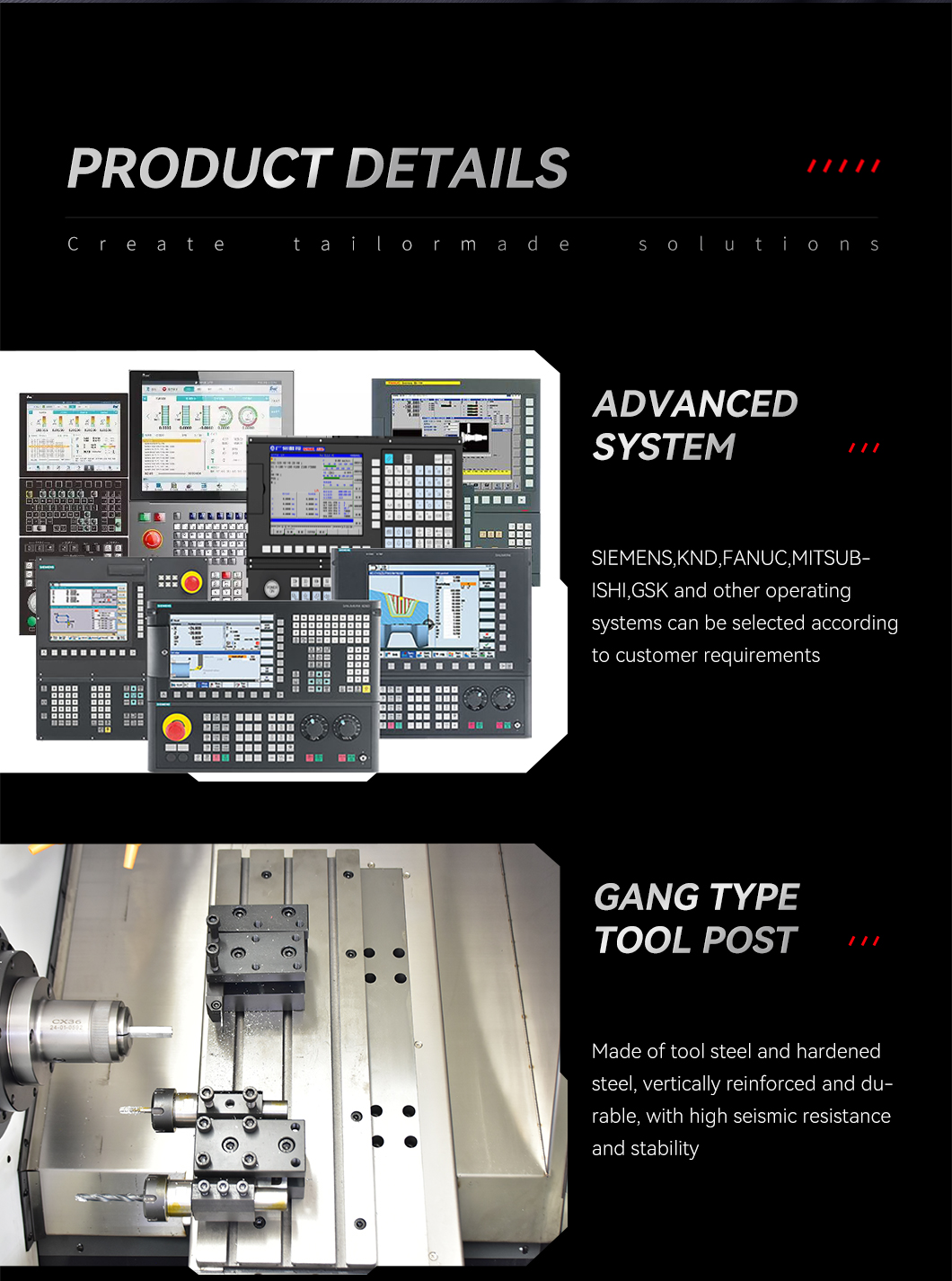

| Toolholder type | - | Gang knife |
| Tool size | mm | 20 |
| Number of tools | pcs | 9 (Can hold 63 knives tower) |
| Overall size (L*W*H) | mm | 2100 * 1450 * 1850 |
| The bed bottom spindle center height | mm | 990 |
| Net weight | kg | About 1500 |
