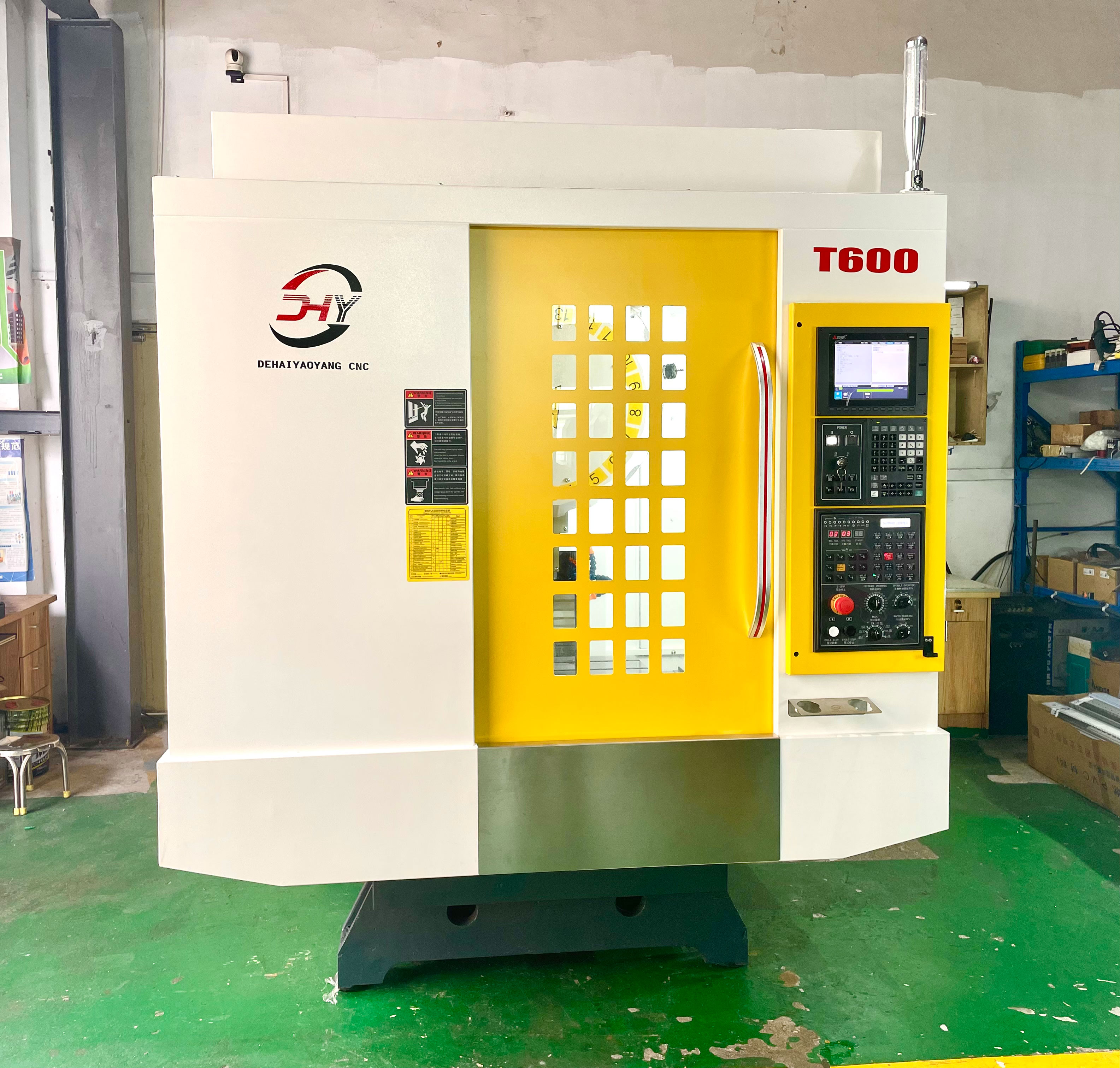

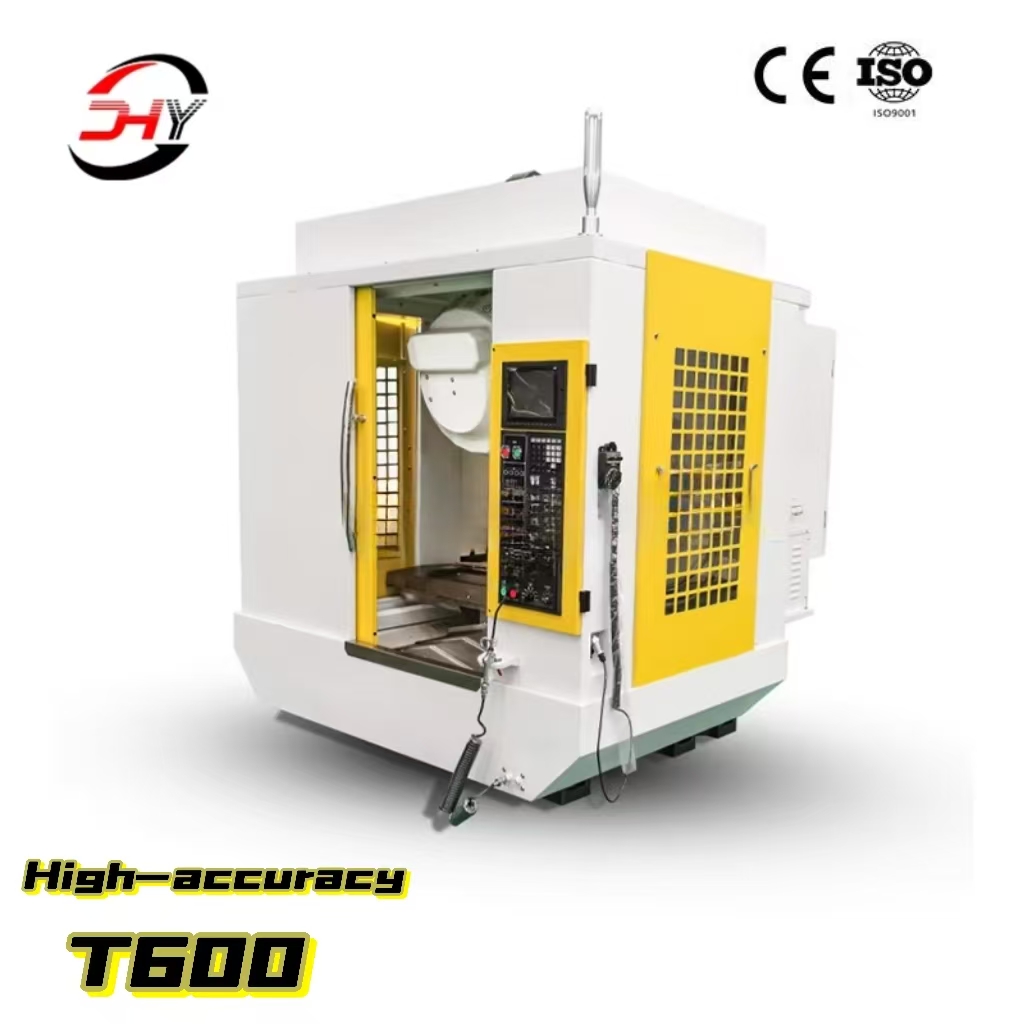

Vertical drilling and tapping center is mainly used to process plate, disc, shell, mold and other parts with high precision, multiple processes and complex shape. It can continuously complete milling, drilling, reaming, reaming, boring, tapping and precise machining of two-dimensional three-dimensional curved surface and inclined plane in one clamping process. The processing is programmed and the production cycle is shortened, so that users can obtain good economic benefits.
Such cnc tapping center has following features:
| Item | Unit | T600 | T700 | |
|---|---|---|---|---|
| Travel | ||||
| XYZ Travel | mm | 600/400/350 | 700/400/350 | |
| Distance from spindle center to column | mm | 460 | 460 | |
| Distance from Spindle Nose to Table | mm | 150-480 | 150-480 | |
| Worktable | ||||
| Table Size | mm | 700x420 | 780x420 | |
| Max. Loading on Table | KG | 250 | 250 | |

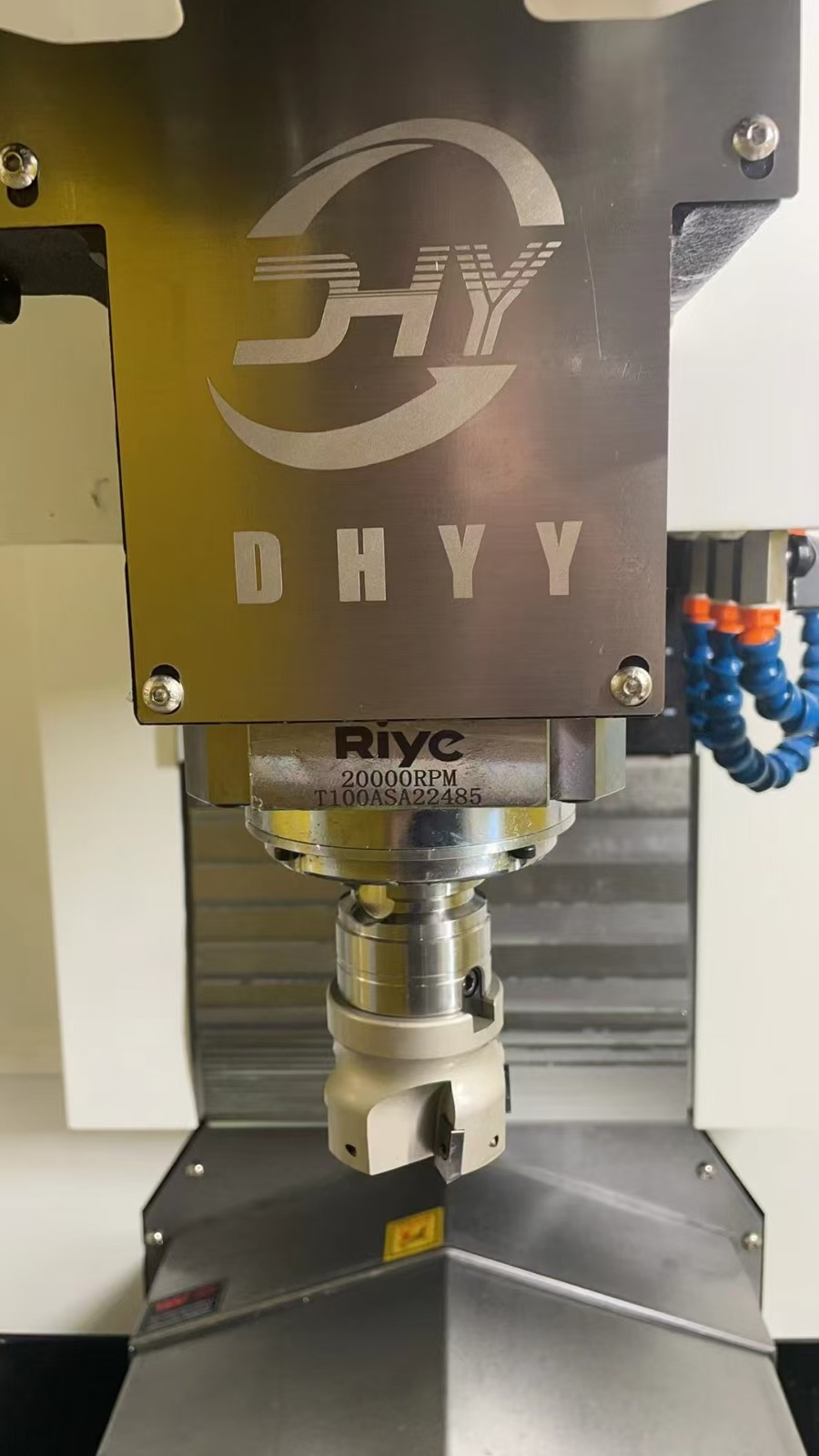

| Spindle | ||||
| Spindle Taper | - | BT30/ER32 | BT30 | |
| Spindle Speed | rpm | 20000 | 20000 | |
| Spindle Motor Power | KW | 5.5/7.5 | 5.5/7.5 | |
| Feeding | ||||
| Rapid Feedrate(X/Y/Z) | m/min | 48/48/48 | 48/48/48 | |
| Cutting Feedrate(X/Y/Z) | m/min | 1-20000 | 1-20000 | |
| Tool magazine | ||||

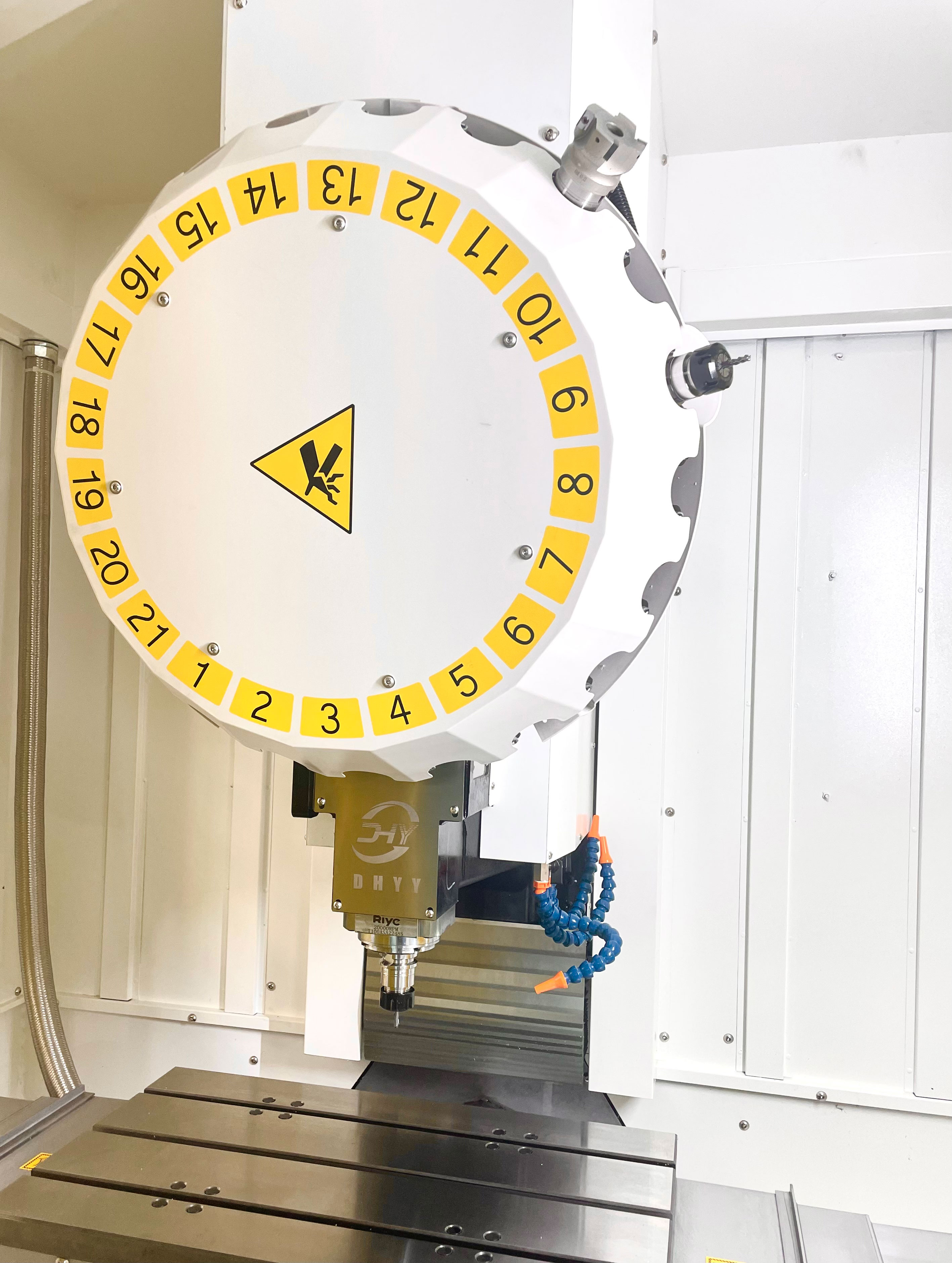

| No. of Tools | PCS | 21T | 21T | |
| Tools Size (Full Tools) | mm | 50/120 | 50/120 | |
| Max. Tool Weight | KG | 3 | 3 | |
| Tool change time | sec | 1.6 | 1.6 | |
| Accuracy | ||||
| Positioning Accuracy | mm | ±0.005/300 | ±0.005/300 | |
| Re-Positioning Accuracy | mm | ±0.003/300 | ±0.003/300 | |
| Others | ||||
| Machine size | mm | 1900*2100*2500 | 2200x1900x2300 | |
| Machine Weight | KG | 2500 | 2600 | |
