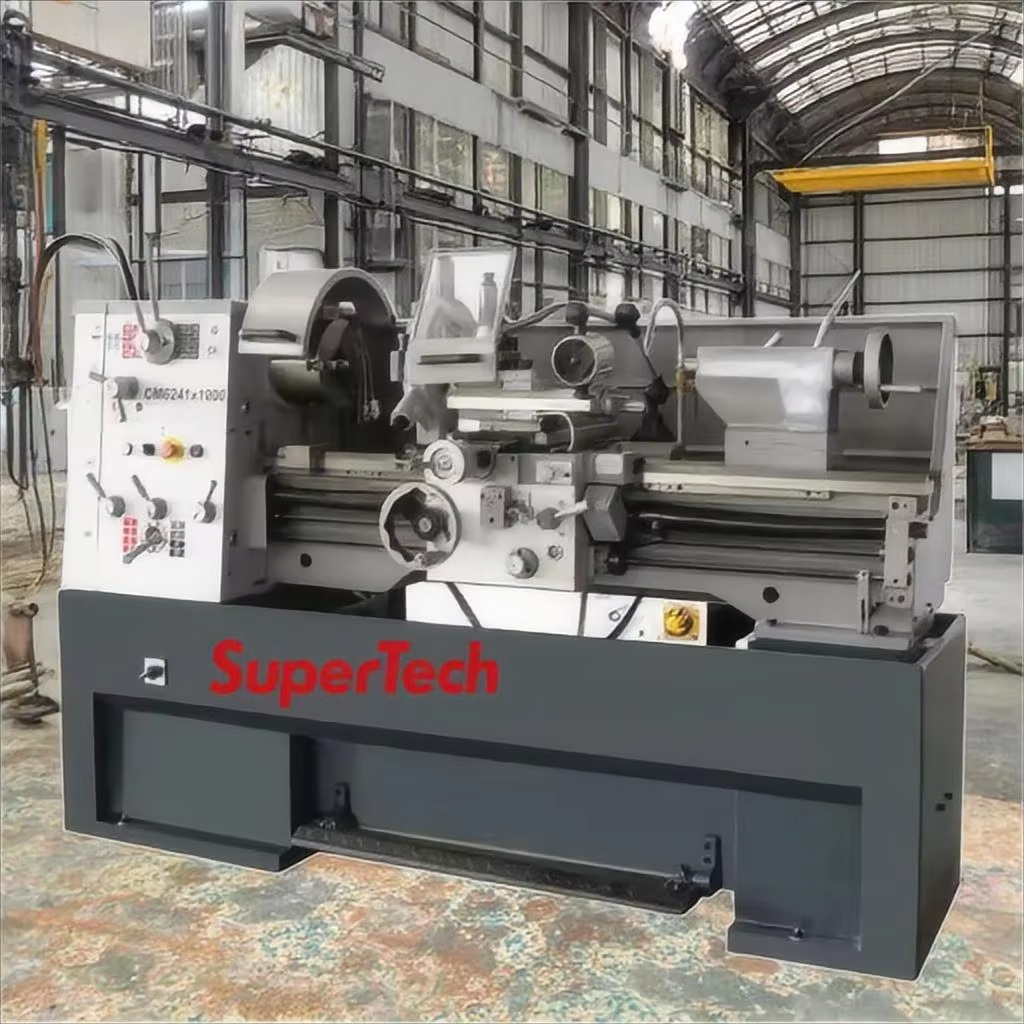

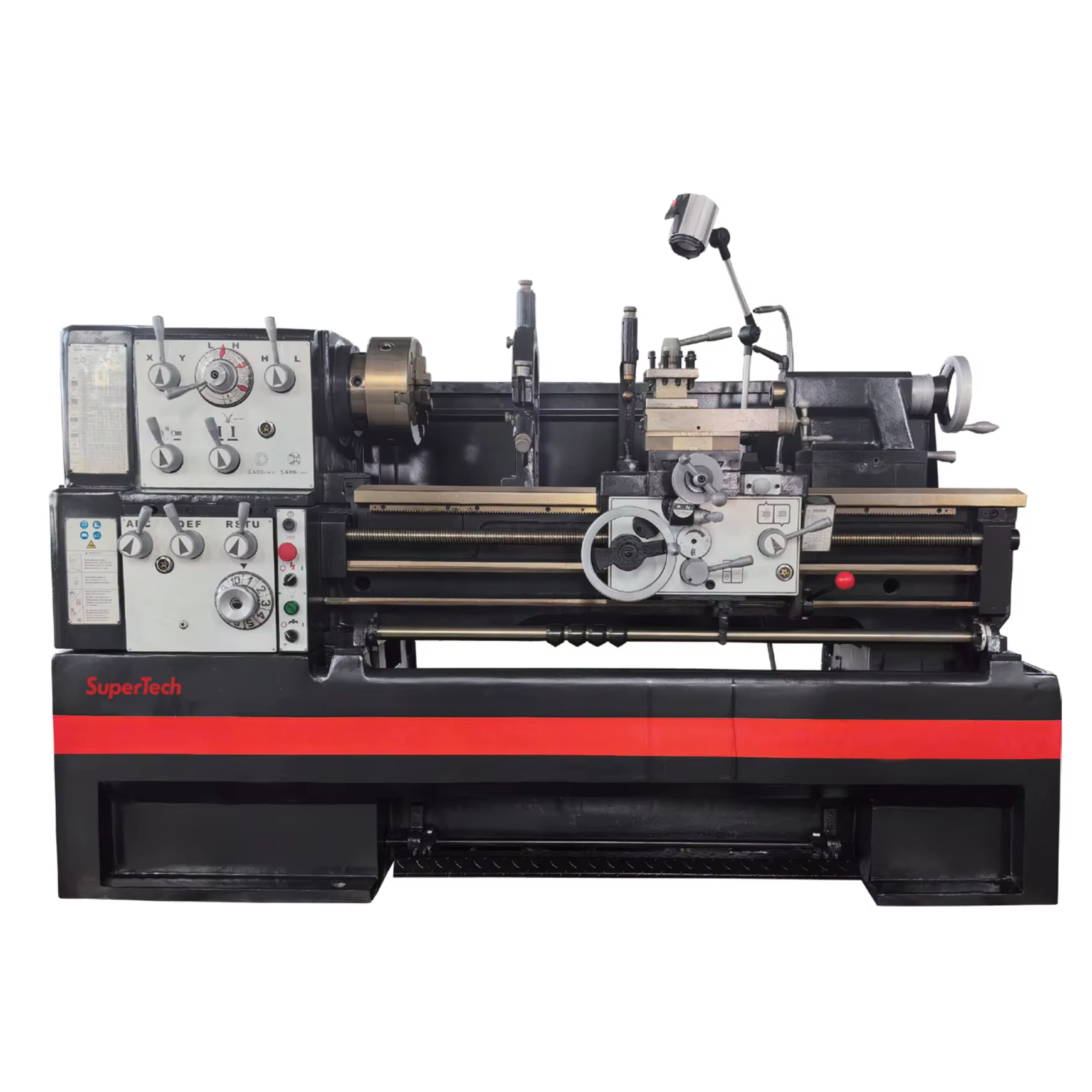

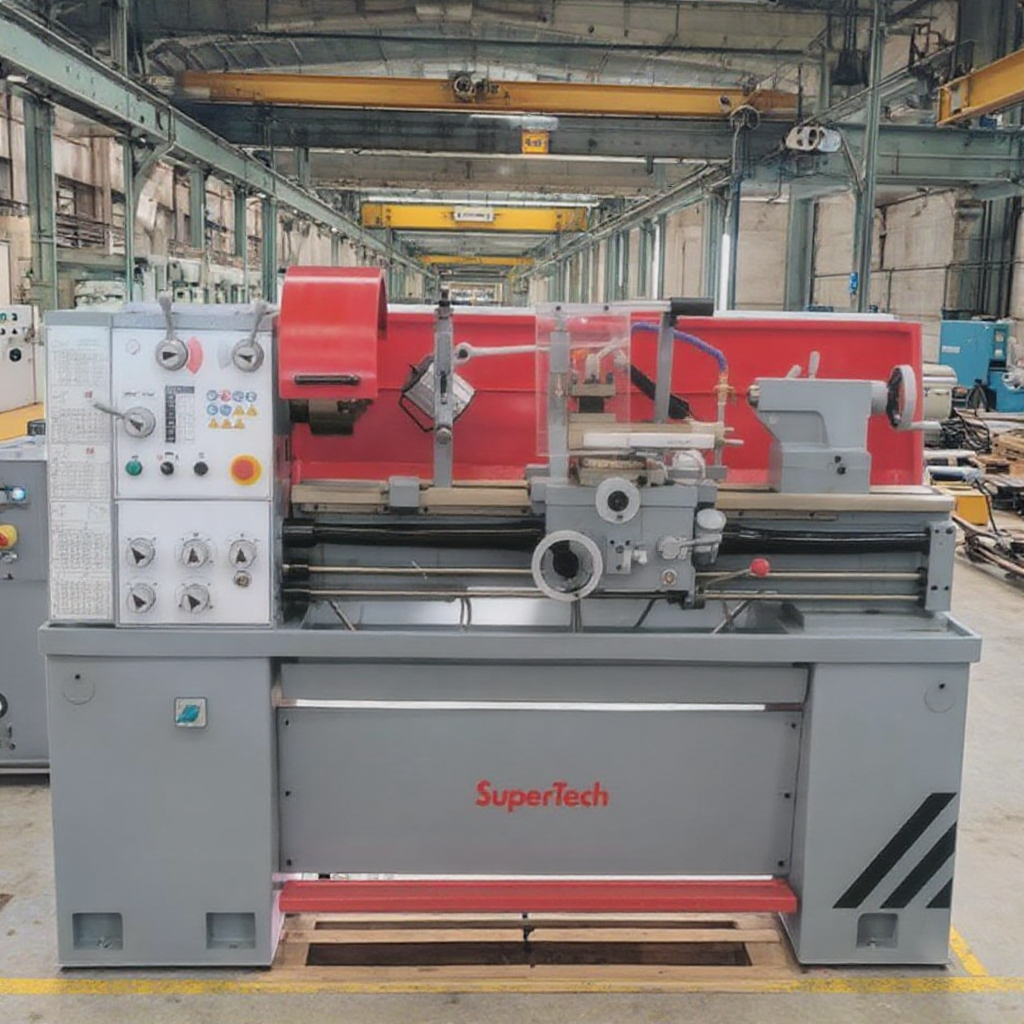

SuperTech CD6241/1000 Digital Multifunctional Horizontal Manual Lathe Used Condition Medium Duty Metal Processing Benchtop Model

Product Description

Product Description

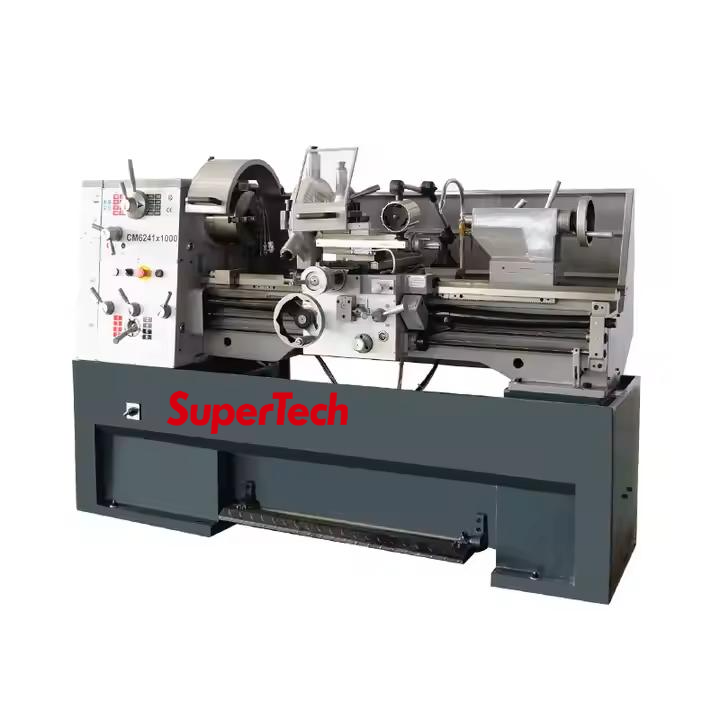

Product Description OF CD6241/1000

The CD6241/1000 lathe is a remarkable piece of machinery in the field of metalworking. It features a sturdy construction with a bed that provides excellent rigidity and stability during the machining process. The spindle, which is a crucial component, is engineered to offer high precision and smooth rotation. With a maximum swing diameter over the bed of 410mm and a distance between centers of 1000mm, it can handle a diverse range of workpiece sizes and lengths. The lathe is equipped with a 4-station tool post, allowing for efficient tool changes and enabling the performance of multiple machining operations such as turning, facing, and threading.

Specification

Main specification Unit C6240 CD6241
CAPACITY Max swing over bed mm 410 410
Max swing over cross slide mm 264 255
Max swing over gap mm 550 580
Effective length of GAP mm 220 190
Center Distance mm 1000/1500 1000/1500
Bed Width mm 210/220 250
HEADSTOCK Spindle hole mm 55 52
Spindle taper mm MT6 MT6
Spindle speed (Number) rpm 45-2000 (12 steps) 45-1800 (16 steps)
FEEDS Longitudinal metric feeds mm/r 80 kinds 0.052-2.784 17 kinds 0.05-1.7
Cross metric feeds mm/r 80 kinds 0.014-0.760 17 kinds 0.025-0.85
Metric threads range mm/r 26 kinds 0.8-14 39 kinds 0.2-14
Inch threads range TPI 29 kinds 2-28 45 kinds 2-72
Module threads range MP 15 kinds 0.25-3 18 kinds 0.3-3.5
Pitch threads range DP 23 kinds 8-224 21 kinds 8-44
MOTOR Maindrive motor KW 2.0/2.4 2.2/3.3

Product Details

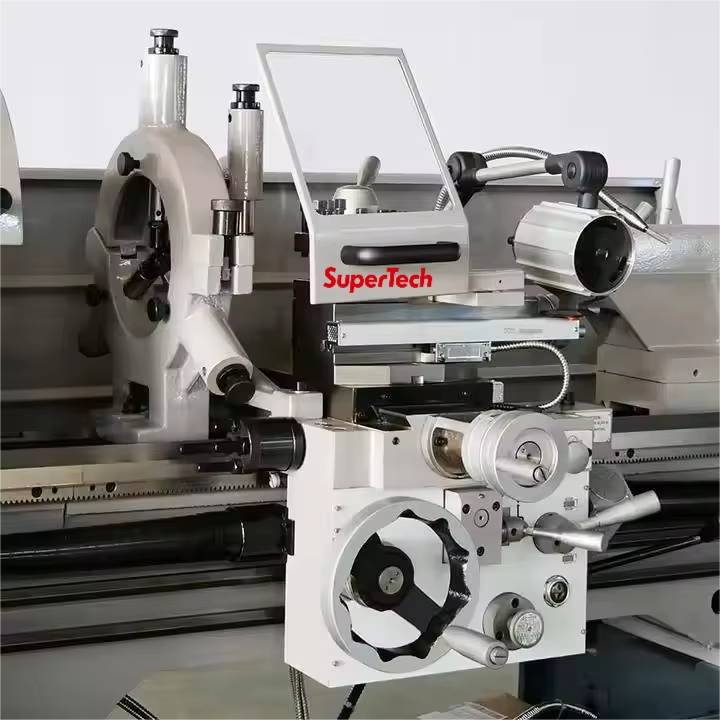

Tool rest protection
Tool rest protection

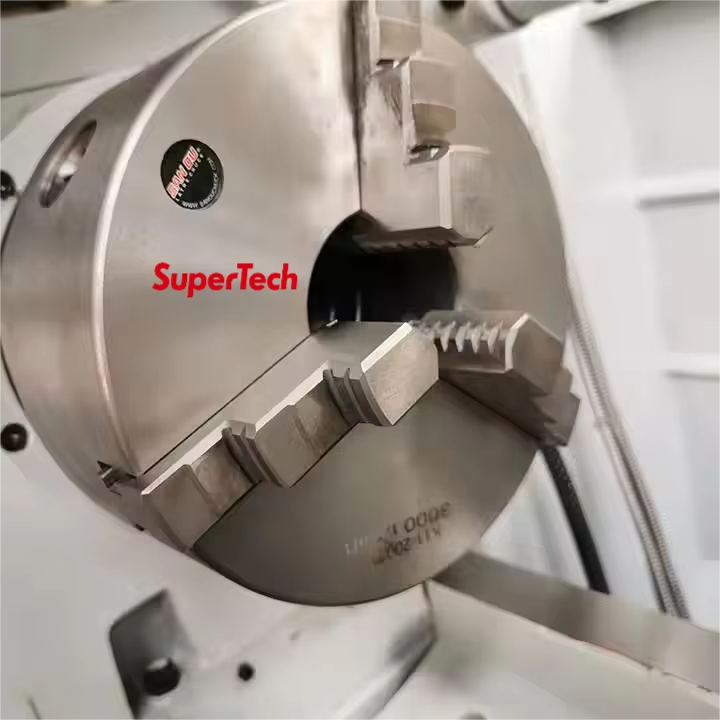

Scroll chuck
Scroll chuck

Company Profile

Established in 2010, relying on the lathe business, deeply ploughing the overseas export field of industrial machinery. With the growing international market and the unremitting efforts of the team, we are gradually transforming and upgrading to provide comprehensive and efficient metal machinery solutions for new factories and new projects, and putting them into practice.
We have become an important force in the field of machinery manufacturing with years of accumulation and steady development. In the future, we will continue to adhere to the rigorous, prudent and rational business philosophy, and constantly improve the product quality and service level, to provide global users with more high-quality, reliable mechanical products and application solutions.

Certifications

Certifications

Exhibitions & Customer Visits

Exhibitions & Customer Visits

Packing & Delivery

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Why Choose Us

Why Choose Us

Frequently Asked Questions

Q1: What are the key processing dimensions of the CD6241/1000 lathe?
A: The CD6241/1000 lathe features a maximum swing diameter over the bed of 410mm and a distance between centers of 1000mm, allowing it to handle a wide range of workpiece sizes and lengths.
Q2: What types of machining operations can the CD6241/1000 perform?
A: Equipped with a 4-station tool post for efficient tool changes, this lathe is designed to perform multiple metalworking operations including turning, facing, and threading.
Q3: How does the spindle speed range of the CD6241 compare to the C6240 model?
A: The CD6241 offers a spindle speed range of 45-1800 rpm across 16 steps, whereas the C6240 offers 45-2000 rpm across 12 steps.
Q4: What is the bed width and spindle hole size of the CD6241 lathe?
A: The CD6241 has a bed width of 250mm and is engineered with a spindle hole size of 52mm.
Q5: What are the main motor capacities available for the CD6241 model?
A: The CD6241 is equipped with a main drive motor of 2.2/3.3 KW.
Q6: How are the products packaged for shipment?
A: To guarantee the safety of your goods, professional, environmentally friendly, convenient, and highly efficient packaging services are provided for delivery.
