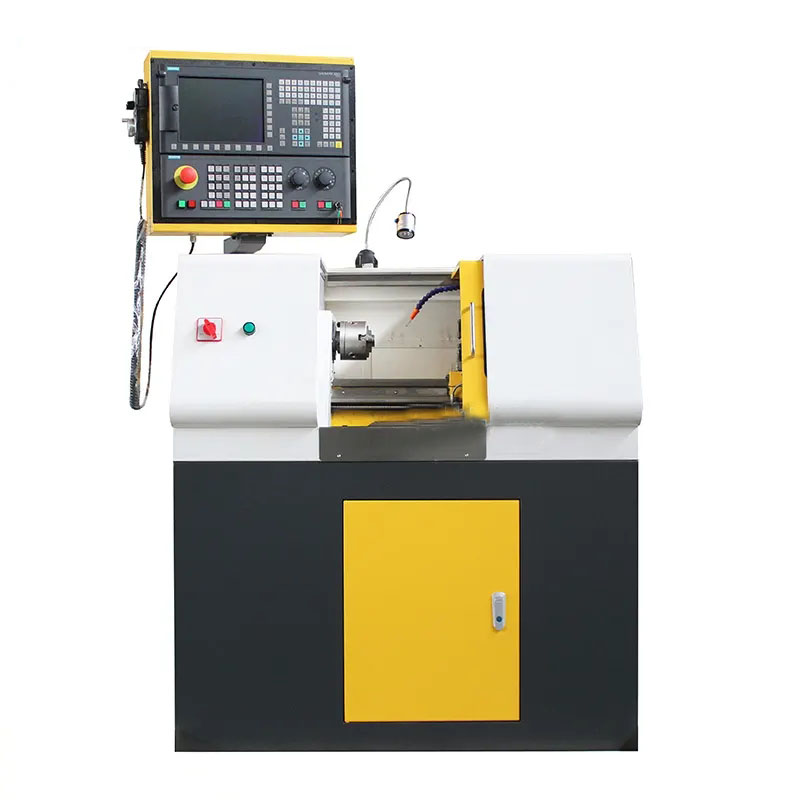

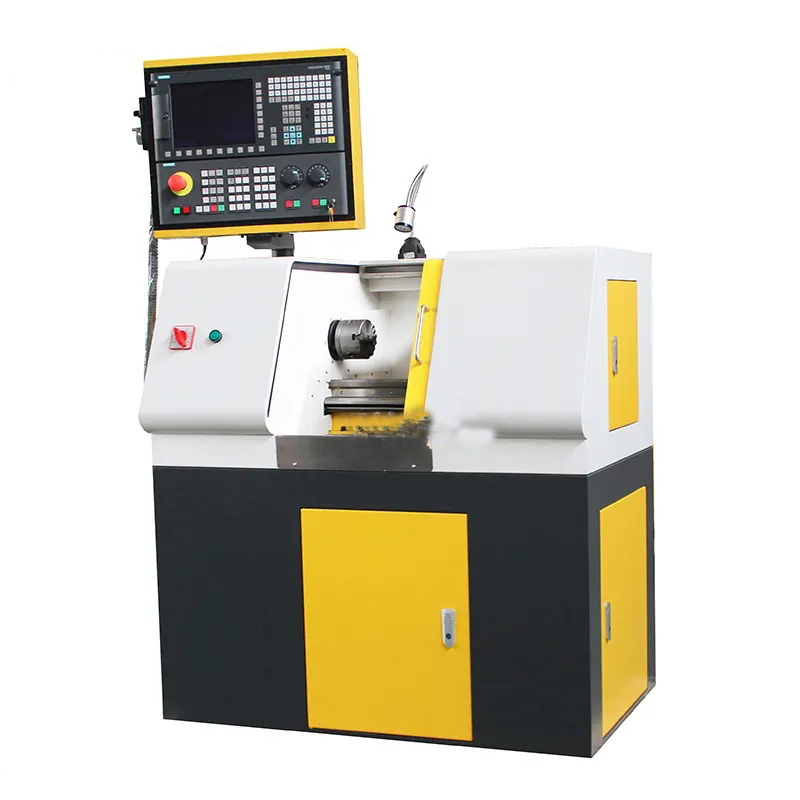

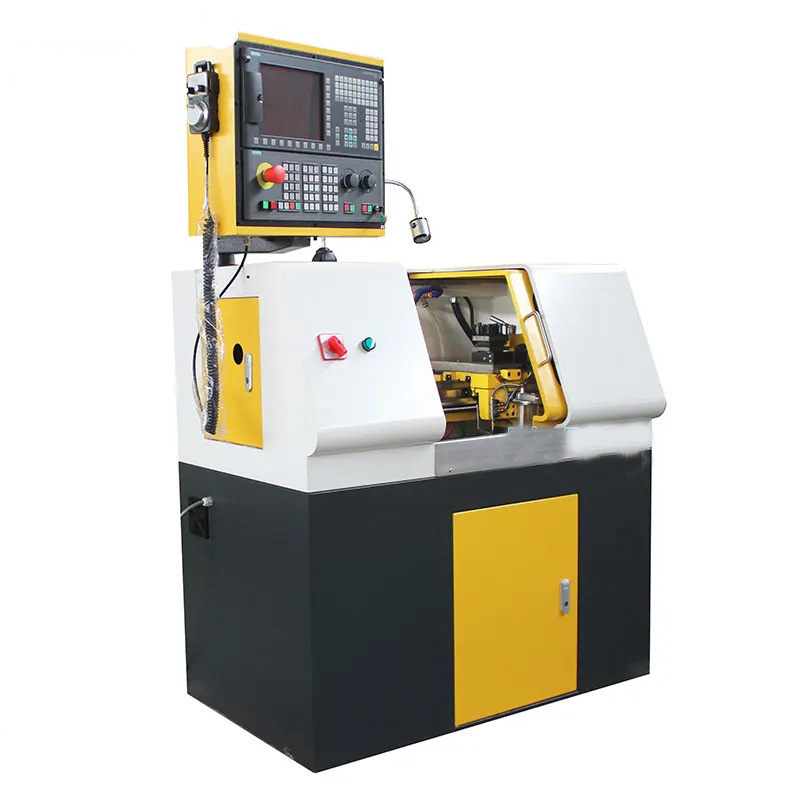

Product Overview: High-performance CNC 210 Mini Lathe Machine designed for Benchtop, School, and Educational applications. Customization support is available upon request.
| General Specifications |
| Model Number |
CNC 210 |
| Machine Size |
1000 * 700 * 1200 cm |
| Customization |
Acceptable |
| Packing |
Wooden case or pallet |
Detailed Technical Parameters
| Parameter Description |
Unit |
Specification Value (CNC 210) |
| Max. swing diameter over bed |
mm |
210 |
| Distance between centers |
mm |
400 |
| Width of bed |
mm |
100 |
| Spindle speed |
r/min |
50-2250 |
| Spindle taper |
- |
MT3 |
| Z-axis moving |
mm/min |
2000 |
| X-axis moving |
mm/min |
1000 |
| Z-axis feeding |
mm/min |
500 |
| X-axis feeding |
mm/min |
250 |
| Z-axis torque |
N.m |
2 |
| X-axis torque |
N.m |
2 |
| Z-axis travel |
mm |
250 |
| X-axis travel |
mm |
80 |
| Tool position |
- |
4 |
| Angle of the tool post |
- |
360° |
| Tailstock taper |
- |
MT2 |
| Tailstock travel |
mm |
50 |
| Position accuracy |
mm |
0.01 |
| Main motor power |
W |
600 |
| Machine size |
mm |
1000 x 700 x 1200 |
| Weight |
kg |
165 |

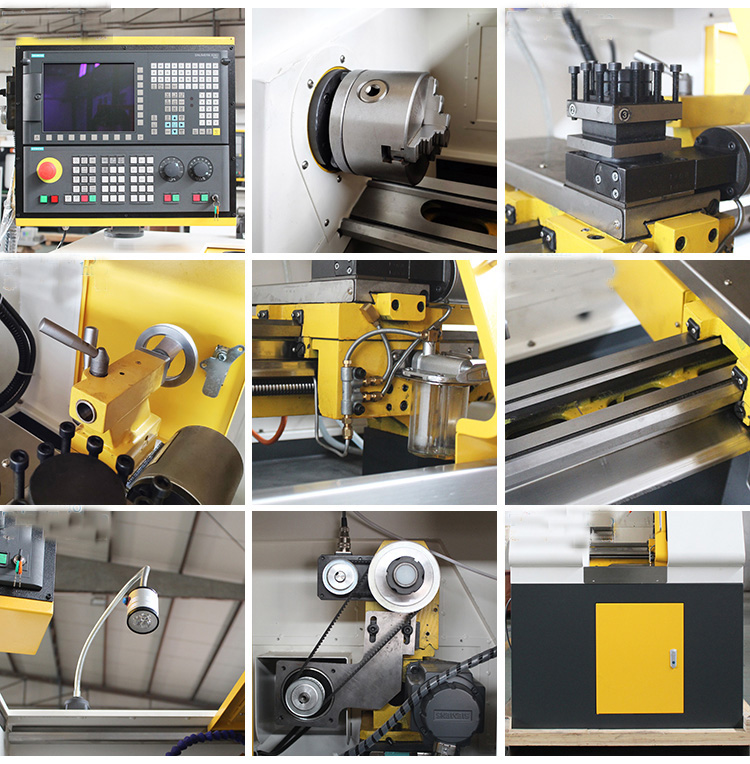

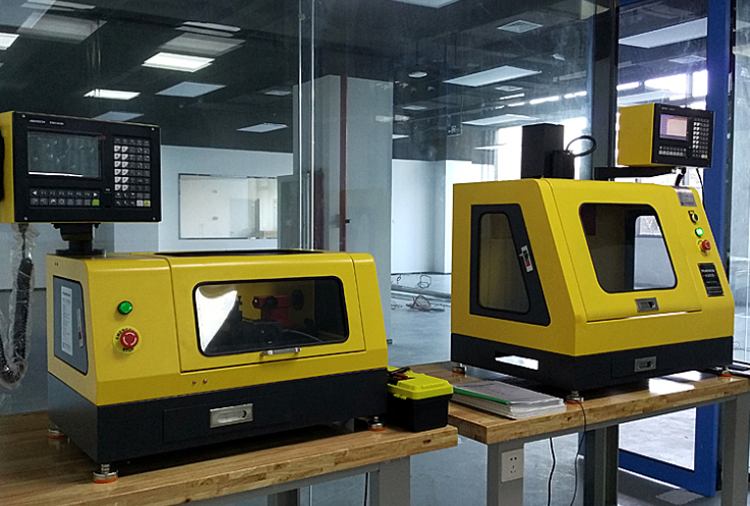

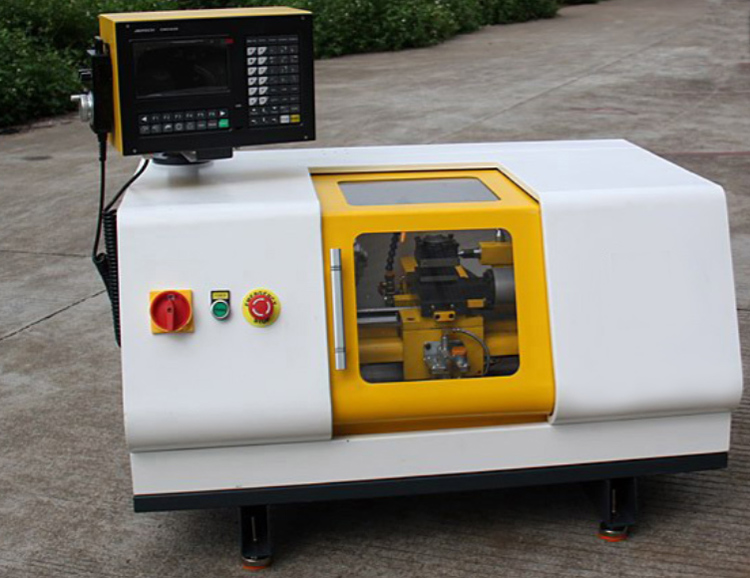

Detailed Product Gallery
Frequently Asked Questions (FAQ)
🔹 What is the spindle speed range of the CNC 210 lathe machine?
The spindle speed of the CNC 210 ranges from 50 to 2250 r/min, providing versatility for various cutting tasks and materials.
🔹 Does this machine support customization?
Yes, customization options are acceptable for the CNC 210 model to better suit specific educational or benchtop workshop setups.
🔹 What are the overall dimensions and weight of the CNC 210?
The physical size of the machine is 1000 x 700 x 1200 mm, and it weighs approximately 165 Kg, making it highly suitable for benchtop operation.
🔹 What is the positioning accuracy of the machine?
The CNC 210 achieves a precision positioning accuracy of 0.01 mm, making it ideal for highly accurate machining processes.

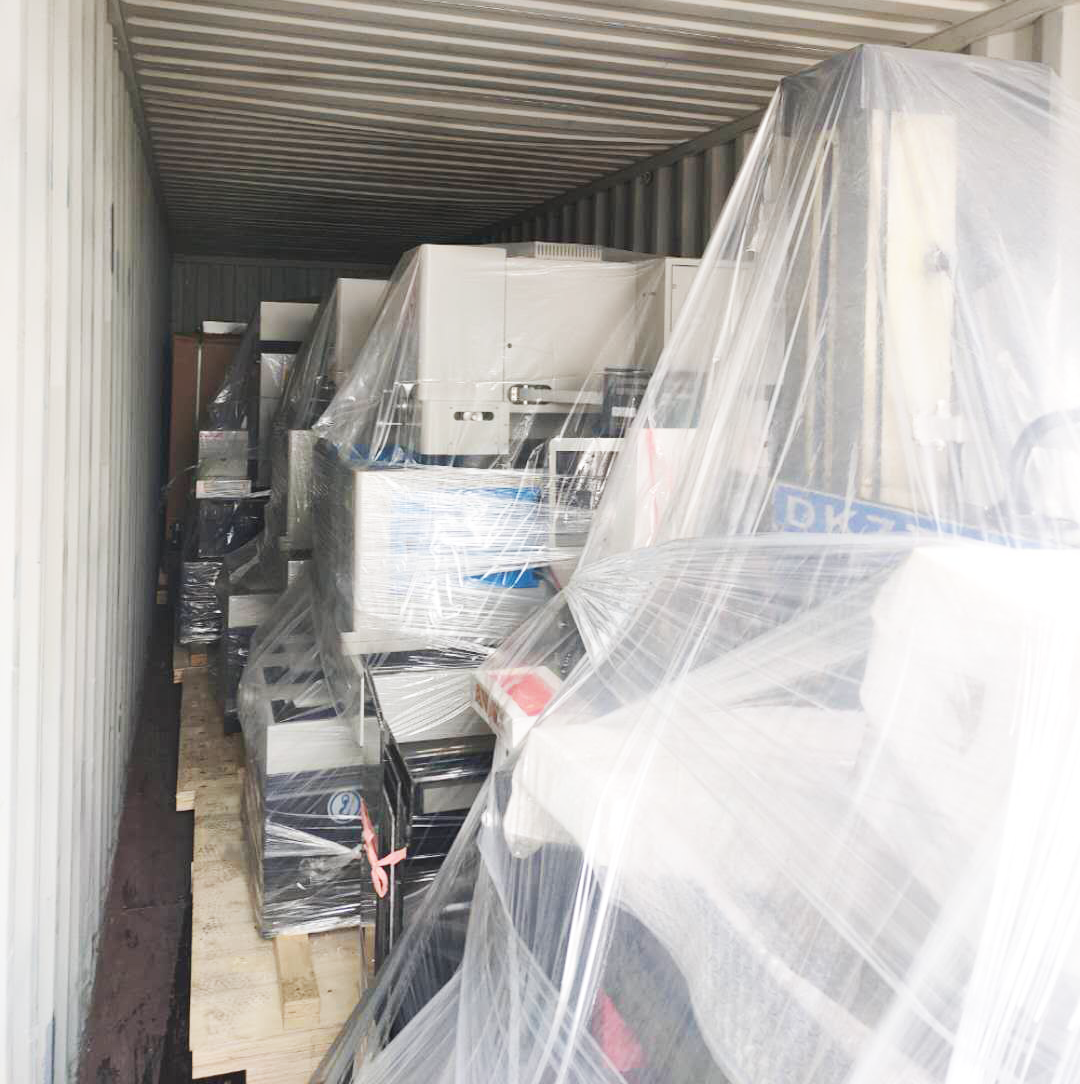

🔹 What kind of packaging is used for shipment?

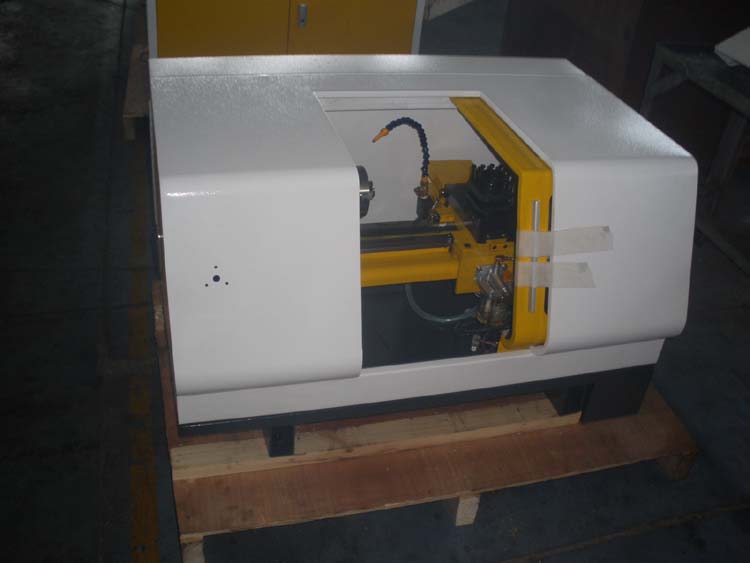

To ensure maximum protection during transit, the machine is securely packed in a robust wooden case or placed on a secure pallet.
🔹 What are the motor power specifications for this lathe?
The CNC 210 is equipped with a powerful 600 W main motor, driving reliable and continuous machining outputs.
