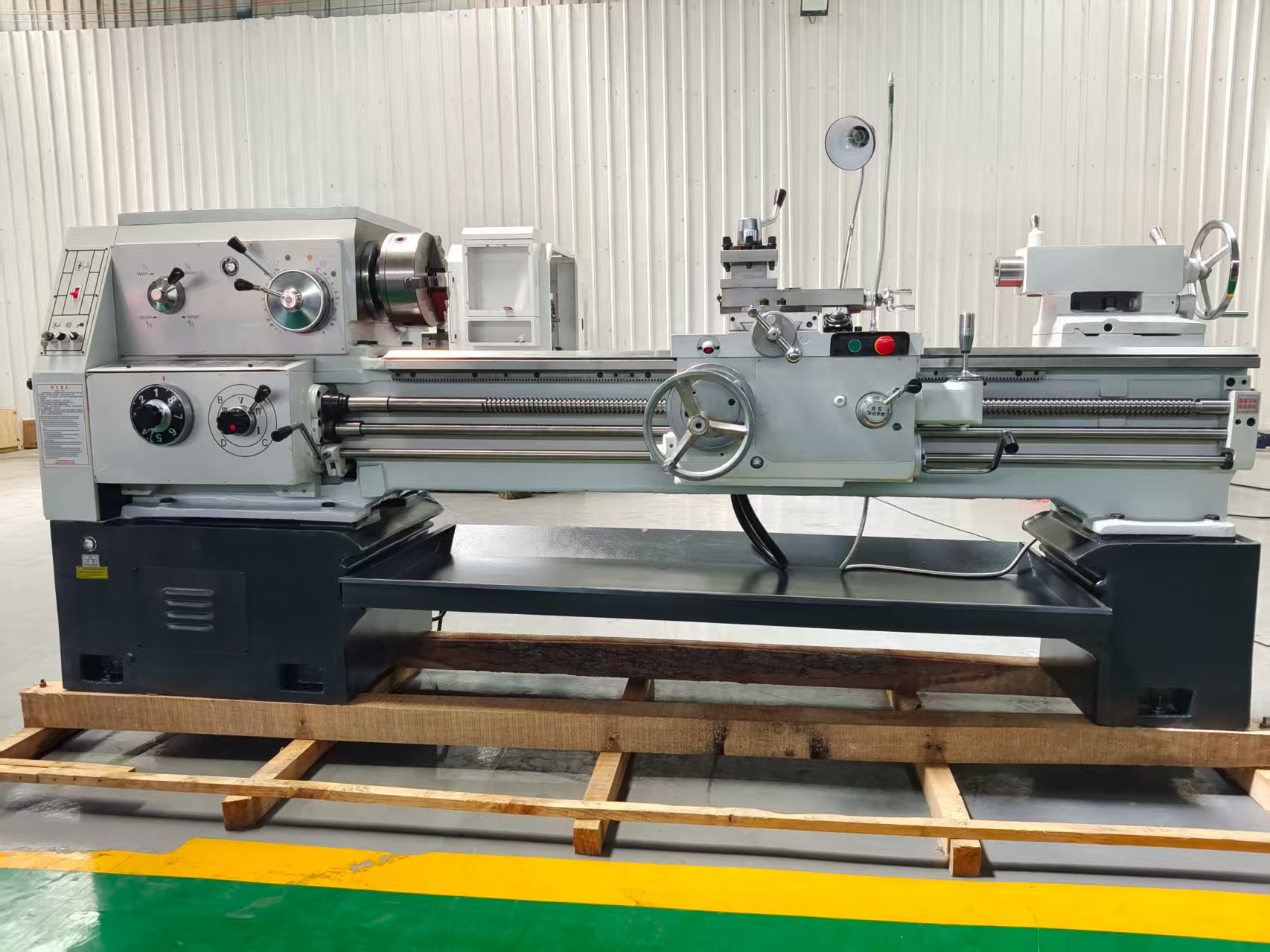

Light Duty CA6150 Automatic Horizontal Metal Lathe Machine Tool New 220V/380V BT50 Spindle 6/4 Tool Stations 10-1400 RPM 1500mm

Product Description

Products Description

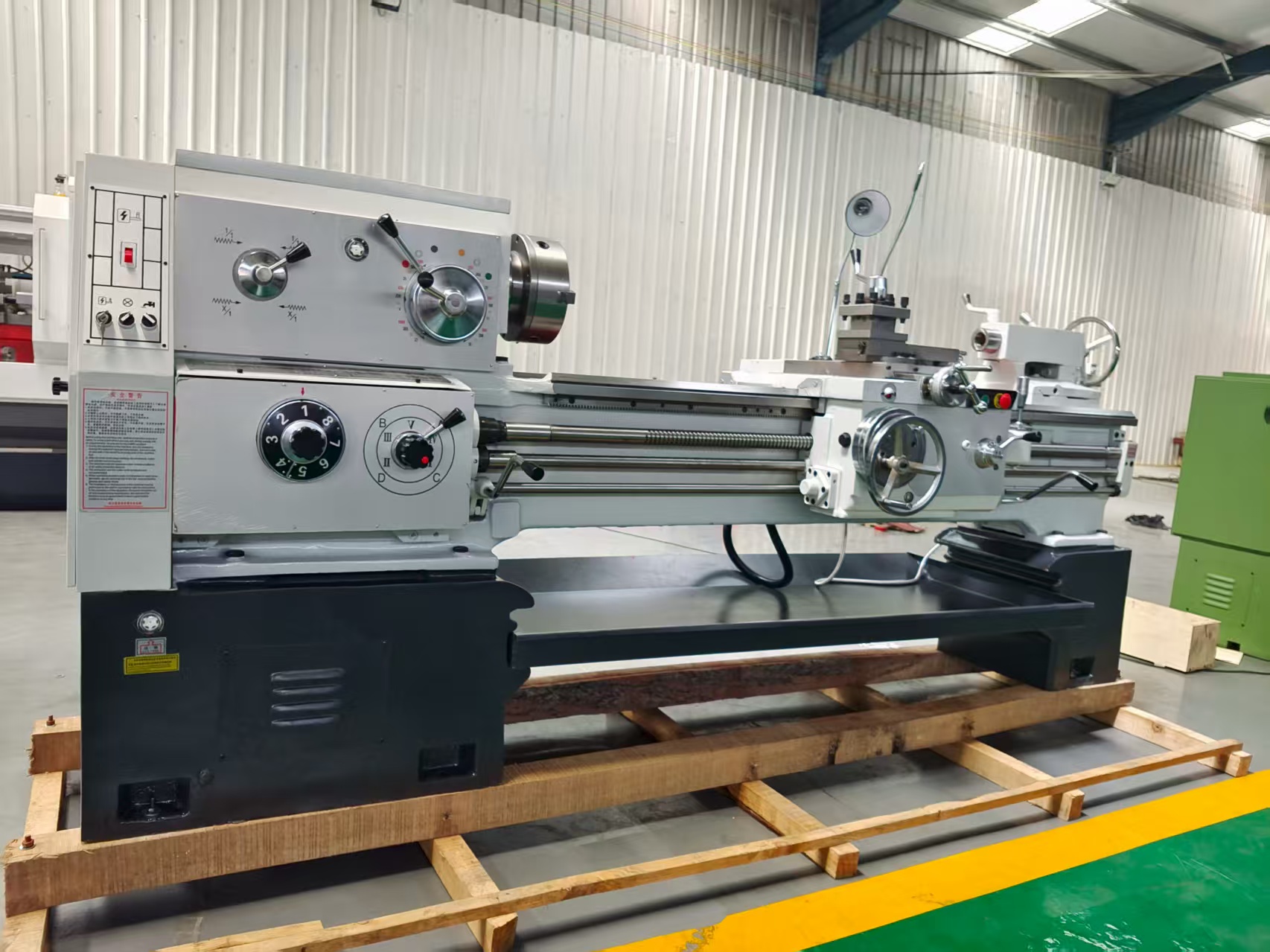

Product View 1

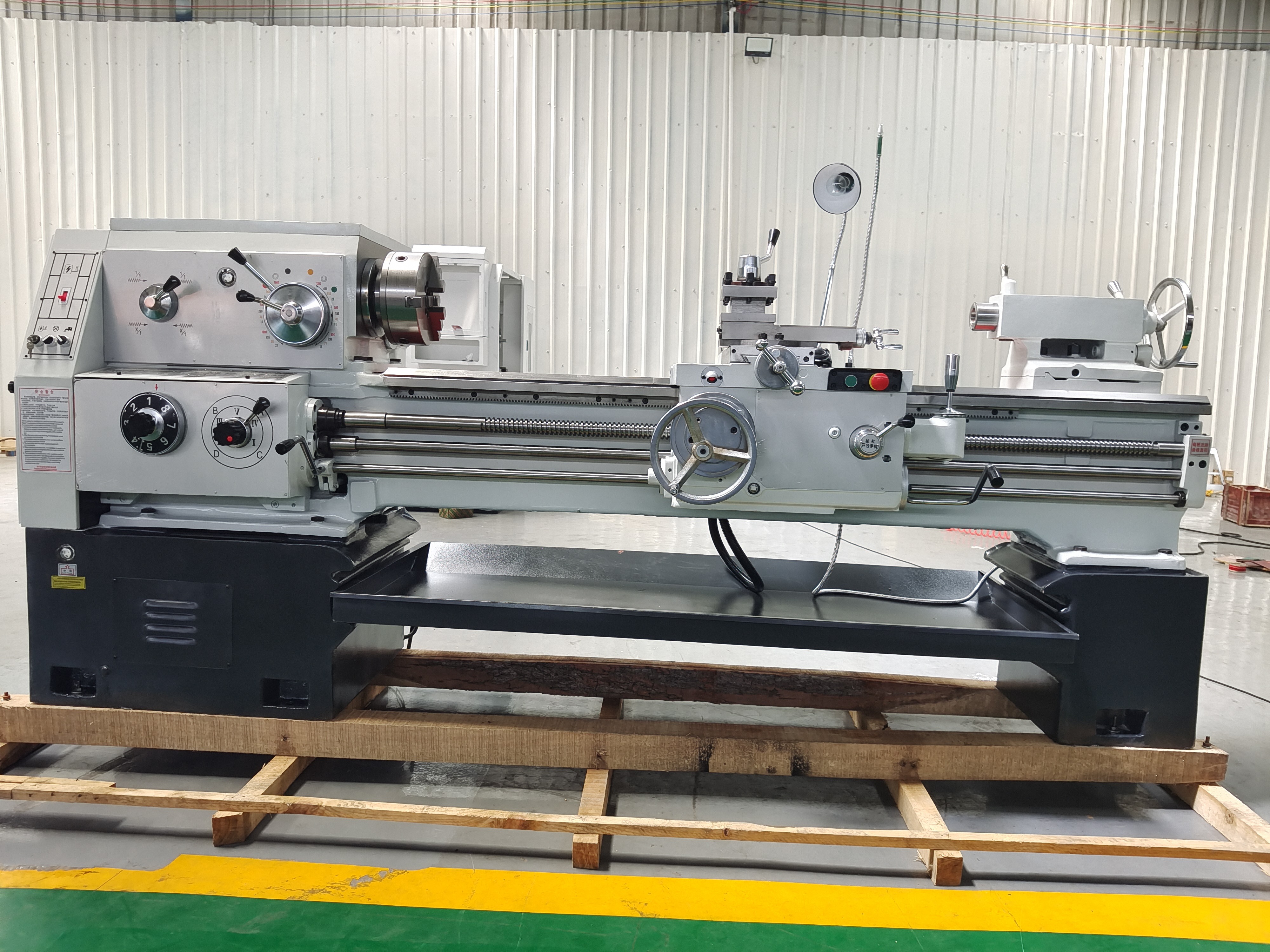

Product View 2

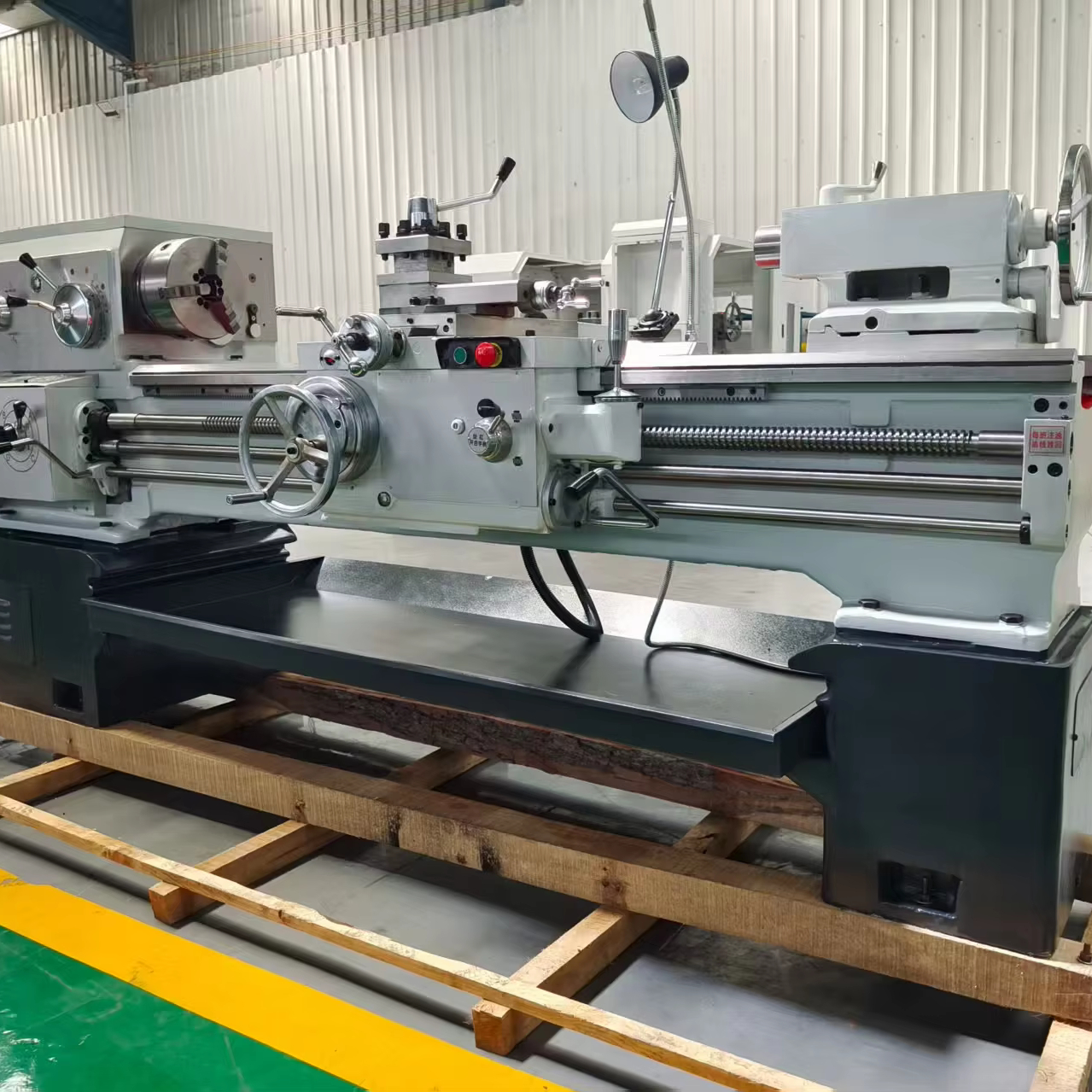

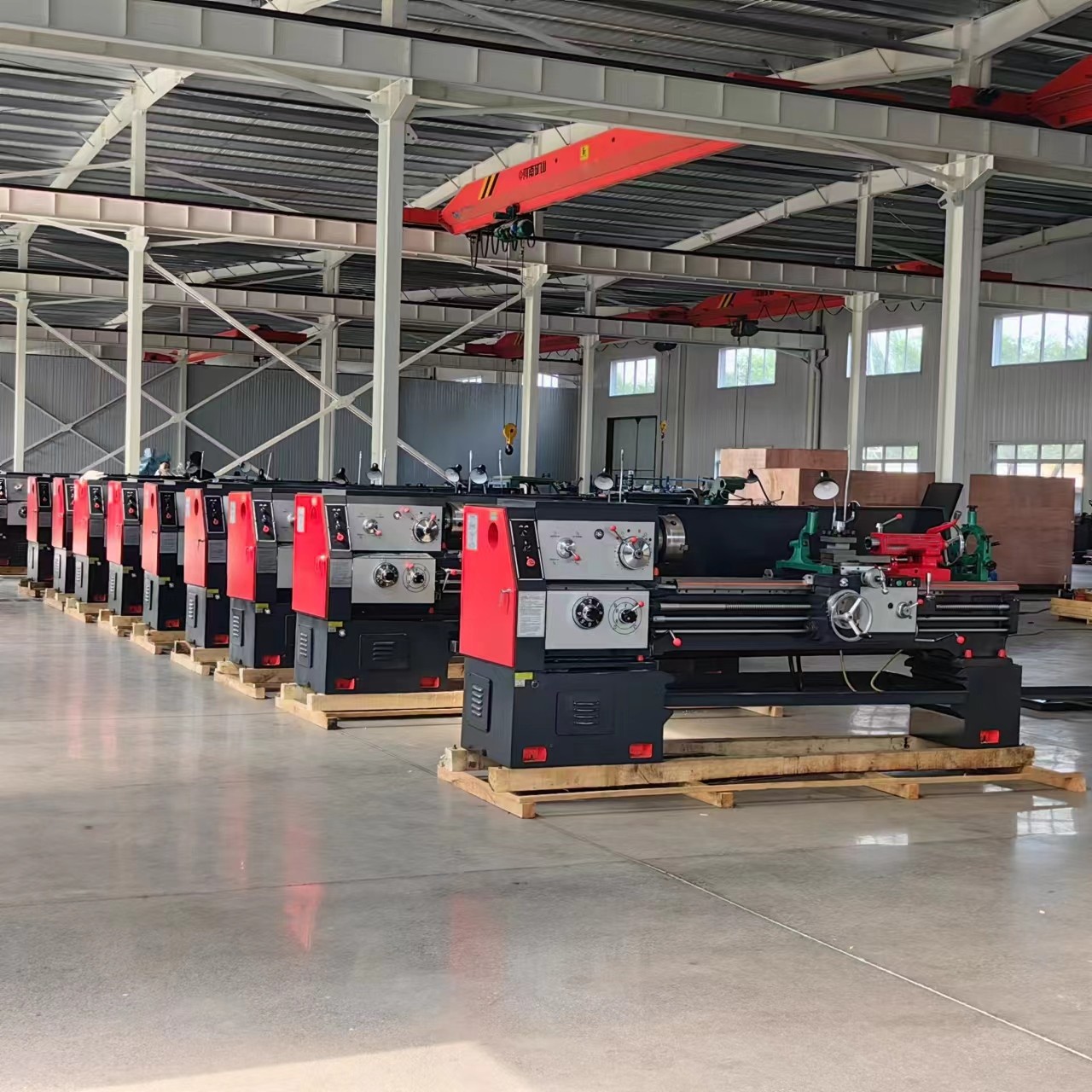

Product View 3
Product Parameters
Specifications CA6150 CA6150B CA6250 CA6250B
Max. Swing over bed 500mm
Max. Swing over carriage 300mm
Max turning diameter inside the saddle / 720
Effective length of the saddle / 210
Max. length of work piece 1000mm/1500mm/2000mm/3000mm
Width of bed 400mm
Section of turning tool 25x25mm
Hole through spindle 52mm / 80mm / 105mm
Spindle taper MT6
Max. tail stock spindle travel 150mm
Tail stock spindle diameter 75mm
Main motor 7.5KW
Overall dimensions 2500/3100/3600/4600×1040×1350
Weight (kg) 2300/2400/2700/3100
Details Images

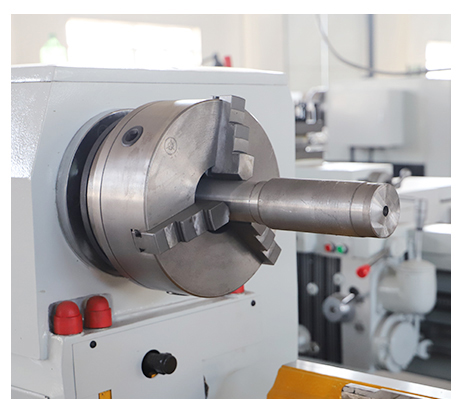

Metal three-jaw chuck
Metal three-jaw chuck
Three-jaw/four-jaw chucks can be assembled according to customer requirements for lathe models. It is conducive to clamping different objects, processing and rapid production.

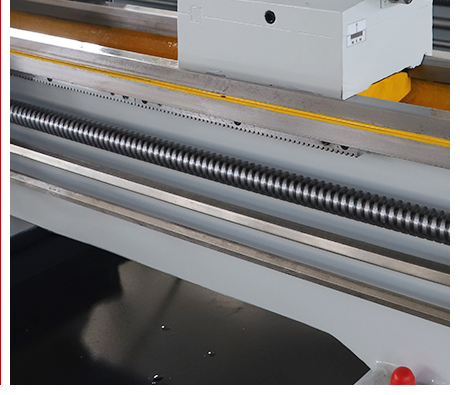

High precision screw
High precision screw
It has good wear resistance and accuracy retention, ensuring that the machine can be used for a long time and has a long life.

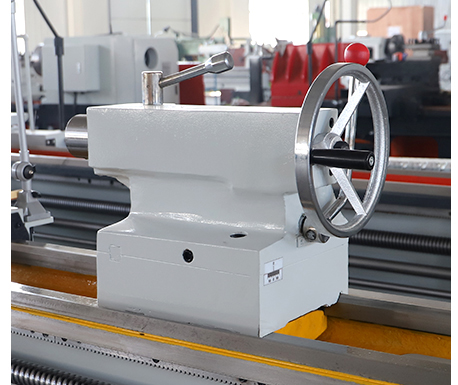

Quenched tailstock
Quenched tailstock
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.

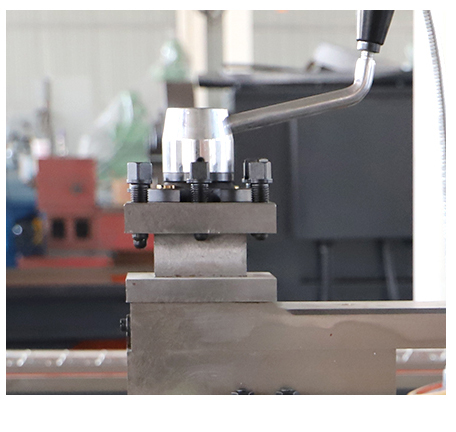

Four-station tool holder
Four-station tool holder
Four-station tool holder, fast-moving mechanism, can be operated with one hand, and tool holder protection is optional.
Why Choose Us
Reason 1
Reason 2
Company Profile
The products produced include: CNC lathes, ordinary lathes, machining centers, CNC milling machines, milling machines, with complete specifications and excellent quality. Products adopt ISO9002 international standards, strong economic strength, advanced technical equipment, perfect testing methods, pragmatic work style, and strict management, which build the excellent quality of the products.

The company adheres to the corporate philosophy of putting people first and striving for excellence, and has achieved remarkable results. It has established extensive business relationships with many mechanical and electrical companies and well-known enterprises at home and abroad.

The company is willing to cooperate sincerely with all customers to continuously promote each other's development and progress, so that we can enter a glorious tomorrow hand in hand!
Factory Overview 1
Factory Overview 2
Factory Overview 3
Exhibition
Exhibition View
Product packaging
Packaging details
FAQ
FAQ info 1
FAQ info 2
Q What are the standard configurations for the CA6150 and CA6250 lathe models?
These lathes are equipped with a high-frequency quenched tailstock sleeve, a four-station tool holder with a fast-moving mechanism, and a standard metal three-jaw chuck. Options such as a four-jaw chuck and tool holder protection are customizable upon request.
Q What spindle hole size options do you offer?
We offer spindle hole diameters of 52mm, 80mm, and 105mm to accommodate different processing needs and work piece dimensions.
Q How do you guarantee the wear resistance of critical machine components?
The lathe bed utilizes high precision screws for excellent accuracy retention, and the tailstock sleeve undergoes professional high-frequency quenching and meticulous grinding to minimize wear and tear over extended usage.
Q Are your manufacturing processes compliant with international quality standards?
Yes, all products adopt ISO9002 international standards. We enforce strict quality management systems and perfect testing methods to ensure reliable, high-quality production.
Q What type of packaging is used for international delivery?
All machines are securely packaged using solid, export-grade wooden cases to ensure safe transit and protection from moisture, rust, and physical impacts during shipping.
