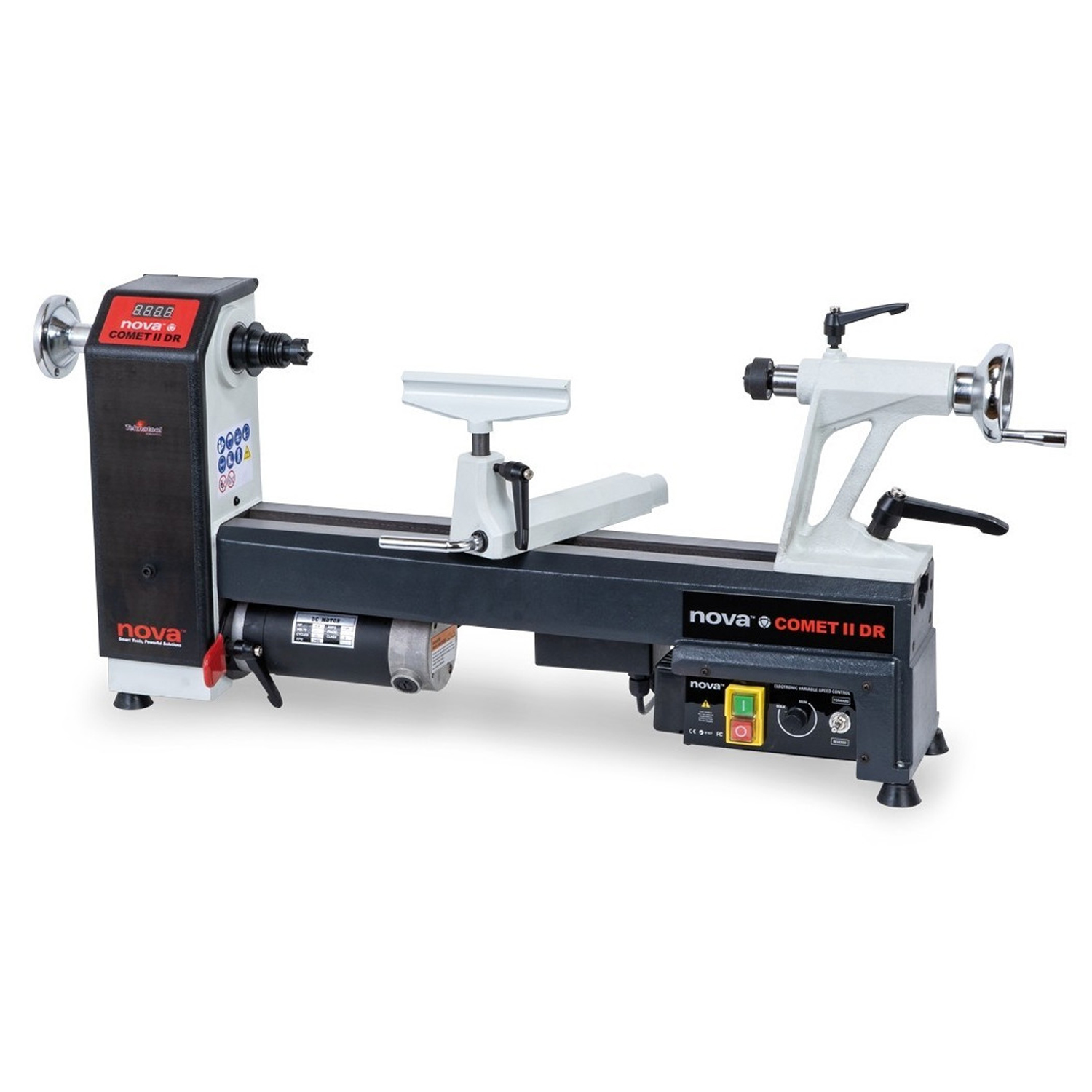

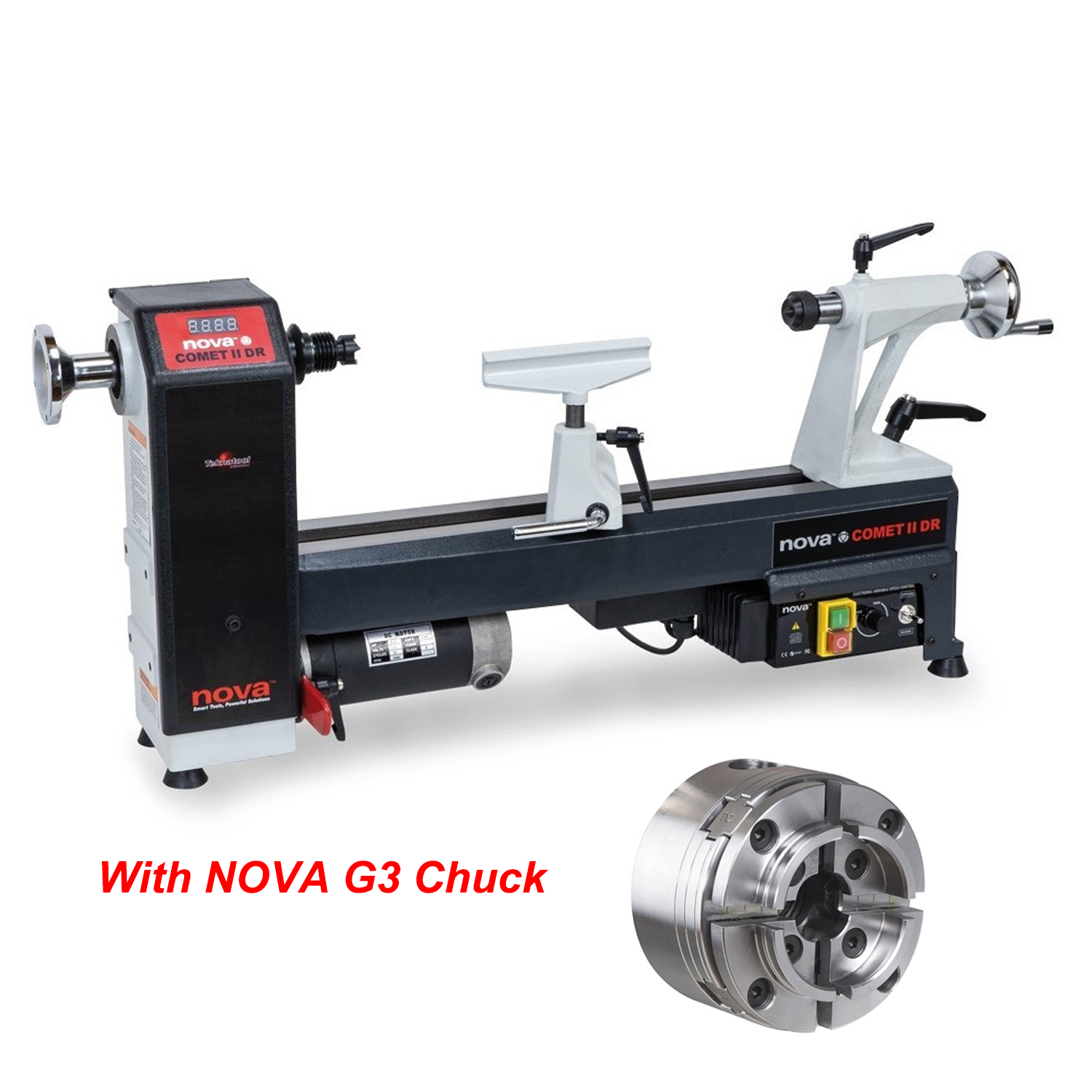

NOVA COMET II DR MIDI 12"x16.5" Variable Speed Benchtop Wood Lathe Machine With NOVA G3 Chuck

Product Description

NOVA COMET II DR Midi Lathe Introduction
NOVA COMET II DR Midi Lathe Overview
NOVA COMET II DR Midi Lathe Feature Banner
NOVA COMET II DR MIDI LATHE
With NOVA G3 Chuck
Products Description

Description: Portable, space saving – yet delivers the capacity and the rugged stability of larger lathes. The NOVA Comet II DR Midi Lathe is perfect for a wide range of woodworking projects. The NOVA Comet II DR Midi Lathe takes the best selling mini lathe and gives a massive upgrade. The user now has a digital display with dial in speed control for maximum convenience and control of the user experience.

Features

Versatile Variable Speed Range

Powerful Electronic 3/4HP Variable Speed Motor offers an RPM range from 250-4,000 RPM. With a super low speed up to a super high speed, the NOVA Comet II DR Midi Lathe is the perfect choice for a variety of projects, from pens to bowls and spindles.

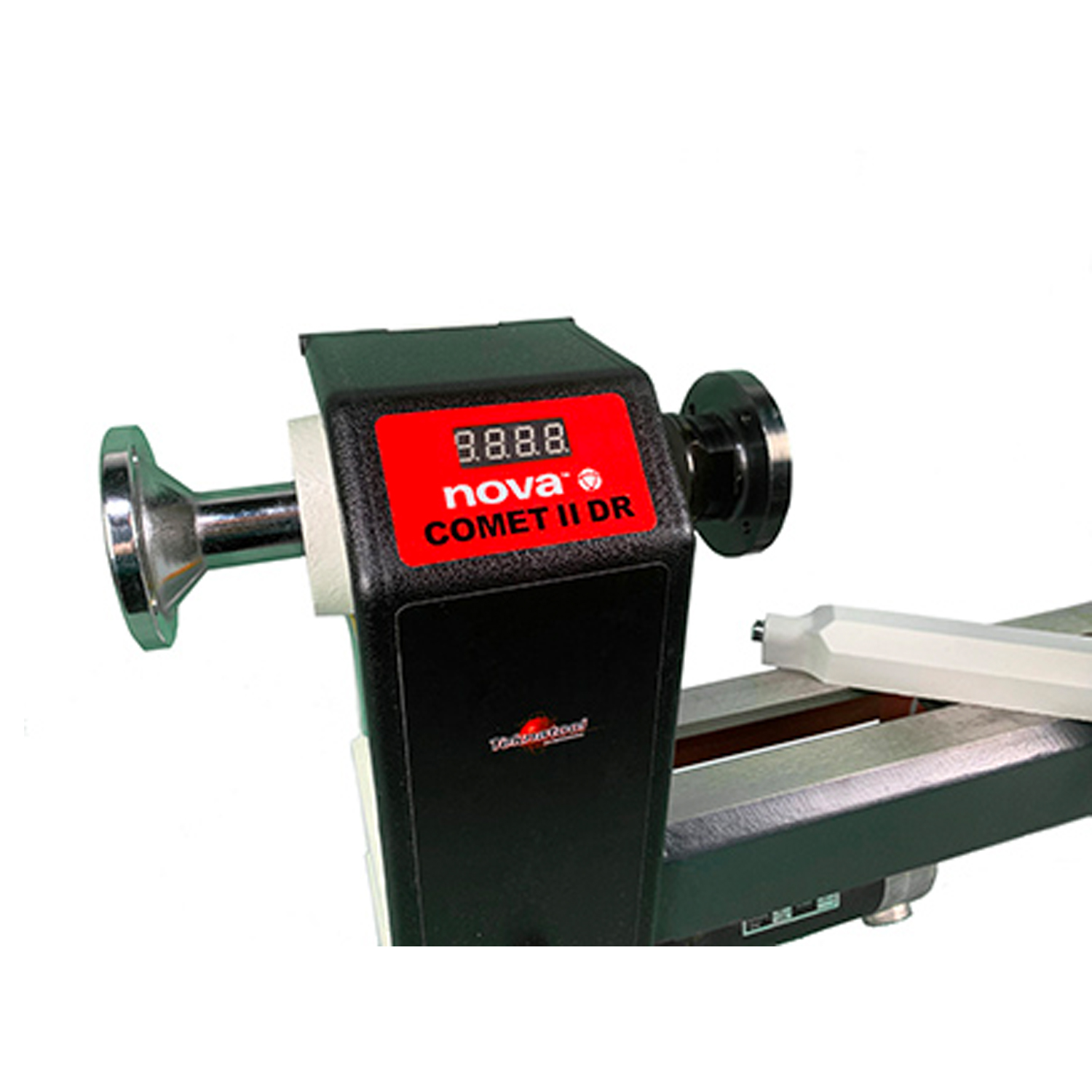

Digital Readout – Speed Adjustment Screen

Quickly dial-in the correct speed for the job, material and conditions. You're not limited to potentially dangerous fixed-speed step. The easy-to-read screen displays the speed you're turning at.

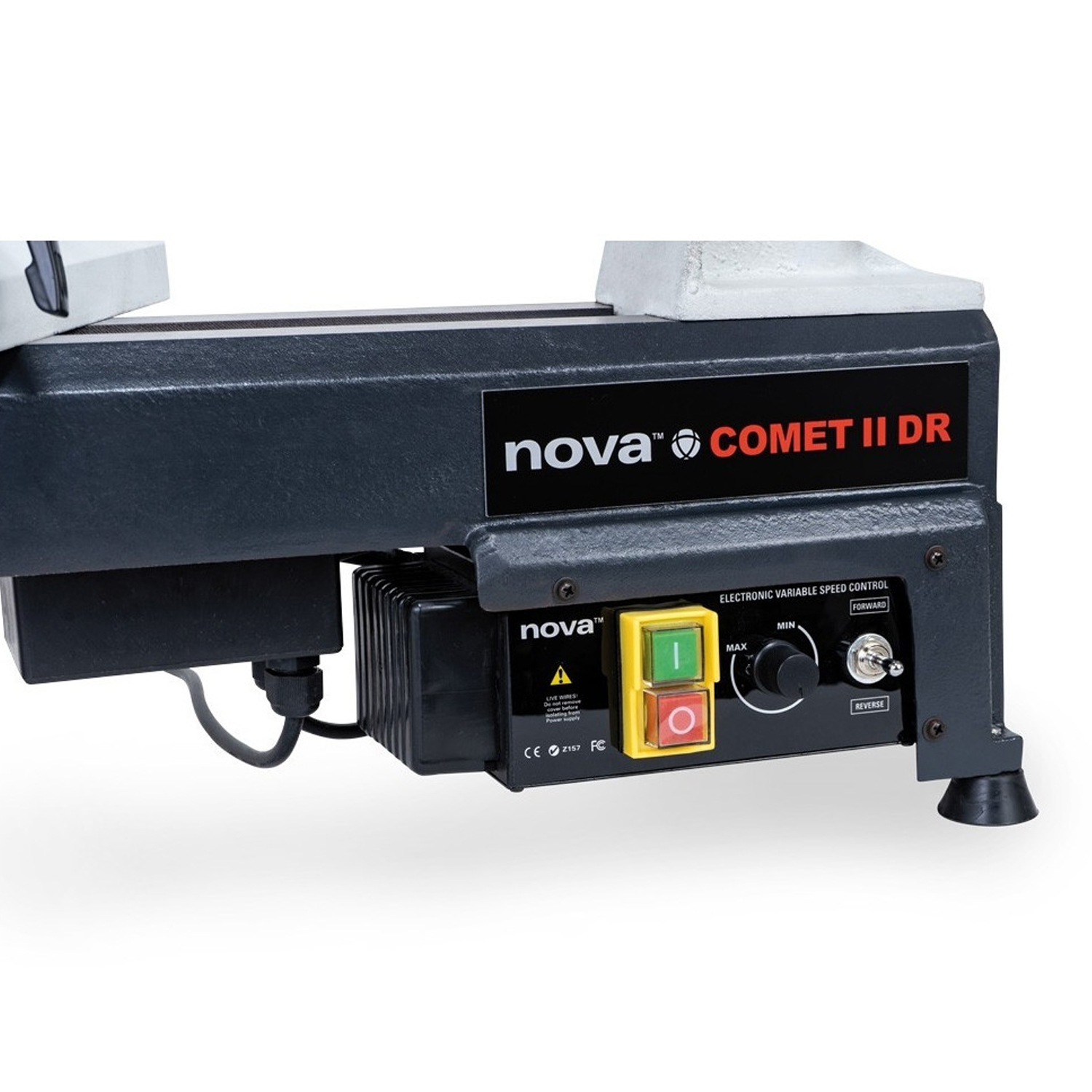

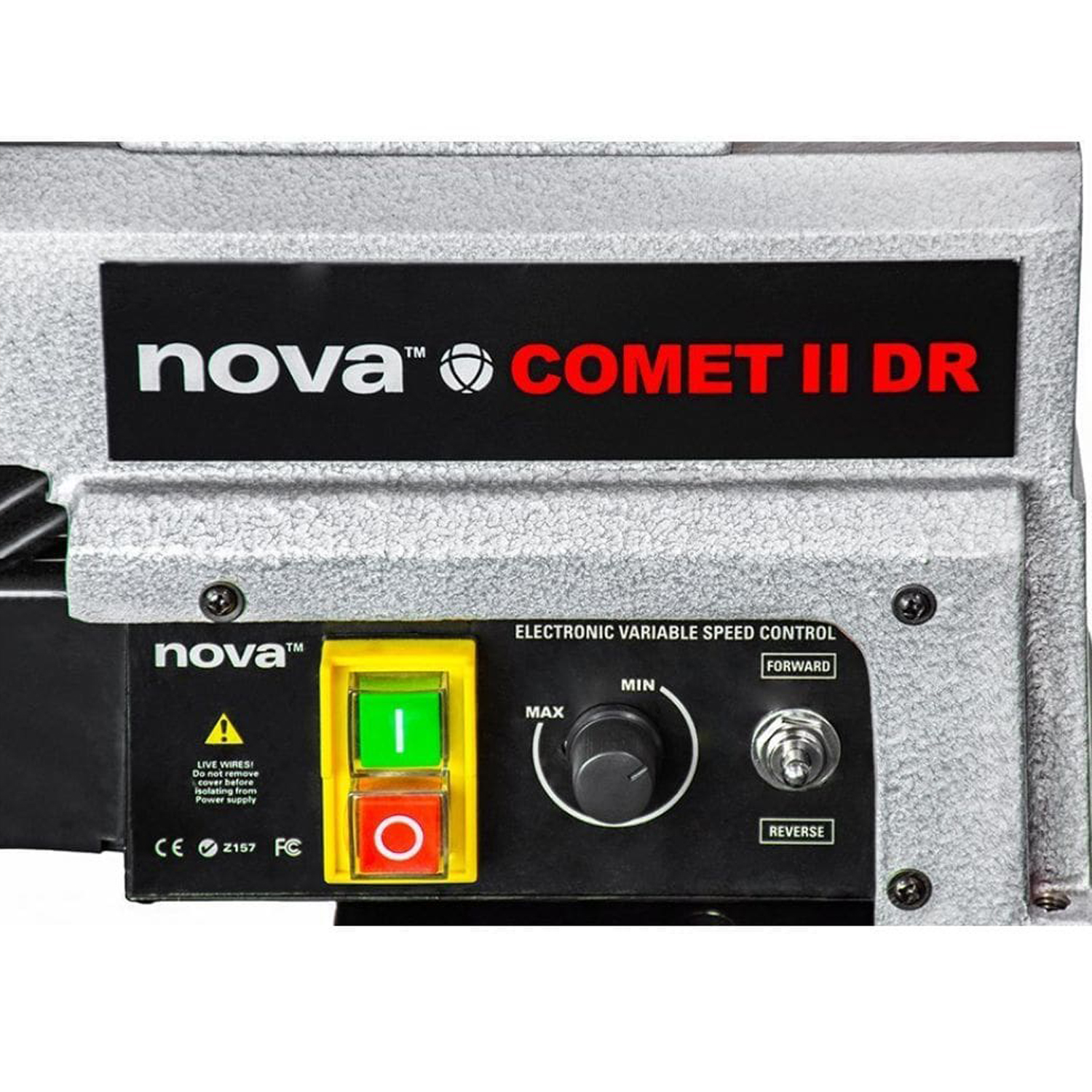

Forward and Reversing Switch

Offers additional flexibility and allows you to achieve a superior finish.

Flexible Capacity

– 12″ capacity over the bed
– 16.5″ capacity between centers (extendable with the optional Bed Accessory Unit)

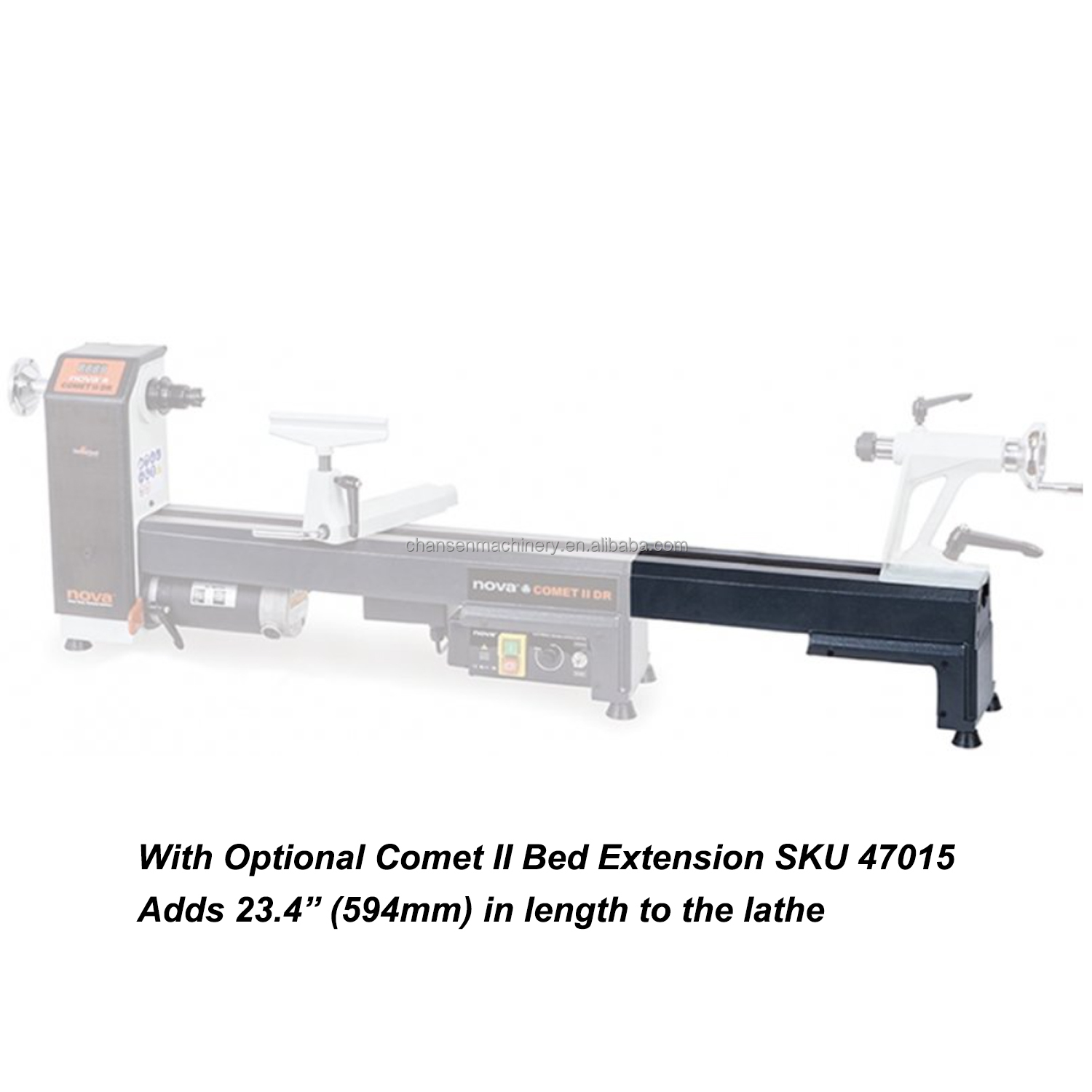

– Extension Accessory to extend the beds as long your project demands. (SKU 47015 additional purchase)

3 Step Pulley System

Offers different speed ranges while providing maximum flexibility. The middle step usually provides enough range for most woodturning applications. The additional 2 steps provide more torque for more demanding applications.

Additional Features

  • Quality materials – Solid Cast Iron throughout.
  • Strong 2MT spindles
  • NOVA smart accessories (common between models)
  • Precision Machining
  • Long reach tool-slides for extra capacity
  • Extendable beds
  • Quick Action Cam Controls for fast adjustments
Details Images

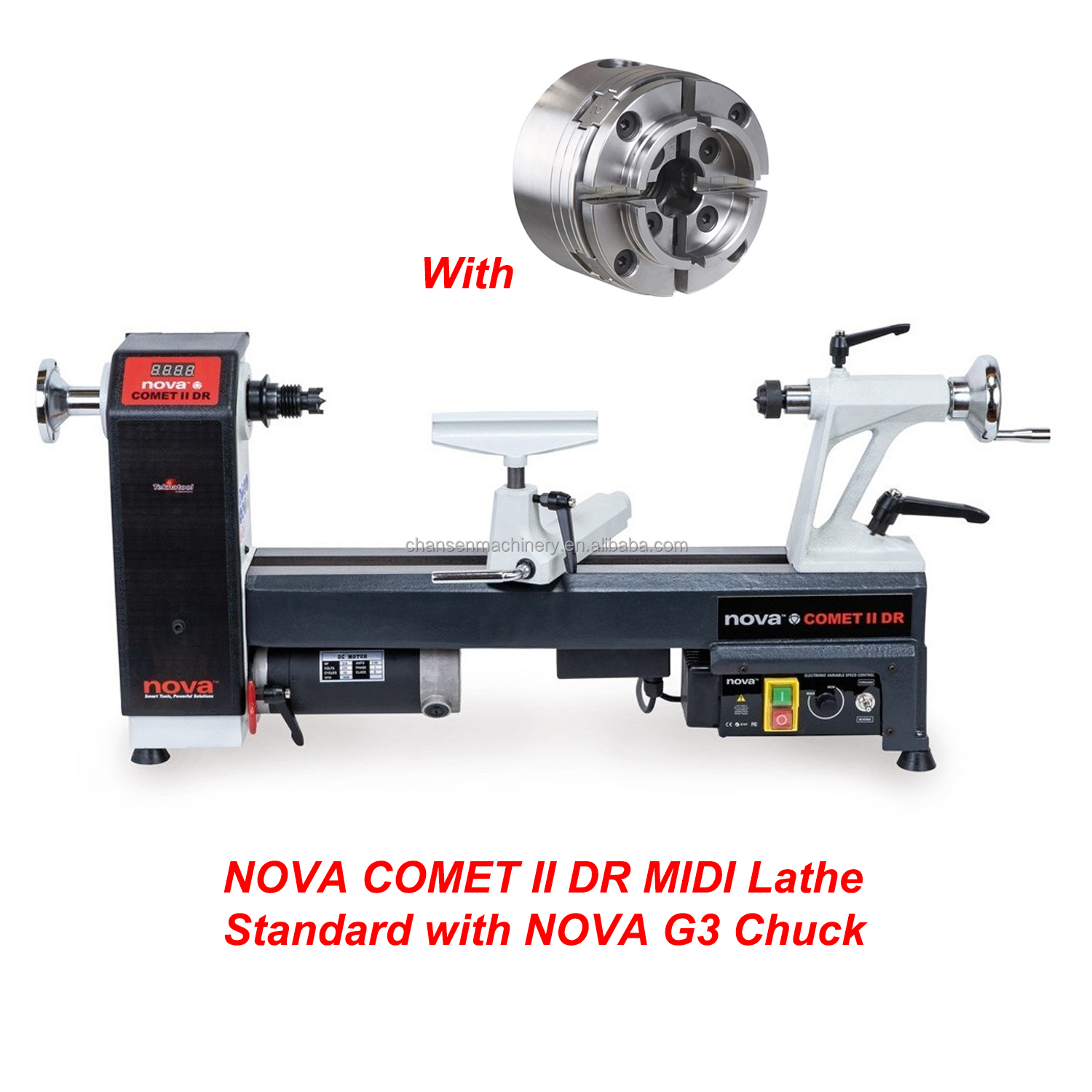

Detail 1

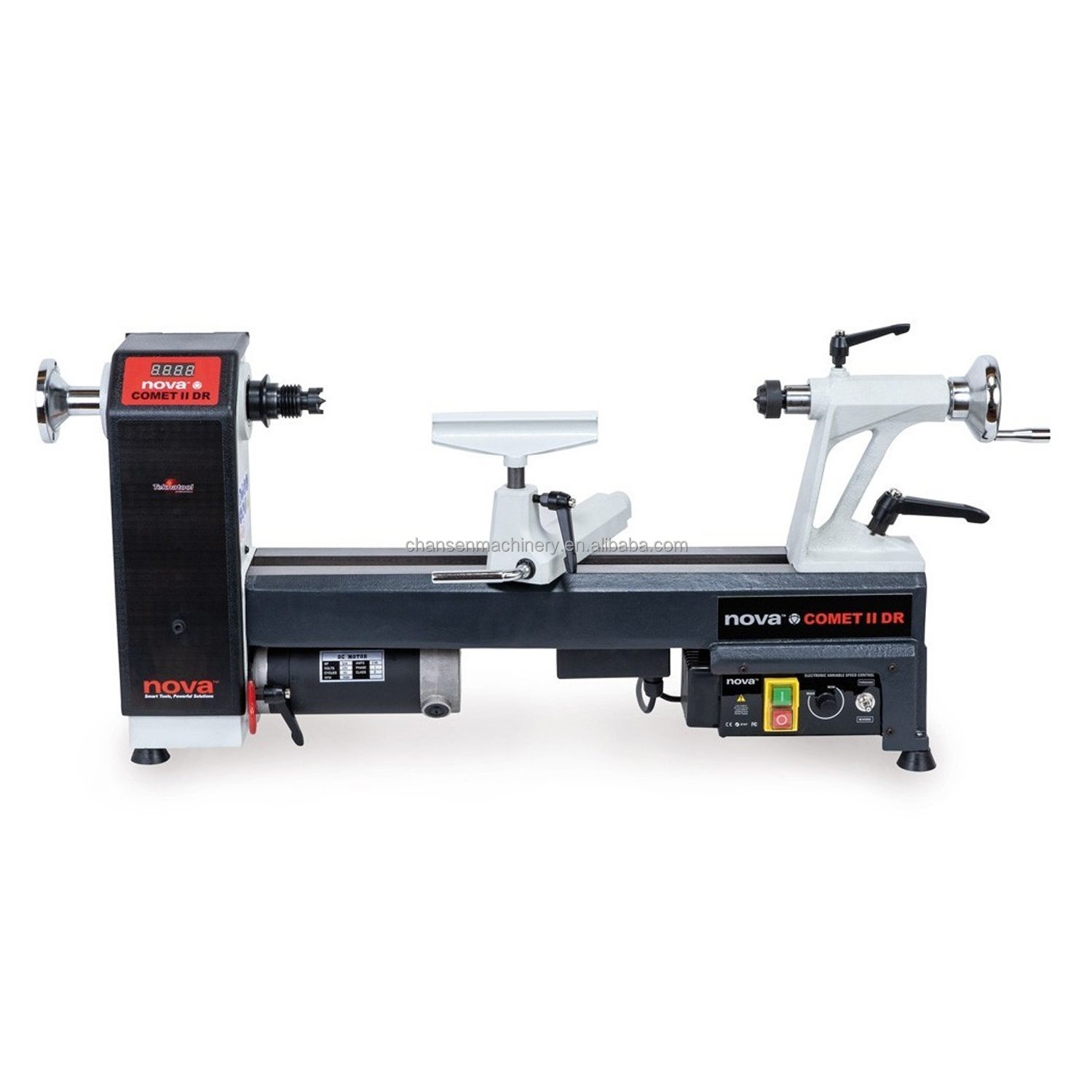

Detail 2
Detail 3
Detail 4
Detail 5
Detail 6

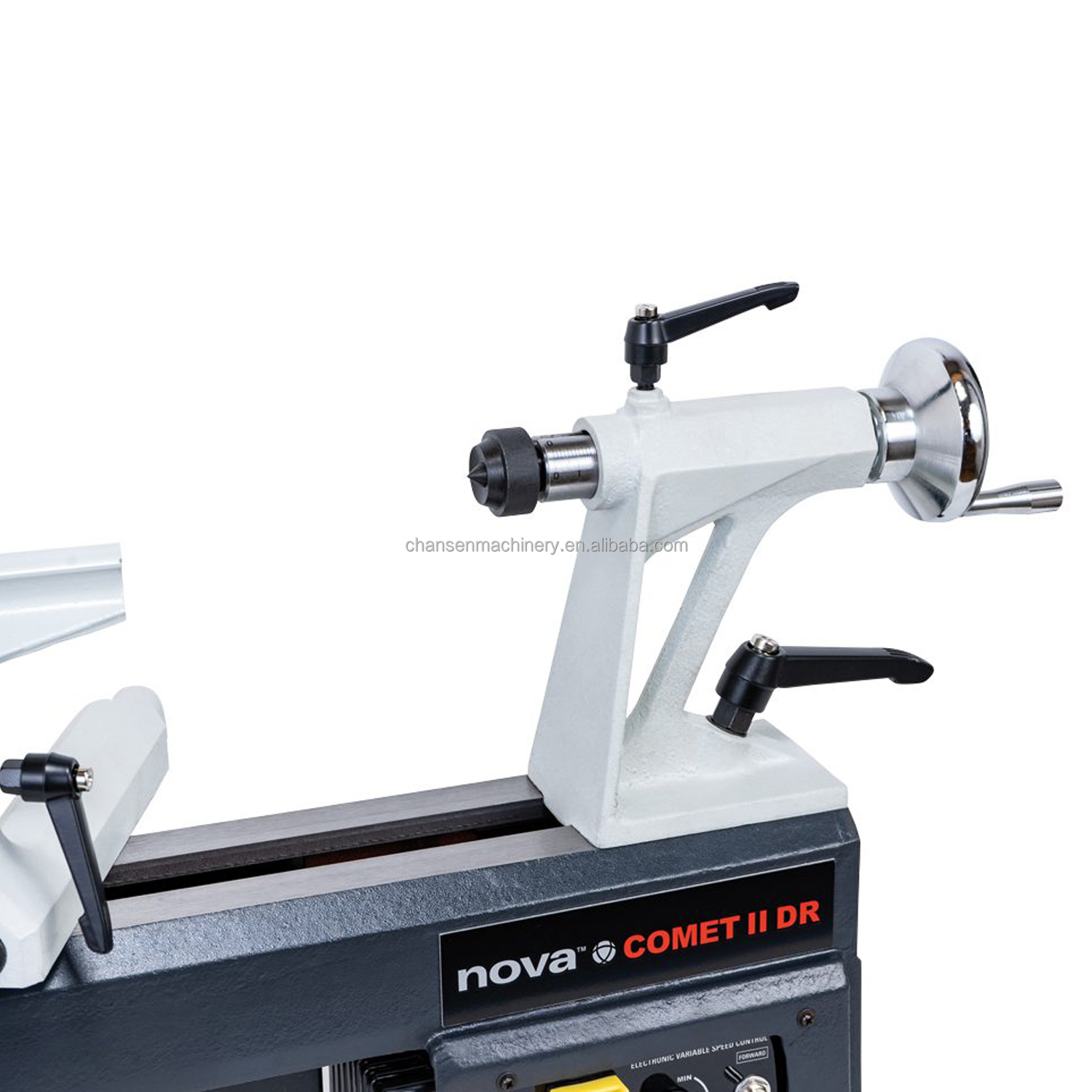

Detail 7
Detail 8
Specifications
Parameter Specification Details
Swing over bed 300mm (12″)
Distance between Centers 419mm (16.5″)
Swing over tool rest base 230mm
Spindle nose M33x3.5mm
Spindle rotation Forward & Reverse
Headstock taper MT#2
Tailstock taper MT#2
Tailstock quill travel 40.6mm
Toolrest length 150mm
Face plate 80mm
Motor 230v/50hz/1ph, 550w(3/4hp)
Spindle Speed Variable speed 250 – 4000 RPM
Belt Poly-V
Net weight 36kgs
Gross weight 38kgs
Packing dimensions 840mm x 230mm x 460mm
Application 1
Application 2
Recommend Products
Recommend Product Lineup 1
Recommend Product Lineup 2
Recommend Product Lineup 3
Recommend Product Lineup 4
Recommend Product Lineup 5
Additional Information Banner
Quality Banner
Frequently Asked Questions
What is the speed range of the NOVA Comet II DR Midi Lathe?
The lathe is equipped with a powerful 3/4HP electronic variable speed motor that offers an RPM range from 250 to 4,000 RPM. This allows for precise speed settings depending on your project.
What is the distance between centers and can it be extended?
The default distance between centers is 419mm (16.5″). Yes, you can extend the bed length as needed using the optional Bed Extension Accessory Unit (SKU 47015).
Does this lathe support reverse spindle rotation?
Yes, the NOVA Comet II DR features a Forward and Reversing Switch. This function offers additional flexibility and helps achieve a superior finish on your woodwork.
What taper is used for the headstock and tailstock?
Both the headstock and tailstock of this midi lathe feature a standard MT#2 taper.
What are the main construction materials?
The lathe is constructed from solid cast iron throughout, providing high stability and minimizing vibrations for a smoother woodworking experience.
What are the motor specifications?
It runs on a 230v/50hz/1ph power supply with a power output of 550W (equivalent to 3/4 horsepower).
