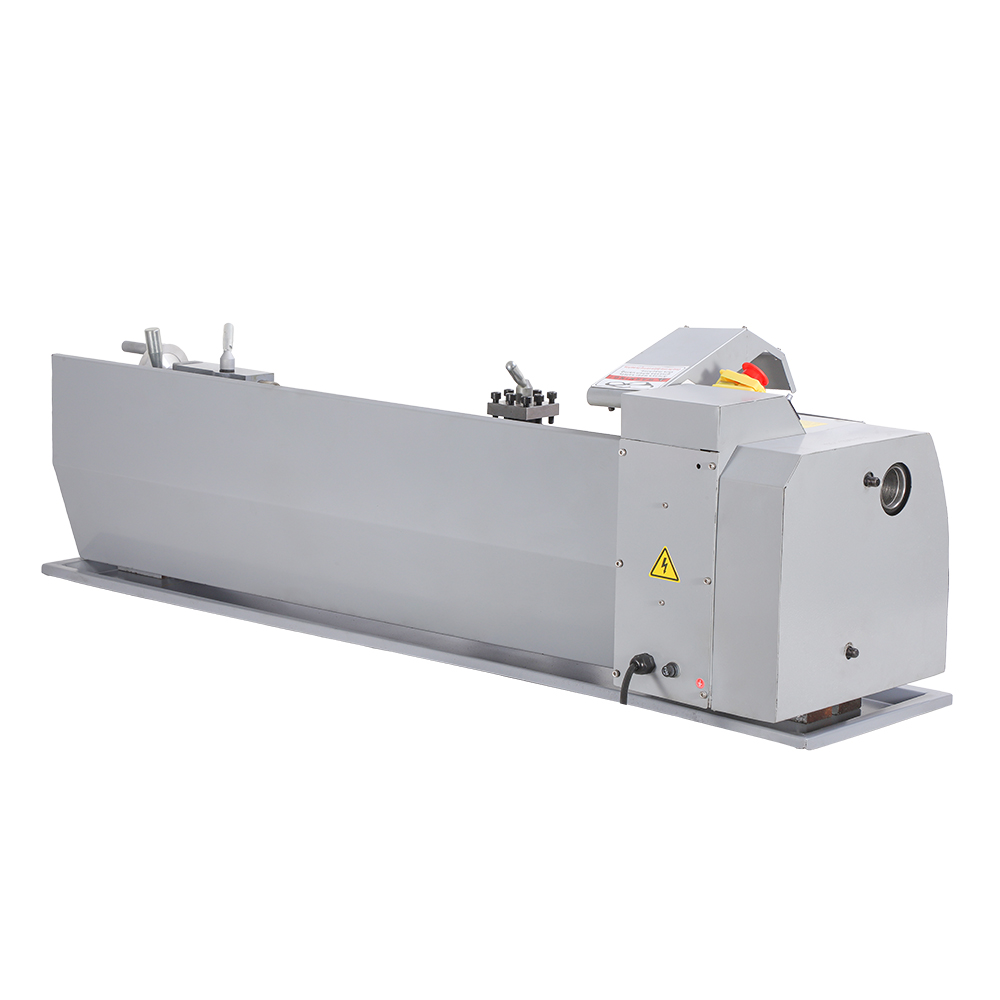

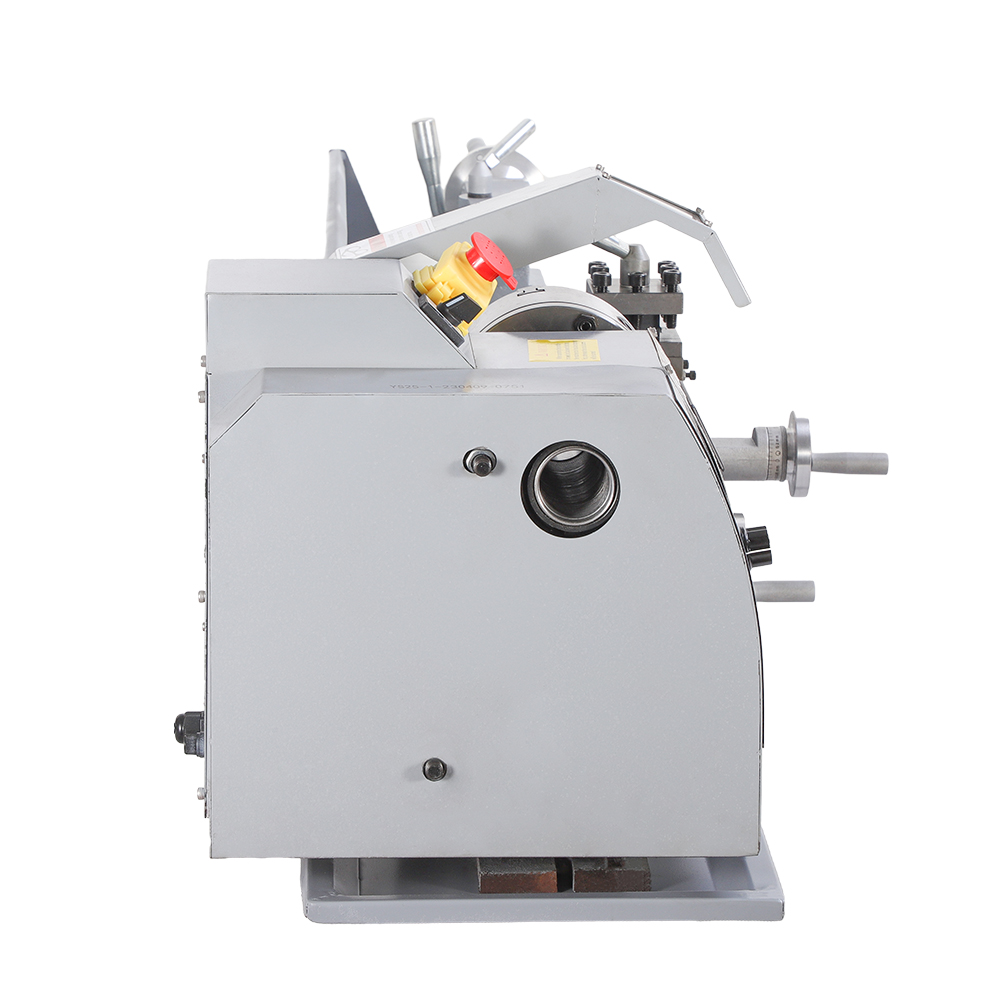

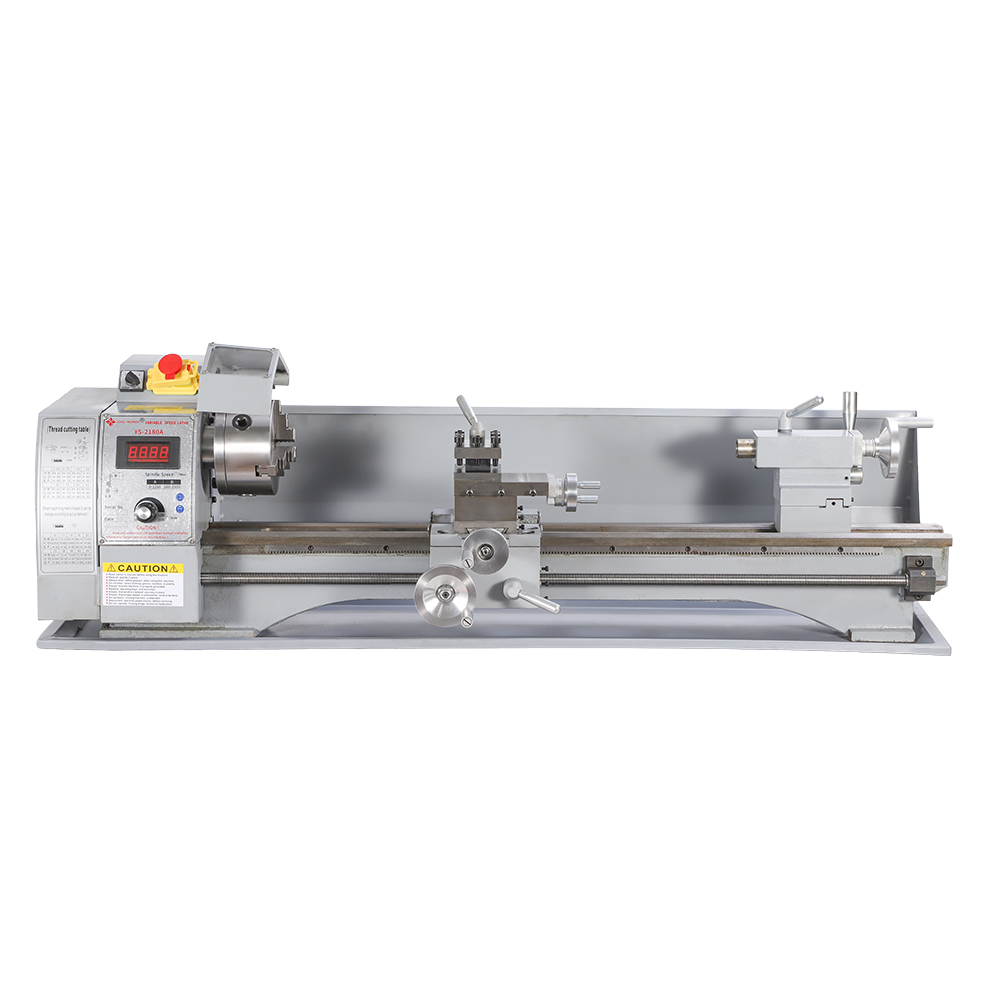

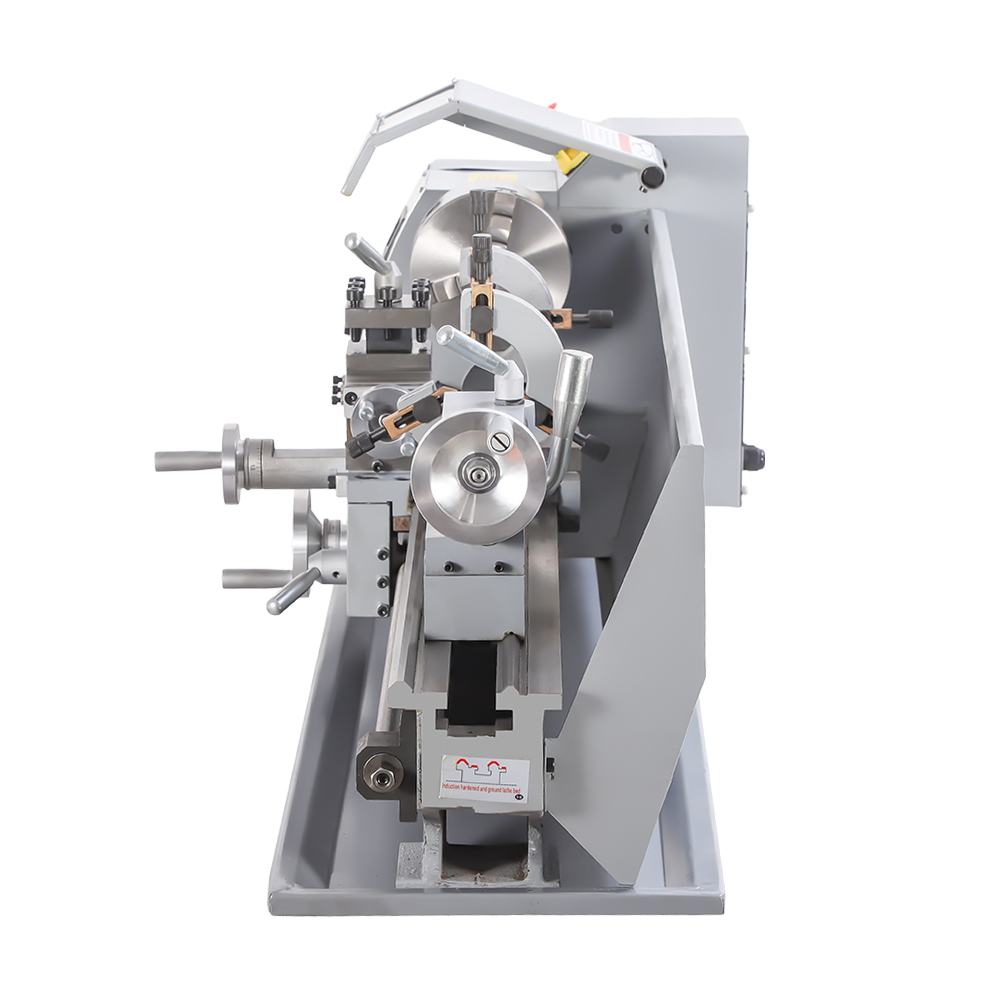

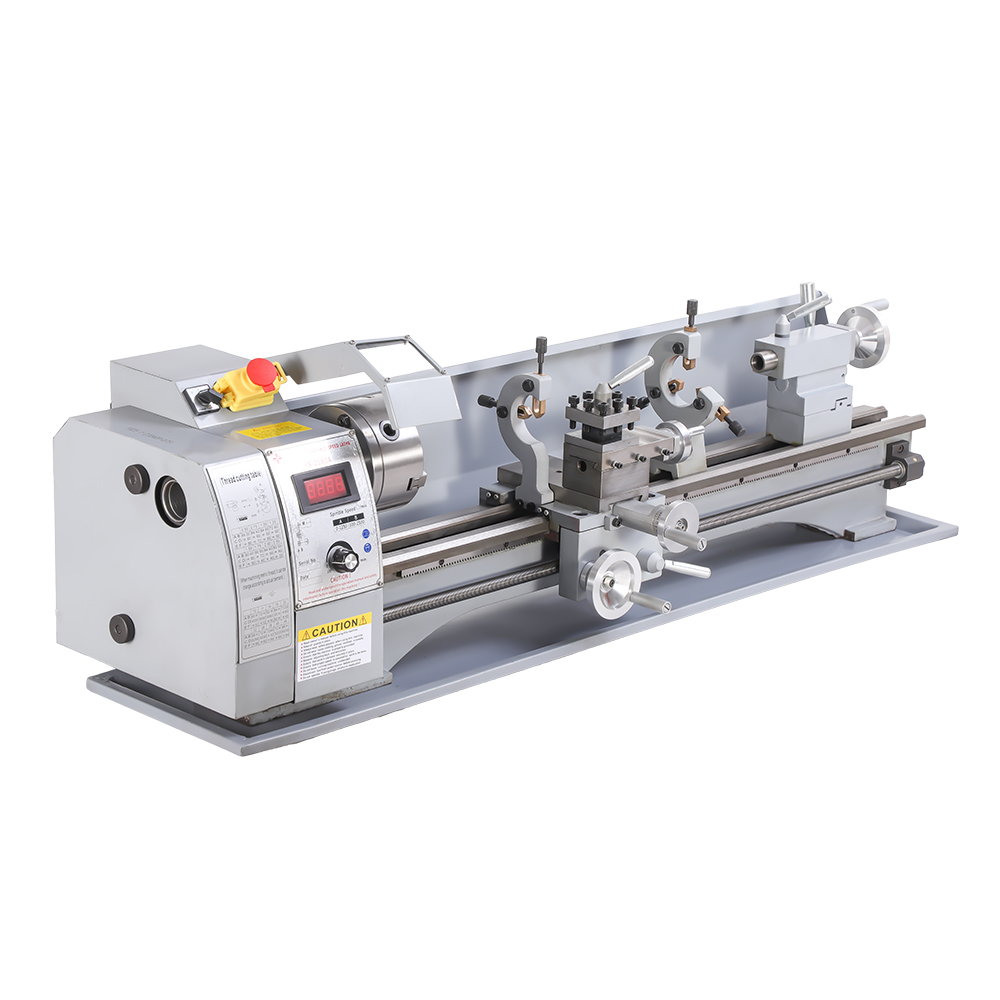

Precision Variable Speed Benchtop Mini Metal Lathe Machine

Product Description

Precision Mini Lathe
Mini Lathe Features

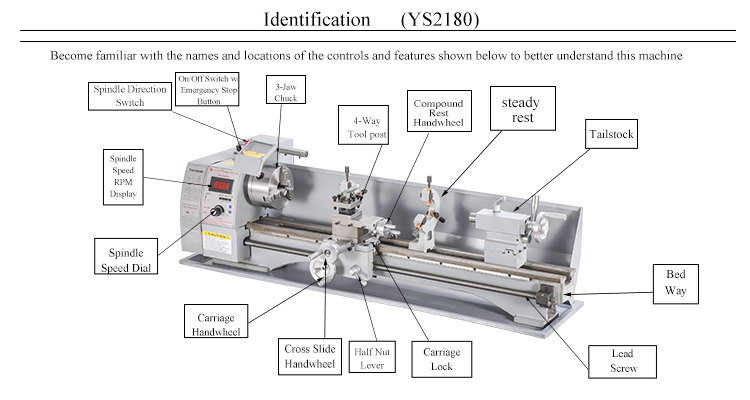

Mini Lathe Application
Products Description

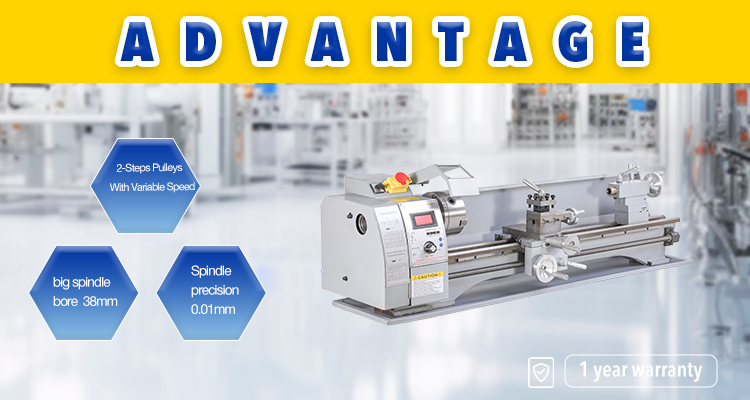

Product Overview
This precision mini lathe is designed to perform various types of metal turning.
With 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm.
This mini lathe is ideal for use in labs, workshops, engineering and educational settings.
By adjusting the speed switch can control the spindle speed 0 to 2500RPM.
Automatic feeding, infinitely variable, professional tool post.
750w power, 720mm processing distance, DIY processing of metal, wood.

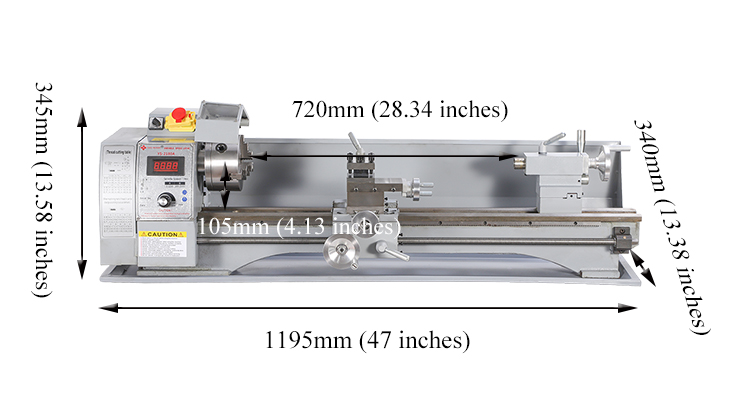

Lathe Component 1

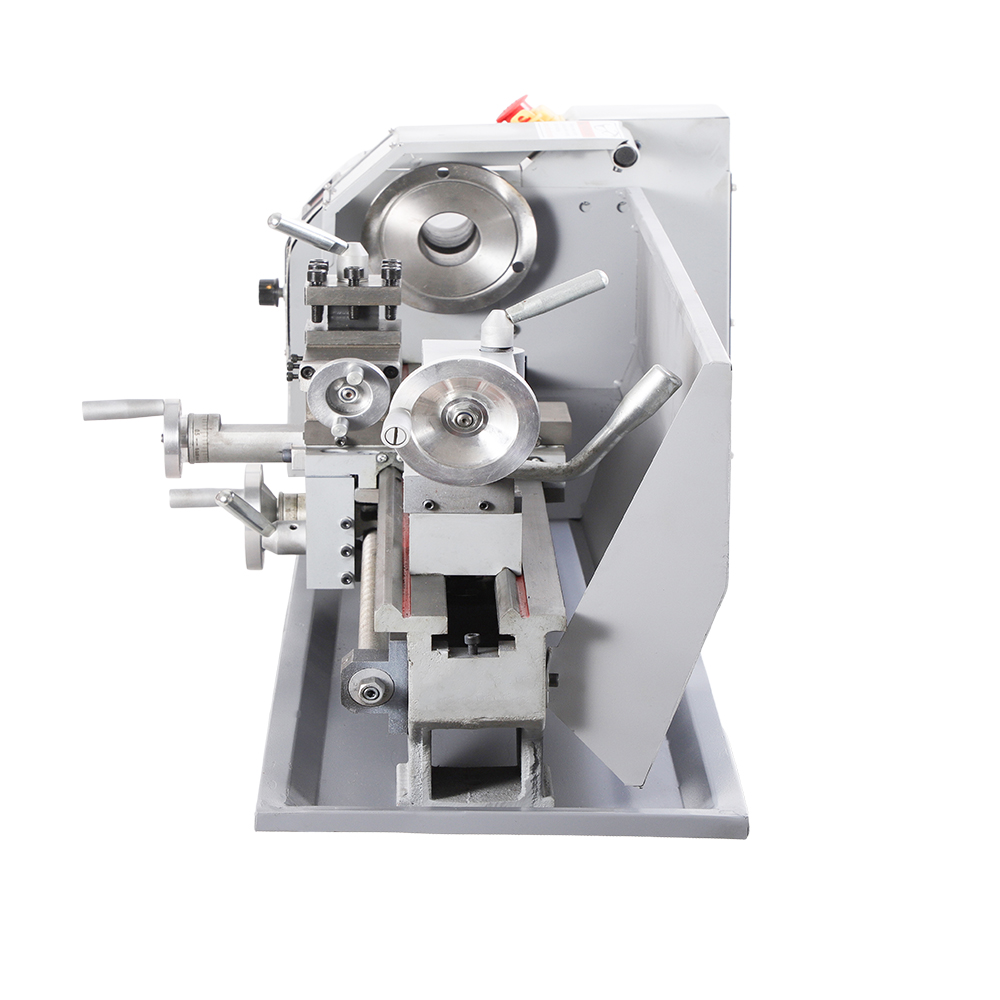

Lathe Component 2

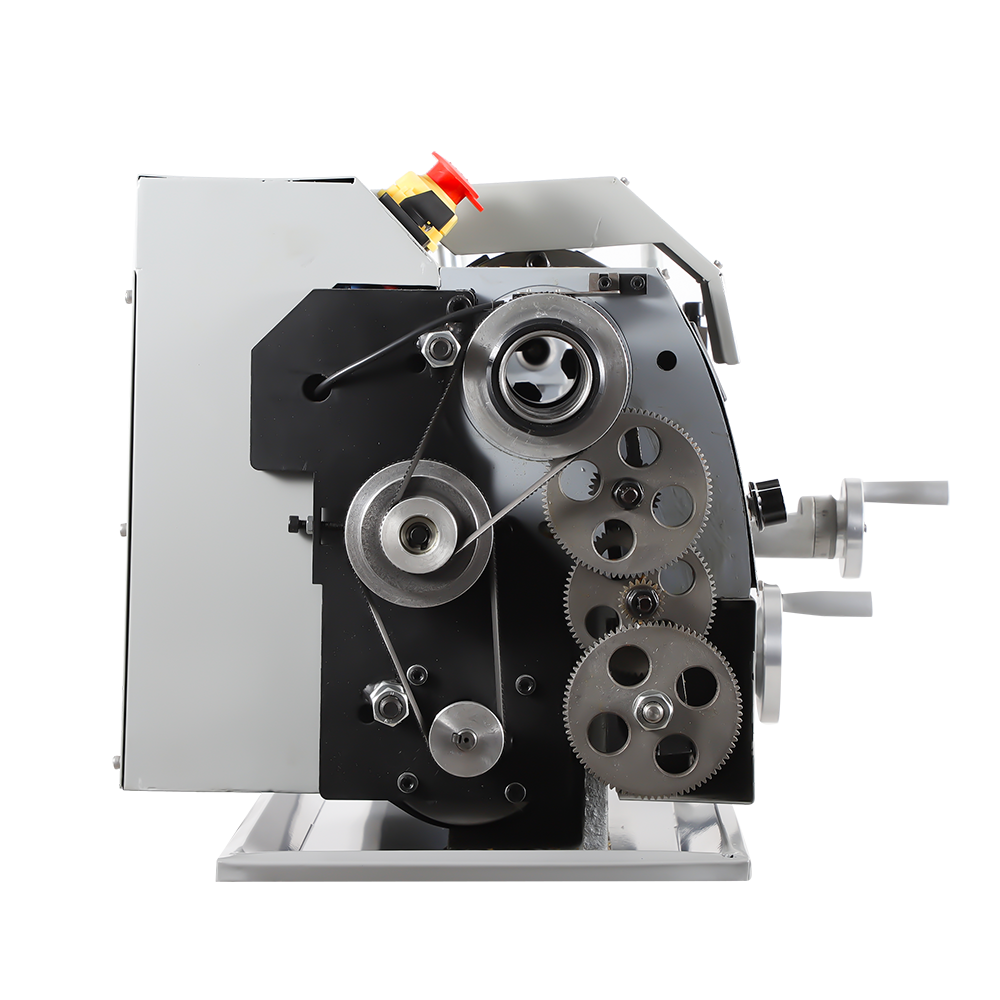

Lathe Component 3
Technical Specifications
Specification Parameter Details
Type number YS-2180
Capacities
Swing over Bed 210mm
Swing over Cross Side 110mm
Height of spindle center 105mm
Distance Between Centers 720mm
Width of Bed 100mm
Headstock
Spindle Bore 38mm
Spindle Taper MT5
Chuck Diameter 125mm
Number of Spindle Speeds 2-Variable
Range of Spindle Speeds 0-1250, 100-2500 RPM
Feeding and Threading
Number of Metric Threads 8
Range of Metric Threads 0.5-2.5mm
Number of Imperial Threads 10
Range of Imperial Threads 10-44T.P.I
Range of Longitudinal Feed 0.1-0.20mm/r
Lead screw Φ16-1.5mm
Compound and Carriage
Tool Post Type 4way
Maximum Compound Slide Travel 80mm
Maximum Cross Slide Travel 80mm
Maximum Carriage Travel 740mm
Tailstock
Tail Stock Spindle Travel 50mm
Taper in Tail stock Spindle MT2
Miscellaneous
Main Motor 110V~60Hz/220-240V~50Hz/ brushed 750W
Length, Width and Height 1195x340x345(mm)
Product Weight N.W: 70.8Kg; G.W: 85.6Kg
Package Size 1300*490*510mm
Standard Accessories

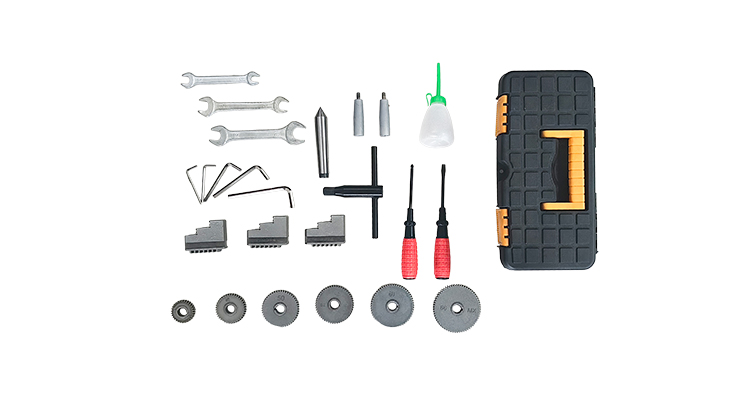

Standard Accessories Kit
5 Hex Wrenches Sets (2.5/3/4/5/6)
3 Double End Head Wrenches (8/10, 12/14, 13/16)
1 Dead Center MT2
3 Hand Wheel Lever
1 Oil Bottle
1 Chuck key for the 3-jaw chuck
3 Outside Jaws for the 3-jaw Chuck
6 Change Gear (30T, 40T, 50T, 52T, 60T, 66T)
2 Hand Wheel Lever
1 Flat Head Screwdriver
1 Philips Screwdriver

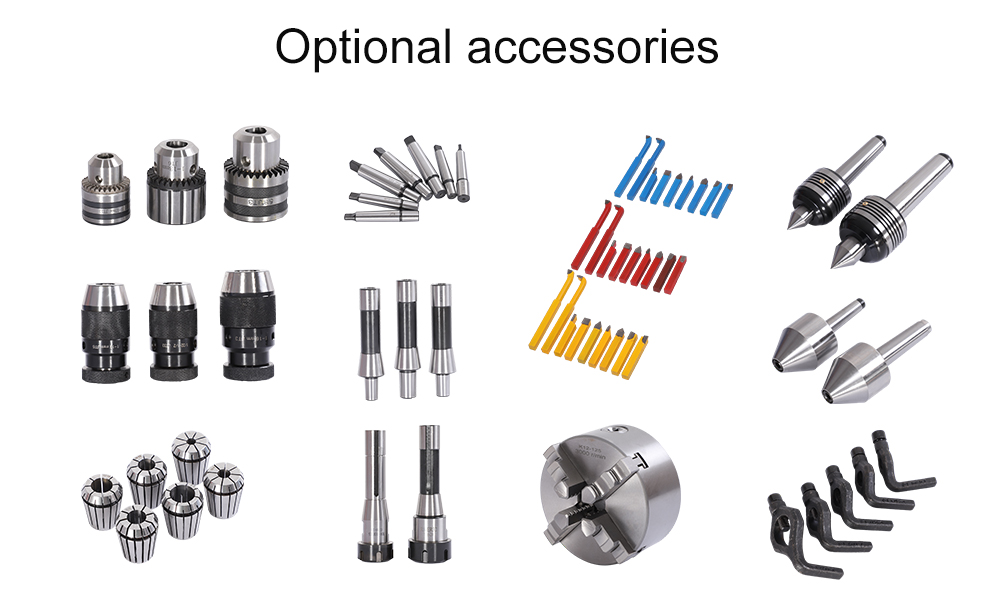

Additional Standard Accessories
Product Details

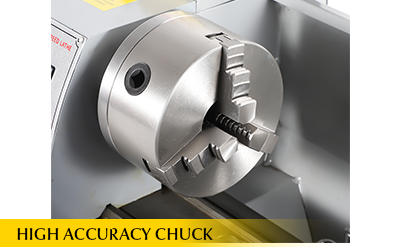

3-jaw Chuck Details
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily.

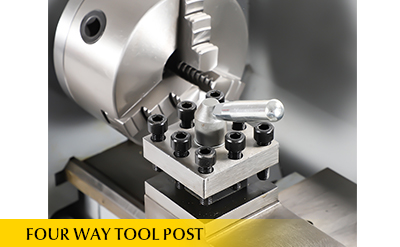

Tool Post Details
Up to 4 tools can be installed for a quick, easy change. The compound angle is changed loosening the two socket screws under the topslide.

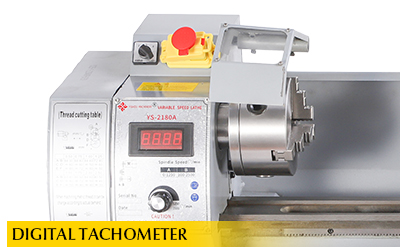

Digital Tachometer Details
Digital tachometer, 2-steps pulleys system + variable motor speed. 0-1250, 100-2500 RPM.

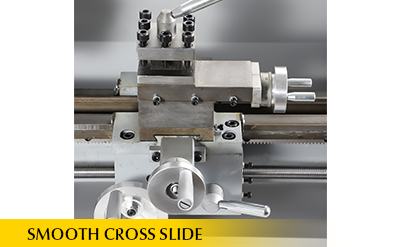

Slide Details
Smooth movement of compound rest, cross and carriage slide.

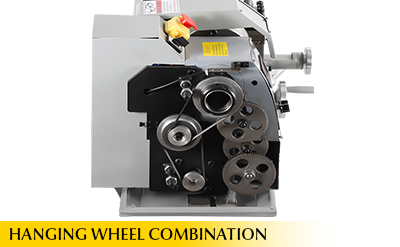

Pulley Details
2-steps pulleys system, can finish 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm.

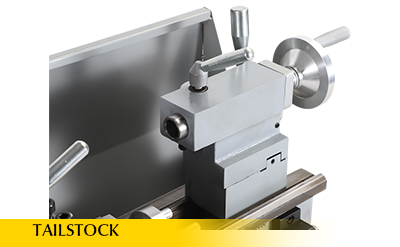

Tailstock Details
The tailstock can be offset align with spindle centerline.
Product Processing

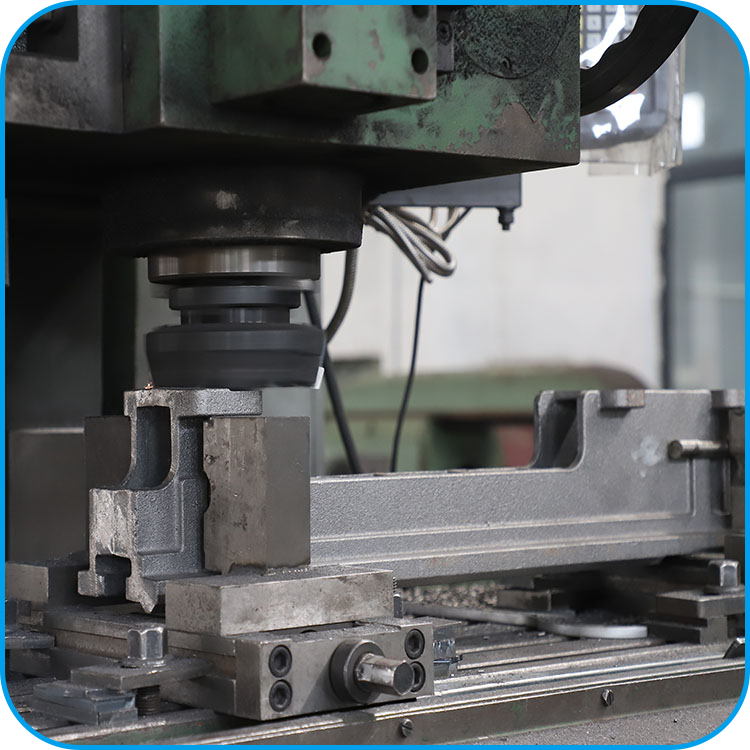

Rough Milling
Rough Milling

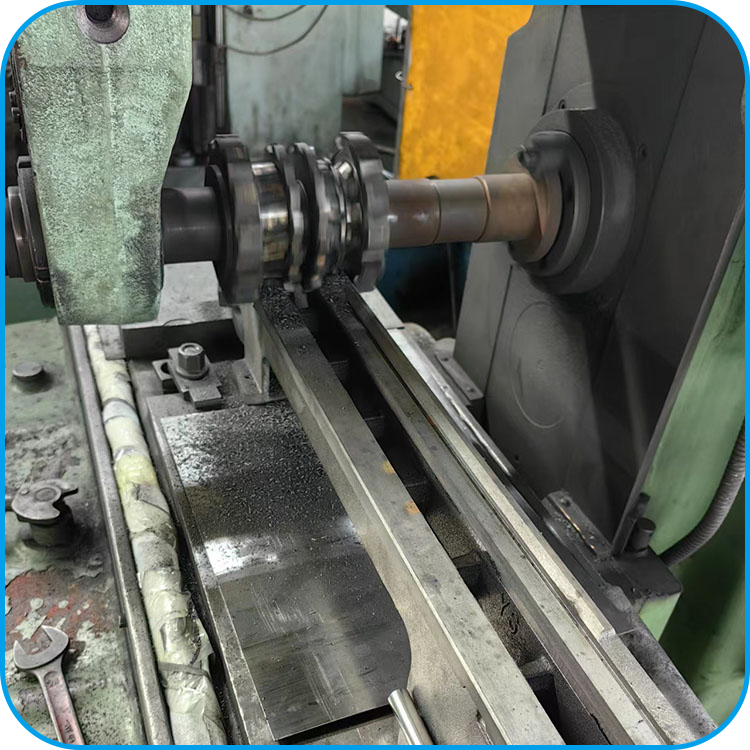

Rough Milling Process
Rough Milling

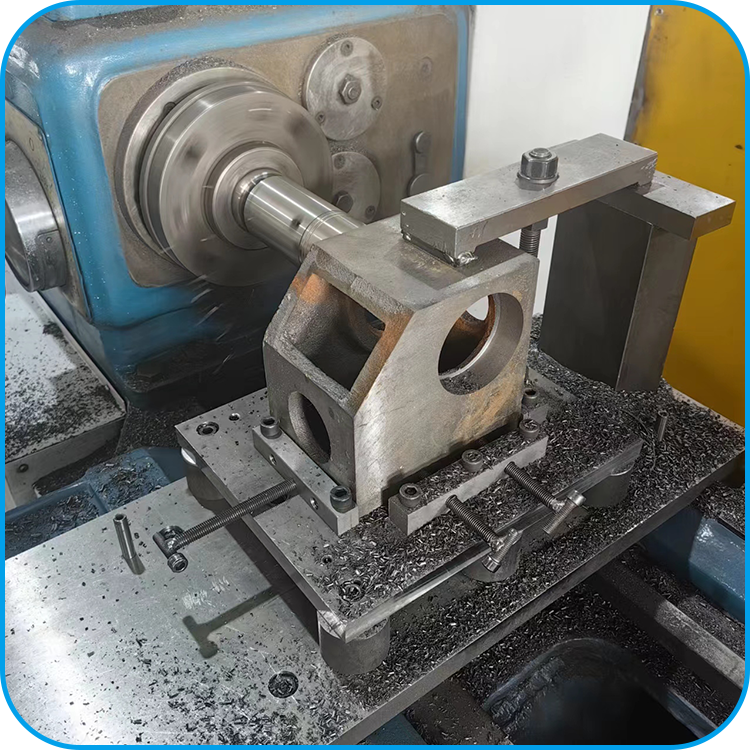

Boring
Boring

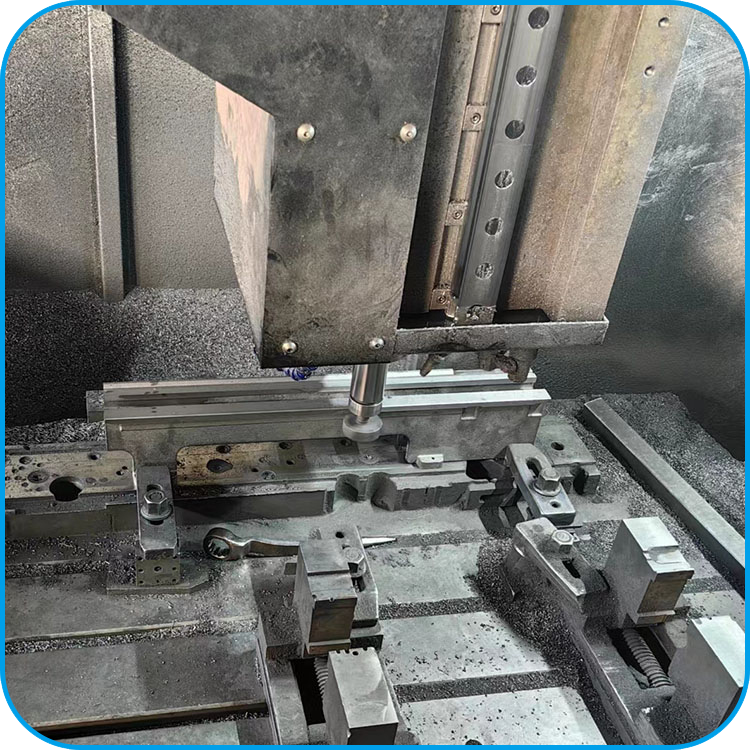

Finish Milling
Finish Milling

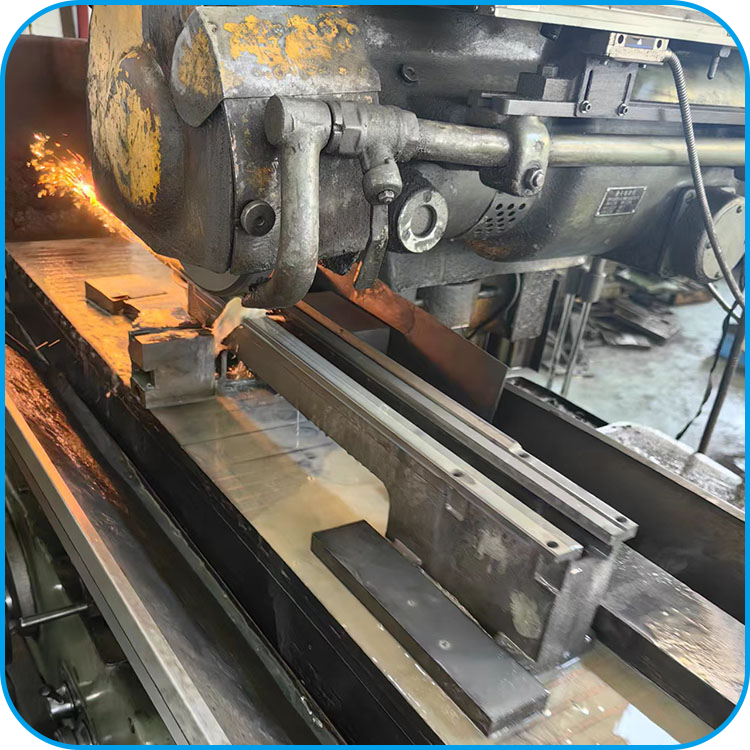

Grinding
Grinding

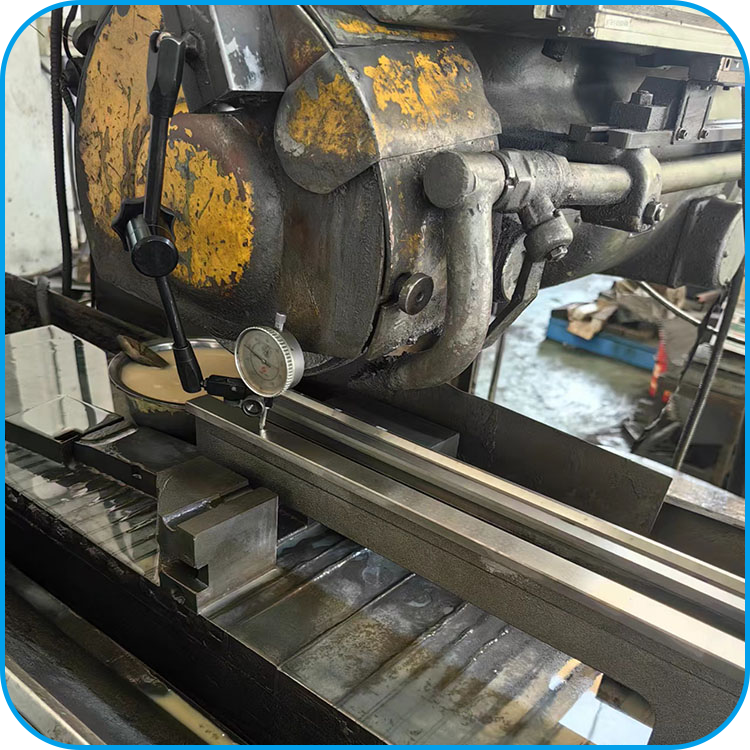

Inspection
Inspection

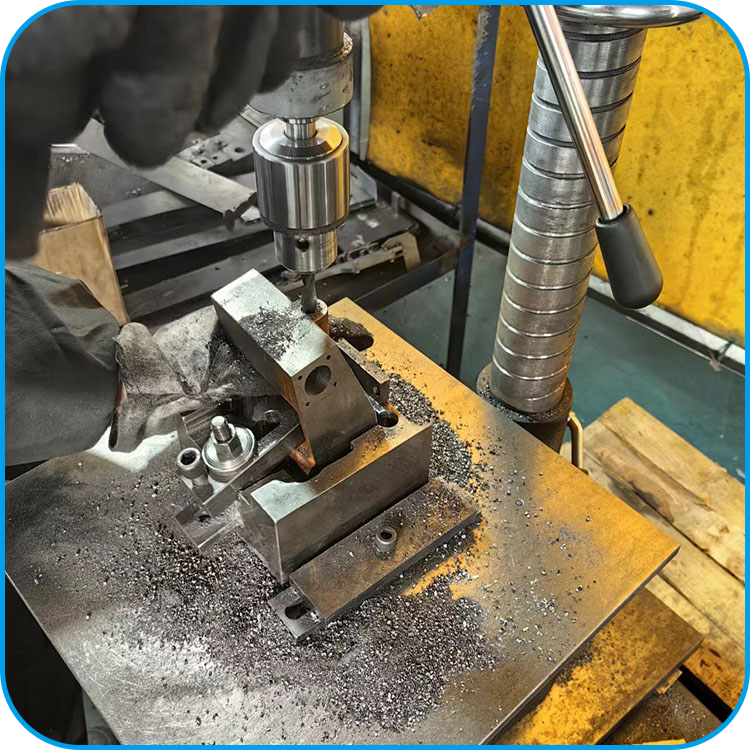

Drilling
Drilling

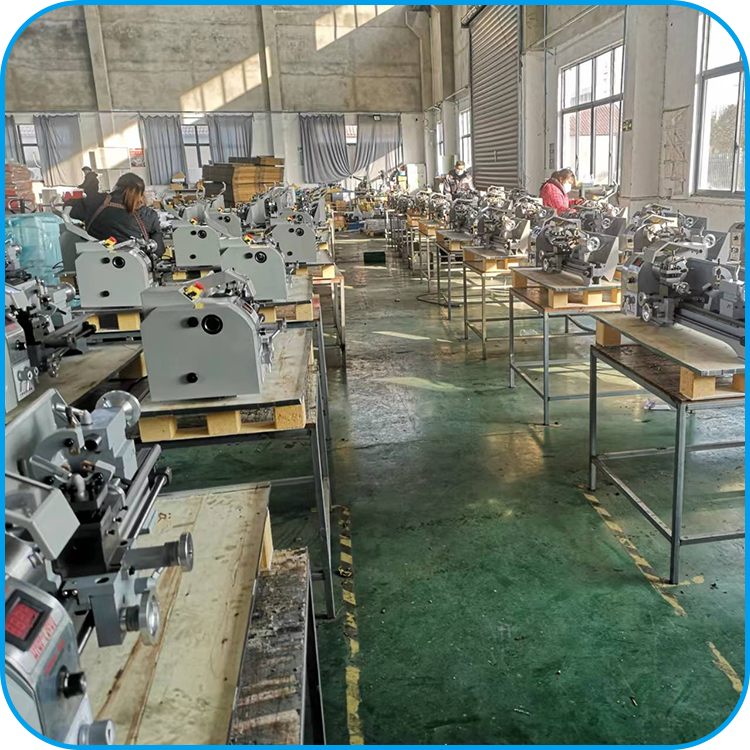

Assembley
Assembly

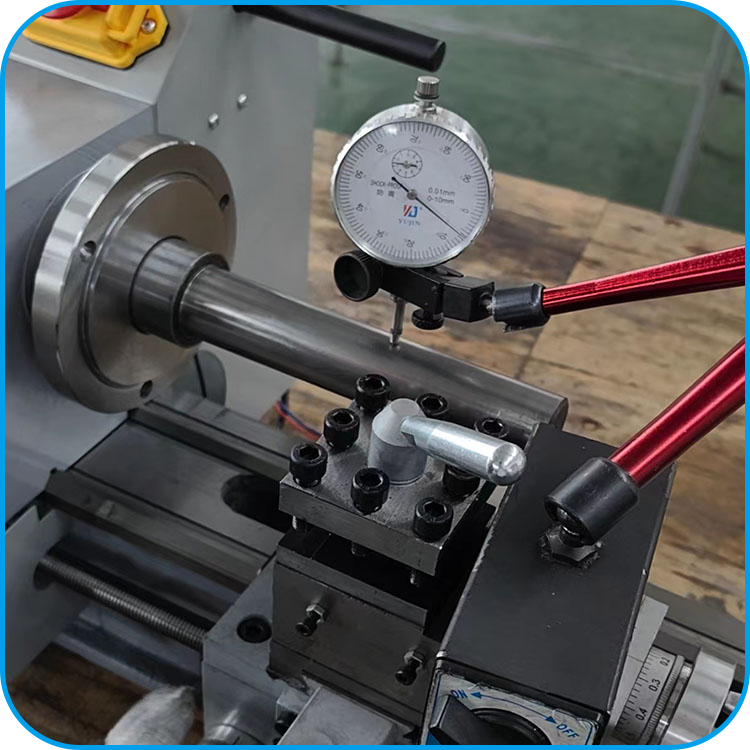

Inspection
Inspection
Company Profile

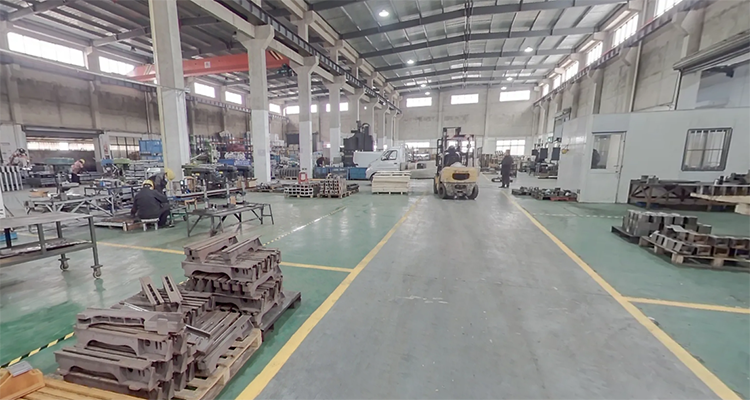

Factory Environment 1

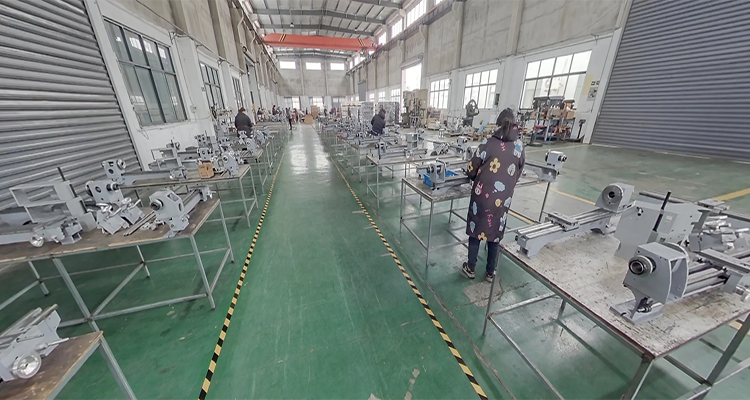

Factory Environment 2
We are a professional factory that produces small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, and manual arbor presses. We can produce more than 10,000 units of various types of machinery per month.
Our factory workshop covers an area of 7,000 square meters. We have dozens of professional processing equipment, including laser cutting machines, sheet metal bending machines, welding robots, CNC machining centers, CNC lathes, vertical milling machines, etc. We have a comprehensive quality control system and CE and UKCA certificates, which ensure that our products meet national and customer standards. Our product development team releases new mechanical products every quarter and has applied for patent protection. These patented products have a clear competitive advantage over existing products on the market and come at a reasonable price. Our sales team has good English communication skills and is able to communicate production and product issues with foreign customers without barriers.
After years of development, our products have not only been exported to the North American and European markets but have also achieved good sales performance in the domestic market. Our motto is to always pursue quality, product innovation, and serve customers. We hope that customers from all over the world can visit our factory and establish business relationships with us to create a better future together.
Certifications
Product Certifications
Packing & Shipping

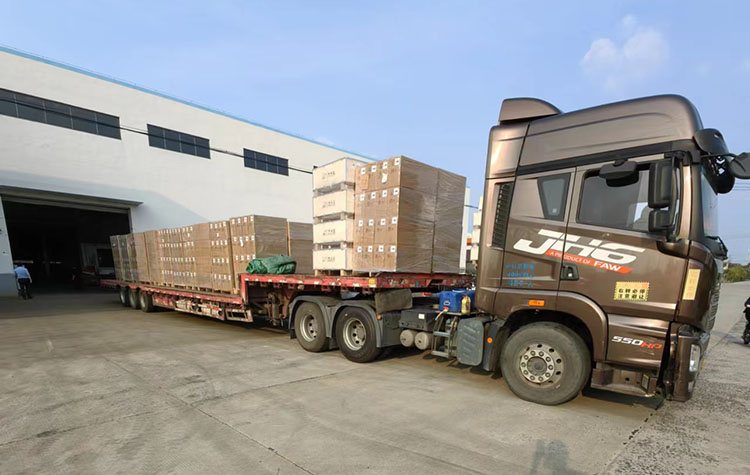

Packaging Process

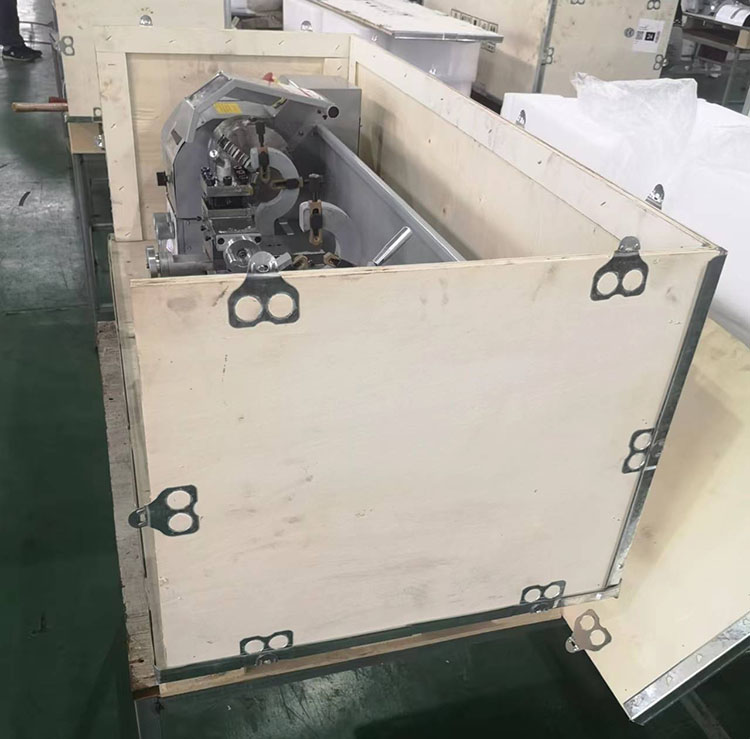

Shipping Packing

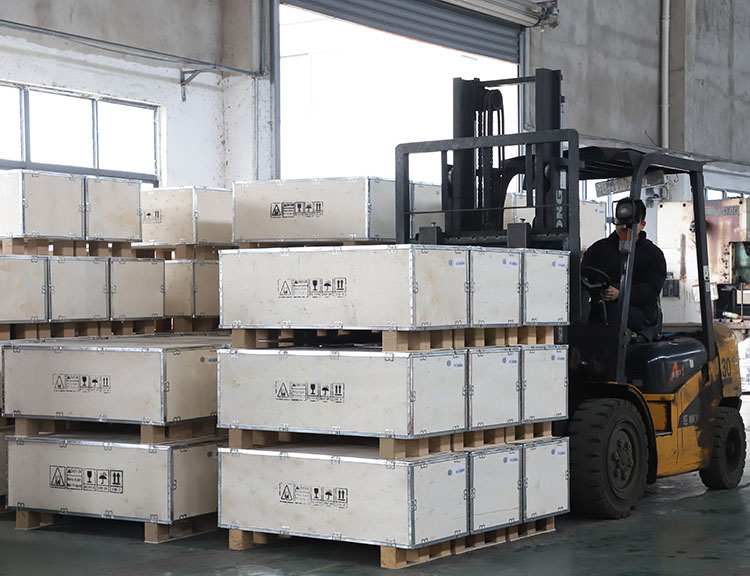

Shipping Logistics
Frequently Asked Questions
Are you a factory or trading company?
We are a factory, offering factory direct sales, which makes our pricing much more favorable.
How can I choose the most suitable machines?
Please share your detailed specifications with us, and we will recommend the best model for your needs.
What are the main products?
Our main products include small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, and manual arbor presses.
What is your minimum order quantity and warranty?
The Minimum Order Quantity (MOQ) is one set, and all our machines come with a one-year warranty.
What kind of package do you offer?
We normally pack our products in sturdy wooden cases to ensure all goods arrive in excellent condition.
What are your normal lead times?
Our typical lead times range from 3 to 4 weeks after receiving your official order.
