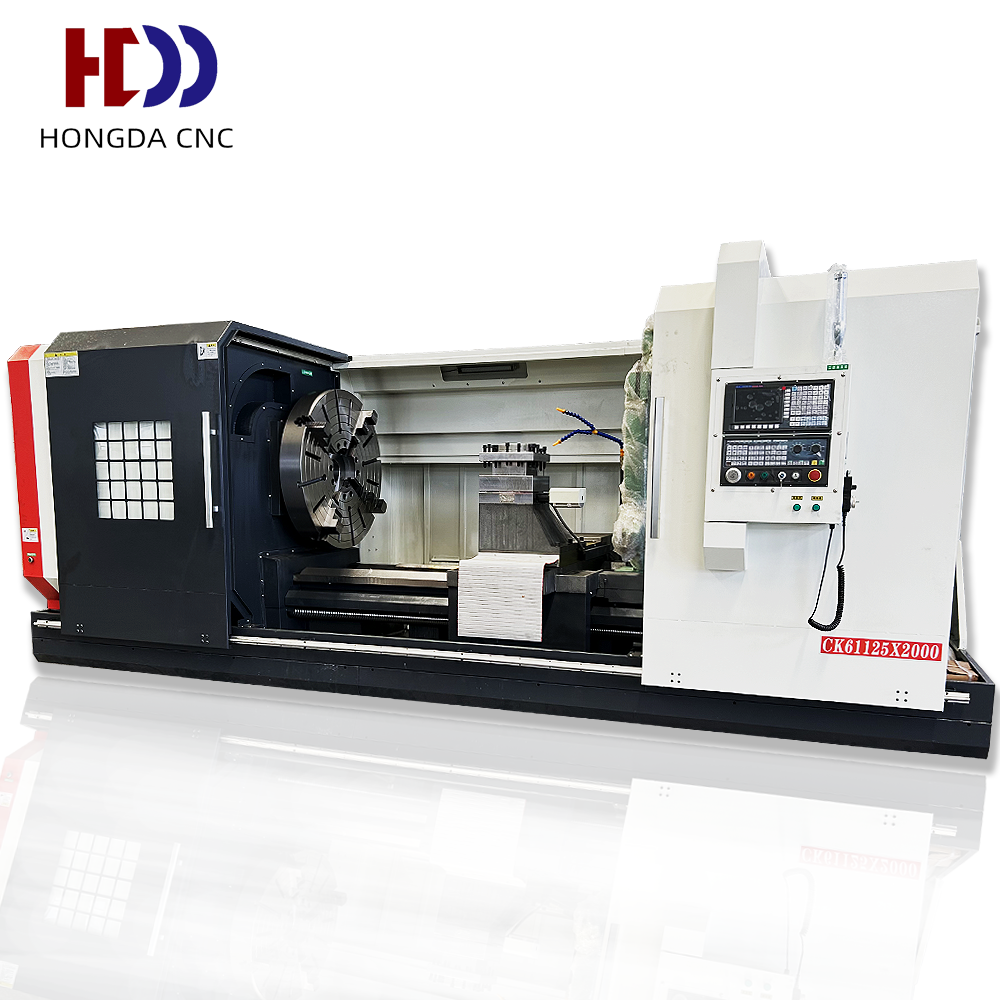

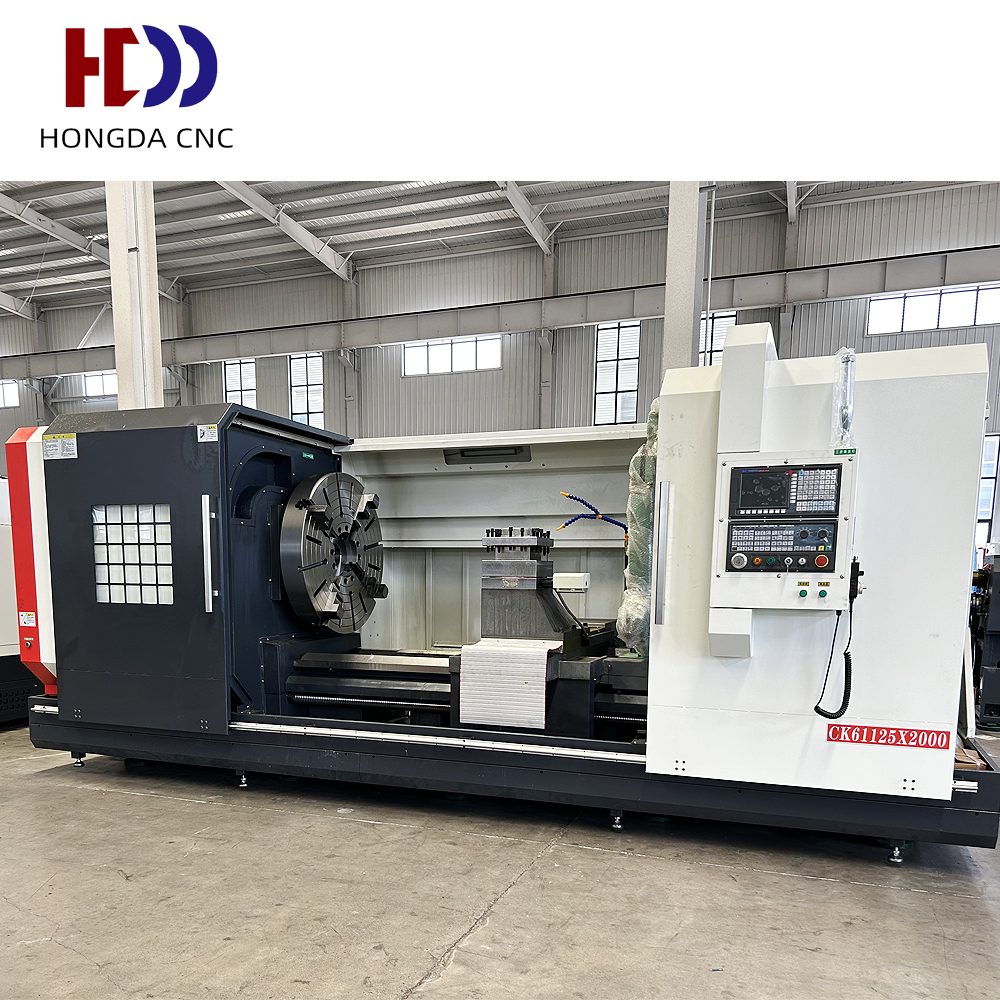

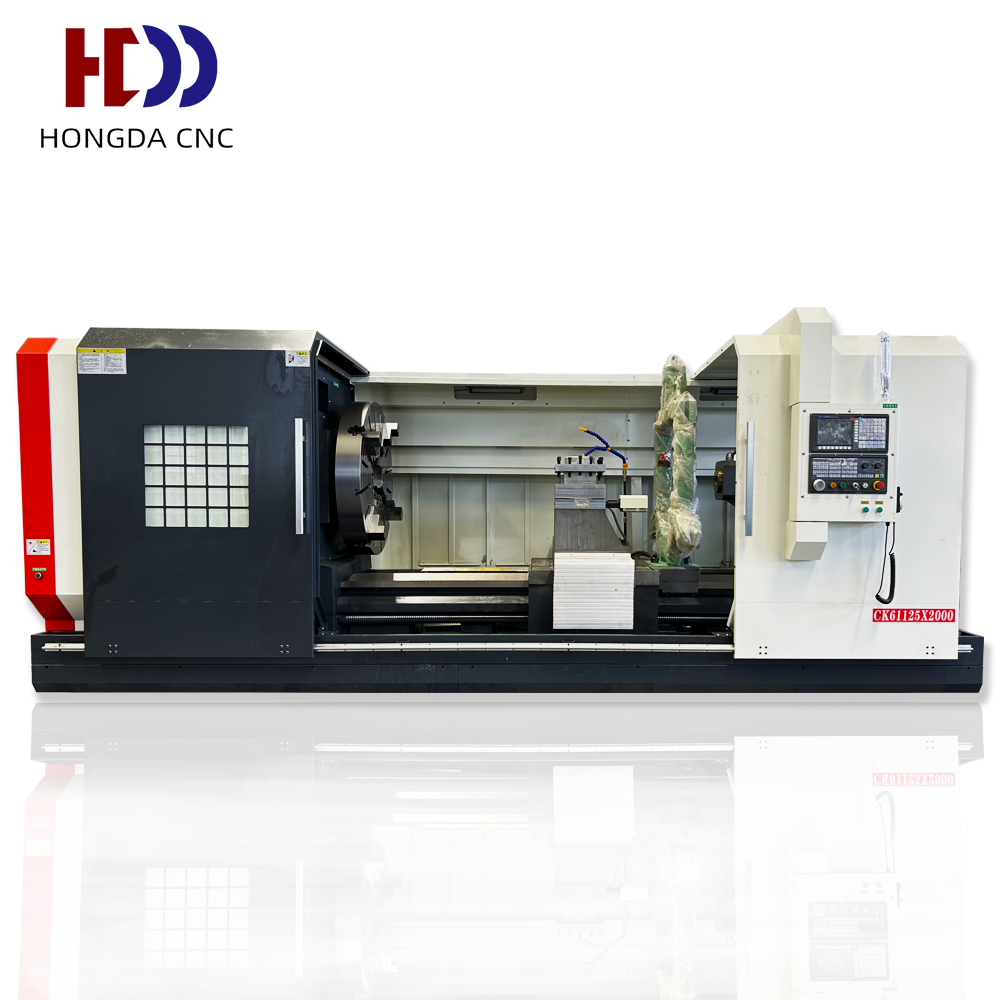

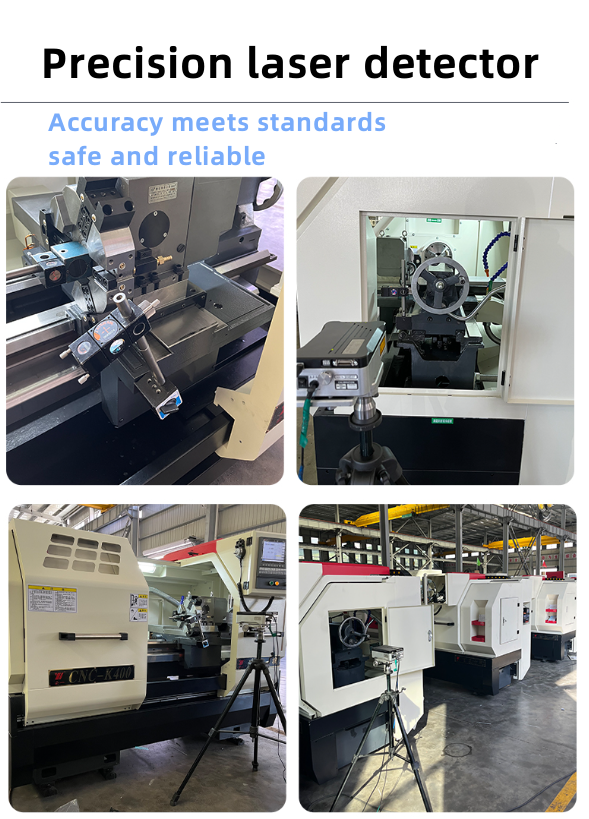

| Project | Content | Unit | CK61100 |
|---|---|---|---|
| Machine Range | Swing over bed | mm | Φ1000 |
| Maximum turning diameter on the skateboard | - | Φ630 | |
| Maximum processing length | mm | 3000 | |
| Maximum machining diameter | mm | Φ1000 | |
| Maximum bar diameter | mm | Φ630 | |

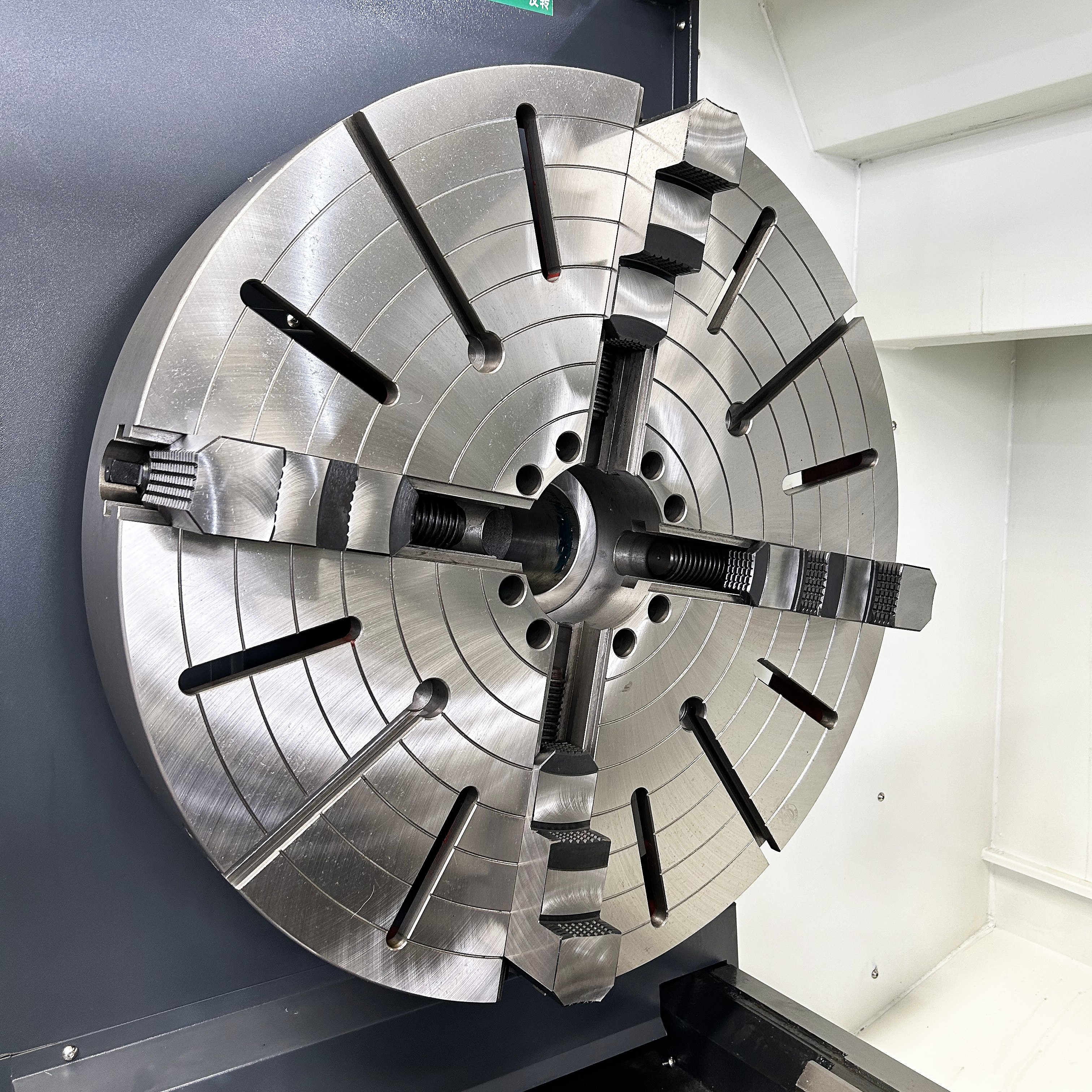

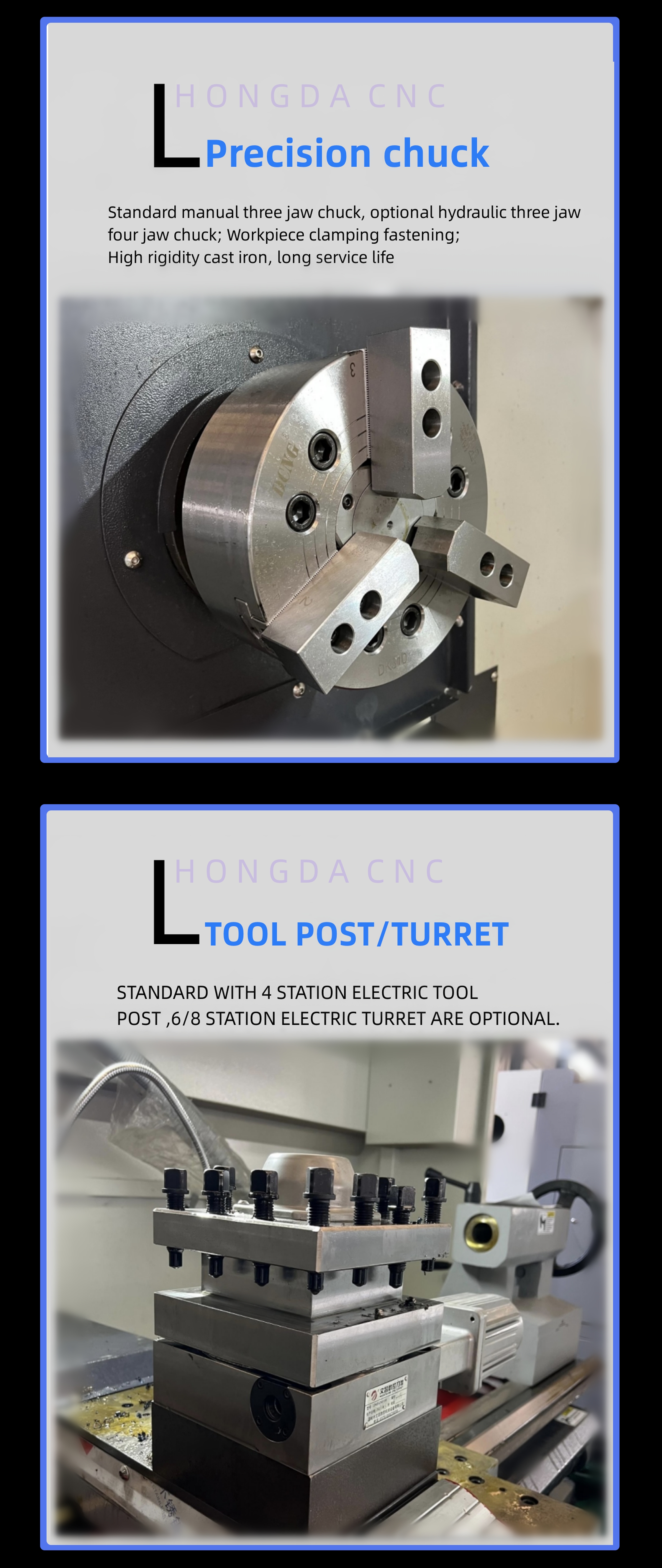

| Main Shaft | Chuck | - | 800mm 4-claw |
| Spindle head form | - | D11 | |
| Spindle bore | mm | Φ105 | |
| Taper of spindle bore | - | 1:20 | |
| Spindle progression | - | Manual 4 speed | |
| Range of spindle speed | r/min | 30-84 / 53-150 / 125-350 / 300-835 | |
| Feed | X/Z axis travel | mm | 520 / (1000/1500/2000/3000) |
| X/Z axis lead screw diameter × pitch | mm | φ3208 / φ5010 | |
| X/Z fast moving speed | m/min | 4 / 6 | |

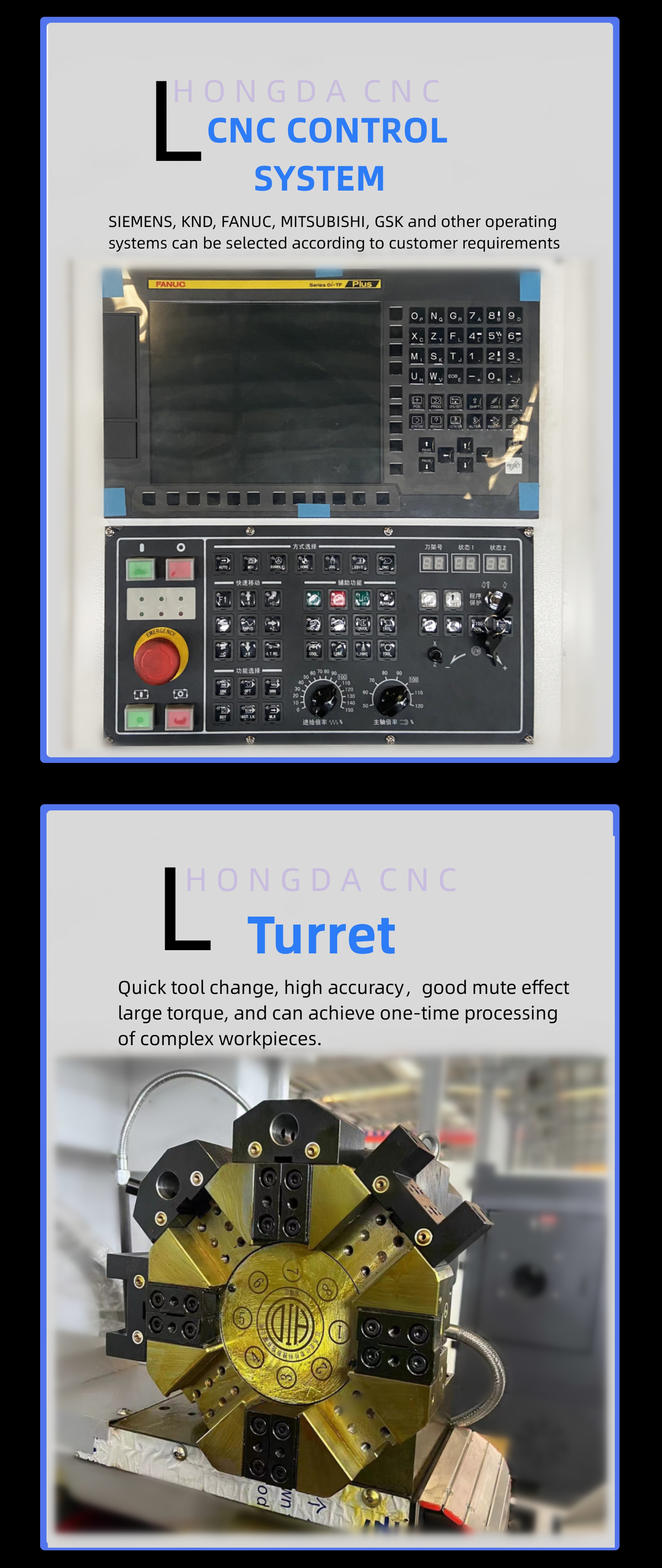

| Tool Carrier | Knife holder form | - | Electric |
| Workstation | - | 4 | |

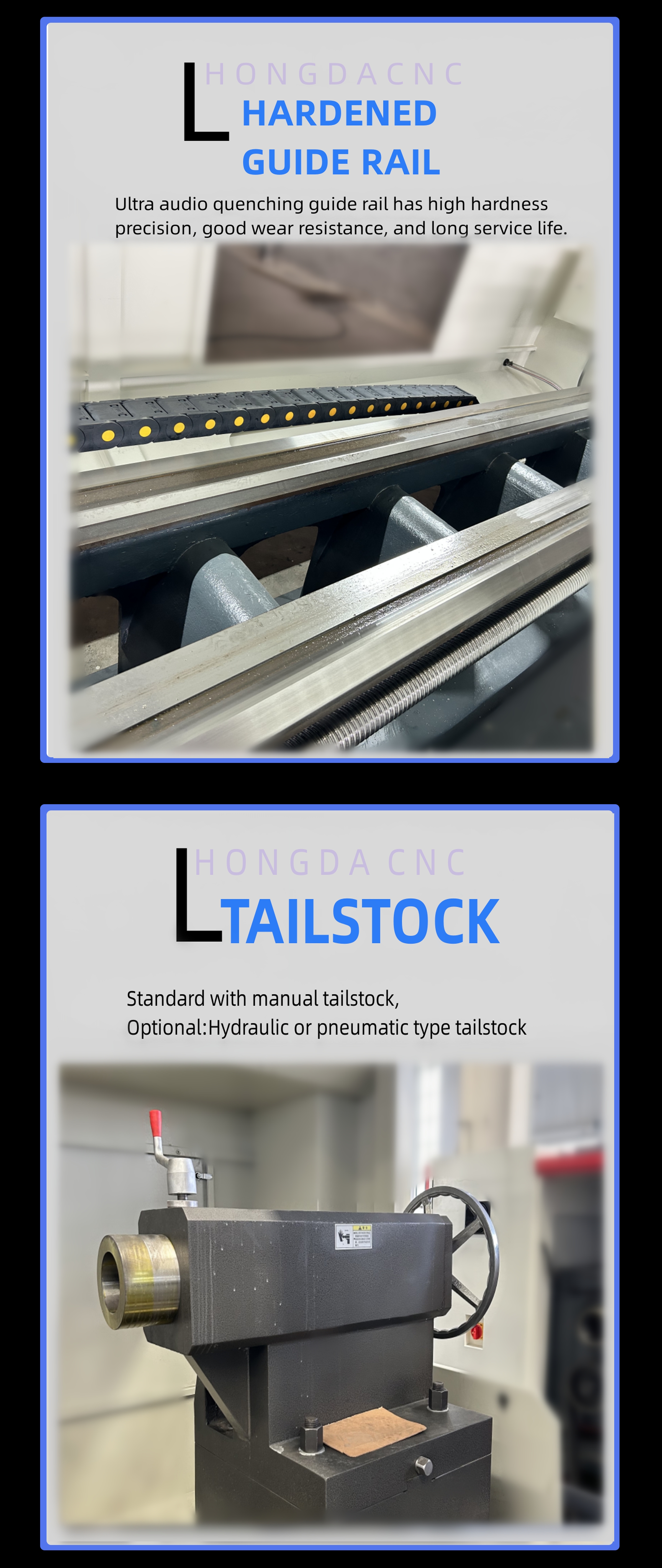

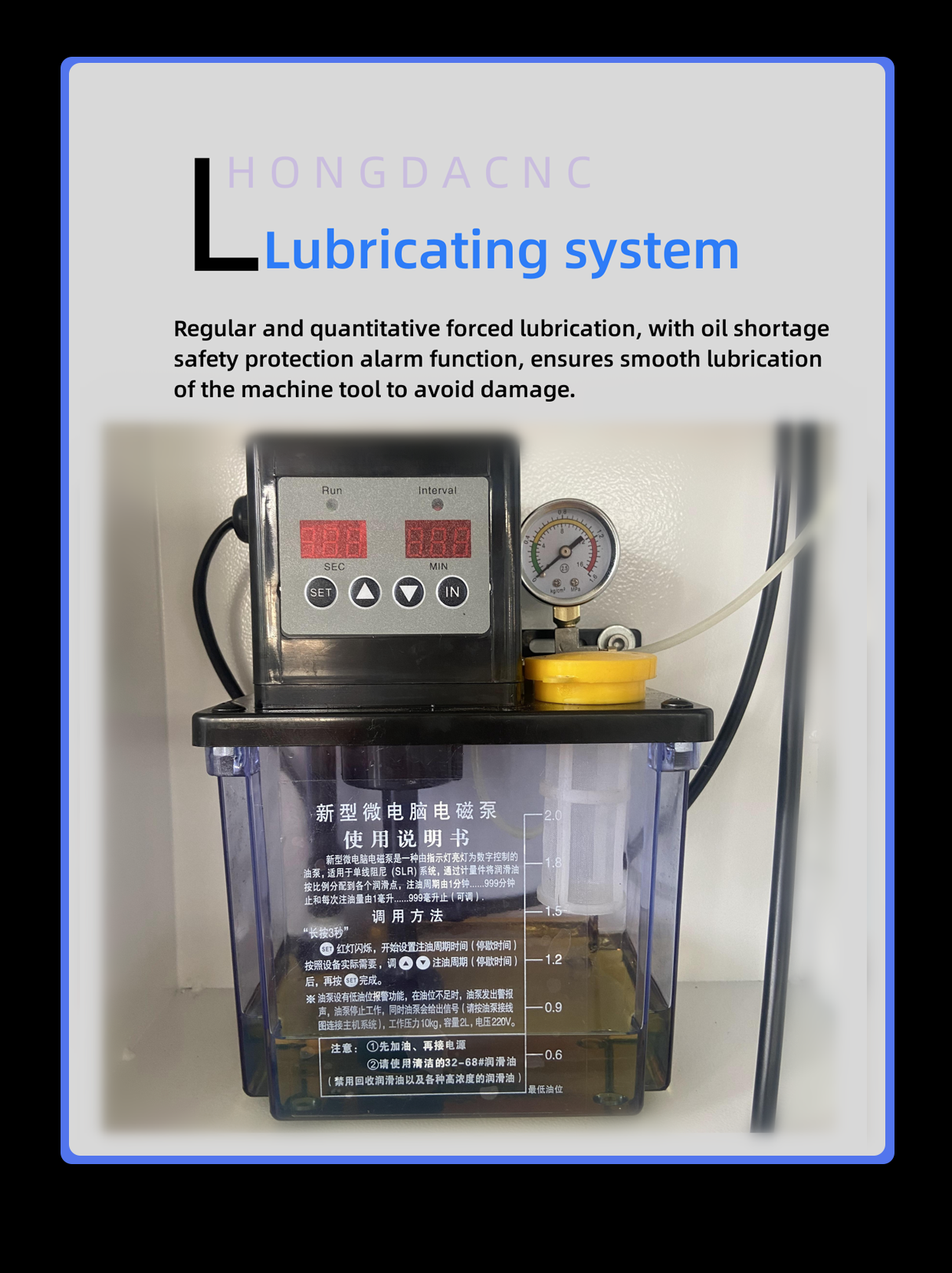

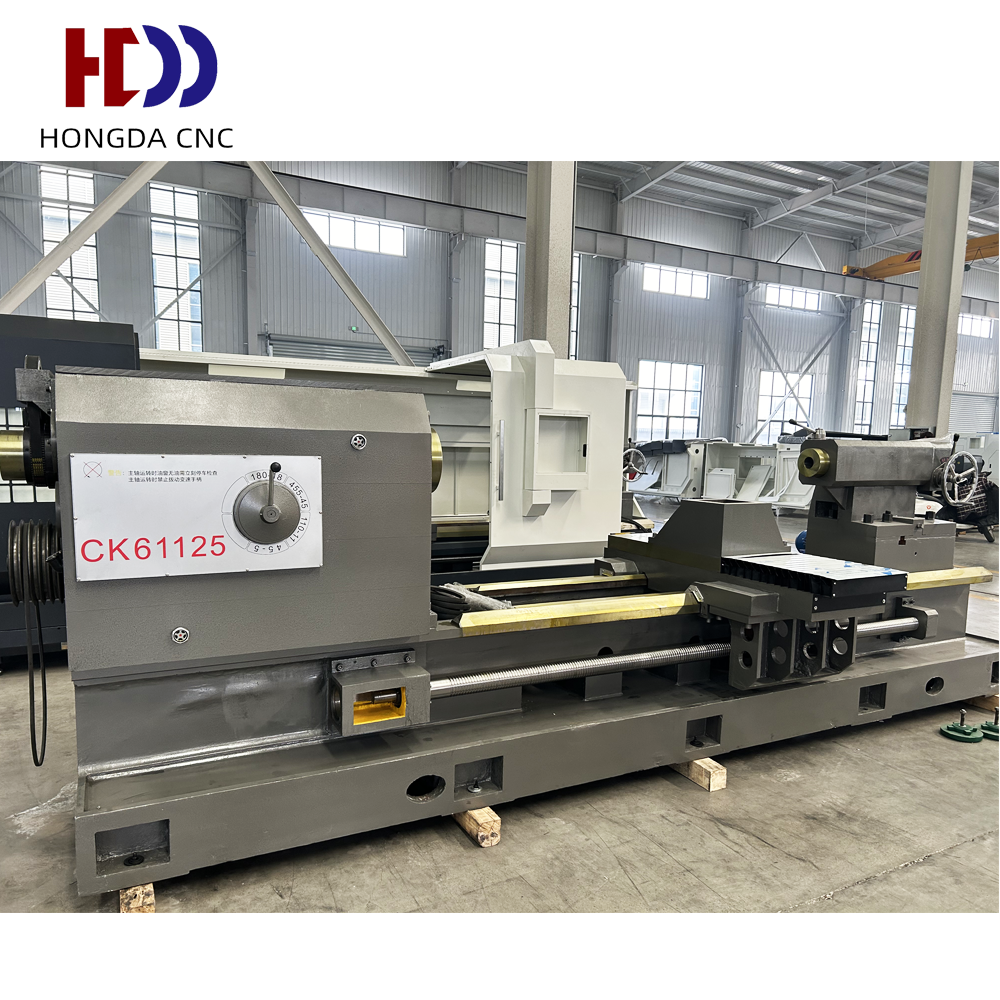

| Tailstock | Sleeve diameter / stroke | mm | Φ100 / 250 |
| Cone of sleeve inner hole | - | MT6 | |
| Sleeve drive form | - | Hand movement | |
| Tailstock movement form | - | Hand movement | |
| Electrical Machinery | Spindle motor power | Kw | 15 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5 / 2.3 | |
| X/Z motor torque | NM | 10 / 15 | |
| Cooling pump motor power | W | 125 | |
| Other | Power capacity | KVA | 15 |
| Bed saddle layout form | - | Flat bed | |
| Guide rail form | - | Hard rail (greater than HRC50) | |
| Machine weight | kg | 4300 / 4700 / 5500 / 6500 | |
| Machine tool dimensions: long × wide × high | mm | (3400/3900/4400/5400) / 1900 / 2000 |
