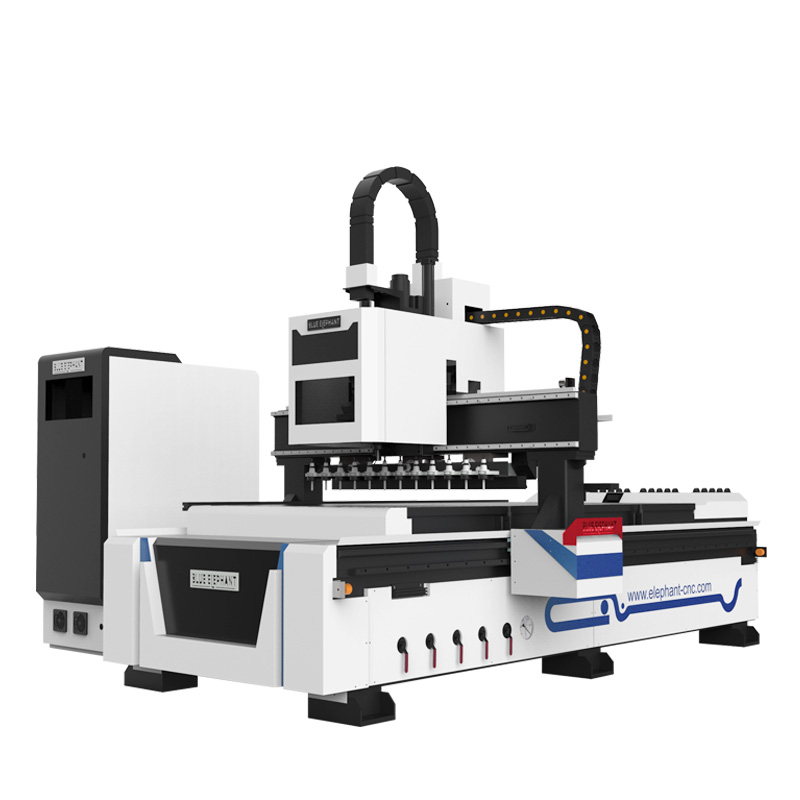

1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1 / 5
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales
1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales

1325 Multifunctional Carpenter Woodworking Cnc Machine for Wholesales

Send Inquiry

Product Description

CNC Machines Showcase
Product Description
Product Details
Features & Advantages
  • High Power Spindle: Ensures high-precision operation, extended service life, and remarkably stable movement.
  • Advanced Drive System: High-power and high-precision servo motor and driver system for robust performance.
  • Vacuum Working Table: Matched with a reliable vacuum pump to fix materials more securely and stably.
  • Air Cooling Spindle: Featuring imported bearings for a long working life, low noise operational levels, and strong cutting capabilities.

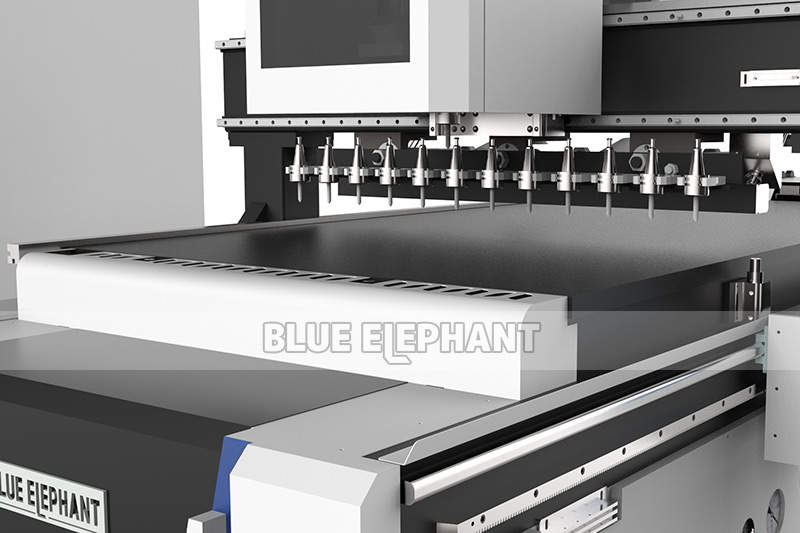

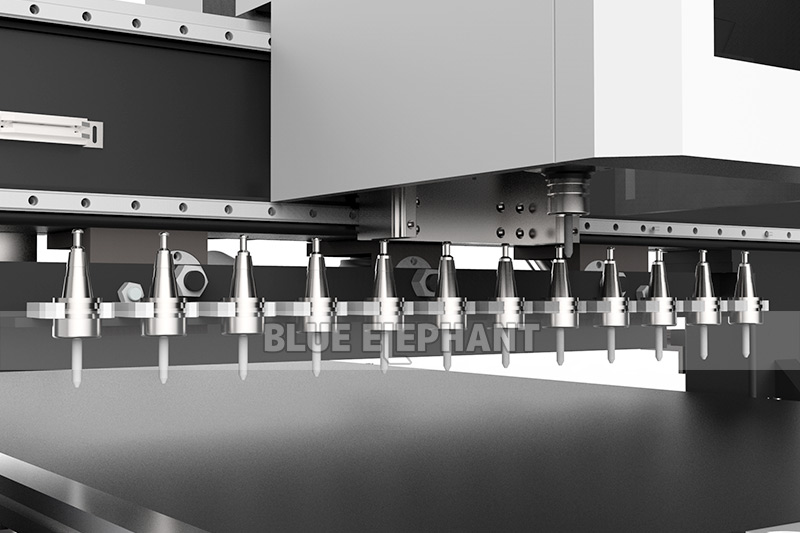

  • Linear Automatic Tool Changer: Equipped with 12 tools moving along with the beams for high efficiency and low maintenance costs.

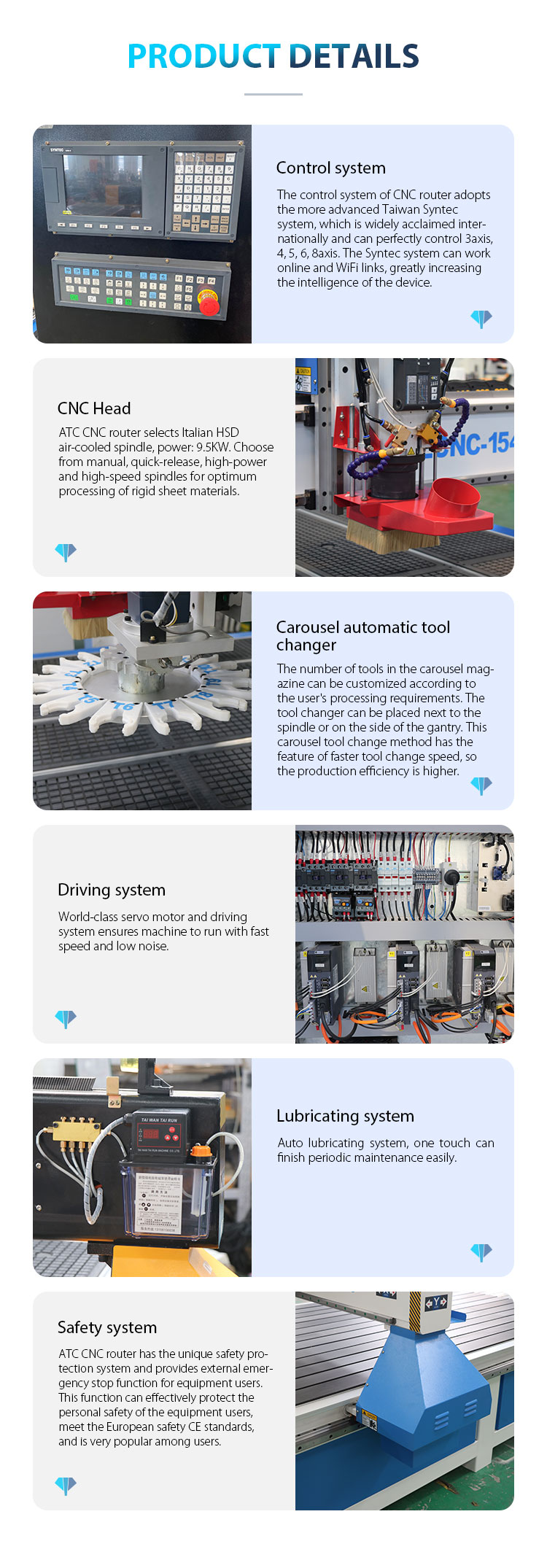

Product Structure
Technical Parameters
Model ELE1325ATC + Loading and Unloading
X,Y,Z Working Area 1300x2500x200mm (customized available)
Main equipment requirements Loading and Unloading + Linear Automatic Tool Changer (12 Tools under crossbeam)
Working Voltage AC380V/50Hz, 3PH
Operating System LNC 2200
Spindle Power 9KW HQD air cooling spindle
Inverter 11KW Inverter
Drive Motors Leadshine servo motors & drivers
Table Surface Vacuum Table Surface
Linear guide HIWIN Square Linear guide
Computer box Rittal
Limit switch Omron
Lubrication Semi-auto lubrication system
Sample & Application
Sample Application 1
Sample Application 2
Sample Application 3
Exhibition
Exhibition Show 1
Exhibition Show 2
Packaging & Delivery
Packaging Process
Loading & Delivery
Frequently Asked Questions (FAQ)
What materials can this CNC router machine process?
This machine is ideal for processing various materials, including wood (hardwood, MDF, plywood), plastics, acrylics, composite panels, and soft metals such as aluminum.
What are the advantages of the 12-tool Linear Automatic Tool Changer (ATC)?
The linear ATC system automatically switches between up to 12 different tools during operation. This eliminates manual tool changing time, enhances precision, and greatly boosts production efficiency.
How does the vacuum table and loading/unloading system work?
The vacuum table secures the workpiece in place using strong negative pressure, ensuring zero shifting during cutting. The automatic loading and unloading system facilitates seamless feeding and discharging of sheet materials, minimizing manual handling and labor costs.
Is the working area size customizable?
Yes, while the standard working area is 1300x2500x200mm, we offer customization options for the X, Y, and Z axes to fit your specific production demands.
What type of operating system and components are installed?
The machine is equipped with the robust LNC 2200 operating system, HQD air cooling spindle, Leadshine servo motors & drivers, HIWIN linear square guides, and Omron limit switches for high-end reliability and accuracy.
