Mini Desktop 6090 CNC Router Machine DSP Control System Single 3D Capabilities Motor 2.2kW Water Cooling 24000rpm Gear Pump High

1 / 5

Mini Desktop 6090 CNC Router Machine DSP Control System Single 3D Capabilities Motor 2.2kW Water Cooling 24000rpm Gear Pump High

Send Inquiry

Product Description

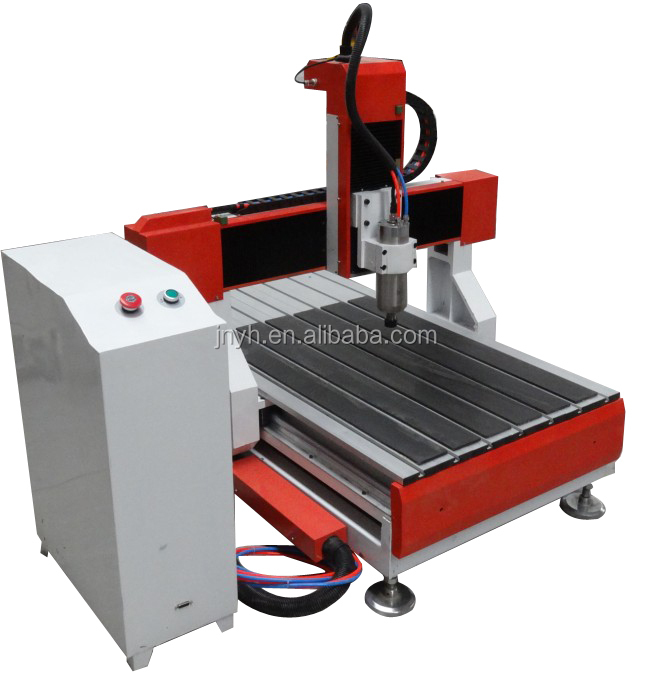

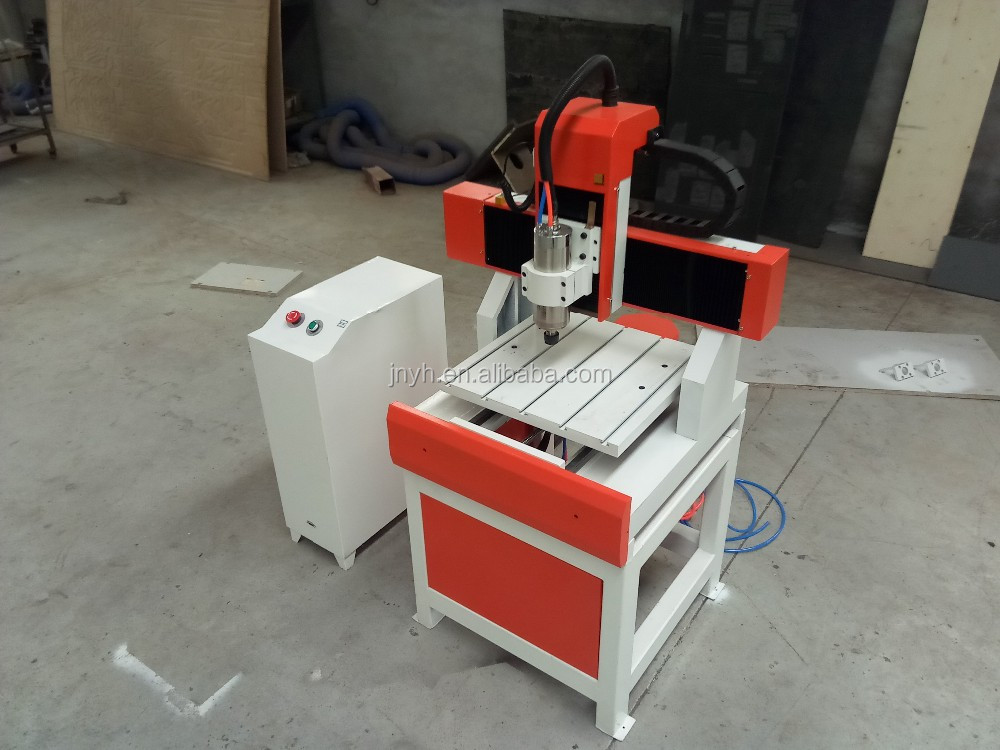

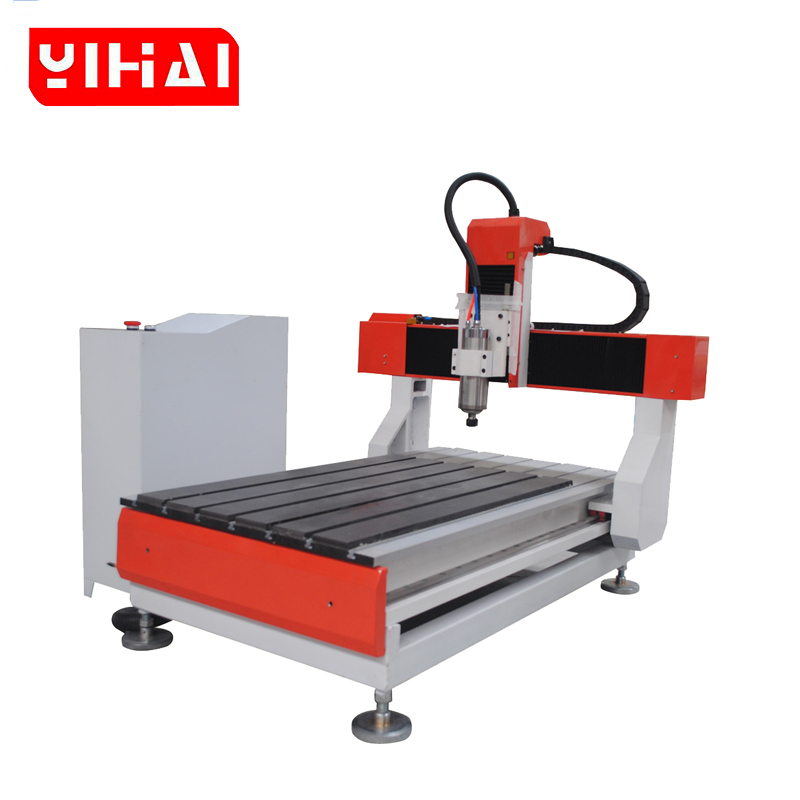

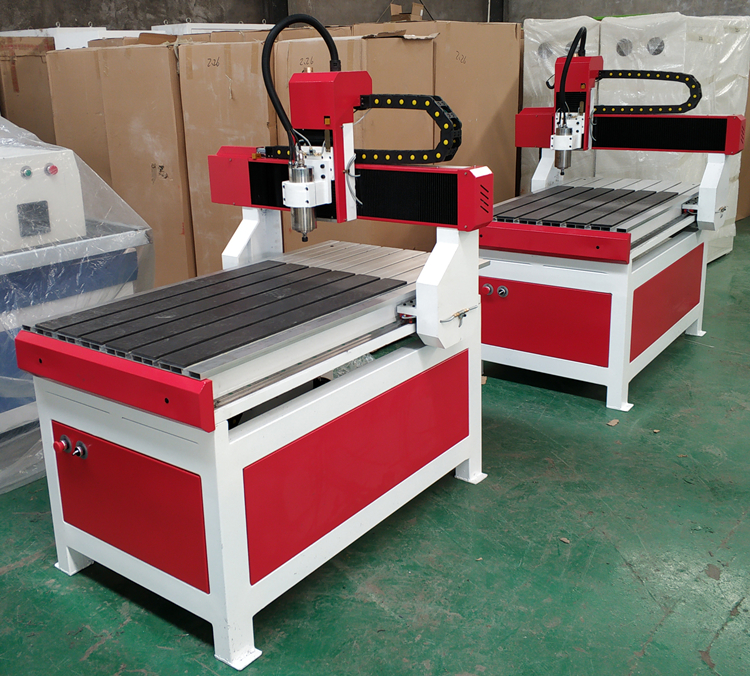

High Precision 6090 CNC Router Desktop Mini Lathes YH-6090 (600*900*100mm)

1. Applications of the 6090 CNC Router

Wood carving; Acrylic panel processing; advertising engraving and cutting; Aluminum panel, aluminium honeycomb plate cutting and drilling; large flat plate engraving; furniture processing; wood door making; windows making.

2. Features of 6090 CNC Router

High precision, low vibrations, stable running.
Cast iron table, strong enough.

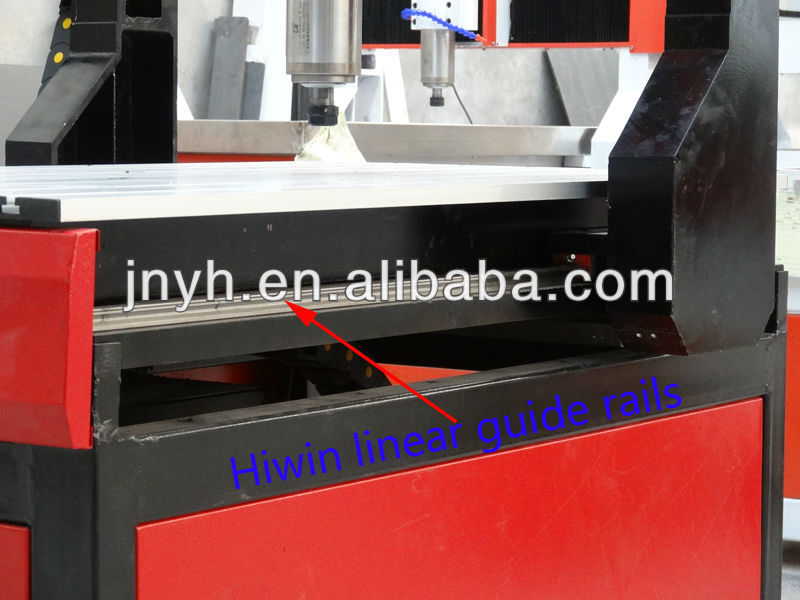

Imported Taiwan Hiwin HG series guide rails, double slippers, high precision.
Y axis adopts double motors, highly increasing the travelling speed.

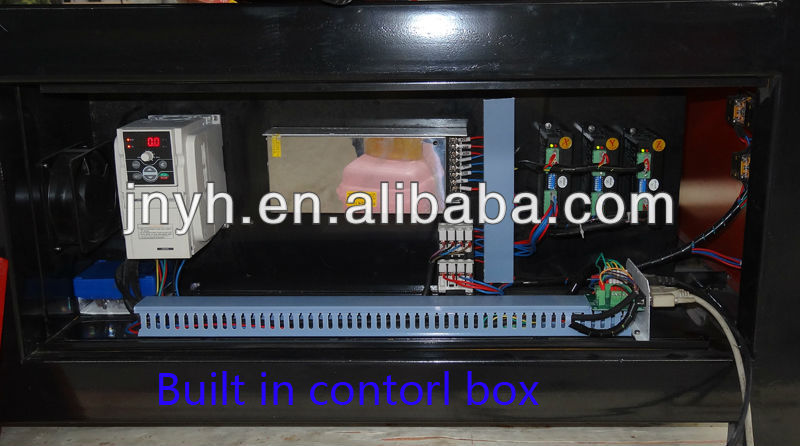

Advanced DSP control system with USB interface, easy to operate.

3. Technical Parameters of 6090 CNC Router

Parameter Description	Specification Details
MODEL	YH-6090
XY working area(mm)	600*900
Z working area(mm)	100
Table size(mm)	720*1150
Table holding type	By clamp
Operation system	DSP control system
Format support	G code
Software compatible	UcancamV9/Type3/Artcam/AutoCAD/JDpaint

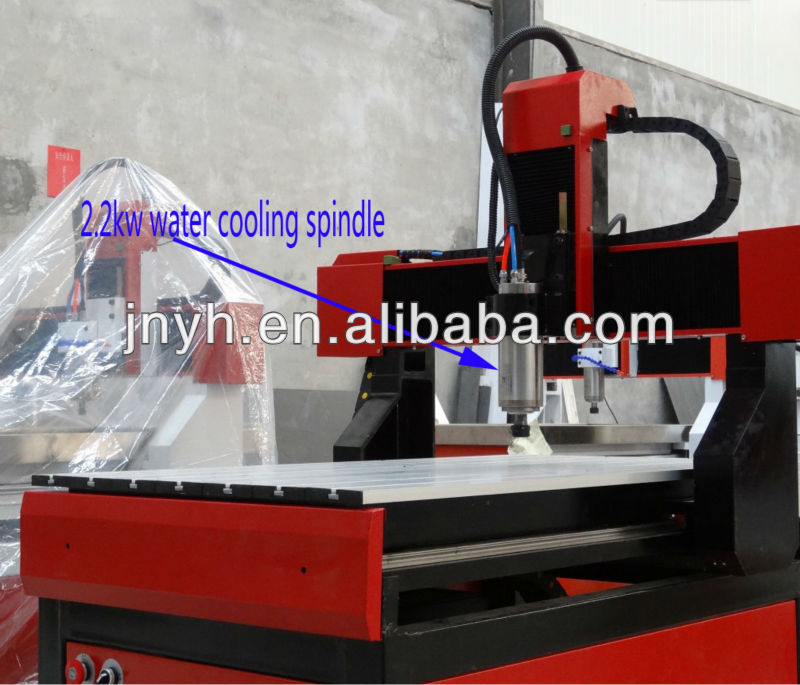

Spindle Power	2.2kw water cooling spindle
Cooling type	By water
Spindle speed	0-24000rpm
Driver	Leadshine stepper MA860H
Inverter	Sunfar
Gross Power	2500w
Power source	AC220±10%,50/60Hz
Gross weight	350 kg
Size	3CBM

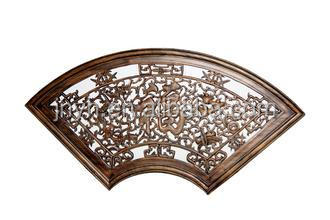

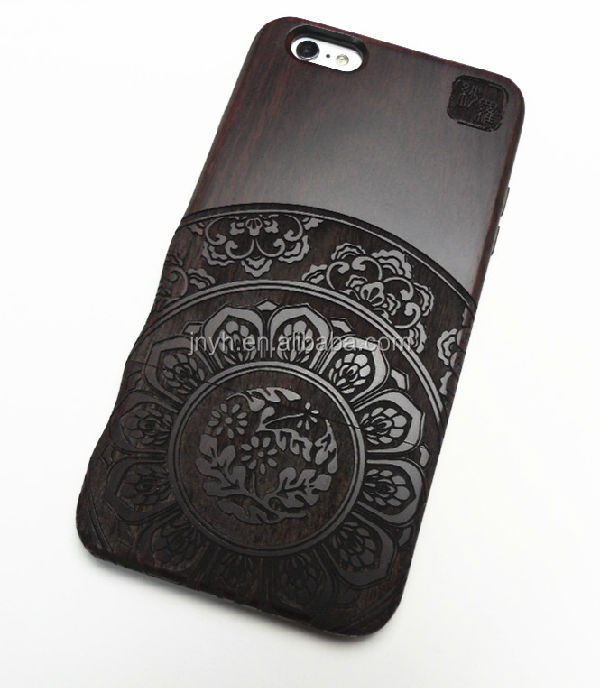

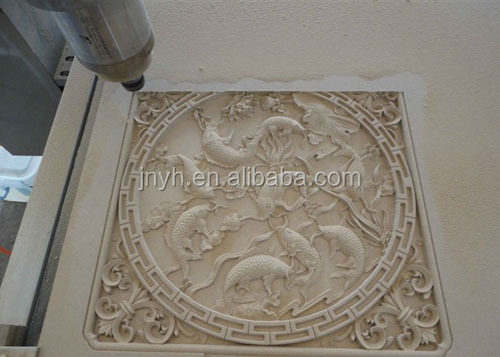

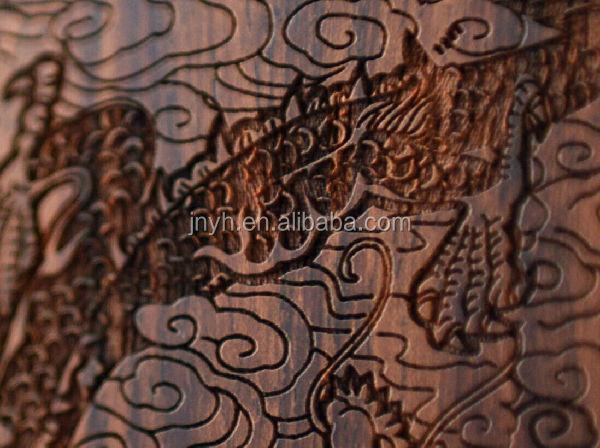

Work Samples

Packaging & Shipping

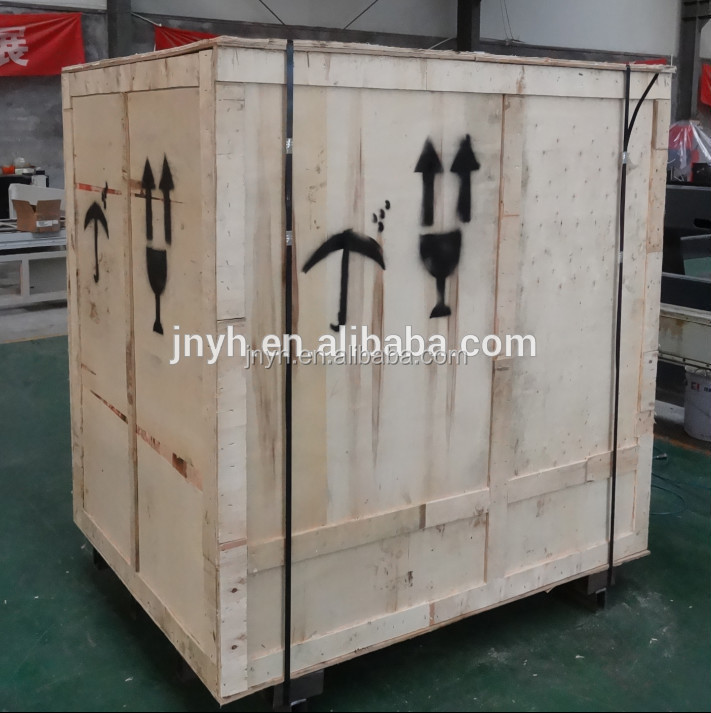

Packaged in one strong plywood case. Ocean shipping layout ensures safe delivery.

Certifications & Capabilities

We manufacture Plasma Cutting Machines - Automation available with tube cutting with Rail, Profile cutting systems and CNC cutting systems. Quotation on request.

Frequently Asked Questions (FAQ)

Q1: What materials can the YH-6090 CNC router process?

A1: The machine handles various materials, including wood, acrylic, PVC, advertising panels, aluminum panels, aluminum honeycomb plates, and materials for furniture, door, and window manufacturing.

Q2: What are the main features of the YH-6090 table construction?

A2: The router is constructed with a strong cast iron table to ensure high durability, low vibration, and maximum stability during high-precision tasks.

Q3: Which software packages are compatible with this desktop CNC router?

A3: It supports G-code format and is fully compatible with popular industry software such as Ucancam V9, Type3, Artcam, AutoCAD, and JDpaint.

Q4: What drive and control systems are used in this machine?

A4: The YH-6090 features an advanced DSP control system with a USB interface, a Leadshine stepper MA860H driver, and double motors on the Y-axis to significantly boost travelling speeds.

Q5: How is the spindle cooled, and what is its maximum speed?

A5: It utilizes a 2.2kW water-cooling spindle that runs efficiently up to a maximum speed of 24,000 rpm, keeping temperatures regulated during intense tasks.

Q6: What packaging standard is used for international shipments?

A6: To prevent damage during transit, the machine is packed inside one robust plywood case designed specifically for ocean shipping safety.
