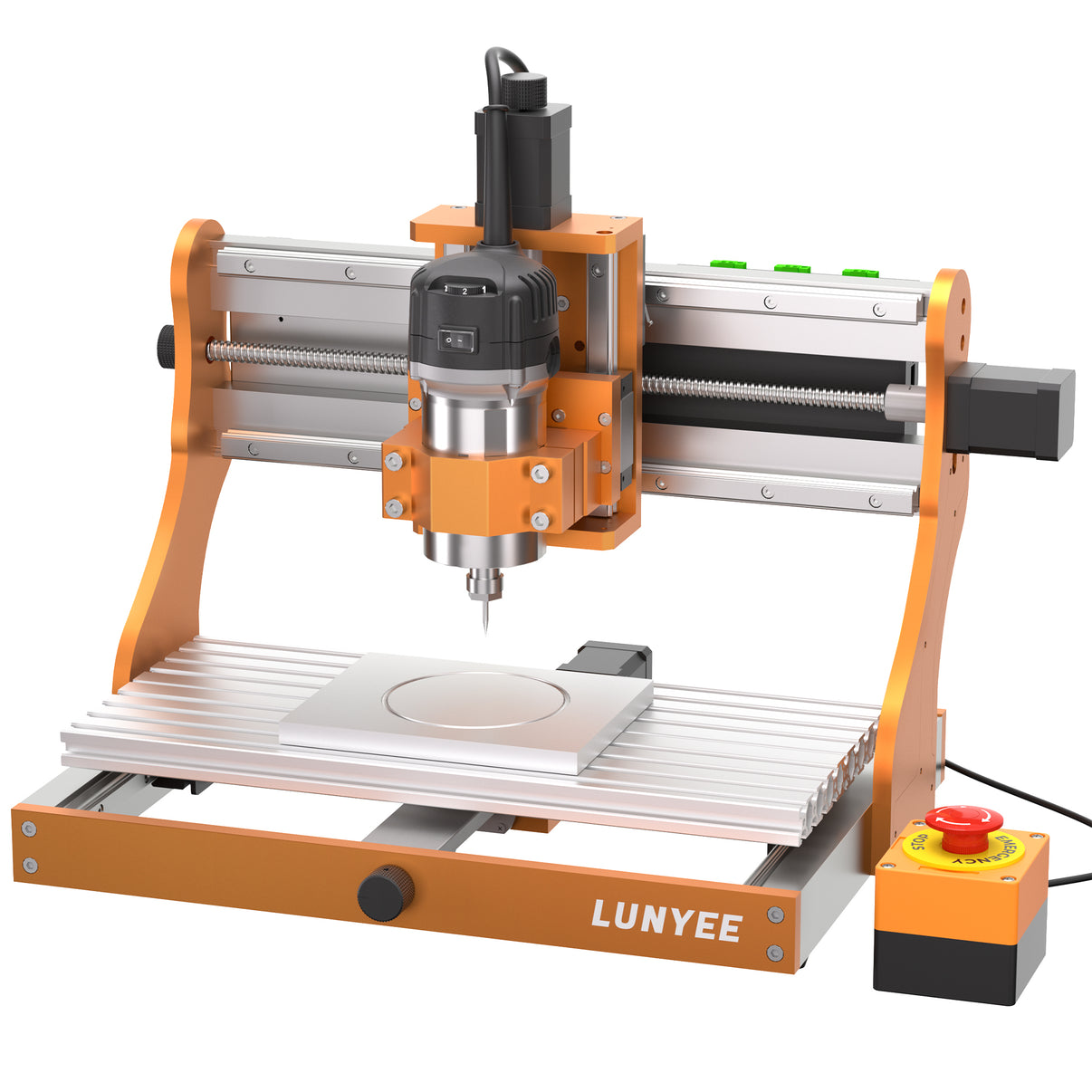

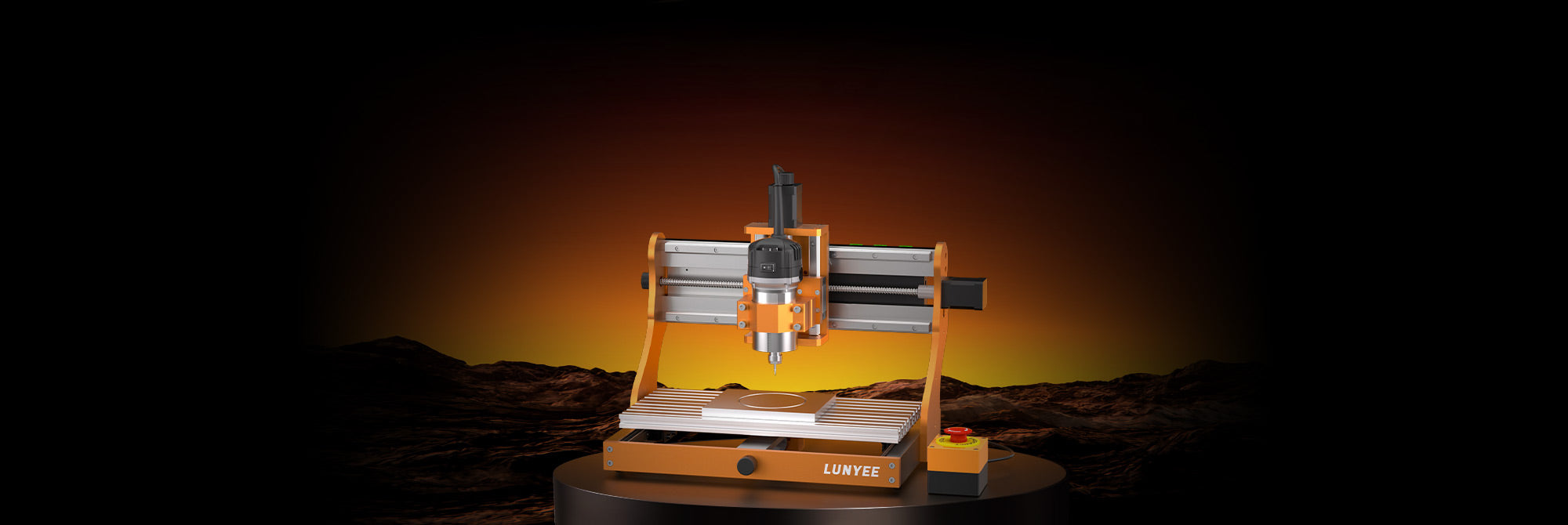

LUNYEE 3020 Nova Desktop CNC Router with 710W Trim Router Spindle for Wood Acrylic Aluminum Engraving and Milling

1 / 5

LUNYEE 3020 Nova Desktop CNC Router with 710W Trim Router Spindle for Wood Acrylic Aluminum Engraving and Milling

Send Inquiry

Product Description

Desktop CNC 3020 NOVA 10w Laser engraving Machine With 710w Spindle Motor CNC Router

Specification

Parameter	Specification
Voltage & Frequency	Input: AC100 - 240V 50/60Hz; Output: DC48V, 10A
X/Y/Z - axis Stepper Motors	NEMA17 60mm 2.3A, 0.89Nm torque
Maximum Spindle Power	710W ±10%; 10000 - 30000RPM
Effective Working Area	30020080 (11.8" x 7.8" x 3.15")
Product Software	All software that supports Grbl f1.1 firmware
Computer Connection Method	USB serial port connection
Limiting Method	X, Y, and Z limit switches
Emergency Button	Yes
Max Speed	X/Y/Z axes: 5000 mm/min ±10%
Axis Function	3 - axis engraving
Assembly Method	Factory pre - assembled
Maximum Noise Level	≤95dB
Accuracy	±0.05mm
Wire Harness protection	Braided mesh tube
Motion System	Dual HG15 Linear Guides & Ball Screws
Exterior Materials	6061 aluminum alloy; anodized finish
Net Weight	20 kg (including all accessories)
Dimensions	393520383 mm

Product Details

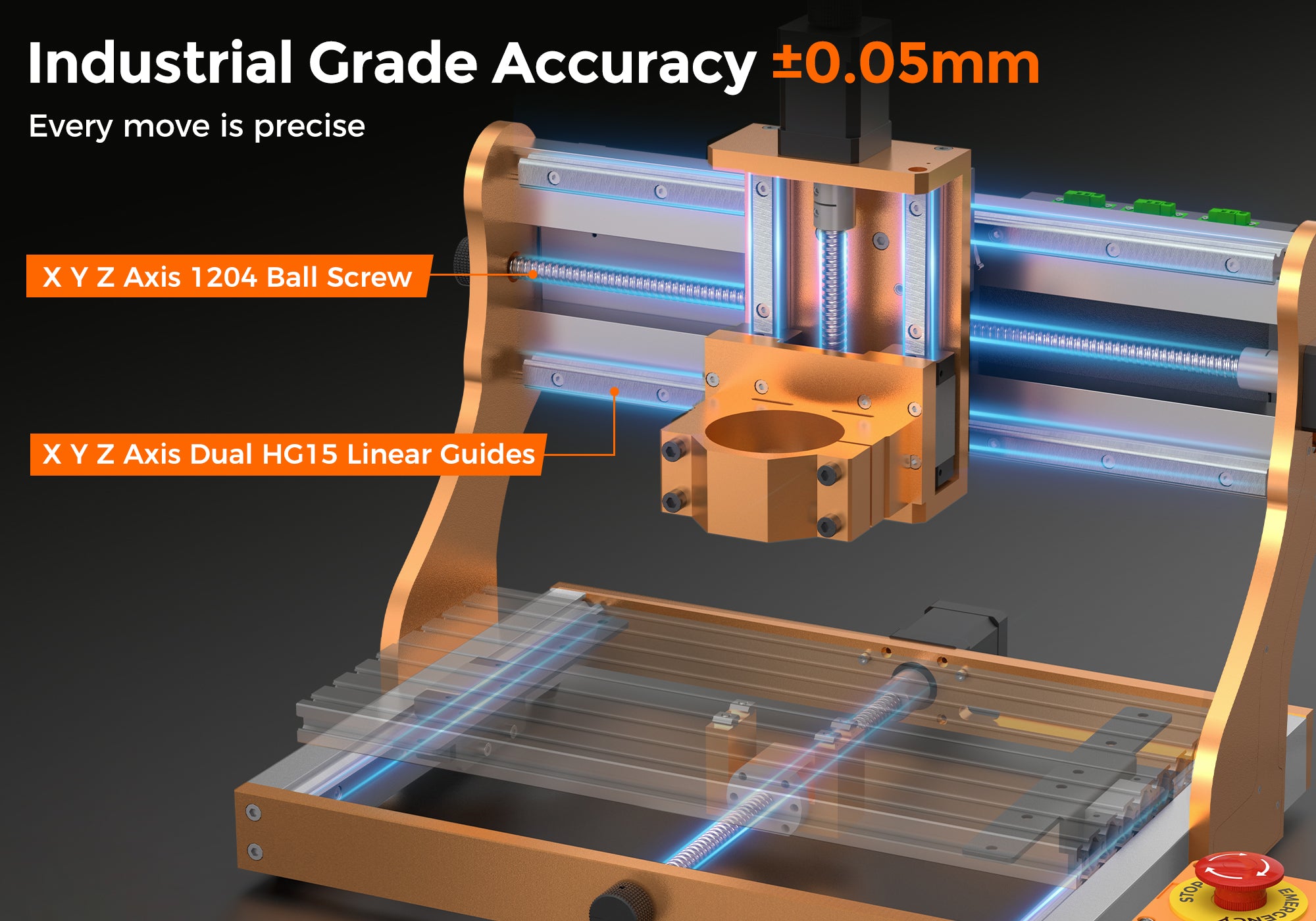

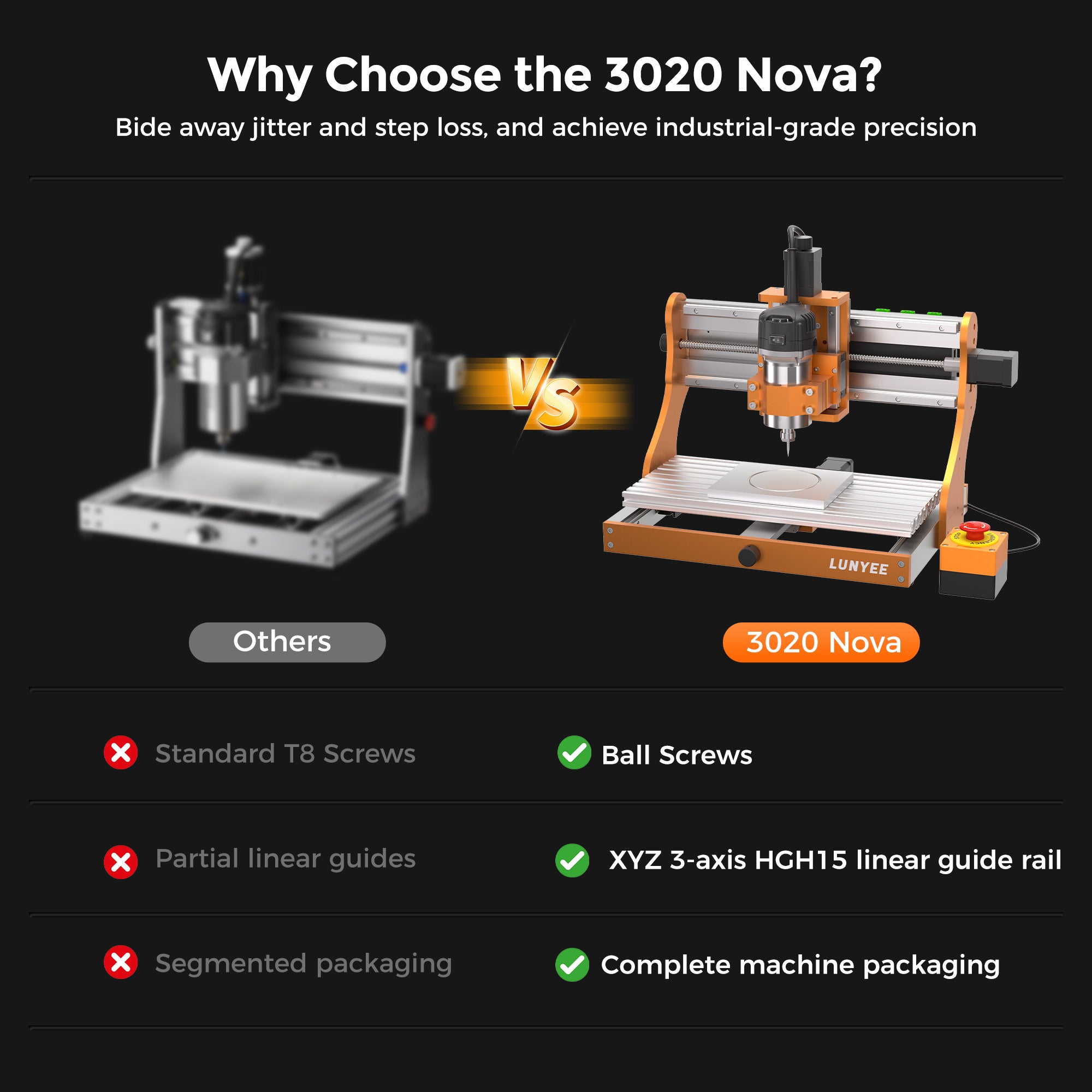

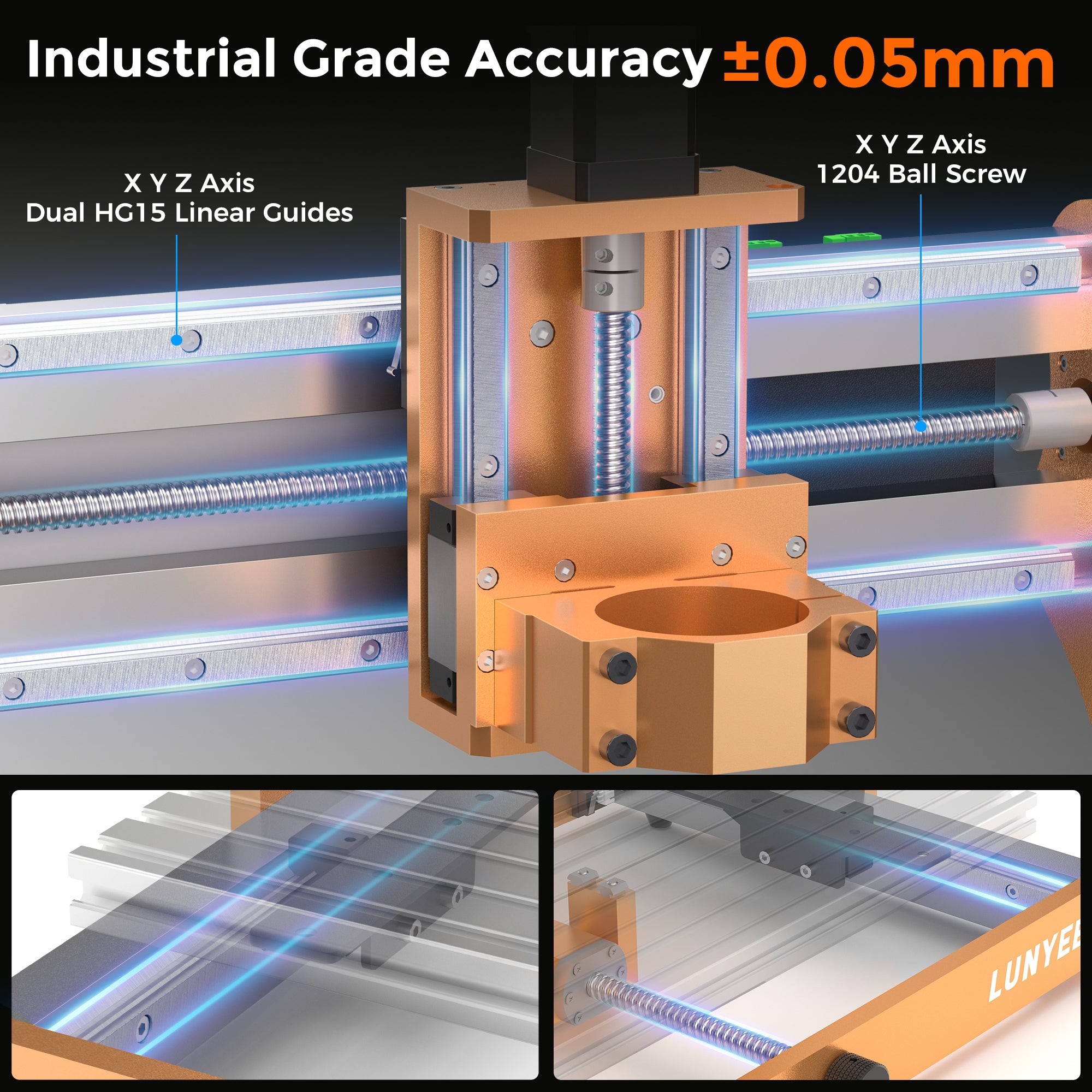

Engineered for Precision

The 3020 Nova features an industrial-grade drive system, each axis (X, Y, Z) is equipped with 1204 ball screws and HG-15 linear guides that eliminate backlash, ensuring every engraving is perfectly precise. The max movement speed can reach 5000mm/min, and the accuracy is ±0.05mm.

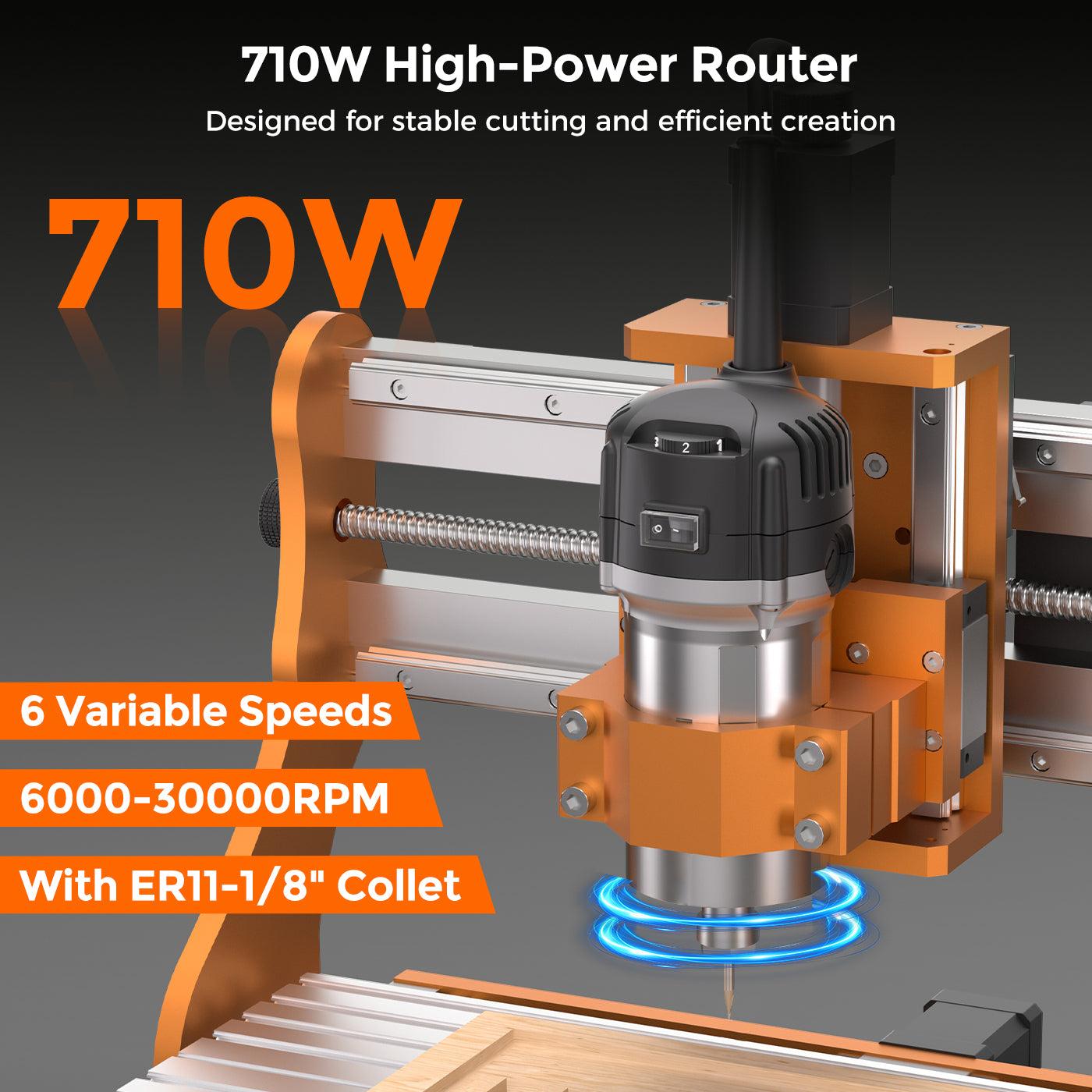

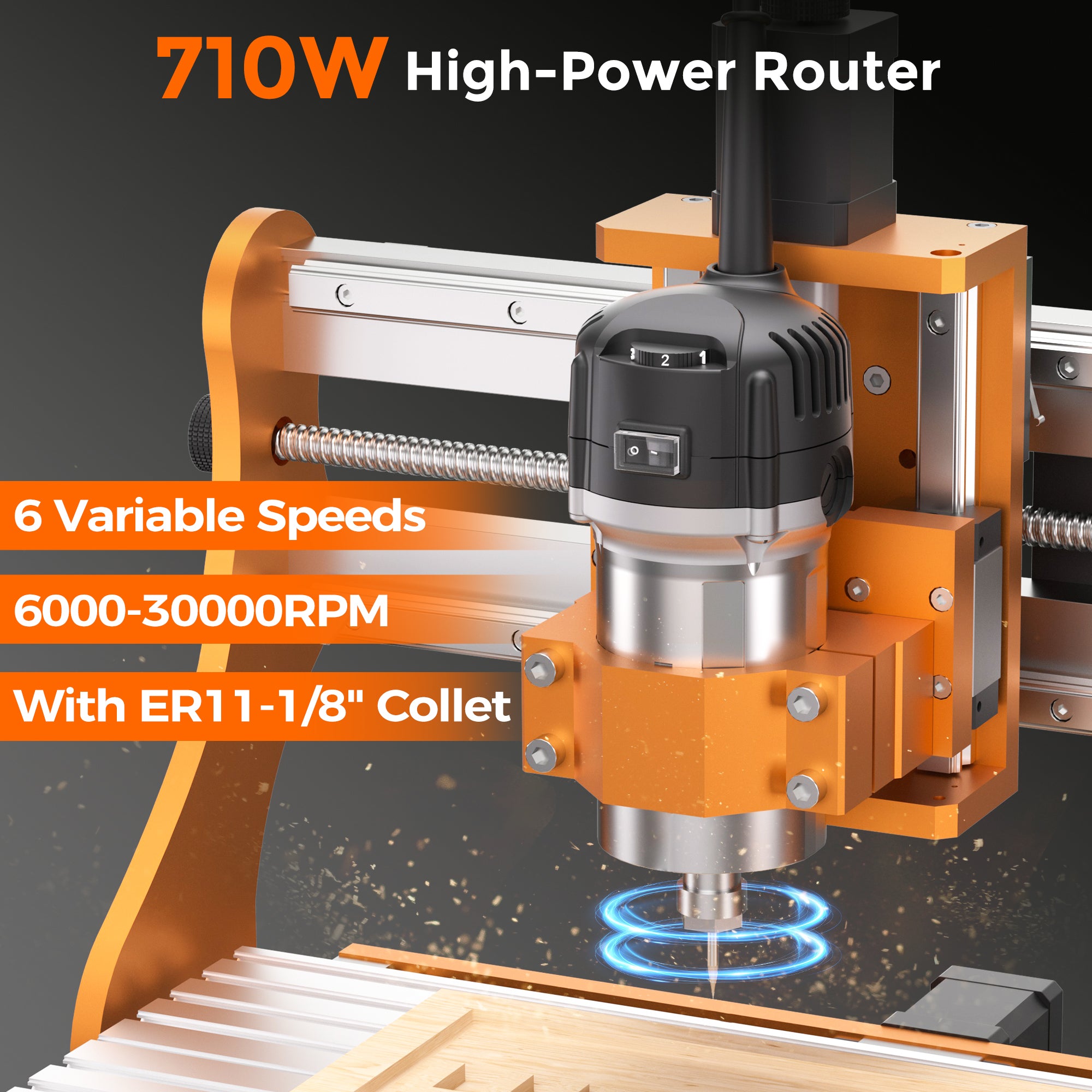

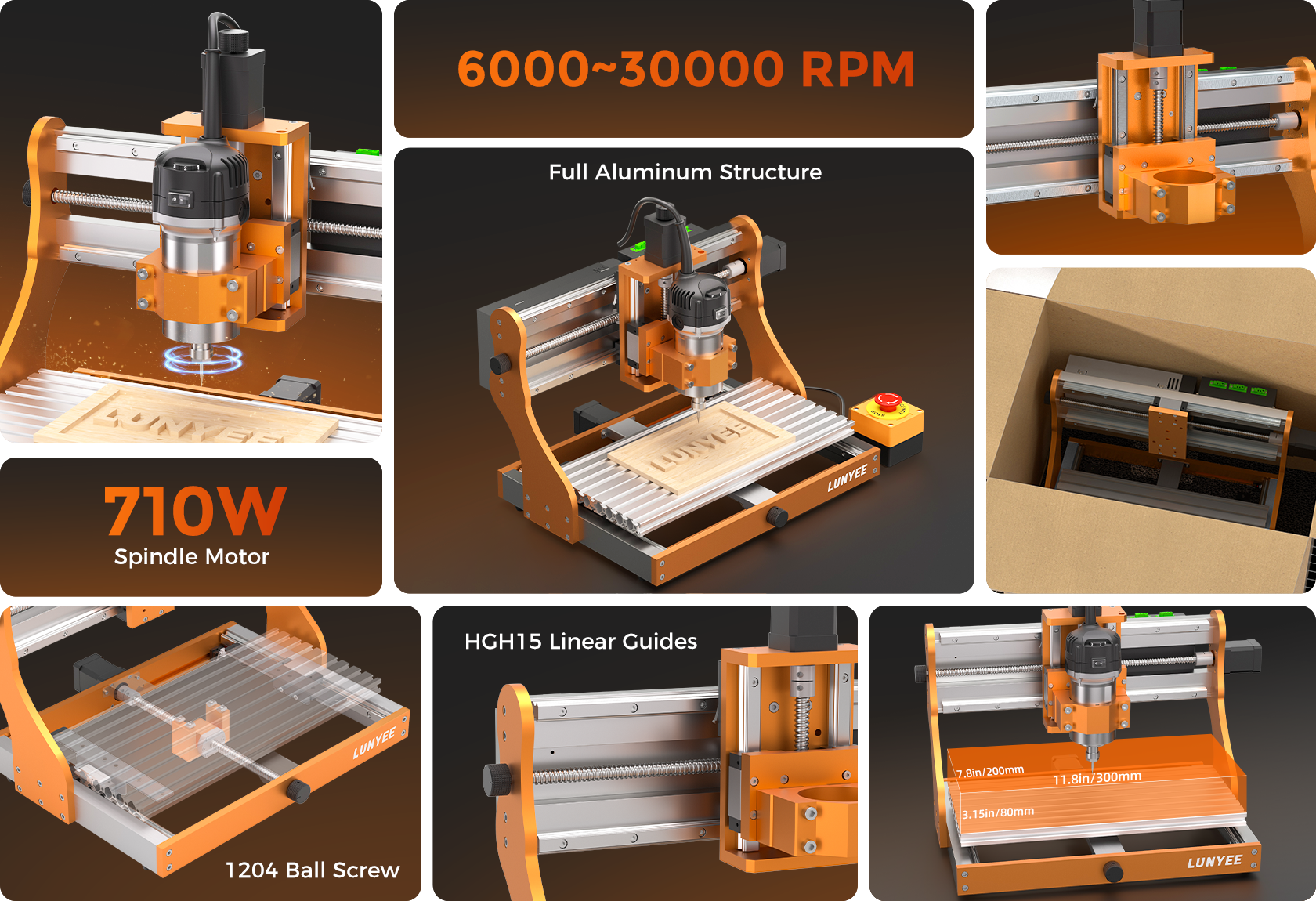

710W Spindle

An all-metal frame provides superior durability, enhanced stability, and reliable performance over time. The 3020 Nova is equipped with a 710W spindle, from solid wood, to metal, acrylic, carbon fiber, and beyond—the spindle handles it all with ease. With a 6000–30,000 RPM range, six speed settings, and constant torque control, the spindle ensures stable and accurate performance.

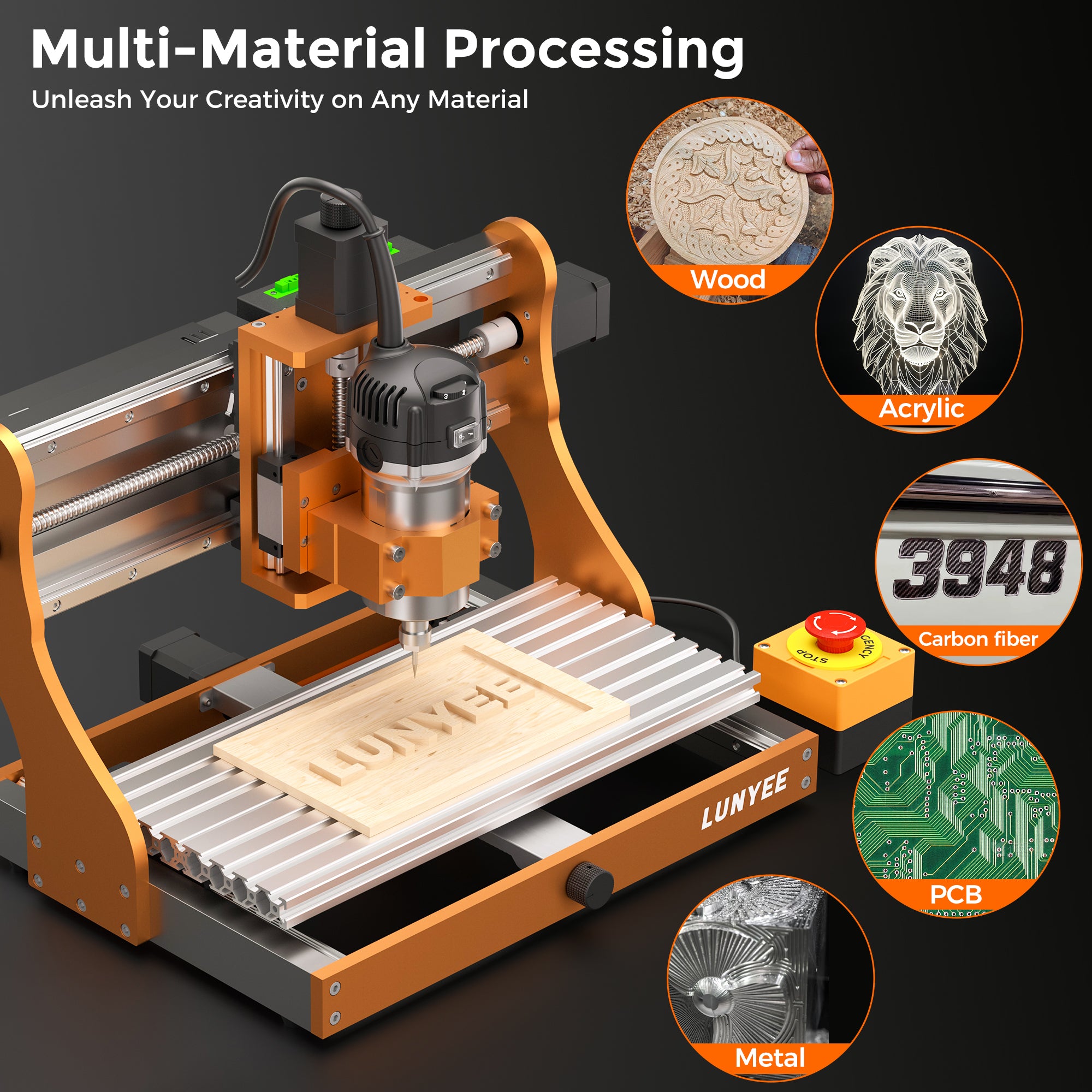

Unleash Boundless Creativity for All Material Applications

The 3020 Nova isn’t just a tool—it’s your gateway to turning abstract ideas into tangible reality, no matter the material in front of you. Whether you’re craving to carve intricate patterns into smooth metal, etch warm textures onto natural wood, shape sleek designs from clear acrylic, create precise circuits on PCB boards, or add delicate details to soft leather, this machine handles it all with ease. From rigid metals to flexible fabrics, from industrial-grade PCBs to handcrafted leather goods, the range of materials is endless.

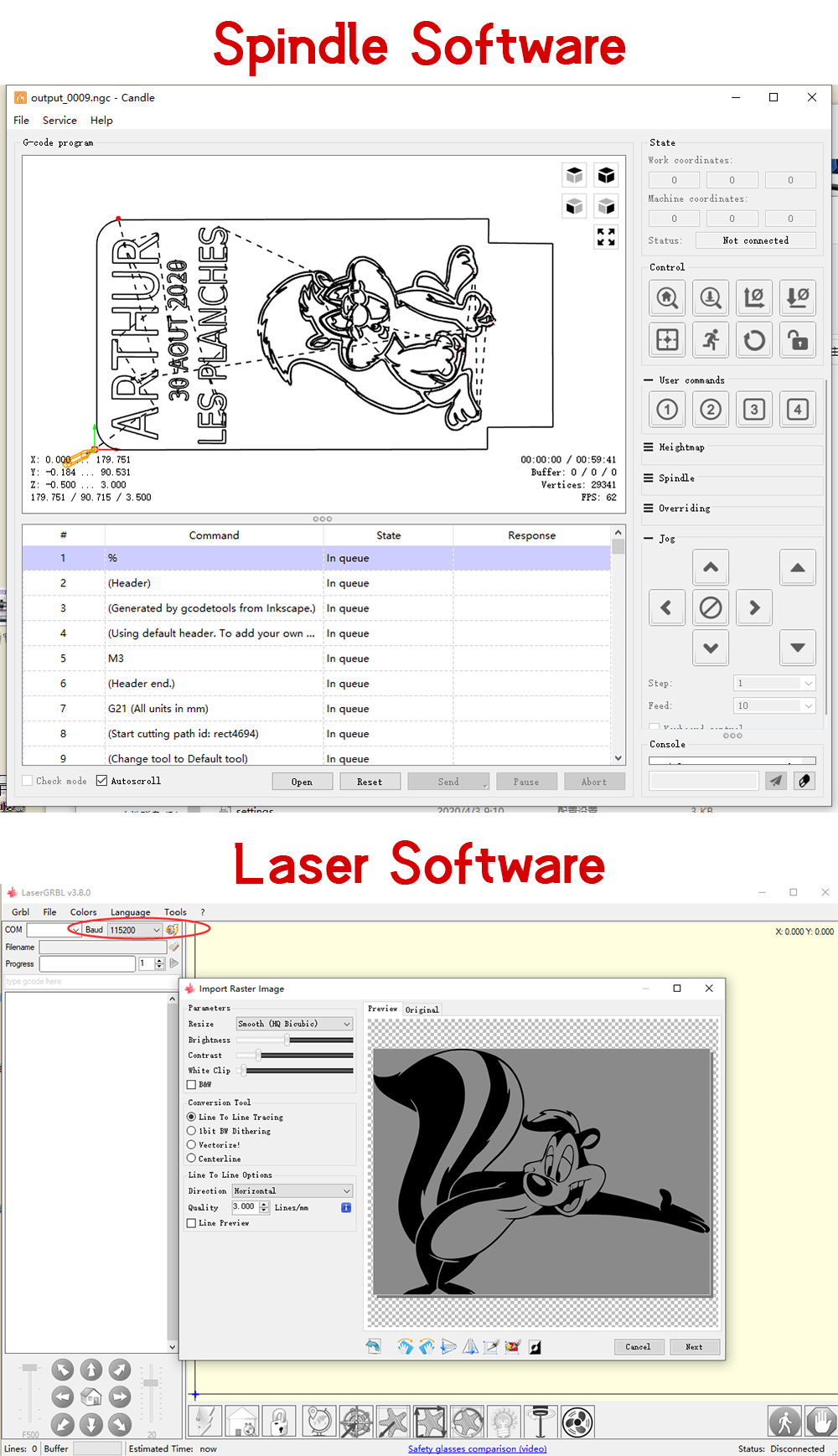

Wide Software Support

The 3020 NOVA works flawlessly with all software that runs on GRBL firmware: use Fusion 360 for complex 3D designs, Easel for quick and easy project setups, or Candle and UGS for real-time control and adjustments. For laser applications, it’s fully compatible with LaserGRBL and Lightburn, giving you the flexibility to fine-tune settings for different materials. This compatibility means you don’t have to learn new software or compromise on your process.

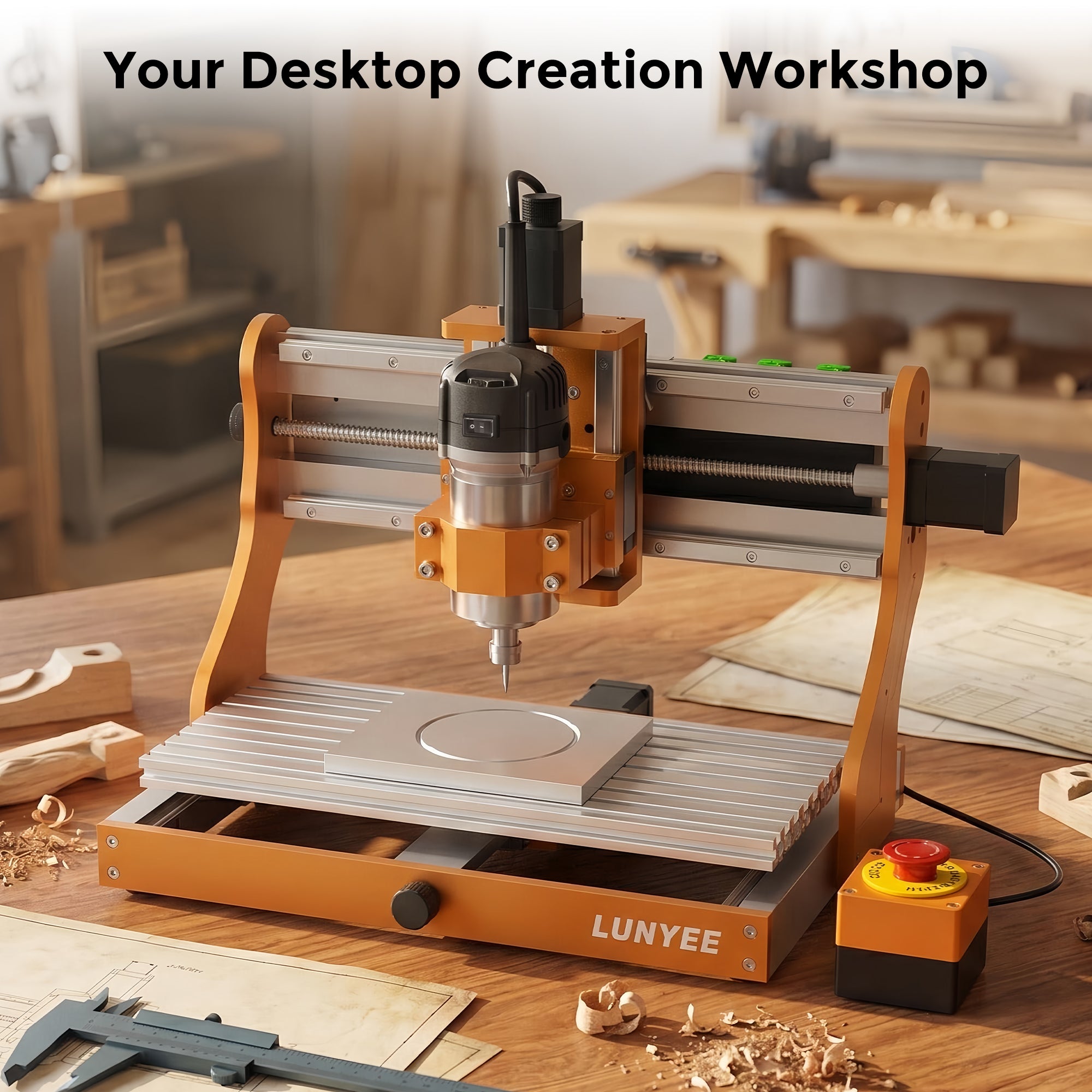

Versatile & Powerful

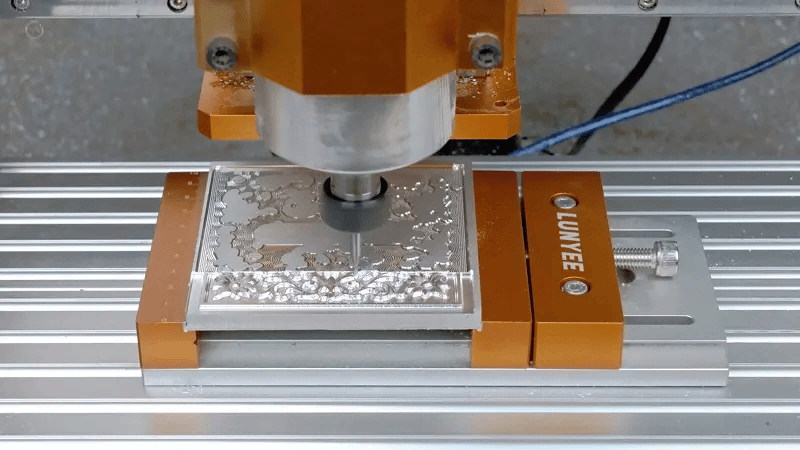

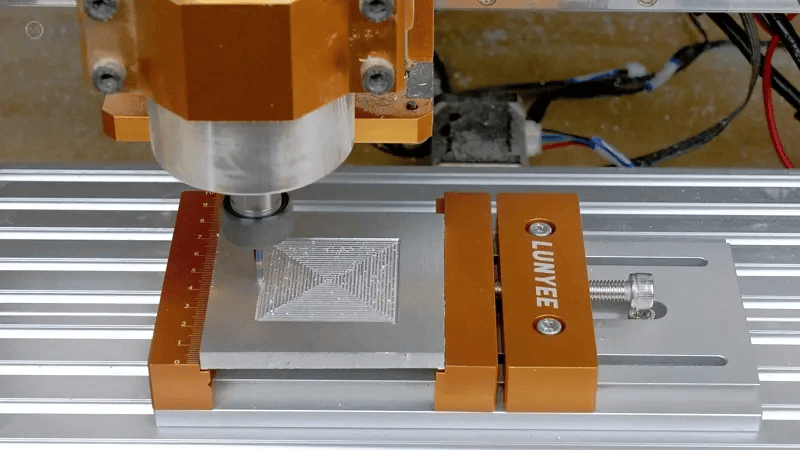

Designed for hassle-free desktop creation, the 3020 Nova combines versatility and power in one. It lets you choose 5.5W/10W laser modules (Optional) without complex modifications—no need to buy separate machines for different tasks. The 5.5W is perfect for everyday engraving, while the 10W tackles tougher cutting jobs. It also pairs smoothly with a 20×10 cm CNC vise (Optional) designed to fit most desktop workpieces to keep materials stable.

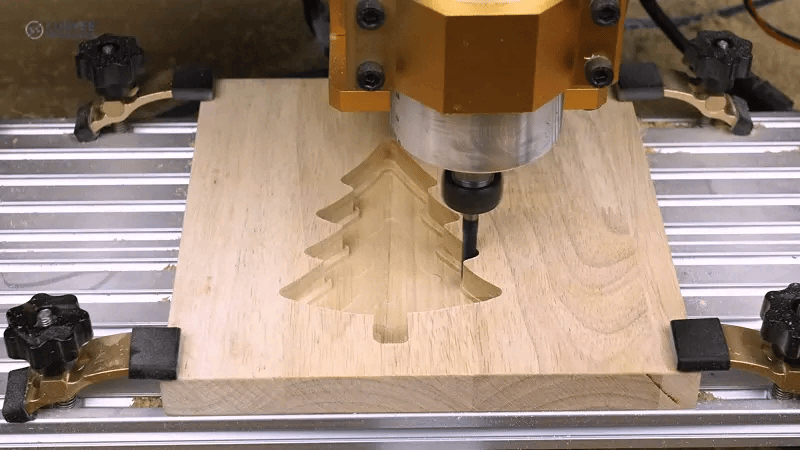

Successful Effect

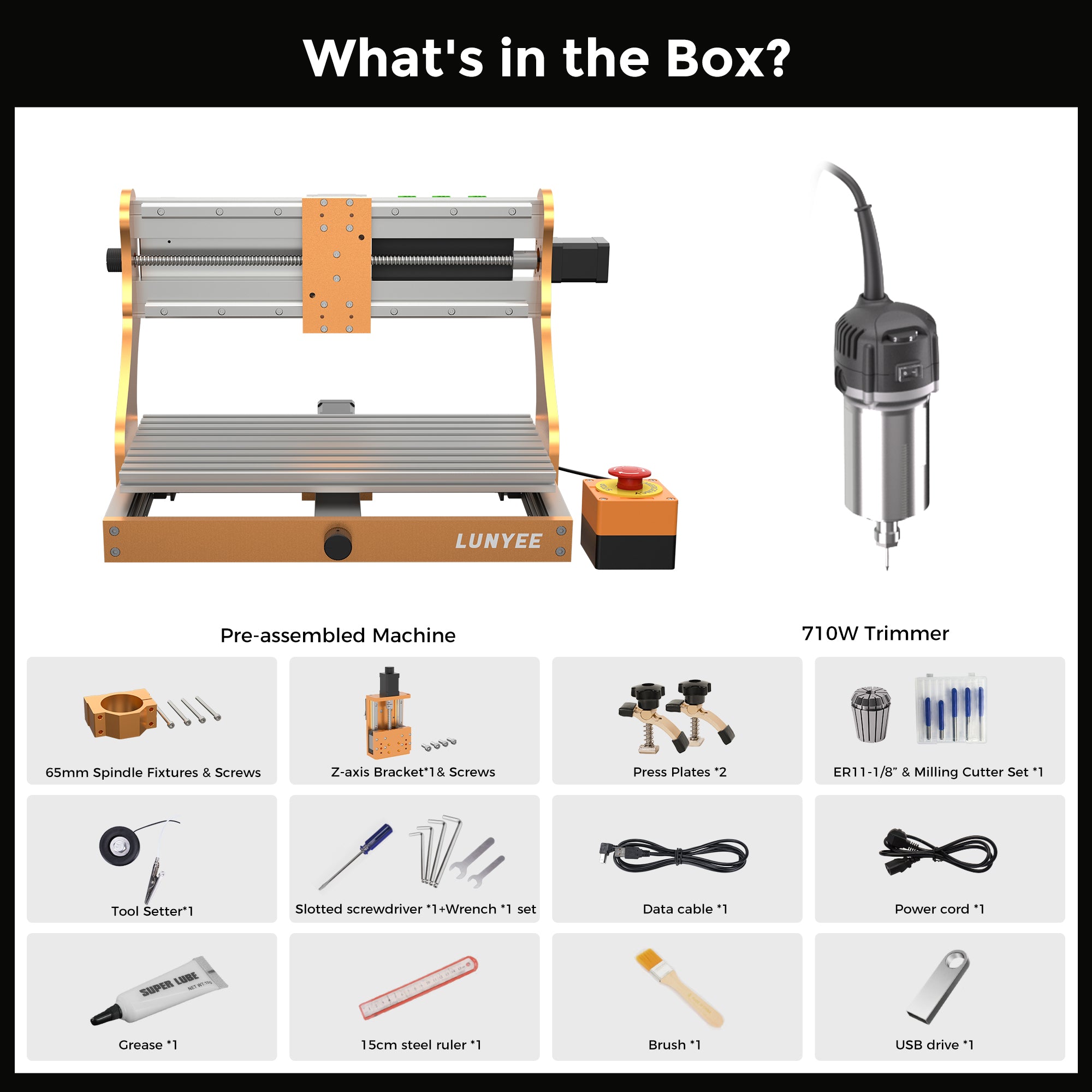

Packing

Frequently Asked Questions

What is the working area and maximum speed of the 3020 Nova?

The effective working area is 300*200*80 mm (11.8" x 7.8" x 3.15"). The maximum movement speed reaches up to 5000 mm/min with an accuracy of ±0.05mm.

What software programs are compatible with this machine?

The machine is fully compatible with all software running on GRBL firmware. For design and control, you can use Fusion 360, Easel, Candle, and UGS. For laser engraving and cutting, it supports LaserGRBL and Lightburn.

Does the machine support both CNC routing and laser engraving?

Yes, the machine acts as a versatile desktop creator. It is equipped with a 710W spindle motor for heavy-duty CNC routing and seamlessly supports optional 5.5W/10W laser modules for dual-purpose task handling.

What shipping options are available for delivery?

Standard shipping methods including DHL, FedEx, and sea freight are widely available for delivery.

What are the standard payment terms for placing an order?

We accept standard payment methods such as T/T and PayPal. Typically, a 30-50% deposit is required to start production, and the remaining balance is paid before shipping.

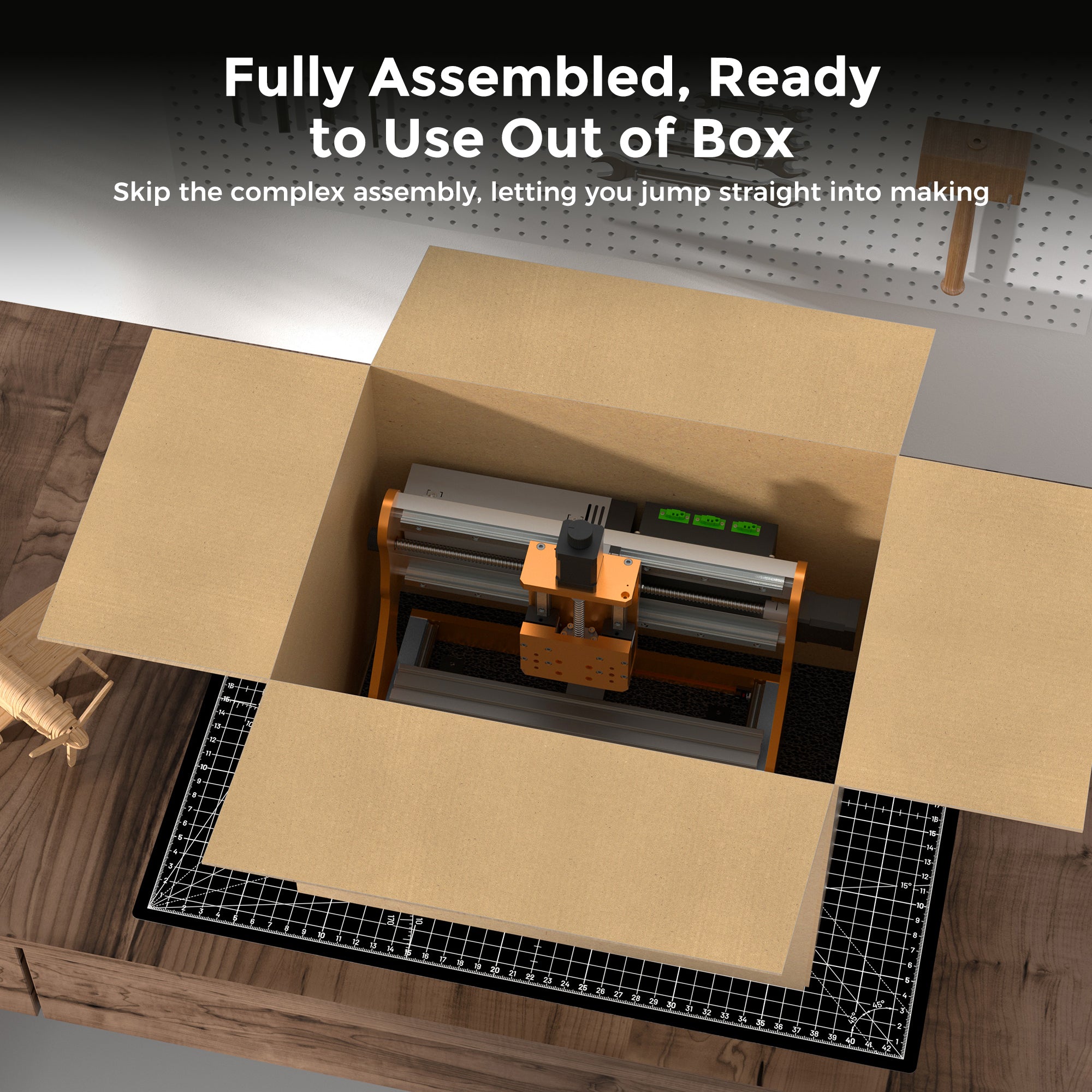

Does the 3020 Nova CNC router come pre-assembled?

Yes, the machine is factory pre-assembled, allowing for a fast setup and minimizing installation errors before your first project.
