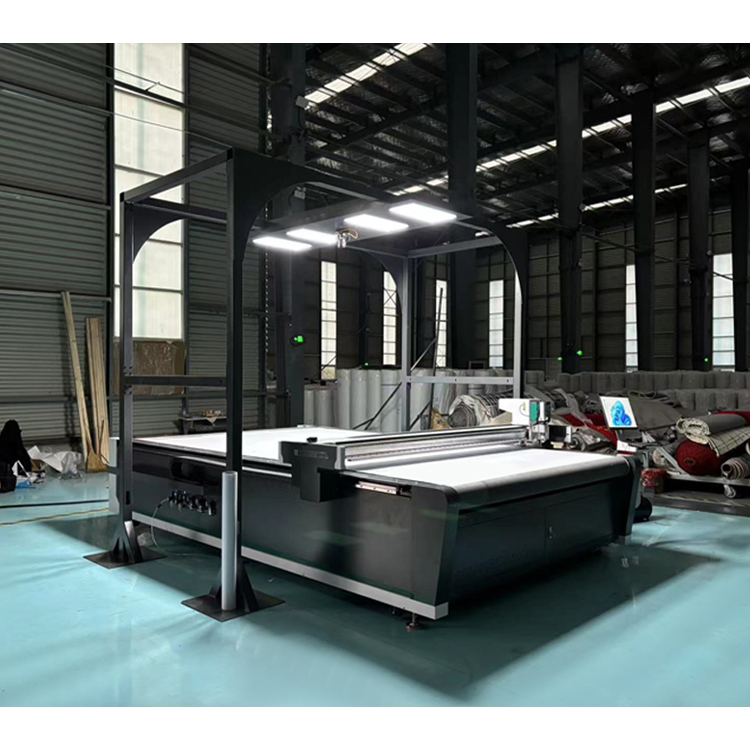

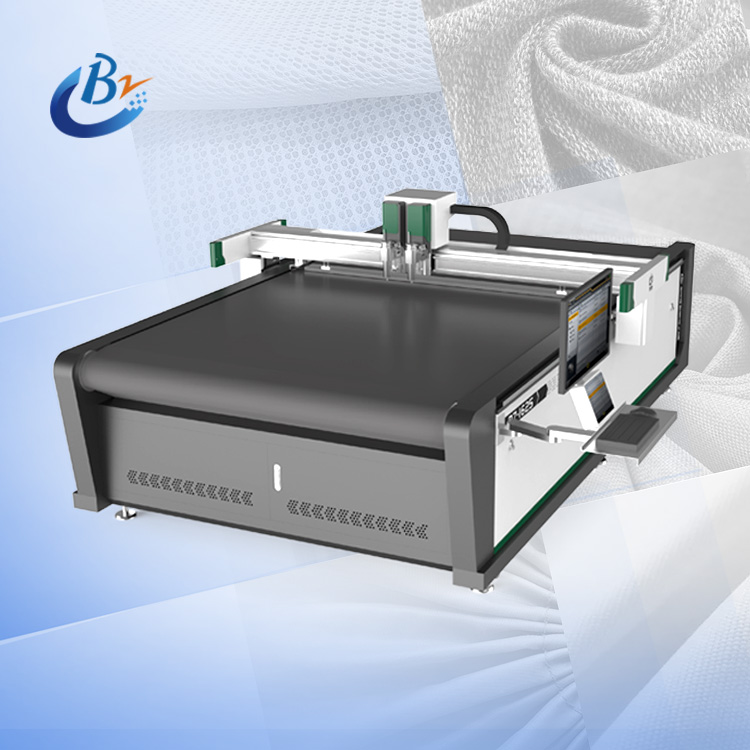

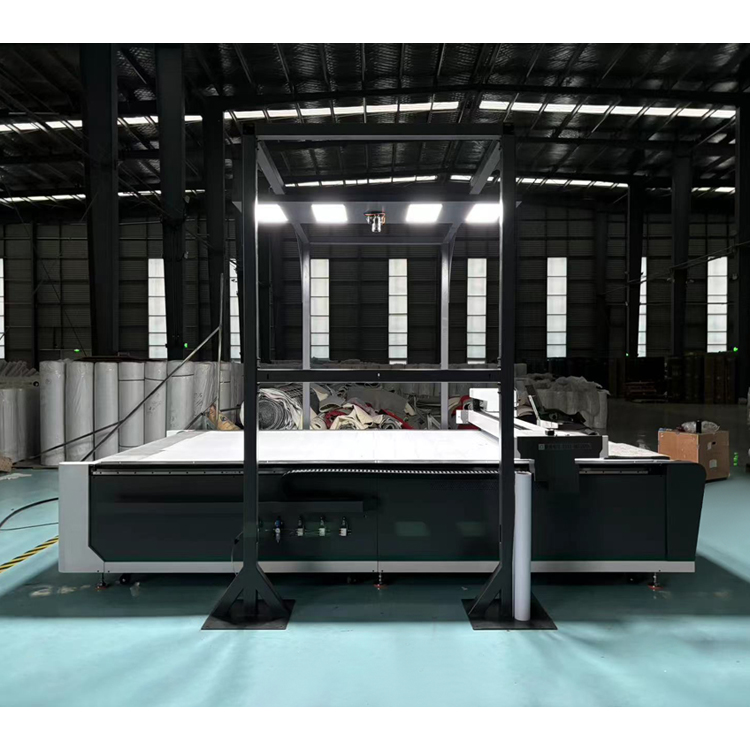

Industrial Automatic Feed CNC Fabric Textile Cutting Machine Of Mass Production Solution

1 / 5

Industrial Automatic Feed CNC Fabric Textile Cutting Machine Of Mass Production Solution

Send Inquiry

Product Description

Product Parameters

Model	BZ-SQ1625 (Size can be customized)
Effective working area	1600x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power round knife

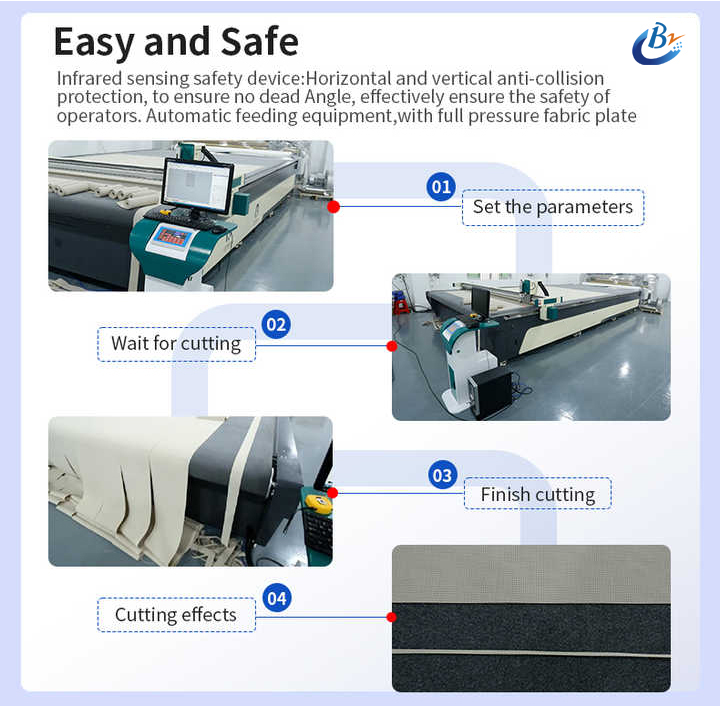

Safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Fabric/ Cardboard/ Paper/ Mats/ PVC/ EVA/ Leather/ Acrylic/ Foam/ XPE, Etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Panasonic servo motor, linear linear guide, timing belt, lead screw
Rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI, PLT, DXF, CDR, etc

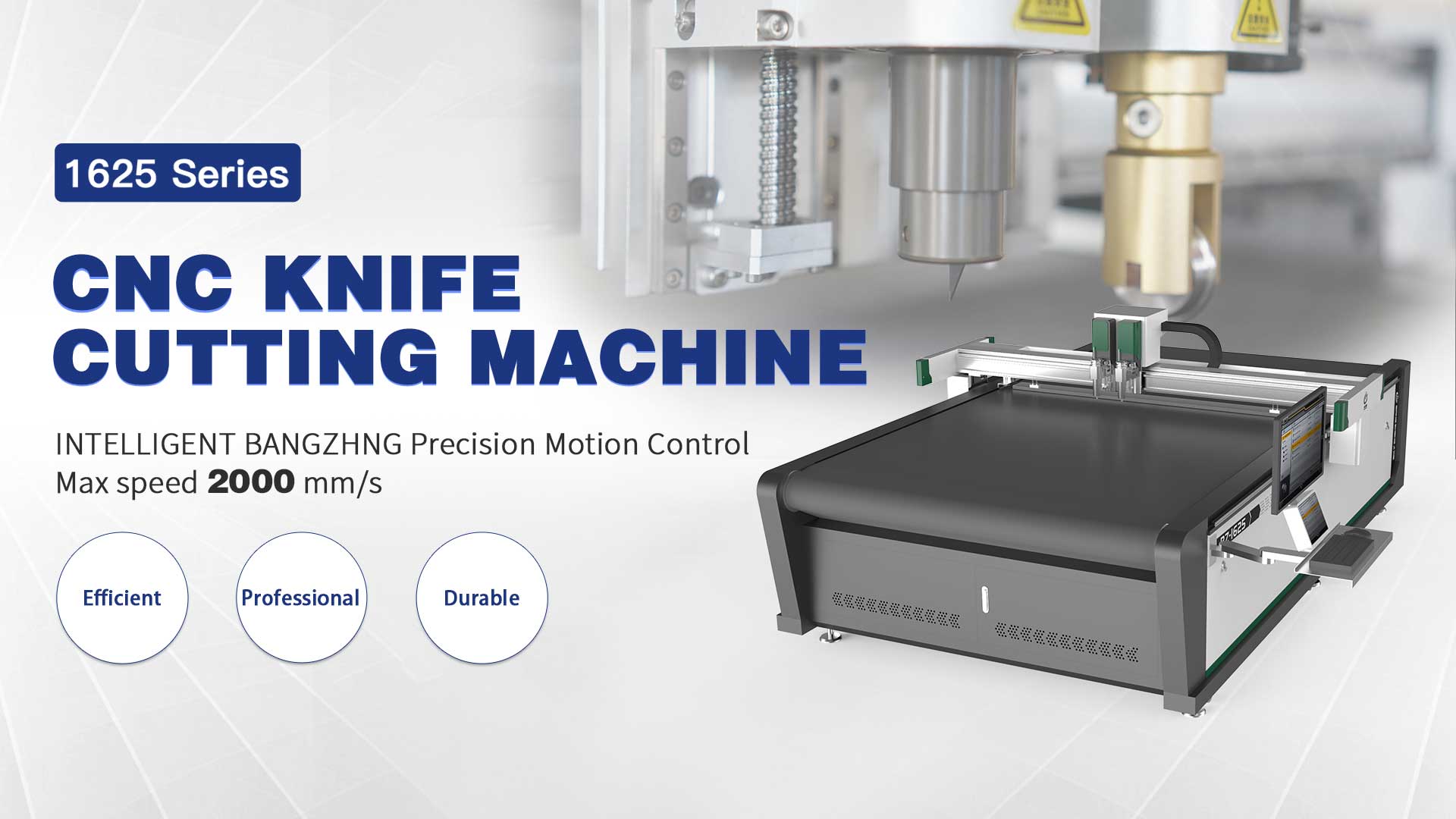

APPAREL AND TEXTILE AUTOMATIC CNC KNIFE CUTTING MACHINE

Products Description

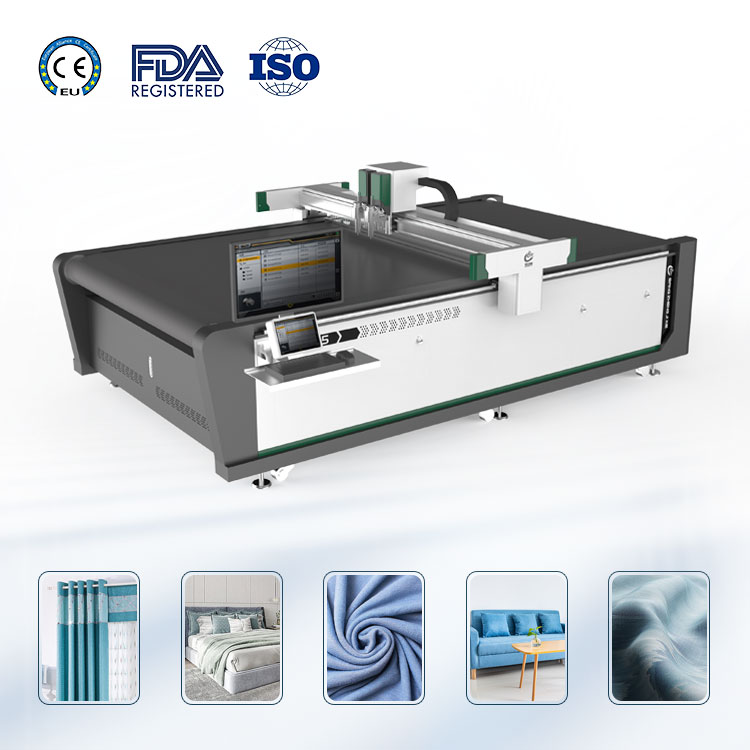

Automatic CNC knife cutting machine application

Automatic CNC knife cutting machine features:

Intelligent graphic layout software, it can achieve any shape you want to cut, material utilization rate 98%.
High speed and quality, capable of achieving a cutting speed of 1.5 m/s, completely liberating manpower.
Smooth cutting without burrs, no pollution and no noise.
High precision of cutting shapes and control cutting errors within 0.1mm.
For cutting different materials, 8 types of heads are available.

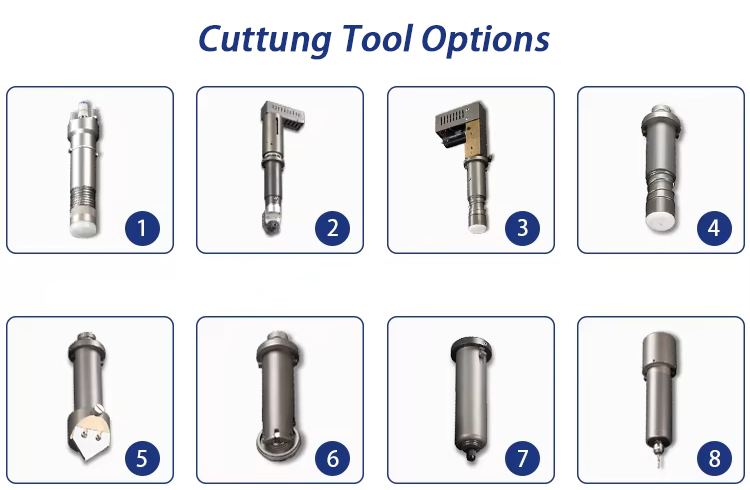

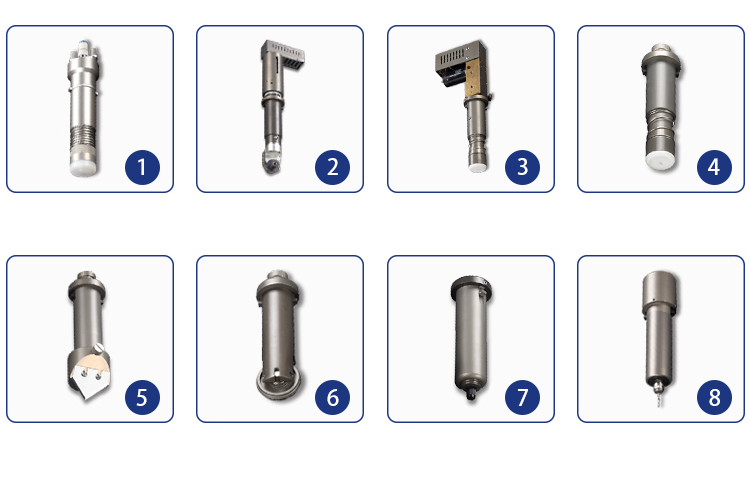

High-Performance Cutting Tools

1. BZ-POT

High frequency pneumatic cutting tool for cutting hard and dense materials, the blade can cut materials up to 50 mm thick.

2. BZ-PRT

Powerful Driven Rotary Tool for cutting textiles.

3. BZ-EOT

Oscillating knife for cutting soft and medium-density materials.

4. BZ-UCT

Universal cutting tool for high-speed, cost-effective cutting of materials up to 5 mm thick.

5. BZ-VCUT

The V-cutting tool is ideal for making complex structural designs of foam core or sandwich panel materials. The tool can be set to different cutting angles of 0°, 15°, 30°, 45°.

6. BZ-CTT

CTT tools for creasing corrugated materials. For use in the packaging industry.

7. BZ-KCT

Kiss Cut Tool, for cutting vinyl, foil, films, thin paper, cardboard and other thin materials.

8. BZ-RZ

The router operates at speeds up to 60,000 RPM, and delivers solid performance on a wide range of rigid and flexible materials.

Applicable Materials

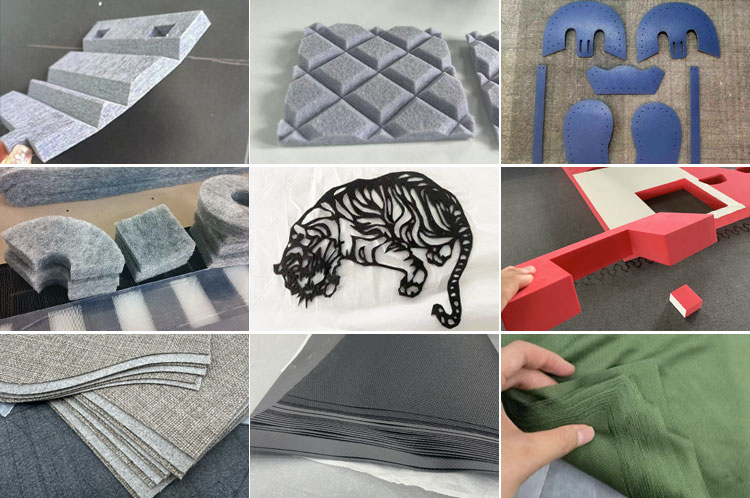

Cut finished product

Garment Fabric CNC vibrating knife Cutting Machine

Our fabric cutting machines are known for their exceptional versatility and can easily handle a variety of fabric types, thicknesses and densities. The machine is popular for its ability to accurately cut fabrics of complex shapes, patterns or designs, whether it is a delicate pattern or a large design, it can easily handle it.

In industries that require high-quality and precise cutting, its unique safety, stability, speed and accuracy ensure that every cut meets the highest standards. Not only that, it also has powerful functions such as strip, grid and pattern alignment, cutting net collars, cutting linings and secondary precision cutting.

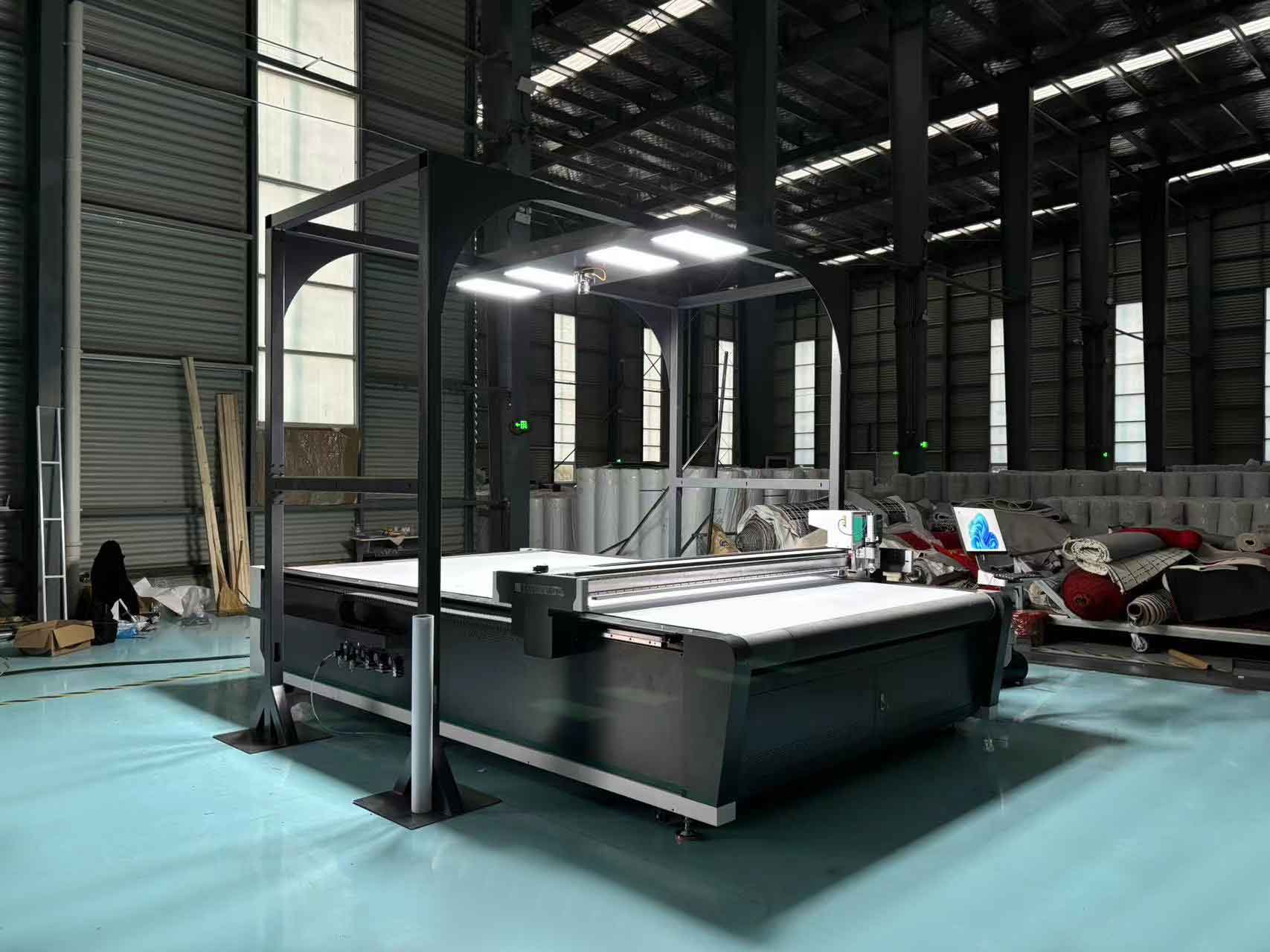

Product details information

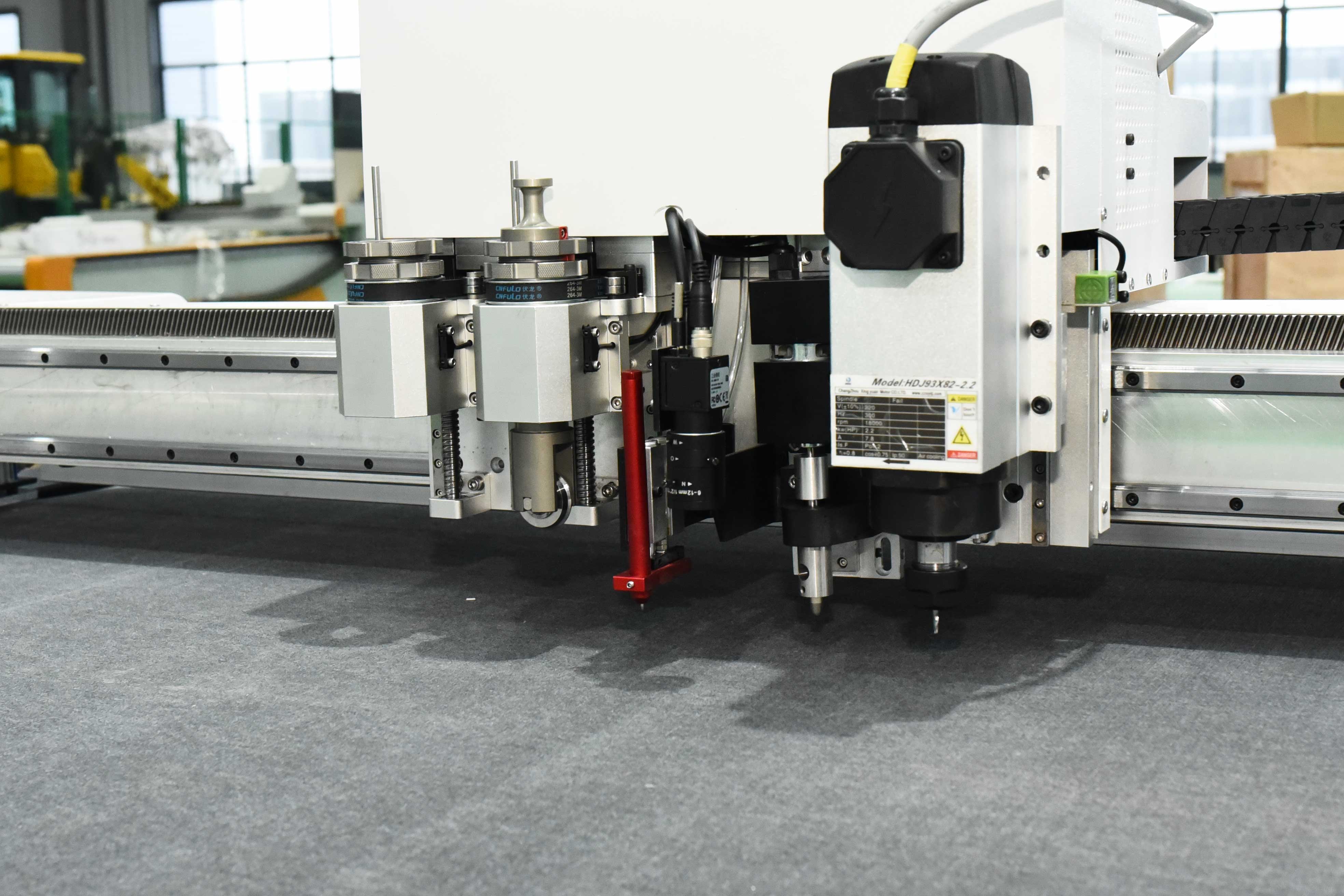

New modular tool design

Installing tools is much easier. For different cutting materials, suitable cutter heads can be selected for intelligent cutting.

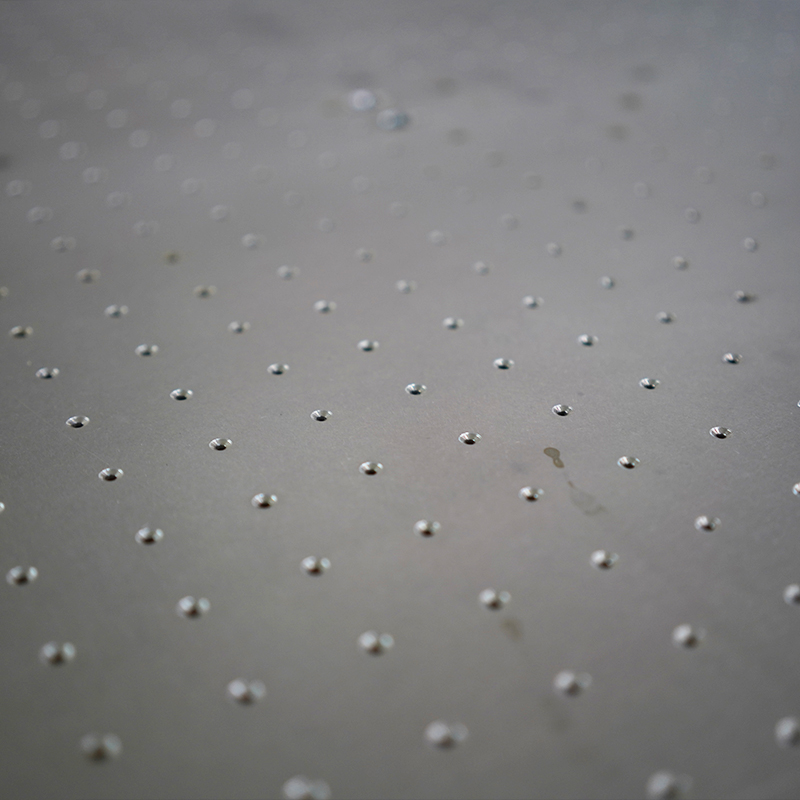

Aviation-grade aluminum profile tabletop

The newly upgraded internal air suction structure ensures uniform air suction in all areas of the platform, more powerful air suction, and smooth cutting.

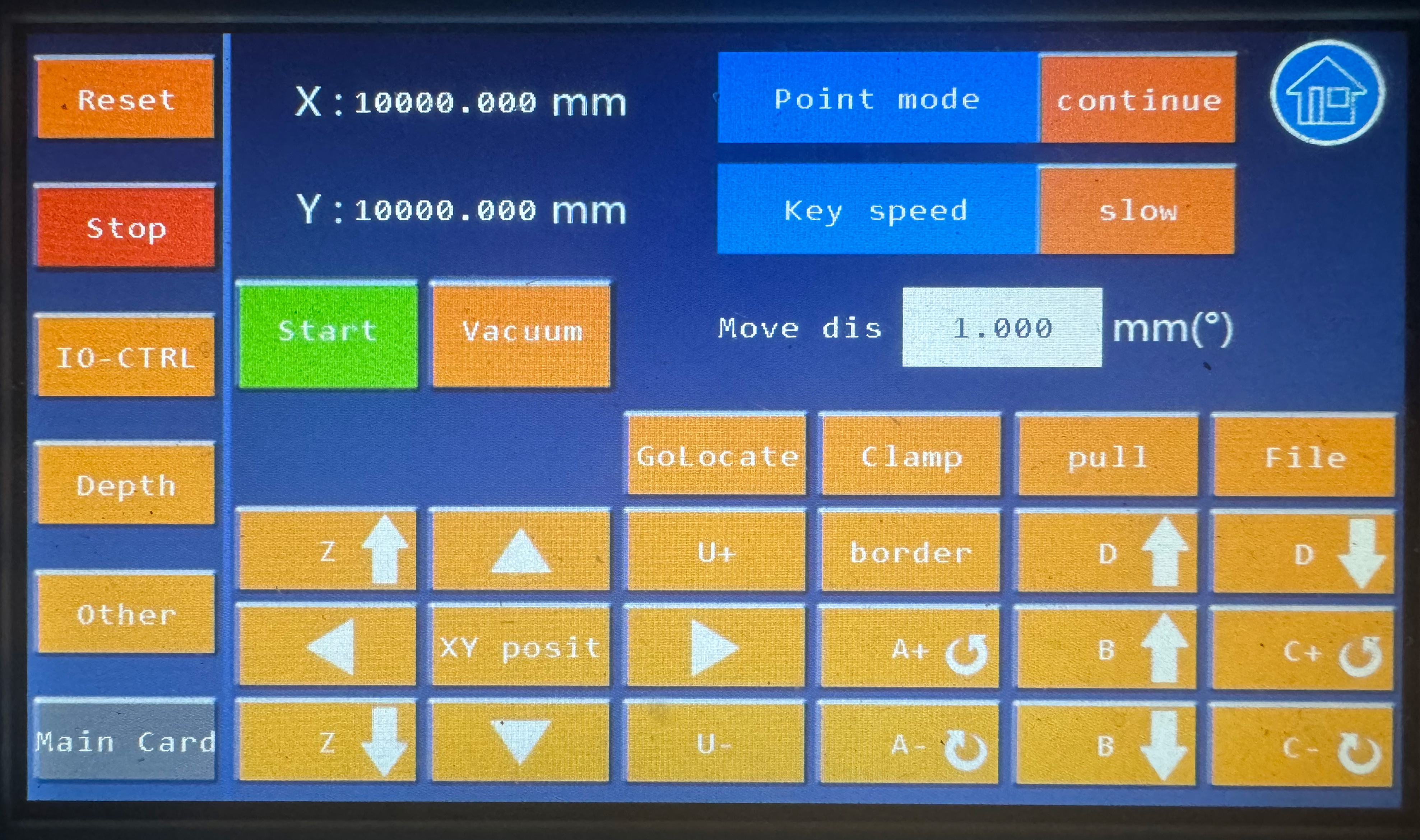

Intelligent CNC control system

Upload the design drawings to the CNC machine's control system, configure cutting parameters according to different materials, support global multi-language operation, and lifetime free system upgrades.

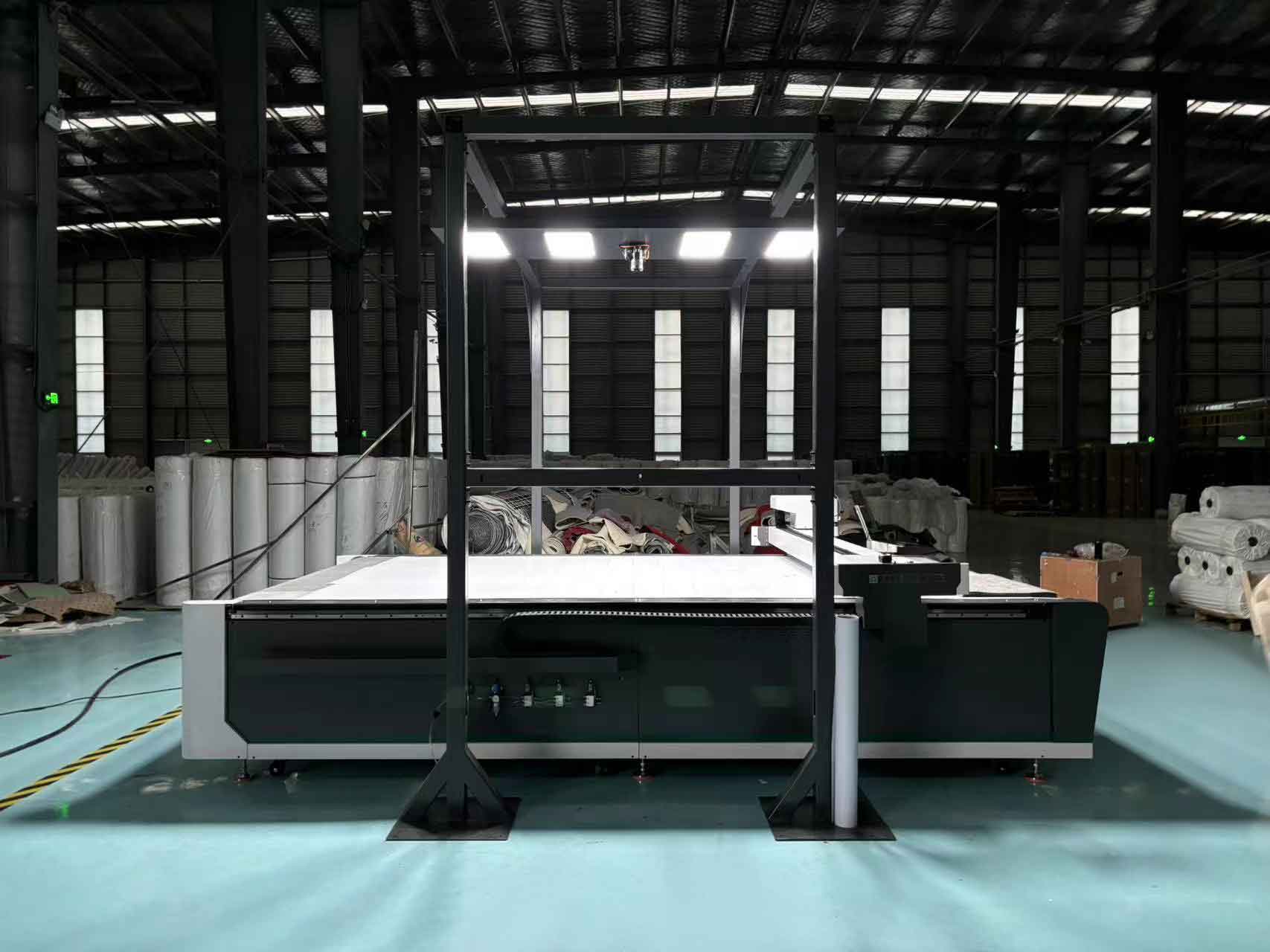

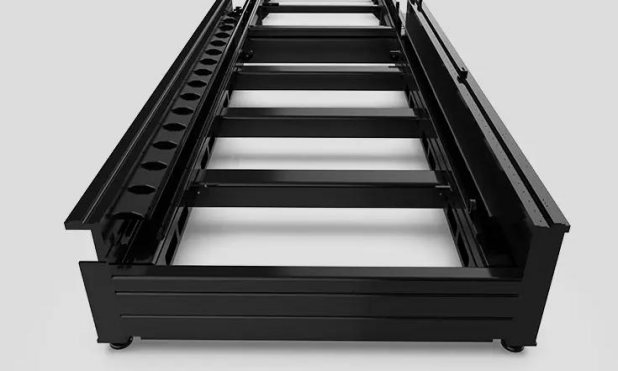

Lathe bed structure

The high-strength integrated frame is processed by imported milling machines to ensure the smoothness of the guide rail, greatly improving the stability and accuracy of the cutting process.

Premium Components & Systems

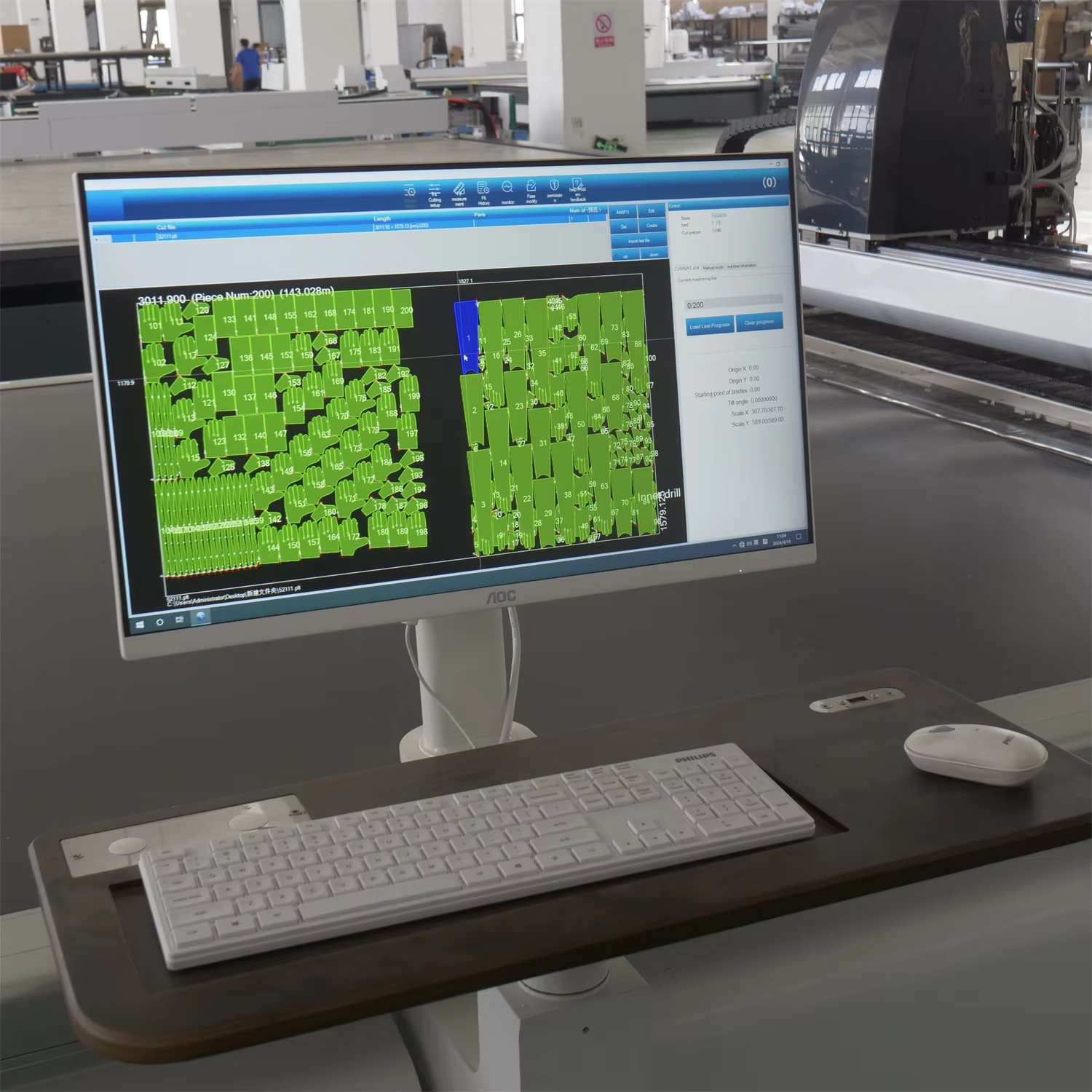

Professional CAD/CAM software, efficient material layout, easy operation, labor-saving, enjoy free upgrades and lifelong training.

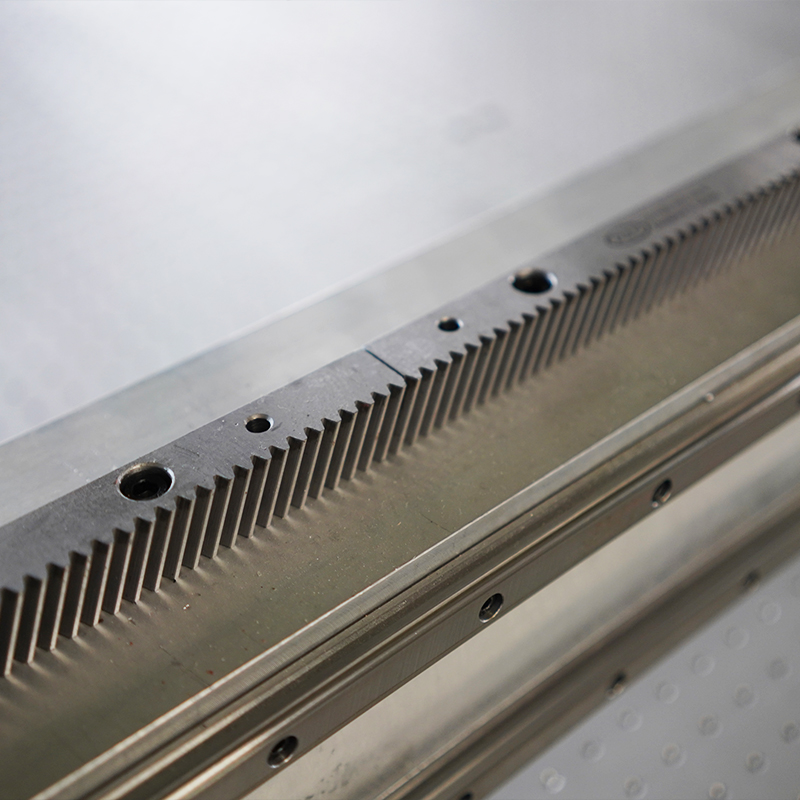

The equipment adopts rack and pinion transmission compared with belt transmission, which has large bearing capacity, high transmission accuracy, fast transmission speed and long service life.

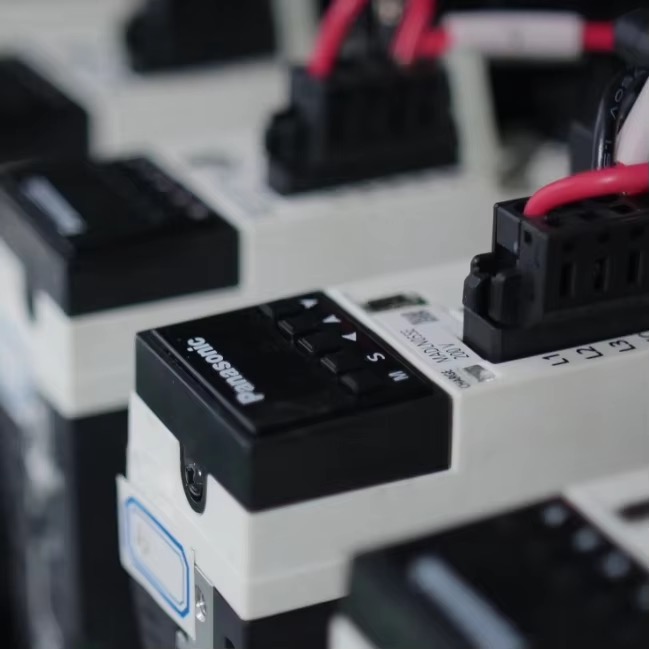

Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.

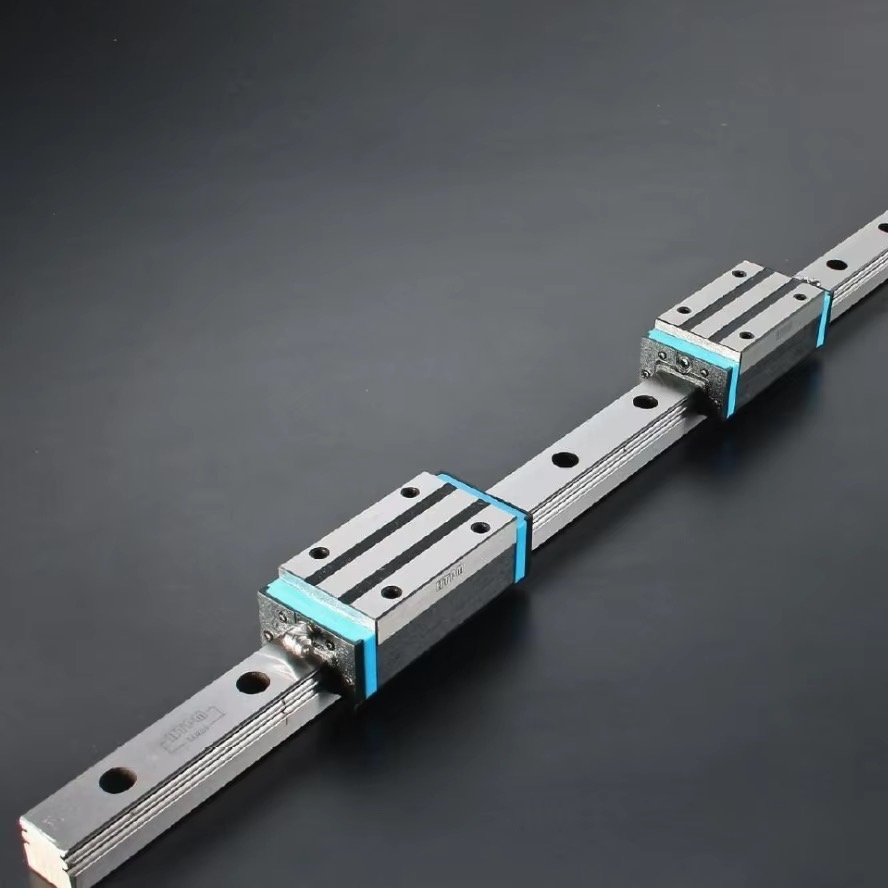

China Taiwan's HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.

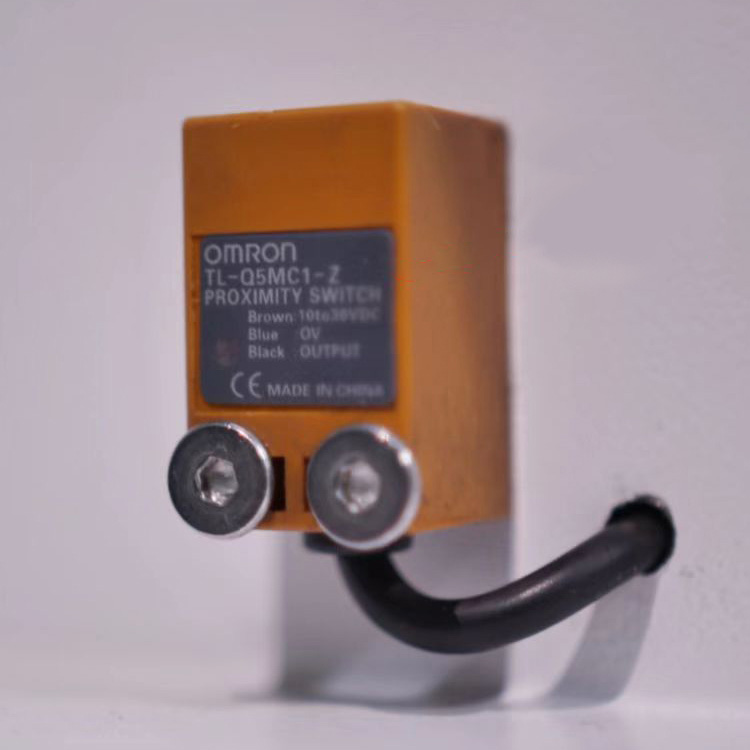

All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc., stable and durable, and all enjoy quality assurance.

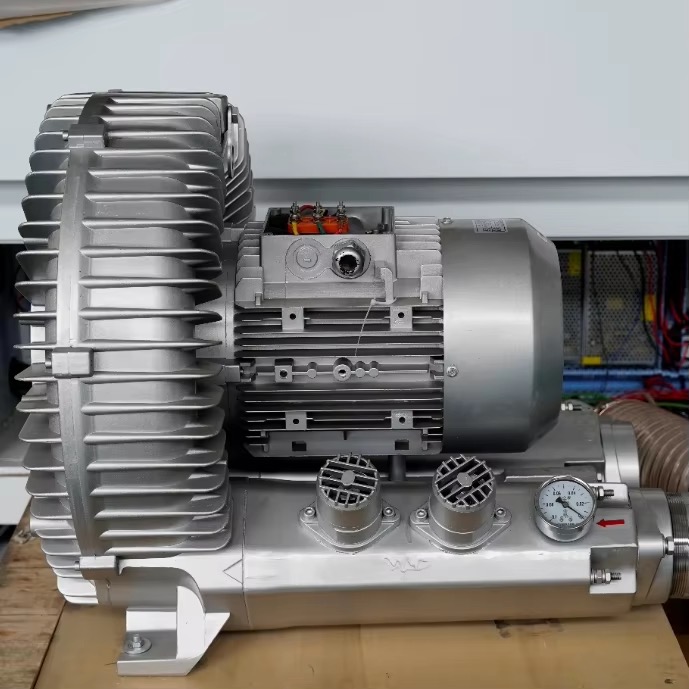

High efficiency max 11KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.

Why Choose Us

What kind of support you can get:

3 year warranty: Provide a full range of technical support for life.
7 * 24-hour support: Experienced technicians guarantee lifetime online support (via instant messaging and video conference). We have enough after-sales staff, so there is no need to worry about technical support caused by time difference.
Local on-site installation and engineer training, with about 60G of after-sales installation videos provided.

Customer Photos

Packaging & Shipping

Outside package: Standard marine export plywood case.
Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.

Frequently Asked Questions

Are you a factory or trading company?

We are a factory specializing in the production of cutting machines, and we have extensive industry expertise. Each of our machines comes with a comprehensive machine manual and software manual. We provide 24-hour online technical support and maintain a database of installation and after-sales videos to ensure your machine runs smoothly.

Do you accept customized products?

Yes, our vibratory knife cutting machines are stable, reliable, and can be customized to match your specific requirements and sizes. They are top-rated and best-selling worldwide.

Do you have agents or distributors in our country?

We have active users all over the world and are always looking to partner with qualified agents. If you are interested in becoming our distributor, please feel free to reach out to receive our special agent pricing.

What is the delivery process of the machine?

You can choose to transport your machinery by air, sea, or land. We will plan the most efficient and suitable transportation method for you based on your requirements and budget.

What information is needed to recommend the most suitable machine?

To recommend the best machine for your needs, we would need to confirm:
1. The maximum width, length, and cutting thickness of your material.
2. The specific types of materials you want to cut.
3. Any other specific cutting details or requirements you have.

How is technical support provided?

We offer lifetime technical support, including a 3-year warranty, 24/7 online technical assistance via messaging/video calls, and a resource package of over 60G of detailed installation and troubleshooting videos.
